USER MANUAL CADJ-3 Vollrath

SpringLoadedIn-CounterCupDispenser

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleaseread carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

TOOLSYOUWILLNEED

• 2PhillipsScrewdriver

  •Drill
  •1/8"DrillBit(For#29PilotHole)
  •SabreSaworHandRouter
• 3#8x1.00"PanHeadPhillipsScrews(included)

CHOOSE THECORRECTSPRING

Thedispenserincludestwospringsfordifferentapplications.Seethe chartbelow. Thelighterweightdispenserisfactoryinstalled.See "ChangeDefaultSpring(Optional)"onpage3.

MountingDispensingUseThisSpring
Vertical	PaperorPlasticHeavierWeight
	FoamLighterWeight
HorizontalPaper,PlasticorFoam LighterWeight
Angled	PaperorPlasticHeavierWeight
	FoamLighterWeight

Metal mechanical component with a cylindrical shaft and circular top (no text or symbols visible)

ItemNo.	ForCupRimDiameter	CutoutDiameter
CADJ-1	212 - 312" (6.4 – 8.9 cm)	4 (10.2)
CADJ-2	3 - 378" (7.6 – 9.8 cm)	412 (11.4)
CADJ-3	3 - 458" (7.6 – 11.7 cm)	514 (13.3)
CADJ-4	412 - 514" (11.4 – 13.3 cm)	534 (14.6)

INSTALLATION

MounttheDispenser

1. Cut the appropriate diameter opening in themountingsurface.

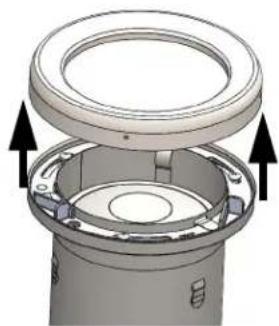

2. Liftthebezeltoremoveitfromthetubetorevelthemountingholes and thecomponentsthatcanbeadjustedtoaccommodatedifferent cupdiameters.

3D diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

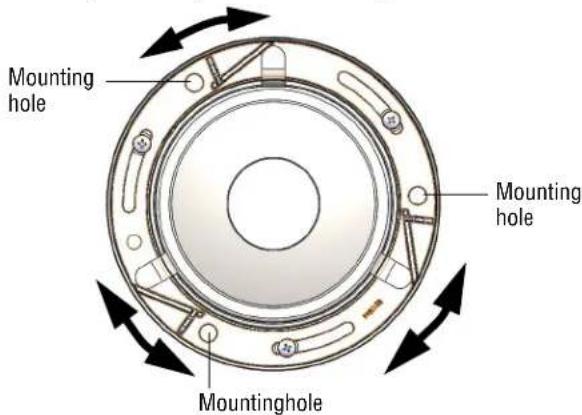

1. Rotatetheadjustmentringtorevealthemountingholes.

Mounting hole Mounting hole Mountinghole

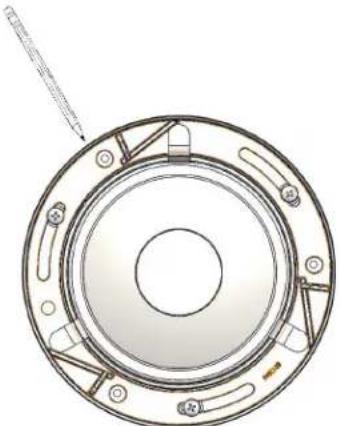

1. Placethetubeintothecutmountinghole.Markthemountinghole locations.

Technical line drawing of a circular mechanical component with mounting holes and a pointer (no text or symbols)

1. Removethedispenserfromthemountinghole.

2. Pre-drillpilotthepilotholes. Vollrathsuggestsa ^1/8 " (0.125) diameterpilotholediameterof ^1/8 " (0.125).

Line drawing of a handheld electric drill (no text or symbols)

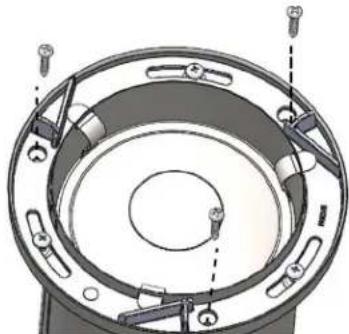

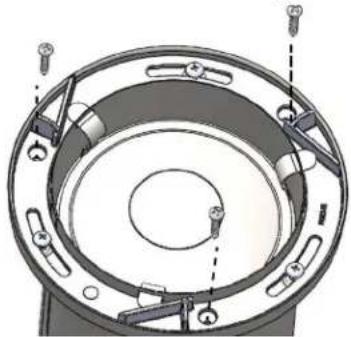

1. Insert the dispenser into the cutouthole and align themounting hole to the pre-drilled holes.

2. Insert the included screws into themounting holes. Tightensnuggly.

Technical diagram of a mechanical component with concentric rings and mounting features (no text or symbols)

ADJUSTDIAMETERTOFITCUPS

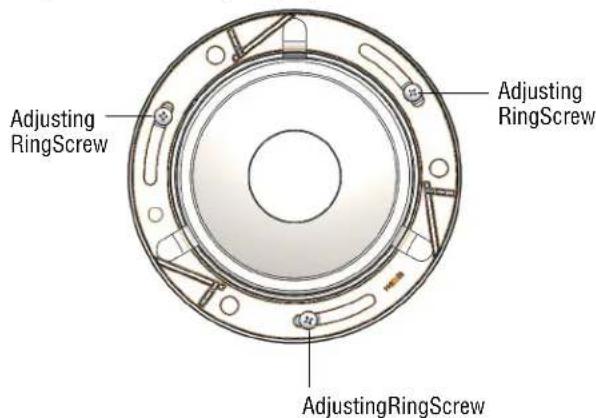

1. Loosen, but donot remove adjusting rings screws.

Adjusting RingScrew Adjusting RingScrew Adjusting RingScrew

1. Rotatetheadjustingringtowidentheopening.

Diagram of a circular mechanical component with directional arrows indicating rotation or force (no text or symbols)

1. Insertashortstackofcupsintothedispenser.

3D mechanical component diagram showing a cylindrical top with flange and mounting brackets (no text or symbols)

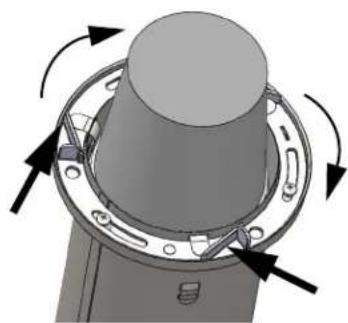

1. Rotatetheadjustingringuntilthecupsareheldinplace.

Mechanical component diagram showing a rotating assembly with arrows indicating rotation direction (no text or symbols)

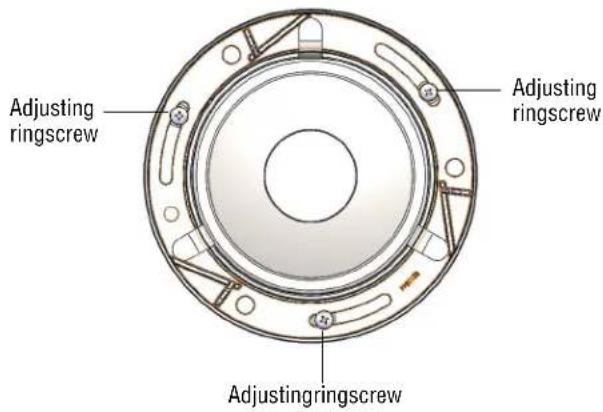

1. Lightlytightenoneoftheadjustingringscrewstoholdtheringin place.

Adjusting ringscrew Adjusting ringscrew Adjusting ringscrew

TESTTHEDISPENSER

1. Testthedispenserbypullingacupfromthetube.
2. Rotatetheadjustmentringasnecessarytoachieveone-at-timecup dispensingwithminimumdrag.
3. Fillthedispenserwithafullstackofcupsandretestthe performance.Adjusttheringasnecessary.
4. Tightenthethreeadjustingringscrews.Donotover-tighten.
5. Re-attachthebezeltothedispenser. Notethebezeldoesnotneedto beremovedtorefillcups.

CLEANING

NOTICE: Donotuseabrasivematerials, scratchingcleansersor scouringpadtocleantheunit. Thesecandamagethe finish.

Cleanthedispenseronaregularbasis.

1.Removethebezel.
2. Removeallofthecups.
3.Pushplateandspringdown.
4. While holding down the plate, wipethe interior with asoft cloth dampcloth.
5. Drytheinteriorwithasoftcloth.
6.Reinstallthebezel.

CHANGEDDEFAULTSPRING(OPTIONAL)

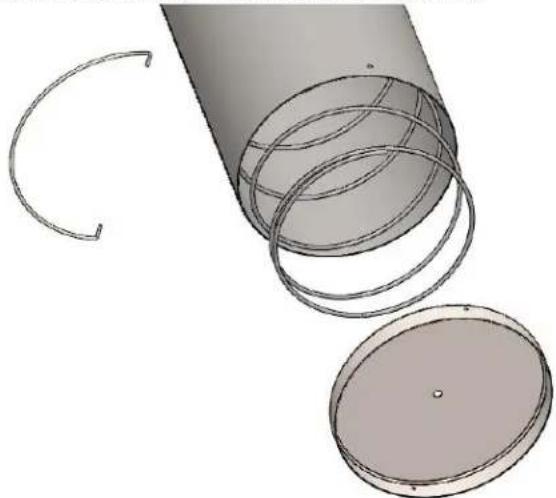

1. Pullofftheretainingringfromthebottomthedispenser.Remove theendcap.

NOTICE: Noticethecapisunderpressurefromthespring.

3D illustration of a cylindrical pipe with a circular cross-section showing internal structure (no text or symbols)

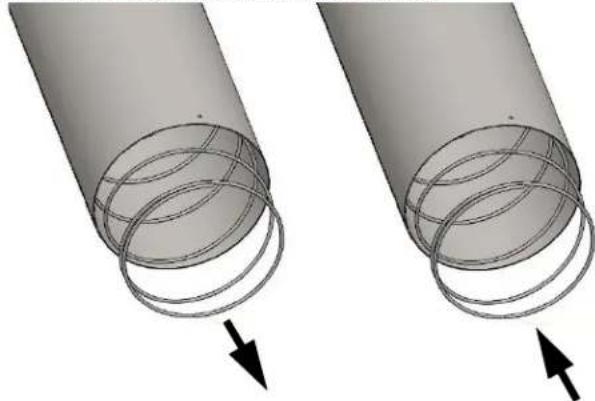

1. Removethespringandinserttheheavierweightspring.

Two 3D illustrations of coiled cylindrical pipes with arrows indicating direction (no text or symbols)

1. Align the holes in the tubetothose in the end cap. Reinstall the end cap and retaining ring.

3D rendering of a cylindrical mechanical part with flanged ends and a central circular feature (no text or symbols)

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcomplete warranty information, product registration and new product announcement, visit www.vollrath.com.

Outperform every day."

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan.WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

AllOtherProducts:800.628.0832

Metal mechanical component with a circular top and central hole (no text or symbols visible)

Num.d'art.Diamètreduborddugobelet	Diamètrede découpe
CADJ-1	212 - 312" (6,4 – 8,9 cm)	4 (10,2)
CADJ-2	3 - 378" (7,6 – 9,8 cm)	412 (11,4)
CADJ-3	3 - 458" (7,6 – 11,7 cm)	514 (13,3)
CADJ-4	412 - 514" (11,4 – 13,3 cm)	534 (14,6)

INSTALLATION

3D mechanical assembly diagram showing a cylindrical component with mounting flanges and internal components (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and a pointer (no text or symbols)

5.Retirezledistributeurdutroudefixation.

1. Pré-percezlestrousdeguidage. Vollrathsuggèreundiamètrede troudeguidagede ^1/8 (0,125).

Line drawing of a handheld electric drill with a base (no text or symbols)

1. Insérezledistributeurdansletroudécoupéetalignezlestrousde fixationsurlestrouspré-percés.

2. Insérezlesvisinclusesdanslestrousdefixation. Serrezjustece qu'ilfaut.

Technical diagram of a mechanical component with concentric rings and mounting features (no text or symbols)

RÉGLAGEDUDIAMÈTREÀLATAILLE DESGOBELETS

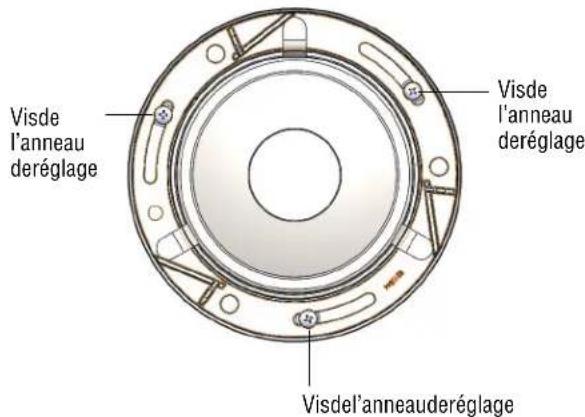

1. Desserrezlesvisdel'anneauderéglagesanslesretirer.

Visde l'anneau deréglage Visde l'anneau deréglage Visdel'anneauderéglage

Diagram of a circular mechanical component with directional arrows indicating rotation or movement (no text or symbols)

1. Insérezunepetitepiledegobeletsdansledistributeur.

3D mechanical component diagram showing a cylindrical top with flange and mounting brackets (no text or symbols)

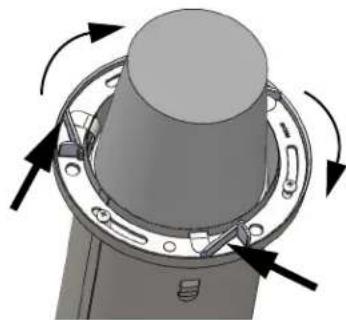

1. Tournezl'anneauderéglagejusqu'àcequelesgobeletssoientbien enplace.

Mechanical component diagram showing a rotating knob and flange assembly (no text or symbols)

REMPLACEMENTDURESSORTPARDÉFAUT (ENOPTION)

1. Retirezl'anneaudeblocageparlebasdudsitributeur. Retirezle capuchon. AVIS: Notezquelecapuchonestsouslapressionduressort.

3D illustration of a cylindrical pipe with a circular cross-section showing internal structure (no text or symbols)

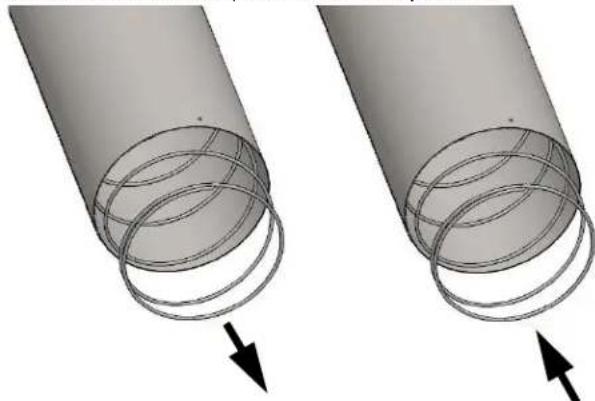

1. Retirezleressortetinsérezàlaplaceleressortàfortepression.

Two 3D illustrations of coiled cylindrical pipes with internal wire structures, showing curved and straight ends (no text or symbols)

1. Alignezlestrousdansletubesurceuxducapuchon. Réinstallezle capuchonetl'anneaudeblocage.

3D rendering of a cylindrical mechanical part with flanged ends and a central circular opening (no text or symbols)

SAVETRÉPARATIONS

Outperform every day."

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Standard:800.624.2051ou920.457.4851

Télécopieur:800.752.5620ou920.459.6573

Serviceclientèle:800.628.0830

ServiceclientèleCanada:800.695.8560

Servicestechniques

[e-mail]

Metal mechanical component with a circular top and central hole (no text or symbols visible)

Núm.de artículo	Paravasoscondiámetro dereborde	Diámetrodecorte
CADJ-1	2 12 - 3 12 " (6,4 - 8,9 cm)	4 (10,2)
CADJ-2	3 - 3 78 "(7,6 - 9,8 cm)	4 12 (11,4)
CADJ-3	3 - 4 58 " (7,6 - 11,7 cm)	5 14 (13,3)
CADJ-4	4 12 - 5 14 " (11,4 - 13,3 cm)	5 34 (14,6)

INSTALACIÓN

Monteeldispensador

3D diagram of a mechanical component with internal parts and arrows indicating assembly (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and a pointer (no text or symbols)

Line drawing of a drill bit with screwdriver and base mount (no text or symbols)

Technical diagram of a mechanical component with concentric rings and mounting holes (no text or symbols)

AJUSTEELDIÁMETROPARAADAPTARLOSVASOS

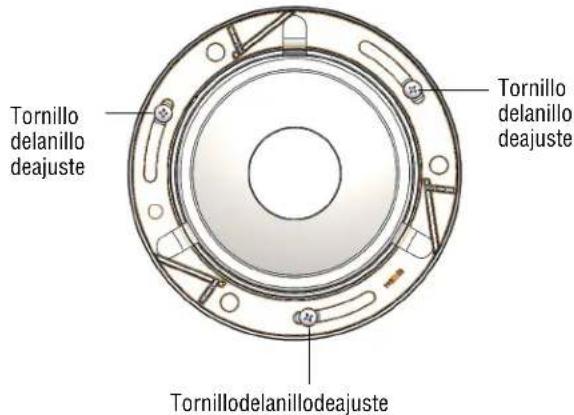

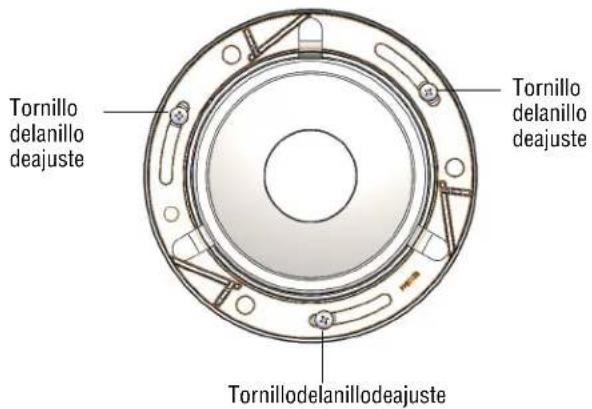

1. Afloje, peronoretire, lostornillosdelanillodeajuste.

Tornillo delanillo deajuste Tornillo delanillo deajuste Tornillodelanillodeajuste

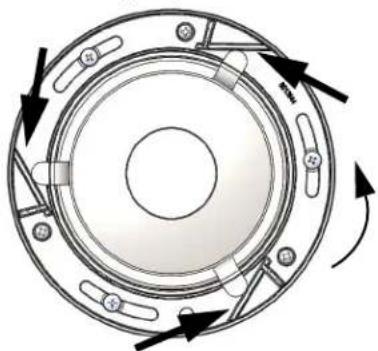

1. Gireelanillodeajusteparaensancharlaabertura.

Diagram of a circular mechanical component with directional arrows indicating rotation or movement (no text or symbols)

1. Inserteunapequeñapiladevasoseneldispensador.

3D mechanical component diagram showing a conical top and flanged base with mounting holes (no text or symbols)

Mechanical component diagram showing a cylindrical top with flanged base and rotating arrows indicating rotation (no text or symbols)

1. Aprietelevemente unodelostornillosdelanillodeajustepara sujetarelanilloensulugar.

Tornillo delanillo deajuste Tornillo delanillo deajuste Tornillodelanillodeajuste

PRUEBEELDISPENSADOR

3D diagram of a cylindrical pipe with a circular cross-section, showing internal structure and a separate circular base (no text or symbols)

Two 3D illustrations of a coiled cylindrical pipe with internal wire routing, showing curved and straight ends (no text or symbols)

3D rendering of a cylindrical mechanical part with flanged ends and a central circular feature (no text or symbols)

SERVICIOYREPARACIÓN

Outperform every day."

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet
