Product Type	Professional Digital Two-Way Radio
Brand	Motorola
Model	MOTOTRBO XPR 7000e
Power Supply	Rechargeable Lithium-Ion battery (initial charge of 14 to 16 hours)
Weight (with standard battery)	Approximately 300 g
Dimensions (H x W x D)	Approximately 130 x 60 x 40 mm
Display	LCD screen with status icons
Buttons and controls	Power/Volume button, channel selector, PTT key, 3 programmable side buttons, 2 programmable front buttons, emergency button, keypad, four-way navigation, Menu/OK key, Back/Home key
LED indicator	Multicolor LED (red, green, yellow) with various blinks to indicate status
Accessory connector	Universal accessory connector
Microphone and speaker	Integrated microphone and integrated speaker
Antenna	Removable antenna, type approved by Motorola Solutions
Main functions	Two-way communication, channel selection, emergency transmission, scanning, mute mode, channel monitoring, roaming, data
Safety	Compliant with radio frequency (RF) exposure standards. Read safety guide before use.
Maintenance and cleaning	Clean with a soft, slightly damp cloth. Do not use solvents or abrasive cleaners.
Spare parts and repairability	Battery, antenna, accessories available from Motorola Solutions.
Box contents	Radio, battery, antenna, quick reference guide
Certifications	Compliant with Industry Canada and FCC (United States) regulations

Frequently Asked Questions - MOTOTRBO XPR 7000e MOTOROLA

How to turn on the radio?

Rotate the Power/Volume button clockwise until you hear a click.

How to adjust the volume?

Rotate the Power/Volume button clockwise to increase or counterclockwise to decrease.

How to install the battery?

Align the battery with the grooves on the back of the radio, push it upward until the latch clicks, then lock the latch.

How to charge a new battery?

Charge any new battery for 14 to 16 hours before first use for optimal performance.

What does a flashing red LED mean?

A flashing red LED indicates that the radio failed the power-on self-test, is out of range, is in Mute mode, receives an emergency transmission, transmits with low battery, or has a battery mismatch.

What does a solid green LED mean?

A solid green LED indicates that the radio is on, transmitting, sending a call alert, or performing an emergency transmission.

How to use the PTT key?

Press and hold the Push to Talk (PTT) key to speak, then release it to listen.

Can I use a different antenna?

Only use an antenna approved by Motorola Solutions with the appropriate type and gain to comply with RF exposure standards.

How to clean the radio?

Clean the radio with a soft, slightly damp cloth. Do not use solvents, chemicals, or abrasive cleaners.

Where to find the full user guide?

The full user guide is document MN008328A01, available online on the Motorola Solutions website.

USER MANUAL MOTOTRBO XPR 7000e MOTOROLA

Two black motorwatches with visible signal antennas and a display screen (no text or symbols on the devices themselves)

DECEMBER 2023

© 2023 Motorola Solutions, Inc. All rights reserved.

MN002329A01-AE

Your Quick Reference Guide

This Quick Reference Guide covers the basic operation of the radio. Check with your dealer or system administrator because your radio may have been customized for your specific needs.

For more operational details and information, refer to the following User Guide:

User Guide MN008328A01

Important Safety Information

RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios

Product Safety and RF Exposure Compliance

CAUTION: Before using this product, read the operating instructions for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio.

ATTENTION!

This radio is restricted to Occupational use only. Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. Any modification to this device, not expressly authorized by Motorola Solutions, may void the user's authority to operate this device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter has been approved by Industry Canada to operate with Motorola Solutions-approved antenna with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Computer Software Copyrights

The Motorola Solutions products described in this manual may include copyrighted Motorola Solutions computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program.

Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola Solutions. Furthermore, the purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product.

English

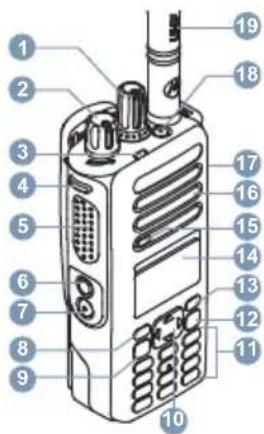

Radio Controls

1. Channel Selector Knob

2. On/Off/V olume Control Knob

3. LED Indicator

4. Programmable Side Button 1

5. Push-to-Talk (PTT) Button

6. Programmable Side Button 2

7. Programmable Side Button 3

8. Programmable Front Button P1 1

9. Menu/OK Button 1

10. 4-Way Navigation Button ^1

11. Keypad

12. Back/Home Button ^1

13. Programmable Front Button P2 ^1

14. Display 1

15. Microphone

16. Speaker

17. Universal Connector for Accessories

18. Programmable Emergency Button

19. Antenna

Attaching the Battery

NOTE:

For optimal performance, charge a new battery 14 to 16 hours before initial use.

1. Align the battery with the rails on the back of the radio.
2. Slide the battery upwards until the latch snaps into place.
3. Lock the battery latch.

Attaching the Antenna

Turn off the radio.

Turning the Radio On and Off

Rotate the On/Off/Volume Control Knob clockwise or counterclockwise until a click sounds.

Adjusting the Volume

Rotate the On/Off/Volume Control Knob clockwise or counterclockwise.

LED Indicators

Blinking Red

Radio has failed the self-test upon powering up, has moved out of range if Auto-Range Transponder System is configured, has Mute mode enabled, is receiving an emergency transmission, is transmitting in low battery state, or is indicating a battery mismatch.

Solid Green

Radio is powering up, transmitting, or sending a Call Alert or an emergency transmission.

Blinking Green

Radio is receiving a call or data, detecting activity over the air, or retrieving Over-the-Air Programming transmissions.

Double Blinking Green

Radio is receiving a privacy-enabled call or data.

Solid Yellow

Radio is monitoring a conventional channel or in Bluetooth Discoverable Mode.

Blinking Yellow

Radio is scanning for activity, has Flexible Receive List enabled, has yet to respond to a Call Alert, or all Capacity Plus-Multi-Site channels are busy.

English

Double Blinking Yellow

Radio has Auto Roaming enabled, has yet to respond to a Group Call Alert, is actively searching for a new site, is not connected to the repeater while in Capacity Plus, is locked, or all Capacity Plus channels are busy.

Display Icons

The following icons appear on the status bar at the top of the radio display. The icons are arranged left most in order of appearance or usage, and are channel-specific.

Emergency

Scan ^2

High Volume Data

Mute Mode

Tones Disabled

Ring Only

Vibrate and Ring

Notification

Secure

Unsecure

Site Roaming

Option Board

Power Level

Sign In

Sign Out
