OWNER'S MANUAL

DISHWASHER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. This abridged owner's manual addresses user safety, precautions, and installation information.

To view the complete owner's manual, you may:

1. Online manual: Visit the LG website at: http://gscs-manual.lge.com/Total/HQ/GatewayPage/main.html or scan the QR code above; or
2. Printable PDF manual: Visit lg.com and search for your model number; or
3. Call or write to customer service as provided in your Limited Warranty.

ENGLISH

LDNTH862*, LDNTH753*, LDNPH753*, LDNTM545*, LDNPM545*

MFL69261767

Rev.00_051925

www.lg.com

Copyright © 2025 LG Electronics. All Rights Reserved

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

50 USA

54 CANADA

3 READ ALL INSTRUCTIONS BEFORE USE

3 WARNING STATEMENTS

6 CAUTION STATEMENTS

8 PRODUCT OVERVIEW

8 Product Features

11 INSTALLATION

11 Before Installing

13 Preparing Cabinet Opening

14 Preparing Water and Electrical Connections

15 Preparing Dishwasher

16 Attaching Installation Brackets

17 Sliding Dishwasher into Cabinet Opening

19 Connecting Water Supply Line and Power

21 Connecting the Drain Hose

22 Leveling Dishwasher

23 Securing Dishwasher in Cabinet Opening

25 Final Installation Check

28 OPERATION

28 Before Using

29 Control Panel

30 Wash Cycles

31 Options and Extra Functions

34 Loading the Dishwasher

34 Loading the Silverware Basket

35 Loading the Lower Rack

35 Loading the Upper Rack

36 Loading the Cutlery Rack

37 Adding Cleaning Products

39 SMART FUNCTIONS

39 LG ThinQ Application

43 MAINTENANCE

43 Cleaning and Care

47 TROUBLESHOOTING

47 Before Calling for Service

50 LIMITED WARRANTY

Pure geometric diagram with intersecting lines and circles, no text or symbols present

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

Installation

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
  • To reduce the risk of severe injury or death, follow all installation instructions.
• The appliance must be installed and electrically grounded by qualified service personnel in accordance with local codes.
• Disconnect the power supply line, house fuse or circuit breaker before installing or servicing the appliance.
• When moving or installing the product in a different location, call qualified service personnel for installation and service.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children. There is a risk of suffocation.
• Moving or installation of the appliance requires two or more people.
• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.
• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.
• This appliance must be positioned near to an electrical power supply.
• Do not, under any circumstances, cut or remove the ground from the power supply line.

4 IMPORTANT SAFETY INSTRUCTIONS

• When installing or moving the appliance, be careful not to pinch, crush, or damage the power supply line.
• Do not install the appliance in humid spaces.
• Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged power supply line.
• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.
• The installer must ensure that the dishwasher is completely enclosed at the time of installation.
• Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.
  • After installing, check the hose connection for leaks.
• Do not damage or place heavy items on the power supply line of the appliance.

Operation

D. _1 is a direct solution that has been found on the solution, and

not use a power supply line that shows cracks or abrasion damage along its length or at either end.

- If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics customer information center.

- Never unplug the appliance by pulling on the power supply line.

- Do not use an extension cable or adapter with this appliance.

- Do not grasp the power supply line or touch the appliance controls with wet hands.

- Do not modify or extend the power cable.

- If the product has been submerged, contact an LG Electronics customer information center for instructions before resuming use.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- If the electrical supply line is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

- Do not abuse, sit on, or stand on the door of the appliance.

- Read all instructions before using the appliance and save these instructions.

- Use this appliance only for its intended purpose.

- Do not allow children to play on, in or with the appliance. Close supervision of children is necessary when the appliance is used near children.

- Do not tamper with controls.

- In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a window or door to ventilate the area immediately.

- Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the appliance turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Fix the drain hose securely in place.
- Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
- Do not let children eat detergent or dishwasher rinse agent.
- When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cuts or other injuries.
- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
- Do not touch the HEATING ELEMENT during or immediately after use.
- Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
- Do not install or store the dishwasher where it will be exposed to weather conditions.
• After cleaning the dishes, turn off the water supply. Before cleaning, turn the water supply back on and check the connections.
- Do not open the appliance door while it is operating. For safety reasons, the drain pump operates if the door is opened, resulting in a longer cycle time.
- Be careful not to catch your hand when closing the door of the product.
- Do not plug the dishwasher into a damaged outlet.
- Do not install or keep the dishwasher near electrical components or exposed flames.
- Do not wash dishes exposed to gasoline, solvents or other flammable materials.
- When cleaning, do not spray water on the product directly.
- Do not press buttons with a sharp object such as an awl or pin.
- Do not use solvent-based detergent.
- Do not come into contact with the steam outlet.
- Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.
- Do not touch the heat dry blower during operation, as it is hot.

Maintenance

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner's Manual. Use only authorized factory parts.
• Do not disassemble or repair the appliance by yourself.
• Remove any dust or foreign matter from the power supply line.
• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.
• Remove the door before the appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside.
• Unplug the appliance before cleaning to avoid the risk of electric shock.
• Before discarding the appliance, cut off the power supply line and destroy the appliance's control panel.

Grounding Instructions

- For a permanently connected dishwasher: This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead to the appliance.

6 IMPORTANT SAFETY INSTRUCTIONS

• Connect the ground wire to the green ground connector in the terminal box.
• For a cord connected dishwasher: This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Tip Over Hazard

• Do not use the dishwasher until completely installed.
• Do not push down on the open dishwasher door.
• Failure to follow these instructions may result in serious injury or cuts.

CAUTION STATEMENTS

CAUTION

- To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Install the product on a firm and level floor.
- This dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. The temperature should not exceed 149°F (65 °C) to prevent damage to dishes.
- Do not put the drain hose under the dishwasher during installation.
- Do not turn the dishwasher upside down. Doing so can damage the product.

• Follow these instructions

a) The power-supply receptacle for the appliance must be installed in a cabinet or on a wall adjacent to the undercounter space in which the appliance is to be installed;
b) There must be an opening through the partition between the compartments specified in (a) that is large enough for the attachment plug to pass through. The longest dimension of the opening must not be more than 38 mm (1.5 in);
c) The edges of the opening specified in (b) must, if the partition is wood, be smooth and rounded, or, if the partition is metal, be covered with an edge protector; and
d) Care must be exercised, when the appliance is installed or removed, to reduce the likelihood of damage to the power-supply cord.

- If the power supply cord, water supply hose, or drain hose is passed through an opening in a metal cabinet, the edges of the opening must be covered by an edge protector to avoid risk of electric shock, leaking, or fire. 1 1/2" (38.1 mm) plastic or rubber wire grommets can be purchased online or at a local hardware store for this purpose. For further details, call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) or 1-888-542-2623 (Canada).

Operation

• Do not place objects on top of the appliance.
• Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended period of time, such as during vacations.
• Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.
• Do not touch draining water which may be hot.
• If the drain hose and the water supply hose are frozen in winter, defrost before using the appliance.
• Do not put hands, feet, or metal objects below or behind the appliance.
• Do not put the drain hose under the dishwasher during installation.

Maintenance

• If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance.
• Aromatic hydrocarbons such as benzene can damage the surface of the product. These compounds are found in many common household products such as detergents, paints, cosmetics, air fresheners, disinfectants, and even some foods such as oils, spices, and smoked meat or fish. Regularly wipe down the control panel and other outside surfaces of the product with a clean, damp cloth to help prevent damage.

8 PRODUCT OVERVIEW

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

NOTE

• For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
• Do not remove the safety cover at any time.
  • To ensure reliability, each LG dishwasher goes through thorough quality control before it leaves the factory.
• You may find water droplets or water spots from this process inside your new dishwasher.

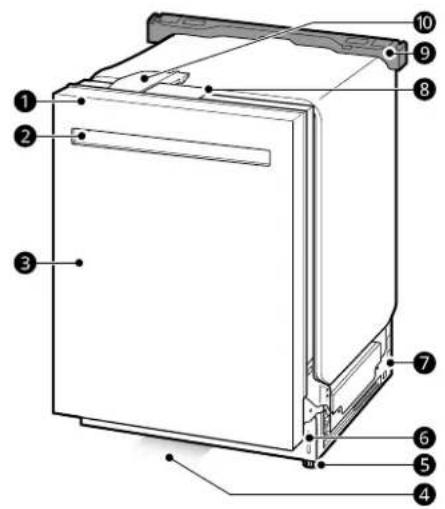

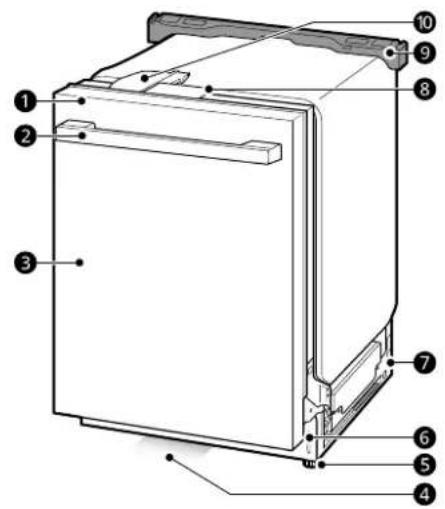

Front View

Technical diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification

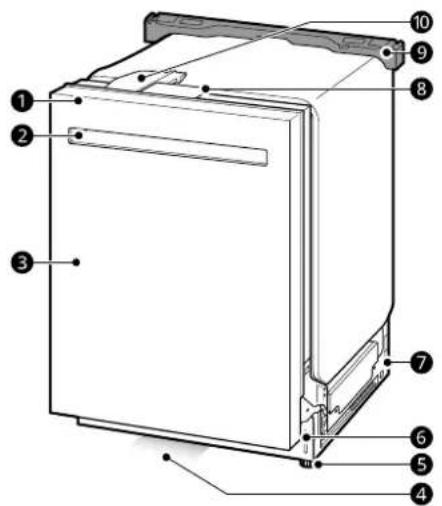

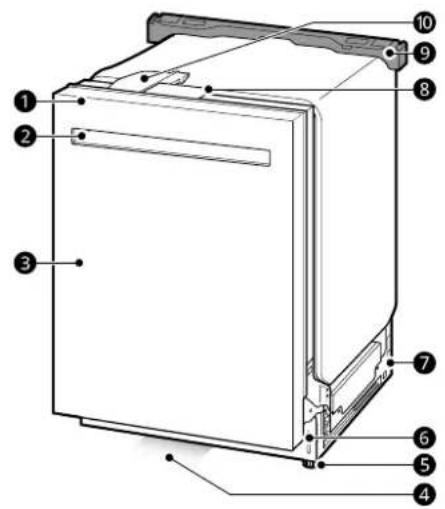

①Control Panel
②Door Handle
③Front Cover
④Status Indicator Light
⑤Leveling Feet
⑥ Lower Cover
⑦Base
⑧ Safety Cover
⑨ Shipping Brace
10 Auto Open Dry

①Control Panel
②Door Handle
③Front Cover
④Status Indicator Light
⑤Leveling Feet
⑥ Lower Cover
⑦Base
⑧ Safety Cover
⑨ Shipping Brace
10 Auto Open Dry

Status Indicator Light

The Status Indicator light at the bottom of the dishwasher shows the status of the appliance: whether it has encountered any problems, whether it is operating normally, or whether it is ready to wash dishes.

White LED

• Pulses when the cycle is running
- Remains on when the cycle is finished.
• Turns off when the door is opened.

Red LED

- Flashes if the appliance encounters an error. For more information about error codes, see the TROUBLESHOOTING section.

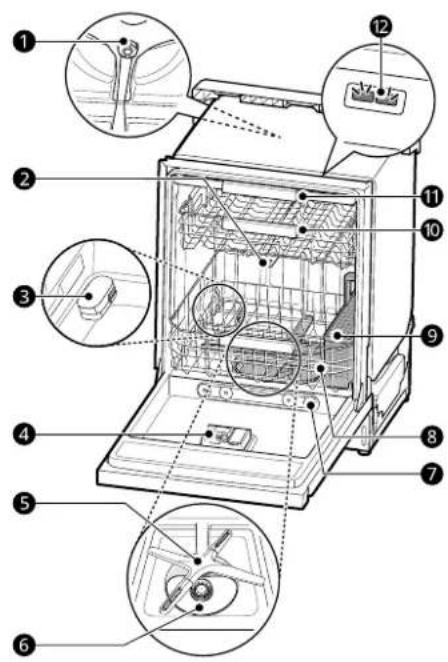

Interior View

Technical diagram of a dishwasher with numbered parts for identification and assembly reference.

①Top Wash Impeller

② Upper Spray Arm

③ Heat Dry Blower

④ Detergent and Rinse Aid Dispenser

⑤Lower Spray Arm

⑥ Filtration System

⑦Steam Nozzle

⑧ Lower Rack (appearance may vary)
⑨Silverware Basket
10 Upper Rack
⑪ Cutlery Rack
⑫Tub Light ^+

† This feature is only available on some models.

NOTE

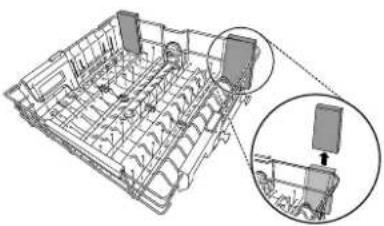

- Remove all packing materials from the exterior and interior of the dishwasher before installing the appliance.

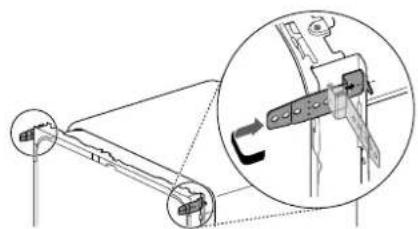

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

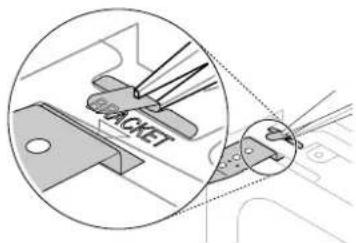

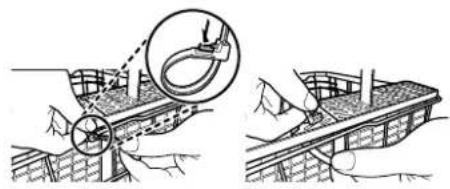

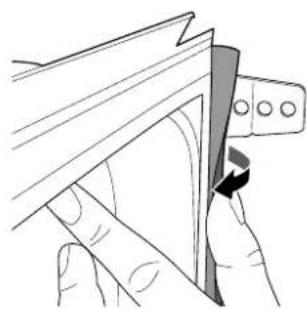

- Press the tab to remove the cable tie by hand. Cutting the tie with a knife or scissors may damage the rack or the silverware basket.

Illustration of a ship's gull and hull assembly, showing structural details without any text or symbols

Accessories

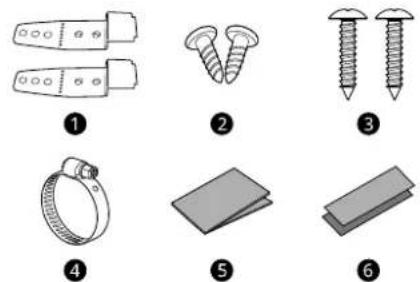

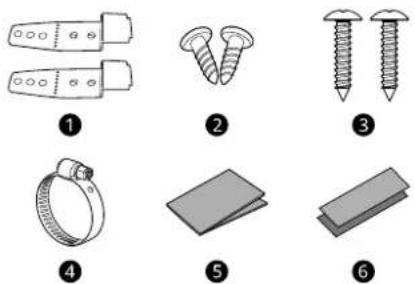

Six types of screw and clamp components labeled 1 to 6, including fasteners, screws, rings, and clamps (no text or symbols on parts)

①Installation Brackets: 2 EA
② Wood Screws (Φ 4.5 mm x 12 mm): 2 EA
③ Wood Screws (Φ 4 mm x 20 mm): 2 EA
④Hose Clamp: 1 EA

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

10 PRODUCT OVERVIEW

⑤Moisture Barrier for Top (Aluminum Tape): 1 EA
⑥ Moisture Barrier for Side (Aluminum Tape): 2 EA

NOTE

• Installation brackets, wood screws and hose clamp are inside the silverware basket.
- Moisture barrier tape is included in the manual assembly bag.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Model	LDNTH862*, LDNTH753*, LDNPH753*, LDNTM545*, LDNPM545*
Electrical Requirements	120 V, 60 Hz AC only, 15 A circuit breaker
Water Pressure 20 psi - 80 psi (140 kPa - 550 kPa)
Dimensions (Width X Height X Depth)	23 3/4" X 33 5/8" X 23 3/4" (603 mm X 854 mm X 603 mm )
Inlet Water Temperature	120 °F - 149 °F (49 °C - 65 °C)
Net Weight 77 lbs.	88 lbs. (35 kg - 40 kg)

INSTALLATION

Before Installing

Online Installation Guide

This QR code is for reference only. For complete installation instructions, see the owner's manual supplied with each dishwasher.

English (USA)

https://www.lg.com/us/support/video-tutorials/lg-dishwasher-installation-CT10000009-1366643457088

English (CANADA)

https://www.lg.com/ca_en/support/video-tutorials/CT20098058-1424294103269

French (CANADA)

https://www.lg.com/ca_fr/soutien/aide-produit/CT20100059-20152463332979

WARNING

- DISCLAIMER - This Guide is strictly confidential and shall not be copied, disclosed, distributed, disseminated, publicized or reproduced, in whole or in part, without the prior written authorization of LG Electronics.

The Guide may contain inaccuracies and/or typographical errors and may be changed or updated at any time by LGE without notice.

Parts not Provided

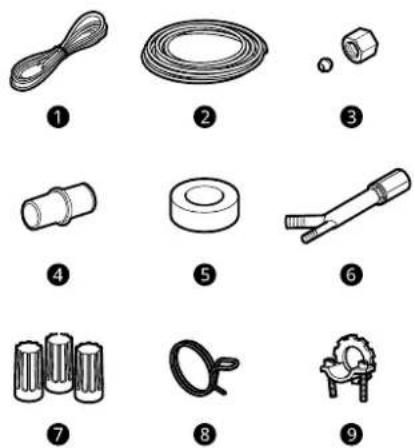

Illustration of nine types of electrical connectors and components, numbered 1 to 9, including wires, coils, batteries, and gears.

① Electrical Cable
• 16 AWG, with 2 conductors and 1 ground
②Water Supply Tube
- Minimum 3/8" O.D. copper tubing or stainless steel braided water supply line
③Fittings for Tube
④ Coupler
⑤ Electrical Tape
⑥Air Gap
⑦ Wire Nuts for 16-Gauge Wiring
⑧Hose Clamp
⑨ 3/8" UL Approved Strain Relief

NOTE

• Power cord installation kit is available on LG.com, part number AEM75698901 (Model name : D-PC1)
- Inlet hose installation kit is available on LG.com, part number AEM75698902.
- Drain extension hose installation kit is available on LG.com, part number AEM75698903.

12 INSTALLATION

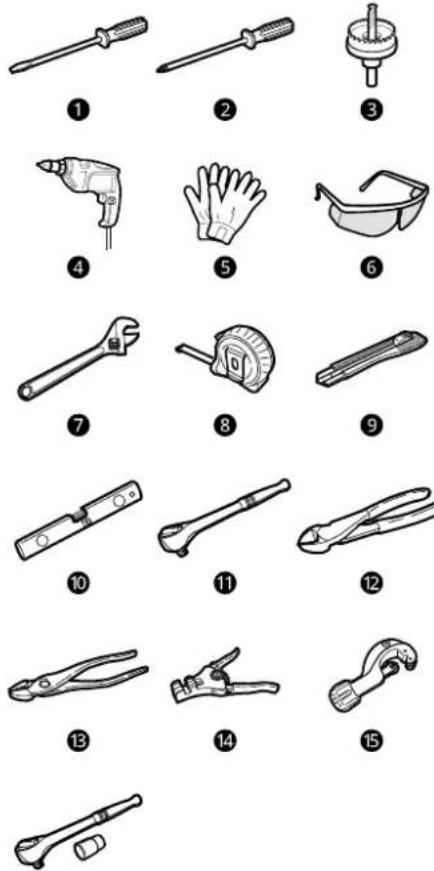

Tools Needed

①Flat-Blade Screwdriver
②Phillips Screwdriver
③Hole Saw min. 2 1/2" bit
④Electric Drill
5Gloves
⑥ Safety Glasses
⑦Adjustable Wrench
⑧Tape Measure
⑨ Utility Knife

10Level

⑪1/4" Square Drive Wrench

⑫Nipper

13Pliers

⑭Wire Stripper

⑮Tubing Cutter
163/8" Square Drive Wrench + 1/2" Socket

Installation Overview

Please read the following installation instructions first after purchasing this dishwasher or transporting it to another location.

①Preparing Cabinet Opening
②Preparing Water and Electrical Connections
③Preparing Dishwasher
④Sliding Dishwasher into Cabinet Opening
⑤Connecting Water Supply Line and Power
⑥Connecting the Drain Hose
⑦Leveling Dishwasher
⑧ Securing Dishwasher in Cabinet Opening
⑨ Final Installation Check

Product Dimensions

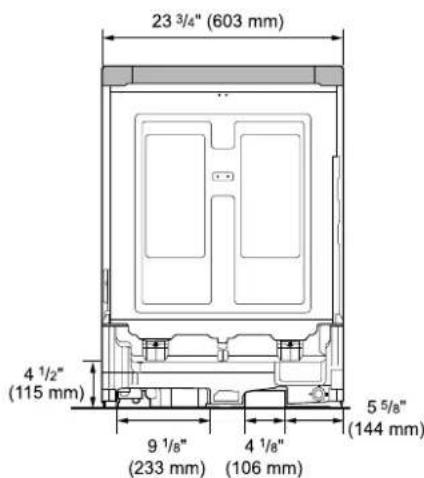

Back View

23 3/4" (603 mm) 4 1/2" (115 mm) 9 1/8" (233 mm) 4 1/8" (106 mm) 5 5/8" (144 mm)

Side View

For easiest installation, see marked areas ① for water and electrical clearances in base of

dishwasher. Water supply hose, drain hose and electric cable should be passed through this area.

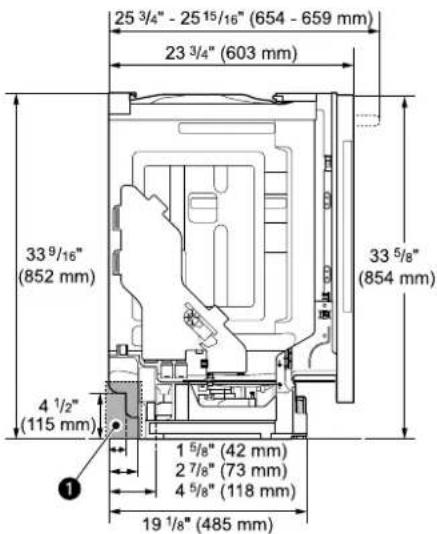

25 3/4" - 25 15/16" (654 - 659 mm) 23 3/4" (603 mm) 33 9/16" (852 mm) 33 5/8" (854 mm) 4 1/2" (115 mm) 1 5/8" (42 mm) 2 7/8" (73 mm) 4 5/8" (118 mm) 19 1/8" (485 mm)

Preparing Cabinet Opening

This dishwasher is designed to fit a standard dishwasher opening. An opening may be needed on both sides to route plumbing and electrical connections.

• To ensure proper drainage, install the dishwasher no more than 12 ft. (3.65 m) from the sink.
- The location must have sufficient space for the dishwasher door to open easily and provide at least 0.1" (2 mm) between the dishwasher and the cabinet sides.
- If installing the dishwasher in a corner, leave a minimum of 2" (50 mm) between the dishwasher and the adjacent wall.
• The adjacent wall must be free of obstructions.
- For flush installations only, you may remove the cabinet brace ① inside the cabinet.

Line drawing of a cabinet with a highlighted section and numbered label (no text or symbols present)

Choosing the Proper Location

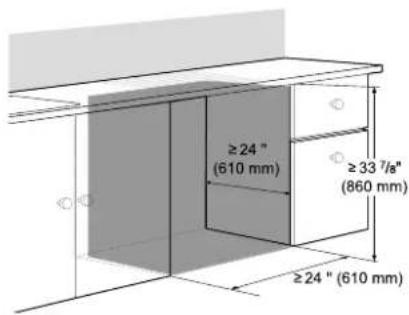

1 Select a location as close to the sink as possible for easy connections to water supply line, drain hose and electrical connection.

≥24" (610 mm) ≥33 7/8" (860 mm) ≥24" (610 mm)

2 To allow for proper clearance of plumbing and electrical, use the template included with the literature to determine the clearance on the side of the cabinet where the cabinet meets the back wall. Using a 2 1/2" diameter hole saw, drill a hole in the target area as shown.

3.5" 2.5" 4"

WARNING

• The opening must be at least 2 1/2" (63.5 mm) in diameter to prevent damage to the cables and hoses during installation.
  • Installation damage is not covered by the warranty, and leaks caused by improper installation may result in property damage.
• Do not use existing holes unless they are in the target area.
• Failure to properly locate the hole for the water and drain lines may prevent the dishwasher from installing flush with the cabinets and could result in kinked, pinched, crushed, stressed or damaged lines.

Abstract geometric diagram with intersecting circles and a diagonal line, no text or symbols present

14 INSTALLATION

WARNING

Two technical diagrams showing a container with a valve and a circular component, no text or symbols present.

Installing Moisture Barrier Tape

Install the moisture barrier tape to the underside of the countertop to protect the surface from condensation when the appliance is opened.

1 Clean and dry the area on the underside of the countertop and the sides of the cabinet opening where the tape will be applied.

Mechanical assembly diagram showing two views of a lever mechanism with pulleys and supports (no text or labels)

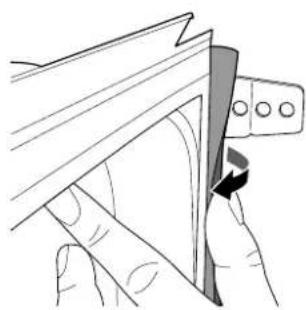

2 Remove the protective film from the tape.

Illustration showing a hand pressing down on a wrist with an arrow indicating motion (no text or symbols)

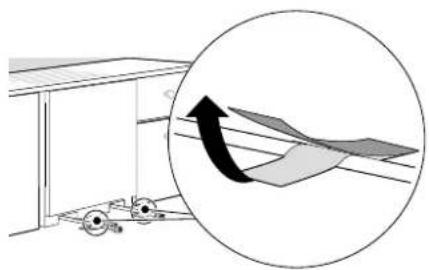

3 Install the tape on the underside of the countertop.

4 Install the shorter pieces of tape on the sides of the cabinet opening at the top.

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

NOTE

- Moisture barrier tape is included in the manual assembly bag.

- Condensation may occur on the underside or along the front edge of the countertop when the room temperature is low.

Preparing Water and Electrical Connections

WARNING

• Water Connection

- Do not reuse an old hose. Use only a new hose when installing the dishwasher. The old hose could leak or burst causing flooding and property damage. Contact an LG Customer Information Center for assistance in buying a new hose.

• Electrical Connection

- Use a time-delay fuse or circuit breaker.

- Operate this appliance with the correct voltage as shown in this manual and on the rating plate.

- The wiring must be grounded properly. If in doubt, have it checked by a qualified electrician.

- Connect the appliance using 3-wires, including a ground wire.

- The appliance and outlet must be positioned so that the plug is easily accessible.

- Do not use an extension cable or adapter with this dishwasher.

- Do not overload the outlet with more than one appliance.

- The included 16AWG wire nuts should be used.

- It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician.

CAUTION

- When connecting the dishwasher water supply line to the house water supply, sealing tape or compound should be used on pipe threads to avoid leaks. Tape or compound should not be used on compression fittings.

- Connect the dishwasher to a hot water supply with a temperature range between 120 °F (49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. To prevent damage to dishes, the temperature should not exceed 149 °F (65 °C).

- Water supply pressure must be between 20 psi and 80 psi (140–550 kPa). If the water supply

Pure geometric lines and shapes without any text, numbers, or symbols

pressure exceeds 80 psi, a pressure reducing valve must be installed. Otherwise premature failure of the inlet valve may occur.

Routing Water Supply Line and Electrical Wiring

There are 2 channels in the bottom of the dishwasher for routing the water and electrical connections.

- As shown in the bottom view below, channel ① is for the water supply line, and channel ② is for the electrical cable.

Technical diagram of a mechanical component with labeled parts (1 and 2), showing internal structure without any text or symbols.

1 Turn off the house water supply and the circuit breaker or dedicated power before connecting the dishwasher.

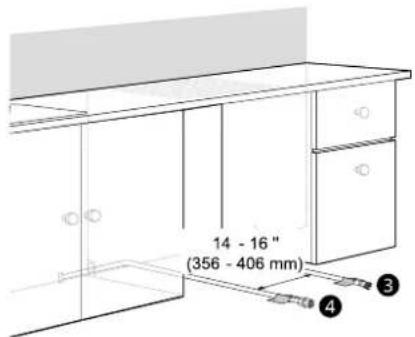

2 Run the water supply line along the floor 6 1/2" - 7 3/4" (165 mm - 197 mm) from the left side of the opening and tape it in place in front of the opening.
3 Run the electrical cable ③ along the floor 14" - 16" (356 mm - 406 mm) from the water supply line ④ and tape it in place.

• The electrical outlet must be within 4 ft. (1.22 m) of either side of the dishwasher.
- The best location for the electrical conduit is on the right side of the back wall. Re-route the electrical cable before installation if the

electrical conduit pipe is longer than 3" (76 mm) and is centered on the back wall.

14 - 16" (356 - 406 mm) ④ ③

ENGLISH

Preparing Dishwasher

WARNING

- Do not remove safety cover ①. Removal can result in fire, electric shock or death.

Line drawing of a bed with a seat and a numbered indicator (no text or symbols)

Releasing Drain Hose

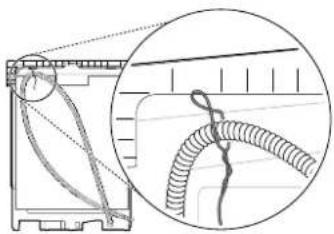

Remove the twist tie holding the drain hose to the back of the shipping brace.

Technical diagram showing a mechanical component with a magnified inset illustrating the cable connection (no text or labels present)

Removable Shipping Brace

The rear shipping brace can be removed if additional clearance is needed when installing the dishwasher under a low countertop.

Diagram showing a mechanical device with a magnified inset illustrating the lever mechanism (no text or symbols present)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

16 INSTALLATION

Removing Lower Cover

CAUTION

- If you lay the dishwasher on its back, do so carefully to avoid damaging the drain hose and the tub.

1 Remove the screws at either side which attach the lower cover to the dishwasher.

Diagram showing a mechanical device with a circular component and a separate view of a pin inserted into a housing (no text or symbols)

2 Remove the lower cover.
3 If there is insulation padding behind the lower cover, remove it.
4 Set the parts aside until the installation is complete.

Removing Packing Materials from the Interior

Remove all packing materials from the interior of the dishwasher before installing the appliance.

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

Attaching Installation Brackets

There are 3 options for securing the dishwasher. For countertops made of wood or other materials that won't be damaged by drilling, use method 1.

For countertops made of granite, marble, or other materials that could be damaged by drilling, use

method 2 or 3, depending on the sides of your cabinets and whether you want a flush installation.

For a flush installation, choose the appropriate method considering your installation conditions. (A flush installation may not be possible because of the cabinet size or installation circumstances.)

Method 1: Securing to Countertop

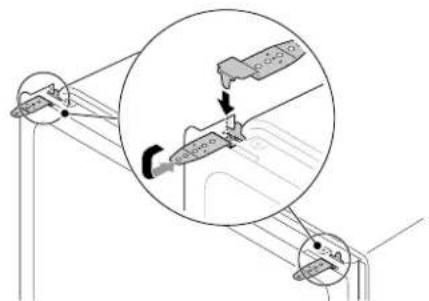

1 Insert the tabbed end of the installation brackets into the slots in the upper frame. Rotate the brackets until the tabbed ends are facing up.

Technical diagram showing mechanical assembly with labeled components and a magnified inset highlighting a specific component.

2 Bend the tabs on the brackets to secure them to the frame using a pair of needle nose pliers.

JACKET

Method 2: Securing to Cabinets with Brackets

If you desire a flush installation and have framed cabinets, it may be helpful to attach the installation brackets at the sides of the dishwasher.

NOTE

- Attach a bracket to both sides, choosing the best of the two slots for your situation and making sure the bracket shoulder is in contact with the slot frame.

- A flush installation may not be possible because of the cabinet size or installation circumstances.

Technical line drawing of a door frame with mounting holes and a vertical guide (no text or symbols)

1 Insert the tabbed end of the installation brackets into the slots on both sides of the side frame. Rotate the brackets until the tabbed ends are facing out.

Diagram of a mechanical device with an inset showing a close-up of a lever mechanism (no text or symbols present)

2 Slide the dishwasher into the cabinet opening so the front face is flush with the surrounding cabinets. See Sliding Dishwasher into Cabinet Opening for instructions. Pull the rubber trim back and check which hole in the brackets is best for screwing into the face frame of the cabinets on each side. Mark the hole on the brackets if needed to remember it.

Illustration of a hand holding a knife with a knife blade, showing the blade being cut (no text or symbols present)

3 Pull the dishwasher out of the cabinet far enough to remove the brackets from the slots. If there is excess holes, use a nipper or tin snips to trim the excess holes off the bracket ends, leaving the hole you will use.

Technical illustration of two types of pliers or tools, one with a pointed tip and the other with a triangular handle (no text or symbols present)

ENGLISH

4 Follow step 1 to insert the brackets back in the slots. Bend the tabs on the brackets to secure them to the frame using a pair of needle nose pliers.

Technical line drawing of a mechanical assembly with two circular components and an inset close-up of a bracket (no text or symbols)

Method 3: Securing to Cabinets without Brackets

If you have frameless cabinets or wood inserts on either side of the dishwasher, you may be able to use the built-in brackets at the sides of the dishwasher even if you desire a flush installation. See Securing Dishwasher in Cabinet Opening for more details.

Sliding Dishwasher into Cabinet Opening

How to Slide Dishwasher

CAUTION

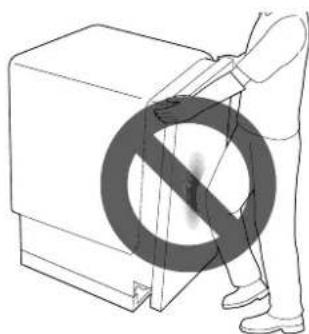

- Do not pull or lift the dishwasher using the handle ①. Doing so can damage the door and hinges.

Diagram showing a mechanical or electrical component with no visible text, numbers, or symbols.

18 INSTALLATION

CAUTION

- Do not push the door of the dishwasher with knees when sliding the dishwasher into position. Doing so can damage the front cover.

Diagram showing a person using a washing machine with a no-smoking symbol overlaid, indicating anti-smoking behavior.

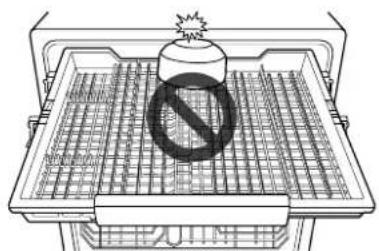

- Do not push the top of the dishwasher. Doing so can damage the interior of the dishwasher.

Pure diagram of a prohibition symbol over a structural frame (no text or labels)

NOTE

- Open the door and grab the body frame and the top front opening ② of the tub to move or lift the dishwasher.

Diagram showing a hand pressing down on a grid-like object with labeled point 2

1 Align the dishwasher with the opening. Make sure the water supply line and electrical cable are in the correct positions to slide into their channels properly.

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

2 Smooth out or pad the edges of the hole drilled for the water supply to avoid damaging the drain hose.

3D diagram showing a circular ring mounted in a corner with dashed lines indicating hidden edges (no text or symbols)

3 Make sure the drain hose is straight before feeding the end of it through the hole for the water supply. As you slide the dishwasher into the opening, you will want to slowly pull on the drain hose from inside the cabinet to take up some slack. Be careful not to kink, pinch, crush or stress the drain hose during installation to avoid leaking and water damage.

Two abstract diagrams showing coiled or twisted rope structures with no text or symbols

4 Gradually slide the dishwasher into the opening, making sure that the water supply line and electrical cable are passing freely through the channels and do not get caught under the dishwasher.

CAUTION

• To avoid malfunctions or leakage, it is important that the drain hose not get kinked, pinched, stressed or crushed behind or under the dishwasher or inside the neighboring cabinet.

- Damage resulting from improper installation is not covered under the warranty.

• If you installed brackets at the side, make sure they don't catch on the cabinets as you slide the dishwasher in.
• Slide the dishwasher into place so the door is flush with cabinet doors or drawers. Make sure the rubber trim is not folded over behind the cabinet opening.

- As you slide the dishwasher into the opening, stop periodically (or have an assistant help) to take up the slack by pulling the drain hose farther into the cabinet.

Pure technical diagram of a cabinet or enclosure with internal components and directional arrows, no text or symbols present.

5 Remove the tape from the water supply line and the electrical cable.

Diagram showing a mechanical assembly with a magnified inset highlighting a curved component (no text or symbols present)

Connecting Water Supply Line and Power

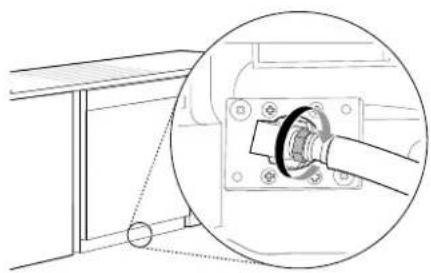

CAUTION

- Do not turn the dishwasher upside down to connect the water supply line or electrical supply. Doing so can damage the product.

Connecting Water Supply Line

1 With the home water supply turned off, connect the water supply line to the inlet valve on the left front of the dishwasher.

CAUTION

- Tape or compound should not be used on dishwasher inlet valve.

2 Tighten the compression nut.

Technical line drawing of a mechanical assembly with a magnified inset showing a circular detail (no text or symbols)

3 Slide the water supply line back through the channel, pulling gently from inside the cabinet to make sure the line is not kinked, pinched, stressed or crushed.

Connecting Power

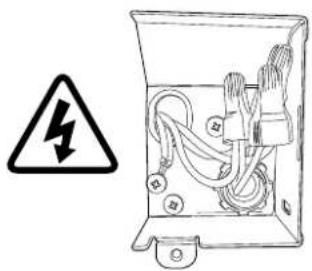

The dishwasher should have a dedicated properly grounded branch circuit to connect the 3 wire setup which includes the ground wire.

If a 3-prong power supply is used, it should be in an accessible location adjacent to the dishwasher within 4 ft. (1.22 m) of the dishwasher side and not behind the dishwasher.

Safety warning symbol with a lightning bolt and warning triangle, indicating electrical hazard or hazard.

NOTE

- The best location for the electrical conduit is on the right side of the back wall. Re-route the electrical cable before installation if the electrical conduit pipe is longer than 3" (76 mm) and is centered on the back wall.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

en-us_main.book.book Page 20 Monday, May 19, 2025 1:46 PM

20 INSTALLATION

1 Turn off electrical power to the unit at the circuit breaker.
2 Use a Phillips screwdriver to remove the screw from the junction box cover and remove the cover.

Line drawing of a kitchen appliance with a magnified inset showing a circular component (no text or symbols)

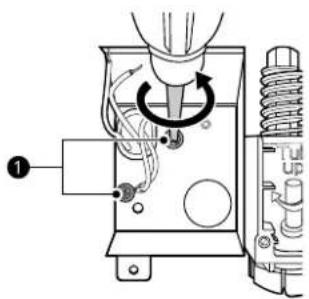

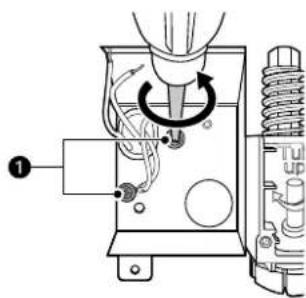

3 Use a Phillips screwdriver to remove 2 screws ①.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

4 Remove the junction box from the appliance.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

5 Insert a 3/8" strain relief ② through the hole in the junction box. Tighten the ring nut ③ to secure it in place.

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

6 Insert the electrical cable through the hole in the strain relief. Tighten 2 screws to secure the cable.

3 - 5" (76 - 127 mm)

7 Pull the existing wires through the openings in the junction box. Tighten 2 screws ④ to reassemble the junction box in the appliance.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

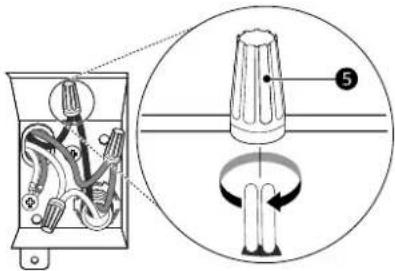

8 Pair the white, black, and green wires to the matching colored wires from the dishwasher. Then twist on the provided wire nuts ⑤ tightly to connect the corresponding wires.

Diagram showing a mechanical component with labeled parts and a circular diagram illustrating the rotation of a cylindrical component.

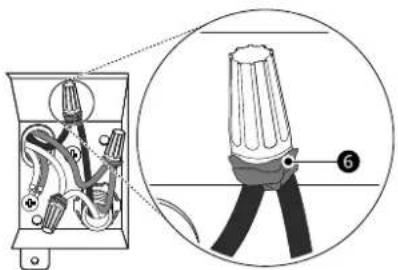

9 Wrap electrical tape ⑥ around each connection.

Diagram showing a tool being inserted into a container with labeled parts, including a magnified view of the tool's tip.

10 Fold the connected wires back into the junction box and screw on the junction box cover.

WARNING

- Verify that the black wire is hot (120 V). If not, or if you are unsure of the power supply, have it checked by a licensed electrician.

CAUTION

- Do not leave stripped wire exposed. Trim stripped wire to fit completely inside wire nuts.

Connecting the Drain Hose

If the end of the drain hose does not fit the drain line, use a heat and detergent resistant adapter (not supplied). These may be obtained from a local plumbing supply store.

- Cut the adapter to match the size of the drain connection as shown. Cutting just beyond the flare helps to keep the band clamp in place.

5/8" (16 mm) 3/4" (19 mm) 1" (25 mm)

NOTE

• For drain hose installation, use the screw style hose clamp provided with this dishwasher in the silverware basket.
• If connecting the dishwasher's drain hose to the garbage disposal, be sure to follow your garbage disposal's manual for proper installation instructions.

Drain Hose Requirements

• Follow local codes and ordinances.
• Do not exceed 12 ft. (3.65 m) distance to drain.
• Do not connect drain hoses from other appliances to the dishwasher's drain hose.
• If an extension drain hose is required, use a 5/8" or 7/8" inside diameter, 2-3 ft. length hose and a coupler ① for connecting the two hose ends.

Technical line drawing of a mechanical component with three cylindrical parts and a labeled connection point (no text or symbols present)

Height of the Drain Hose

The height of the drain hose end must be at least 12" (305 mm) and within 40" (1016 mm) from the base of the dishwasher to avoid water being siphoned from the tub.

12 - 40" (305 - 1016 mm)

Connecting to Disposal without Air Gap

1 Remove the knockout plug on the disposal with a hammer and screwdriver.

Technical diagram showing a mechanical assembly with an inset magnified view highlighting a component labeled '1'

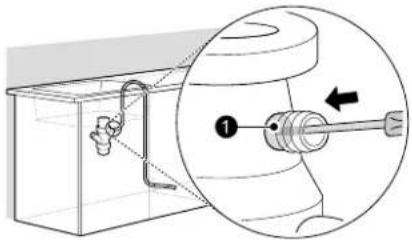

2 Remove the knockout plug ① from the disposal.

CAUTION

- If the knockout plug has not been removed, the dishwasher will not be able to drain properly.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 INSTALLATION

Diagram of a mechanical component with a central hole and a threaded end, showing an upward arrow (no text or symbols)

3 Attach the drain hose to the disposal with the hose clamp provided. Move the hose clamp into position and tighten it with a flat-blade screwdriver.

Mechanical diagram showing a rotating shaft and threaded pipe assembly (no text or symbols)

Connecting Waste Tee without Air Gap

The height of the drain hose end must be at least 12" (305 mm) and within 40" (1016 mm) from the base of the dishwasher to avoid water being siphoned from the tub.

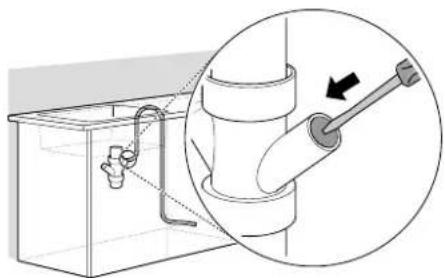

1 Remove the knockout plug with a hammer and screwdriver.

CAUTION

- If the knockout plug has not been removed, the dishwasher will not be able to drain properly.

Diagram of a pipe drain system with a magnified inset showing the valve mechanism (no text or labels)

2 Attach the drain hose to the waste tee with the hose clamp provided. Move the clamp into position and tighten it with a flat-blade screwdriver.

Diagram of a mechanical device with rotating arm and base, no text or symbols present

Connecting to Disposal or Waste Tee with Air Gap

1 Remove the knockout plug with a hammer and screwdriver.

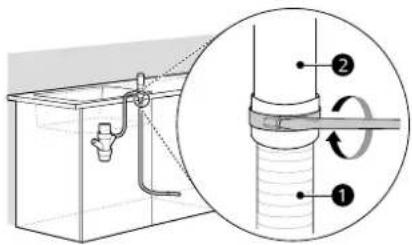

2 Connect the end of the drain hose ① to the air gap ② with the hose clamp provided. Move the clamp into position and tighten it with a flat-blade screwdriver.

• This avoids water being siphoned from the tub.

Technical diagram showing a pipe installation with labeled components and a magnified inset highlighting the valve mechanism.

3 If it is not connected, attach the rubber hose connector to the disposal or waste tee with a hose clamp (not provided).

Leveling Dishwasher

Check that the dishwasher is level and adjust the leveling feet if necessary.

CAUTION

- Failure to level the dishwasher may result in leakage, problems closing the door, or noise.

- Where the cabinet opening is narrower than recommended (see Preparing Cabinet Opening), the dishwasher must be carefully leveled and aligned so that the dishwasher is supported fully by the 3 leveling feet and is not hanging from the installation brackets. Failure to do so can result in leaks from the front of the dishwasher, RE errors, difficulty in closing the door, or failure to operate.

Checking Leveling

To check that the tub is level from front to back, remove the lower rack and pour 169 oz. (5 L) of water into the bottom of the tub. The water level should be near the center of both tub lower indentations at the front.

Diagram showing a car interior with a steering wheel and dashboard, plus an inset close-up of the dashboard (no text or symbols)

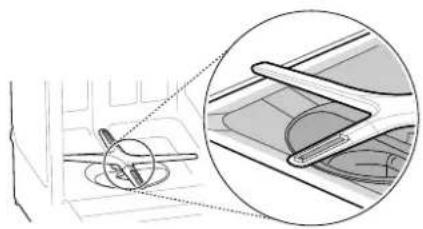

With the lower rack removed, place a level on the inside wall of the tub to check that the dishwasher is level from side to side.

- If you do not have a level, try using a smartphone level application instead.

Line drawing of a door frame with a vertical door and handle (no text or symbols)

Make sure that the gap between the tub walls and the door liner is the same on either side.

Technical line drawing of a mechanical assembly with no visible text or symbols

Adjusting Leveling Feet

Adjust as needed until the dishwasher is completely leveled.

- Adjust the front and rear leveling feet until they are all in firm contact with the floor. Failure to level the dishwasher may prevent the door from closing properly and the dishwasher will not turn on.

Adjusting Front Leveling Feet

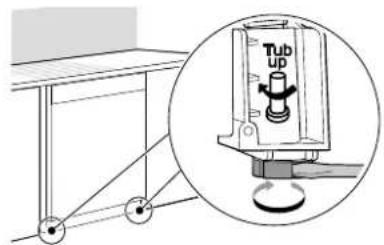

Use a flat-blade screwdriver to turn the front leveling feet and adjust the front of the tub.

- Turn the front leveling feet clockwise to raise the front of the tub and counterclockwise to lower it.

Technical diagram showing a mechanical setup with a table, pulleys, and an inset view of a tub-up device with rotating base.

ENGLISH

• The adjustments work identically for both front leveling feet.
• When a flat-blade screwdriver is unavailable, use a 1/4" square drive wrench ① or 3/8" square drive wrench ② with 1/2" socket ③ to turn the front leveling feet and adjust the front of the tub.

Diagram of a mechanical device with labeled parts and directional arrow indicating rotation or movement

Technical diagram of a mechanical assembly with numbered components and directional arrow indicating rotation or movement.

Adjusting Rear Leveling Foot

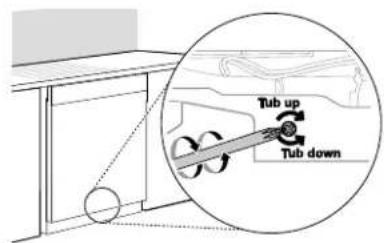

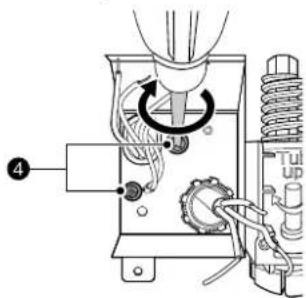

Use a Phillips screwdriver to adjust the rear leveling foot and the rear of the tub using the center screw at the base of the appliance in the front.

- Turn the center screw clockwise to raise the rear of the tub and counterclockwise to lower it.

Tub up Tub down

NOTE

• To avoid damaging the screw, do not use an electric screwdriver.

Securing Dishwasher in Cabinet Opening

There are 3 options for securing the dishwasher. For countertops made of wood or other materials

24 INSTALLATION

that won't be damaged by drilling, use method 1. For countertops made of granite, marble, or other materials that could be damaged by drilling, use method 2 or 3, depending on the sides of your cabinets and whether you want a flush installation.

CAUTION

- Ensure the dishwasher is level and all leveling feet are in firm contact with the floor before attaching the dishwasher to the countertop or cabinet. If the dishwasher is not leveled properly, the door may not close properly or water may leak.

NOTE

• Installation brackets and screws can be found in the silverware basket.
- Use a magnetic screwdriver.
- Cover the filter hole with towels to prevent screws from falling down into the pump.

Method 1: Securing to Countertop

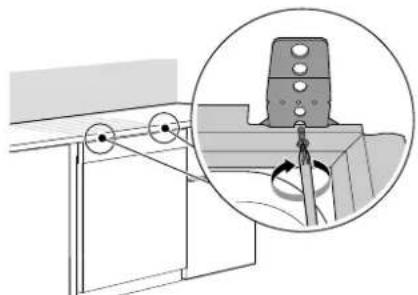

1 Use the shorter 12 mm wood screws provided to secure the brackets at the top of the dishwasher to the underside of the wood countertop. Drive the screw through the appropriate hole in the installation bracket.

Diagram showing a mechanical assembly with pulleys and a magnified inset of a component (no text or symbols)

2 Use a nipper or tin snips to carefully trim off the excess part of the bracket.

Illustration of a tool using pliers to tighten a mechanical component (no text or symbols present)

Method 2: Securing to Cabinets with Brackets

NOTE

- A flush installation may not be possible because of the cabinet size or installation circumstances.

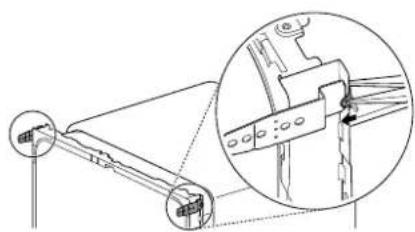

1 Pull the rubber trim back, so you can drill a pilot hole into the cabinet frame through a hole in the installation bracket.

Illustration of a hand holding a knife with a knife blade, showing the blade being cut (no text or symbols present)

2 With the rubber trim pulled back, drill a 7/64" pilot hole into the cabinet frame, making sure to keep the drill level. This helps prevent damage to the cabinet frame. Then drive a 12 mm wood screw through the appropriate hole in the installation bracket.

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

CAUTION

- Be sure to use the shorter supplied 12 mm screws when installing the dishwasher using the installation bracket. Using other screws may cause damage to the cabinet.

Method 3: Securing to Cabinets without Brackets

1 Remove the 2 plastic caps from the mounting bracket access holes.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram showing a door assembly with a magnified inset highlighting a wall-mounted lock (no text or symbols present)

2 Drive a 20 mm wood screw (longer screw) through the mounting bracket and into the cabinet frame.

CAUTION

• If the provided 20 mm screws are not long enough to secure the dishwasher to the cabinet frame, use method 1 or 2 to secure the dishwasher.
  • Installing the dishwasher without securing it can cause damage to the dishwasher and leaks.

Diagram showing a screw being inserted into a housing, with an inset close-up of the screw (no text or symbols present)

3 Reinstall the plastic caps

Final Installation Check

Testing the Dishwasher

Check if the dishwasher is properly installed.

1 Turn on the circuit breaker.
2 Turn on the house water supply.
3 Make sure that the door opens and closes smoothly.

- If necessary, level the dishwasher again.

- If the door will not close, make sure the rack is level.

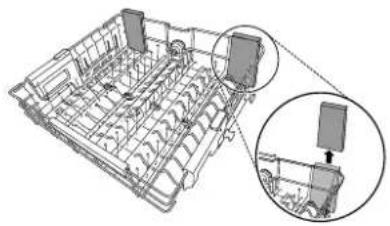

Technical illustration of a mechanical assembly with a circular component and a vehicle (no text or symbols)

• Make sure that all packaging materials have been removed.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

4 Power on the dishwasher and run any cycle to verify proper operation.
5 Check for leaks at the drain hose and water supply connection.
6 If a water leak is detected, open the door and then press and hold the START button for 3 seconds to cancel the wash cycle and automatically drain the water from the dishwasher. Tighten all water connections and run another cycle. Repeat until no leaks are detected.

Sound Insulation Sheet

If your model shipped with a sound insulation sheet, follow the instructions provided to install the sheet now. But wait to install the insulation pad and lower cover until after the final installation check.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

26 INSTALLATION

7 Replace the lower cover.

CAUTION

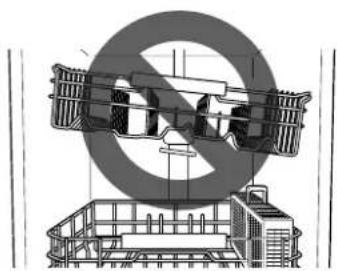

- Only install the lower cover provided with the dishwasher. Do not install cabinet baseboard ① as it may cause noise and leakage.

Diagram showing a prohibition symbol with labeled components and numbered marker 1

8 Remove the protective film from the door, if present. Leaving the film on may cause discoloration or condensation on the door.

Installation Check Error Codes

Refer to the chart below before calling for service.

Error Code

Possible Cause and Solution

OE

Drain hose is kinked or pinched.Feed the drain and water supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.Drain hose is connected to the disposal without removing the knockout plug.Remove the knockout plug from the disposal.Waste tee or disposal is clogged.Remove knockout plug on the waste tee or disposal.

Error Code	Possible Cause and Solution
IE	Water supply line is kinked under dishwasher.• Feed the drain and water supply hoses through the hole under the sink. Then gradually slide the dishwasher into the cabinet while pulling on the hoses under the sink to take up any slack. This helps avoid kinking the hoses or trapping them beneath the dishwasher.House water supply is not turned on.• Turn the water faucet on.

Replacing Handle

NOTE

• Only available on applicable models.
• The handle is an accessory part and can be purchased separately.

1 Screws for disassembly and assembly are located on the underside of the handle.
2 To remove the handle, loosen the screws using a hex wrench. (H3/32" (H2.4 mm))

Technical line drawing of a mechanical device with an inset showing a 15-degree angled bracket detail (no text or symbols present)

CAUTION

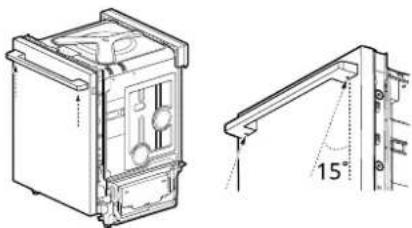

• The screws are tilted about 15 degrees from the plane of the door. Take care not to scratch the surface of the door when disassembling and assembling the handle.

Technical line drawing of a mechanical bracket and internal cavity (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

3 Fit the new handle over the mounting fasteners as shown and tighten the set screws to secure it in place.

CAUTION

• Tighten the screw with a torque of 17-35 lbf*in (20-40 kgf*cm).
• When assembling or disassembling the handle, grasp the handle firmly to avoid dropping it.
• Make sure that the set screws are in place and the handle footprints at the ends of the handle are aligned correctly over the mounting fasteners on the door. The set screws should be loose enough to allow the handle footprints to slide down into place over the mounting fasteners on the door.
• Make sure that there is not a gap between the door and handle after assembling the handle.

28 OPERATION

OPERATION

Before Using

WARNING

- To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance.

NOTE

• Connect to the hot water supply only. The water supply temperature should be a minimum of 120^ (49 °C) for better washing performance and shorter cycle time.
• Follow the instructions for loading the dishwasher to ensure effective cleaning.
• Remove insoluble items such as bones, toothpicks, and pieces of paper while loading the dishwasher.

Quick Start

1) Load the dishes.
2) Add the detergent.
3) Turn on the dishwasher.
4) Check the rinse aid.
5) Select the cycle and options.
6) Operate the dishwasher.

- Press the START button and then close door in less than four seconds to operate the dishwasher. If the door is not closed within four seconds, START button flashes, and the cycle does not start.

For more details, refer to the online owner's manual.

CAUTION

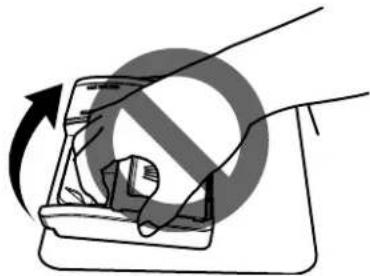

- Do not open the door during operation or immediately after it has completed the wash cycle as the escaping steam may cause scalding as the door is opened.

Auto-Off

The dishwasher automatically turns off after four minutes of inactivity if paused or if no cycle is started.

NOTE

• If the door is opened during the cycle, the dishwasher will stop. To resume the cycle, see methods above.
• If the door is opened during the cycle and is not closed within four seconds after selecting the START button, or if the door is closed without pressing the START button, START button and time flashes, and the cycle does not start.

7) End of cycle.

• When the cycle is complete, a chime will sound and the display will show End for 30 seconds.
• It is normal for the dishwasher to chime continuously if you open it during operation or just after the cycle ends. The dishwasher is letting you know that the interior temperatures of the unit are hot and to use caution when reaching inside. Once the unit has cooled down, the chiming will stop.

Control Panel

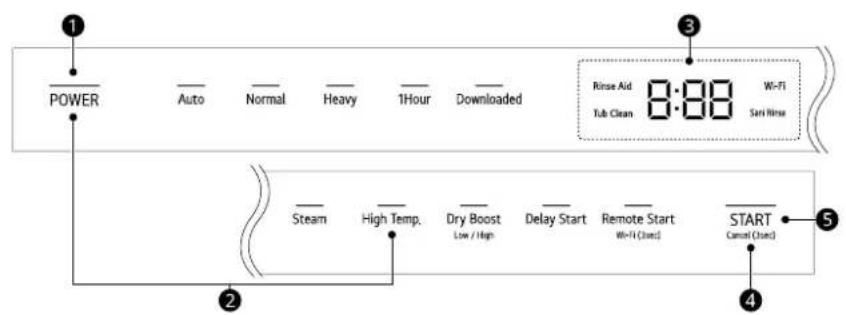

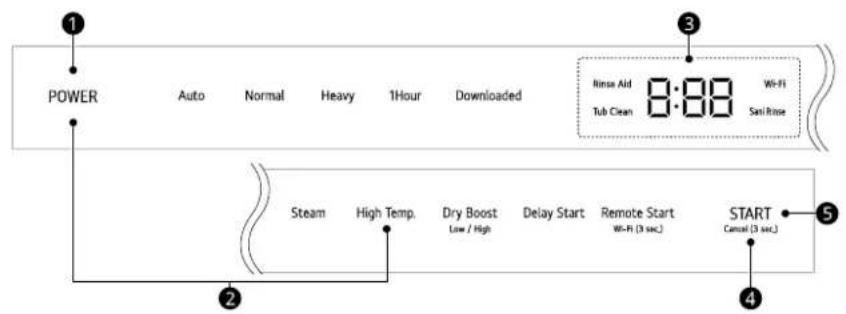

Control Panel Features

- On some models, all buttons are hidden except for the POWER button.

Press the POWER button to light up the other keys on the control panel. The selected cycle and options are more brightly lit.

• Refer to the Using the Option Setting Mode topic for details on each option.

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid Tub Clean 8:88 Wi-Fi Sat Rise Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi (3 sec.) Cancel (3 sec.) 5

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid 8:88 Wi-Fi Tub Clean Sun Rinse Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi Closed Cancel Closed 5

①POWER On/Off Button

• On models with hidden buttons, press this button to light up the other keys in the control panel.
• Press this button to turn the dishwasher on or off.
  • After the cycle is complete, the power automatically turns off for purposes of safety and economy.
• If there is a power surge, power outage, or disruption of any kind, power is automatically turned off for safety.
• When power is connected again, the dishwasher will turn on automatically and resume the cycle.

②Option Setting Mode

• Set various options using the Option Setting Mode.
• While the appliance is off, press POWER for a second. Hold down POWER and press High Temp. to enter the Option Setting Mode.
  • Refer to the Using the Option Setting Mode topic for each function of the Option Setting Mode.

③Display

- Rinse Aid

• This LED flashes when the rinse aid level is low. The LED automatically shuts off when the rinse aid is refilled or the level is set to 0.
• To adjust the rinse aid level, refer to the Using the Option Setting Mode topic.

30 OPERATION

- Tub Clean

- The Tub Clean LED flashes every 30 cycles. To activate or deactivate the LED, refer to the Using the Option Setting Mode topic.

• 8:88 : Digital Display

- The digital display on the control panel shows the ESTIMATED cycle time. When the cycle and options are selected, the display shows the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

NOTE

- The estimated time shown on the display does not include delay times for heating water, etc.

- If Delay Start is selected, the display shows the delay time in hours.

- Cycle time may vary depending on the soil level of your load.

• Sani Rinse

- If the High Temp. option is added to a cycle, the Sani Rinse LED stays lit at the end of the cycle if the water reached a sufficiently high temperature for sanitizing (except on the Refresh (P9) cycle).

• Wi-Fi

- When the appliance is connected to the internet through a home Wi-Fi network, this LED illuminates.

- Press and hold Remote Start for approximately three seconds to connect to the network.

④ Cancel Button

- The drain pump activates and the cycle cancels. Once the dishwasher finishes draining, the power turns off.

- Press and hold START for three seconds to activate.

⑤START Button

- To operate the machine, either press START and close the door within 4 seconds or close the door and press START.

- If more than 4 seconds have passed since pressing START, an alarm will sound when the door is closed.

NOTE

- All buttons on the control panel are locked during the cycle to prevent settings from being changed during a cycle.

- Buttons can be controlled after opening the door.

• The door is not locked during the cycle.

Wash Cycles

Select your desired cycle.

Auto

This cycle senses the soil amount and soil toughness and is optimized to achieve the best cleaning.

Normal

This cycle is for daily, regular, or typical use to completely wash a full load of normally soiled dishes. The Dry Boost Low option is recommended for everyday use and optimal energy efficiency. Select the Night Dry option if leaving dishes overnight.

• After the cycle ends, the fan runs for an hour to help vent the warm, moist air in the tub. You can stop the fan by opening the door after the cycle ends.

Heavy

This cycle is for heavily soiled dishes and dishes with hardened on soil. This cycle defaults to the strongest spray intensity and uses it to wash heavily soiled dishes.

1 Hour

This cycle will clean and dry lightly soiled dishes in 1 hour.

- This cycle offers heated drying. To improve drying results, add heated dry time by selecting the Dry Boost option.

Downloaded

Use a dedicated cycle downloadable via Wi-Fi or NFC. You must install the LG ThinQ smartphone app to download cycles other than the default Tub Clean cycle.

NOTE

- Only the cycle code for the current Download Cycle appears on the appliance. See the smartphone app for cycle codes, names, and more information about the available cycles.

- Default Cycle : P1-Tub Clean

- Tub Clean (P1)

This cycle is for cleaning the inside of the dishwasher. Use the cycle without dishes in the machine. It eliminates residual soils, odor, white spots, and other dirt. Add citric acid or another cleaning agent for more effective results.

- Express (P2)

This cycle will quickly clean lightly soiled dishes.

- This cycle does not have drying.

- Rinse (P3)

This cycle is a quick rinse for dishes that will not be washed immediately. The cycle rinses dishes that have excess soil to soften dried on residue. Rinsing the dishes helps prevent odors in the dishwasher. No detergent should be used.

- This cycle does not have drying.

- Pots & Pans (P4)

Cleans heavily soiled cookware. No more hand scrubbing frying pans and pots.

• Casseroles (P5)

Cleans greasy and heavily soiled dishes.

Casseroles come out clean.

- Glassware (P6)

Safely washes delicate glassware, leaving it sparkling.

• Night Care (P7)

Quietly washes dishes overnight. Sleep soundly knowing dishes will be clean in the morning.

- Delicate (P8)

Use this cycle to clean delicate items such as fine china and stemware.

- Refresh (P9)

This cycle freshens up and warms dishes that have been unused for a long time.

- Do not use detergent when using this cycle.

- The steam option cannot be turned off on this cycle.

- Dry Only (P10)

This cycle blows hot air without washing. The cycle operates even if the auto door open function is turned off.

- This cycle must be downloaded in Feature Updates before use. For more details, see LG ThinQ Application Features.

Options and Extra Functions

Select the desired cycle and then select the options for that cycle.

Steam

This option adds steam at the start of the cycle to improve wash performance.

High Temp.

Raises the main wash temperature to improve cleaning.

If the High Temp. option is added to a cycle, the Sanitized LED stays lit at the end of the cycle if the dishes were properly sanitized. If the dishwasher could not properly sanitize the dishes because the High Temp. option was not selected, the cycle was interrupted or the water could not be heated to the required temperature, the indicator will not light up at the end of the cycle. Open and close the door or press POWER to turn the indicator off.

32 OPERATION

NOTE

- This high temperature rinse sanitizes dishes and glassware in accordance with the NSF/ANSI Standard 184 for residential dishwashers. Certified residential dishwashers are not intended for use in licensed food establishments. Only sanitizing cycles have been designed to meet the requirements for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a certified machine have passed the sanitization performance test.

Dry Boost

Select the Dry Boost option for better drying performance. This option adds heated drying time to the cycle for better drying results.

Mode Description
Dry Boost Low	Press the Dry Boost button once, for optimal energy efficiency.
Dry Boost High	Press the Dry Boost button twice, for better drying results.
Dry Boost Off	Press the Dry Boost button three times to turn off the Dry Boost option.

- If the rinse aid dispenser is empty, the Dry Boost Low option is automatically added to all cycles (except the Normal, 1 Hour cycle), unless you set the rinse aid dispenser to L0.

Delay Start

This feature delays the start of a selected cycle. Each time the Delay Start button is pressed, the delay time increases by an hour. The delay time can be set from 1 to 12 hours, in one-hour increments.

Remote Start

Use a smartphone to control your appliance remotely. You can also monitor your cycle operation so you know how much time is left in the cycle. Once this function is enabled, you can start a cycle from the smartphone application. If the door is not closed within 4 seconds after pressing Remote Start, Remote Start is canceled.

Keep Fresh Mode

This feature is only available on some models.

After the wash cycle finishes, the Keep Fresh mode activates. During the Keep Fresh mode, the heater turns off and the fan operates.

• The default setting is 4 hours. (Normal cycle is 1 hour.)
• Closing or opening the product's door turns off the Keep Fresh mode.
  • To activate or deactivate the Keep Fresh mode, refer to the Using the Option Setting Mode topic.

Using Auto Open Dry

The Auto Open Dry feature enhances the drying performance by opening the door automatically during the drying stage within the displayed cycle time. For optimum drying results wait until the cycle ends before unloading the dishwasher. The cycle is fully complete when the display shows "End". The door opening time varies depending on the cycle selected.

• The default setting is On.
- To turn the Auto Open Dry function On or OFF, see Using the Option Setting Mode. Turning the Auto Open Dry function off may decrease drying performance. For best drying performance, leave the Auto Open Dry function turned on.
- Dry Boost enhances the drying performance by blowing hot air when the door is open.
- The Auto Open Dry function activates only when the product's internal temperature is within a safe range.

Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

WARNING

• Be careful as hot air and steam are released when the door opens, and they can cause burns.
• Do not touch the inside of the product while this function is in operation. Doing so may cause burns or product malfunction.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

CAUTION

• Make sure there are no obstacles in front of the product door when it opens automatically, as this may lead to damage or a malfunction.

NOTE

• When the Dry Boost option is activated, the product door opens and hot air drying begins.
• If you open the door further during the Auto Open Dry function, the high-temperature alarm will sound and Dry Boost will stop. If you close the door, it will open automatically again and Dry Boost will resume.
  • Even after the door opens automatically, moisture may remain on some dishes or inside the product.
  • The end sound indicates that the wash cycle is finished. For better drying, do not remove the dishes immediately after the end of the sound. Instead, let them dry naturally for at least 30 minutes.
• Natural drying may take 1 to 3 hours depending on the surrounding temperature, humidity, and the material of the dishes.
• Due to the nature of plastic materials, moisture may remain even after using rinse aid.

Cycle/Option Guide

The cycle guide shows the available options for each cycle.

To see the Cycle/Option Guide, refer to the online owner's manual.

Using the Option Setting Mode

You can set various options by using the Option Setting Mode.

1 Ensure the appliance is off.
2 Press and hold POWER ①, wait until the panel lights up, and then press High Temp. ② at the same time.

3 Refer to the table to set up each function.

4 Press START ③ to save.

Function Button Display
Tub Clean Reminder	Dry Boost	Off ↔ On
Rinse Aid Level	High Temp.	L2 → L3 → L4 → L0 → L1 → L2 →
Clean Light	Steam	On ↔ Off
Chime Sound	Downloaded	On ↔ Off
Auto Setting	1 Hour	On ↔ Off
End Sound	Heavy	On ↔ Off
Auto Open Dry	Remote Start	On ↔ Off
Keep Fresh Mode	Delay Start	On ↔ Off
Wi-Fi Normal		On ↔ Off

NOTE

- Tub Clean Reminder

- The Tub Clean LED flashes every 30 cycles. You can activate or deactivate the LED.

- Rinse Aid Level

• Adjust the level of rinse aid from L0 to L4.
• For more information, refer to the Rinse Aid Dispenser Adjustment section.

- Clean Light (End Indicator)

• Turning on Auto Open Dry disables the Clean Light.
• If Auto Open Dry is off, the Clean Light default is ON, and the white light at the bottom front of the dishwasher remains on after the cycle until the door is opened. If the Clean Light is turned OFF, the end of cycle light turns off after 90 seconds.

• Chime Sound

• Turn button sounds and notification sounds on or off.
• The error alert sound cannot be turned off.

34 OPERATION

NOTE

- Auto Setting

• The default ON setting selects options automatically for better washing and drying performance.
• If the setting is changed to OFF, the options are not selected.

- End Sound

- Turn the end of cycle sound on or off.

• Auto Open Dry

• Turn Auto Open Dry on or off.
• The Auto Open Dry feature enhances the drying performance by opening the door automatically while drying.

- Keep Fresh Mode

• Turn the Keep Fresh mode on or off.
• For more information, refer to the Keep Fresh Mode section.

• Wi - Fi

- Turn the Wi-Fi on or off.

Loading the Dishwasher

For effective washing performance, always follow these instructions.

• Remove large particles of food debris from plates including bones before loading.
• Items with burnt on food should be soaked prior to loading in the dishwasher.
• Deep pots or dishes should be placed upside down.
  • Make sure that all items do not touch each other.

Non-Dishwasher Safe Items

The combination of high water temperature and dishwasher detergents may damage certain items. Do not wash the following items in the dishwasher.

• Copper or anodized aluminum
• Hand painted silver or gold leaf china
• Wood or bone handled utensils
• Iron or non-rustproof utensils
- Plastic items which are not dishwasher safe

• Sterling silver or gold-plated flatware or delicate or metal-rimmed china
- Fragile items such as crystal glasses

CAUTION

• Do not place pots or pans with plastic handles in the appliance as the handles may deteriorate due to the heat and detergent.
• Waterproof or long-lasting lipstick smudges on glasses may not be removed during the wash.

Loading the Silverware Basket

The silverware basket has separators to avoid scratching and tarnishing of delicate silverware.

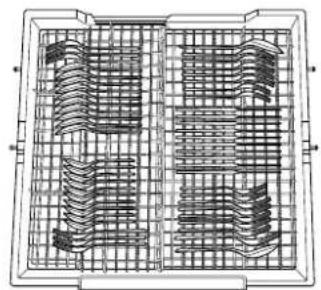

Loading Silverware into the Basket

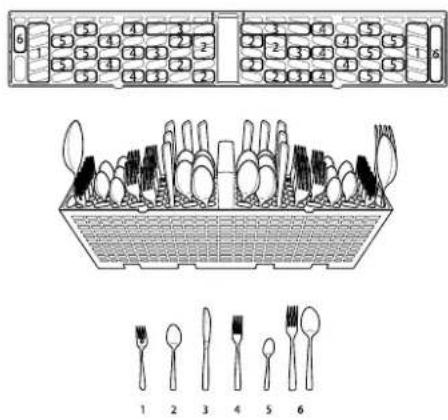

Loading 10 Place Settings

6 1 5 4 4 3 2 2 2 2 2 2 2 1 6 1 2 3 4 5 6

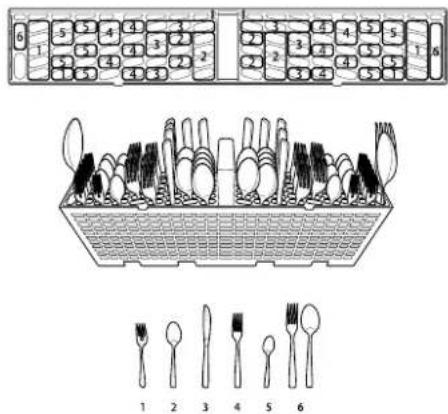

Loading 12 Place Settings

Illustration of a food tray with six compartments and a basket containing various cutlery and utensils, accompanied by a numbered list below.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Silverware Loading Tips:

• For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware.
• Load sharp items, such as knives, pointing down.
• When unloading the dishwasher, it is best to start with the silverware basket. Doing so will prevent water droplets from falling on your silverware from the upper rack.

WARNING

- Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

Loading the Lower Rack

Loading Dishes into the Lower Rack

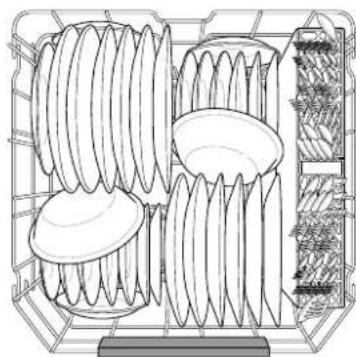

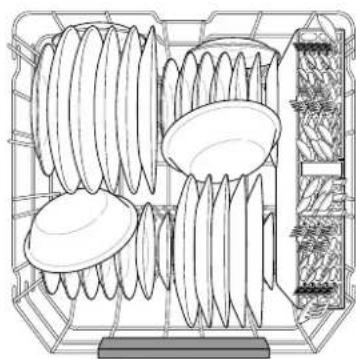

Loading 10 Place Settings

Technical line drawing of a mechanical component with multiple helical grooves and a central housing (no text or symbols)

Loading 12 Place Settings

Technical line drawing of a mechanical component with multiple helical structures and a side panel (no text or symbols)

Lower Rack Loading Tips

For details, refer to the online owner's manual.

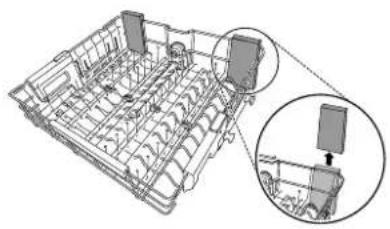

Folding Down the Lower Tines

Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes.

For more details, refer to the online owner's manual.

Loading the Upper Rack

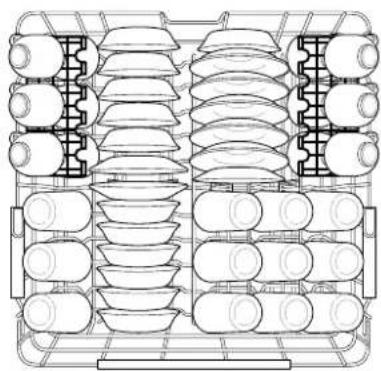

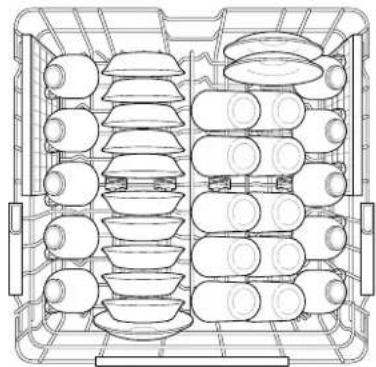

Loading Dishes into the Upper Rack

Loading 10 Place Settings

Technical line drawing of a multi-tiered storage rack with multiple oval-shaped compartments (no text or symbols)

Loading 12 Place Settings

Technical line drawing of a multi-tiered electrical or mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Upper Rack Loading Tips

For details, refer to the online owner's manual.

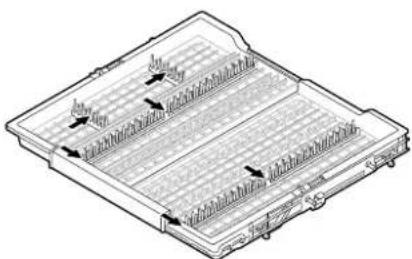

Loading the Cup Rack

This feature is only available on some models.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

36 OPERATION

Extra cups or cooking utensils can be laid on the fold down cup racks, which also provide support for long-stemmed glasses.

For more details, refer to the online owner's manual.

Removing and Replacing Cup Rack

This feature is only available on some models.

The left and right cup racks are interchangeable and can be removed.

For more details, refer to the online owner's manual.

Folding Down the Upper Tines

Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes.

For more details, refer to the online owner's manual.

Height Adjustable Upper Rack

To accommodate larger items, the upper rack can be adjusted up or down using the buttons on the left and right sides. The dishwasher ships with the upper rack raised.

For more details, refer to the online owner's manual.

WARNING

- Before adjusting, ensure the rack is empty of all dishes. Otherwise dishes may get damaged or you may get injured.

Removing the Snap-In Gliding Upper Rack

This feature is only available on some models.

For models with snap-in rack supports rather than wheeled rack supports, see the instructions in the online owner's manual.

CAUTION

- The snap-in upper rack should only be removed for servicing. If you need to remove the rack, wear gloves and handle the screwdriver carefully to avoid personal injury or damage to the dishwasher.

Loading the Cutlery Rack

The cutlery rack is best suited for flatware. The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning.

NOTE

- For best cleaning performance, place flatware in the silverware baskets. Heavily soiled utensils or items with baked on foods should be placed in the upper rack or spoon basket for best performance.

Loading Silverware into the Cutlery Rack

This feature is only available on some models.

Loading 10 Place Settings

Technical diagram of a grid-patterned mechanical component with internal channels (no text or symbols)

CAUTION

- Do not place bowls in the center of the cutlery rack. The door may not close properly, resulting in leakage.

Diagram of a fire extinguisher emitting smoke from a grid tray, no text or symbols present

Height Adjustable Tray

This feature is only available on some models. For details, refer to the online owner's manual.

Sliding Tray

This feature is only available on some models. The tray on the right side of the cutlery rack can be slid to the left if more space is needed on the upper rack for items such as tall glasses, water bottles, or baby bottles. Remove silverware before adjusting the tray.

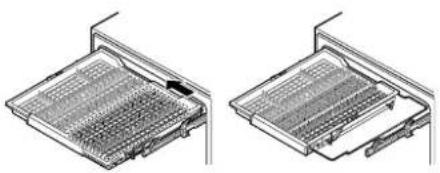

Two technical line drawings of a grid-patterned device or appliance, showing internal structure and mounting brackets (no text or symbols)

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items. For more details, refer to the online owner's manual.

WARNING

- Be careful when loading and unloading items with sharp edges. Load sharp knives with the blade down to reduce the risk of injury.

Removing the Snap-In Gliding Cutlery Rack

This feature is only available on some models.

For models with snap-in rack supports rather than wheeled rack supports, see the instructions in the online owner's manual

WARNING

- The snap-in cutlery rack should only be removed for servicing. If you need to remove the rack, wear gloves and handle the screwdriver carefully to avoid personal injury or damage to the dishwasher.

Fold tines to fit flatware. For LDNTH862* models.

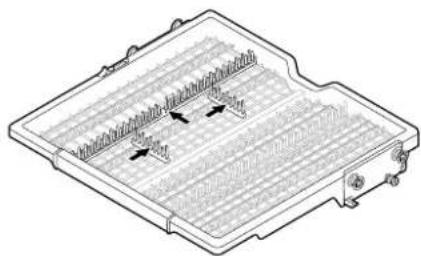

Isometric technical diagram of a mechanical component with internal channels and directional arrows (no text or symbols)

For LDNTH753*, LDNPH753* models.

Technical line drawing of a mechanical component with internal grooves and mounting holes (no text or symbols)

Pull tines back up to fit smaller dishes.

Diagram of a mechanical or structural assembly with intersecting beams and components, no visible text or symbols

Adding Cleaning Products

Adding Detergent to the Dispenser

• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.
• Put detergent into the detergent compartment before starting any cycle, except the Rinse (Download Cycle: P3) cycle.

WARNING

- Dishwasher detergent and rinse aid contain chemical components, like all other household detergent. So, they must be kept out of the reach of children.

Folding Down the Cutlery Tines

This feature is only available on some models.

38 OPERATION

CAUTION

• Use only detergent intended for dishwashers. Incorrect detergent may cause the dishwasher to fill with suds during operation. Excess suds may reduce wash performance and may cause the dishwasher to leak.
  • To avoid damaging the dispenser, do not pull up on the dispenser to close the dishwasher door.

Illustration of a hand holding a device with a circular arrow and no visible text or symbols

For more details, refer to the online owner's manual.

Adding Rinse Aid to the Dispenser

The Rinse Aid LED appears in the display when more rinse aid is needed.

The use of rinse aid is recommended to prevent water spots on dishes and to enhance drying performance.

For more details, refer to the online owner's manual.

Rinse Aid Dispenser Adjustment

The dispenser has five adjustment levels. The dishwasher is programmed at the factory for a rinse aid dispenser level of 2. This can be checked and adjusted from the control panel.

NOTE

• Adjust the setting higher if you have hard water and notice calcium buildup on your dishes.
• Setting the rinse aid control too low will contribute to spotting and streaking on dishes and poor drying performance.
• Setting the control too high can cause foaming, which will cause poor wash performance.

1

Ensure the appliance is off.

2 Press and hold POWER, wait unitle the panel lights up, and then press High Temp. at the same time.
3 Press High Temp. to change the rinse aid dispenser setting. Each press of the button changes the setting one step from L0 to L4. Once the desired rinse aid dispenser setting is selected, press START to save.

Refilling the Rinse Aid

How often the dispenser needs to be refilled depends on how often dishes are washed and the rinse aid setting used.

- The Rinse Aid LED flashes when more rinse aid is needed, unless the rinse aid dispenser setting is set to L0.

SMART FUNCTIONS

LG ThinQ Application

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

- Feature Updates

- Experience new features by updating the features of the product through the LG ThinQ application.

When a new feature is available for update, the outer segments of the digital display light up in rotation when the product is powered on.

If you see this notification, press the update notification on your smartphone to enter the Feature Update center of the LG ThinQ application. Select a new feature and press the Update button to proceed with the update. The progress of the update is shown in the digital display.

The status window automatically turns off when the update is successful.

NOTE

• The update may take a long time, and the product cannot be used during that time. Please proceed only when you have sufficient time.
- The update cannot proceed while the product is in use. Wait until after the cycle ends to begin the update.
- If the power is turned off during the update, the update may be interrupted and the product may become unusable.
- If the product cannot be powered on during or after the update, flip the breaker to shut off power for at least 30 seconds and then turn it back on.
- A description of the new features can be found in the application by selecting the dishwasher card and tapping the green arrow icon.
- Once updated, product features may no longer be described accurately in the owner's manual or may have different contents.
- Dry Only (P10) must be downloaded in Feature Updates before using.

• Monitoring

- Check the current status, cycle, options, running time and cycle end time for the appliance on a single screen.

- Downloaded

- You can download new and specialized cycles that are not included in the standard cycles on the appliance. Connect the appliance to the app to download a variety of specialty cycles specific to the appliance. Once cycle download is completed in the appliance, the product keeps the downloaded cycle until a new cycle is downloaded.

NOTE

• Only one downloaded cycle can be stored on the appliance at a time.
• The Tub Clean (P1) cycle is the default downloaded cycle.

- Tub Clean Coach

- This function shows how many cycles remain before running the Tub Clean (Downloaded: P1) cycle.

- Smart Diagnosis

- This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use. Select Smart Diagnosis in the app and follow the instructions. For additional information, refer to the online owner's manual.

- Settings

- Set the Rinse Aid Dispenser Level, Tub Clean Reminder, Signal Level and Clean Indicator Light.

When the cycle is complete or the appliance has problems, you have the option of receiving push notifications on a smart phone.

- Push Alerts

- Turn on the Push Alerts to receive appliance status notifications. The notifications are triggered even if the LG ThinQ application is off.

- Energy Monitoring

- You can use the energy monitoring function to check the estimated power usage.

40 SMART FUNCTIONS

NOTE

- In the following cases, you must update the network information for each appliance in the LG ThinQ application under Device Cards → Settings → Change Network.

• wireless router is changed
• wireless router password is changed
• Internet service provider is changed

• This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ Application and Connecting an LG Appliance

Models with QR Code

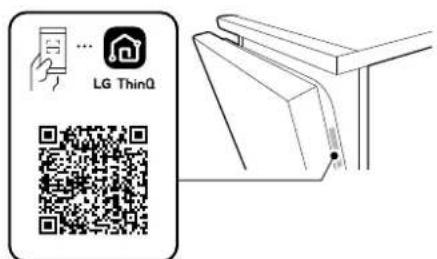

Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone.

LG ThinQ

Models without QR Code

1 Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in.
3 Touch the add (+) button on the LG ThinQ application to connect your LG appliance. Follow the instructions in the application to complete the process.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi LED on the control panel is lit.

• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
- LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The surrounding wireless environment can make the wireless network service run slowly.
- If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly depending on the Internet service provider.
• The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
- If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.
- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
- Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
- If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.

Using the Appliance Remotely

Remote Start

Use a smartphone to control the appliance remotely or check to see how much time is left in the cycle.

Using Remote Start

1 Load the dishes into the dishwasher.

2 Press the POWER button.
3 Make sure that the Wi-Fi is connected.
4 Press the Remote Start button and close the dishwasher door to enable the Remote Start function.
5 Start a cycle from the LG ThinQ application on your smartphone.

NOTE

• Once the Remote Start mode is enabled, you can start a cycle from the LG ThinQ application, but the cycle and option keys on the appliance are deactivated. To activate the keys, disable Remote Start.
• The door must be closed in order to activate the Remote Start mode.

Disabling Remote Start

While Remote Start is activated, open the dishwasher door or press the Remote Start button with the door closed.

radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Radio Equipment Specifications

Type	Operating Frequency Range	Output Power (Max.)
Wireless LAN	2400 MHz - 2472 MHz	< 1 W
Bluetooth ^	2400 MHz - 2483.5 MHz

† This feature is only available on some models.

FCC Notice

The following notice covers the transmitter module contained in this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

42 SMART FUNCTIONS

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

MAINTENANCE

To maintain performance and prevent trouble, it is important to check the outside and inside of the dishwasher, including filters and spray arms, at regular intervals.

WARNING

• When cleaning the outside and inside of the dishwasher, do not use benzene or thinner. Otherwise, it may cause fire or explosion.
  • To prevent injury during care and maintenance or cleaning, wear gloves and/or protective clothing.

Cleaning and Care

Cleaning the Exterior

• Do not use scrub pads or abrasive cleaners on the exterior of the dishwasher.
• Most soil can be removed using a soft, damp cloth or sponge. A mild soap can be used to help release stubborn soil. Rinse and wipe dry with a soft cloth after cleaning.
• Stainless steel surfaces can be polished using a stainless steel cleaner. Follow the instructions on the cleaner, and wipe in the direction of the grain.

CAUTION

• If cooking oil is spilled on the exterior of the product, wipe it off immediately. Do not clean the exterior of the product with cleaners which contain alcohol, thinners, bleach, benzene, flammable liquids, or abrasives. These substances may discolor or damage the appliance.
• Aromatic hydrocarbons such as benzene can damage the surface of the product. These compounds are found in many common household products such as detergents, paints, cosmetics, air fresheners, disinfectants, and even some foods such as oils, spices, and smoked meat or fish. Regularly wipe down the control panel and other outside surfaces of the product with a clean, damp cloth to help prevent damage.

Cleaning the Interior

• Clean the interior of the dishwasher periodically with a soft, damp cloth or sponge to remove food and dirt particles.
  • To remove white spots and odor from inside the dishwasher, run an empty cycle, without detergent, with one cup of white vinegar in a

dishwasher safe glass or bowl placed on the upper rack. (Vinegar is an acid and with constant use it could damage the appliance.)

• Using Tub Clean

- Run the Tub Clean (Downloaded: P1) cycle once a month or after every 30 cycles to eliminate residual soil, odor, white spots and other dirt inside the appliance. The Tub Clean (P1) cycle is the default Downloaded.

1 Remove all dishes from the appliance.
2 Remove, clean and reinstall the filters. See cleaning instructions in Cleaning the Filters.
3 Add 3 tbsp. (40 g) of citric acid to the detergent dispenser or follow the manufacturer's instructions if using a dishwasher cleaning agent. Do not use dishwasher detergent.
4 Run the Tub Clean (Downloaded: P1) cycle.
5 Press START.

NOTE

• Run the Tub Clean (Downloaded: P1) cycle once a month, or more often if needed, to remove detergent buildup and other residue.
• If you have not used the dishwasher for a long time, refresh the inside by running the Tub Clean (Downloaded: P1) cycle without detergent. When the cycle is finished, clean the inside and outside of the dishwasher according to the MAINTENANCE instructions.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

44 MAINTENANCE

Clogged Drain Air Gap or In-Sink Disposal

Check the drain air gap or in-sink disposal if the dishwasher is not draining well.

NOTE

• The drain air gap and disposal are external plumbing devices that are not part of the dishwasher.
- The warranty provided with the dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap and disposal.

Cleaning the Air Gap

1 Turn off the dishwasher.
2 Remove the air gap cover and the plastic cap underneath it.

Diagram showing a faucet and sink with a valve assembly, no text or symbols present

3 Clean out any debris with a toothpick or brush.

Illustration of a hand brushing a toothbrush on a sink (no text or symbols present)

4 Replace the plastic cap and air gap cover.

Diagram showing a faucet and a valve assembly with a downward arrow indicating a process (no text or symbols present)

Cleaning the Filters

WARNING

- Be cautious of sharp edges when handling the stainless steel filter.

CAUTION

- Remove food residue caught in filters to prevent the buildup of odor-causing bacteria and possible drainage problems.

NOTE

• For best wash performance, clean the filter after each load. If food debris remains in the filter, it may cause an odor.
• In areas with hard water, clean the filter at least once a month with a soft brush.
• Clean the filters using non-abrasive materials and warm running water.

1 Remove the lower rack and position the bottom spray arm so a wider vee is open to the front.
2 Turn the inner filter counter-clockwise and take out the assembled inner filter and stainless steel filter. With the filters removed, check the sump opening and remove any foreign materials, if needed.

Illustration of a hand using a tool to lift a car's seat, showing mechanical components and motion arrows (no text or symbols)

3 Clean the filters with a soft brush under running water. Reassemble the filters before reinstalling them.

Diagram illustrating a water tap being cleaned with a pipe, showing the process from initial wash to final cleaning.

4 To replace the assembled filters, position the spray arm so the wider vee is toward the front. Fit the filters back into the filter holder and secure them by turning the inner filter clockwise until it clicks into place.

Illustration of a hand holding a propeller with a circular button, showing a curved arrow indicating rotation (no text or symbols present)

NOTE

• Make sure the filter is assembled correctly before starting a cycle. When assembling, rotate the filter firmly until it clicks.

Recommended Filter Cleaning Schedule

Number of Loads Per Week	If you wash dishes before loading	If you scrape and rinse dishes before loading
1 - 3	Every 6 months	Once a year
4 - 7
8 - 12		Every 6 months
13 - 14

Number of Loads Per Week	If you only scrape dishes before loading	If you do not scrape or rinse dishes before loading
1 - 3	Four times a year	Once a month
4 - 7		Twice a month (every 15 days)
8 - 12	Every 1.5 months	Every week
13 - 14 Twice a week

ENGLISH

Cleaning the Spray Arm

If the spray arm holes are blocked by any food residue, dishes may not be cleaned well due to improper water spray.

It is recommended that the spray arms be cleaned once every two weeks.

Cleaning the Lower Spray Arm

1 Make sure that the water jet holes are not blocked by food particles.

2 If any food residue blocks the spray arm holes, remove it with a pin or piece of stiff wire.

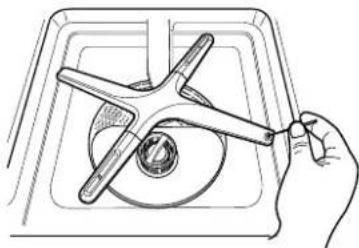

Hand holding a tool interacting with a circular object inside a tray (no text or symbols visible)

CAUTION

• To avoid breaking the rolling spray arm sections, do not pull or manually rotate them.

Cleaning the Upper Spray Arm

1 Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.

2 When cleaning is necessary, remove the upper spray arm by turning the nut on the

46 MAINTENANCE

bottom of the spray arm 1/8 turn counterclockwise and pulling down.

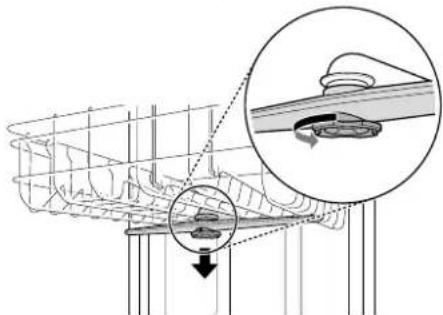

Diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

3 Remove food particles by rinsing or shaking the spray arm.
4 If any food residue blocks the spray arm holes, remove it with a pin or any sharp tool.

Illustration of a hand holding a pen with a downward arrow indicating force or pressure (no text or symbols)

5 After removing the food residue, clean the spray arms under running water.
6 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.
5 After removing the food residue, clean the spray arms under running water.
6 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.

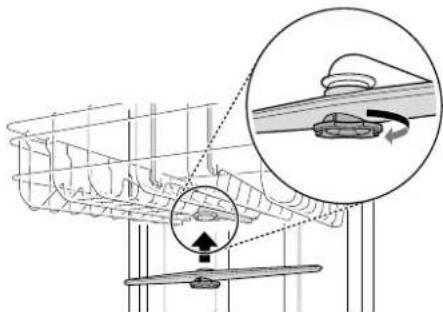

Technical diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

7 After assembly, make sure that the spray arms rotate freely.

Seasonal Maintenance and Storage

• If you will be absent for an extended period of time during warmer months, close the water valve and disconnect the power supply line, or turn off the circuit breaker. Clean the filter, tub and dispenser to prevent odor.
• If you will be absent for an extended period of time during colder months and there is a possibility of freezing temperatures, winterize the water supply lines and the dishwasher itself. Winterization must be performed by qualified service personnel.

Technical diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

[Non-Text]

TROUBLESHOOTING

The washer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the washer does not function properly or does not function at all, check the following before you call for service.

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

User Support Videos

For further assistance, there are videos and tutorials available through the LG.com website.

1 On the www.lg.com home page, click on the Support menu tab to bring up the menu selections. Select Video Tutorials.

2 Select a product category and then pick a topic or search a keyword.

NOTE

- Scan this QR code to quickly access the video search page on the LG website.

Error Messages

Problem Possible	Cause & Solution
IE	Water inlet problem.• Check for a clogged, kinked or frozen water inlet hose.• Check water supply.
OE	Drainage Problem.• Check for a clogged, kinked or frozen water drain hose.
	Air gap or disposal is clogged.• Clean air gap or disposal.
	Filters are clogged.• Clean filters.

48 TROUBLESHOOTING

Problem Possible	Cause & Solution
bE	Oversuding caused by improper detergent, such as liquid dish soap.Do not use hand dishwashing liquids. Only use detergents which are designed for use in automatic dishwashers.AbE error can appear if dishes soiled with a lot of foamy food, such as whipped cream, are loaded in the appliance. To clear the error, turn the appliance off and start a new cycle.To remove detergent residue in the tub, pour approximately 4 oz ~ 8 oz (100 ml ~ 200 ml) of milk into a shallow bowl, place it in the upper rack and then run the appliance on the Auto cycle.
	Failure to level dishwasher.Make sure that the appliance is properly leveled.
AE	Water leakageTurn off the water supply to the dishwasher and call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) or 1-888-542-2623 (Canada).The dishwasher makes an alert sound for 10 seconds, and runs the drain pump intermittently. If power is turned off to the machine, the machine powers back on automatically until the AE error is resolved.
FE	Excessive Water supplied.Please call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
HE	Heater circuit failure.Please call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
tE	Water temperature sensor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
F35	Heated air temperature sensor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
LE	Wash motor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
F31	Heat air dry fan motor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
nE	Vario motor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
F37	Auto Open Dry motor errorPlease call an LG Electronics Customer Information Center at 1-800-243-0000 (U.S.A.) 1-888-542-2623 (Canada).
P1,P2,P3,P4,P5,P6,P7,P8,P9,P10	The Downloaded is selected.This is not an error code. This code indicates the current Downloaded.
n:#, U:#, d:#, t#(# is a number.)	Test mode is selected.This is not an error code. This code is used when testing the dishwasher. Power the unit off and on and the code will disappear.
L0,L1,L2,L3,L4	Rinse aid level setting mode is selected.This is not an error code. This code indicates the current rinse aid level. For more information, refer to the Adding Cleaning Products section.

Wi-Fi

Problem Possible	Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The password for the Wi-Fi network was entered incorrectly.· Delete your home WI-FI network and begin the connection process again.
	Mobile data for your smartphone is turned on.· Turn off the Mobile data on your smartphone before connecting the appliance.
	The wireless network name (SSID) is set incorrectly.· The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.· Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The appliance and the router are too far apart.· If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.
	During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones).· Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name.- If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.- If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance.

ENGLISH

50 LIMITED WARRANTY

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS ("LG") TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Dishwasher ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

Warranty Period	Scope of Warranty	HOW SERVICE IS HANDLED
One (1) year from date of original retail purchase	Labor / Parts LG will also provide, free of charge, all labor and on-site service to replace the defective part.
Two (2) years from date of original retail purchase	Main control board†/ Racks / Stainless Steel Door Liner / Tub	Main control board, dishwasher racks, stainless steel door liner, tub. Customer will be responsible for any labor or in-home service to replace defective parts.
Ten (10) years from date of original retail purchase	Direct Drive Motor	Direct Drive motor. Customer will be responsible for any labor or in-home service to replace defective parts.

† Main control board is located on the bottom right of the dishwasher when viewed from the front.

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of LG.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of LG.
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by LG.
• Damage or missing items to any display or open box Product.
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-800-243-0000 and select the appropriate option from the menu.

Or visit our website at http://www.lg.com.

Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries,

52 LIMITED WARRANTY

predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support and clicking on "How do I find my model number?").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

54 LIMITED WARRANTY

CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Dishwasher ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased from an authorized retailer and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture.)
Dishwasher Extended Component W	Warranty (Parts Only) (Consumer will be charged for Labor after One (1) year from the date of purchase.)
One (1) year from the date of original retail purchase	Two (2) years from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Labor / Parts (internal/functional parts only)	Main control board ^ , Rack, Stainless Steel Door Liner, Tub	DD Motor

† Main control board is located on the right bottom of the Dishwasher when viewed from the front.
- Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
- Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
- Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

DISCLAIMER:

IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO'S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY WARRANTIES PROVIDED THEREUNDER.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE, UNLESS SUCH LIMITATION IS PROHIBITED BY THE LAWS OF THE PROVINCE IN WHICH YOU RESIDE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, OR IF OTHERWISE PROHIBITED BY THE LAW OF THE PROVINCE IN WHICH YOU RESIDE, LGECI DOES NOT MAKE ANY OTHER WARRANTIES OR CONDITIONS RESPECTING THE PRODUCT, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST

REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

- Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

- Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

- Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;

- Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;

- Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

- Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;

- Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;

- Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

- Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;

- Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;

- Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;

- Damage or missing items to any display, open box, refurbished or discounted Product;

• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;

- Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI:

- Increases in utility costs and additional utility expenses in any way associated with the Product;

• Any noises associated with normal operation of the Product;

- Replacement of any part that was not originally included with the Product;

- Replacement of light bulbs, filters, fuses or any other consumable parts;

• Costs associated with removal and/or reinstallation of the Product for repairs; and

- Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

- Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product

56 LIMITED WARRANTY

is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-542-2623(8 am - 9 pm EST, 365 days) and select the appropriate option from the menu, or visit our website at http://www.lg.com.

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with provincial legislation, the consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. For consumers in Ontario and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are

for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out. The arbitration provision does not apply to consumers in Ontario and Québec.

For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/).

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any

58 LIMITED WARRANTY

way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

Warranty Exceptions

Poor wash results caused by debris remaining in the filter.		Clean the filter regularly.
Poor wash results caused by improper loading or over stacking: wash arm won't rotate or soap dispenser is held closed.		Make certain that no dishes or utensils are in the path of the spray arms.Do not place one dish on top of another.
Poor drying results caused by lack of rinse aid.		Use rinse aid or combination detergent.
Water is not supplied because the water tap is not turned on.IE error		Check and turn on the water tap.
Water is not supplied because the inlet hose is kinked.IE error		Reinstall the inlet hose.
Not draining because drain hose is kinked.OE error		Reinstall the drain hose.
The knockout plug in the garbage disposal is not removed.OE error		Remove the plug on the disposal.
The disposal or air gap is blocked by debris.OE error		Clean the disposal or the air gap.
Inlet valve and drain hose connection problem caused by improper installation.External leakage		Reinstall the hose.
Door movement or closing compromised by incorrect leveling.		Adjust the lower front leveling feet to the required height.
No power due to loose connection of power supply line or electrical outlet problem.		Reconnect the power supply line or repair the electrical outlet.
Pick-up, electrical wiring, plumbing.Installation		You will be charged for the installation.

ENGLISH

en-us_main.book.book Page 60 Monday, May 19, 2025 1:46 PM 60 Memo

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

MANUAL DEL PROPIETARIO LAVAVAJILLAS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Technical diagram of a refrigerator with numbered parts for identification

Labeled diagram of a refrigerator with numbered parts for identification

Technical diagram of a dishwasher with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols)

Technical illustration of a mechanical assembly with no visible text or symbols

Accesorios

Six types of screw and ring components labeled 1 to 6, including fasteners, rings, and sheets (no text or symbols beyond labels)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTALACIÓN

https://www.lg.com/us/support/video-tutorials/lg-dishwasher-installation-CT10000009-1366643457088

Inglés (CANADÁ)

https://www.lg.com/ca_en/support/video-tutorials/CT20098058-1424294103269

Francés (CANADÁ)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Vista lateral

25 3/4" - 25 15/16" (654 - 659 mm) 23 3/4" (603 mm) 33 9/16" (852 mm) 33 5/8" (854 mm) 4 1/2" (115 mm) 1 5/8" (42 mm) 2 7/8" (73 mm) 4 5/8" (118 mm) 19 1/8" (485 mm)

Line drawing of a cabinet with a highlighted panel and numbered label (no text or symbols)

ESPAÑOL

≥24" (610 mm) ≥33 7/8" (860 mm) ≥24" (610 mm)

3.5" 2.5" 4"

ADVERTENCIA

Abstract geometric diagram with overlapping circles and a vertical line, no text or symbols present

Two technical diagrams showing a container with a valve and a circular component, no text or symbols present.

Diagram illustrating a mechanical setup with two views of a suspended object, showing hand positioning and alignment details.

2

Illustration showing a hand holding a wrist with a wristpin, next to a closed book (no text or symbols present)

3

Pure mechanical diagram showing a lever system with no text, numbers, or symbols

NOTA

Technical diagram of a mechanical component with labeled parts (1 and 2), showing internal structure without any text or symbols.

1

Line drawing of a bed with a seat and a numbered point (no text or symbols)

16 INSTALACIÓN

Technical diagram showing a mechanical assembly with a magnified inset of a coiled cable or wire connection detail (no text or symbols present)

Diagram showing a mechanical device with a rotating lever and a magnified inset illustrating the motion (no text or symbols)

Diagram of a mechanical device with a circular component and a separate view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and a magnified inset highlighting a specific component.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Technical line drawing of a door frame with mounting brackets and a handle (no text or symbols)

Diagram of a mechanical linkage system with an inset showing a lever mechanism (no text or labels)

Illustration of a hand holding a triangular object with a tool, showing a folded edge and a separate blade (no text or symbols)

Two technical line drawings of pliers, one with a black plastic plate and the other with a gray plastic bracket (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up detail (no text or symbols)

18 INSTALACIÓN

Pure mechanical diagram showing a circular component with internal lines and a marked point (no text or symbols)

Diagram showing a person using a large box with a no-smoking symbol overlaid, indicating anti-smoking behavior.

Technical diagram showing a circular object intersecting a structural frame (no text or symbols)

NOTA

Line drawing of a hand pressing down on a textured surface, labeled with number 2 (no text or symbols present)

Technical line drawing of a cabinet or enclosure structure with mounting feet and internal components (no text or symbols)

3D diagram showing a circular ring mounted in a corner with dashed lines indicating hidden edges (no text or symbols)

Two abstract diagrams showing coiled and twisted shapes with no text or symbols

Diagram of a cabinet interior with open door and internal components, showing airflow direction (no text or symbols)

ESPAÑOL

Diagram showing a mechanical setup with wheels and a magnified inset illustrating a curved arrow (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a component (no text or symbols present)

Safety warning symbol and electrical circuit diagram showing a lightning bolt hazard and wiring inside an enclosure

NOTA

Diagram showing a kitchen interior with a magnified inset of the exterior wall and a circular arrow indicating rotation (no text or symbols present)

3 Utilice un destornillador Phillips para retirar 2 tornillos ①.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or movement.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrow indicating rotation or movement.

Technical diagram showing a mechanical assembly with labeled parts and directional arrow indicating process flow

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or movement.

Diagram showing a mechanical switch mechanism with labeled parts and rotation direction

Diagram showing a tool interacting with a device, with an inset close-up highlighting the component labeled '6'

5/8" (16 mm) 3/4" (19 mm) 1" (25 mm)

NOTA

Technical line drawing of a mechanical component with three cylindrical parts and a labeled connection point (no text or symbols present)

Diagram of a toilet with labeled component and magnified view showing internal structure

Diagram of a mechanical component with a central circular feature and an upward arrow, no text or symbols present.

Mechanical diagram showing a rotating shaft and threaded pipe assembly (no text or symbols)

Diagram of a pipe system with a valve and tubing, showing a magnified view of the valve assembly (no text or labels)

Diagram of a mechanical device with rotating arm and clamping mechanism (no text or symbols)

Technical diagram of a plumbing system with labeled components and a magnified inset showing valve mechanism

Diagram showing a mechanical component with a circular feature and an inset close-up of its internal structure (no text or symbols)

Line drawing of a door with a vertical control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

24 INSTALACIÓN

Diagram showing a mechanical setup with a labeled 'Tub up' component and a magnified inset illustrating the assembly.

Technical diagram of a mechanical device with labeled component and rotation arrow

Technical diagram of a mechanical device with labeled parts and directional arrow indicating rotation or movement.

Tub up Tub down

NOTA

Diagram showing a mechanical assembly with pulleys and a magnified inset of a component (no text or symbols)

Mechanical diagram showing a tool applying force to a bracket with a pin (no text or symbols present)

Illustration of a hand holding a triangular object with a knife inserted, showing a blade and circular features (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

PRECAUCIÓN

Diagram showing a door with a pull rod and a close-up view of the door handle (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 INSTALACIÓN

Diagram of a screw fastening device with magnified inset showing internal components (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

Diagram showing a no-smoking symbol with labeled point 1, likely indicating a safety or restriction in a building interior.

Technical line drawing of a mechanical device with a 15° angle标注 (no text or symbols present)

PRECAUCIÓN

Technical line drawing of a mechanical bracket assembly (no text or symbols)

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid 8:88 Wi-Fi Tub Clean San Rinse Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi (3 sec.) Cancel (3 sec.) START 4

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid 8:88 Wi-Fi Tub Clean San Rinse Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi Closed Cancel Closed 5

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

30 FUNCIONAMIENTO

Technical line drawing of a mechanical component with motion arrows indicating movement (no text or symbols)

ADVERTENCIA

Illustration of a food tray with cutlery and utensils, accompanied by numbered food items and corresponding utensil illustrations.

Illustration of a food tray with six compartments and a basket containing various cutlery and utensils, accompanied by a numbered list below.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

36 FUNCIONAMIENTO

ADVERTENCIA

Technical line drawing of a mechanical component with multiple helical grooves and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with multiple helical grooves and a side panel (no text or symbols)

Top-down line drawing of a multi-tiered storage rack with multiple oval-shaped compartments (no text or symbols)

Technical line drawing of a multi-tiered mechanical or electrical component assembly (no text or symbols)

Technical line drawing of a mechanical component with grid structure (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

38 FUNCIONAMIENTO

PRECAUCIÓN

Diagram showing a device with a prohibition symbol on its screen, indicating no protection or anti-protection.

Bandeja de altura ajustable

Two technical line drawings of a grid-patterned device or tray device, shown from different angles (no text or symbols)

Technical line drawing of a mechanical component with internal channels and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with internal grooves and mounting holes (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram of a fork inserted into a grid structure (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

es-us_main.book.book Page 40 Monday, May 19, 2025 1:31 PM

40 FUNCIONAMIENTO

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

MANTENIMIENTO

Diagram showing a faucet and a valve assembly with an upward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to test a surface with a water bottle (no text or symbols present)

Diagram showing a faucet and a plastic bottle being inserted into a socket (no text or symbols present)

Illustration of a hand turning a car engine component with directional arrows (no text or symbols)

Diagram illustrating the process of removing a pipe into a drain, showing the step from plastic to liquid transfer.

Line drawing of hands operating a mechanical component with arrows indicating rotation (no text or symbols)

NOTA

Hand holding a tool interacting with a circular object inside a tray (no text or symbols visible)

PRECAUCIÓN

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Illustration of a hand holding a pen with a downward arrow indicating force or pressure (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a component being inserted into a housing (no text or symbols present)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

EXCLUSIONES O LIMITACIONES ANTERIORES PODRÍAN NO CORRESPONDER EN SU CASO. ESTA GARANTÍA LIMITADA LE OTORGA DERECHOS LEGALES ESPECÍFICOS, Y ES POSIBLE QUE USTED CUENTE CON OTROS DERECHOS, QUE VARÍAN SEGÚN EL ESTADO.

ESTA GARANTÍA LIMITADA NO CUBRE LO SIGUIENTE:

es-us_main.book.book Page 56 Monday, May 19, 2025 1:31 PM 56 Memorándum

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

MANUEL D'UTILISATION

LAVE-VAISSELLE

Pure geometric lines and shapes without any text, numbers, or symbols

Technical diagram of a refrigerator with numbered parts for identification

Labeled diagram of a refrigerator with numbered parts for identification

Technical diagram of a dishwasher with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical illustration of a ship's deck assembly with a magnified inset showing the wheel and gear (no text or symbols)

Accessoires

1

2

3

4

5

6

10 APERÇU DU PRODUIT

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTALLATION

https://www.lg.com/us/support/video-tutorials/lg-dishwasher-installation-CT10000009-1366643457088

Anglais (CANADA)

https://www.lg.com/ca_en/support/video-tutorials/CT20098058-1424294103269

Français (CANADA)

Illustration of nine different types of electrical connectors and components, numbered 1 to 9.

①Câble électrique

25 3/4" - 25 15/16" (654 - 659 mm) 23 3/4" (603 mm) 33 9/16" (852 mm) 33 5/8" (854 mm) 4 1/2" (115 mm) 1 5/8" (42 mm) 2 7/8" (73 mm) 4 5/8" (118 mm) 19 1/8" (485 mm)

Line drawing of a cabinet with a highlighted section and numbered label (no text or symbols)

FRANÇAIS

≥24" (610 mm) ≥33 7/8" (860 mm) ≥24" (610 mm)

3.5" 2.5" 4"

AVERTISSEMENT

Abstract geometric diagram with intersecting circles and a diagonal line, no text or symbols present

Two technical diagrams showing a container with a pipe and a valve, no text or symbols present.

Diagram of a mechanical setup with two circular insets showing a person inside a frame (no text or symbols)

2

Illustration showing a hand pressing down on a wrist, next to a closed wallet (no text or symbols)

3

Pure mechanical diagram showing a lever and support structure without any text, numbers, or symbols

REMARQUE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Technical diagram of a mechanical component with labeled parts (1 and 2), showing internal structure without any text or symbols.

Line drawing of a bed with a seat and a numbered point (no text or symbols)

16 INSTALLATION

Technical diagram of a mechanical component with a magnified inset showing internal cable routing (no text or symbols)

Diagram showing a mechanical device with a circular inset illustrating a rotating lever mechanism (no text or symbols present)

Technical line drawing of a mechanical assembly with a circular component and a separate bracket (no text or symbols)

2

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical line drawing of a door frame with mounting holes and a vertical guide (no text or symbols)

Diagram of a mechanical device with an inset showing a lever mechanism (no text or symbols present)

FRANÇAIS

Illustration of a hand holding a knife with a knife blade and a tool, showing a folding view (no text or symbols)

Technical line drawing of two mechanical components with pointed tips and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

Diagram showing a hand holding a circular object with a labeled point '1' and a diagonal line, possibly indicating a step or direction.

Diagram showing a person using a washing machine with a no-smoking symbol overlaid, indicating disinfection or no smoking.

Technical diagram of a mechanical assembly with no visible text or symbols

REMARQUE

Technical diagram showing a hand pressing a grid on a mechanical component with labeled part 2

Pure architectural line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

3D diagram of a circular ring mounted on a vertical surface, with dashed lines indicating hidden edges (no text or symbols)

Two abstract diagrams showing coiled or twisted structures with no text or symbols

FRANCIALS

Pure technical diagram of a cabinet or enclosure with internal components and directional arrows, no text or symbols present.

Diagram showing a mechanical assembly with a magnified inset highlighting a curved arrow (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Electrical warning symbol with a lightning bolt inside an open box, no text or labels present

REMARQUE

Line drawing of a kitchen appliance with a magnified inset showing a hanging device (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Technical diagram showing a mechanical assembly with labeled parts and directional arrow indicating transformation or assembly.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or movement.

FRANÇAIS

Diagram showing a mechanical component with labeled parts and a circular diagram illustrating the assembly process.

Diagram showing a tool being inserted into a container with a magnified view of the tip, labeled with number 6.

5/8" (16 mm) 3/4" (19 mm) 1" (25 mm)

REMARQUE

Technical line drawing of a mechanical component with three views (no text or symbols)

Technical diagram of a mechanical device with labeled component and magnified detail view

Diagram of a mechanical component with a circular feature and an upward arrow, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram of a mechanical assembly with rotating shaft and threaded pipe (no text or symbols)

Diagram of a pipe drain system with an inset showing a valve inserted into a tank (no text or labels)

Diagram of a mechanical lever mechanism with rotating components (no text or symbols)

Technical diagram showing a pipe installation with labeled components and a magnified inset illustrating the connection between two parts.

Diagram showing a car interior with a steering wheel and dashboard, plus an inset close-up of the dashboard (no text or symbols)

Line drawing of a door frame with a vertical panel and circular button (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Diagram showing a mechanical setup with a table and a zoomed-in view of a tub-up device, including labeled parts.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Tub up Tub down

REMARQUE

Diagram showing a mechanical setup with pulleys and a magnified inset of a device (no text or symbols)

FRANÇAIS

Diagram of a tool applying force to a bracket with a pin (no text or symbols)

Illustration of a hand holding a knife with a knife blade, showing the blade being cut (no text or symbols present)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 INSTALLATION

Diagram of a mechanical assembly with a magnified inset showing a pin inserted into a housing (no text or symbols present)

MISE EN GARDE

Diagram showing a door assembly with a magnified inset of a wall-mounted device (no text or symbols present)

2

Diagram of a mechanical assembly with a magnified inset showing a screw inserted into a housing (no text or labels)

3

Technical line drawing of a mechanical assembly with no visible text or symbols

• A

Technical line drawing of a mechanical assembly with an inset close-up showing a component (no text or symbols present)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Diagram showing a no-smoking symbol with labeled parts and numbered marker

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

28 INSTALLATION

REMARQUE

Technical line drawing of a mechanical device with a 15° angle标注 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid 8:88 Wi-Fi Tub Clean Sati Rinse Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi (3 sec.) Cancel (3 sec.)

POWER Auto Normal Heavy 1Hour Downloaded Rinse Aid Tub Clean 8:88 Wi-Fi San Rinse Steam High Temp. Dry Boost Delay Start Remote Start START Low / High Wi-Fi (3sec) Cancel (3sec) 5

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

34 FONCTIONNEMENT

Mode Garder frais

Technical line drawing of a mechanical component with motion lines indicating movement (no text or symbols)

AVERTISSEMENT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

36 FONCTIONNEMENT

REMARQUE

Illustration of a basket filled with various vegetables (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Illustration of a food tray with six compartments and a basket containing various cutlery, accompanied by a numbered list below.

Technical line drawing of a mechanical component with multiple helical grooves and a side view showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with threaded and flanged sections (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

38 FONCTIONNEMENT

Technical line drawing of a multi-tiered rack with circular components (no text or symbols)

Technical line drawing of a multi-layered electrical insulator assembly (no text or symbols)

Diagram showing a fire extinguisher with a prohibition symbol on a grid, likely indicating no fire extinguisher use.

Two technical line drawings of a grid-patterned device or enclosure, shown from top and side views (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 FONCTIONNEMENT

AVERTISSEMENT

Technical line drawing of a mechanical component with internal channels and directional arrows (no text or symbols)

Isometric technical drawing of a mechanical component with internal grid structure and mounting points (no text or symbols)

Diagram of a fork inserted into a grid-patterned structure (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Application LG ThinQ

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

46 ENTRETIEN

ENTRETIEN

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Diagram showing a faucet and a valve assembly with an upward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to clean or absorb a pipe from a water tap (no text or symbols present)

Diagram showing a faucet and a connector with a downward arrow indicating a process (no text or symbols present)

Illustration of a hand turning a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram illustrating a hand washing a pipe with a stopper, showing the process from initial wash to final cleaning.

Illustration of hands operating a mechanical device with a rotating knob and directional arrows (no text or symbols)

REMARQUE

Hand holding a tool interacting with a circular object inside a tray (no text or symbols visible)

MISE EN GARDE

Diagram of a mechanical component with a magnified inset showing internal components (no text or symbols)

Line drawing of a hand holding a pen with a black arrow pointing to the tip (no text or symbols)

FRANÇAIS

Technical diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

50 DÉPANNAGE

DÉPANNAGE

fr-ca_main.book.book Page 59 Monday, May 19, 2025 1:40 PM 59AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 60 Monday, May 19, 2025 1:40 PM 60 AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fr-ca_main.book.book Page 61 Monday, May 19, 2025 1:40 PM 61AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 62 Monday, May 19, 2025 1:40 PM 62 AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fr-ca_main.book.book Page 63 Monday, May 19, 2025 1:40 PM 63AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

LG

LG Customer Information Center

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000 U.S.A.

1-888-542-2623 CANADA

Register your product Online!

www.lg.com
