USER MANUAL MBMTG925E-BK MIDEA

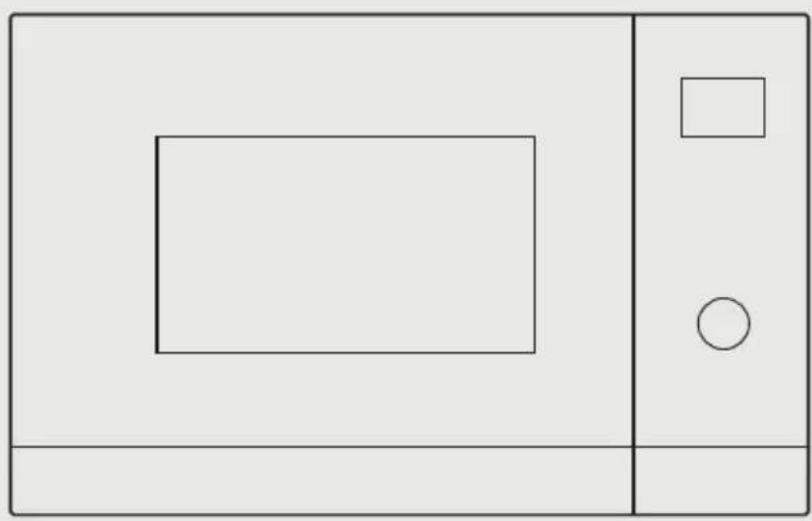

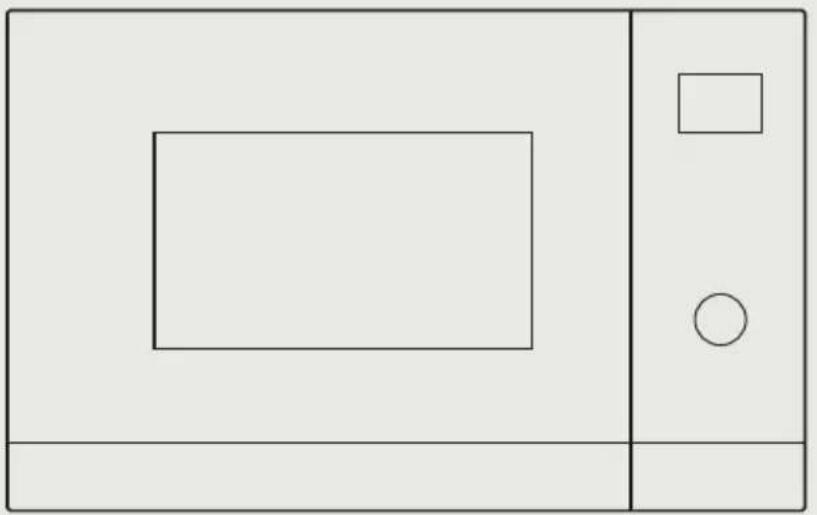

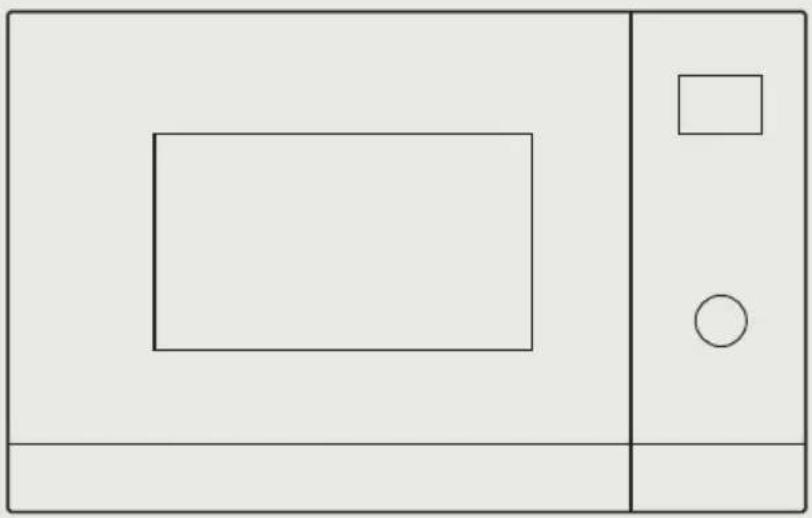

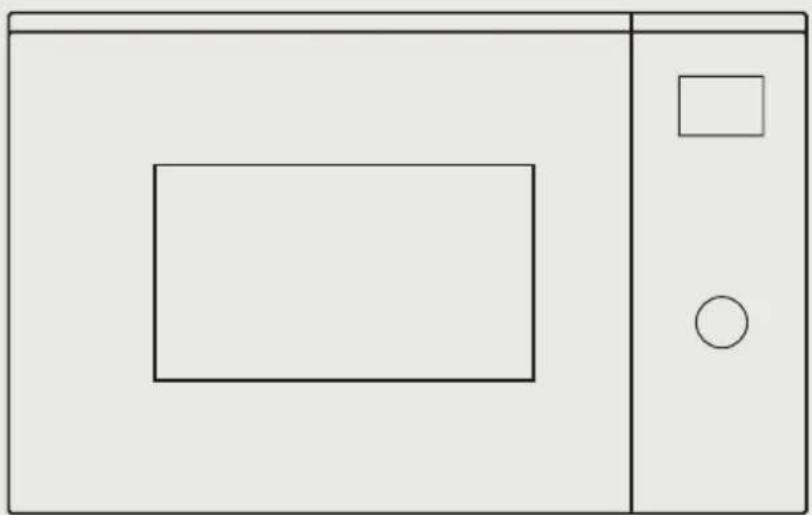

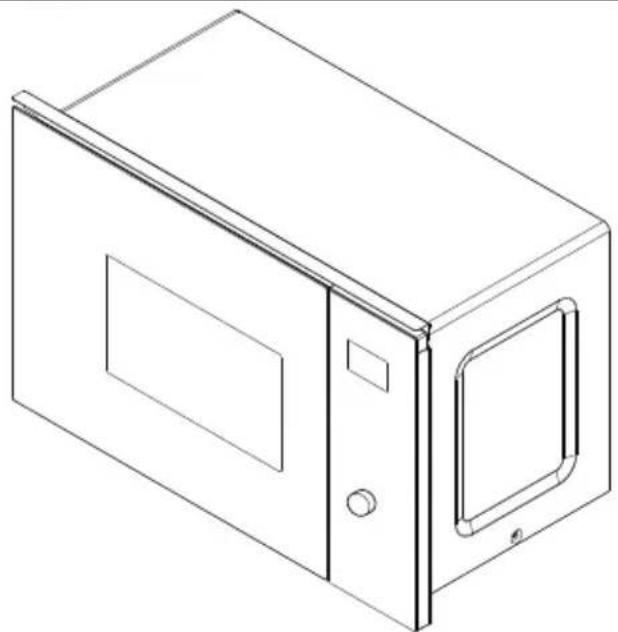

Simple line drawing of a microwave oven with a blank chamber, square, and circle on the side (no text or symbols)

MICROWAVE OVEN

USER MANUAL

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

LANGUAGES

EN English

FR French

ES Spanish

HU Hungarian

SR Serbian

HR Croatian

SL Slovenian

EL Greece

BG Bulgarian

PL Polish

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 02

SAFETY INSTRUCTIONS....03

SPECIFICATION....12

PRODUCT OVERVIEW....13

PRODUCT INSTALLATION....14

OPERATION INSTRUCTIONS....18

CLEANING AND MAINTENANCE....26

TROUBLE SHOOTING....27

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT.....28

DISPOSAL AND RECYCLING 29

DATA PROTECTION NOTICE....30

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

Precautions To Avoid Possible Exposure To Excessive Microwave Energy

a. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

EN

Addendum

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

- Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (For appliance with type Y attachment)

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which

gives protection against exposure to microwave energy.

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Only use utensils that are suitable for use in microwave ovens.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- The oven should be cleaned regularly and any food deposits removed.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

• The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments;
• farm houses;
• bed and breakfast type environments.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• Metallic containers for food and beverages are not allowed during microwave cooking.
• The appliance shall not be cleaned with a steam cleaner.
• Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)
• The microwave oven is intended to be used built-in.
• Steam cleaner is not to be used.
• Surface of a storage drawer can get hot.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than

8 years of age shall be kept away unless continuously supervised.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.

- The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce The Risk Of Injury To Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

- A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

- If a long cord set or extension cord is used:

- The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.

• The extension cord must be a grounding-type 3-wire cord.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unin-tentionally.

Utensils

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation

that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.

Materials You Can Use In Microwave Oven

Utensils Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials To Be Avoided In Microwave Oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SPECIFICATION

Model	MBMTG925E-BK/MBMTG925E-WH/ MBMTG925E-X
Rated Voltage/Frequency:	230V~ 50Hz
Rated Input Power(microwave):	1450 W
Rated Output Power(microwave): 900 W
Rated Input Power(Grill): 1200 W

ENERGY CONSUMPTION

Product information for power consumption and maximum time to reach applicable low power mode.

Standby mode	0.8 W
The maximum time needed for the microwave oven to automatically reach the applicable low power mode or condition.	20 minutes

PRODUCT OVERVIEW

Setting Up Your Oven

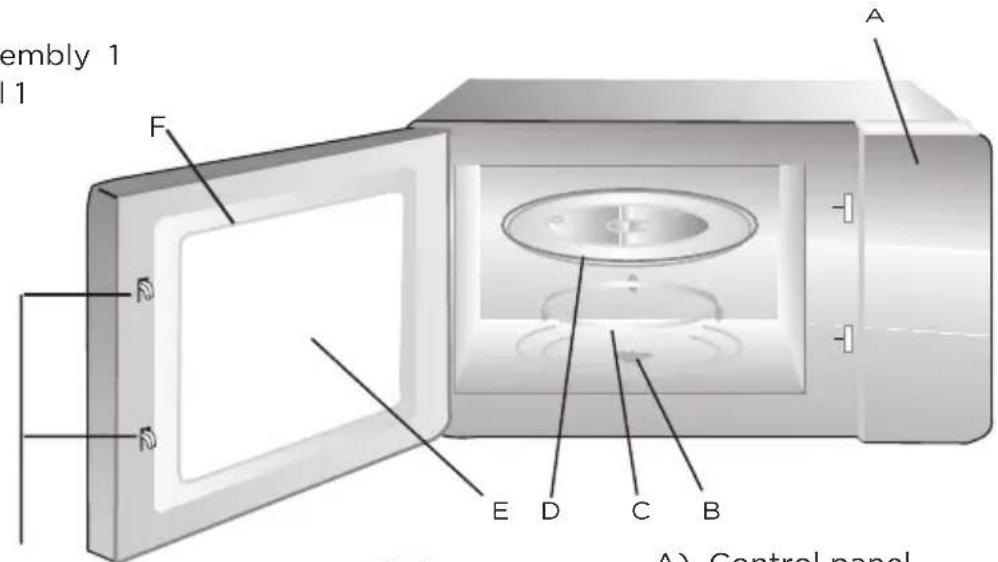

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Assembly 1 I 1 A F E D C B A) Control panel

Sucker (If the "OPEN" button does not work, please open the door by the sucker, refer to page 25.)

Circular diagram with diagonal hatching and hanging tassels at the bottom (no text or symbols)

Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

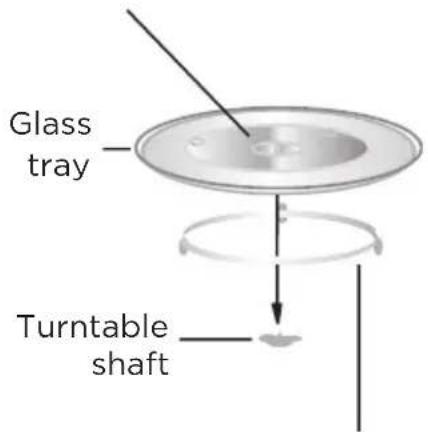

Turntable Installation

Hub (underside)

Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

PRODUCT INSTALLATION

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wallmounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.
9. Don't use under the work surface and that it must not be subject to spillage from containers onto surfaces under which the appliance is installed.

The accessible surface may be hot during operation.

Warning sign with steam symbol inside a triangle, indicating hazardous material

Installation Instruction

The following must be noted Electrical connection

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation.

Fitted units

The installation cabinet must not have a back panel behind the appliance. Minimum installation height: 850 mm.

Ventilation slots and intakes must not be covered.

Installation Instruction

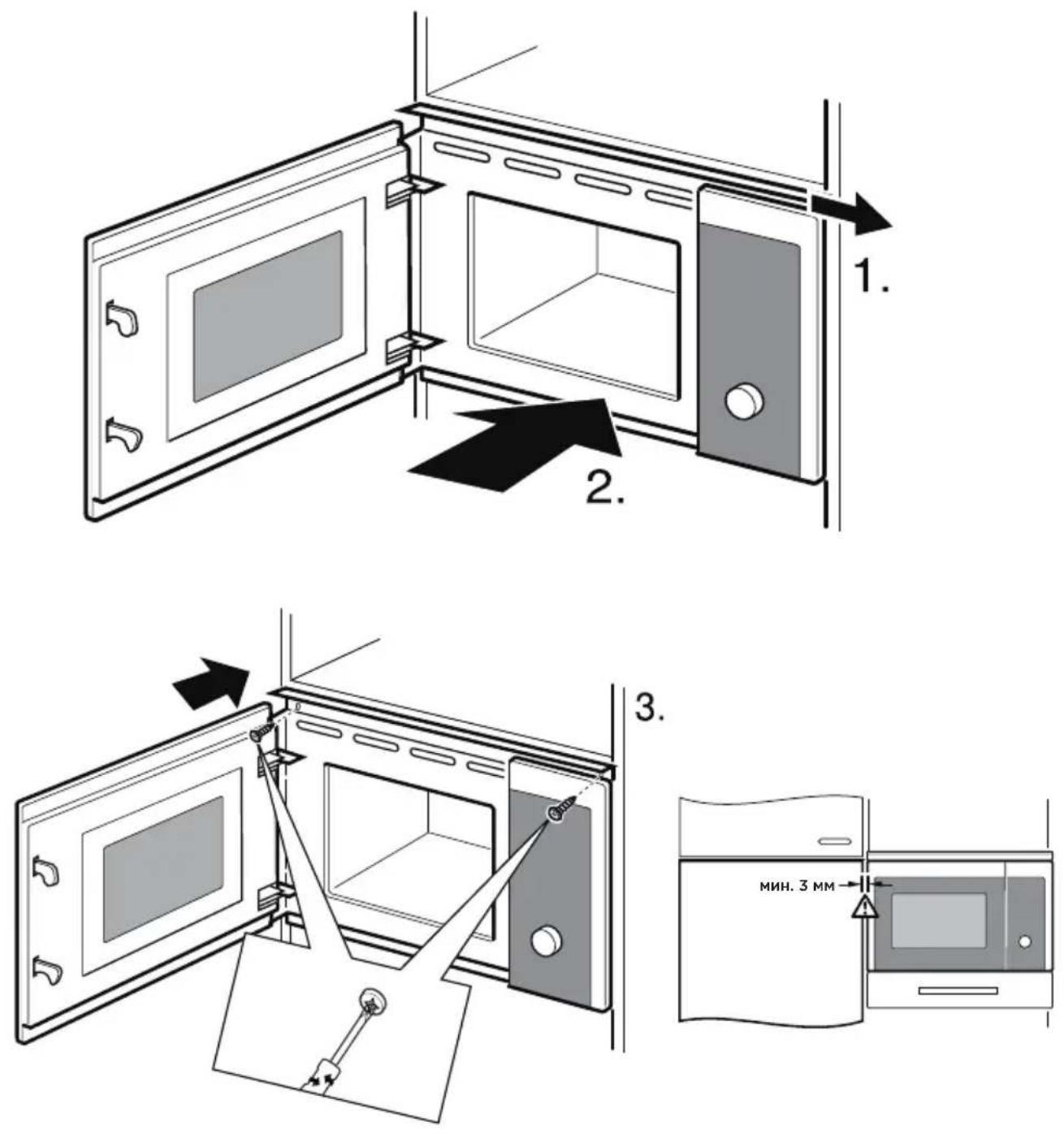

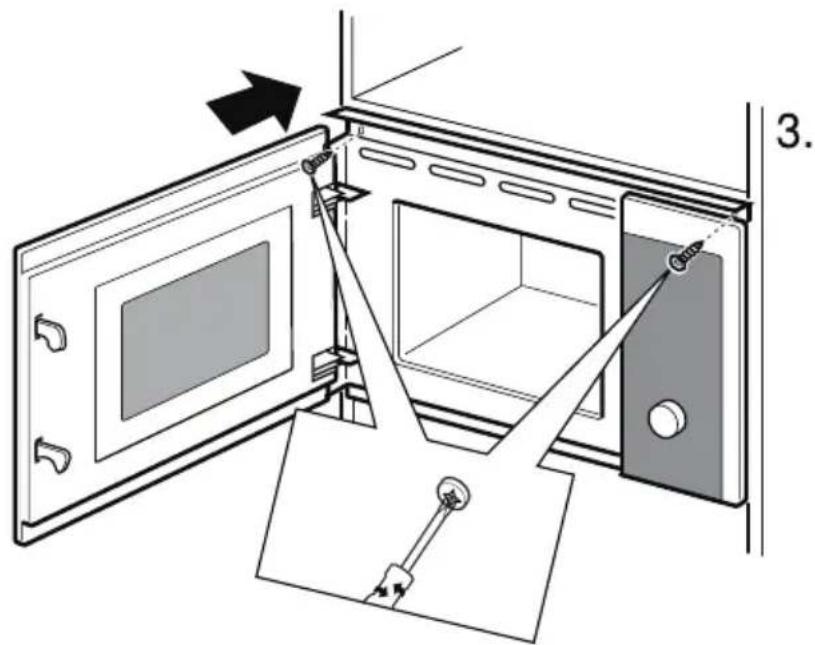

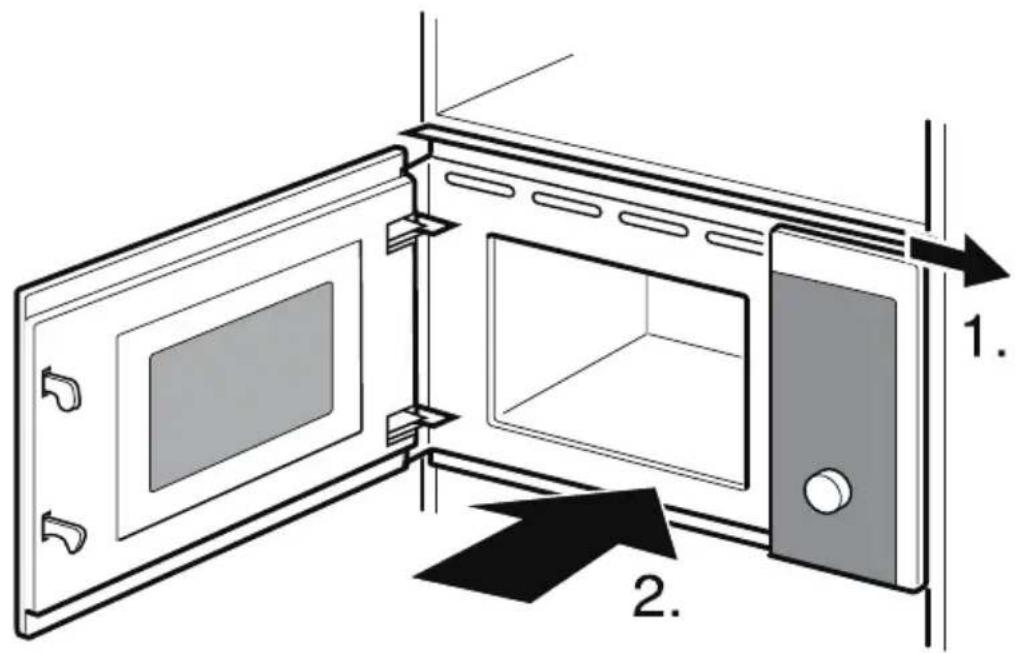

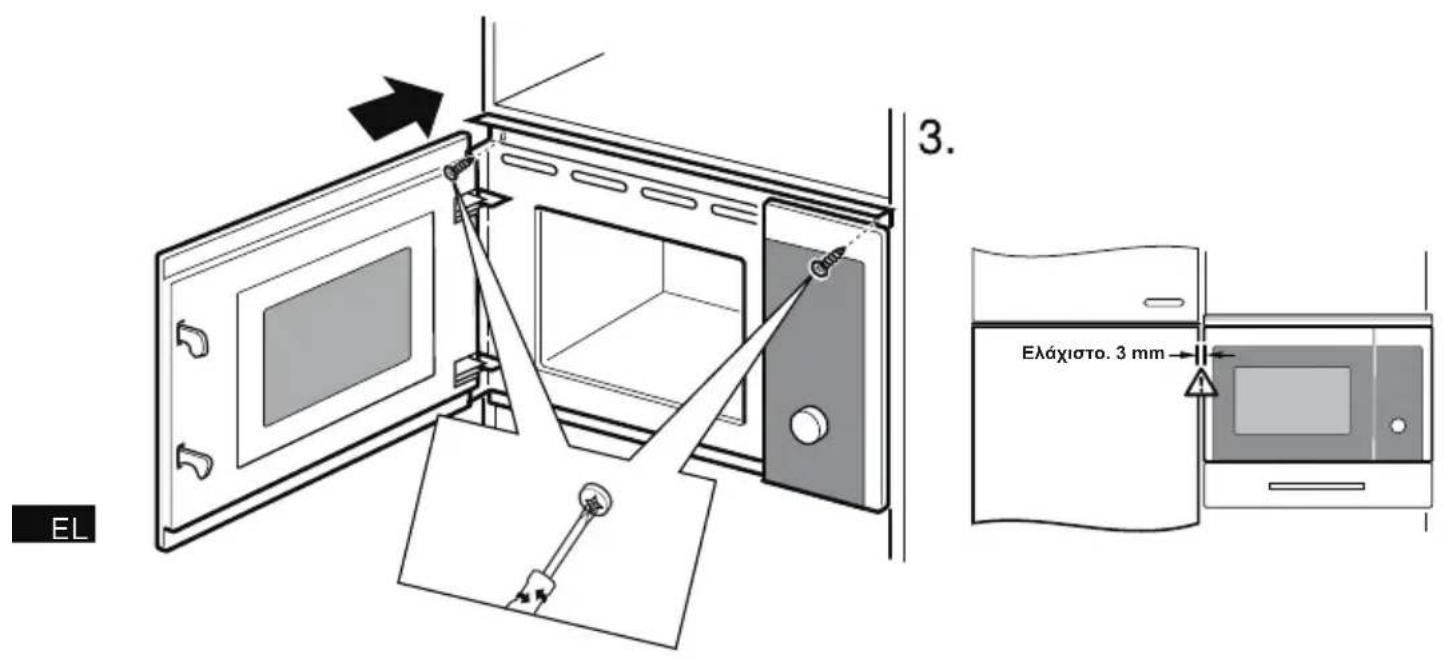

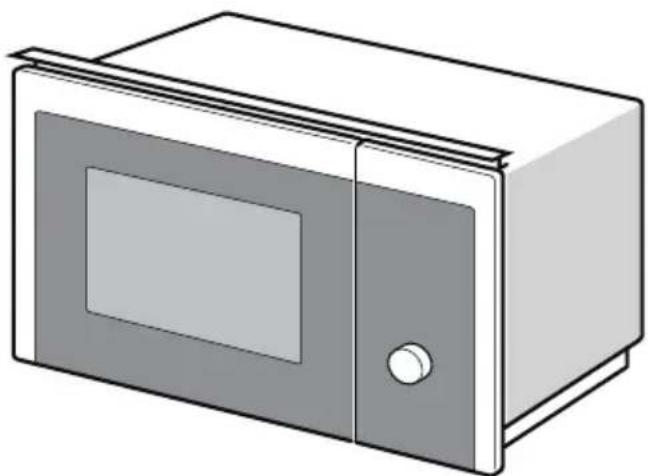

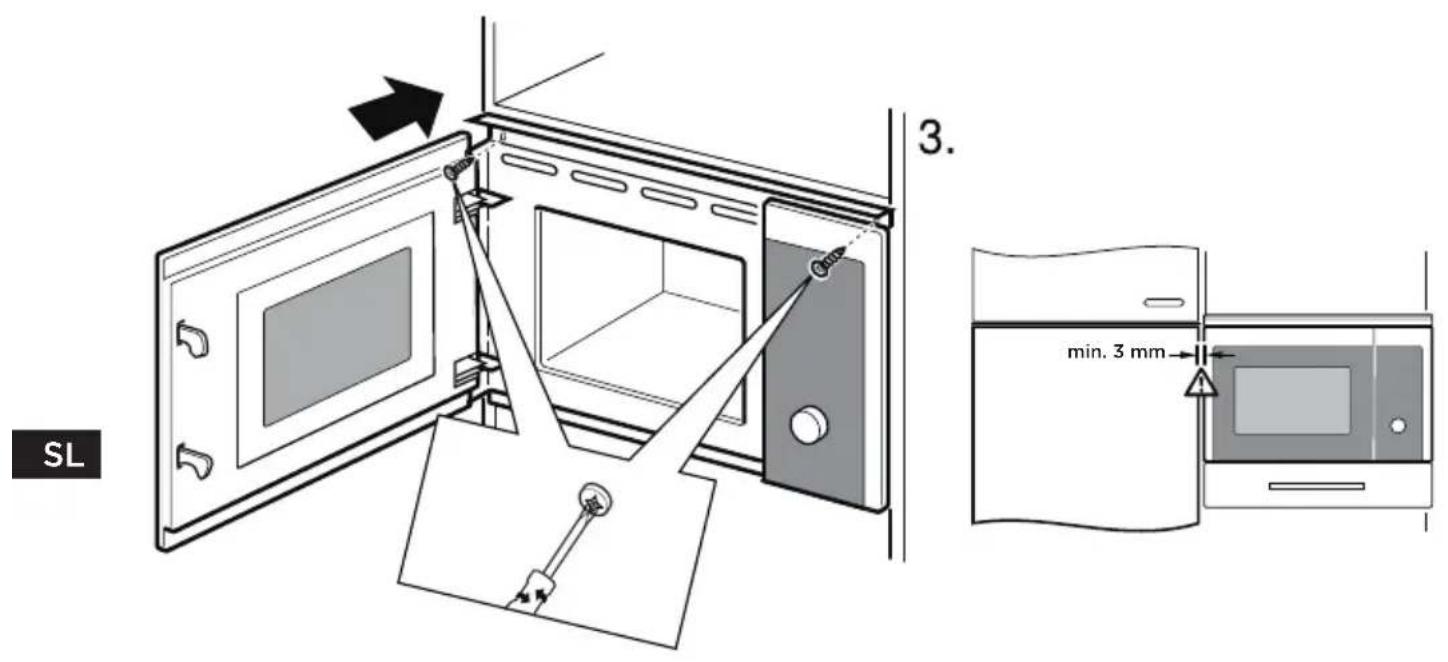

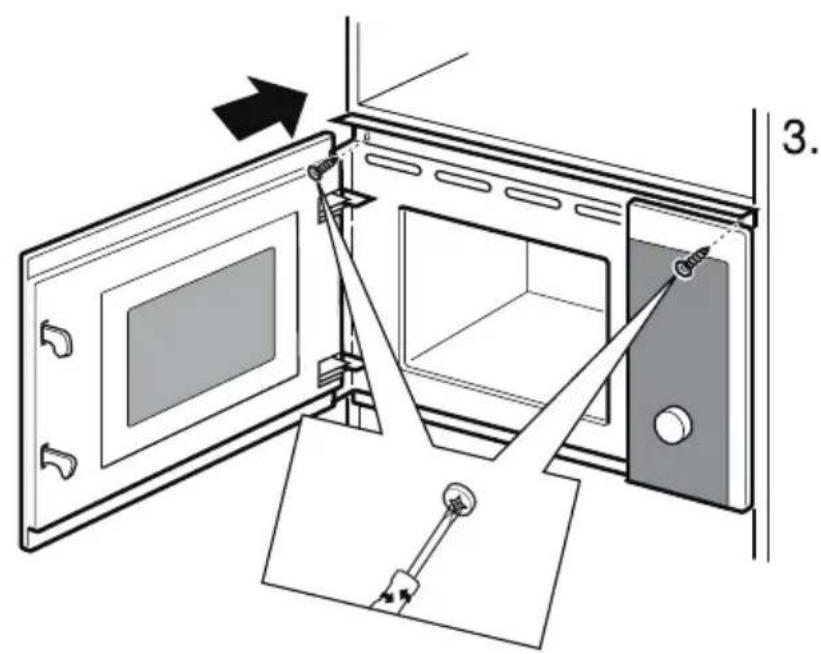

Installing the oven - Fig. 2

NOTE

Do not trap or kink the mains lead.

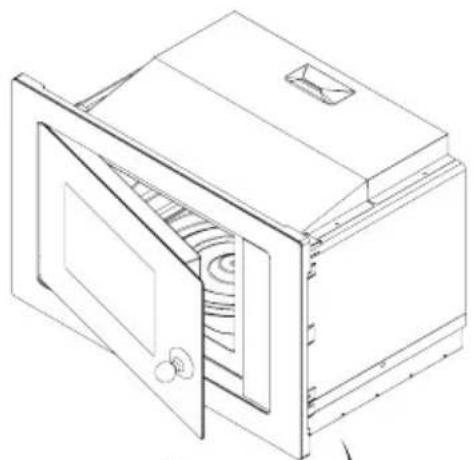

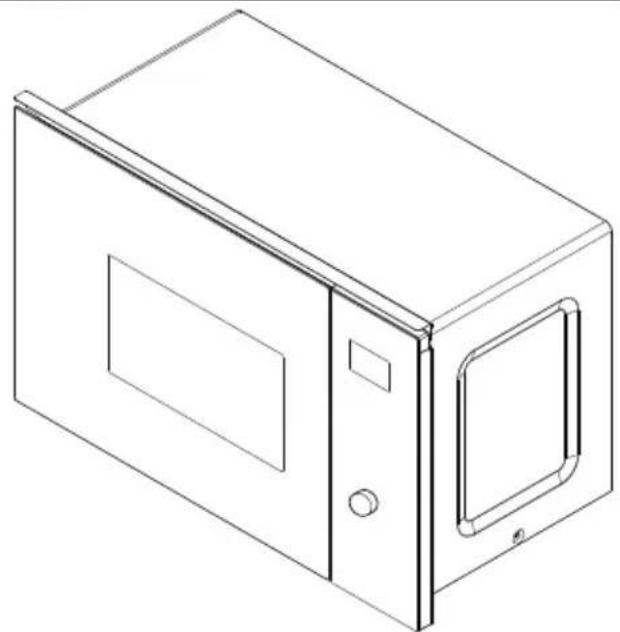

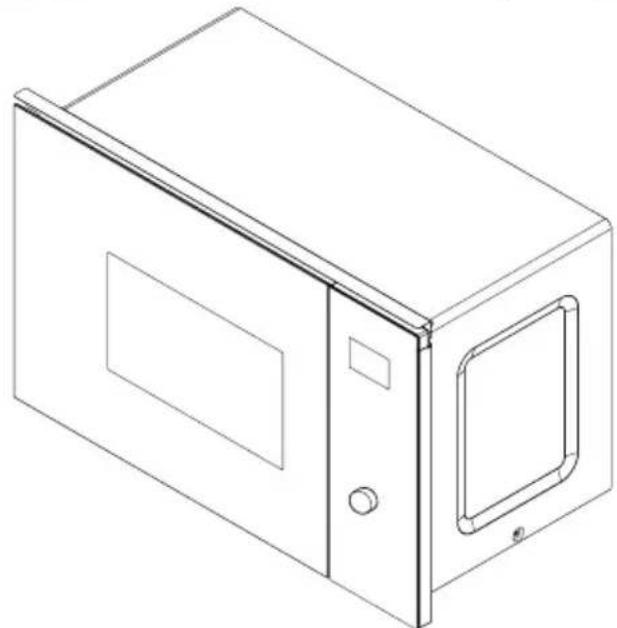

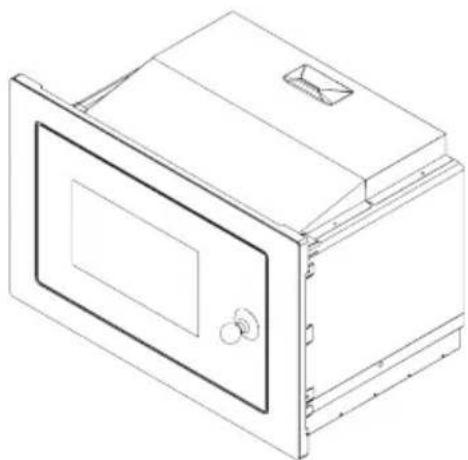

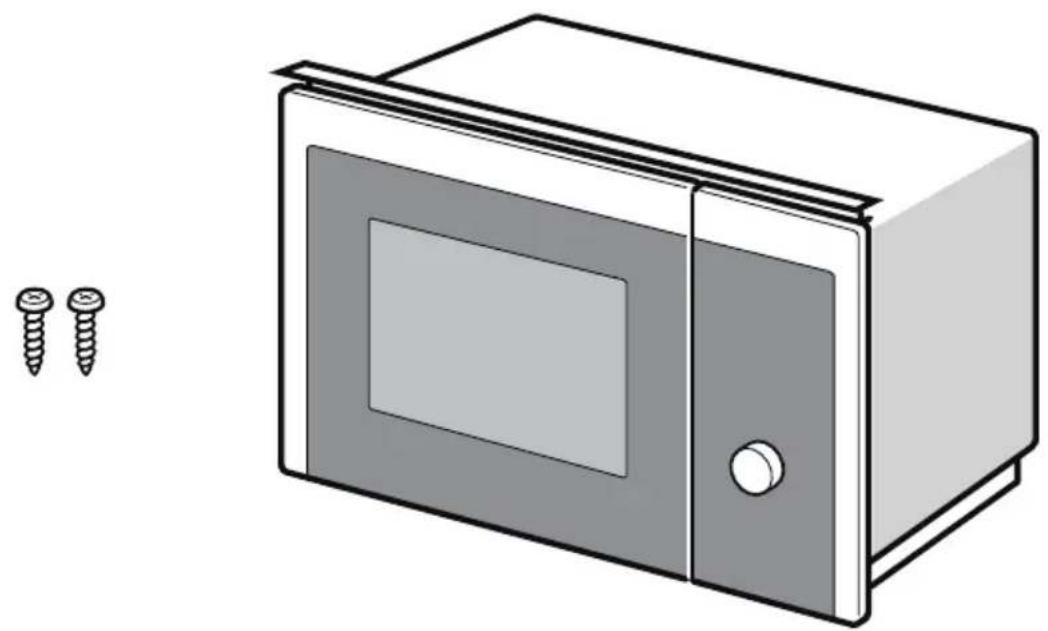

Illustration of a microwave oven with two screws attached (no text or symbols)

EN

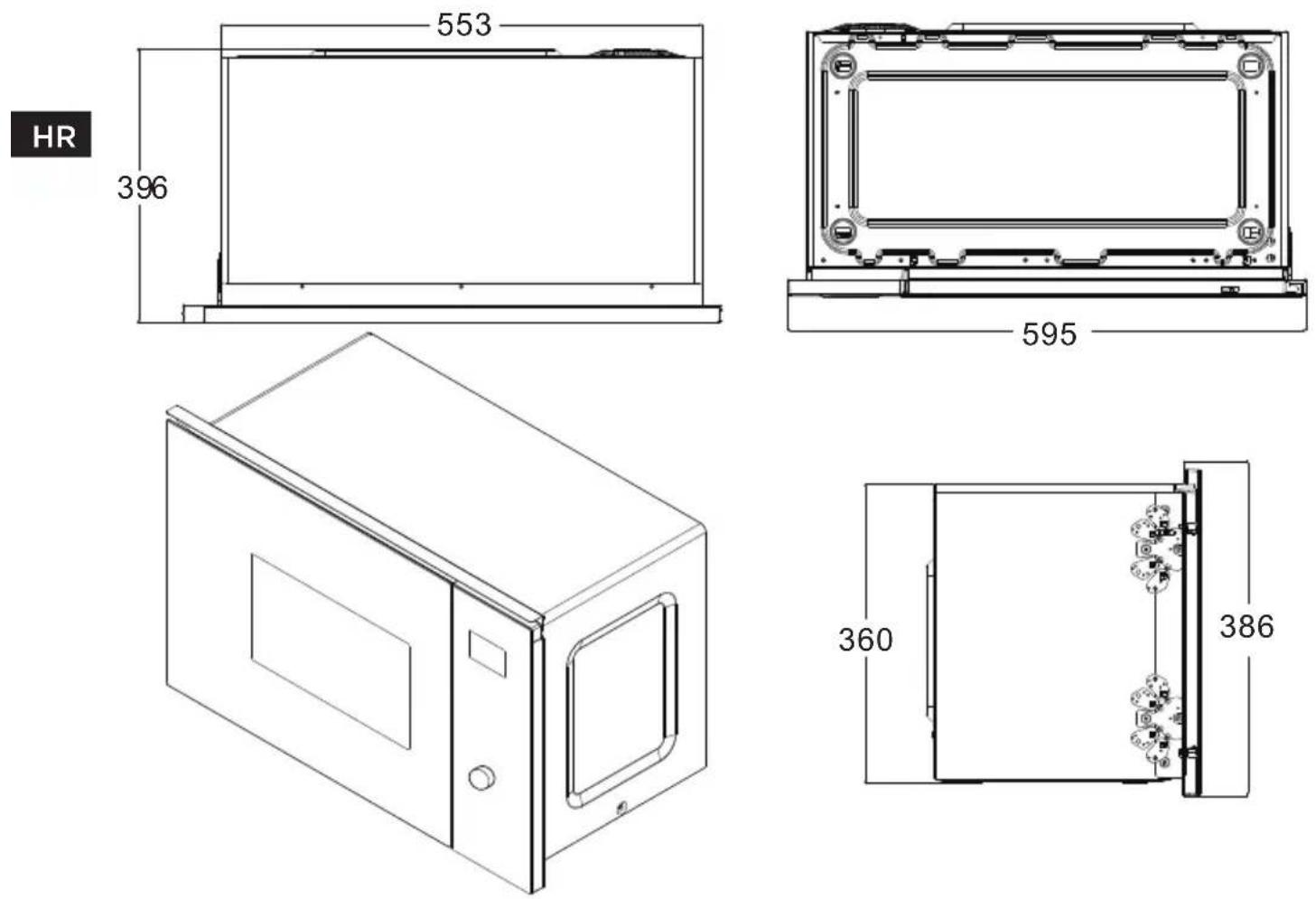

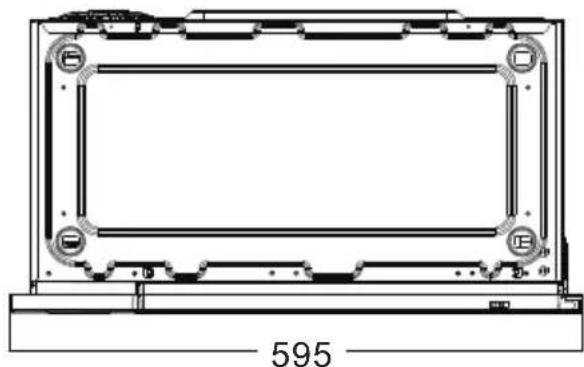

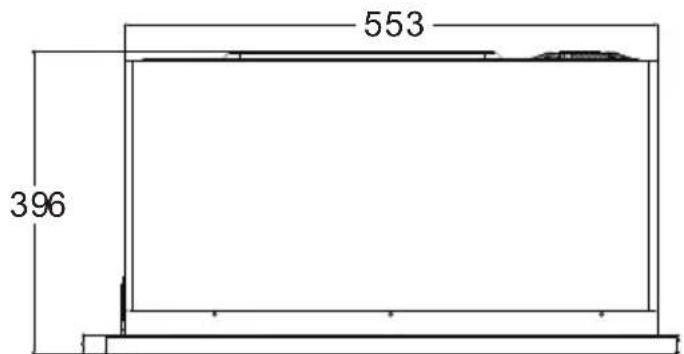

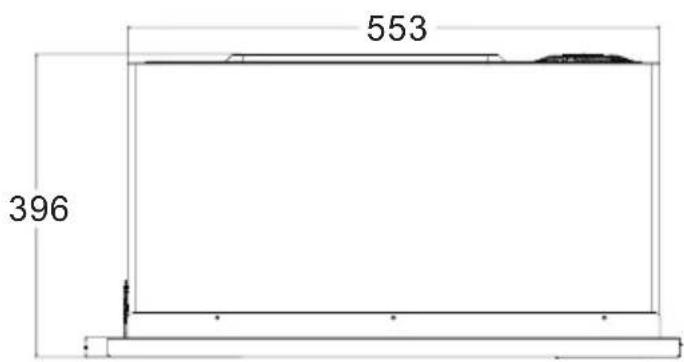

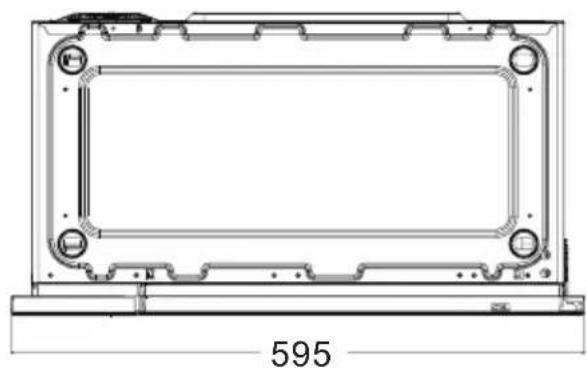

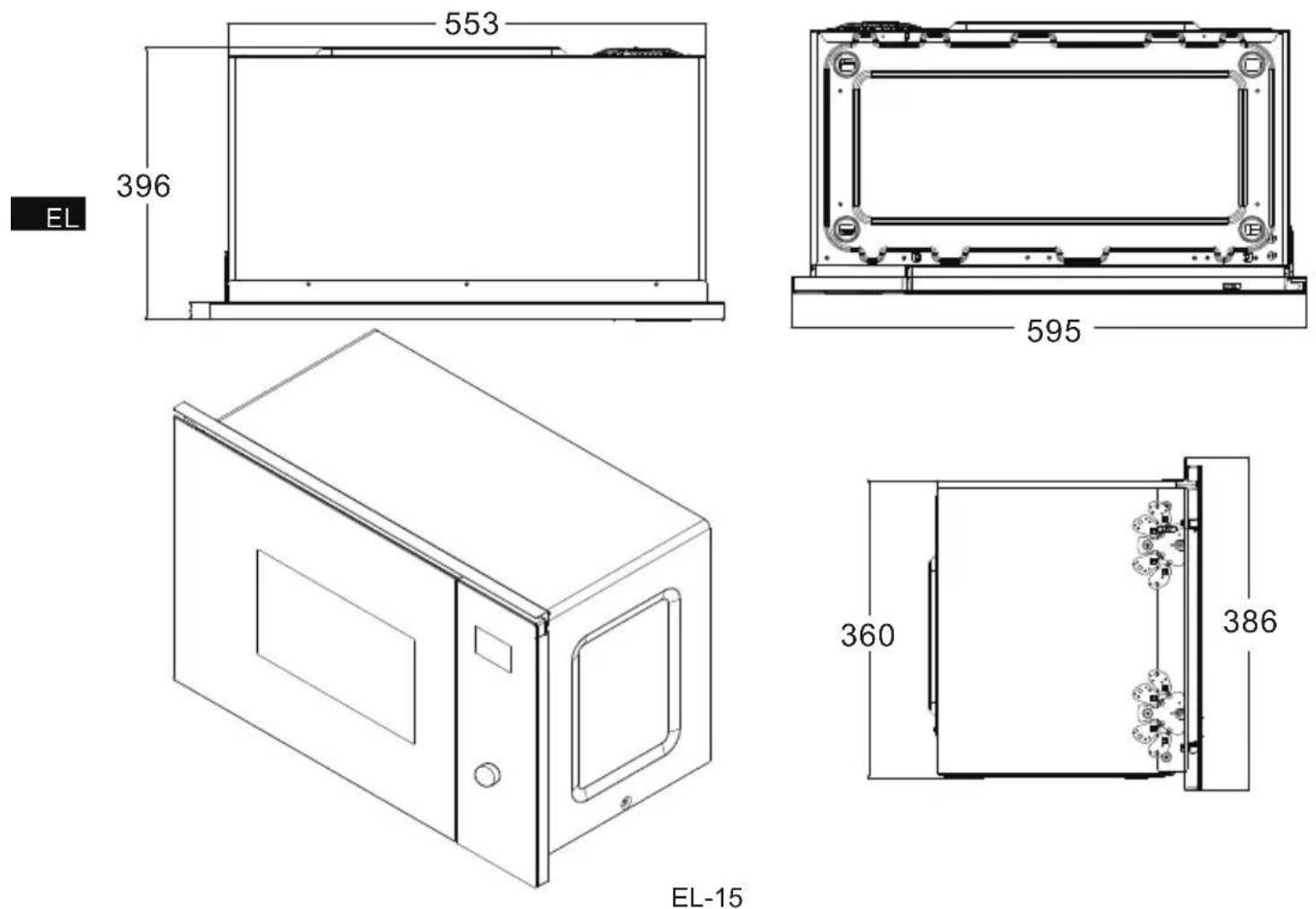

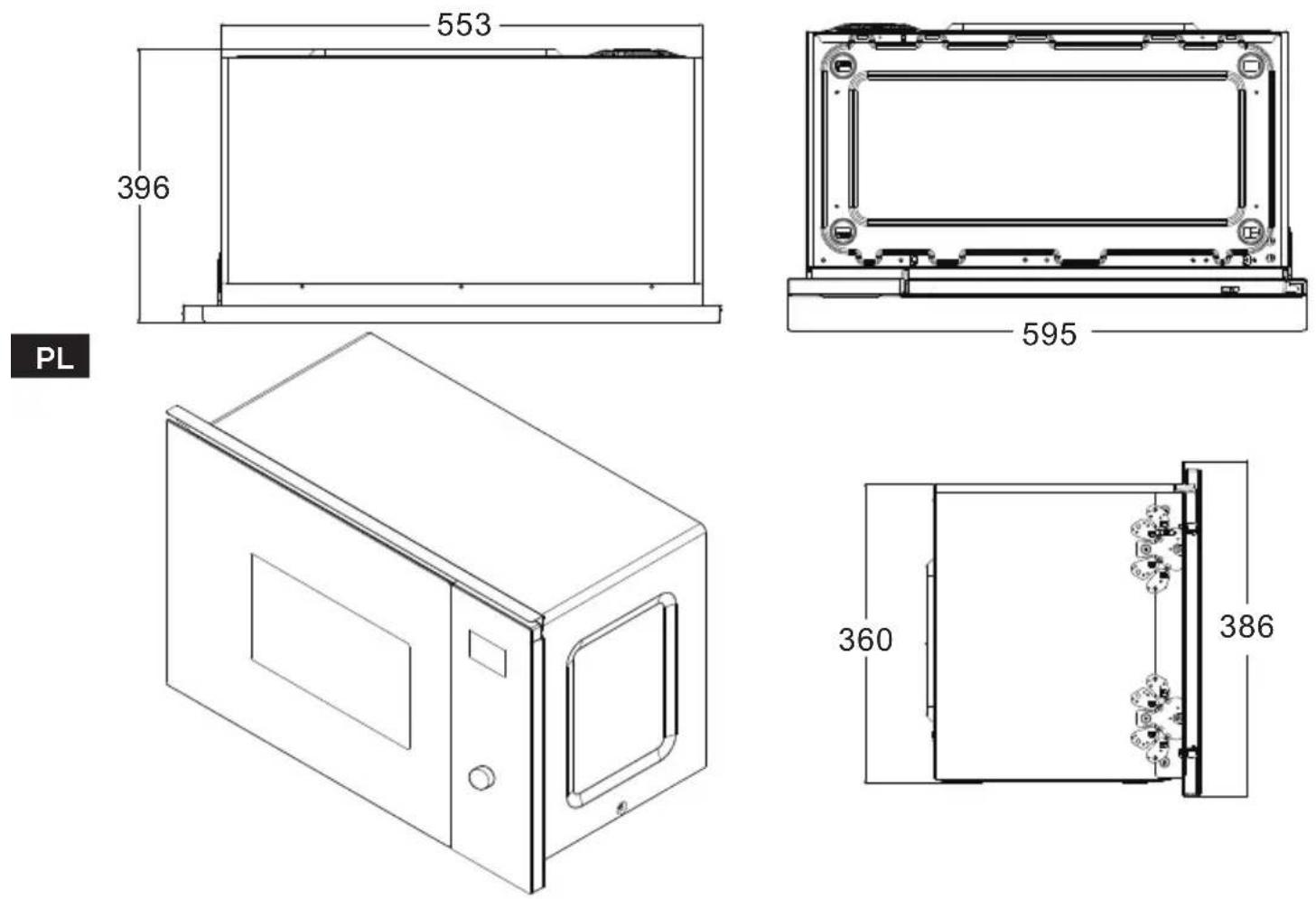

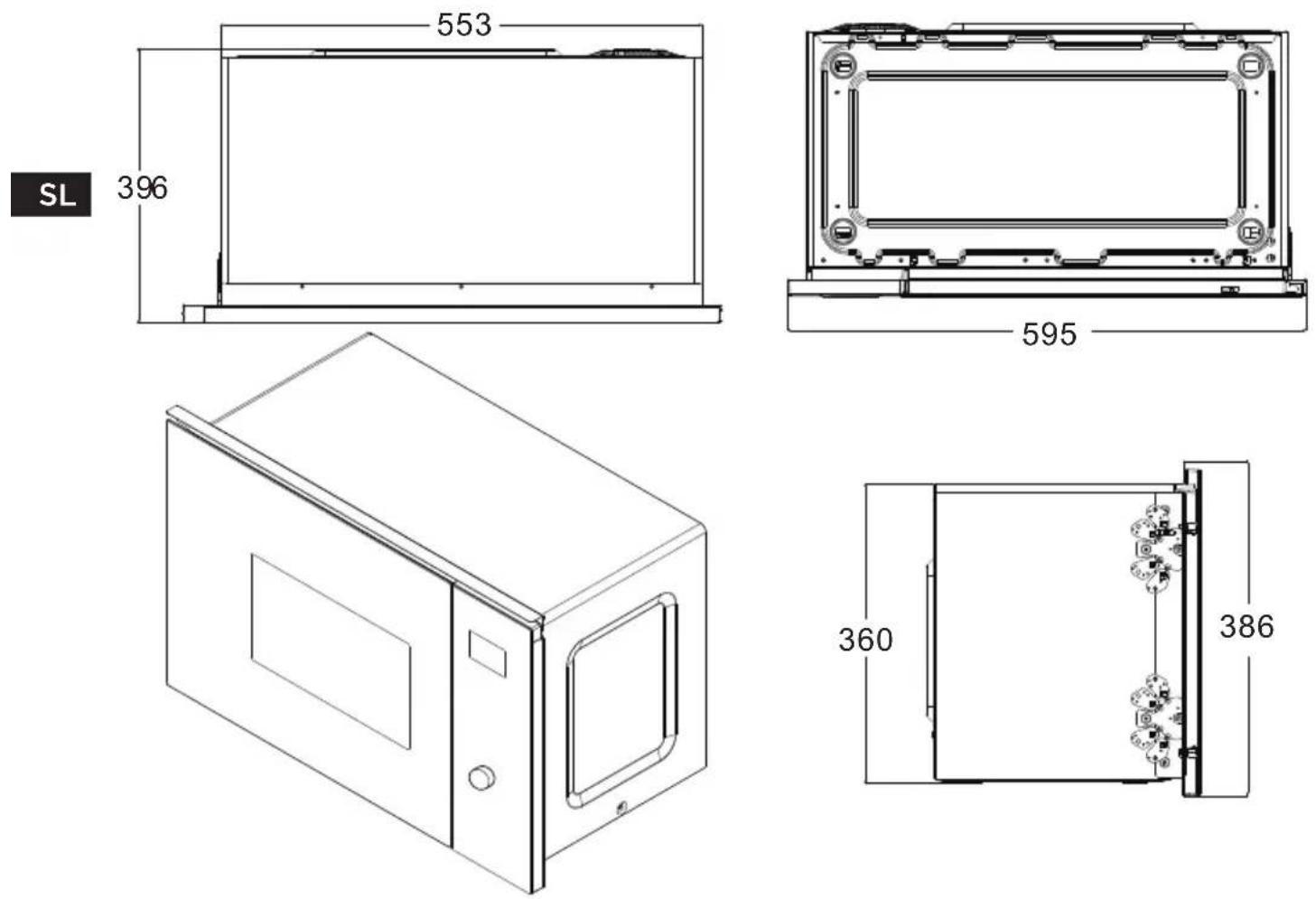

553 396

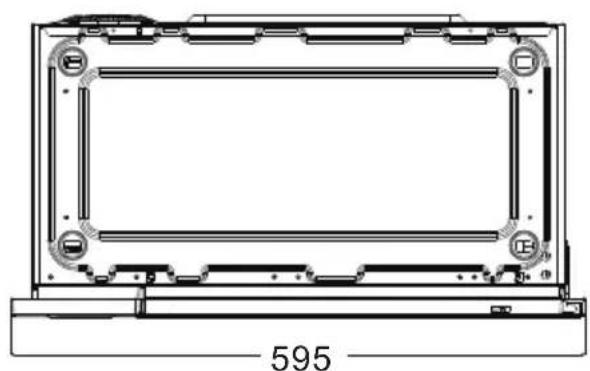

Technical line drawing of a rectangular frame with mounting base and circular components, labeled '595' at bottom (no text or symbols within the diagram itself)

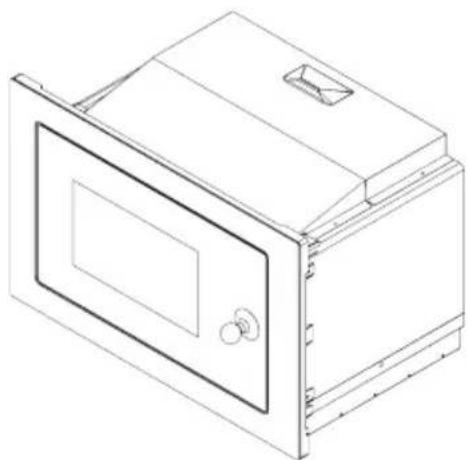

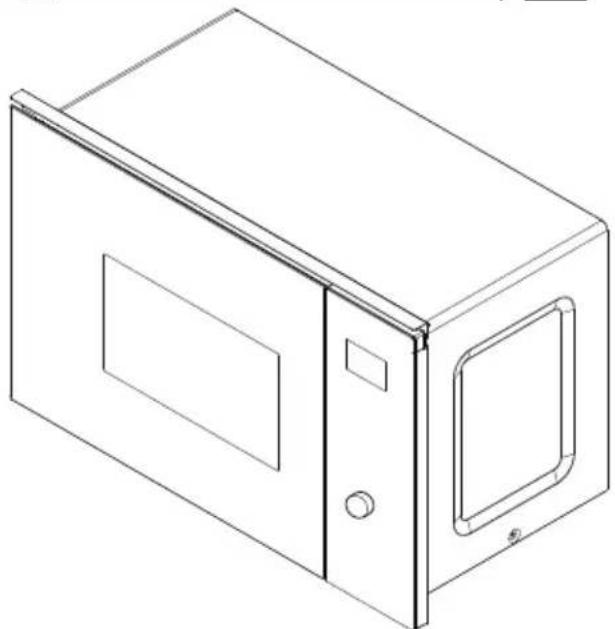

Line drawing of a microwave oven with front panel and side door (no text or symbols)

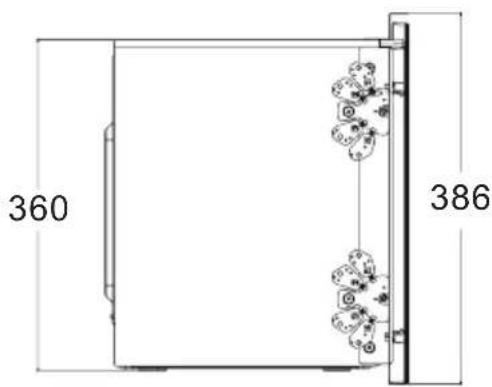

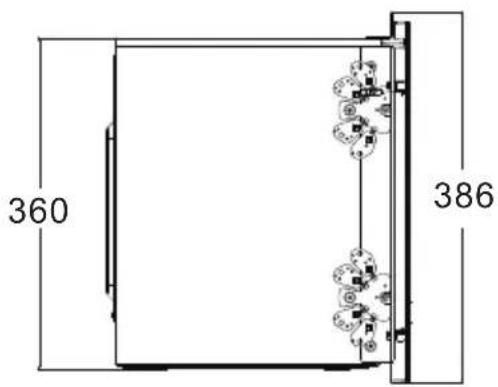

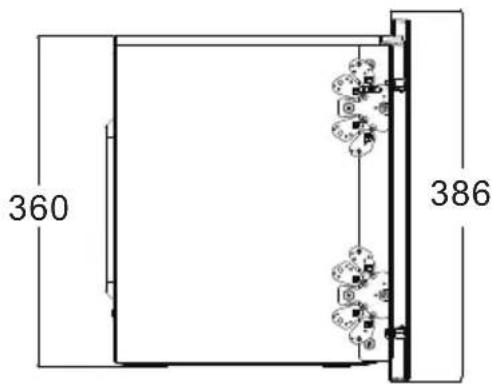

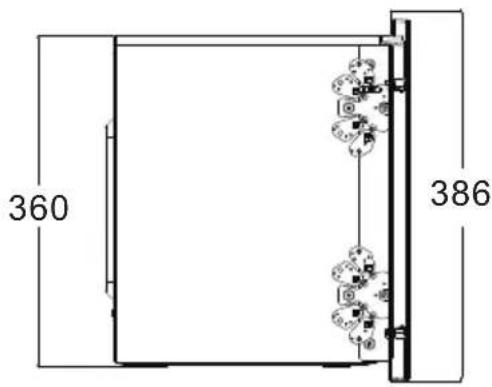

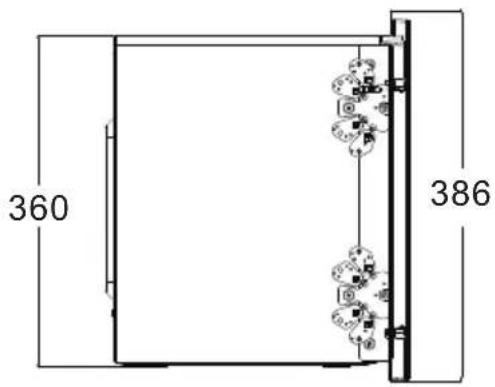

360 386

EN-15

1

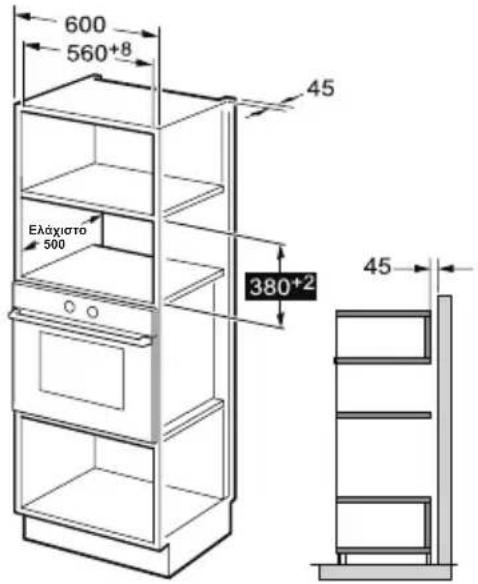

600 560+8 45 min 500 380+2 45

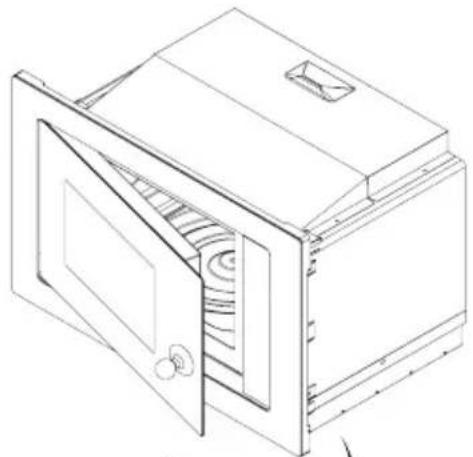

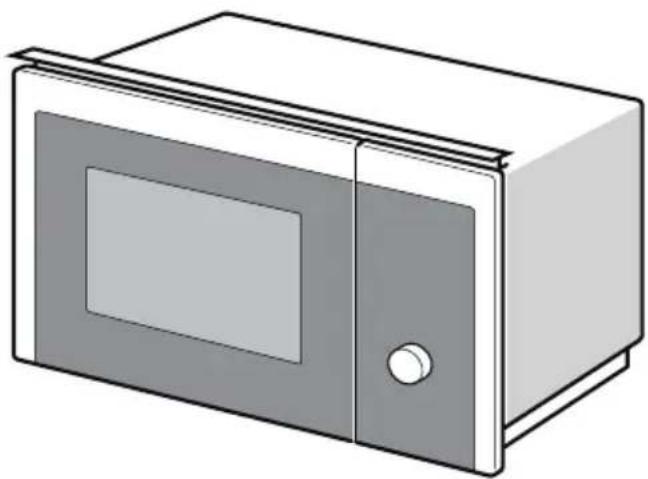

Line drawing of a microwave oven with lid and front panel (no text or symbols)

EN

2

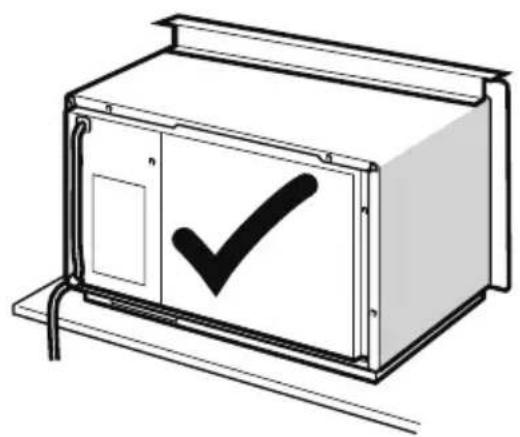

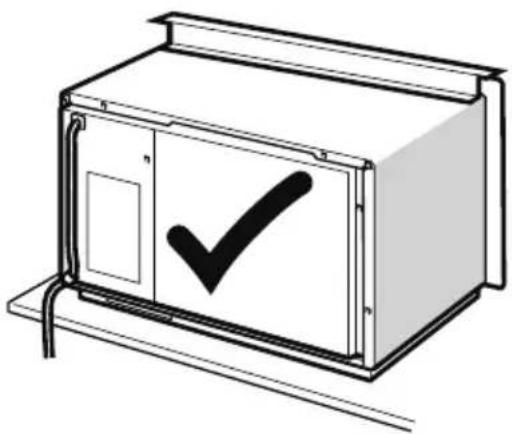

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

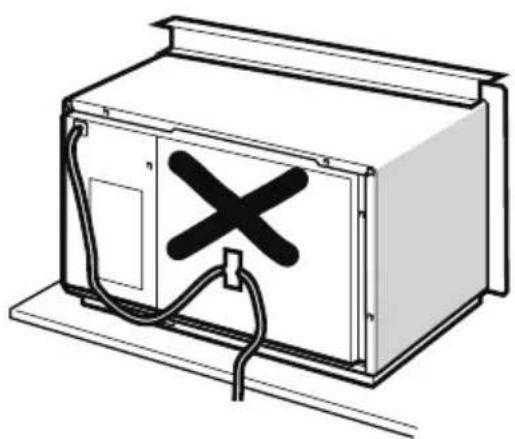

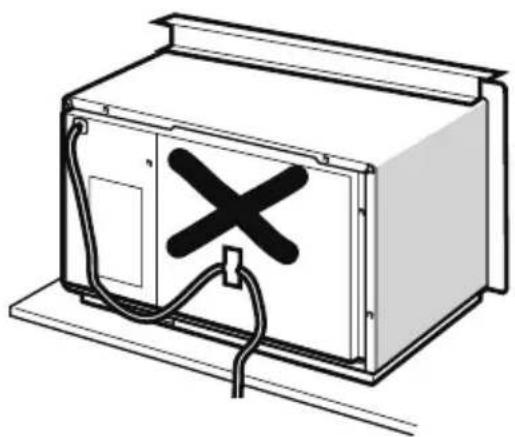

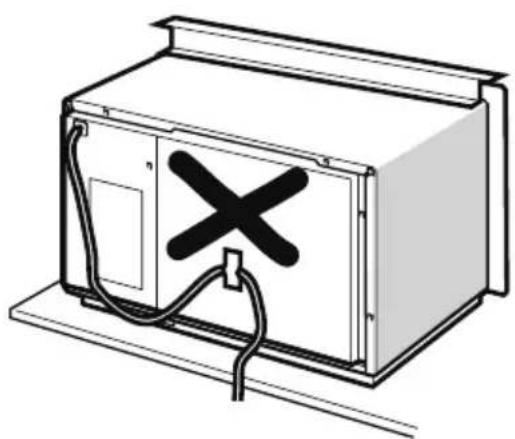

Diagram of a cabinet with an X-shaped warning symbol on the door, connected to wires (no text or labels)

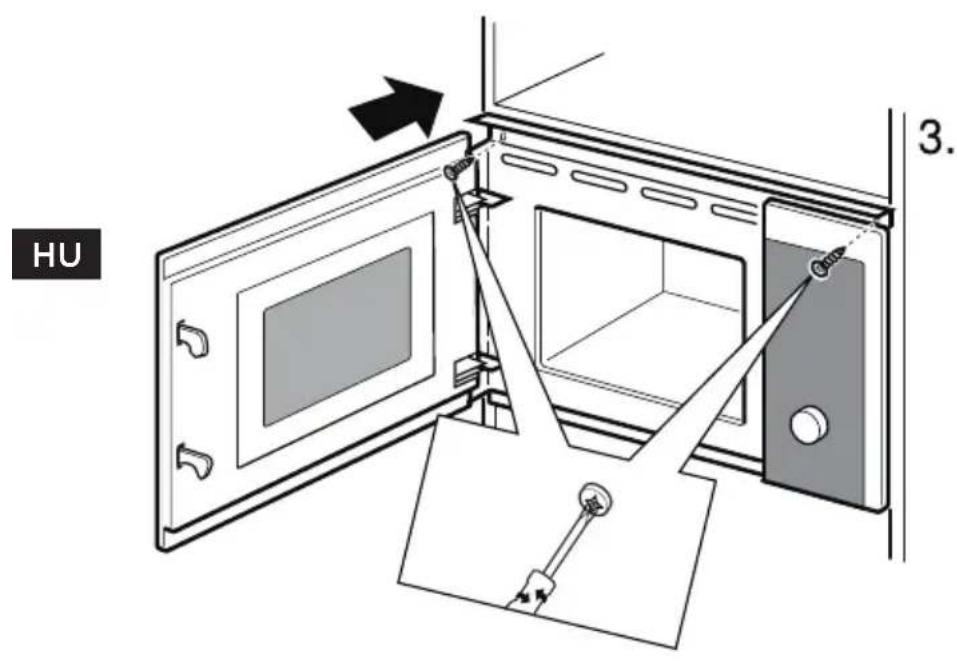

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps

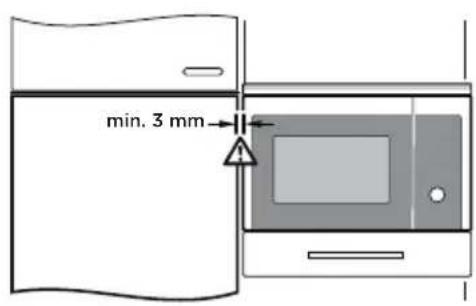

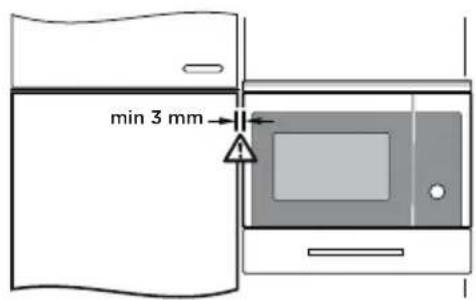

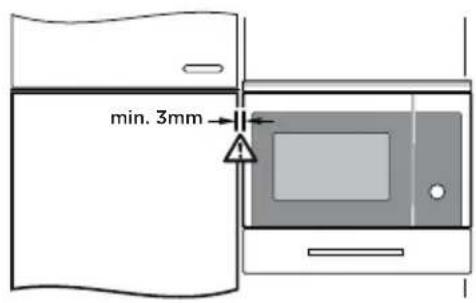

min. 3mm

EN

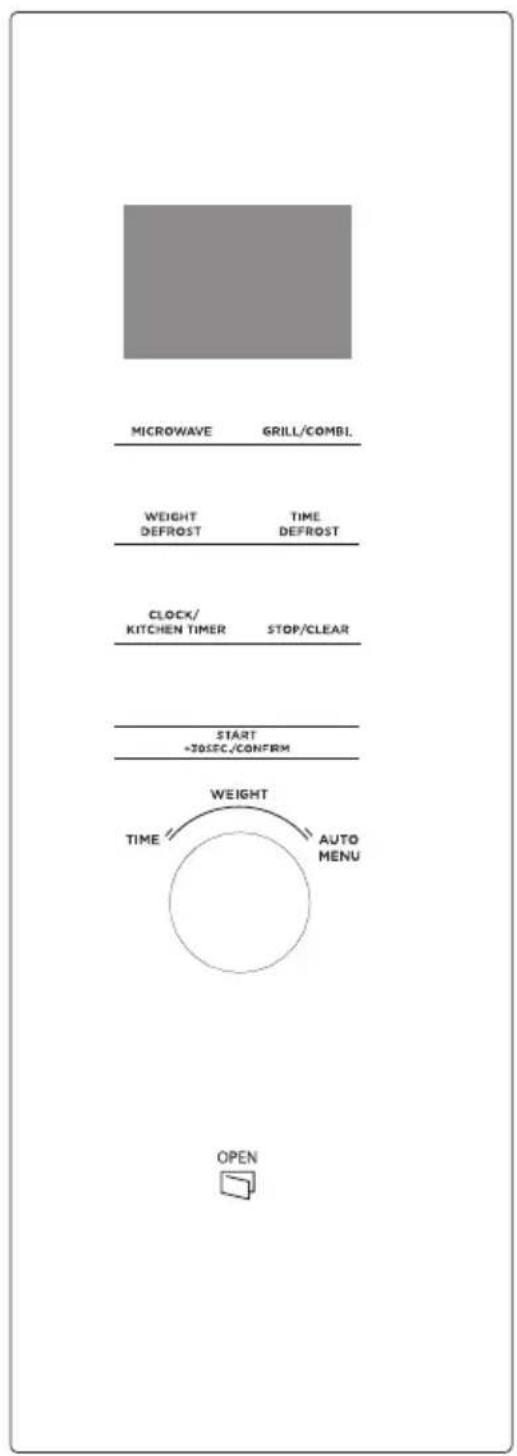

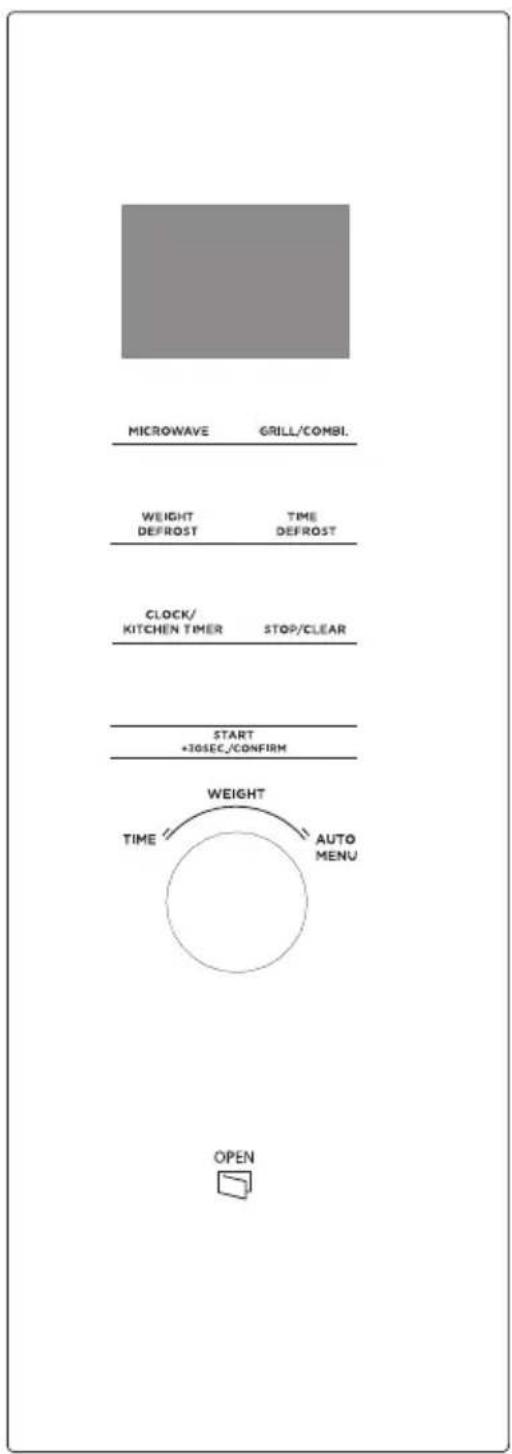

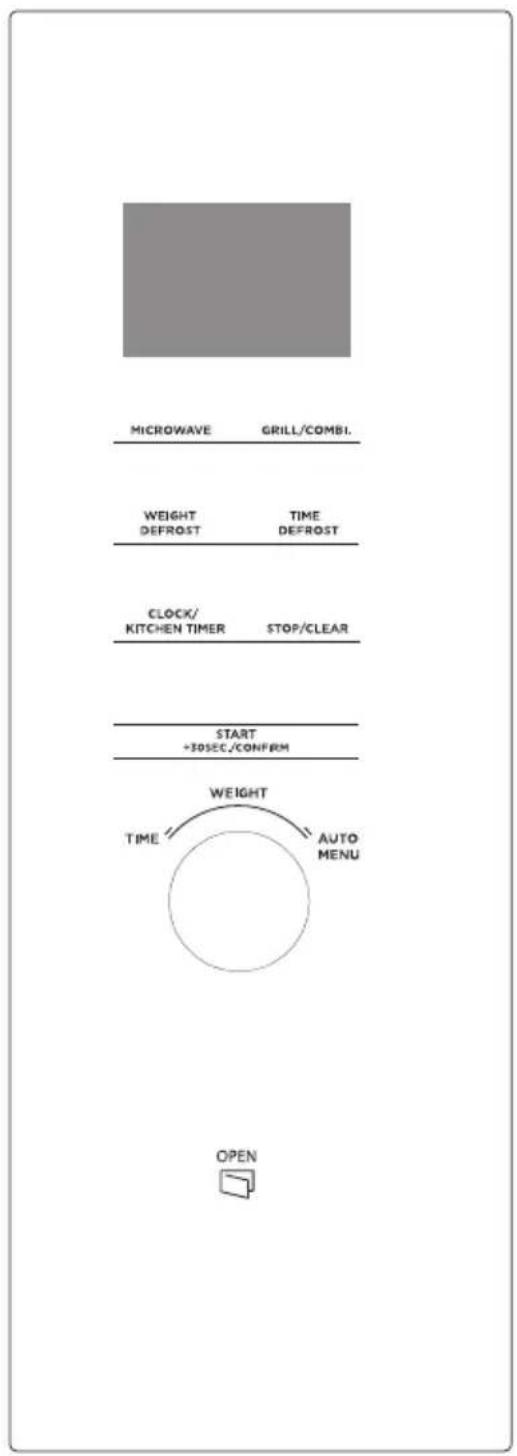

OPERATION INSTRUCTIONS

EN

MICROWAVE GRILL/COMBI.

WEIGHT

DEFROST

TIME

DEFROST

CLOCK/

KITCHEN TIMER STOP/CLEAR

START

-30SEC/CONFIRM

WEIGHT

OPEN

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. The oven will enter to waiting state.

1. Press "Clock/Kitchen Timer" twice, the hour figures will flash;
2. Turn "☐" to adjust the hour figures.the input time should be within 0--23.
3. Press "Clock/Kitchen Timer" to confirm, the minute figures will flash.
4. Turn “☐” to adjust the minute figures, the input time should be within 0--59.
5. Press "Clock/Kitchen Timer" to finish clock setting.

“:” will flash. The current time will display.

NOTE

• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press "STOP/CLEAR" the oven will go back to the previous status automatically.

EN

Microwave Cooking

1. Press the "Microwave" key once, and "P100" will flash.
2. Press "Microwave" repeatedly or turn "☐" to select the microwave power. "P100", "P80", "P50", "P30", "P10" will display in order.
3. Press "Start/+30Sec./Confirm" to confirm setting.
4. Turn “☐” to adjust the cooking time. (The maximum cooking time is 95 minutes)
5. Press "Start/+30Sec./Confirm" to start cooking.

NOTE

- The step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power Display
High P100
Med.High P80
Med. P50
Med.Low P30
Low P10

Grill or Combi. Cooking

Press "Grill/Combi." once, "G" will flash on the screen, and press "Grill/Combi."

repeatedly or turn “☐” to choose the power you want, and “G”, “C-1” or “C-2” will display.

Press "Start/+30Sec./Confirm" to confirm the power.

Turn "☐" to set cooking time. (The maximum cooking time is 95 minutes)

Press "Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1. Press "Grill/Combi." once, the screen displays "G".
2. Continue to press "Grill/Combi." until the screen displays "C-1".
3. Press "Start/+30Sec./Confirm" to confirm.
4. Turn "💡" to adjust the cooking time until the oven displays "10:00".
5. Press "Start/+30Sec./Confirm" to start cooking

Combination Power instructions:

Program Display Microwave Power Grill Power
Grill G 0%	100%
Combi.1	C-1	55%(P100)	45%
Combi.2	C-2	36%(P100)	64%

NOTE

If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press “Start/+30Sec./Confirm” to continue cooking. If no operation, the oven will continue working.

Defrost By Weight

1. Press | "Weight Defrost" once, twice or thrice, and the screen will display "dEF1", "dEF2" or "dEF3".

2. Press "Start/+30Sec./Confirm" to confirm the selection.

3. Turn "to select the food weight."

4. Press "Start/+30Sec/Confirm" key to start defrosting.

NOTE

If half the defrost time passes, the oven sounds twice, and this is normal. In order to have a better effect of defrosting, you should turn the food over, close the door, and then press "Start/+30Sec/Confirm" to continue cooking. If no operation, the oven will continue working.

Weight Defrost Instructions:

Program Food Weight
dEF1 Meat 100~2000g
dEF2 Poultry 100~1500g
dEF3 Fish 300~1000g

Defrost By Time

1. Press "Time Defrost" once, the screen will display "dEF1"

2. Turn "💡" to select the cooking time. The maximum time is 95 minutes.

3. Press "Start/+30Sec./Confirm" key to start defrosting. The defrost power is P30 and cannot be changed.

NOTE

If half the defrost time passes, the oven sounds twice, and this is normal. In order to have a better effect of defrosting, you should turn the food over, close the door, and then press "Start/+30Sec./Confirm" to continue cooking. If no operation, the oven will continue working.

Multi-Stage Cooking

2 stages can be maximumly set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

NOTE

Auto menu and speedy cooking cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1. Press "Time Defrost" once, the screen will display "dEF1".
2. Turn “☐” to adjust the defrost time of 5 minutes;
3. Press "Microwave" once, the screen will display "P100".
4. Press "Microwave" repeatedly to choose microwave power till "P80" displays;
5. Press "Start/+30Sec./Confirm" to confirm.
6. Turn “☐” to adjust the cooking time of 7 minutes;
7. Press "Start/+30Sec./Confirm" to start cooking.

Kitchen Timer

1. Press "Clock/Kitchen Timer" once, the screen will display "00:00".
2. Turn “☐” to enter the correct timer.
   (The maximum cooking time is 95 minutes)
3. Press "Start/+30Sec./Confirm" to confirm setting.
4. When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set(24-hour system), the screen will display the current time.

NOTE

The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

Speedy Cooking

1. In waiting state, press "Start/+30Sec./Confirm" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2. During the microwave, grill, combination cooking and the defrost by time process, press "Start/+30Sec./Confirm" to increase the cooking time.
3. Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing "Start/+30Sec./Confirm".
4. In waiting state, turn “💡” left to choose the cooking time. After adjusting the cooking time, press “Start/+30Sec./Confirm” to start microwave cooking with 100% microwave power.

Auto Menu

1. In waiting state, turn “ ” right to choose the menu from A1 to A12.
2. Press "Start/+30Sec./Confirm" to confirm the menu you choose.
3. Turn “☐” to choose the the weight of food.
4. Press "Start/+30Sec./Confirm" to start cooking.

The menu chart:

Menu Weight Power
A1(Pizza)	200 g	C-2
	400 g
A2(Potato)	200 g	P100(Mic.)400 g
	600 g
A3(Meat)	250 g	P100(Mic.)350 g
	450 g
A4(Fish)	250 g	P80(Mic.)350 g
	450 g
A5(Vegetable)	200 g	P100(Mic.)300 g
	400 g
A6(Beverage)	1cup (about 120ml)	P100(Mic.)2cups (a
	3cups (about 360ml)
A7(Pasta)	50 g (with 450 g cold water)	P80(Mic.)
	100 g(with 800 g cold water)
A8(Popcorn)	50 g	P100(Mic.)
	100 g
A9(Soften butter)	50 g	P20(Mic.)100 g
	150 g
A10(Melt butter)	50 g	P50(Mic.)100 g
	150 g
A11(Melt chocolate)	50 g	P80(Mic.)100 g
	150 g
A12(Melt cheese)	50 g	P50(Mic.)100 g
	150 g

EN

Lock Function for Children

Lock: In waiting state, press "STOP/Clear" for 3 seconds to enter the children-lock state and the current time will display if the time has been set, otherwise, the screen will display "[::]

Lock quitting: In locked state, press "STOP/Clear" for 3 seconds, the lock is released.

Inquiring Function

1. In cooking states of microwave or grill and combination, press "Microwave" or "Grill/Combi.", the current power will be displayed for 3 seconds.
2. If the clock has been set, during cooking state, press "Clock/Kitchen Timer" to check the current time. It will be displayed for 3 seconds.

Specification

1. If the door is opened in the process of cooking, close the door and then press "Start/+30Sec./Confirm" to continue cooking.
2. Once the cooking programme has been set, "Start/+30Sec./Confirm" is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.
3. The buzzer sounds once by efficient press, inefficient press will be no response.
4. The buzzer sounds five times to remind you the cooking is finished.

Open The Oven Door

Press "OPEN" button, the oven door will be opened. If the button does not work, please open the door by the sucker. Refer to the following figures.

Line drawing of a microwave oven with a door and ventilation slots, showing an arrow pointing to the interior (no text or symbols present)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

EN

CLEANING AND MAINTENANCE

Be sure to unplug the appliance from the power supply.

• Clean the cavity of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

TROUBLE SHOOTING

Normal
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Food	Weight
Oven can not be started.	Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not • Door is not closed well. • Close door well.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

EN

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer, we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered.

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

Midea

make yourself at home

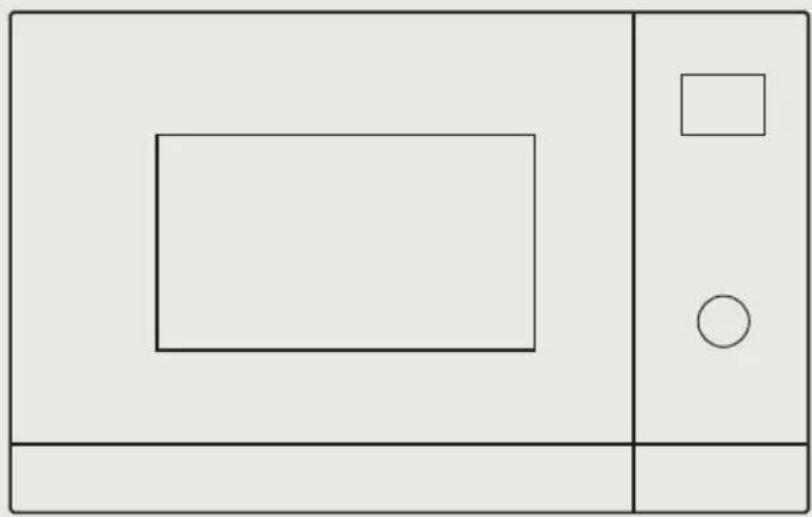

Simple line drawing of a microwave oven with front panel and side indicators (no text or symbols)

FOUR À MICRO-ONDES

GUIDE D'UTILISATION

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

APERÇU DU PRODUIT....14

INSTALLATION DU PRODUIT....15

CONSIGNES D'UTILISATION....19

NETTOYAGE ET ENTRETIEN....27

RÉSOLUTION DES PROBLÈMES....28

MARQUES, DROITS D'AUTEUR ET DÉCLARATION LÉGALE....29

ÉLIMINATION ET RECYCLAGE 30

AVIS RELATIF PROTECTION DES DONNÉES ......31

CONSIGNES DE SÉCURITÉ

Usage prévu

Circular diagram with diagonal hatching and two hanging terminals (no text or symbols)

INSTALLATION DU PRODUIT

Warning symbol depicting steam rising inside a triangle (no text or numbers)

FR

Illustration of a microwave oven with two screws attached (no text or symbols)

FR

553 396

Technical line drawing of a rectangular frame with mounting holes and a base, labeled '595' at the bottom (no text or symbols within the diagram itself)

Line drawing of a microwave oven with front panel and side door (no text or symbols)

360 386

FR-16

1

600 560+8 45 500 minutes 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

FR

2

Simple line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped warning sign and wiring, no text or symbols present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

FR

Diagram of a microwave oven with labeled parts and directional arrow indicating assembly or installation

min. 3 mm

CONSIGNES D'UTILISATION

MICROWAVE GRILL/COMBI. WEIGHT TIME DEFROST DEFROST CLOCK/ KITCHEN TIMER STOP/CLEAR START +30SEC./CONFRM WEIGHT TIME AUTO MENU OPEN

Line drawing of a microwave oven with an arrow pointing to the door panel (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

NETTOYAGE ET ENTRETIEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid rectangle below (no text or labels)

FR

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

FR O

FR

AVIS RELATIF PROTECTION DES DONNÉES

make yourself at home

Simple line drawing of a microwave oven with front panel, top-right square, and bottom circle (no text or symbols)

HORNO MICROONDAS

MANUAL DE USUARIO

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

Circular diagram with diagonal hatching and two hanging tassels at the bottom (no text or symbols)

Ventosa (si el botón "OPEN" no

Warning sign with steam symbol inside triangle, indicating hazardous material

Illustration of a microwave oven with two screws, shown alongside (no text or symbols)

ES

553 396

Technical line drawing of a rectangular electronic device with mounting base and circular components, labeled dimension 595 (no text or symbols beyond measurement)

Line drawing of a microwave oven with front and back panels (no text or symbols)

360 386

ES-15

1

600 560+8 45 min. 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

ES

2

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

ES

Diagram of a microwave oven with labeled parts and directional arrow indicating assembly or installation

mín. 3 mm

START +30SEC./CONFIRM

Line drawing of a microwave oven with an arrow indicating the opening (no text or symbols present)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

LIMPIEZA Y MANTENIMIENTO

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

make yourself at home

Simple line drawing of a microwave oven with front panel, top panel, and side panel (no text or symbols)

MIKROHULLÁMÚ SÜTŐ

HASZNÁLATI UTASÍTÁS

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

Circular diagram with diagonal hatching and two hanging pins at the bottom (no text or symbols)

Warning sign depicting steam rising inside a triangle, indicating hazardous material

HU

Illustration of a microwave oven with two screws attached (no text or symbols)

HU

553 396

Technical line drawing of a rectangular frame with mounting base and circular components, labeled '595' at bottom (no text or symbols within the diagram itself)

Line drawing of a microwave oven with front panel and side door (no text or symbols)

360 386

HU-16

1

600 560+8 45 min. 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

HU

2

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

HU 3.

min. 3 mm

Line drawing of a microwave oven with an arrow pointing to the door panel (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

Symbol of a trash bin crossed with no visible text or labels

HU

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

ADATVÉDELMI SZABÁLYZAT

make yourself at home

Simple line drawing of a microwave oven with front panel and side indicators (no text or symbols)

MIKROTALASNA PEĆNICA

UPUTSTVO ZA KORIŠĆENJE

MBMTG925E-BK MBMTG925E-WH MBMTG925E-X

Obaveštenja sa upozorenjem: Pre upotrebe ovog proizvoda pažljivo pročitajte ovo uputstvo i sačuvajte ga za buduću referencu. Dizajn i specifikacije se mogu promeniti bez prethodnog obaveštenja u cilju poboljšanja proizvoda. Za detalje se obratite svom prodavcu ili proizvođaču.

Dijagram iznad služi samo za referencu. Smatrajte izgled stvarnog proizvoda standardnim.

PORUKA ZAHVALNOSTI

Hvala vam što ste izabrali kompaniju Midea! Pre upotrebe svog novog Midea proizvoda, pažljivo pročitajte ovo uputstvo da biste se uverili da znate kako da na bezbedan način koristite karakteristike i funkcije koje vaš novi uređaj nudi.

SADRŽAJ

PORUKA ZAHVALNOSTI....02

BEZBEDNOSNA UPUTSTVA....03

SPECIFIKACIJE....13

PREGLED PROIZVODA....14

MONTAŽA PROIZVODA....15

UPUTSTVO ZA UPOTREBU ....19

ČIŠĆENJE I ODRŽAVANJE 27

REŠAVANJE PROBLEMA....28

ZAŠTITNI ZNAKOVI, AUTORSKA PRAVA I PRAVNA IZJAVA....29

ODLAGANJE I RECIKLAŽA....30

OBAVEŠTENJE O ZAŠTITI PODATAKA....31

BEZBEDNOSNA UPUTSTVA

Namena

Illustration of a microwave oven with two screws attached (no text or symbols)

SR

553 396

Technical line drawing of a rectangular frame with mounting base and circular components, labeled '595' at bottom (no text or symbols within the diagram itself)

Line drawing of a microwave oven with front panel and side door (no text or symbols)

360 386

1

600 560+8 45 min. 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

SR

Diagram of a microwave oven with labeled parts and directional arrow indicating assembly or installation

min. 3 mm

UPUTSTVO ZA UPOTREBU

MICROWAVE GRILL/COMBI. WEIGHT TIME DEFROST DEFROST CLOCK/ KITCHEN TIMER STOP/CLEAR START +30SEC./CONFRM WEIGHT TIME AUTO MENU OPEN

Line drawing of a microwave oven with a door and ventilation slots, showing an arrow pointing to the interior (no text or symbols present)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

[Non-Text]

ČIŠĆENJE I ODRŽAVANJE

Symbol of a trash bin crossed with no visible text or labels

Usaglašenost sa RoHS direktivom

Proizvod koji ste kupili usaglašen je sa direktivom EU RoHS (2011/65/EU). Ne sadrži štetne i zabranjene materijale navedene u Direktivi.

SR

Informacije o pakovanju

Materijali ambalaže proizvoda napravljeni su od materijala koji se mogu reciklirati u skladu sa našim nacionalnim propisima o životnoj sredini. Nemojte odlagati materijal ambalaže sa kućnim ili drugim otpadom. Odnesite je na mesta za sakupljanje ambalaže koja su odredile lokalne vlasti.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

OBAVEŠTENJE O ZAŠTITI PODATAKA

Radi pružanja usluga dogovorenih sa korisnikom, prihvatamo da ćemo bez ograničenja poštovati sve odredbe važećih zakona o zaštiti podataka, u skladu sa dogovorenim zemljama u kojima će se usluge pružati klijentu.

U načelu, obrađujemo podatke da bismo ispunili svoju obavezu na osnovu ugovora sa vama i iz razloga zaštite proizvoda, kako bismo zaštitili vaša prava u vezi sa garancijom i pitanjima vezanim za registraciju proizvoda. U nekim slučajevima, ali samo ukoliko je obezbeđena odgovarajuća zaštita podataka, lični podaci se mogu preneti primaocima koji se nalaze izvan Evropskog ekonomskog prostora.

Dodatne informacije se pružaju na zahtev. Možete da se obratite našem službeniku za zaštitu podataka putem adrese [e-mail]. Da biste ostvarili svoja prava, na primer, pravo na prigovor na obradu vaših ličnih podataka u svrhe direktnog marketinga, obratite nam se na adresu [e-mail]. Da biste pronašli dodatne informacije, pratite QR kôd.

Midea

make yourself at home

Simple line drawing of a microwave oven with a blank chamber and two circular buttons (no text or symbols)

MIKROVALNA PEĆNICA

KORISNIČKI PRIRUČNIK

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

SIGURNOSNE UPUTE....03

SPECIFIKACIJE....13

PREGLED PROIZVODA....14

POSTAVLJANJE PROIZVODA....15

UPUTE ZA RUKOVANJE....19

ČIŠĆENJE I ODRŽAVANJE 27

RJEŠAVANJE PROBLEMA 28

ROBNE MARKE, AUTORSKA PRAVA I PRAVNA IZJAVA.....29

ZBRINJAVANJE I RECIKLIRANJE 30

OBAVIJEST O ZAŠTITI PODATAKA....31

SIGURNOSNE UPUTE

Predviđena upotreba

Circular diagram with diagonal hatching and two hanging pins at the bottom (no text or symbols)

Prianjaljka za otvaranje (ako OPEN

tipka "☐" ne radi, otvorite

Illustration of a microwave oven with two screws attached (no text or symbols)

1

600 560+8 45 min 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

HR

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

HR

Diagram of a microwave oven with labeled parts and directional arrow indicating assembly or installation

min 3 mm

UPUTE ZA RUKOVANJE

MICROWAVE GRILL/COMBI. WEIGHT TIME DEFROST DEFROST CLOCK/ KITCHEN TIMER STOP/CLEAR START +30SEC./CONFIRM WEIGHT TIME AUTO MENU OPEN

Ova mikrovalna pećnica služi se modernim elektroničkim upravljanjem za prilagodbu parametara kuhanja kako bi bolje zadovoljila vaše potrebe za kuhanjem.

Postavke sata

Kad se mikrovalna pećnica priključi na električnu mrežu, na zaslonu će se prikazati "0:00" i pećnica će se oglasiti jednim zvučnim signalom. Pećnica nakon toga prelazi u stanje čekanja.

1. Dvaput pritisnite "Clock/Kitchen Timer" i brojke sati počet će treptati.
2. Okrenite "ON" za prilagodbu brojki sati; vrijeme unosa treba biti unutar raspona 0--23.
3. Pritisnite "Clock/Kitchen Timer" za potvrdu i brojke minuta počet će treptati.
4. Okrenite "☐" za prilagodbu brojki minuta; vrijeme unosa treba biti unutar raspona 0--59.
5. Pritisnite "Clock/Kitchen Timer" za završetak namještanja sata. Zatreptat će "":". Prikazat će se trenutačno vrijeme.

NAPOMENA

Line drawing of a microwave oven with a door and ventilation slots, showing an arrow pointing to the interior (no text or symbols present)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

ČIŠĆENJE I ODRŽAVANJE

Symbol of a trash bin crossed with no visible text or labels

Usklađenost s Direktivom o ograničenju uporabe određenih opasnih tvari

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

OBAVIJEST O ZAŠTITI PODATAKA

make yourself at home

Simple line drawing of a microwave oven with front panel and side indicators (no text or symbols)

MIKROVALOVNA PEČICA

PRIROČNIK ZA UPORABO

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

ZAHVALNO PISMO

ZAHVALNO PISMO....02

VARNOSTNA NAVODILA 03

SPECIFIKACIJE....13

PREGLED IZDELKA....14

NAMESTITEV IZDELKA....15

NAVODILA ZA UPORABO ....19

ČIŠČENJE IN VZDRŽEVANJE 27

ODPRAVLJANJE NAPAK 28

BLAGOVNE ZNAMKE, AVTORSKE PRAVICE IN PRAVNA IZJAVA....29

ODSTRANJEVANJE IN RECIKLIRANJE 30

OBVESTILO O VARSTVU PODATKOV....31

VARNOSTNA NAVODILA

Predvidena uporaba

Simple circular diagram with diagonal hatching and hanging weights at the bottom (no text or symbols)

Warning sign with steam symbol inside a triangle, indicating hazardous material

Illustration of a microwave oven with two screws attached (no text or symbols)

1

600 560+8 45 min. 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with an X-shaped warning symbol on the door, connected to wires (no text or labels)

SL

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

SL 3. min. 3 mm

NAVODILA ZA UPORABO

MICROWAVE GRILL/COMBI. WEIGHT TIME DEFROST DEFROST CLOCK/ KITCHEN TIMER STOP/CLEAR START +30SEC./CONFIRM WEIGHT TIME AUTO MENU OPEN

Line drawing of a microwave oven with an arrow pointing to the door panel (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

[Non-Text]

ČIŠČENJE IN VZDRŽEVANJE

Prepričajte se, da je naprava izklopljena iz električnega omrežja.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Skladnost z direktivo RoHS

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

OBVESTILO O VARSTVU PODATKOV

make yourself at home

Simple line drawing of a microwave oven with a square, circle, and rectangular frame (no text or symbols)

Circular diagram with diagonal hatching and two hanging pins at the bottom (no text or symbols)

Illustration of a microwave oven with a door and front panel (no text or symbols)

1

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Simple line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped warning symbol on the front panel, connected to wires and a base (no text or labels)

EL

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Line drawing of a microwave oven with a door and ventilation slots, showing an arrow pointing to the interior (no text or symbols present)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a microwave oven with open door and ventilation slots (no text or symbols)

[Non-Text]

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Recycling symbol with three arrows forming a triangle (no text or labels)

make yourself at home

Simple line drawing of a microwave oven with a rectangular vent and two circular buttons (no text or symbols)

МИКРОВЪЛНОВА ФУРНА

РЪКОВОДСТВО НА ПОТРЕБИТЕЛЯ

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

Illustration of a microwave oven with a closed lid and front panel (no text or symbols)

553 396

Technical line drawing of a rectangular frame with mounting holes and a base plate, labeled with dimension 595 (no text or symbols beyond the label)

Line drawing of a microwave oven with front panel and side door (no text or symbols)

360 386

BG-15

1

600 560+8 45 380+2 500 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

Line drawing of a cabinet with a double X-shaped vent and wiring, mounted on a base (no text or symbols)

ИНСТРУКЦИЯ ЗА

ЕКСПЛОАТАЦИЯ

Solid gray image with no visible content, text, or symbols.

MICROWAVE

GRILL/COMBI.

WEIGHT DEFROST

TIME DEFROST

CLOCK/ KITCHEN TIMER

STOP/CLEAR

START +30SEC./CONFIRM

Symbol of a trash bin crossed with no visible text or labels

Recycling symbol with four arrows forming a triangle (no text or labels)

make yourself at home

Simple line drawing of a microwave oven with a blank chamber, square, and circle on the side (no text or symbols)

KUCHENKA MIKROFALOWA

INSTRUKCJA OBSŁUGI

MBMTG925E-BK

MBMTG925E-WH

MBMTG925E-X

INSTALACJA PRODUKTU ....15

INSTRUKCJA OBSŁUGI 19

CZYSZCZENIE I KONSERWACJA....27

ROZWIĄZYWANIE PROBLEMÓW ......28

ZNAKI TOWAROWE, PRAWA AUTORSKIE I OŚWIADCZENIA PRAWNE....29

UTYLIZACJA I RECYKLING 30

INFORMACJA DOTYCZĄCA OCHRONY DANYCH OSOBOWYCH....31

INSTRUKCJE BEZPIECZEŃSTWA

Przeznaczenie

Circular diagram with diagonal hatching and hanging tassels at the bottom (no text or symbols)

Warning sign with steam symbol inside a triangle, indicating hazardous material

Instrukcje montażu

Illustration of a microwave oven with two screws attached (no text or symbols)

1

600 560+8 45 min. 500 380+2 45

Line drawing of a microwave oven with lid and front panel (no text or symbols)

2

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

PL

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram showing a microwave oven installation with labeled parts and directional arrow indicating assembly or movement.

min. 3 mm

INSTRUKCJA OBSŁUGI

MICROWAVE GRILL/COMBI. WEIGHT TIME DEFROST DEFROST CLOCK/ KITCHEN TIMER STOP/CLEAR START +30SEC/CONFIRM WEIGHT TIME AUTO MENU OPEN

PL

Line drawing of a microwave oven with an arrow pointing to the door panel (no text or symbols)

↓

Line drawing of a microwave oven with lid and door (no text or symbols)

↓

Line drawing of a closed oven with lid and door, showing internal insulation pattern (no text or symbols)

[Non-Text]

CZYSZCZENIE I KONSERWACJA

UTYLIZACJA I RECYKLING

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Recycling symbol icon with four chasing arrows forming a triangle (no text or labels)

INFORMACJA DOTYCZĄCA OCHRONY DANYCH OSOBOWYCH

make yourself at home
