USER MANUAL Pure 600 EPO60771UG ELECTROLUX

Line drawing of a multi-tiered kitchen appliance with a handle and wheels (no text or symbols)

PURE 600

PURE 600 XL

TABLE OF CONTENT

User Manual 14

Návod k použití 18

Brugervejledning 22

Käyttöohje 26

A B C I Q R K L M N O P SMART MANUAL T J S MODE H D F E G

EN DESCRIPTION OF YOUR AIR PURIFIER PURE A9-40/PURE A9-60

Appliance:

A. Control panel

B. Air outlet

C. Air quality light

D. Air quality sensor

E. Fabric handle

F. Multi-layer filter

G. Air intake door

H. Air intake

I. Product handles

Control panel:

J. Loading LED

K. Manual mode indicator

L. WiFi indicator

M. Child lock indicator

N. Filter change indicator

O. Ionizer indicator

P. Schedule indicator

Q. Fan speed slider

R. SMART mode indicator

S. Mode button

T. On/Off button

Features might be added or updated with new App releases.

CZ POPIS VAŠÍ ČISTIČKY VZDUCHU PURE A9-40/PURE A9-60

Spotřebič:

Diagram of a cylindrical device with internal components and a blue panel above, showing no text or symbols.

Illustration of a kitchen appliance with airflow arrows and a checkmark (no text or symbols)

3 0° ✓

4 Min. 30 cm

Illustration of a portable thermospan with a hand holding a pen, showing the lid and handle (no text or symbols)

Illustration of a hand operating a cylindrical device next to a box with a scroll, showing motion arrows (no text or symbols)

3D illustration of a cylindrical container with a blue arrow indicating upward motion (no text or symbols)

8 ① ②

Diagram illustrating a device installation procedure with labeled components and a numbered step indicator.

10 SMART ① HOD

Diagram of a mechanical device with concentric layers and a handle, showing internal components (no text or symbols)

13 SMART I NODE

SMART ① MODE

15 SMART I HOST

16 SMART - + - HOME

Illustration of a hand cleaning a kitchen appliance with a cloth cover (no text or symbols)

Illustration of a handheld cleaning tool interacting with a blue and silver device, showing a close-up inset of the brush (no text or symbols)

Illustration of a portable device with a handle and a close-up inset showing a close-up of its surface (no text or symbols)

20 MAX

Safety warning symbol for plumbing, showing no valve and toilet with a water drop icon

Isometric illustration of a rolled-up cardboard box with a blue arrow indicating compression (no text or symbols)

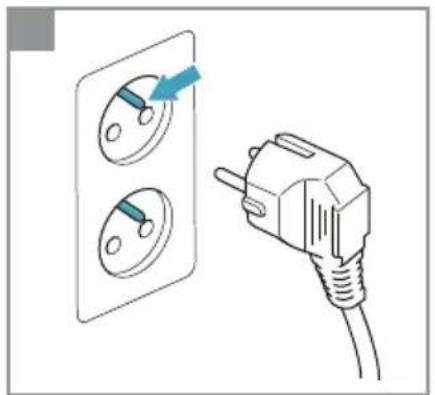

Illustration of a wall socket connected to a plug, showing the socket being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

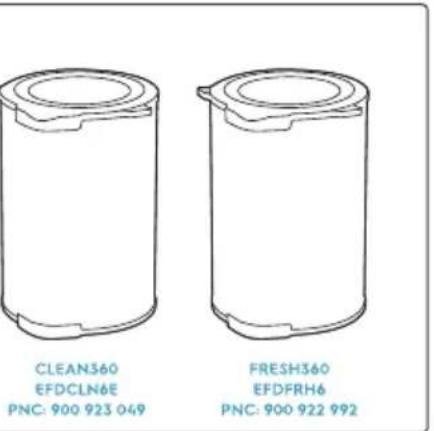

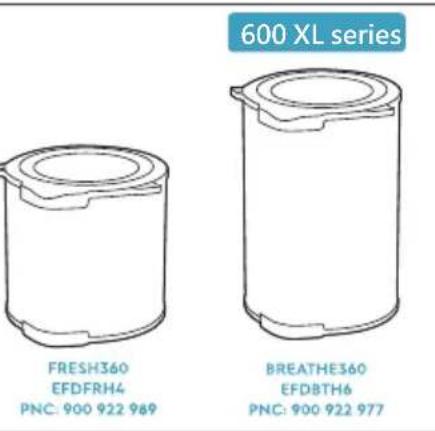

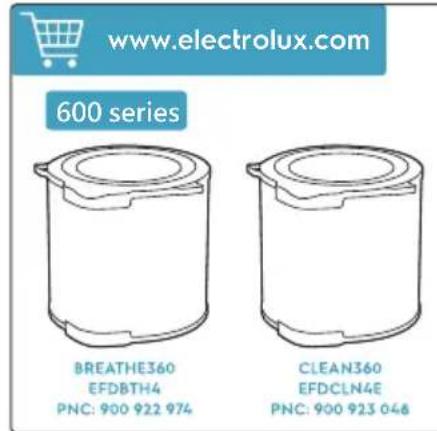

www.electrolux.com 600 series BREATHE360 EFDBTH4 PNC: 900 922 974 CLEAN360 EFDCLN4E PNC: 900 923 048

600 XL series FRESH360 EFDFRH4 PNC: 900 922 989 BREATHE360 EFDBTH6 PNC: 900 922 977

CLEAN360 EFDCLN6E PNC: 900 923 049 FRESH360 EFDFRH6 PNC: 900 922 992

CHILDREN & VULNERABLE PEOPLE SAFETY

• Risk of suffocation, injury or permanent disability. Keep all packaging away from children.
• This appliance can be used by children aged from 8 years and above under supervision.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the unit. Children under 8 years of age should be kept away from the unit unless continuously supervised.

CAUTION! - AVOID INJURY OR DAMAGE TO THE UNIT OR PROPERTY

• Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.
• Do not climb on or place objects on the unit. Do not hang objects off the unit.
• Do not place containers with liquids on the unit.
• Turn OFF the unit at the power source when it will not be used for an extended period.
• Do not block or cover the air intake area, fan area and air outlet grill.
• Ensure that any electrical/electronic equipment is at least 30cm away from the unit.

ELECTRICAL INFORMATION

• WARNING! Avoid fire hazard or electric shock.
• Do not use an extension cord or an adaptor plug.
• Do not remove any prong from the power cord. Do not pinch, bend, or knot the power cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code OR applicable local codes and ordinances.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

- Do not let water or any other liquid or flammable detergent enter the unit to avoid electric shock and/or a fire hazard.

- Be sure to unplug the unit before cleaning.

- Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.

SAFETY PRECAUTIONS

• Do not insert or place fingers or objects into the air discharge area or front facing grille of the unit.
• Do not start or stop the unit by unplugging the power cord or turning OFF the power at the electrical box.
• In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.
• Do not operate the unit with wet hands.
• Do not pull on the power cord.
• Do not touch the fan blade when removing the filter(s).

Environmental Concerns:

Recycle materials with the symbol ⚙. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol ⚠️ with the household waste. Return the product to your local recycling facility or contact your municipal office.

For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.chseconds

ENGLISH

Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

Picture pages 12-13

BEFORE FIRST USE

Place the product according to the instructions below for optimal operation and results:

1 Operate the air cleaner in an enclosed area. Close all doors, windows, and other openings connecting to the outside of the room.

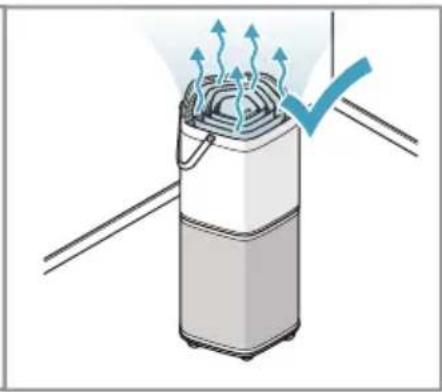

2 Place the air cleaner in a location that does not restrict the airflow through the top of the appliance.

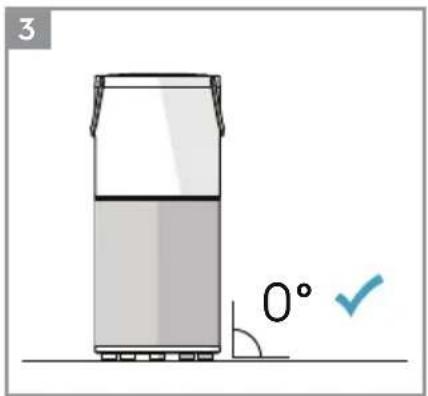

3 The appliance must be placed on a leveled floor that can support it.

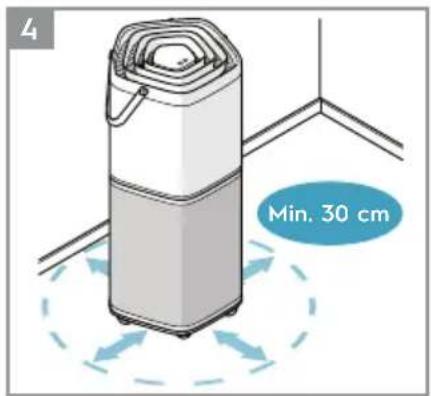

4 There should be a minimum of 30 cm of clearance around the appliance.

Remove the plastic protective bag from the multi-layer filter:

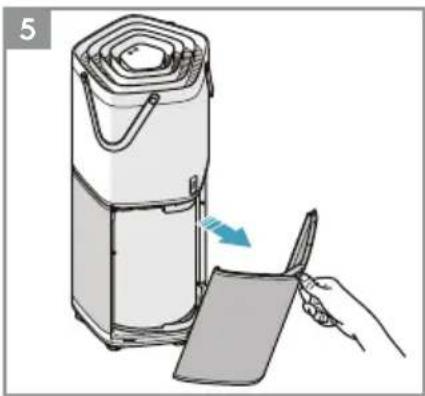

5 Pull the Fabric handle outward to remove the air intake door.

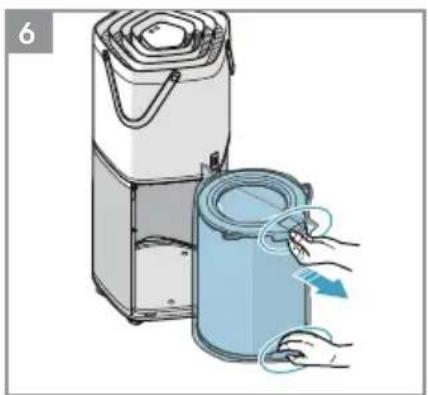

6 Take out the multi-layer filter pulling it out by the handle.

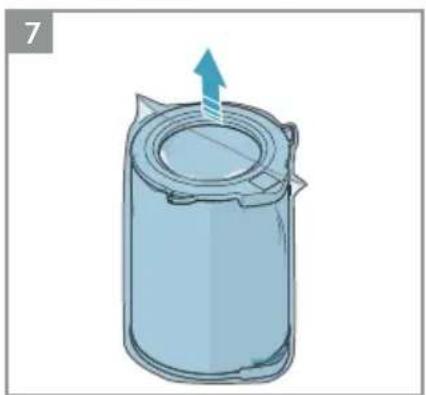

7 Remove the plastic protective bag from the multi-layer filter.

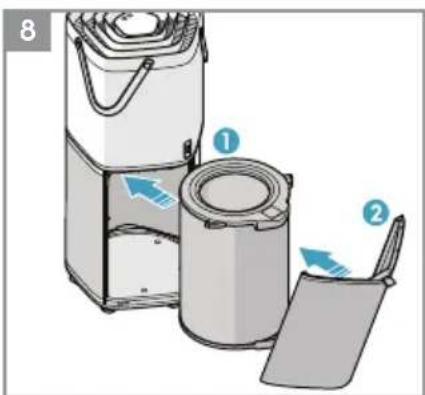

8 Reinstall the multi-layer filter into the appliance.

OPERATION INSTRUCTIONS

TO TURN ON THE APPLIANCE

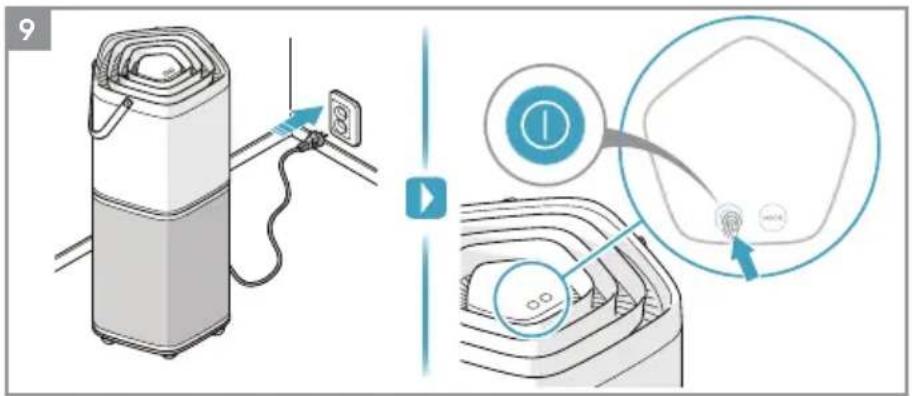

9 Plug in the appliance and tap (touch and release) the "①" button to turn it on.

NOTE: It will take about 10 seconds for the sensor to analyze the air quality, during this time the Loading LED and the Air quality light will pulsate slowly in white. Each time the appliance is turned on the SMART mode is activated automatically and the fan runs in low speed until the air quality

analysis is complete.

SMART MODE

10 In this mode, the appliance will choose the fan speed automatically, based on the air quality level. This is the default mode each time the appliance is turned on.

NOTE: In "SMART" mode the fan speed cannot be changed manually.

About the Air quality light

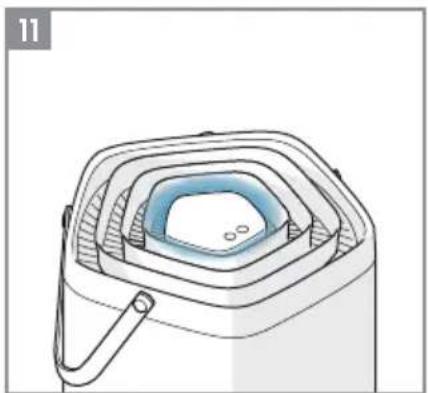

11 The appliance has an air quality sensor that analyzes the air quality.

The air quality light will show the real-time air quality through different colors of light. As shown below:

LIGHT'S COLOR	PM 2.5 ( g/m^3 ) AIR QUALITY
Green	0-12 Very Good
Yellow	13-35 Good
Orange	36-55 Poor
Red	56-150 Very Poor
Purple	151-250 Bad
Maroon	>250 Very Bad

NOTE: It will take about 10 seconds for the sensor to analyze the air quality each time the appliance is turned on. During this time, the air quality light will pulsate slowly in white.

Very high humidity conditions in the room might produce condensation in the sensors. This could affect the accuracy of the sensor readings.

MANUAL MODE

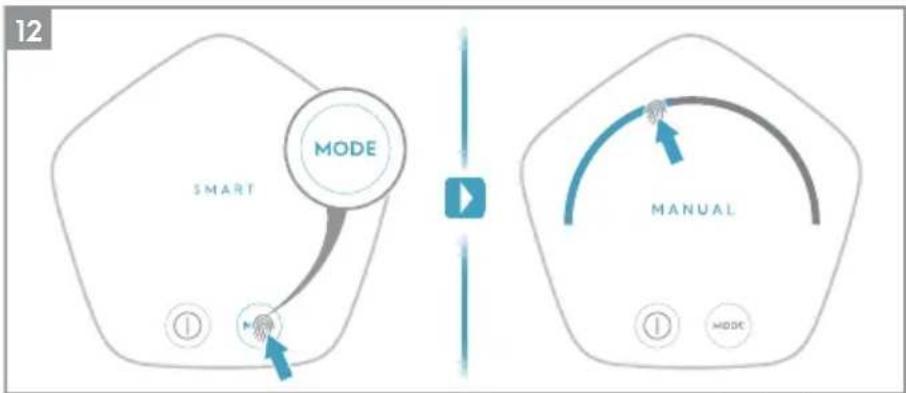

12 Tap the "MODE" button to switch the appliance to "MANUAL" mode. In this mode, the fan speed can be changed manually by touching the Fan speed slider.

NOTE: The fan speed will change gradually after a new fan speed is selected.

WIFI FUNCTION

13 This appliance is equipped with a WiFi module, which enables remote control and access to the full functionality of the system via our smartphone app. Download our Wellbeing App and follow the instructions for how to connect it with your appliance. When the connection is stablished, the WiFi indicator will light up.

CHILD LOCK FUNCTION

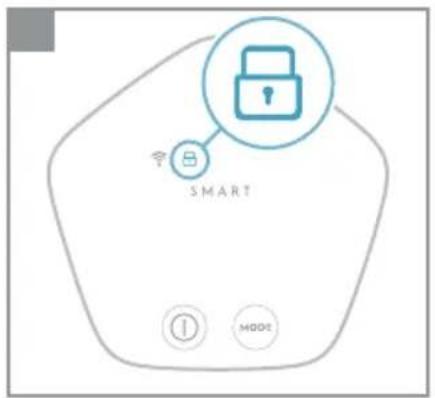

14 The Child lock can be activated and deactivated by long pressing the On/Off and the Mode button simultaneously for 4 seconds. When the Child lock is activated, the control panel of the appliance cannot be interacted with and the Child lock indicator light up.

FILTER CHANGE INDICATOR

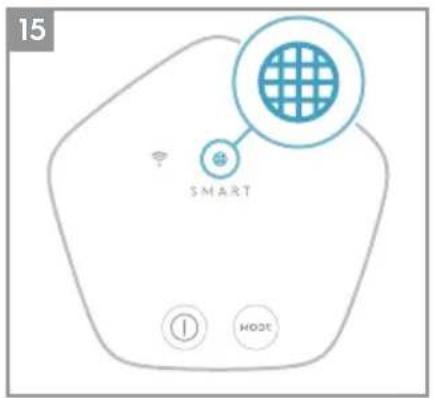

15 The filter change indicator will light up to remind you to change the filter. Refer to the instructions in the Wellbeing App or the Electrolux website on where to purchase replacement filters. Ensure the plastic protective bag is removed from the replacement filter before use. After the filter is replaced, the filter change indicator will turn off automatically.

NOTE: The multi-layer filter cannot be washed, it can only be replaced.

IONIZER FUNCTION

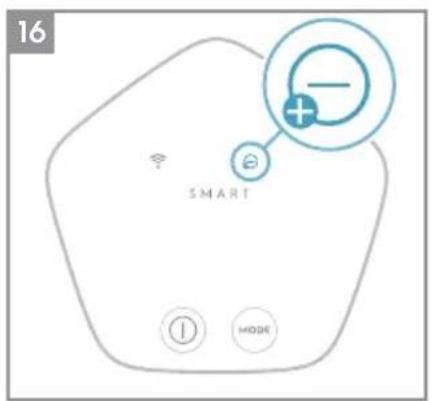

16 The ionizer function can only be activated and deactivated by using the Wellbeing App (smartphone application). When this function is activated, the ionizer indicator lights up and the appliance generates ions to improve the unit's performance and with it the room's air quality.

CARE AND CLEANING

Unplug the appliance before cleaning to prevent shock or fire hazards.

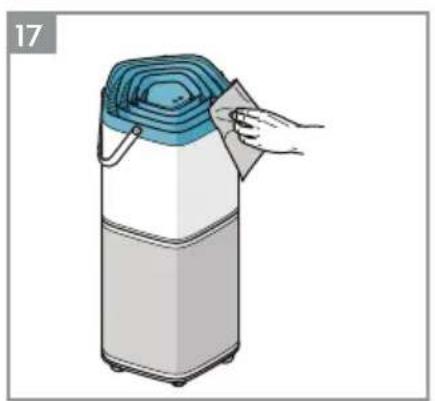

17 The plastic parts of the appliance may be cleaned with an oil-free dry cloth or by using a vacuum cleaner with a soft brush.

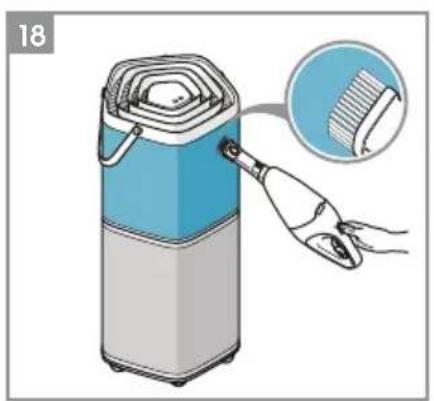

18 The fabric on the appliance cannot be removed. Clean the fabric by using an oil-free dry cloth or a vacuum cleaner with a soft brush.

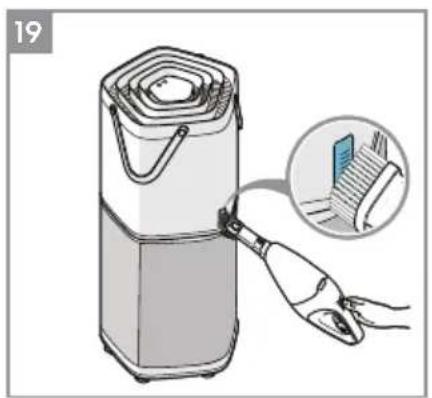

19 Dust accumulated in the Air quality sensor can result in incorrect sensor readings and affect performance. Use a vacuum cleaner with a soft brush to remove any dust that might accumulate in this area. Vacuum at least monthly.

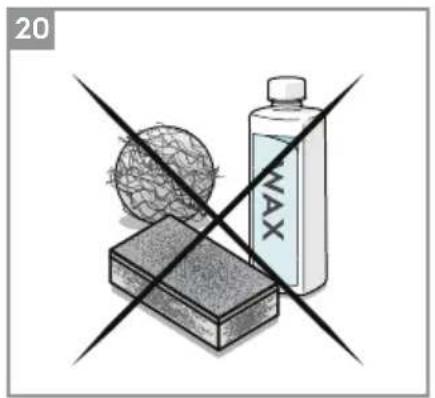

20 Never use abrasive, harsh cleaners or wax when cleaning the unit.

21 NOTE: The multi-layer filter can not be washed, it can only be replaced.

CAUTION! Do not touch the fan blade when removing the multi-layer filter.

Storage

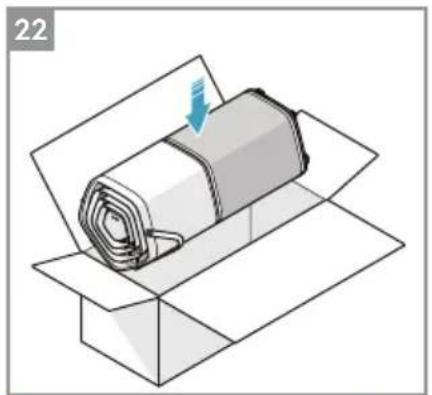

22 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.

Electrolux reserves the right to change products, information and specifications without notice.

TROUBLESHOOTING

PROBLEM	SOLUTION
The air purifier does not operate.	·Check if the power plug is disconnected. Push the power plug firmly into the electrical outlet.·Check if the house fuse is blown or the circuit breaker tripped. Replace the fuse with a time delay type or reset the circuit breaker.
The fan does not operate.	·Ensure that the air intake door (image 8) is closed properly, and the filter is installed correctly, then retry using the purifier.
The air quality does not improve.	·Check if the windows or doors are opened. Close all doors, windows and other openings connecting to the outside of the room.
The appliance is very loud.	·Ensure that there are no obstacles near the appliance and that it has a minimum of 30 cm of clearance around it for optimal operation.
The fan speed does not change after selecting a new fan speed.	·The fan speed will decrease or increase gradually, this is normal. If it does not change after a prolonged period of time after the input then please reach out to an Electrolux authorized servicer for support.
The appliance produces a strange smell.	·The first time you use the purifier, you might perceive a plastic or paint smell. This is normal, but it should disappear quickly. If the smell persist or if you sense a burning smell, please disconnect the purifier and reach out to an Electrolux authorized servicer for support.
The app does not operate properly or it is not possible to onboard the appliance on the app.	·Please reach out to an Electrolux authorized servicer for support on the topic.
The Loading LED flashes quickly during operation.	·If this problem occurs the unit is not working normally. Unplug the unit from the electrical outlet and plug it again after 30 seconds. If the problem remains please reach out to an Electrolux authorized servicer for support.
For any further problems, contact an authorized Electrolux service centre.

The software in the air purifier is partly based on free and open source software. To see the full copyright information and applicable license terms, please visit: www.electrolux.com/appliance-supplementary
