USER MANUAL GW4KHDCKIT IOGEAR

4K USB-C to HDMI® Video Wireless Transmitter and Receiver Kit

• 1x Transmitter
• 1x Receiver
  • 1x Micro-USB Cable to USB-A
  • 1x Quick Start Guide
• 1x Warranty Card

System Requirements

• 4K Capable Type-C Source Device (Laptop/Tablet/PC Must support DP-Alt Mode via USB-C)
• 4K Capable Display Device (TV, Projector, Monitor, etc)

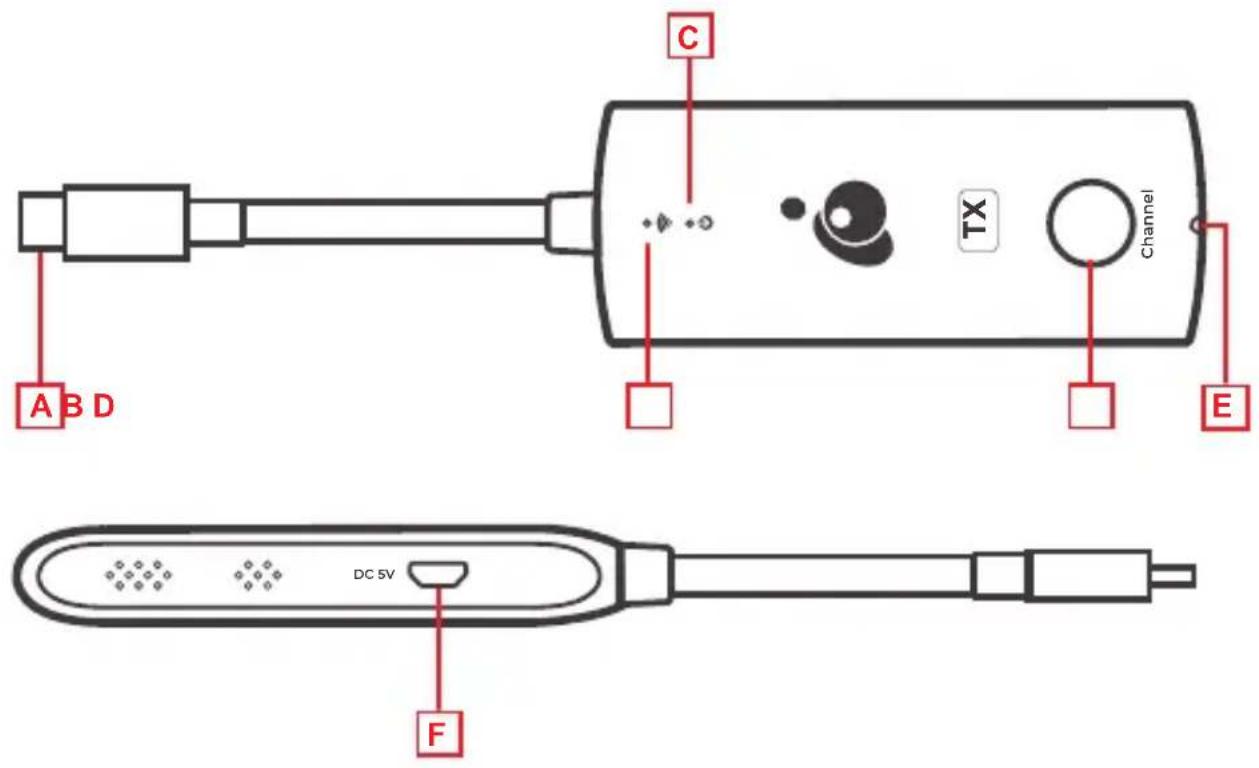

Product Overview

A. Type-C Input – Connection to a source device with a Type-C connection that supports DP-Alt Mode for video output.

B. Signal Indicator

• Slow Flash: Waiting to Connection
  • Solid Color: Connection Successful
• Flashing Lights: Entered SSID Pairing Mode

C. Power Indicator – Will Turn red when power is turned on

D.Channel Switch Button –

• Press once to switch channels.
• Press and hold 5 seconds for SSID Pairing Mode
• Press and hold for 10 seconds to restore to factory settings

Transmitter

A B D C TX Channel E DC 5V F

E. Status Indicator –

• Light off: No Signal from Source Device
• Solid Light: Signal is Transmitting
• Rapid Flashing: Being restored to factory settings

F. Micro-USB Port – (for Firmware Upgrades)

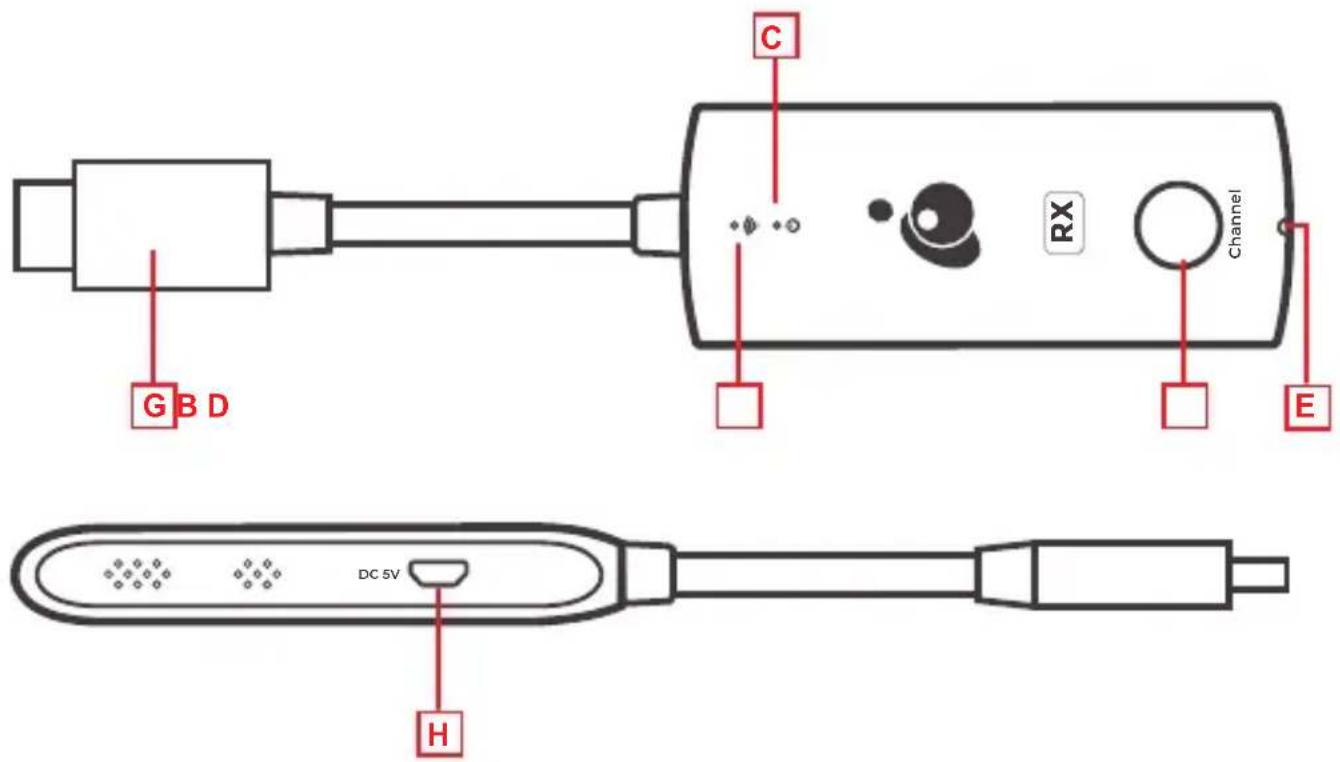

G.HDMI Input – Connection to a Display device with an HDMI connection that supports 4K video output

H. Micro-USB Port – Receiver requires connection for power input and for firmware upgrades

Receiver

G B D C RX Channel E DC 5V H

Hardware Installation (One to One Connection)

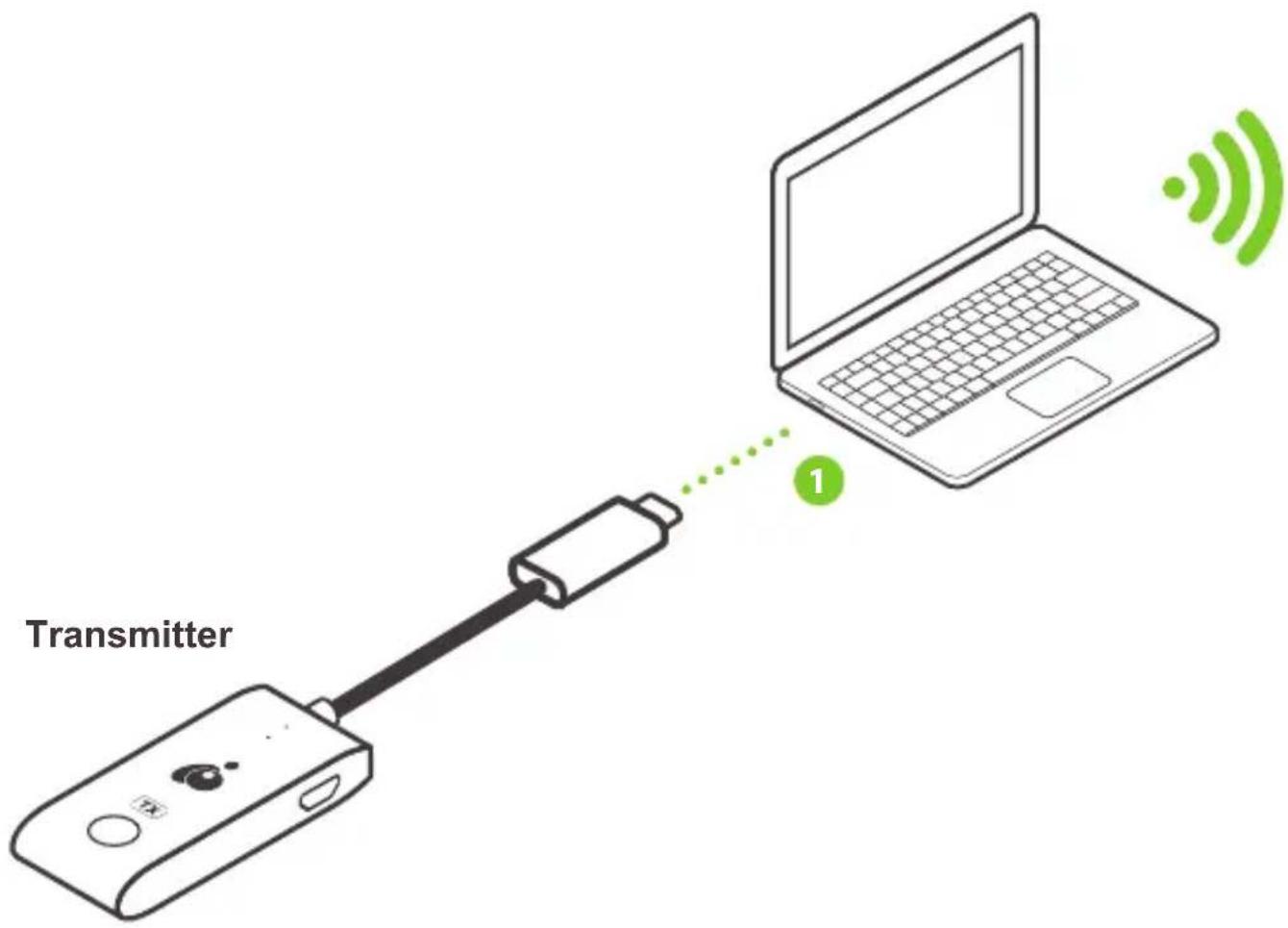

1 Step 1

Connect the Transmitter to a Type-C connection on your source device. (For 4K quality, please ensure your device and display can support 4K resolution)

2 Step 2

Connect the Receiver to an open HDMI port to an HDMI-enabled device. (For 4K quality, please ensure the Display supports 4K quality)

Transmitter 1

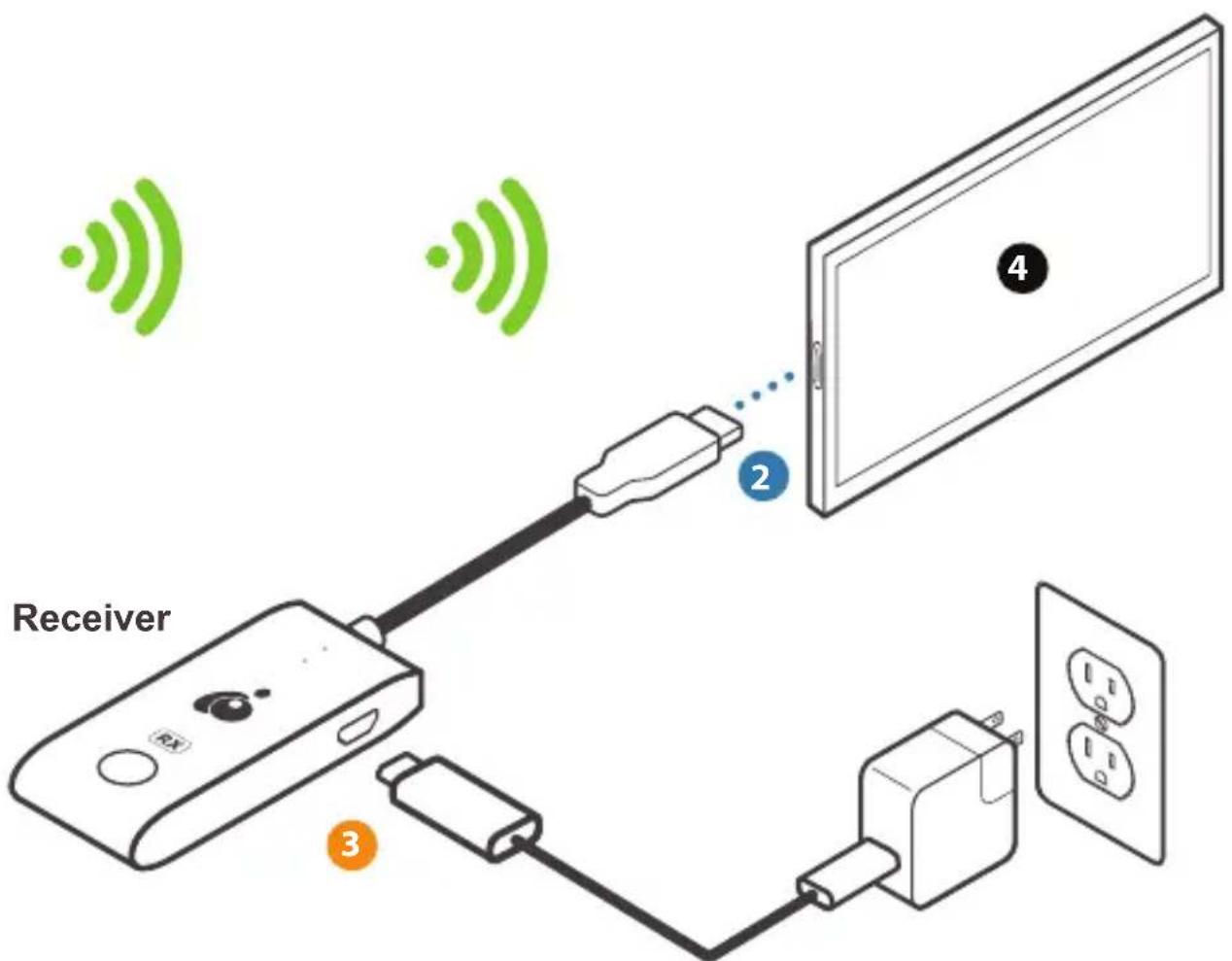

3 Step 3

Connect the included Micro-USB Cable to the Receiver, and to an open USB-A port to power the Receiver

4 Step 4 ......

Wait for the image to show up on the display

Receiver 3 2 4

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement:

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
