Thesis TH 6.5 II Sax - Loudspeaker AUDISON - Free user manual and instructions

Brand	Audison
Model	Thesis TH 6.5 II Sax
Product type	Woofer/midrange speaker (2-way component)
Speaker diameter	165 mm (6.5 inches)
Recommended RMS power	80 W
Maximum power handling	160 W
Nominal impedance	4 ohms
Sensitivity (2.83 V/1 m)	90 dB
Frequency response	40 Hz – 4 kHz
Cone material	Treated cellulose pulp with specific coating
Suspension material	Rubber
Voice coil material	Copper wire on aluminum former
Cutout dimensions	142 mm diameter
Mounting depth	65 mm
Net weight	0.9 kg
Power supply	Via external amplifier (not included)
Main functions	Reproduction of low and mid frequencies
Care and cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Follow installation instructions to avoid danger. Use eye protection when cutting.
Spare parts and repairability	For any repair, contact an Audison approved service center or the dealer.
General information	Designed for installation inside the vehicle cabin. Operating temperature: -20°C to +60°C.

Frequently Asked Questions - Thesis TH 6.5 II Sax AUDISON

What is the recommended RMS power for the Audison Thesis TH 6.5 II Sax?

The speaker is designed for an RMS power of 80 W. It is recommended to use an amplifier providing between 40 and 120 W RMS for optimal performance.

What is the impedance of this speaker?

The nominal impedance is 4 ohms, which is standard for most car audio systems.

Is this speaker suitable for outdoor or marine use?

No, this speaker is designed only for interior vehicle installation. It is not waterproof and must not be exposed to moisture or water.

What type of amplifier is recommended?

Any quality audio amplifier capable of delivering 80 W RMS into 4 ohms is suitable. It is preferable to use an amplifier with a high-pass filter to protect the speaker from very low frequencies.

How to clean the speaker?

Use a soft, dry cloth to remove dust. Never use chemicals or solvents, as they may damage the cone.

Can I use this speaker without a subwoofer?

Yes, the TH 6.5 II Sax can reproduce low frequencies down to 40 Hz, but for a complete sound experience, adding a subwoofer is recommended.

What is the required mounting depth?

The mounting depth is 65 mm. Make sure the available space in the door or panel is sufficient.

Does the speaker come with protective grilles?

No, grilles are not included. It is recommended to use suitable grilles (optional) to protect the cone.

Can I install this speaker in a car without an amplifier?

It is possible to connect it directly to the car stereo, but the power will be limited. To fully enjoy its performance, an external amplifier is strongly recommended.

What is the warranty on this product?

The warranty is that offered by Audison. For more details, visit the official Audison website or contact your dealer.

USER MANUAL Thesis TH 6.5 II Sax AUDISON

Congratulations on purchasing our product. Your satisfaction is the first requirement that our products must meet: the same satisfaction as the one gained by those who long for experiencing the car audio emotion. This manual has been drawn to provide the main instructions required to install and use the system properly. However, the range of possible applications is wide; for further information, please feel free to contact your trusted dealer or our technical support at the email [e-mail] Before installing the components, please carefully read all of the instructions contained in this manual. Failure to respect these instructions may cause unintentional harm or damage to the product.

1. All components must be firmly secured to the vehicle structure. Do the same when installing any custom structures you may have built. Confirm your installation is solid and safe. A component coming loose while driving may cause serious damage to the passengers, as well as to other vehicles.

2. Always wear protective eyewear when using tools, as splints or product residue may become airborne.

3. In order to avoid incidental damage, keep the product in the original packaging until you are ready for the final installation.

4. Do not carry out any installation inside the engine compartment.

5. Before starting with the installation turn the head unit and all other audio system devices off, avoiding any possible damage.

6. Make sure that the location you choose to install the components does not interfere with the normal operation of any mechanical or electrical devices of the vehicle.

7. Do not install loudspeakers where they may be exposed to water, excessive humidity, dust or dirt.

8. Do not install the tweeter without the protective grille.

9. Do not install the components or make cable run close to electronic or mechanical devices of the vehicle.

10. Be very cautious when drilling or cutting into the vehicle chassis, making sure there are no cables or structural elements essential to the vehicle underneath or in the selected area.

11. When routing cables, make sure that the cable does not come in contact with sharp edges or near moving mechanical devices. Make sure that it is firmly attached and protected along its entire length and its insulation is self-extinquishing.

12. Only use cables with the proper section (AWG) indicated herein

13. When running the cable through a hole in the vehicles chassis, protect the cable with a rubber ring (grommel). Be sure to provide proper protection for cables running close to heat-generating devices.

14. Do not run the wires outside of the vehicle.

15. Use top quality cables, connectors and accessories such as found in the Connection catalogue.

16. Warranty certificate: For more information visit the Audison website.

SAFE SOUND

USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. SAFETY MUST BE AT THE FOREFRONT WHILE DRIVING.

Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste)

Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the disposal of these products and components. In order to know where and how to deliver these products to the nearest recycling/disposal site please contact your local municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and to prevent harmful effects on health.

Eesti / Estonian

The Audison products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt.

The warranty is not valid if:

• the product is damaged by incidents, installations and/or improper use, or by any other causes not depending on materials or manufacturing defects;
• the product is modified or tampered with by unauthorised people;
• its serial number has been altered or cancelled.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion.

The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in. If the product is no longer under warranty, it will be repaired at the current costs.

Elettromedia s.r.l. does not undertake any liability for damages due to transportation. Elettromedia s.r.l. does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer.

Warranty according to laws in force.

For more information visit the Audison website.

Гарантия Audison

TH 1.5.Ⅱ Violino - Bottom case vs Bottom disc

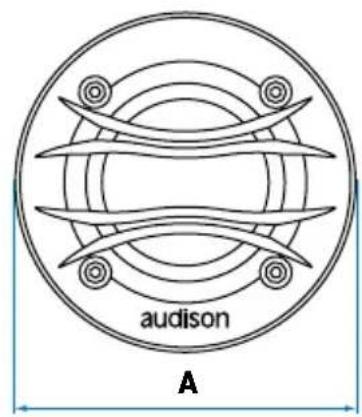

الحجم / Размер / 尺寸 / 规格 / Veličina / Velikost / Størrelse / Afmetingen / Size / Suurus / Koko / Dimensions / Größe / Διαστάσεις / انداهز / Méretek / Ukuran / Ingombro / サイズ / ヨ키 / Izmērs / Dydis / Størrelse / Wielkość / Dimensão / Dimensiuni / Размер / Rozmery / Velikost / Tamaño / Storlek / ขนาด / Ebat

TH 1.5 II Violino - with bottom case

	A	B	C	D	K
TH 1.5 II Violino	71,8	66	37,4	22,4	4 mm
	2.83	2.6	1.47	0	88	0.16	in.

TH 1.5 II Violino - with bottom disc

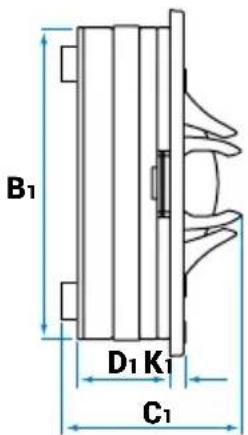

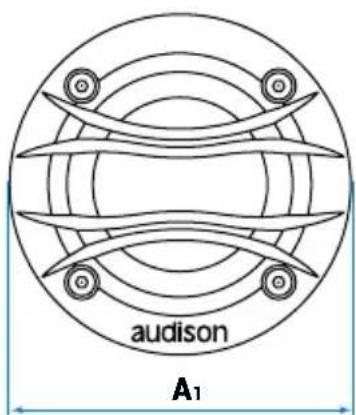

	A1	B1	C1	D1	K1
TH 1.5 II Violino	66 60	33 19,5	2,2 mm
	2.6 2.36	1.3 0.77	0.09 in.

التشmit / Монтаж / 安装 / 安装 / Montaža / Montáz / Montering / Montage / Mounting / Paigaldamine / Kiinnitys / Montage / Montage / Тоттоθέτηση / Deszerelés / Pemasangan / Montaggio / マウント / 마운트 / Uzstādīšana / Montavimas / Montering / تعبيه / Montaz / Montagem / Montaj / Montáz / Montáž / Namestitev / Montaje / Montering / การใช้สําจิวโมง / Montaj

TH 1.5 II Violino

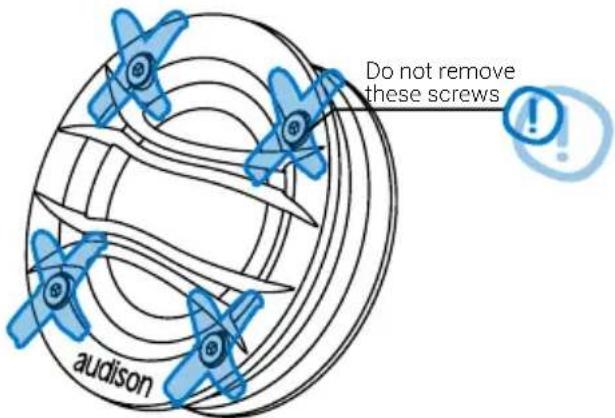

1 with bottom case

Technical line drawing of a mechanical component with threaded ends and labeled 'audison' (no other text or symbols)

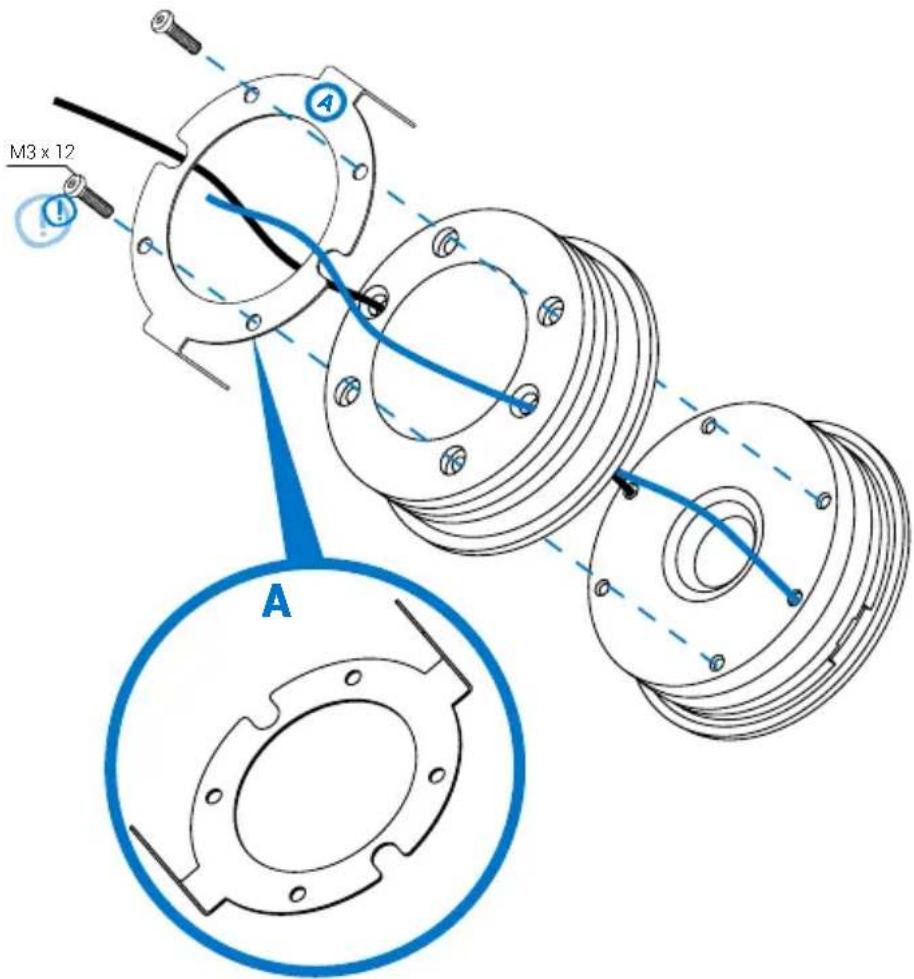

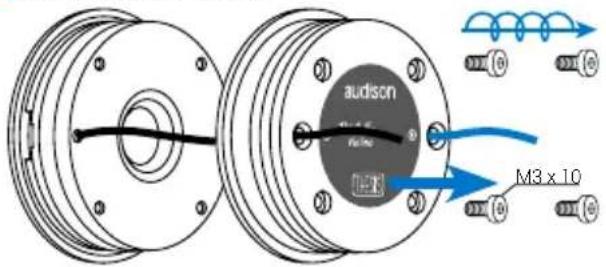

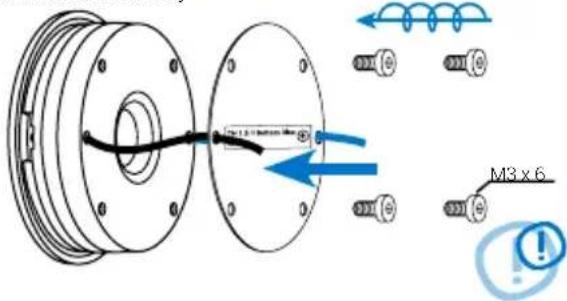

2 bottom case disassembly

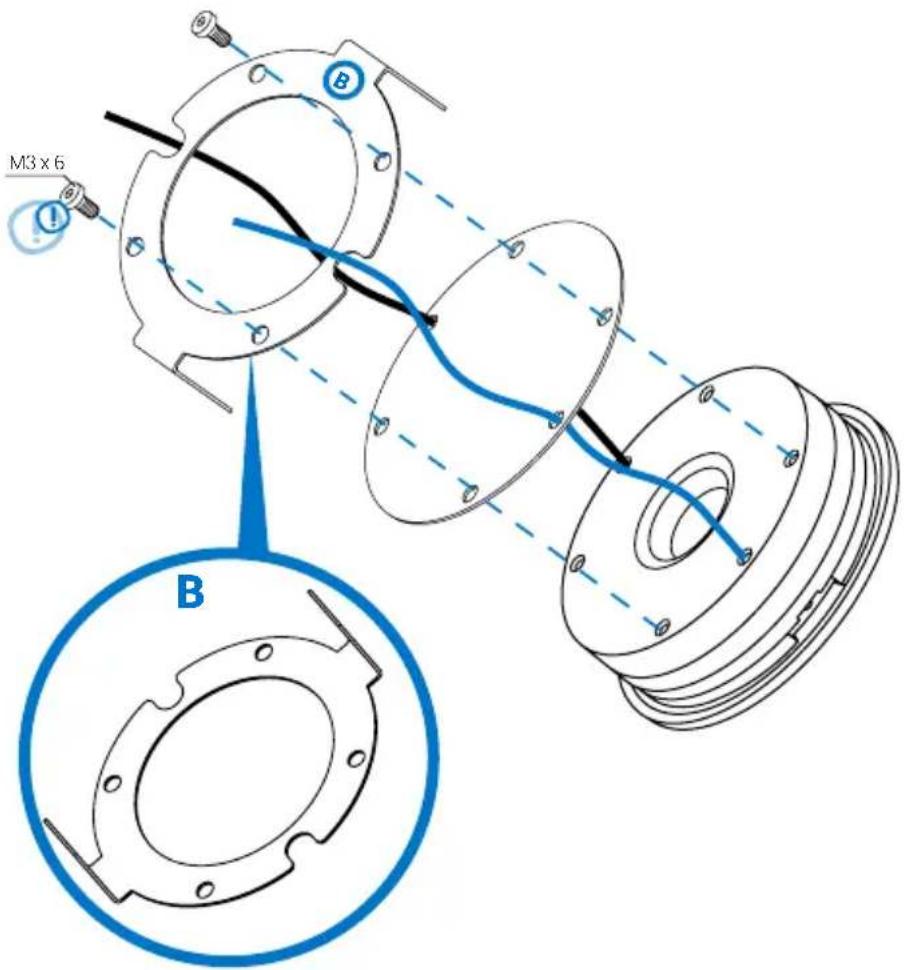

3 bottom disc assembly

4 with bottom disc

Technical line drawing of a mechanical component with numbered parts and a blue pointer (no text or symbols)

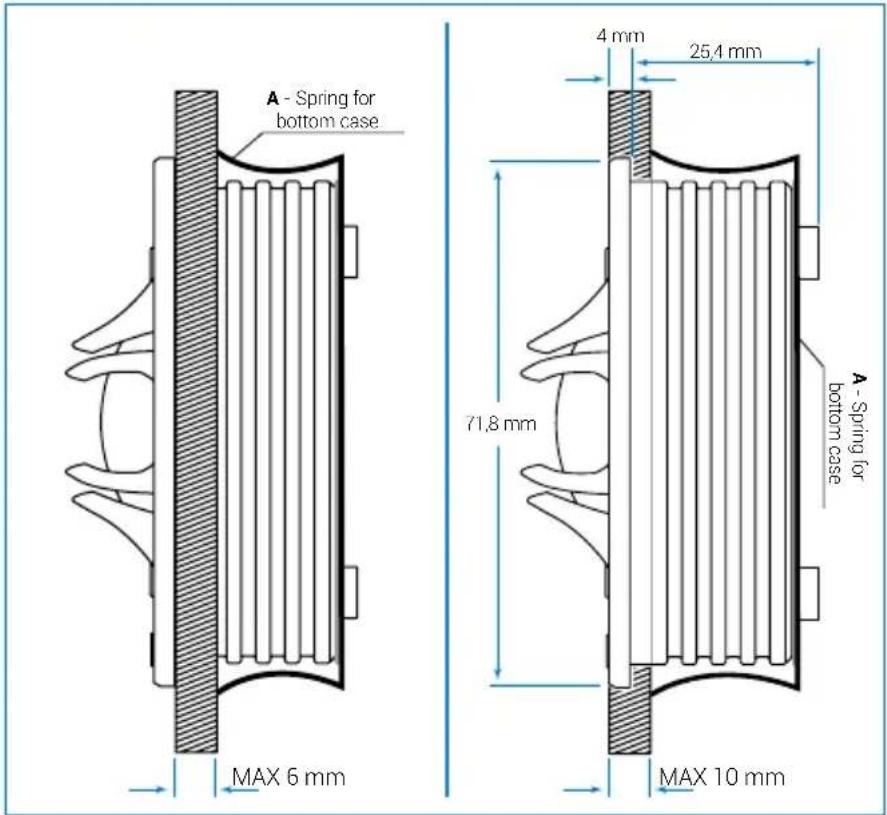

Bottom case spring assembly

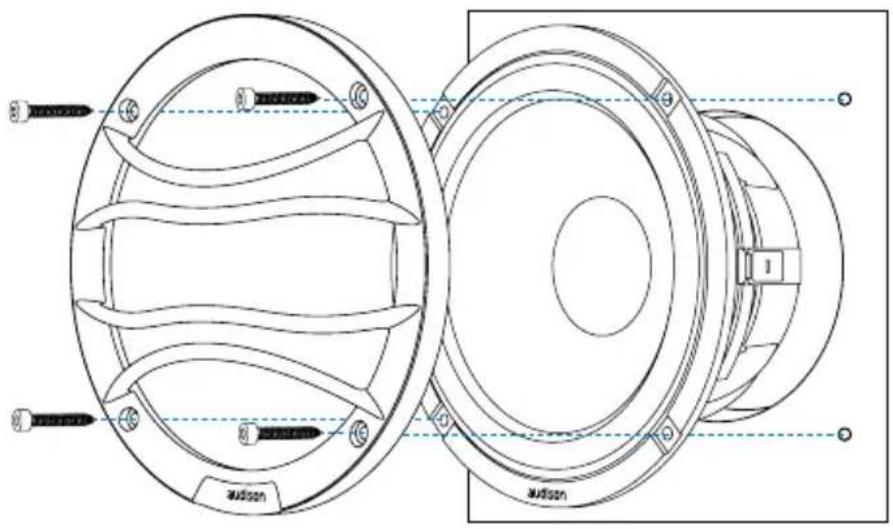

Panel Mounting with bottom case

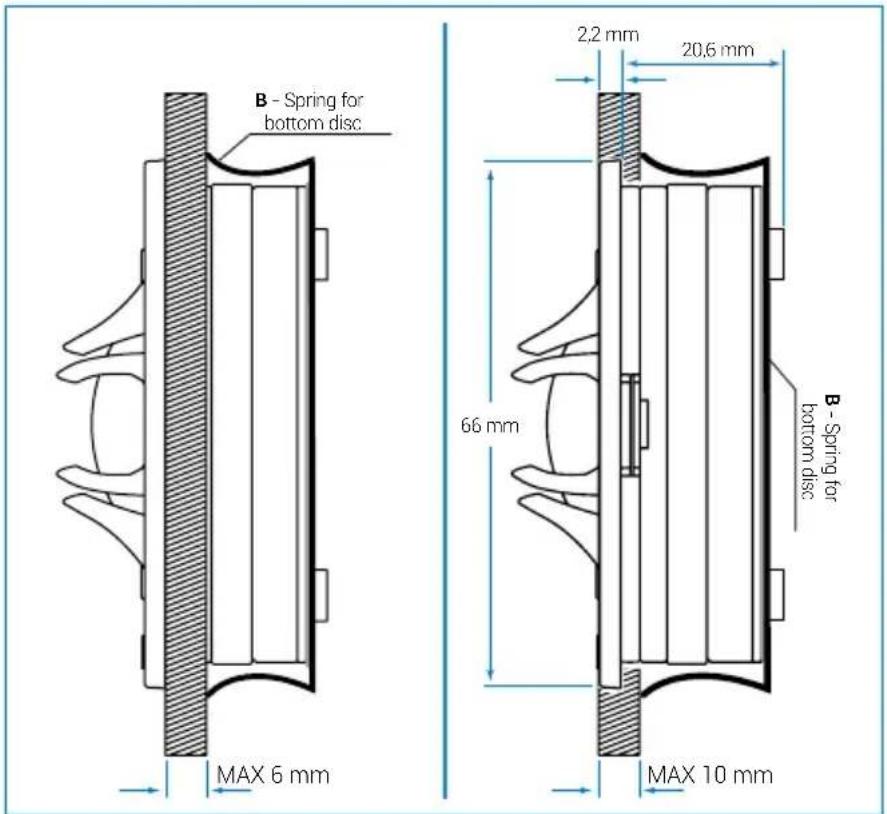

Bottom disc spring assembly

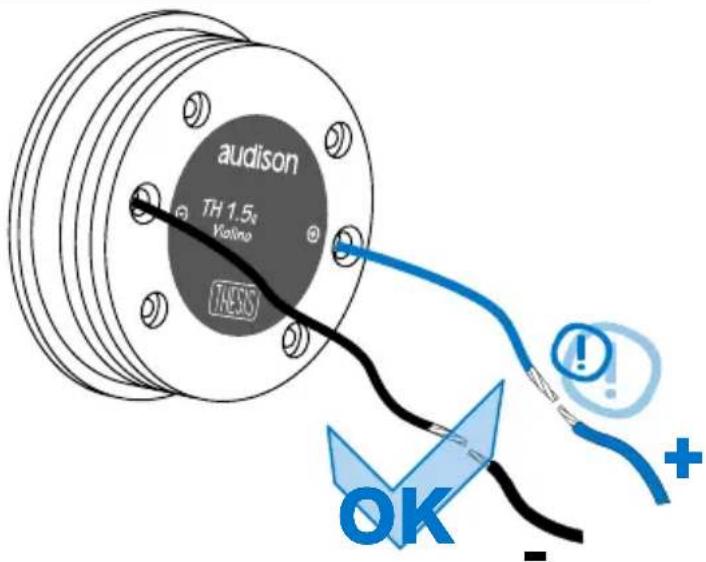

Panel Mounting with bottom disc

THESIS

محتويات العوة / Съдържание на опаковката / 包装内容 / 内装物 / Sadržaj pakiranja / Obsah balení / Pakkens indhold / Pakket inhoud / Packaging contents / Pakendi sisu / Pakkauksen sisältö / Contenu de l'emballage / Verpackungsinhalt / Періехóμενα συσκευασίας / «гостот» / A csomag tartalma / Isi kemasan / Contenuto dell'imballo / パッケージ内容 / 厨키지 내용 / Lepakojuma saturs / Pakuotès turinys / Innhold / محتويات بسته / Zawartość opakowania / Conteúdo da embalagem / Continutul pachetului / Комплектация / Obsah balenia / Vsebina embalaže / Contenido del embalaje / Förpackningens innehåll / ส่วนประกอบผลิตภัณฑ / Paket içeriği

TH 3.0 II Voce

TH 3.0 II Voce

الحجم / Размер / 尺寸 / 规格 / Veličina / Velikost / Størrelse / Afmetingen / Size / Suurus / Koko / Dimensions / Größe / Διαστάσεις / اندازه / Méretek / Ukuran / Ingombro / サイズ / ヨ키 / Izmērs / Dydis / Størrelse / Wielkość / Dimensão / Dimensiuni / Размер / Rozmery / Velikost / Tamaño / Storlek / ขนาด / Ebat

TH 3.0 II Voce

Pure mechanical part diagram showing a vertical shaft with curved cutouts and a force indicator (F), no text or symbols present.

	A	B	C	D	E	F	U	V
TH 3.0 II Voce	84	73,5	37	45	89	18	80	3,5	mm
	3.31	2.89	1.46	1.77	3.5	0.71	3.15	0.14	in.

THESIS

/ Монтаж / 安装 / 安装 / Montaža / Montáž / Montering / Montage / Mounting / Paigaldamine / Kiinnitys / Montage / Montage / Тоттоётηση / Deszerelés / Pemasangan / Montaggio / マウント / येज / Uzstādišana / Montavimas / Montering / मोही / Montaž / Montagem / Montaj / Монтаж / Montáž / Namestitev / Montaje / Montering / प्रधानिकार्थांगा / Montaj

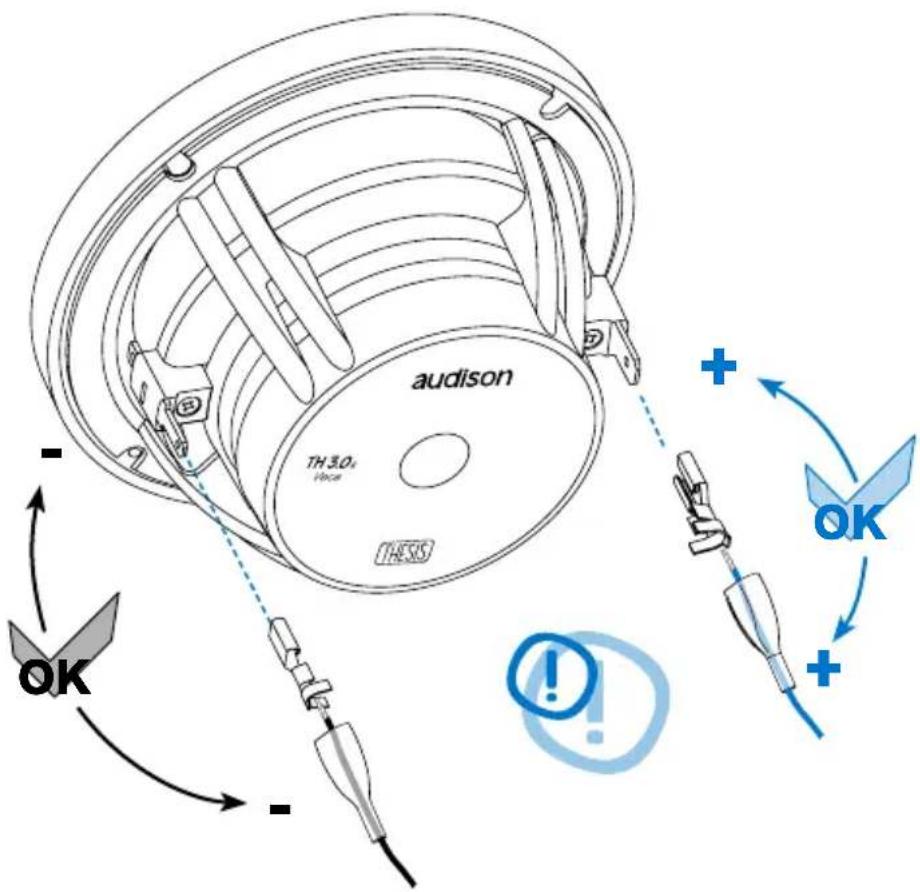

TH 3.0 II Voce

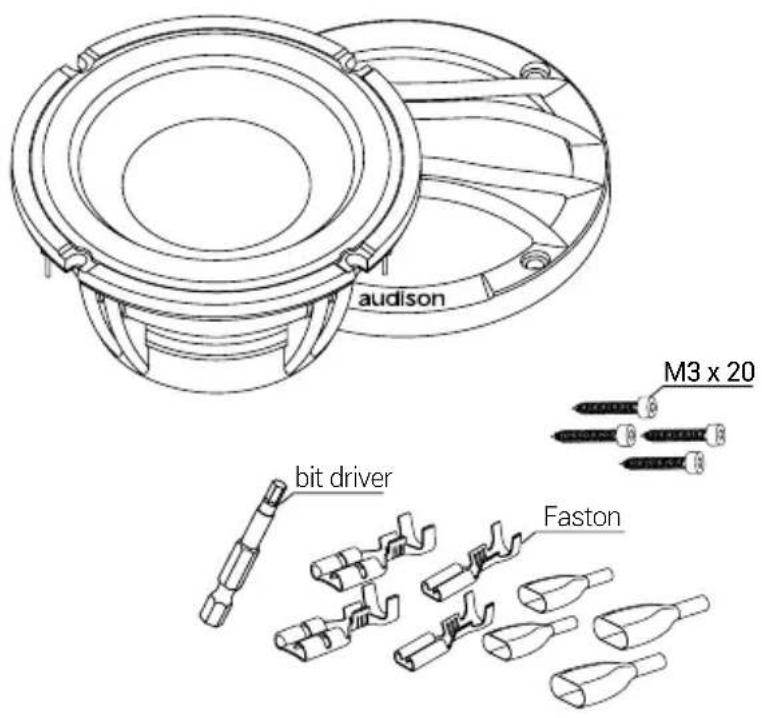

Owner's Manual

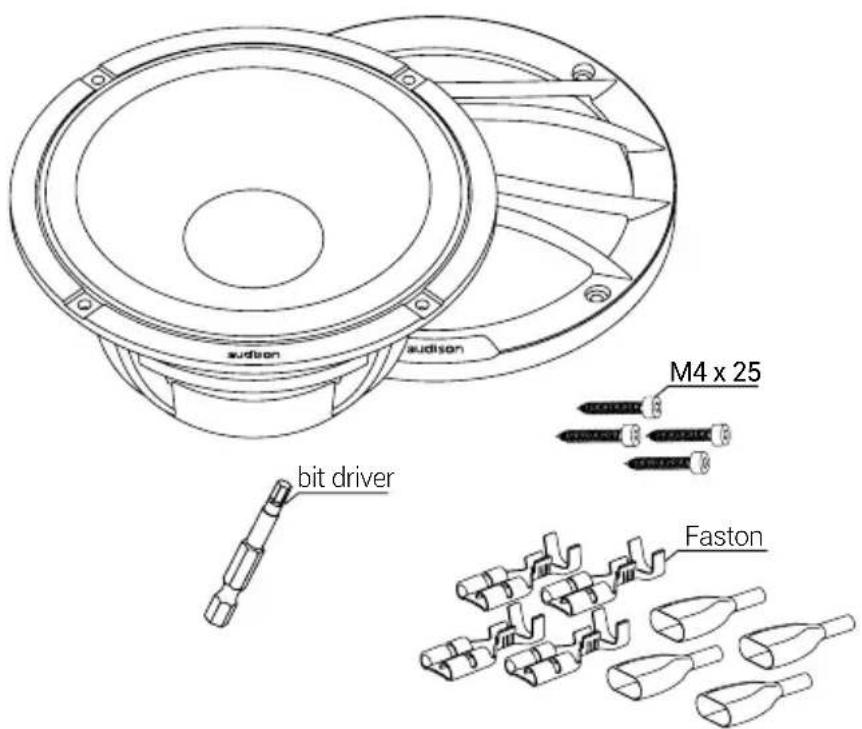

محتويات العوة / Съдържание на опаковката / 包装内容 / 内装物 / Sadržaj pakiranja / Obsah balení / Pakkens indhold / Pakket inhoud / Packaging contents / Pakendi sisu / Pakkauksen sisältö / Contenu de l'emballage / Verpackungsinhalt / Периехóμενα συσκευασίας / πρικη πρικη / A csomag tartalma / Isi kemasan / Contenuto dell'imballo / パッケージ内容 / ペァ키지 내용 / Lepakojuma saturs / Pakuotès turinys / Innhold / محتويات بسته / Zawartość opakowania / Conteúdo da embalagem / Continutul pachetului / Комплектация / Obsah balenia / Vsebina embalaže / Contenido del embalaje / Förpackningens innehåll / ส่วนประกอบผลิตภัณฑ / Paket içeriği

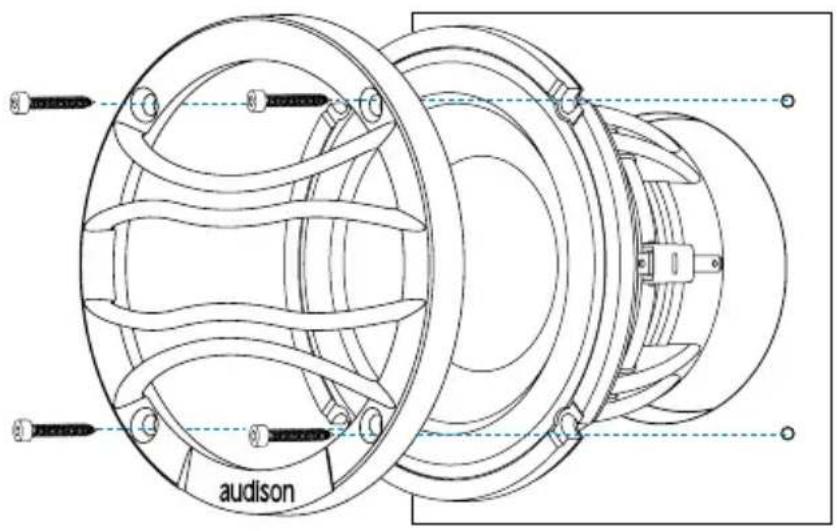

TH 6.5 II Sax

TH 6.5 II Sax

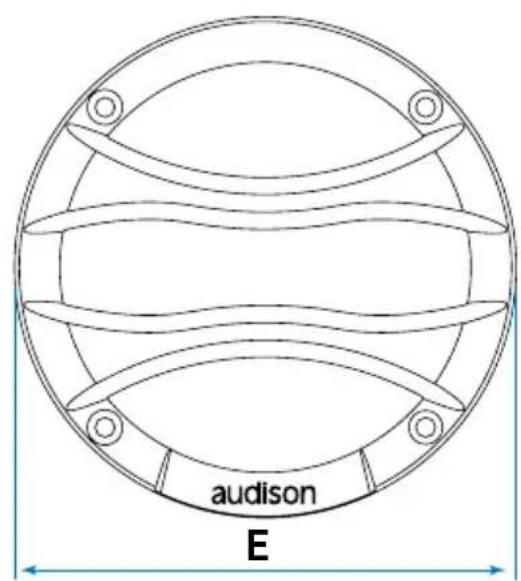

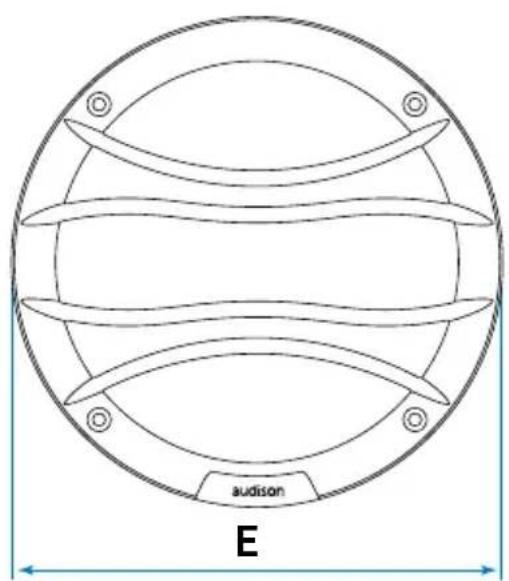

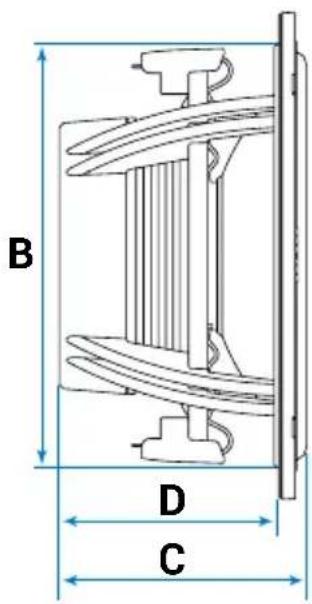

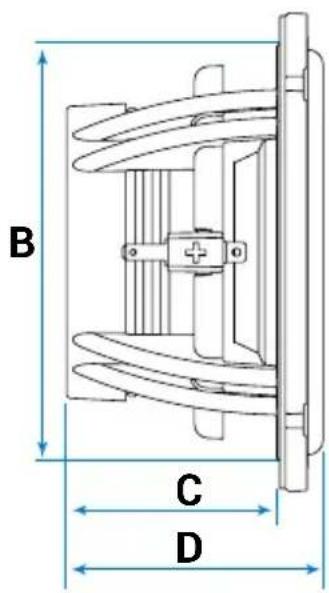

الحجم / Размер / 尺寸 / 规格 / Veličina / Velikost / Størrelse / Afmetingen / Size / Suurus / Koko / Dimensions / Größe / Διαστάσεις / انداه / Méretek / Ukuran / Ingombro / サイズ / ヨフ / Izmērs / Dydis / Størrelse / Wielkość / Dimensão / Dimensiuni / Размер / Rozmery / Velikost / Tamaño / Storlek / ขนาด / Ebat

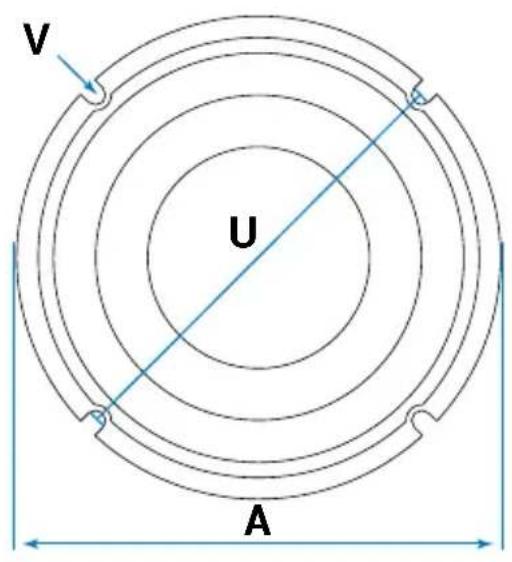

TH 6.5 II Sax

Pure mechanical component diagram showing a vertical bar with multiple curved slots and a force indicator labeled F (no text or symbols beyond the label)

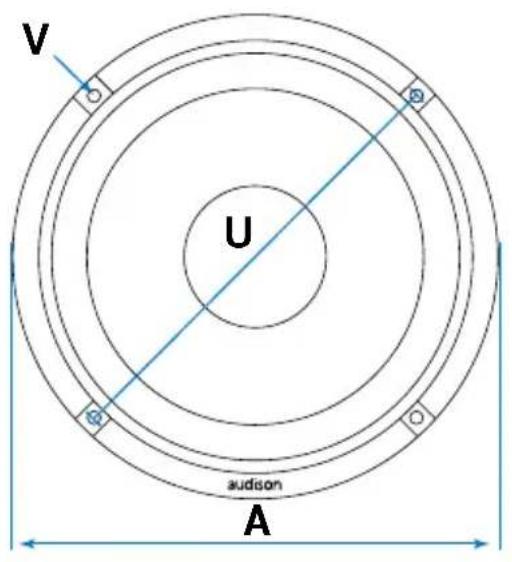

	A	B	C	D	E	F	U	V
TH 6.5 II Sax	165	143	84	74,5	170,5	30	155	4,5	mm
	6.5	5.63	3.31	2.93	6.71	1.18	6.1	0.18	in.

Owner's Manual

التشmit / Монтаж / 安装 / 安装 / Montaža / Montáz / Montering / Montage / Mounting / Paigaldamine / Kiinnitys / Montage / Montage / Тотроθέτηση / «الزام» / Beszerelés / Pemasangan / Montaggio / マウント / 마운旦 / Uzstádišana / Montavimas / Montering / تعربية / Montaz / Montagem / Montaj / Монтаж / Montáz / Namestitev / Montaje / Montering / การใส่لُيّةً Practice / Montaj

TH 6.5 II Sax

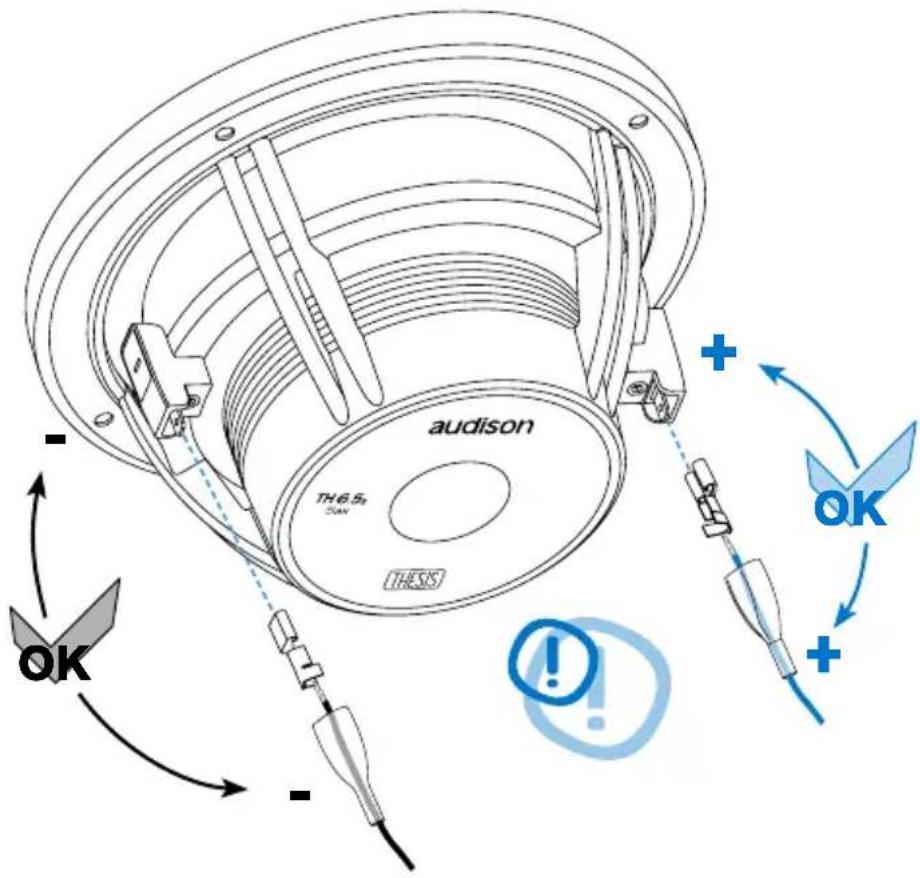

ول / الزراعية المetrache / Свързване на системата / 连接系統 / 连接系統 / Priključivanje sustava / Pripojení systému / Forbinding af systemer / Aansluiten van de systemen / Connecting the systems / Süsteemi ühendamine / Järjestelmân kytkeminen / Branchement du système / System anschließen / Σύνδεση του συστήματος / Amendszern csatlakoztatása / Menghubungkan sistem / Collegamenti dei filtri / システムの接続 / 시스템 연결 / Sistēmas pievienošana / Sistemos sujungimas / Oppkobling av systemet / هامتصل نمودن سیستم / Podłączając system / Ligar o sistema / Conexiunea sistemului / Подключение системы / Pripojenie systému / Priključevanje sistema / Conexión del sistema / Anslut systemet / ۱۱۲۵۱۶۰۰۶۰۰۶۰۰۶۰۰۶۱۱۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲۲

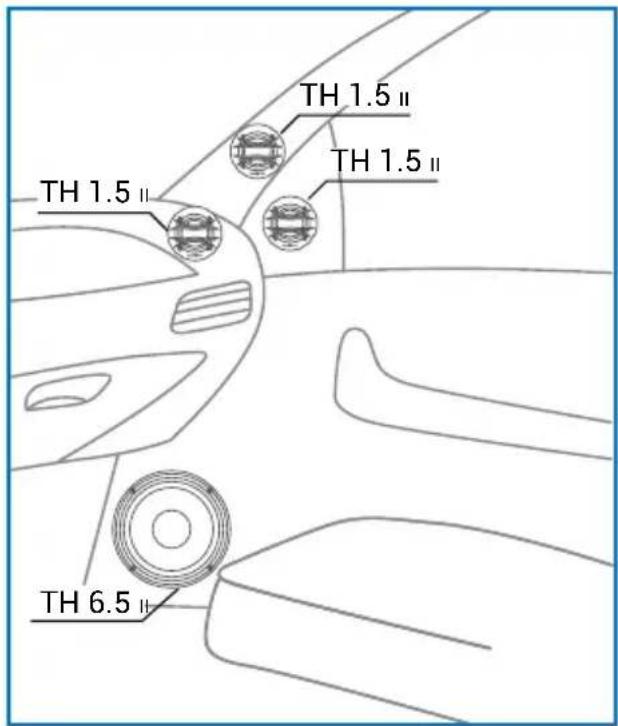

TH 1.5 II Violino / TH 6.5 II Sax - IN CAR SET-UP

SUGGESTED POSITION

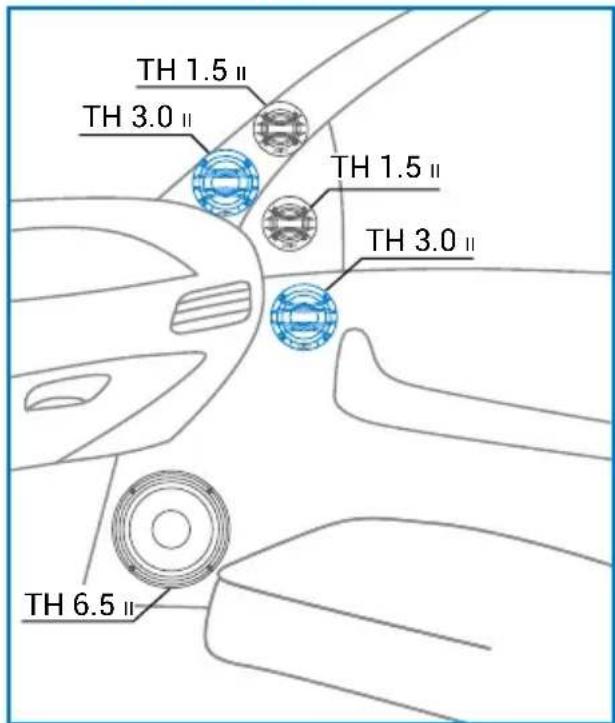

TH 1.5 II Violino / TH 3.0 II Voce / TH 6.5 II Sax - IN CAR SET-UP

SUGGESTED POSITION

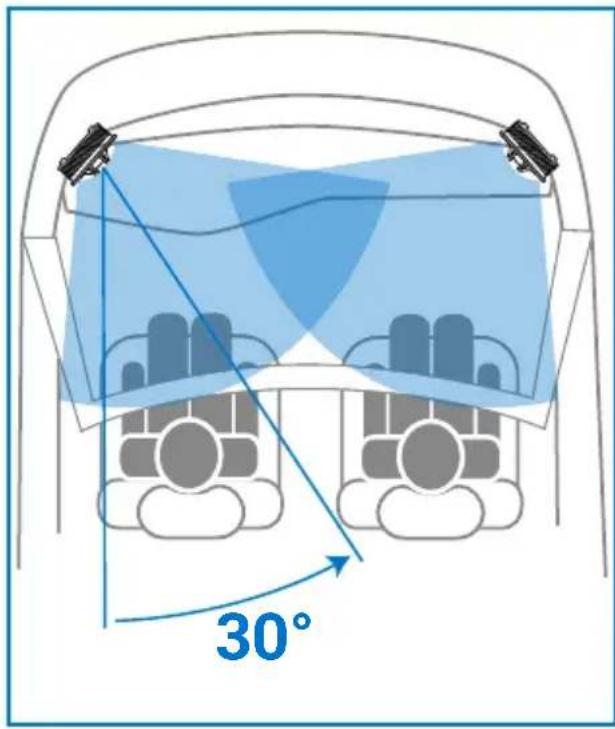

TH 1.5 II Violino - IN CAR SET-UP

SUGGESTED ANGLE

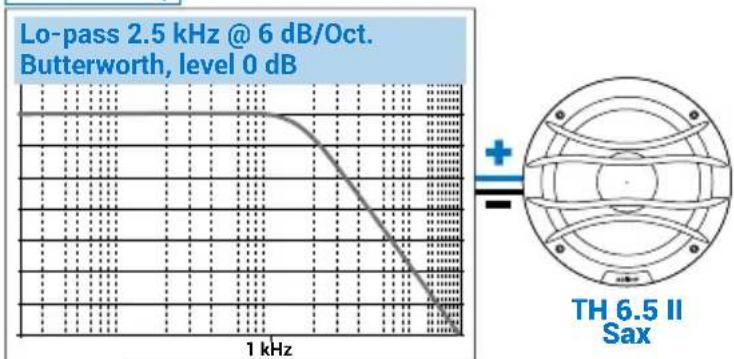

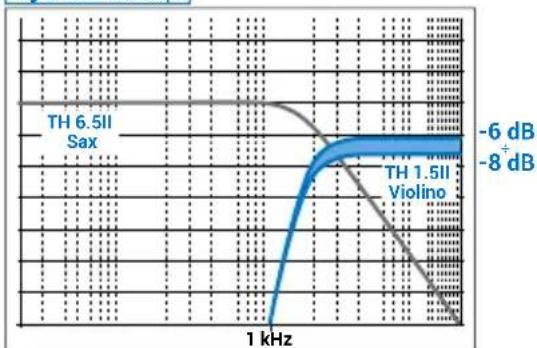

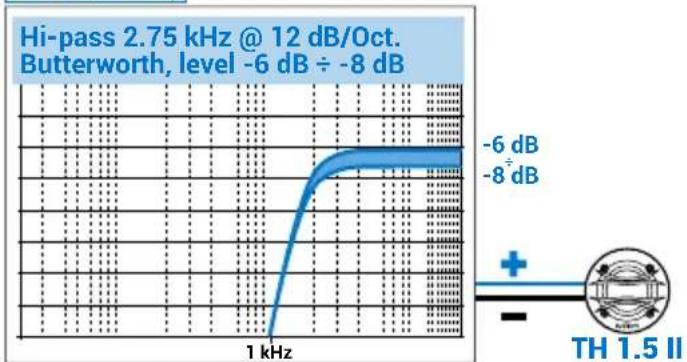

SUGGESTED ACTIVE FILTERING: Best Envelopment

TH K2 II CORO A - TH 6.5 II Sax + TH 1.5 II Violino Active

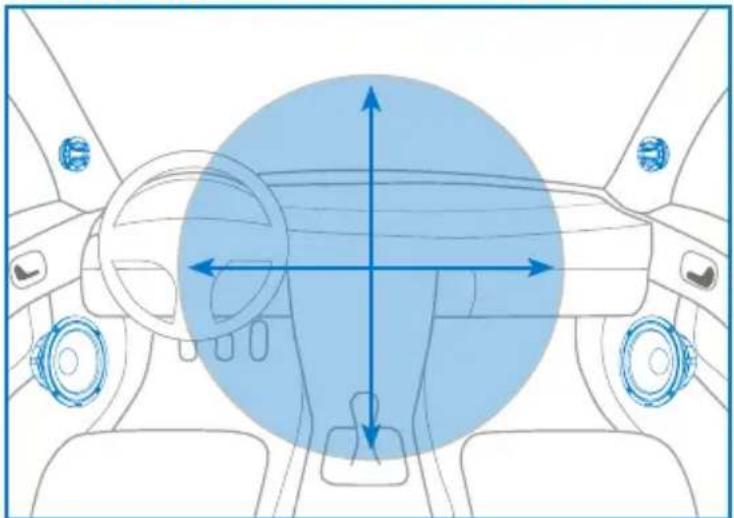

Top-down view of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Best Envelopment

This set-up provides the best sound stage envelopment for listeners who prefer vertical stage well distributed along the full cabin height.

Tweeter Setup

Woofer Setup

System Setup

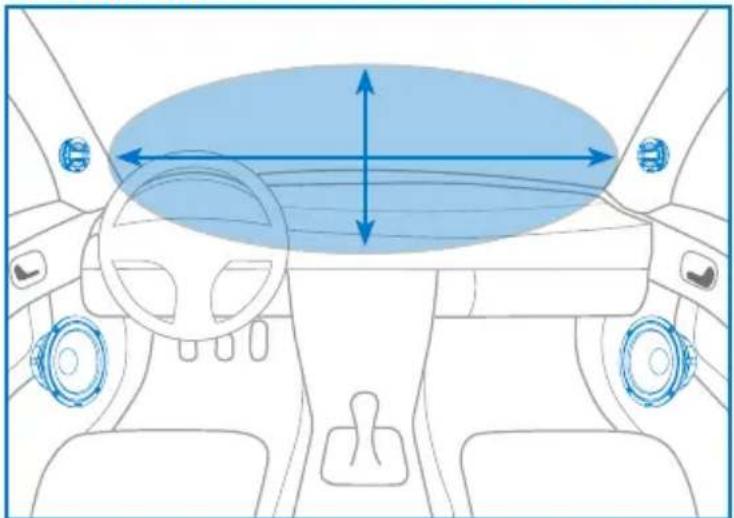

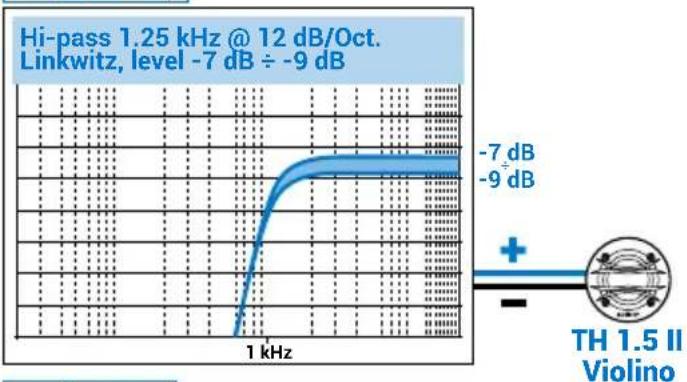

SUGGESTED ACTIVE FILTERING: Best Focus

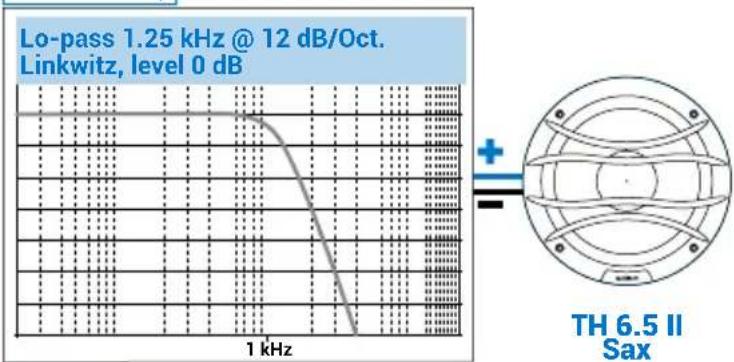

TH K2 II CORO A - TH 6.5 II Sax + TH 1.5 II Violino Active

Top-down view of a car dashboard and steering wheel (no text or symbols visible)

Best Focus

This set-up provides the best sound stage focus for listeners who prefer vertical stage well focused above of the dashboard and a wider horizontal stage.

Tweeter Setup

Woofer Setup

System Setup

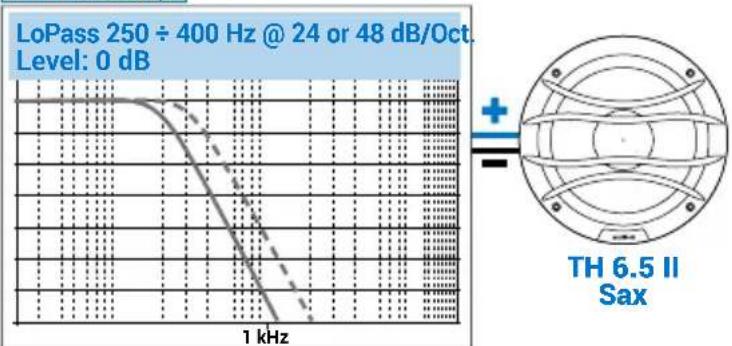

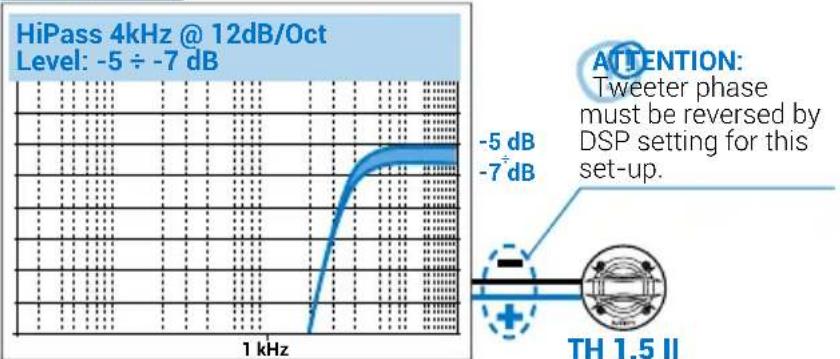

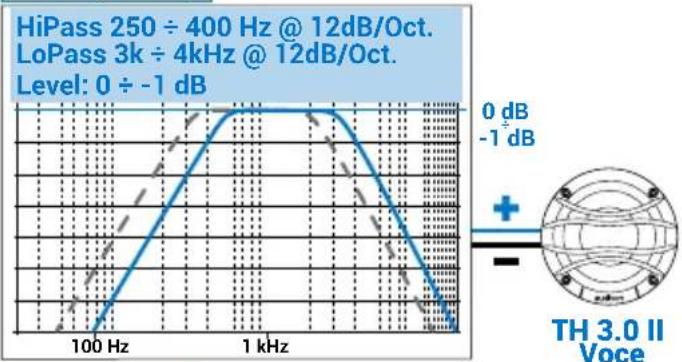

SUGGESTED ACTIVE FILTERING:

TH K3 II ORCHESTRA A: TH 6.5 II Sax + TH 3.0 II Voce + TH 1.5 II Violino

For below active filterings we strongly suggest to use FIR filter provided with Audison bit One HD and bit One HD Virtuoso.

Tweeter Setup

Midrange Setup

Woofer Setup

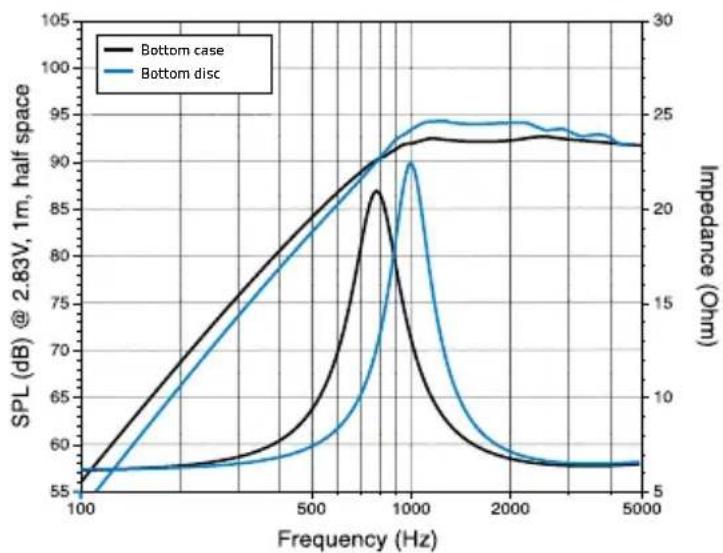

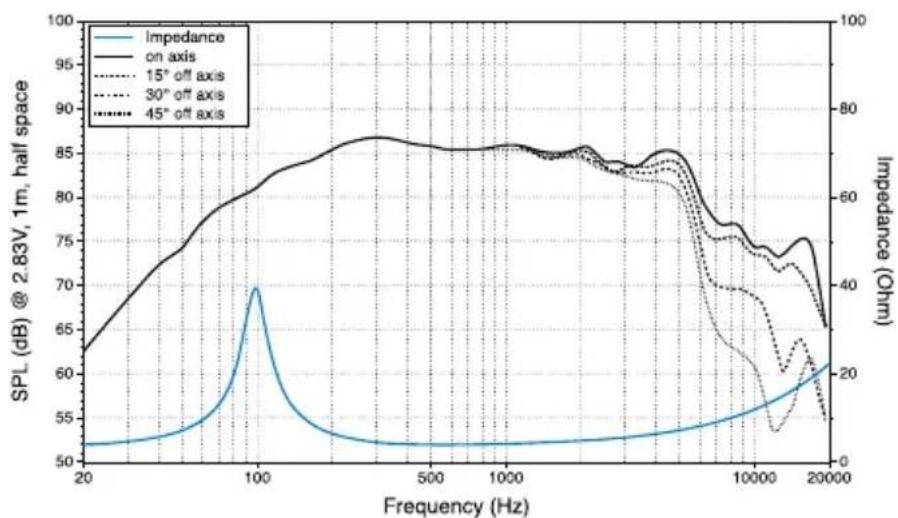

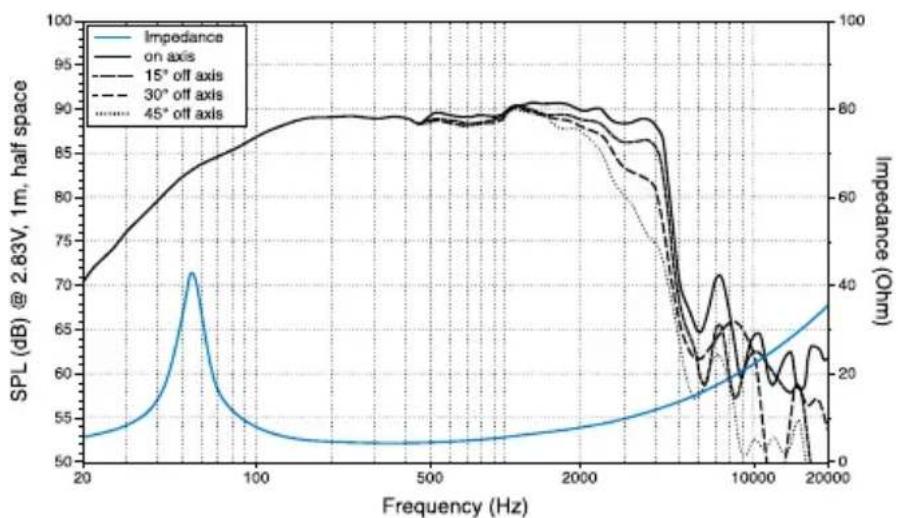

العلمات الكهرو صوتية / Електро-акустични параметри / 電聲参数 / 电声参数 / Elektro-akustički parametri / Elektroakustické parametry / Electro-Acoustic parametre / Elektro-akoestische parameters / Electro-Acoustic parameters / Elektroakustilised parameetrid / Sähköakustiset parametrit / Paramètres électro-acoustiques / Elektro-akustische Parameter / Нлектро-акоостикёς παράμπρον-اللهلاز/ Elektro-akusztikus paraméterek / Parameter elektro-akustik / Parametri elettroacustici / 電気音響パラメ-タ / 전자 어쿠스틱 파라メ터 / Elektro-akustiskie parametri / Elektriniai-akustiniai parametrai / Elektro-akustiske parametre / پارامترهاي الکتروادگوستیکی / Parametry elektro-akustyczne / Parâmetros electro-acústicos / Specificatii tehnice / Электроакустические параметры / Elektro-akustické parametre / Elektro-akustični parametri / Parámetros electroacústicos / Elektroakustiska parametrar / िल्लिंगत्त्र-ोृष्टिंग प्यरामितेव / Elektro-aküstik parametreler

	TH 1.5 II Violino		TH 3.0 II Voce	TH 6.5 II Sax
	Bottom Case	Bottom Disc
Dmm	38 38	66,75 130
Xmaxmm	-- 3,3 5,4
ReΩ	6,1 6,1	3,4 3,8
FsHz	780 980	100 55
LemH	0,025	0,025 0,18	0,43
Vasil	0,019	0,013 1,01	8,6
Mmsg	0,43	0,43	4,3 24,2
Cmsmm/N	0,09	0,062	0,59 0,35
BLT·m	3,32	3,44	4,2 8,2
Qts	0,83	0,97	0,48 0,43
Qes	1,2	1,3	0,52 0,47
Qms	2,9	3,5 5,5 5,3
SpldB/TW/1m	92,5	93	85,6	87

الموصفات الفنية / Технически спецификации / 技術規格 / 技术規格 / Tehnički podaci / Technické údaje / Tekniske specifikationer / Technische specificaties / Technical specifications / Tehnilised andmed / Tekniset tiedot / Caractéristiques techniques / Technische daten / Техviká характеристика / Műszaki adatok / Spesifikasi teknis / Specifiche tecniche / 技術仕様 / 기술 사양 / Tehniská specifikacija / Techniniai duomenys / Tekniske spesifikasjoner / مشخصات فني / Szczególy techniczne / Especificações técnicas / Parametrii electro-acustici / Технические условия / Technické informácie / Tehnične specifikacije / Especificaciones técnicas / Tekniska specifikationer / ความต้องการทางเทคนิค / Teknik veriler

	Component Size	Power handling Impedance Frequency				response
			Peak	Continuous
		mm (in.) W W Ω Hz
TH 1.5 II Violino	Tweeter	Tweeter diaphragm 38 (1.5)	200 (I-Hi-Pass filtered @ 1,8 kHz - 12 dB Oct.)		6 800÷ 26k
TH 3.0 II Voce	Midrange 70 (3) 110 55 4					110 Hz=5700 Hz
TH 6.5 II Sax	Woofer 165 (6.5) 300 150 4					40 Hz=4500 Hz

Magnet size	Voice coil ø	Magnet Cone Weight of		one component
mm (in.) mm (in.) Kg (lb.)
60 x 35 x 5 (2.36 x 1.42 x 0.2) 34 (1.34) Neodymium Tetolon				0,355 (0.78)
29 x 6 x 8 (1.14 x 0.24 x 0.31) 30,5 (1.2) Neodymium TPX				0,25 (0.55)
80 x 54 x 4,5 (3.15 x 2.13 x 0.18) 50 (2) Neodymium TPX				1,25 (2.76)
