OPERATION MANUAL

SUPERDECK SERIES GAS DECK OVENS

SERIES: Y600 & Y800

Close-up of a colorful pizza with visible toppings including lettuce, cheese, and mushrooms (no text or symbols)

Close-up of a loaf of bread with flour dusting grains, no text or symbols visible

BUILT BY CRAFTSMEN. TESTED BY TIME.

FLOOR MODEL GAS DECK OVENS

Series:

Y600 and Y800

All gas operated Bakers Pride ^® deck ovens are intended for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition).

Please retain this manual for future references.

WARNING

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

WARNING

IMPORTANT INSTRUCTIONS: After the gas supply has been connected to your unit, it is extremely important to check piping for possible leaks. To do this, use soap and water solution or solutions that are expressly made for this purpose. DO NOT USE matches, candles, flames, or other sources of ignition since these methods are extremely dangerous. Post in a prominent location instructions to be followed in the event you smell gas. Obtain these instructions from your local gas supplier.

NOTICE

Only Pizza or Bread can have direct contact with Fibrament decks. All other food products must be placed in a pan or container to avoid direct contact with ceramic decks.

CAUTION

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

NOTICE

Instructions to be followed in the event the user smells gas must be posted in a prominent location in the kitchen area. This information shall be obtained from the local gas supplier.

WARNING

California Residents Only

WARNING: This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

This equipment is design engineered for commercial use only.

TABLE OF CONTENTS

INSTALLATION INSTRUCTIONS 2		OPERATING INSTRUCTIONS	8
RECEIVING	2	LIGHTING PROCEDURE	8
CLEARANCES	2	BREAKING IN	8
ASSEMBLING THE STAND 3		BAKING	8
INSTALLATION WITH CASTERS 4		RECOMMENDED OPERATING PROCEDURE	8
PIZZA DECKS 4		HELPFUL HINTS	9
(A) THREE DECK INSTALLATION 4		CLEANING AND MAINTENANCE	9
(B) FIVE DECK INSTALLATION 4		OVEN EXTERIOR	9
GAS AND ELECTRIC CONNECTIONS 5		CONTROL PANEL	9
FLUE CONNECTION-VENTILATION 6		FLUE VENT	10
(A) UNDER VENTILATION HOOD 6		OVEN INTERIOR	10
(B) DIRECT VENTING 6		(A) BAKING CHAMBER	10
MAIN BURNER SAFETY PILOT OPERATION 6		(B) BAKING DECKS	10
(A) PILOT BURNER LIGHTING PROCEDURE 7		(C) BURNER COMPARTMENT	10
(B) PILOT BURNER FLAME ADJUSTMENTS 7		TROUBLESHOOTING CHART	11
BURNER OPERATION 7		EXPLODED VIEWS & PARTS LISTS	12
(A) MAIN BURNER	7	WIRING DIAGRAMS	16
(B) AERATION &BY-PASSFLAME ADJUSTMENT	7	WARRANTY	17
THERMOSTAT CALIBRATION	7
FLAME DIVERTERS	7

EN 437Gas Cat.

Gas and SupplyPressures

Designated European Market = ◆

A T

B E

D K

F I

F R

G R

D E

I E

I T

L U

N L

P T

E S

S E

G B

I2H

G20 @ 20mbar

◆

◆

◆

◆

◆

◆

◆

◆

◆

I2L

G25 @ 25mbar

◆

I2E

G20 @ 20mbar

◆

◆

I2E+

G20/25 @ 20/25mbar

◆

◆

For North America:
TYPE OF GAS	MANIFOLD PRESSURE
Natural	3.5" Water Column
LP	10" Water Column

Models Covered:
MODEL	BTU/HR	KW	MODEL	BTU/HR	KW
Y-600	120,000	35.15
Y-800	120,000	35.15
LP Gas models are not available for European Community Countries.

INSTALLATION INSTRUCTIONS

Receiving:

Read the notice on the outside carton regarding damage in transit. Damage discovered after opening crate(s)/carton(s) is ‘CONCEALED DAMAGE’ and the carrier must be notified immediately to send an inspector and also to furnish forms for the consignee’s claim.

When the oven arrives, it should consist of:

a) A crate or carton containing your new oven.
b) A carton containing 4 legs with mounting hardware.
c) A strapped skid containing baking decks.

Place the oven and parts as close as possible to the area of final installation before uncrating.

WARNING

In MASSACHUSETTS: All gas products must be installed by a “Massachusetts” licensed plumber or gas fitter. Ventilation hoods must be installed in accordance with NFPA-96, current edition, with interlocks as described in that standard.

WARNING

Installation must conform with local codes and/or with the latest edition of the ANS Z-223.1 National Fuel Gas Code in USA (CAN/CGA-B 149.1 or 2 Installation Code in Canada).

WARNING

This appliance must be installed by a competent person in accordance with the rules in force. In the U.K. Corgi registered installers (including the regions of British Gas) undertake to work to safe and satisfactory standards. This appliance must be installed in accordance with the current Gas Safety (Installation and Use) Regulations and the relevant Building Regulations/IEE Regulations. Detailed recommendations are contained in the British Standard Codes Of Practice BS 6172, BS 5440:Part 2 and BS 6891.

Clearances:

	Combustible Construction	Non-Combustible Construction
Minimum Clearance from: Left Side	3" (75mm) 0'
Minimum Clearance from: Right Side	1" (25mm) 2'
Minimum Clearance from: Rear 3'	(75mm) 2" (51mm)

Set Up:

The oven must be installed in a well-ventilated area.

Your oven is packed standing on its back. Leave it on its back while unpacking. The skid may be left under the oven for convenience in further handling. Unpack carefully to avoid damage to the oven. If concealed damage is found, follow the instructions detailed in Receiving Section.

Keep the area around the oven free and clear of combustible materials. Do not store any materials on top of or under any oven. The provision of an adequate air supply to your oven for ventilation and proper gas combustion is essential. As a minimum, observe the clearances detailed in Section 2. Provide adequate ventilation and make up air in accordance with local codes.

Fit the flue diverter supplied (See Fig.1) into the hole located at top near the left rear of the oven and secure with screws for installing the oven under a ventilation hood. For Direct Venting, Optional Draft Hood (Fig.2) must be placed into the hole. Direct Venting not available for European Community Countries. Local inspectors and ventilation specialists should be consulted to make sure that the installation of the hood conforms to the local codes and requirements (See Fig.3). In UK ventilation requirements as detailed in BS 5440 should be followed.

Access to the bottom front door and left side control panel is for day to day operation of the oven and for servicing. Make these areas are kept unobstructed for easy access.

Flue Diverter (For use w/ Collection Hood)

Draft Hood (For use w/Direct Venting)
Figure 1
Figure 2

INSTALLATION INSTRUCTIONS

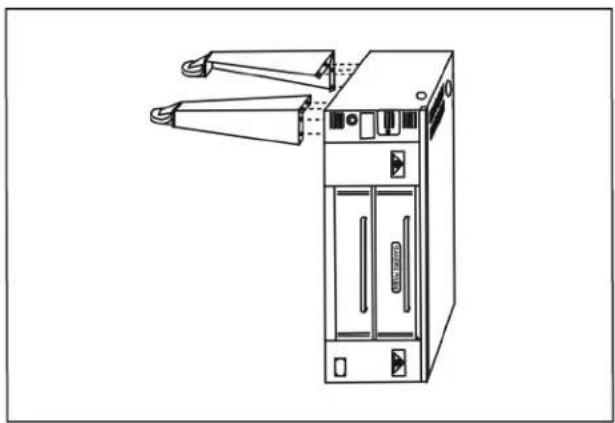

Assembling The Stand:

Legs are shipped in a separate carton complete with mounting bolts.

a) Bolt four legs to the four of the stand using the supplied 3/8-16 x 3/4 bolts, flat washers, and lock washers. (See Fig. 4).
b) Bolt side braces and rear brace to legs using supplied 3/8-16 x 3/4 bolts, lock washer, and flat washer. (See Fig. 5).

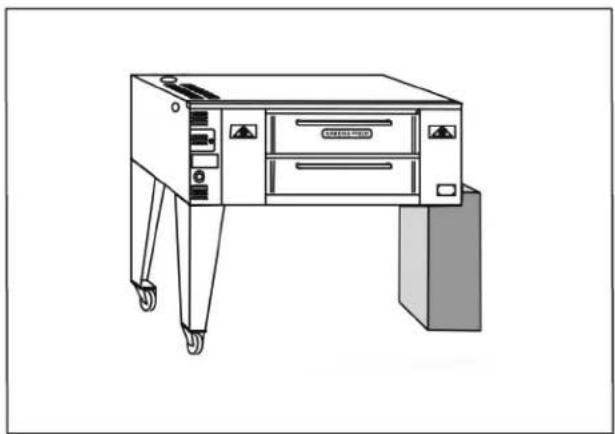

c) Using proper lifting equipment, lower the oven from its back to its bottom. Lift the unit and set on stand. (See Fig.6).
d) Move the oven to its final location keeping the minimum clearances from the back of the oven to the wall. This clearance is necessary for safe operation and to provide proper air-flow to the burner chamber.

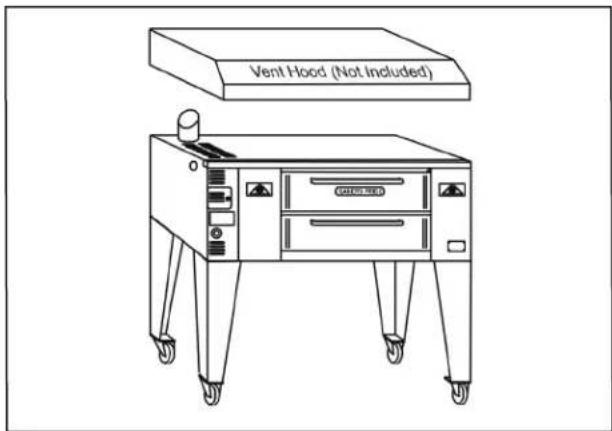

Vent Hood (Not Included)

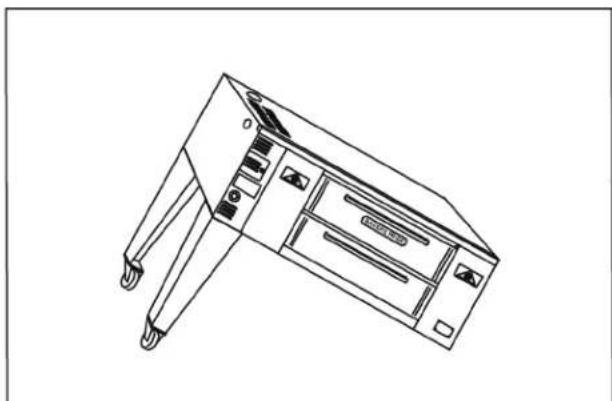

Figure 3

Line drawing of a mechanical device with two clamps and a central panel (no text or symbols)

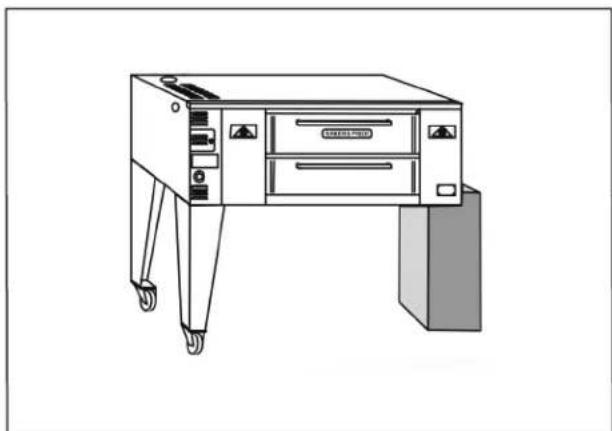

Figure 4

Line drawing of a device with connectors and a central panel (no text or symbols)

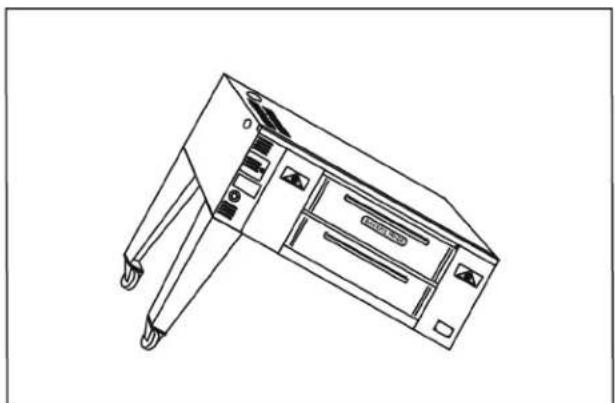

Figure 5

Line drawing of a portable electronic device with wheels and control panel (no text or symbols)

Figure 6

INSTALLATION INSTRUCTIONS

Installation With Casters (Optional):

Four Casters (two with wheel brakes) and the mounting hardware is packed and included in the shipment if ordered. Install casters with wheel brakes on the front of the unit.

NOTICE

Installation should be made with a connector that complies with the latest edition of the Standard for Connectors for Movable Gas Appliances ANSI Z21.69 in the USA (CAN CGA-6.16 in Canada) and a quick disconnect device that complies with the latest edition of the Standard for Quick Disconnect Devices for use with gas fuel ANSI Z21.41 in the USA (CAN CGA 1-6.9 in Canada) and adequate means must be provided to limit the movement of the appliance without depending on the connector and any quick disconnect device or its associated piping.

The restraint should be attached to the rear legs of the oven on which casters are mounted. If disconnection of the restraint is necessary to move the oven for servicing needs, the restraint should be reconnected after the appliance has been returned to its originally installed position.

Pizza Deck:

(a) Remove all packing material, samples, shims, etc. from the baking chamber leaving the two metal hearth liner sheets on the baking chamber floor. Make sure that the two metal hearth liner sheets cover the entire bottom of the chamber.
(b) Depending on the model, three or five slabs of the Pizza Deck are provided with the oven. This material is heavy, and fragile, and should be handled carefully.

WARNING

DO NOT install the baking stones until you have read the pre-drying instructions. Failure to pre-dry the stones can result in severe damage to your oven and void the manufacturer's warranty.

A. Three Deck Installation:

(a) Slide one deck into the baking chamber and push it as far as possible to one side.
(b) Slide the second deck into the baking chamber on the side opposite to the first deck.
(c) Slide the third deck into the center section.
(d) Use metal shims to level the decks.
(e) Use wedges in the back and on the sides of the deck if the decks are loose. The three decks should be tight against each other with no gap between them (See Fig. 7).
(f) Put the hearth trim in place between the deck and the door.

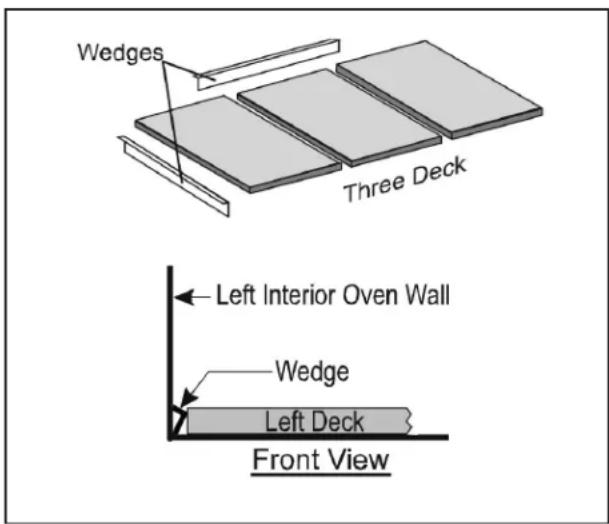

Wedges Three Deck Left Interior Oven Wall Wedge Left Deck Front View

Figure 7

B. Five Deck Installation:

(a) Slide one deck into the baking chamber and push it as far as possible to one side.
(b) Slide the second deck into the baking chamber on the side opposite to the first deck.
(c) Slide the third and the fourth decks in the same as the first two decks.
(d) Slide the fifth deck into the center section.

INSTALLATION INSTRUCTIONS

(e) To minimize warpage and extend the life of the Fibrament Stones, they must be pre-dried before use.

(1) KEEP THE OVEN DOOR CLOSED DURING THE ENTIRE PRE-DRYING PROCESS.
(2) Let the baking stones adjust to room temperature before beginning.
(3) Preheat the stones with the pilot burner on for 1 hour.
(4) Increase the temperature to below 300^ F to maintain a flame height of less than a 1/4"). Maintain this setting for 3 hours
(5) After 3 hours increase temperature to 300^ F for 1 hour, then 400^ F for 1 hour, and then 500^ F for 1 hour.
(6) DO NOT ALTER THIS PROCESS, failure to properly pre dry stones can cause warping, cracking, or shattering with explosive force.

(f) Use metal shims as needed to level the decks.
(g) Use wedges in the back and on the sides of the deck if the slabs are loose. The five decks should be tight against each other with no gap between them (See Fig. 8).
(h) Put the hearth trim in place between the deck and the door.

WEDGES DECKS

Figure 8

NOTICE

If the side wedges are pushed in too tight, the heat controls, operated by the black knobs, located on the front of the oven, will not slide freely.

Gas and Electric Connections:

Propane gas units are not available in the European Community Countries.

(a) The appliance when installed must be electrically grounded in accordance with local codes and/or the latest edition of the National Electric Code ANSI/NFPA 70 in USA (Canadian Electric Code CSAC22.2 in Canada).
(b) In Europe, appliance must be connected by an earthing cable to all other units in the complete installation and thence to an independent earth connection in compliance with EN 60335-1 and/or local codes.
(c) The ovens should not be installed on the same line with space heaters, boilers or other gas equipment with high intermittent demand.
(d) Use a pipe joint compound that is resistant to the action of liquefied petroleum gases when making gas connections.
(e) For Propane gas, use at least 1/2" (13 mm) pipe or tubing with a 5/8" (16 mm) inside diameter. For Natural gas, use 3/4" (19 mm) pipe.
(f) The appliance must be isolated from the gas supply piping system by closing its manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45kpa).
(g) The appliance and its shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system attest pressures in excess of 1/2" psig (3.45kpa).

INSTALLATION INSTRUCTIONS

(h) The gas pressure regulator is part of the combination valve and is adjusted to yield a pressure of 3.5" water column (9mbar) for Natural Gas. If the oven is ordered for use on Propane Gas, the pressure regulator in the combination valve is preset at the factory to yield a pressure of 10" water column (25 mbar). Units for use on Propane Gas are not available for European Community Countries.
(i) A separate shut-off valve for each oven must be provided. It should be as close as possible to the place where the gas supply line goes into the oven. It must be located such that it is easily accessible.
(j) When stacking with another oven, two shut-off valves, one for each of the two ovens, must be provided.

WARNING

After the Gas Supply has been connected, it is extremely important to check all the piping for leaks. Use a soap and water solution or a product expressly made for this purpose. Do not use Matches, Candles or a flame etc to check leaks since these methods are extremely dangerous.

Flue Connection - Ventilation:

(A) Installation Under Ventilation Hood (Standard):

If the oven is installed under a collection hood, use the flue diverter (Fig. 1) supplied. Local inspectors and ventilation and environmental specialists should be consulted so that the design and the installation of the hood conforms to the local/ municipal codes (see Fig. 3).

(B) Direct Venting (Optional) Not Available For European Community Countries:

If direct venting, it is necessary to install a draft hood (Fig. 2). The flue pipe from the draft hood must not run downwards at any point from the oven to the final outlet. It should always slant slightly upwards. For best results it should rise straight up.

NOTICE

Do not put a damper in the flue and do not connect a blower directly to the flue.

If the flue runs directly to the free air outside the building, use a wind deflector or a UL listed vent cap at the end of the flue pipe. Termination of the vent must be at least 2 feet above the highest part of the roof within 10 feet (Ref: American Gas Association Catalog No.Xh0474).

Flue Diverter (For use w/ Collection Hood)

Draft Hood (For use w/Direct Venting)
Figure 2

Figure 1

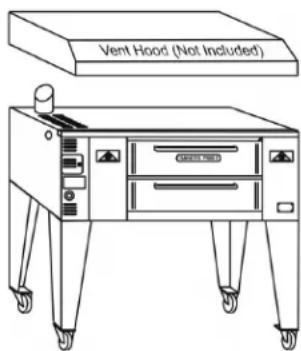

Vent Hood (Not Included)

Figure 3

Main Burner Safety Pilot Operation:

The purpose of the safety pilot system is to lock the gas supply to the main burner at the safety valve, if for any reason the pilot burner is not lit. Oven should be re-lighted by following the steps given below. However, in normal service, the pilot flame stays lit indefinitely, day and night or weekends. This prolongs the life of the safety valve.

The safety pilot valve is in effect a two-stage control. After initial lighting, the pilot burner stays on without the gas cock dial being held pressed in. After 1-2 minutes, the valve opens fully to let the gas flow past the safety pilot valve into the burner system.

INSTALLATION INSTRUCTIONS

Pilot Burner Lighting Procedure:

(a) Turn the red handle on gas shut off valve to 'OFF' (horizontal) position.
(b) Wait for five minutes to allow gas, which may have accumulated in the burner compartment, to escape.
(c) Depress "RED" button on pilot safety valve and light Pilot Burner. Hold in pressed position for about 1/2 minute (30 seconds), and release the "RED" button. The Pilot Burner should now remain lit.

If Pilot Burner fails to ignite or does not remain lit, repeat the steps (a) through (c).

Pilot Burner Flame Adjustment:

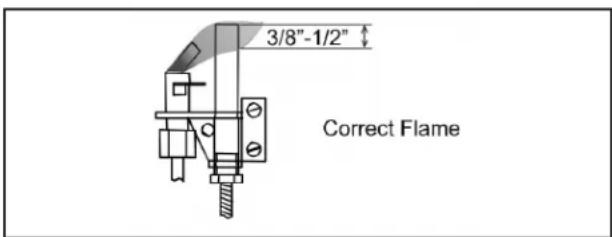

It is important to have the correct Pilot Burner Flame size as shown in Fig. 10. If necessary, adjust the Pilot Burner Flame by turning Pilot Adjust Screw (See Fig. 11) clockwise to reduce or counterclockwise to increase.

3/8"-1/2" Correct Flame

Figure 10

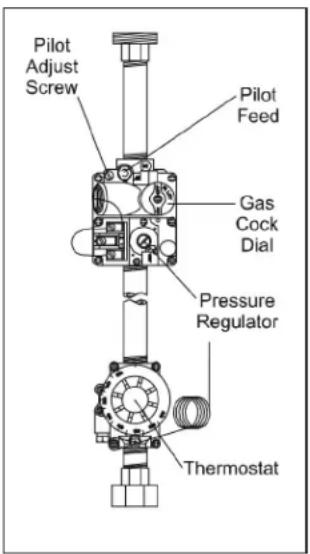

Pilot Adjust Screw Pilot Feed Gas Cock Dial Pressure Regulator Thermostat

Figure 11

Burner Operation:

(A) Main Burner:

After the pilot burner is ignited, when heat is desired, turn gas cock dial to 'ON'() position and set the thermostat dial to the desired temperature. The oven burner flame should always have a blue appearance. That indicates a good mixture of gas and air. When using LP gas, the flame will have a blueyellow appearance.

Should the Burner fail to light, check to see if there is a problem with the gas supply. If there are other appliances on the same line, shut them off temporarily and see if the burner comes back on, or it fluctuates as other gas appliances are turned on and off. That would indicate overloading of the gas supply lines or a faulty gas pressure regulator. Contact an authorized Service Agency or your local Gas Supply Company.

(B) Aeration And By-Pass Flame Adjustment:

Flame and air mixer adjustments and the By-Pass Flame adjustment for the Main Burner are done at the factory. These adjustments are sealed before the oven leaves the factory. Contact an authorized Service Agency if you need help.

Thermostat Calibration:

No attempt should be made to calibrate the thermostat because it is accurately calibrated and sealed by the manufacturer. Contact an authorized Service Agency if you need help.

Flame Diverters:

Flame diverters distribute the heat evenly below the baking deck. They must be in good condition and properly placed above the burners in the burner chamber in order to be effective. Damaged or improperly installed flame diverters adversely affect the oven performance. Make sure that the 'V' shaped diverters are pushed all the way to the back of the oven as far as they will go. Check them periodically and replace them as necessary.

OPERATING INSTRUCTIONS

NOTICE

Only Pizza and Bread Products can have direct contact with Fibrament Decks. All other food products must be placed in a pan or containers to avoid direct contact with Fibrament Decks.

WARNING

If gas odor is detected at any time, immediately shut-off the gas supply valve for the oven. Do not permit any open flames in the area of the oven. Immediately contact an authorized Service Agency or your local Gas Supply Company.

CAUTION

Initial heating of the oven must be done in a well ventilated area as it may generate smoke or fumes. Over exposure to smoke or fumes may cause nausea or dizziness.

Lighting Procedure:

(a) Light the Main Burner following the instructions in Lighting Section of the Installation Instructions.
(b) Keep the Push/Pull Slides fully open.

Breaking In:

It is important to break-in, to dry out the deck and the insulation, before baking in a new oven:

(a) Set the thermostat at least 50^ F ( 10^ C) lower than your baking temperature.
(b) Pre-heat the oven for 1 to 3 hours before use.
(c) After pre-heating, raise the temperature to your baking temperature.
(d) Experiment baking until you get the feel of the oven and the speed of the bake.

Baking:

Pizza can be baked on the deck, on a screen or in a pan. When you determine the combination of ingredients and temperature that gives the right bake for your crust, sauce, and cheese combination, and your customer's taste, mark and keep it.

Deck baking refers to baking Pizza directly on the deck. Generally it is a thin product that requires temperature of at least 550^ F ( 290^ C).

Screen baking refers to baking Pizza on a screen. The screen lifts the Pizza off the deck. The screen may be removed near the end of the bake time to give the bottom of the Pizza crispier crust and a darker color. Bake temperatures range from 500°F (260°C) to 550°F (290°C).

Pan baking refers to baking Pizza in pans. Crusts can be thick or thin and toppings range from light to heavy. Baking temperatures for pan baking range from 450°F (235°C) to 500°F (260°C).

Recommended Operating Procedure:

It is very important that at the end of day's operation, the gas cock dial of the Main Burner is turned to the pilot position, leaving only the pilot burner 'ON' overnight. Keep the Pizza Push/Pull slides fully open.

Pre-heating:

(a) Turn the gas cock dial of the main burner to the 'ON' position.
(b) Preheat the oven for 1 to 3 hours at 50^ F ( 10^ C) lower than your baking temperature, with Push/Pull Slides fully open.

Baking:

(a) After pre-heating, raise the thermostat setting to your baking temperature.
(b) Check the bottom color of the Pie and close the push/pull slides partially (halfway) after the 4th or 5th bake to maintain the desired color.

When slow or idling, open the push/pull slides fully and set the thermostat at least 50^ F ( 10^ C) lower than your baking temperature.

©

CLEANING AND MAINTENANCE

Flue Vent:

Ventilation system must be inspected every six months and maintained clean and free of obstructions.

Oven Interior:

Clean the oven interior only when the oven is cold. Use only the detergent solutions and cleaners that meet the national and / or local codes.

(A) Baking Chamber:

Clean the ceiling and the walls of the baking chamber with a mild soap and water solution. Do not use oven cleaners, caustic solutions or mechanical means as they will damage the interior aluminized surface.

(B) Baking Decks:

The baking decks are heavy and fragile. They should be handled carefully. The baking decks should be cleaned by using a long-handled scraper and stiff wire brush. At the end of each day, turn the thermostat up to its maximum setting and let the oven sit at that temperature for at least 1/2 hour. This will burn off the food spilled onto the baking decks during day's production and turn it into ash. This ash can be brushed off the next day before turning the oven on. The baking decks should be scraped and brushed during the day also to help keep them clean. To remove excessive crumbs or carbon, the baking decks and the oven cavity may vacuumed when the oven is cold. Do not use water or other liquids on the baking decks as that may cause them to crack. After long use, heavily soiled baking decks may be cleaned by turning over after scraping down and brushing off. This will burn off the heavily soiled side of the baking decks. This procedure may be repeated as needed.

(C) Burner Compartment:

Vacuum out any carbon, crumbs or residue in the burner compartment and all around the doors. The holes and louvers on the outer surfaces of the oven must be kept free of obstructions to allow free movement of air into the controls and for proper combustion. The burner ports and crossover holes should be kept free of carbon and other deposits.

CLEANING AND MAINTENANCE

Troubleshooting Chart

PROBLEM PROBABLE CAUSE REMEDY
No Pilot Light Gas valve feeding oven	may be in the closed position	Turn gas valve on. Relight pilot.
Main Burner(s) do not light Gas valve	feeding oven may be in the closed position	Turn gas valve on. Relight pilot.
	Thermopile may not be positioned in pilot flame. Ensure that the tip of thermopile is in pilot flame.
	Thermopile may be defective Call local authorized Bakers Pride Service Agent.
Oven too Hot Thermostat set too high.	Lower the thermostat setting and see if flame	reduces in size. Allow several hours for heat to regulate.
	Thermostat may be defective Call local authorized Bakers Pride Service Agent.
Bottom of pies are undercooked If the same area of the deck is used repeatedly, the deck temperature in that area will be reduced.		Rotate pies to unused areas of the bake deck that are hotter and will cook the bottoms faster.
		Micro slides are open too much. Close micro-slides (pull out) until desired combination is reached. This will help decrease top heat
Bottom of pies burn before toppings are cooked	Deck temperature too hot - especially during slow periods.	Reduce thermostat setting by 50° - 75° below normal bake temperature. When decks cool begin cooking and immediately increase the thermostat setting by 50° - 75°.
	Micro slides are closed too much Open micro slides (push-in) to increase top heat.
	Oven was left “ON” overnight Oven must be turned to “Pilot” position overnight. It should not be left on a high temperature setting.
	Exhaust fan too powerful. Reduce fan speed.
Pies cook Unevenly	Area's adjacent to oven walls are generally hotter.	Rotate pies (180°), once during each bake or keep to the center of oven.
Oven does not turn On or Off on time. (Ovens equipped w/auto oven starter only)	Power cord not plugged in.	Plug unit in.
	Electrical outlet fuse/circuit breaker is tripped.	Replace fuse or reset circuit breaker.
	Timer incorrectly set.	Reset Timer.
Unit takes too long to reach temp.	Gas volume or gas pressure may be inadequate.	Contact gas supplier.
		Call local authorized Bakers Pride Service Agent.

EXPLODED VIEWS & PARTS LISTS

Exploded View - Y600/Y800

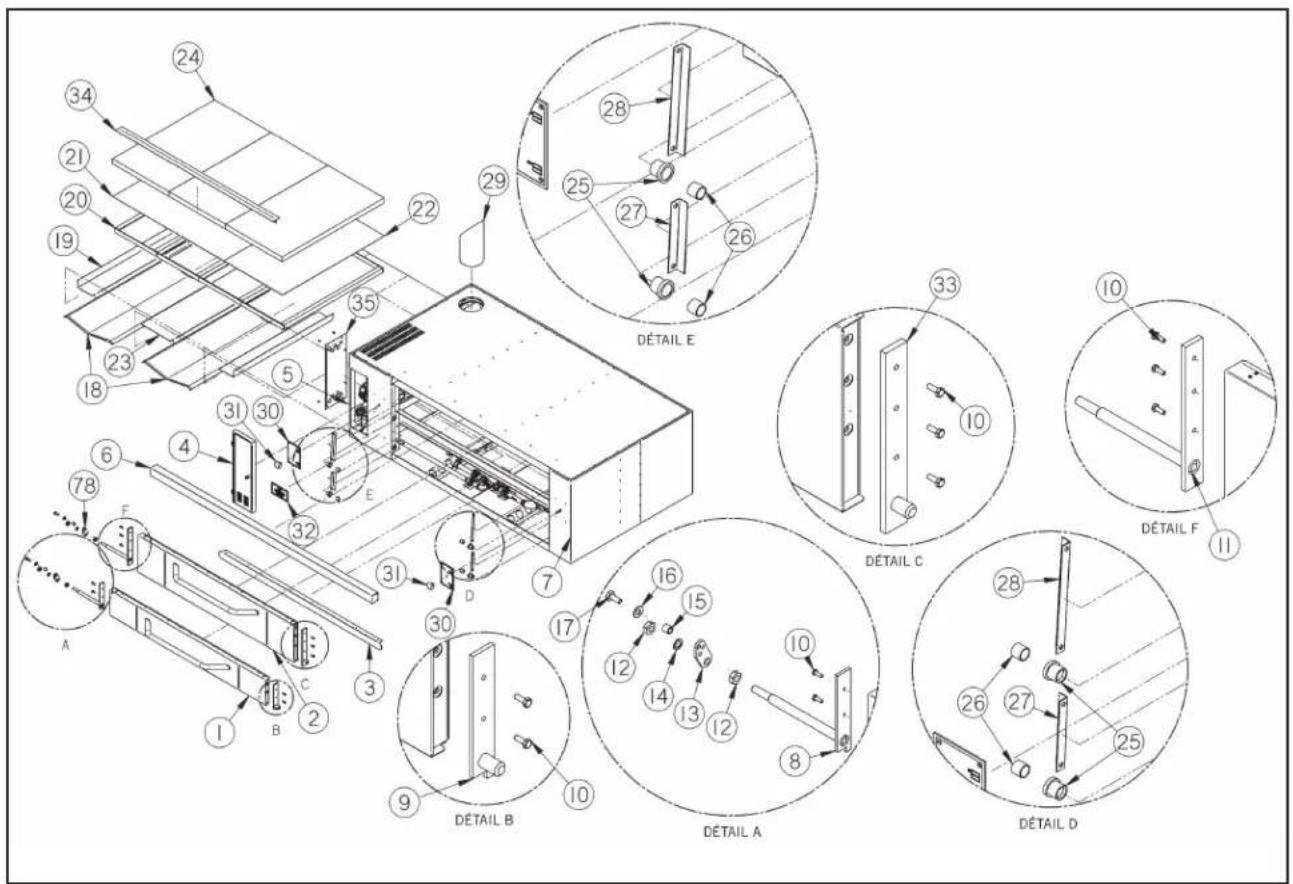

Technical diagram of a mechanical assembly with labeled parts and detailed detail views for different parts A, B, C, D.

EXPLODED VIEWS & PARTS LISTS

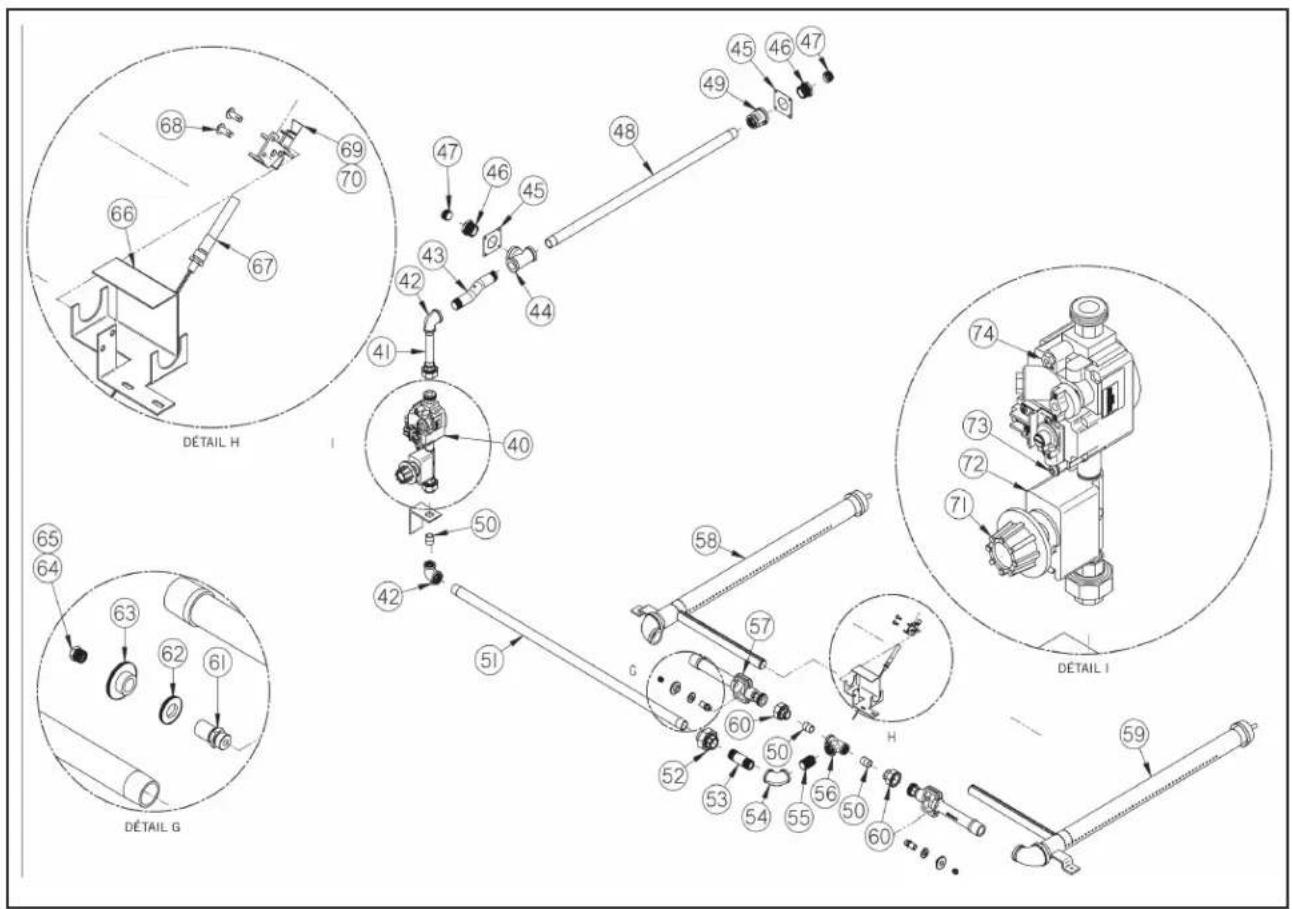

Exploded View - Y600/Y800 Controls/Burners

DETAIL H DETAIL G

EXPLODED VIEWS & PARTS LISTS

Parts List - Y600

ITEM PART # QTY DESCRIPTION
1 21910330 1 ASSY, BOTTOM DOOR Y600/800
2 21910331 1 ASSY, TOP DOOR Y600/800
3 A8057K 1 BOTTOM TRIM
4 A4980T 1 CONTROL PANEL SLEEVE, SS
5 21910188 1 PANEL, FRONT CONTROL SIDE
6 A8056K 1 TOP TRIM
7 21910189 1 PANEL, FRONT RT SIDE
8 21910332 1 WELDMENT, LOWER DOOR ARM LT
9 21910316 1 WELDMENT, LOWER DOOR ARM RT
10 C2025A 10 BOLT, 1/4-20 X 3/4 HEX HD ZINC
11 21910310 1 WELDMENT, TOP DOOR ARM LEFT
12 C2401A 2 NUT, HEX 9/16-18
13 S3276A 1 DOOR SPRING ARM, 2.78" BOTTOM
14 C3007A 1 WASHER, 9/16 SPLIT LOCK
15 S3007A 2 BUSHING ASSY, PTFE 5/.63 X .56
16 C3010A 4 WASHER, 3/8-7/16 X 1" X 5/64 FLAT
17 C2301A 1 BOLT 3/8-16 X 9/32 X 1 SHOULDER
18 A3079K 2 FLAME DIVERTER SLIDE (35")
19 A8035K 2 HANGER, FLAME DIVIDER
20 A8030T 4 FRAME ASM, HEARTH SUPPORT
21 A4132Z 1 HEARTH LINER SHEET, 36 X 39.25
22 A4133Z 1 HEARTH LINER SHEET, 36 X 20.75
23 A8036K 1 HANGER, FLAME DIVIDER CENTER
24 T1381A 3 STONE HEARTH, AWMCO 36" X 20" X 2"
25 S3134A 5 BUSHING, .81/.88 ID X 1 X 1.25 OD
26 S3133A 5 SLEEVE, DURALON .75 ID X .88 OD
27 A8017K 2 ANGLE DOOR JAM BOTTOM
28 A8016K 2 ANGLE DOOR JAM
29 R3115A 1 FLUE DEFLECTER
30 U1356A 2 PUSH-PULL PLATE
31 S1005A 2 KNOB, PUSH-PULL 3/8-16 BLK
32 8808902 1 NAMEPLATE BAKERS PRIDE, DECK OVENS
33 21910312 1 WELDMENT, TOP DOOR ARM RIGHT
34 A8061K 1 COVER, HEARTH TRIM
35 A8082K 1 COVER FRONT LEFT ACCESS DOOR
36 S1004Y* 1 LEG, 30" [SET OF 4]
37 S120Y* 1 LEG &CASTER 30" [SET OF 4]
38 S1003Y* 1 LEG, 16" [SET OF 4]
39 S1119Y* 1 LEG &CASTER 16" [SET OF 4]
40 M1242P 1 CONTROL ASSY, Y600
41 N5014A 1 NIPPLE, 1/2" X 5", BLK PIPE
42 N3021A 2 REDUCING ELBOW, 3/4" X 1/2" 90° BLKSTL

ITEM PART # QTY DESCRIPTION

43 N5232A 1 NIPPLE, 3/4" X 6-3/4" BLK PIPE, 3/4 OFFSET

44 N3002A 1 TEE, 3/4" X 3/4" X 1", BLK PIPE REDUCING

45 K1332B 2 BACK COVER PATCH, SS

46 N3008A 2 BUSHING, 1" X 3/4" REDUCING, BLK PIPE

47 N3022A 2 PLUG 3/4" STEEL PIPE, W/1/2" SQ REECESS

48 N5217P 1 NIPPLE, 3/4" X 27-3/4", BLK PIPE

49 N3007A 1 COUPLIING, 1"X3/4" REDUCING, BLK PIPE

50 N5009A 6 NIPPLE, 1/2" X 15/16", BLK PIPE

51 N 5231P 1 NIPPLE, 3/4" X 34-1/4", BLK PIPE

52 O0235 2 3/4" BLK STL UNION

53 N5218A 1 NIPPLE, 3/4" X 3" BLK STL

54 N3004A 1 ELBOW, 3/4" 90° BLK STL

55 N5213A 1 NIPPLE, 3/4" X 1-1/2" BLK STL

56 N3012A 1 REDUCING TEE, 1/2" X 1/2" X 3/4" BLK STL

57 L5001A 2 INSPIRATOR, #3 BLK

58 L5121T 1 BURNER ASSY, LH

59 L5122T 1 BURNER ASSY, RH

60 N3009A 4 1/2" BLK STL UNION

61 R3004A 2 SPUD HOLDER #3

62 R3006A 2 LOCKING DISK, SPUD

63 R3005A 2 ADJUSTING DISK #3 SPUD

64 R3117P 2 ORIFICE, #25 NAT, #3 SPUD

65 R3129P* 2 ORIFICE, #4 LP, #3 SPUD

66 A4 143K 1 PILOT MOUNTING BRACKET

67 M1265A 1 THERMOPILE, Q313

68 Q 401A 2 SCREW, 10-32 X 1/2" PAN HD

69 M1220A 1 PI LOT BURNER NAT

70 M1245A *1 P LOT BURNER LP

71 S1056A 1 KNOB, THERMOSTAT, 650 "F", GAS BLACK

72 M1005A 1 THERMOSTAT, 650°F, FDTH

73 N3068P 1 PRESSURE TAP ASSY

74 M1242P 1 CONTROL ASSY BMVR NAT

75 M1248P* 1 CONTROL ASSY BMVR LP

76 A8006K* 1 BRICK LINED SUPPORT BRACE

77 T1375A* 7 BAKING DECK, CERAMIC

78 S3275A 1 DOOR SPRING ARM, 2.78"

* INDICATES NOT SHOWN

CLEANING AND MAINTENANCE

Parts List - Y800

ITEM PART # QTY DESCRIPTION

1 21910330 1 ASSY, BOTTOM DOOR Y600/800

2 21910331 1 ASSY, TOP DOOR Y600/800

3 A8057K 1 BOTTOM TRIM

4 A4980T 1 CONTROL PANEL SLEEVE, SS

5 21910288 1 PANEL, FRONT CONTROL SIDE

6 A8056K 1 TOP TRIM

7 21910289 1 PANEL, FRONT RT SIDE

8 21910332 1 WELDMENT, LOWER DOOR ARM LT

9 21910316 1 WELDMENT, LOWER DOOR ARM RT

10 Q2025A 10 BOLT, 1/4-20 X 3/4 HEX HD ZINC

11 21910310 1 WELDMENT, TOP DOOR ARM LEFT

12 Q2401A 2 NUT, HEX 9/16-18

13 S3276A 1 DOOR SPRING ARM, 2.78" BOTTOM

14 Q3007A 1 WASHER, 9/16 SPLIT LOCK

15 S3007A 2 BUSHING ASSY, PTFE .5/.63 X .56

16 Q3010A 4 WASHER, 3/8-7/16 X 1" X 5/64 FLAT

17 Q2301A 1 BOLT, 3/8-16 X 9/32 X 1 SHOULDER

18 A3079K 2 FLAME DIVERTER SLIDE (35")

19 A8035K 2 HANGER, FLAME DIVIDER

20 A8030T 4 FRAME ASM, HEARTH SUPPORT

21 A4132Z 1 HEARTH LINER SHEET, 36 X 39.25

22 A4133Z 1 HEARTH LINER SHEET, 36 X 20.75

23 A8036K 1 HANGER, FLAME DIVIDER CENTER

24 T1381A 3 STONE HEARTH, AWMCO 36" X 20" X 2"

25 S3134A 5 BUSHING, .8/.88 ID X 1 X 1.25 OD

26 S3133A 5 SLEEVE, DURALON .75 ID X .88 OD

27 A8017K 2 ANGLE, DOOR JAM BOTTOM

28 A8016K 2 ANGLE, DOOR JAM

29 R3115A 1 FLUE DEFLECTER

30 UL356A 2 PUSH-PULL PLATE

31 S1005A 2 KNOB PUSH-PULL 3/8-16 BLK

32 8808902 1 NAMEPLATE, BAKERS PRIDE, DECK OVENS

33 21910312 1 WELDMENT, TOP DOOR ARM RIGHT

34 A8061K 1 COVER, HEARTH TRIM

35 A8082K 1 COVER FRONT LEFT ACCESS DOOR

36 S1004Y* 1 LEG, 30" [SET OF 4]

37 S1120Y* 1 LEG & CASTER 30" [SET OF 4]

38 S1003Y* 1 LEG, 16" [SET OF 4]

39 S1119Y* 1 LEG & CASTER 16" [SET OF 4]

40 M1242P 1 CONTROL ASSY, Y600

41 N5014A 1 NIPPLE, 1/2" X 5", BLK PIPE

42 N3021A 2 REDUCING ELBOW, 3/4" X 1/2" 90° BLKSTL

ITEM	PART # QTY		DESCRIPTION
43	N5232A 1	NIPPLE, 3/4" X 6-3/4" BLK PIPE, 3/4 OFFSET
44	N3002A 1	TEE 3/4" X 3/4" X 1", BLK PIPE REDUCING
45	K1332B 2	BACK COVER PATCH, SS [
46	N3008A 2	BUSHING, 1" X 3/4" REDUCING, BLK PIPE
47	N3022A 2	PLUG, 3/4" STEEL PIPE, W/1/2" SQ REECESS
48	N5252A 1	NIPPLE, 3/4" X 36", BLK PIPE
49	N3007A 1	COUPLIING, 1/X3/4" REDUCING, BLK PIPE
50	N5009A 6	NIPPLE, 1/2" X 15/16", BLK PIPE
51	N5220P 1	NIPPLE, 3/4" X 37-1/4", BLK PIPE
52	300235 2	3/4" BLK STL UNION
53	N5218A 1	NIPPLE, 3/4" X 3" BLK STL
54	N3004A 1	ELBOW, 3/4" 90° BLK STL
55	N5213A 1	NIPPLE, 3/4" X 1-1/2" BLK STL
56	N3012A 1	REDUCING TEE, 1/2" X 1/2" X 3/4" BLK STL
57	L5001A 2	INSPIRATOR, #3 BLK
58	L5124T 1	BURNER ASSY, LH
59	L5125T 1	BURNER ASSY, RH
60	N3009A 4	1/2" BLK STL UNION
61	R3004A 2	SPUD HOLDER #3
62	R3006A 2	LOCKING DISK, SPUD
63	R3005A 2	ADJUSTING DISK #3 SPUD
64	R3117P 2	ORIFICE, #25 NAT, #3 SPUD
65	R3129P* 2	ORIFICE, #43 LP, #3 SPUD
66	A4143K 1	PILOT MOUNTING BRACKET
67	M1265A 1	THERMOPILE, Q313
68	Q1401A 2	SCREW, 10-32 X 1/2" PAN HD
69	M1220A 1	PILOT BURNER NAT
70	M1245A * 1	PILOT BURNER LP
71	S1056A 1	KNOB, THERMOSTAT, 650 "F", GAS BLACK
72	M1005A 1	THERMOSTAT, 650°F, FDTH
73	N3068P 1	PRESSURE TAP ASSY
74	M1242P 1	CONTROL ASSY BMVR NAT
75	M1248P* 1	CONTROL ASSY BMVR LP
76	A8006K* 1	BRICK LINED SUPPORT BRACE
77	T1375A* 8	BAKING DECK, CERAMIC
78	S3275A 1	DOOR SPRING ARM, 2.78"
* INDICATES NOT SHOWN

WIRING DIAGRAM

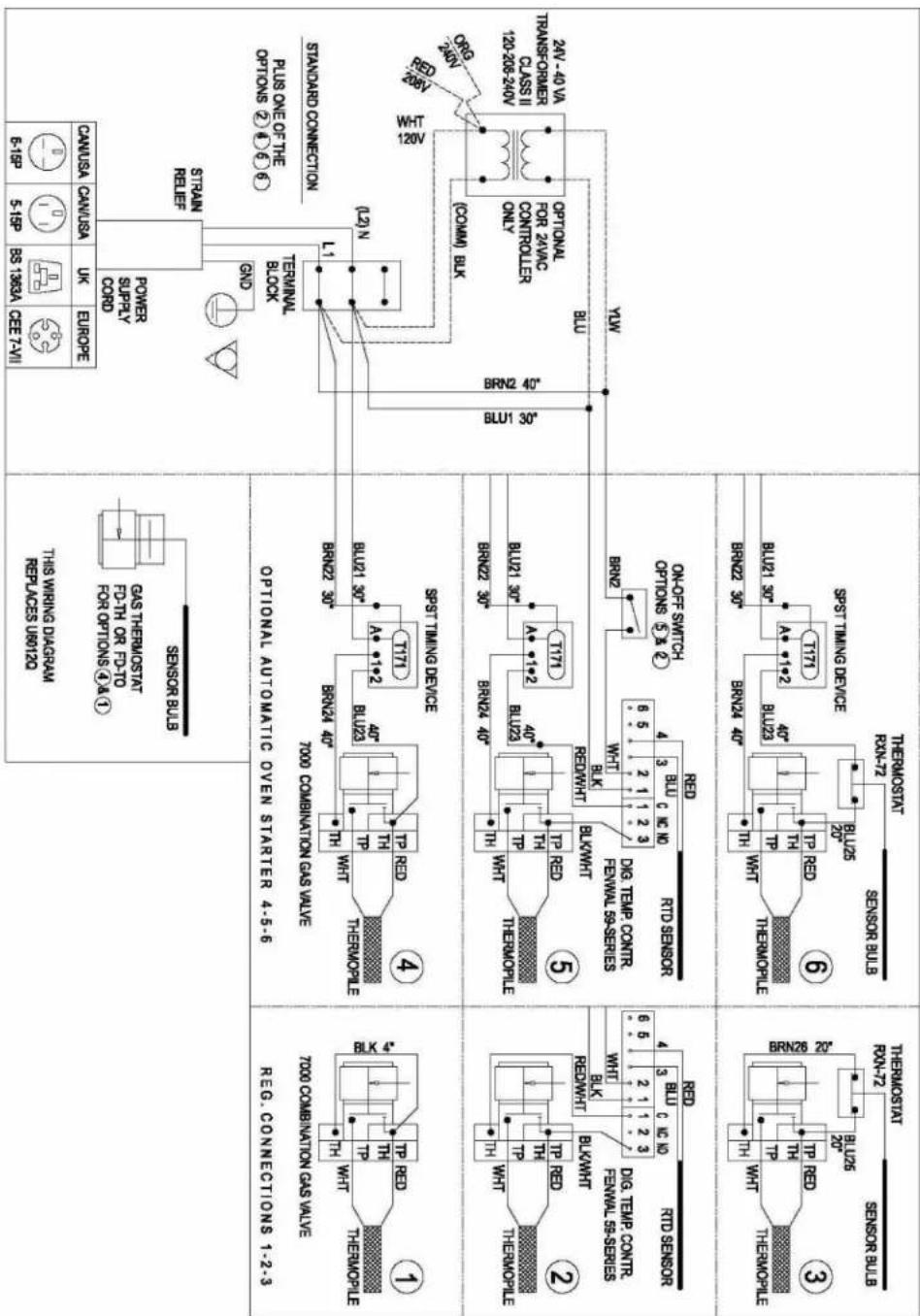

Wiring Diagram – Gas Oven Series – 120V, 208, OR 230V, 1PH – Auto Starter Option

THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB THEMOPILE SENSOR BULB

BAKERS PRIDE LIMITED WARRANTY

WHAT IS COVERED

This warranty covers defects in material and workmanship under normal use, and applies only to the original purchaser providing that:

• The equipment has not been accidentally or intentionally damaged, altered or misused;
• The equipment is properly installed, adjusted, operated and maintained in accordance with National and local codes and in accordance with the installation instruction provided with the product;
• The serial number rating plate affixed to the equipment has not been defaced or removed.

WHO IS COVERED

This warranty is extended to the original purchaser and applies only to equipment purchased for use in the U.S.A.

COVERAGE PERIOD

Cyclone Convection Ovens: BCO Models: One (1) Year limited parts and labor; (1) Year limited door warranty.

GDCO Models: Two (2) Year limited parts and labor; (2) Year limited door warranty.

CO11 Models: Two (2) Year limited parts and labor; (5) Year limited door warranty.

All Other Products: One (1) Year limited parts and labor. Warranty period begins the date of dealer invoice to customer or ninety (90) days after shipment date from Bakers Pride - whichever comes first.

WARRANTY

This warranty covers on-site labor, parts and reasonable travel time and travel expenses of the authorized service

COVERAGE

Representative up to (100) miles, round trip, and (2) hours travel time. The purchaser, however, shall be responsible for all expenses related to travel, including time, mileage and shipping expenses on smaller counter models that may be carried into a Factory Authorized Service Center, including the following models: PX-14, PX-16, P18, P22S, P24S, PD-4, PDC, WS Series and BK-18.

EXCEPTIONS All removable

parts in Bakers Pride ^® cooking equipment, including but not limited to: Burners, Grates, Radiants, Stones and Valves, are covered for a period of SIX MONTHS. All Ceramic Baking Decks are covered for a period of THREE MONTHS. The installation of these replacement decks is the responsibility of the purchaser. The extended Cyclone door warranty years 3 through 5 is a parts only warranty and does not include labor, travel, mileage or any other charges.

EXCLUSIONS

• Negligence or acts of God,
• Failures caused by erratic voltages or gas supplies,
• Thermostat calibrations after (30) days from equipment installation date,
• Unauthorized repair by anyone other than a Bakers Pride Factory Authorized Service Center,
  • Air and Gas adjustments,

• Damage in shipment,
  • Light bulbs,
  • Alteration, misuse or improper installation,
  • Glass doors and door adjustments,

• Thermostats and safety valves with broken capillary tubes,

• Fuses,
  • Char-broiler work decks and cutting boards,
• Tightening of conveyor chains,
• Adjustments to burner flames and cleaning of pilot burners,
• Tightening of screws or fasteners,
• Accessories — spatulas, forks, steak turners, grate lifters, oven brushes, scrapers, peels. etc.,
  • Freight — other than normal UPS charges,
  • Ordinary wear and tear.

INSTALLATION

Leveling and installation of decks as well as proper installation and check out of all new equipment — per appropriate installation and use materials — is the responsibility of the dealer or installer, not the manufacturer.

REPLACEMENT PARTS

Bakers Pride genuine Factory OEM parts receive a (90) day materials warranty effective from the date of installation by a Bakers Pride Factory Authorized Service Center.

This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer's part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. The repair or replacement of proven defective parts shall constitute a fulfillment of all obligations under the terms of this warranty.

Form #U4177A 1/07

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required.

Model Number Serial Number Date Purchased

NOTES

NOTES

BAKERS PRIDE®

1307 N. Watters Rd, Ste. 180 Allen, Texas 75013

Phone [phone] | Fax [phone] | bakerspride.com

Be sure to keep up with new product announcements and events on social media!

BAKERS PRIDE®

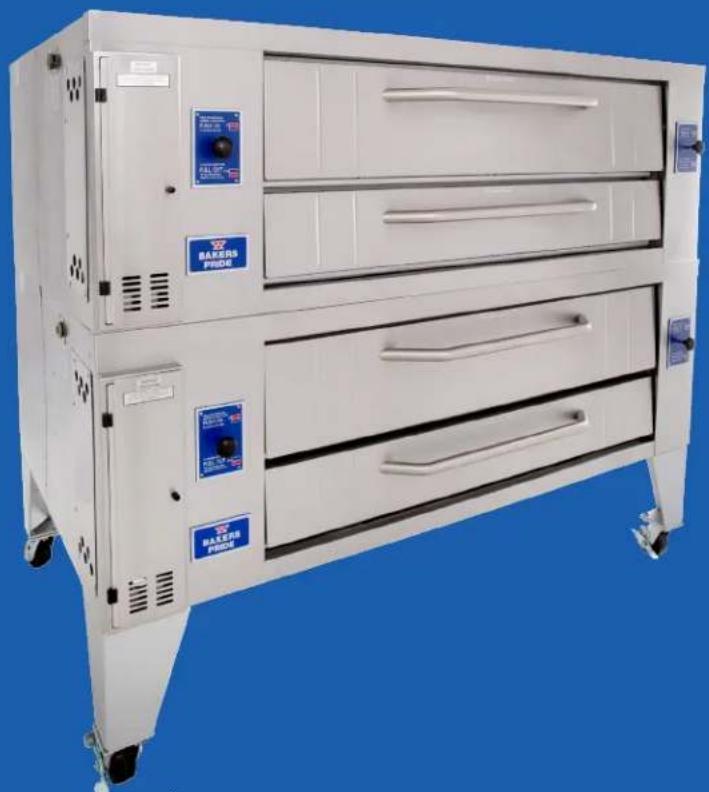

Exterior view of a modern white industrial oven with blue control panels and a 'BARBERS PRIDE' label (no additional signage or text visible on the cabinet itself)

OPÉRATION MANUELLE

FOUR À SOLES AU GAZ SÉRIES SUPERDECK

SÉRIES : Y600 & Y800

Close-up of a colorful pizza with visible toppings including lettuce, cheese, and mushrooms (no text or symbols)

Close-up of a loaf of bread with flour dusting grains, no text or symbols visible

BUILT BY CRAFTSMEN. TESTED BY TIME®

MODÈLE DE PLANCHER GAZ FOUR À SOLES

Séries :

Y600 et Y800

Line drawing of a server rack unit with ventilation ducts and control panel (no text or symbols)

Figure 4

Line drawing of a device with legs and connectors, no text or symbols present

Figure 5

Line drawing of a portable kitchen appliance with wheels and control panel (no text or symbols)

Figure 6

IMSTLEUFTOINST ENS SALLATION

Technical diagram of a device with numbered components and detailed detail views labeled A through F.

VAREÉOLADNÉNTS LISTES DES PIÈCES

Technical diagram of a mechanical assembly with labeled parts and detail views (DETAIL H, DETAIL G, DETAIL I)

VARGÉOPLADNÉNTS LISTES DES PIÈCES

Liste Pièces - Y600

ÉLÉMENT # PIÈCE QTÉ DESCRIPTION
1 219	0330 1 ASSY, PORTE BAS Y600/800
2 219	0331 1 ASSY, PORTE HAUT Y600/800
3 A80	57K 1 GARNITURE	BAS
4 A49	80T 1 MANCHON PANNEAU DE COMMANDE, SS
5 219	10188 1 PANNEAU	DEVANT CÔTÉ CONTRÔLE
6 A80	56K 1 GARNITURE	HAUT
7 219	10189 1 PANNEAU	DEVANT CÔTÉ DROIT
8 219	10332 1 SOUDURE	PORTE BAS BRAS GE
9 219	10316 1 SOUDURE	PORTE BAS BRAS DT
10 Q20	25A 10 VERROUILLER, 1/4-20 X 3/4 HEX HD ZINC
11 219	10310 1 SOUDURE	PORTE HAUT BRAS GAUCHE
12 Q24	01A 2 ÉCROU, HEXA, 9/16-18
13 S32	76A 1 PORTE BRAS RESSORT, 2.78 PO BAS
14 Q30	07A 1 LAVEUSE, 9/16 VERROUILLAGE SÉPARATION
15 S30	07A 2 DOUILLE ASSY, PTFE 5/0,63 X 0,56
16 Q30	10A 4 LAVEUSE, 3/8-7/16 X 1 PO X 5/64 PLAT
17 Q23	01A 1 VERROUILLER, 3/8-16 X 9/32 X 1 ÉPAULE
18 A30	79K 2 GLISSIÈRE	DÉVIATEUR FLAMME (35 PO)
19 A80	35K 2 CINTRE, DIVISEUR FLAMME
20 A80	30T 4 CADRE ASM	SUPPORT FOYER
21 A41	32Z 1 FEUILLE DE	REVÊTEMENT DE FOYER,36 X 39,25
22 A41	33Z 1 FEUILLE DE	REVÊTEMENT DE FOYER,36 X 20 X 20,75
23 A80	36K 1 CINTRE, DIVISEUR FLAMME MILIEU
24 T13	81A 3	FOYER PIERRE, AWMCO 36 PO X 20 PO X 2 PO
25 S31	34A 5 DOUILLE, 81/0,88 D. INT. X 1 X 1,25 D. EXT.
26 S31	33A 5 MANCHON, DURALON 0,75 D. INT. X0,88 D. EXT.
27 A80	17K 2 ANGLE, PORTE COINCÉE BAS
28 A80	16K 2 ANGLE, PORTE COINCÉE
29 R31	15A 1 DÉFLECTEUR CONDUIT
30 U13	56A 2 PLAQUE	POUSSER-TIRER
31 S10	05A 2 BOUTON, PRESSION-TRACTION 3/8-16 NOIR
32 880	8902 1 PLAQUE SIGNALÉTIQUE, BAKERS PRIDE,FOURS À SOLES
33 219	10312 1 SOUDURE	PORTE HAUT BRAS DROIT
34 A80	61K 1 COUVERTURE	REVÊTEMENT FOYER
35 A80	82K 1 COUVERTURE	AVANT PORTE ACCÈS GAUCHE
36 S10	04Y* 1 PIED 30 PO	[ENSEMBLE DE 4]
37 S11	20Y* 1 PIED & ROU	LETTE 30 PO [ENSEMBLE DE 4]
38 S10	3Y* 1 PIED 16 PO	[ENSEMBLE DE 4]
39 S11	19Y* 1 PIED & ROU	LETTE 16 PO [ENSEMBLE DE 4]
40	M1242P	1 CONTRÔLE ASSY, Y600
41 N50	14A 1 MANELON	1/2 PO X 5 PO, TUYAU NOIR
42 N30	21A 2 RÉDUCTION	COUDE, 3/4 PO X 1/2 PO 90°NOIRSTL

ÉLÉMENT	# PIÈCE	QTÉ	DESCRIPTION
43 N52	32A 1 MAMELON,	3/4 PO X 6-3/4 PO, TUYAU NOIR, 3/4 COMPENSE
44 N30	02A 1 TEE,	3/4 PO X 3/4 PO X 1 PO, TUYAU NOIR RÉDUCTION
45 K13	32B 2 PATCH DE COUVERTURE ARRIÈRE, SS
46 N30	08A 2 DOUILLE, 1 PO X 3/4 PO RÉDUCTION, TUYAU NOIR
47 N30	22A 2 BOUCHON,	3/4 PO TUYAU ACIER, W/1/2 PO RENFONCEMENT CARRÉ
48 N52	17P 1 MAMELON,	3/4 PO X 27-3/4 PO, TUYAU NOIR
49 N30	07A 1 COUPLAGE,	1 PO X 3/4 PO RÉDUCTION, TUYAU NOIR
50 N50	09A 6 MAMELON,	1/2 PO X 15/16 PO, TUYAU NOIR
51	N 5231P	1 MAMELON, 3/4 PO X 34-1/4 PO, TUYAU NOIR
52	00235 2	3/4 PO UNION NOIRE STL
53 N52	18A 1 MAMELON,	3/4 PO X 3 PO, TUYAU NOIR
54 N30	04A 1 COUDE, 3/4 PO 90 ° NOIR STL
55 N52	13A 1 MAMELON,	3/4 PO X 1-1/2 PO, TUYAU NOIR
56 N30	12A 1 RÉDUCTION	TEE, 1/2 PO X 1/2 PO X 3/4 PO, TUYAU NOIR
57	L5001A	2 INSPIRATEUR, #3 NOIR
58	L5121T	1 BRÛLEUR ASSY, GH
59	L5122T	1 BRÛLEUR ASSY, RH
60 N30	09A 4 1/2 PO UNION NOIRE STL
61 R30	04A 2 PORTE-SPUD #3
62 R30	06A 2 DISQUE DE VERROUILLAGE, SPUD
63 R30	05A 2 DISQUE D'AUSTEMENT SPUD #3
64 R31	17P 2 ORIFICE, #25 NAT, #3 SPUD
65 R31	29P* 2 ORIFICE, #43 NAT, #3 SPUD
66	A4143K 1 SUPPORT DE MONTAGE PILOTE
67 M12	65A 1 THERMOPILE, Q313
68 Q14	01A 2 VIS, 10-32 X	1/2 PO PAN HD
69 M12	20A 1 BRÛLEUR PILOTE NAT
70 M12	45A *1 BRÛLEUR PILOTE LP
71	S1056A 1 BOUTON, THERMOSTAT, 650 “F”, GAZ NOIR
72 M10	05A 1 THERMOSTAT, 650 °F, FDTH
73 N30	68P 1 PRISE DE PRESSION ASSY
74 M12	42P 1 CONTRÔLE ASSY BMVR NAT
75 M12	48P* 1 CONTRÔLE ASSY BMVR LP
76	A8006K* 1 ENTRETOISE DE SUPPORT DOUBLÉE DE BRIQUE
77	T1375A*	7 PLATEAU DE CUISSON, CÉRAMIQUE
78	S3275A 1 PORTE BRAS RESSORT, 2,78 PO
* INDICATEURS PAS ILLUSTRÉS

NABTBYAGECONTENTRETEN

Liste Pièces - Y800

ÉLÉMENT # PIÈCE QTÉ DESCRIPTION
1 2191	0330 1 ASSY, PORTE BAS Y600/800
2 2191	0331 1 ASSY, PORTE HAUT Y600/800
3 A805	7K 1 GARNITURE BAS
4 A498	0T 1 MANCHON PANNEAU DE COMMANDE, SS
5 2191	0288 1 PANNEAU, DEVANT CÔTÉ CONTRÔLE
6 A805	6K 1 GARNITURE HAUT
7 2191	0289 1 PANNEAU, DEVANT CÔTÉ DROIT
8 2191	0332 1 SOUDURE, PORTE BAS BRAS GE
9 2191	0316 1 SOUDURE, PORTE BAS BRAS DT
10 Q20	25A 10 VERROUILLER, 1/4-20 X 3/4 HEX HD ZINC
11 219	0310 1 SOUDURE, PORTE HAUT BRAS GAUCHE
12 Q24	01A 2 ÉCROLI, HEXA, 9/16-18
13 S32	76A 1 PORTE BRAS RESSORT, 2,78 PO BAS
14 Q30	07A 1 LAVEUSE, 9/16 VERROUILLAGE SÉPARATION
15 S30	07A 2 DOUILLE ASSY, PTFE 0,5/0,63 X 0,56
16 Q30	10A 4 LAVEUSE, 3/8-7/16 X 1 PO X 5/64 PLAT
17 Q23	01A 1 VERROUILLER, 3/8-16 X 9/32 X 1 ÉPAULE
18 A30	79K 2 GLISSIERE DEVIATEUR FLAMME (35 PO)
19 A80	85K 2 CINTRE, DIVISEUR FLAMME
20 A80	80T 4 CADRE ASM, SUPPORT FOYER
21 A41	82Z 1 FEUILLE DE REVÊTEMENT DE FOYER, 36 X 39,25
22 A41	83Z 1 FEUILLE DE REVÊTEMENT DE FOYER, 36 X 20 X 20,75
23 A80	86K 1 CINTRE, DIVISEUR FLAMME MILIEU
24 T138	1A 3 FOYER PIERRE, AWMCO 36 PO X 20 PO X 2 PO
25 S31	84A 5 DOUILLE, 81/0 88 D. INT. X 1 X 1,25 D. EXT.
26 S31	83A 5 MANCHON, DURALON 0,75 D. INT. X 0,88 D. EXT.
27 A80	7K 2 ANGLE, PORTE COINCÉE BAS
28 A80	6K 2 ANGLE, PORTE COINCÉE
29 R31	15A 1 DÉFLECTEUR CONDUIT
30 U13	6A 2 PLAQUE POUSSER-TIRER
31 S100	5A 2 BOUTON, PRESSION-TRACTION 3/8-16 NOIR
32 880	8902 1 PLAQUE SIGNALÉTIQUE, BAKERS PRIDE, FOURS À SOLES
33 219	10312 1 SOUDURE, PORTE HAUT BRAS DROIT
34 A80	61K 1 COUVERTURE REVÊTEMENT FOYER
35 A80	82K 1 COUVERTURE AVANT PORTE ACCÈS GAUCHE
36 S100	4Y* 1 PED, 30 PO [ENSEMBLE DE 4]
37 S11	20Y* 1 PED & ROULETTE 30 PO [ENSEMBLE DE 4]
38 S100	3Y* 1 PED, 16 PO [ENSEMBLE DE 4]
39 S11	9Y* 1 PED & ROULETTE 16 PO [ENSEMBLE DE 4]
40	M1242P 1 CONTRÔLE ASSY, Y600
41 N50	14A 1 MAMELON, 1/2 PO X 5 PO, TUYAU NOIR
42 N30	21A 2 RÉDUCTION COUDE, 3/4 PO X 1/2 PO 90° NOIRSTL

ÉLÉMENT # PIÈCE QTÉ		DESCRIPTION
43	N5232A	1 MAMELON, 3/4 PO X 6-3/4 PO, TUYAU NOIR, 3/4 COMPENSE
44	N3002A	1 TEE, 3/4 PO X 3/4 PO X 1 PO, TUYAU NOIR RÉDUCTION
45	K1332B	2 PATCH CAPOT ARRIÈRE, SS [
46	N3008A	2 DOUILLE, 1 PO X 3/4 PO RÉDUCTION, TUYAU NOIR
47	N3022A	2 BOUCHON, 3/4 PO TUYAU ACIER, W/1/2 PO RENFONCEMENT CARRÉ
48	N5252A	1 MAMELON, 3/4 PO X 36 PO, TUYAU NOIR
49	N3007A	1 COUPLAGE, 1 PO X 3/4 PO RÉDUCTION, TUYAU NOIR
50	N5009A	6 MAMELON, 1/2 PO X 15/16 PO, TUYAU NOIR
51	N5220P	1 MAMELON, 3/4 PO X 37-1/4 PO, TUYAU NOIR
52	300235	2 3/4 PO UNION NOIRE STL
53	N5218A	1 MAMELON, 3/4 PO X 3 PO, TUYAU NOIR
54	N3004A	1 COUDE, 3/4 PO 90° NOIR STL
55	N5213A	1 MAMELON, 3/4 PO X 1-1/2 PO, TUYAU NOIR
56	N3012A	1 RÉDUCTION TEE, 1/2 PO X 1/2 PO X 3/4 PO, TUYAU NOIR
57	L5001A	2 INSPIRATEUR, #3 NOIR
58	L5124T	1 BRÛLEUR ASSY, GH
59	L5125T	1 BRÛLEUR ASSY, RH
60	N3009A	4 1/2 PO UNION NOIRE STL
61	R3004A	2 PORTE-SPUD #3
62	R3006A	2 DISQUE DE VERROUILLAGE, SPUD
63	R3005A	2 DISQUE D'AJUSTEMENT SPUD #3
64	R3117P	2 ORIFICE, #25 NAT, #3 SPUD
65	R3129P*	2 ORIFICE, #43 NAT, #3 SPUD
66	A4143K	1 SUPPORT DE MONTAGE PILOTE
67 M1265A	1 THERMOPILE, Q313
68	Q1401A	2 VIS, 10-32 X 1/2 PO PAN HD
69 M1220A	1 BRÛLEUR PILOTE NAT
70 M1245A * 1	BRÛLEUR PILOTE LP
71	S1056A	1 BOUTON, THERMOSTAT, 650 “F”, GAZ NOIR
72 M1005A	1 THERMOSTAT, 650 °F, FDTH
73	N3068P	1 PRISE DE PRESSION ASSY
74 M1242P	1 CONTRÔLE ASSY BMVR NAT
75 M1248P*	1 CONTRÔLE ASSY BMVR LP
76	A8006K*	1 ENTRETOISE DE SUPPORT DOUBLÉE DE BRIQUE
77	T1375A*	8 PLATEAU DE CUISSON, CÉRAMIQUE
78	S3275A	1 PORTE BRAS RESSORT, 2,78 PO
* INDICATEURS PAS ILLUSTRÉS

DAGRAMMIDDEOATSLAGE
