USER MANUAL MDRU502MTE46 MIDEA

Simple geometric diagram with a vertical gray bar and two corner brackets (no text or symbols)

Refrigerator

SINGLE DOOR SERIES

USER MANUAL

MDRU502MTE46

LANGUAGES

EN	English
DE	Deutsch
ES	Español
IT	Italiano
FR	Français
PT	Português
GR	Ελληνικά
PL	Polski
CZ	Čeština
SK	Slovensky
HU	Magyar
LV	Latviešu
LT	Lietuvių
SR	Srpski
HR	Hrvatski
SL	Slovenščina
RO	Română
BG	Български
AL	Shqip

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance ers in a safe way.

CONTENTS

THANK YOU LETTER----01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 04

OPERATION INSTRUCTIONS 12

CLEANING AND MAINTENANCE---- 15

TROUBLESHOOTING----18

APPENDIX 20

SPECIFICATIONS

Product model MDRU502MTE46

Fresh Food Storage Compartment Volume 362 L

Frozen Food Storage Volume /

Defrosting Type Auto-defrost

Temperature Rise Time /

Freezing Capacity /

Rated Voltage 220-240 V\~

Rated Current 0.6 A

Overall Dimension (H x W x D) 1850x595x618 mm

PRODUCT OVERVIEW

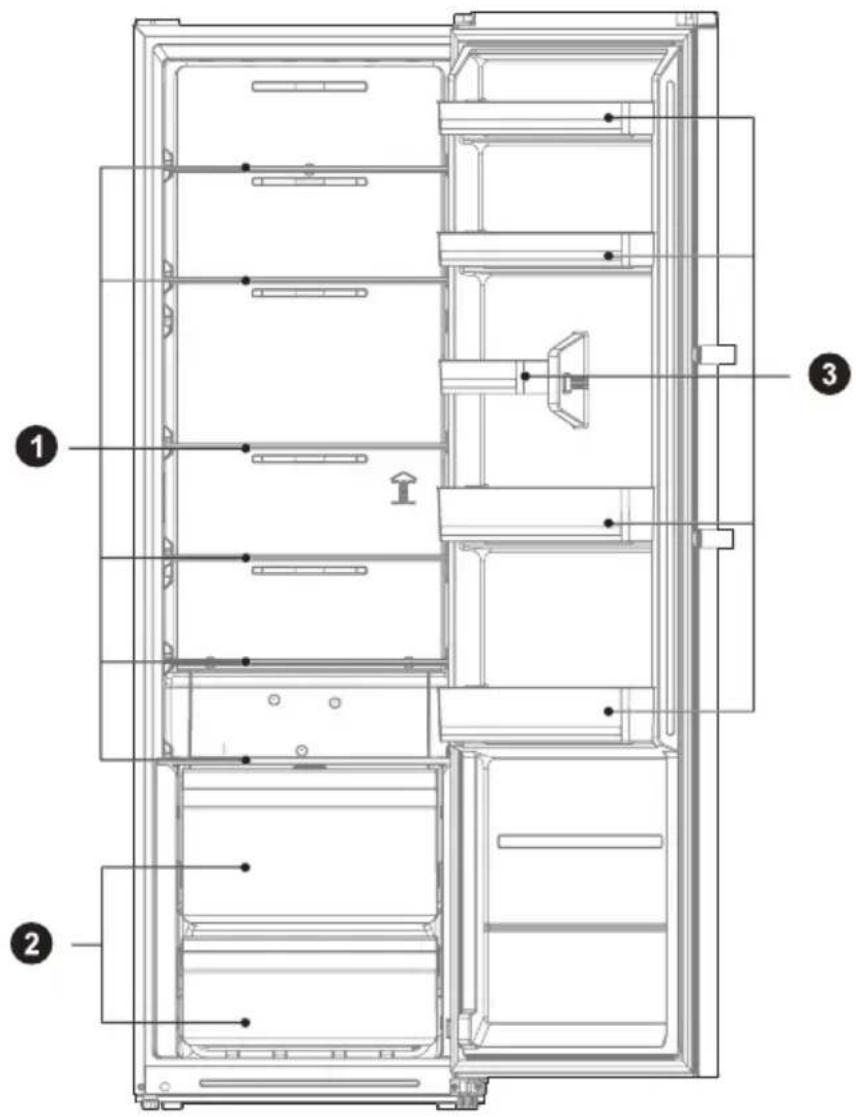

Names of components

Technical diagram of a refrigerator with numbered parts for identification

1 shelf 3 Door tray

2 Drawer

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Effective temperature range

- The product is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43

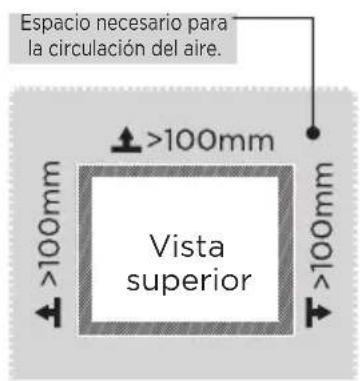

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

>100mm >100mm >100mm >100mm

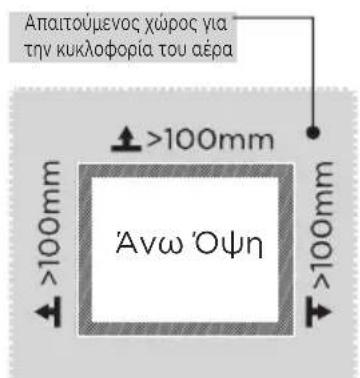

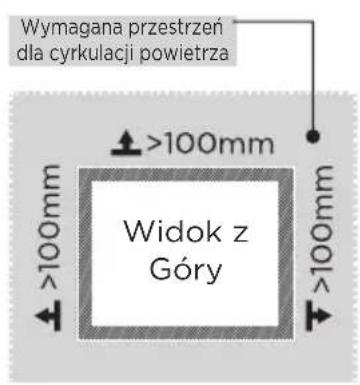

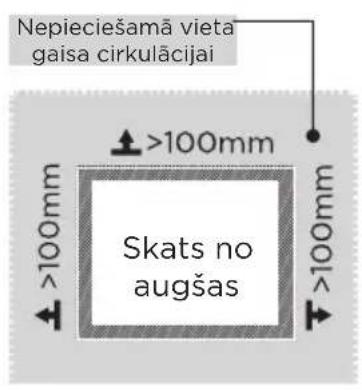

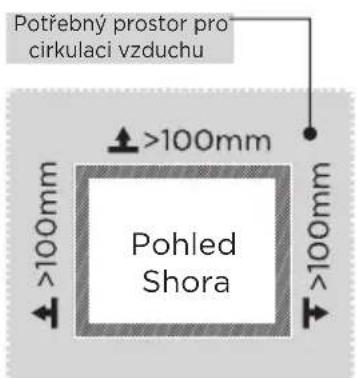

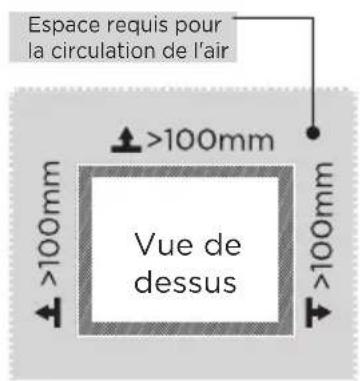

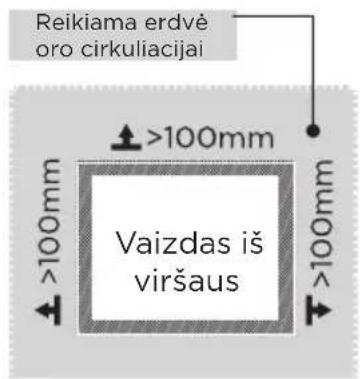

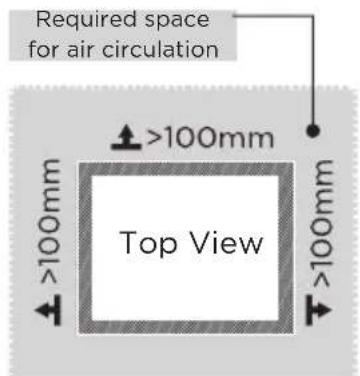

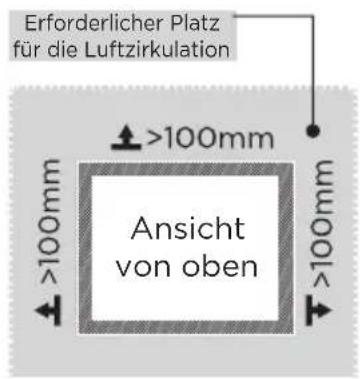

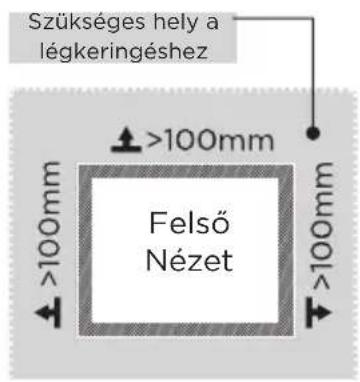

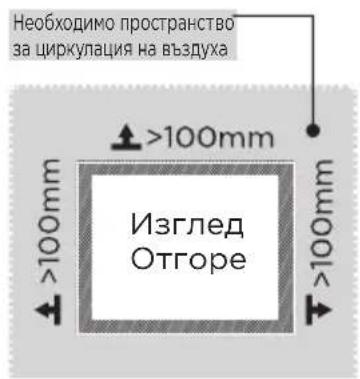

Required space for air circulation >100mm Top View >100mm >100mm

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

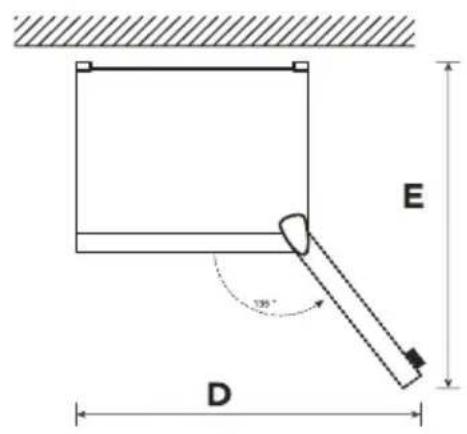

Space requirement diagram (when the door is open and when the door is closed)

B A

B C

E 135° D

Width Overall Height Depth			Width doors open 135°	Depth doors open 135°
A B C D E
595 1850	618 1017 1025

Notice: All dimensions in mm

Door handle installation

List of tools fo be provided by the user

Cross screwdriver

step

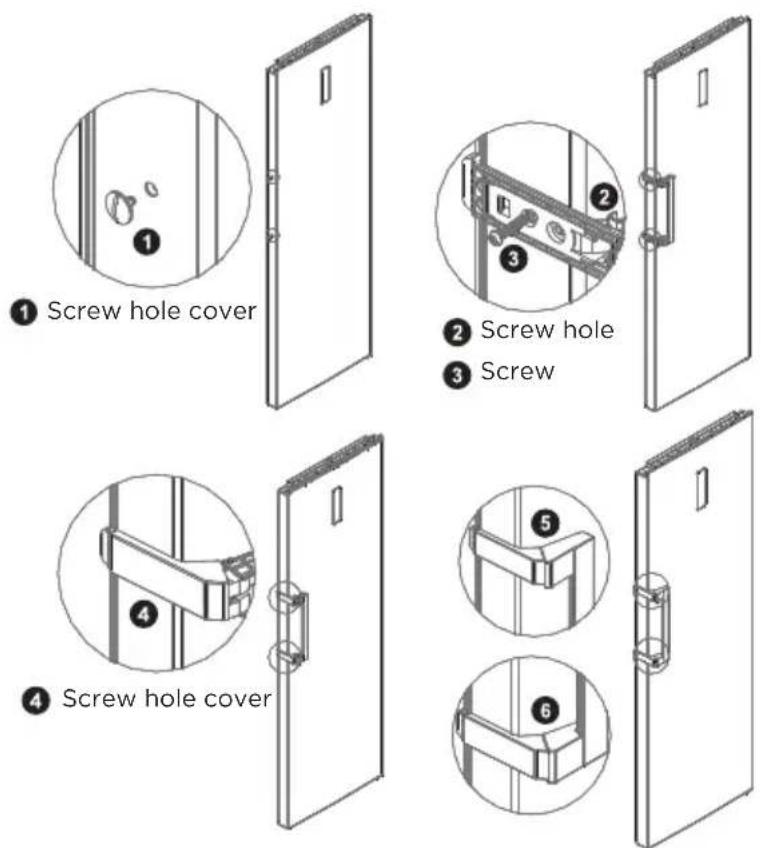

1. Remove the screw hole caps 1 from the door, and use cross screwdriver to fix screw 3 into the screw hole 2 tightly.
2. Assemble the screw hole caps 4 on the screw hole of handle.
3. The reverse operation is of disassembly.

① Screw hole cover ② Screw hole ③ Screw ④ Screw hole cover ⑤ ⑥

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

Door right-left change (optional)

Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door.

CAUTION

CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process.

Preparing to reverse the door position

You will need: A standard screwdriver, a Phillips screwdriver, and the included Allen wrench.

• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
• Keep all of the parts you remove to reuse them later.

Tools needed for changing the door:

Cross screwdriver

5/16" socket and ratchet

Putty knife thin-blade screwdriver

Masking tape

step

1. Power off the refrigerator, and remove all objects from door trays.
2. Dismantle the screw hole caps ,screws and handle, and remove the plastic screw hole caps from the other side.Please refer to chapter door handle installation
3. Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side. unplug the wiring connector on the right side of refrigerator top(1, 2 wiring connector).

hole cover hinge cover

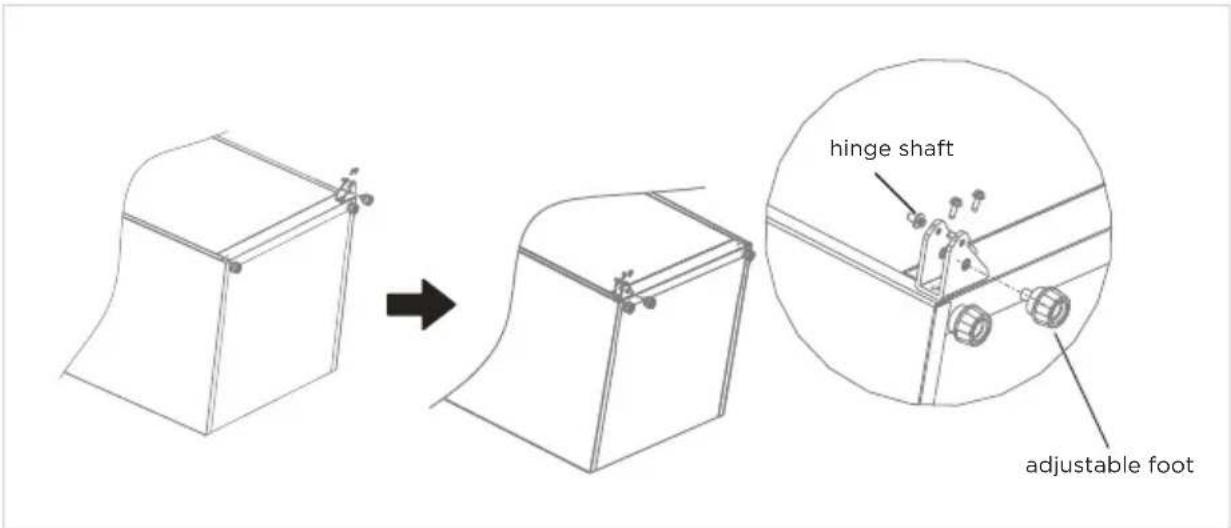

1. Dismantle the door and right bottom hinge assembly(hinge shaft&adjustable foot&hinge), disassemble the right bottom hinge assembly, and assemble the hinge shaft and adjustable foot on the other side of hinge, then assemble the whole hinge assembly on the other side of refrigerator.

hinge shaft adjustable foot

1. Remove the door end cover, install the upper hinge sleeve and door signal line to the other side and install the door end cover.

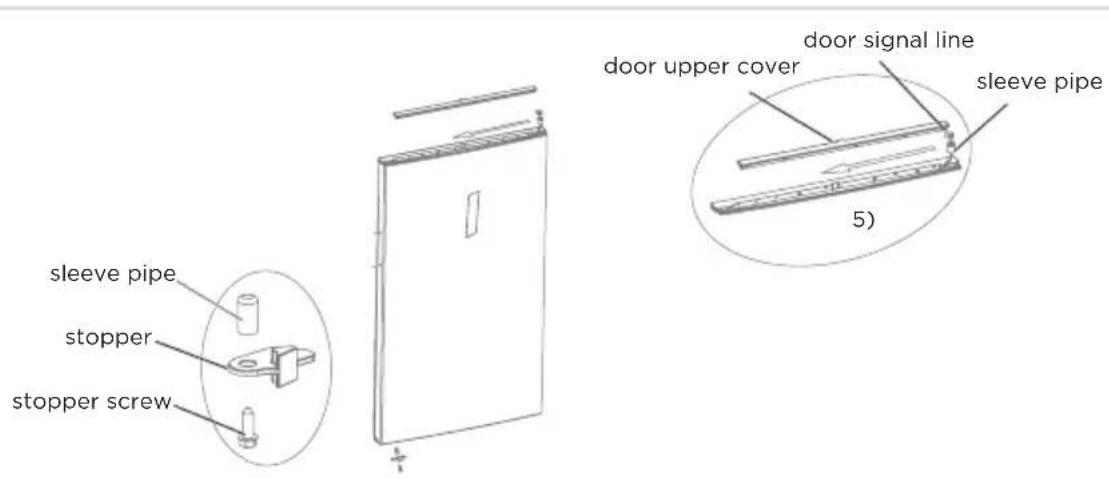

Dismantle the door stopper, sleeve pipe from the right bottom of door, insert the sleeve pipe into hinge hole of left bottom of door, assemble door stopper on left bottom of door.

sleeve pipe stopper stopper screw door upper cover door signal line sleeve pipe 5)

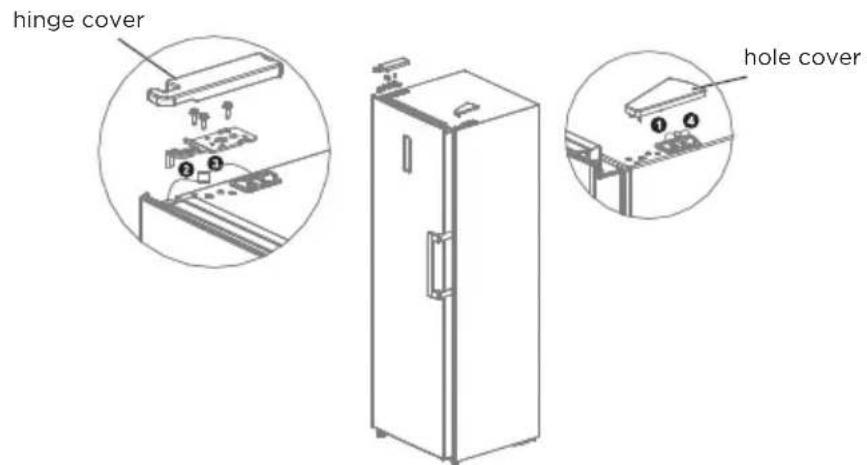

1. Take out the left top hinge, left top hinge cover from accessories package, place the door on bottom hinge, and mount left top hinge. Connect signal line terminal 3 with signal line terminal 2, connect signal line terminal 1 with signal line terminal 4 mount top hinge cover and hole cover.

hinge cover hole cover

1. For the assembly of handle, please refer to chapter "Door handle installation".

Line drawing of a single refrigerator with door and front panel (no text or symbols)

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Placement

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power. precautions should be taken to prevent any personal injury.

Connecting the appliance

• After transportation, please let the product stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the product.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

Tips for energy saving

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance.
  Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. This product contains two light source of energy efficiency class and .

OPERATION INSTRUCTIONS

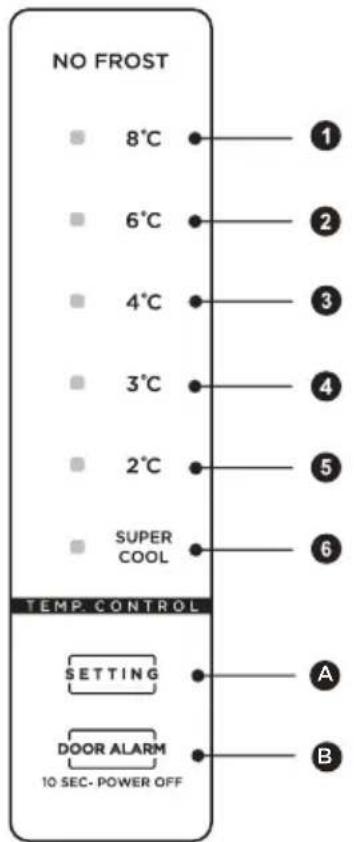

Control panel

NO FROST 8°C 6°C 4°C 3°C 2°C SUPER COOL TEMP. CONTROL SETTING DOOR ALARM 10 SEC- POWER OFF A B

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

	Key Temperature icons
A	Temperature setting button 1 the setting temperature is 8^
B	Standby button 2 the setting temperature is 6^
		3 the setting temperature is 4^
		4 the setting temperature is 3^
		5 the setting temperature is 2^
		6 Super cool

When the fridge power is on

• All temperature icons shine within 3s after power on, for power on at the first time, the default set temperature is 4°C.
• After that every time you start the fridge, it will run in accordance with set temperature before last power off.

Display of normal running

- On the occurrence of a failure, the corresponding icons will give a combined blink. If no failure, the screen displays the setting temperature of the refrigerator room. The error codes and types are shown as follows:

Refrigerator:

Error Code	Error Description Display
E1	Temperature sensor of refrigerator room fail	Icon "SMER & icon" 2 "shine at same time
E5	Defrosting sensor of refrigerator room fail	Icon "SMER & icon" 3 "shine at same time
E6	Communication error Icon "2" & icon"	4 " shine at same time
E7	Ambient temperature sensor fail Icon "	SUPER & icon" 4 "shine at same time

Standby function

- Long press the standby buton for 10 seconds to set the standby function.

Temperature setting

- The temperature setting will be changed once you press button. Then, the refrigerator will run according to the new temperature setting after 15s.

Super cool mode

- Enter: under refrigerator mode, press the button until the icon lighten.

During Super cool mode, the refrigerator runs according to the temperatures set at 2^ C, and it will exit this mode automatically after running for 360 minutes or temperature setting or mode setting.

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

ATTENTION

Note: Usage of water glass shelf:

Glass shelf put aside a frame to take out about 50mm first, the right side raises 30 degrees or so, take out outside refrigerator again.

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge		+2 ~ +8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer		≤-18	Seafood(fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer		≤-18	Seafood(fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer		≤-12	Seafood(fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer		≤-6	Seafood(fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
6 O-star -6 ~ 0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods).
7 Chill -2 ~ +3			Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days).Seafood (less than 0 for 15 days, it is not recommended to store above 0°C.
8 Fresh food 0 ~ +4			Fresh pork, beef, fish, chicken, cooked food, etc.(Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5 ~ +20 Red wine, white wine, sparkling wine, etc.

ATTENTION

Please store different foods according to the compartments or target storage temperature of your purchased.

CLEANING AND MAINTENANCE

Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

ATTENTION

Please unplug the refrigerator for defrost and cleaning.

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
• After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Illustration of a hand holding a flat surface with arrows indicating upward movement, no text or symbols present

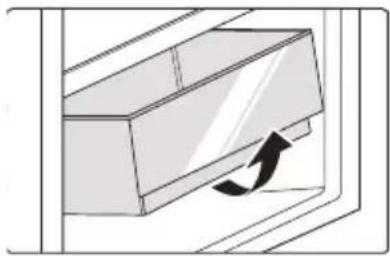

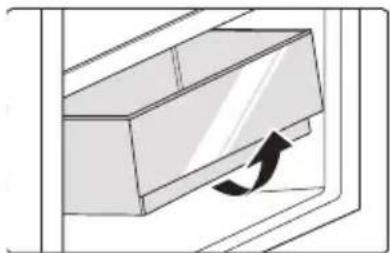

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.
2. Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Out of operation

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

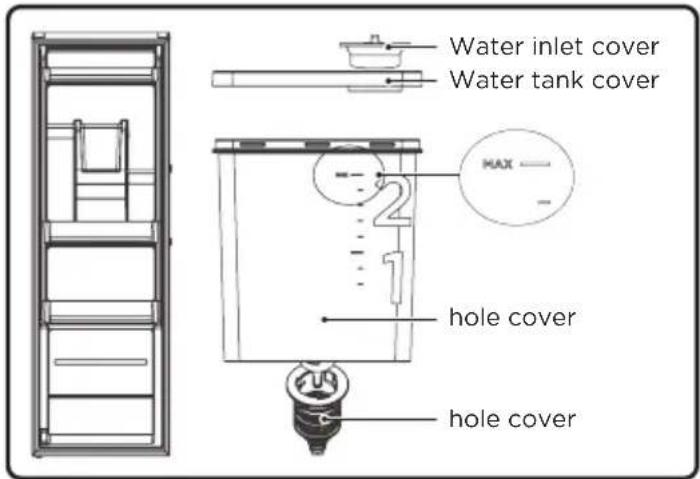

Water dispenser(optional)

- First open water inlet cover, fill with potable water to “MAX” marked as the maximum amount of water.

Water inlet cover Water tank cover MAX hole cover hole cover

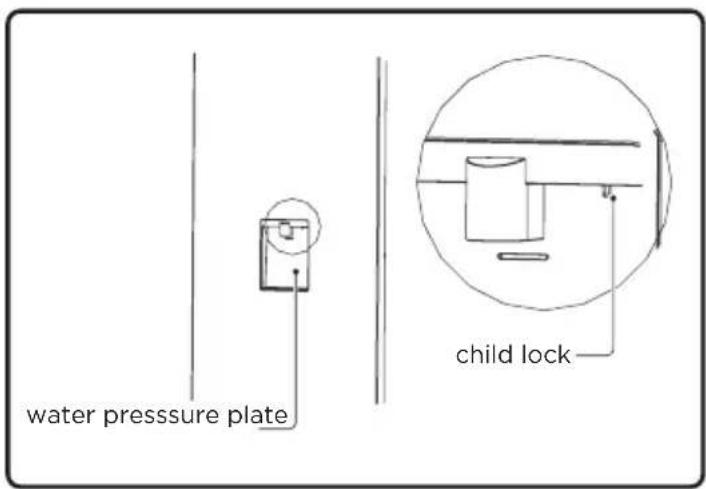

• Press the water pressure plate inward, and the water flow will flow out.
• Release the water pressure plate and the water flow will stop flowing out.
• Move the child lock lever to the left, the child lock activated.

water pressure plate child lock

ATTENTION

Water dispenser can only be used for potable water, not suitable for liquids other than potable water such as juices. Please do not remove the water tank from the door directly for water filling.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer when the ambient temperature is high
	·It is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages
	·The refrigerator is tilted.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations

Problem Possible reason

Door seal fails to be tight	·Remove foreign matters on the door seal
	·Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	·There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	·The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	·Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	·Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	·Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.
	·Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by Minimum time required for Provision
Thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
Trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
Baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Coldest zone in the refrigerator

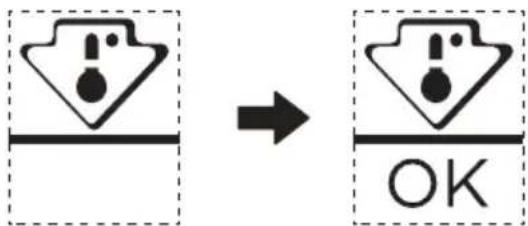

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below+4°C. Gradually reduce the temperature if the sign does not indicate "OK".

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

- To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

- WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

- With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

- When the indicator shows "OK", this means that your thermostat is well adjusted and the internal temperature correct.

- If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

DANKESBRIEF

Technical diagram of a refrigerator interior with numbered components and labeled parts

1 Regal 3 Türfach

2 Schublade

ACHTUNG

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

ACHTUNG

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Entfrosten

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components and labeled parts

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with door and side door (no text or symbols)

ATENCIÓN

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Descongelación

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator interior with numbered components and labeled parts

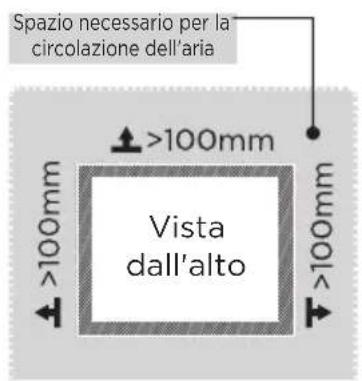

>100mm >100mm >100mm >100mm

Diagram of a mechanical assembly with labeled parts, no readable text or symbols present

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

coperchio del foro

Line drawing of a single refrigerator with lid and door (no text or symbols)

ATTENZIONE

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Sbrinamento

Diagram showing a warning symbol with exclamation mark inside a triangle and an 'OK' label below it, indicating cancellation or error.

INSTALLATION DU PRODUIT 04

INSTRUCTIONS D'OPÉRATION 12

NETTOYAGE ET ENTRETIEN 15

DÉPANNAGE 18

ANNEXE 20

SPÉCIFICATIONS

Technical diagram of a refrigerator with numbered parts for identification

INSTALLATION DU PRODUIT

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with door and side panel (no text or symbols)

ATTENTION

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Dégivrage

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator interior with numbered components and labeled parts

1 Prateleira 3 Bandeja da porta
2 Esquema

ATENÇÃO

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

ATENÇÃO

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Limpeza de prateleiras de vidro

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Limpeza da gaveta dos legumes

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Degelo

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

Technical diagram of a refrigerator with numbered parts for identification

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with door and side door (no text or symbols)

ΠΡΟΣΟΧΗ

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Απόψυξη

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator with numbered parts for identification

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with door and front panel (no text or symbols)

UWAGI

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, and an inset showing a building on a wall (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Odszranianie

Diagram showing a warning symbol transforming from a warning box to an OK button, with arrows indicating transformation.

Technical diagram of a refrigerator with numbered parts for identification

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

POZORNOST

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

CZ

Rozmrazování

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

Technical diagram of a refrigerator with numbered parts for identification

>100mm >100mm >100mm >100mm

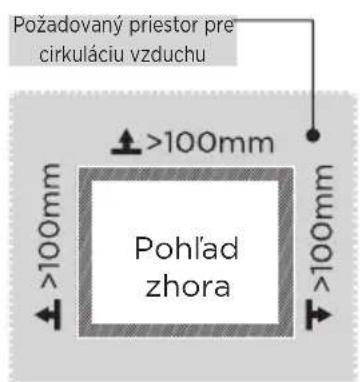

Požadovaný priestor pre cirkuláciu vzduchu >100mm Pohl'ad zhora >100mm >100mm

UPOZORNENIE

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

UPOZORNENIE

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Rozmrazovanie

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator with numbered parts for identification

1 polc 3 Ajtótálca

2 Rajzoló

FIGYELMEZTETÉS

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

FIGYELMEZTETÉS

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Leolvasztás

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

PRODUKTA PÄRSKATS 03

PRODUKTA UZSTĀDĪŠANA 04

EKSPLUATĀCIJAS INSTRUKCIJAS 12

TİRİŞANA UN APKOPE 15

DARBĪBAS TRAUCĒJUMI 18

PIELIKUMS 20

SPECIFIKĀCIJA

Produkta modelis MDRU502MTE46

Technical diagram of a refrigerator with numbered parts for identification

1 plaukts 3 Durvju paliktnis
2 Atviktne

UZMANIBU

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

UZMANIBU

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Atkausēšana

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

Technical diagram of a refrigerator with numbered parts for identification

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

DÉMESIO

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward movement, and an inset showing a building on a wall (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Atšildymas

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator with numbered parts for identification

1 полица

2 Фиока

3 Ладица за врата

ПАЖЬА

Line drawing of a single refrigerator with door and front panel (no text or symbols)

ПАЖЊА

Illustration of hands holding a rectangular object with arrows indicating movement or force direction (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward movement, and an inset showing a building on a wall (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Одмрзавање

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or transformation.

Technical diagram of a refrigerator interior with numbered components and labeled parts

1 polica 3 Ladica za vrata

2 Ladica

PAŽNJA

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

PAŽNJA

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

• Budući da unutarnji dio hladnjaka koji je u kontaktu s policama ima povratni graničnik, podignite police prema gore, a zatim ih izvadite.
• Prilagodite ili očistite police prema svojim zahtjevima.

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Čišćenje ladice za povrće

1. Izvadite sadržaj ladice. Držite ručku ladice za povrće i potpuno je izvucite dok se ne zaustavi.
2. Podignite ladicu za povrće i izvadite je izvlačenjem.

Diagram of a door handle with an arrow indicating direction (no text or symbols)

Odmrzavanje

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

- Nemojte mijenjati položaj police, kako biste osigurali temperaturu u ovom području. Hladnjaci s pojačanim zrakom (opremljeni ventilatorom ili Nema Mraza modeli), simbol najhladnije zone nije prikazan jer je unutrašnja temperatura homogena.

Podešavanje indikatora temperature

- Kako biste lakše podesili svoj hladnjak, opremljen je indikatorom temperature koji će pratiti prosječnu temperaturu u najhladnijoj zoni.

- UPOZORENJE: Ovaj je indikator namijenjen za rad samo s vašim hladnjakom, nemojte ga koristiti u drugom hladnjaku (zapravo, najhladnija zona nije ista) ili za bilo koju drugu svrhu.

Technical diagram of a refrigerator interior with numbered components and labeled parts

1 polica 3 Pladenj za vrata

2 Predal

PREVIDNO

Line drawing of a single refrigerator with doors and frontrest (no text or symbols)

PREVIDNO

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čiščenje steklene police

Illustration of a hand holding a flat surface with arrows indicating upward movement, and an inset showing a building on a wall (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Odmrzovanje

Diagram showing a warning symbol transforming from a warning box to an OK button, with arrows indicating transformation.

Technical diagram of a refrigerator interior with numbered components and labeled parts

Line drawing of a single refrigerator with lid and side door (no text or symbols)

ATENTIE

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Dezghetare

Diagram showing a warning symbol with exclamation mark inside a triangle and an 'OK' label below it, indicating cancellation or error.

Technical diagram of a refrigerator with numbered parts for identification

1 paφτ

2 Чекмедже

3 Рафт на врата

ВНИМАНИЕ

>100mm >100mm >100mm >100mm

Line drawing of a single refrigerator with lid and door (no text or symbols)

ВНИМАНИЕ

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, and an inset showing a building on a wall (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Размразяване

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components and labeled parts

INSTALIMI I PRODUKTIT

Line drawing of a single refrigerator with front panel and side door (no text or symbols)

KUJDES

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Pastrimi i sirtarit prej xhami

Illustration of a hand holding a flat surface with arrows indicating upward motion, and an inset showing a building on a wall (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Shkrirja

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or completion.

make yourself at home
