USER MANUAL Naruto HPBT010NA LEXIBOOK

White and gray portable headphones with earbuds and front cover (no visible text or symbols)

LEXIBOOK®

MODE D'EMPLOI INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES MANUALE DI ISTRUZIÓNI BEDIENUNGSANLEITUNG GEBRUIKSAANWIJZING BRUGSANVISNI INSTRUKCJA QBSŁUGI NAVOD K POUŽITI HASZNALATI UTMUTATÓ

HPBT010series

Booklet Size: 80(W) x 157(H)mm

Technical diagram of a device with numbered parts labeled 1 to 5

DÉBALLAGE DE L'APPAREIL

EMPLACEMENT DES TOUCHES

Simple line drawing of a device with a USB cable inserted into the top panel (no text or symbols)

FONCTION SANS FIL (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

UTILISATION

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

Yiu Wai Man

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x 2-in-1 Bluetooth® Headphones / 1 x USB Type C charging cable / 1 x

3.5mm audio cable / 1 x Instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

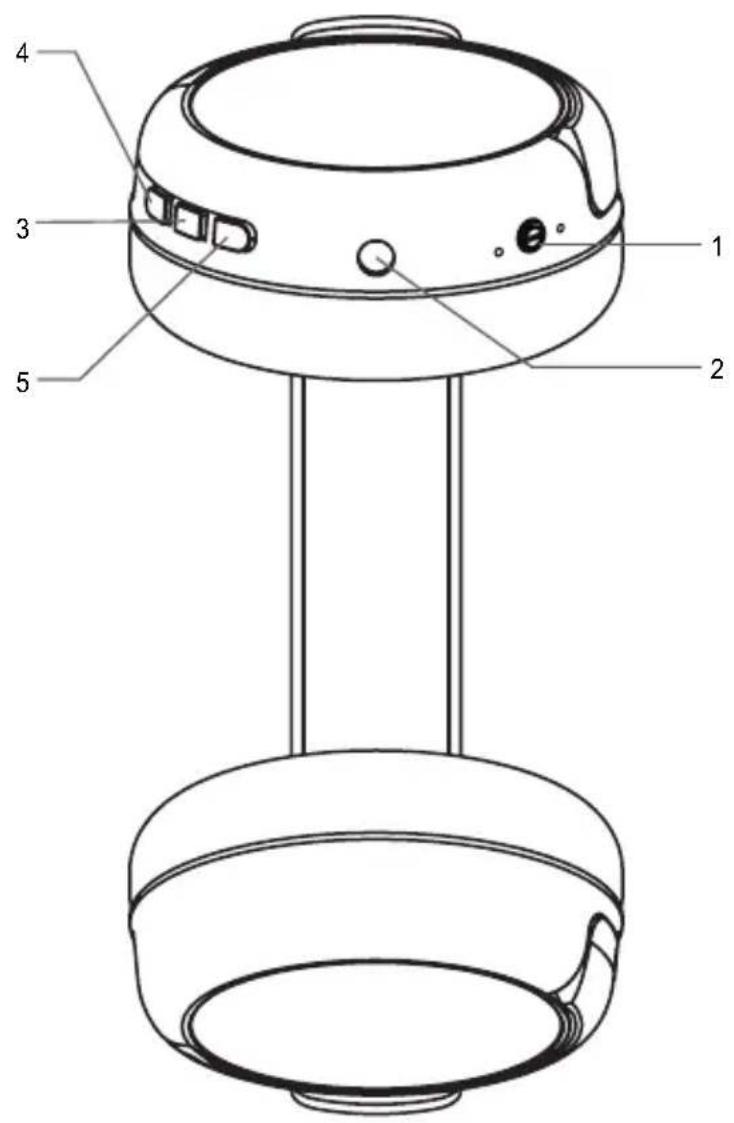

LOCATION OF CONTROLS

Refer to the diagram p.2:

1. ON/Off - Bluetooth®

2. Aux In jack

3. Play / pause

4. Next track / increase volume

5. Previous track / decrease volume

POWER SUPPLY

The Bluetooth® headphones operate with the USB type C charging cable (included) or with a USB type adaptor (not included) 5.0V-1.0A.

The power delivered by the charger must be between min 0.1 Watts required by the radio equipment, and max 1.5 Watts in order to achieve the maximum charging speed.

Charging the device

1. Check that the Bluetooth® is switched off.
2. Insert the small end of the USB type C cable (included) into the USB type C charging port on the right of the unit.
3. Connect the other end of the cable into the USB port of your powered computer or USB type power adaptor and connect it to a wall socket.
4. The LED lights up in red when the device is charging. Once charging is completed, the LED light will turn off.

Note: Continue to enjoy listening to music with the Aux In cable when charging the device.

Note: After approximately 5 minutes of inactivity, headset turns off automatically.

Simple line drawing of a USB cable inserted into a device (no text or symbols)

0.1 - 1.5 W

WARNING: Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, switch it off and then on again, or unplug the USB cable.

WARNING:

• Risk of explosion if battery is incorrectly replaced. Replace only with an identical or equivalent battery.
• The battery must not be exposed to excessive heat (sunlight, fire, etc.). or other sources.
• Maintain a minimum distance around the device to ensure adequate ventilation.
• Ventilation must not be impeded by covering the ventilation openings with objects such as newspapers, tablecloths, curtains, etc.
• No naked flames, such as lighted candles, should be placed on the unit.
• The device is intended for use in temperate and/or tropical climates.
• Batteries must be disposed of properly. To protect the environment, dispose of them in the appropriate collection container.
• Replacing a battery with an incorrect type may invalidate a protective measure (for example, in the case of certain types of lithium battery).
• Disposing of a battery in a fire or hot oven, or crushing or cutting a battery, can cause serious injury.
• Leaving a battery in an extremely high-temperature environment may result in an explosion or the escape of a flammable liquid or gas.
• A battery subjected to extremely low air pressure may cause an explosion or leakage of flammable liquid or gas.

CAUTION : Too high volume can damage your hearing. For this reason, please turn the volume down.

WIRELESS FUNCTION (BLUETOOTH®)

1. Long press the Bluetooth button (1) on the headphones. The LED indicator will flash.
2. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.) and make sure it is in discoverable mode.
3. Confirm pairing or select the Bluetooth® name "HPBT010" to connect your player to the headphones.
4. If pairing is successful, the Bluetooth® light will stop flashing. You can play an audio or a video file.
5. To stop the connection with the headphones, disconnect the Bluetooth® on your audio player.

Notes:

• When turned on, the headphones automatically search for a device that has previously synchronized with.
• If your Bluetooth® device requires a password, the default password is 0000.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners. © 2020 Bluetooth SIG, Inc.

SETTINGS

The headphones include 2 modes: wireless with Bluetooth® connexion and wired via the AUX-IN cable (included).

• To switch the headset on/off, press the ON/OFF button (1) for a few seconds.
• In wired mode, connect the AUX-IN cable to the AUX-IN jack (2). Previous/ decrease volume (5), Play/Pause (3) and next/increase volume (4) buttons are disabled. Please use the control buttons on your music player.
• In Bluetooth®:
• Press Play/Pause (3) to start or pause the audio track.
• Short press Previous and Next buttons (4, 5) to change audio track.
• Long press Previous and Next buttons (4, 5) to control the volume
• The headphones are equipped with a microphone that you can use for your calls. Press the call button (3) once to answer calls. To end a call, press the call button (3) again.
• To change mode, disconnect the AUX-IN cable on the headphones or the Bluetooth® in your music player.

Note: In aux-in mode, the headset's music control buttons are disabled.

Please use the control buttons on your player.

SPECIFICATIONS

• Bluetooth® 5.3 Technology
• Bluetooth® frequency range: 2402 - 2480 MHz
  • Power transmitted: -1.05dBm
  • Built-in rechargeable battery, 3.7V = 400mAh, Li-ion Polymer
• With 3.5mm audio in jack
• Charging current: DC 5.0V = 1000mA
  • Charging time: around 2 hours
• Playing time: 40 hours
  • Effective distance: 10m (straight line without obstacle)
  • The Maximum transmitted power is less than 20mW

SIMPLIFIED EU DECLARATION OF CONFORMITY

Lexibook® S.A.6 avenue des AndesBâtiment 1191940 Les Ulis – France

Lexibook UKPO Box 423UMBERLEIGH, EX32 2JWUnited Kingdom

Kind of product: Bluetooth® Stereo Headphones

Type designation: HPBT010series

Hereby, Lexibook Limited declares that the radio equipment type

HPBT010series is in compliance with Directive 2014/53/EU. and Radio

Equipment Regulations 2017

The full text of the EU declaration of conformity is available at the following internet address: https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

Yiu Wai Man Product Development Manager Hong Kong

MAINTENANCE AND WARRANTY

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® Stereo Headphones once every 3 months in order to maintain the battery life.

This product is covered by our 2 years warranty program (3 months outside Europe), except for the integrated battery which is covered by a 6-month warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information.

Reference: HPBT010series Designed and developed in Europe – Made in China © Lexibook®

United Kingdom & Ireland For after-sales service, please contact us at [e-mail]

This product is not a toy.

Lexibook UK PO Box 423 UMBERLEIG EX32 2JW United Kingd

www.lexibook.com

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems) This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. All batteries should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. The correct disposal of your old batteries will help to prevent

potential negative consequences for the environment, animal and human health.

We strongly advise you to take your product to an official collection point or service center to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. For more detailed information about disposal of your old batteries, please contact your city office or waste disposal service centre.

DESEMBALAJE DEL PRODUCTO

Simple line drawing of a device with an arrow pointing to a plug (no text or symbols)

Alimentación

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

Yiu Wai Man

Simple line drawing of a device with an upward arrow and a USB tag (no text or symbols)

0.1 - 1.5 W

© 2020 Bluetooth SIG, Inc.

DEFINIÇÕES

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

Yiu Wai Man

Simple line drawing of a device with an upward arrow and a USB tag (no text or symbols)

FUNZIONE WIRELESS (BLUETOOTH®)

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

CE

Yiu Wai Man

Diagram of a USB cable inserted into a device (no text or symbols)

WIRESLESS-FUNKTION (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

EINSTELLUNGEN

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

Yiu Wai Man

Simple line drawing of a USB cable inserted into a device (no text or symbols)

DRAADLOZE FUNCTIE (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

INSTELLINGEN

https://www.lexibook.com/doc/hpbt010s/hpbt010s_1.pdf

CE

Yiu Wai Man

Simple line drawing of a device with an arrow pointing to a plug (no text or symbols)

0.1 - 1.5 W

ADVARSEL:

© 2020 Bluetooth SIG, Inc.

NASTAVENÍ

Simple line drawing of a USB cable inserted into a device (no text or symbols)

KONSERWACJA I GWARANCJA

Simple line drawing of a USB flash drive with an arrow pointing to the button (no text or symbols)

A készülék töltése

IM code: HPBT010series_new battery_IM2155
