USER MANUAL TRANSFORMER BOOK T100TA-DK002H, TRANSFORMER BOOK T100TA-DK005H, TRANSFORMER BOOK T100TA-DK003P, TRANSFORMER BOOK T100TA-DK007P, TRANSFORMER BOOK T100TA-DK007H ASUS
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTEK COMPUTER INC. ("ASUS").
ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, Either EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYORS OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ASING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIER OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
Table of Contents
About this manual. 6
Conventions used in this manual 7
Icons 7
7
Safety precautions. 8
Using your Notebook PC. 8
Caring for your Notebook PC 9
Proper disposal. 10
Chapter 1: Hardware Setup
Top View. 12
Tablet features 14
Mobile dock features 19
Chapter 2: Using your Notebook PC
Getting started 22
Docking the tablet on the mobile dock 22
Charging your Notebook PC. 23
Turning on your Notebook PC 26
Gestures for the tablet and touchpad. 27
Using the tablet 27
Using the touchpad 29
Using the keyboard. 36
Function keys 36
Windows® keys 37

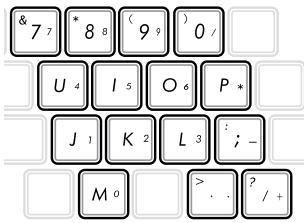

Keyboard as numeric keypad 37

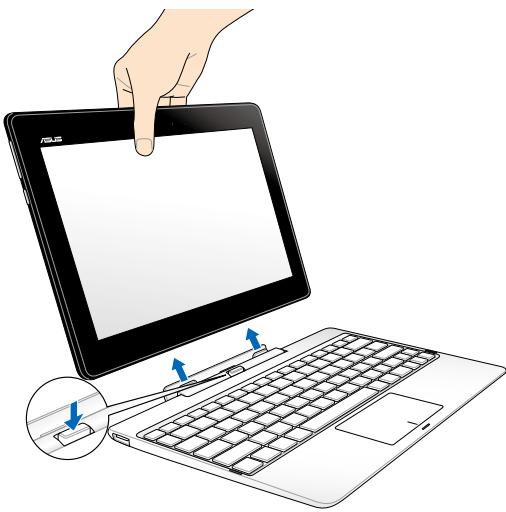

Undocking the tablet 38
Chapter 3: Working with Windows® 8.1
Starting for the first time. 40
Windows 8.1 lock screen.. 40
Windows UI 41

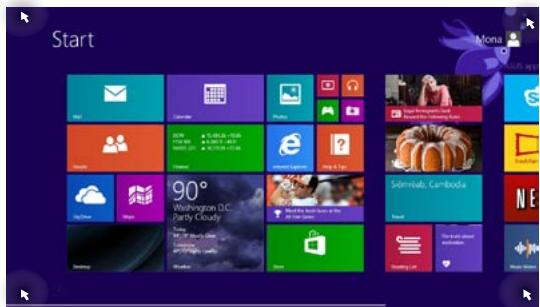

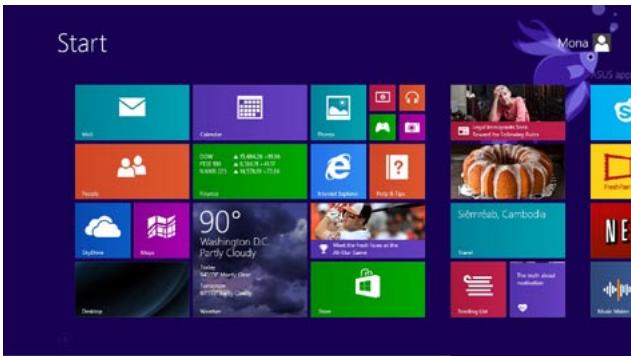

Start screen 41
Windows®Apps 41
Hotspots 42
Working with Windows® apps. 45
Launching apps 45
Customizing apps. 45

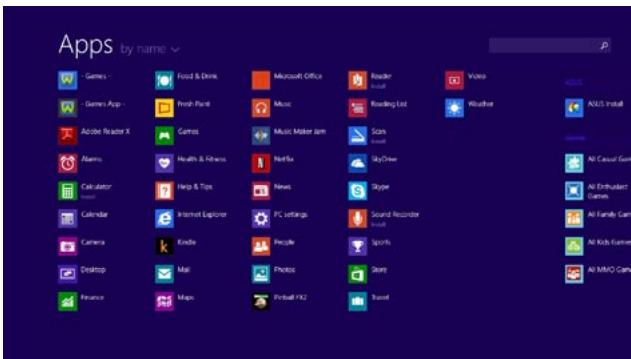

Accessing the Apps screen 48

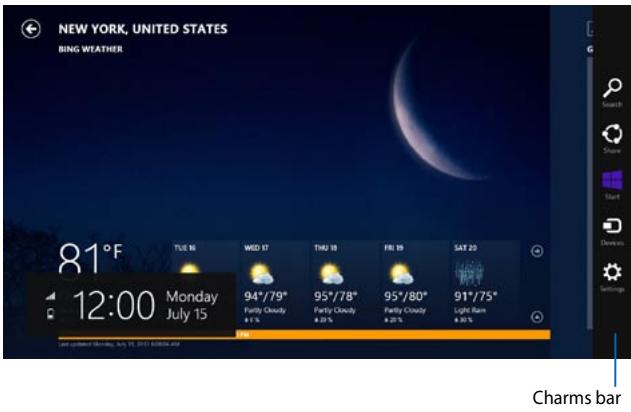

Charms bar 50
Snap feature 53
Other keyboard shortcuts 55
Connecting to wireless networks 57

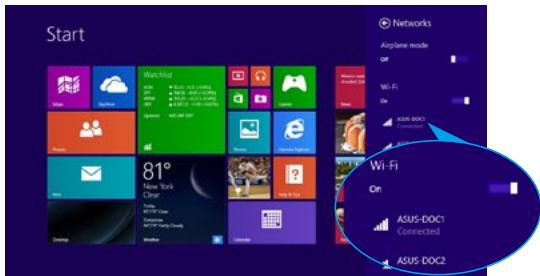

Wi-Fi 57
Bluetooth 59
Airplane mode 61
Turning your Notebook PC off 62
Putting your Notebook PC to sleep 62
Chapter 4: Troubleshooting your Notebook PC
Troubleshoot 64
Refresh your PC 64
Reset your PC 65
Advanced options 66
Tips and FAQs
Useful tips for your Notebook PC 70
Hardware FAQs. 71
Software FAQs. 74
Appendices
Internal Modem Compliancy 78
Overview. 78
Network Compatibility Declaration 79
Non-Voice Equipment 79
Federal Communications Commission Interference Statement 81
FCC Radio Frequency (RF) Exposure Caution Statement 82
Declaration of Conformity (R&TTE directive 1999/5/EC) 83
CE Marking. 83
IC Radiation Exposure Statement for Canada 84
Wireless Operation Channel for Different Domains 86
France Restricted Wireless Frequency Bands 86
UL Safety Notices 88
Power Safety Requirement. 89
TV Notices 89
REACH 89
Macrovision Corporation Product Notice 89
Prevention of Hearing Loss. 89
Nordic Lithium Cautions (for lithium-ion batteries) 90
CTR 21 Approval (for Notebook PC with built-in Modem) 91
ENERGY STAR complied product 93
European Union Eco-label. 93
Global Environmental Regulation Compliance and Declaration 94
ASUS Recycling/Takeback Services 94
Regional notice for Singapore 94
About this manual
This manual provides information about the hardware and software features of your Notebook PC, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your Notebook PC.
Chapter 2: Using your Notebook PC
This chapter shows you how to use the different parts of your Notebook PC.
Chapter 3: Working with Windows® 8.1
This chapter provides an overview of using Windows® 8.1 in your Notebook PC.
Chapter 4: Troubleshooting your Notebook PC
This chapter shows you how to solve problems that you can encounter when using your Notebook PC.
Tips and FAQs
This section presents some recommended tips, hardware FAQs, and software FAQs you can refer to for maintaining and fixing common issues with your Notebook PC.
Appendices
This section includes notices and safety statements for your Notebook PC.
Conventions used in this manual
To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your Notebook PC's data and components.
Icons
The icons below indicate the devices you can use for completing a series of tasks or procedures on your Notebook PC.
= Use the touch screen panel.
= Use the touchpad.
= Use the keyboard.
Typography
Bold =This indicates a menu or an item that must be selected.
Italic =This indicates sections that you can refer to in this manual.
Safety precautions
Using your Notebook PC
This Notebook PC should only be used in environments with ambient temperatures between 5^ (41^) and 35^ (95^) .
Refer to the rating label on the bottom of your Notebook PC and ensure that your power adapter complies with this rating.
Do not leave your Notebook PC on your lap or near any part of your body to prevent discomfort or injury from heat exposure.
Do not use damaged power cords, accessories, and other peripherals with your Notebook PC.
While powered on, ensure that you do not carry or cover your Notebook PC with any materials that can reduce air circulation.
Do not place your Notebook PC on uneven or unstable work surfaces.
You can send your Notebook PC through x-ray machines (used on items placed on conveyor belts), but do not expose them to magnetic detectors and wands.
Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.
Caring for your Notebook PC
Disconnect the AC power and remove the battery pack (if applicable) before cleaning your Notebook PC. Use a clean cellulose sponge or chamos cloth dampened with a solution of nonabrasive detergent and a few drops of warm water. Remove any extra moisture from your Notebook PC using a dry cloth.
Do not use strong solvents such as thinners, benzene, or other chemicals on or near your Notebook PC.
Do not place objects on top of your Notebook PC.
Do not expose your Notebook PC to strong magnetic or electrical fields.
Do not use or expose your Notebook PC near liquids, rain, or moisture.
Do not expose your Notebook PC to dusty environments.
Do not use your Notebook PC near gas leaks.
Proper disposal
Do not throw your Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

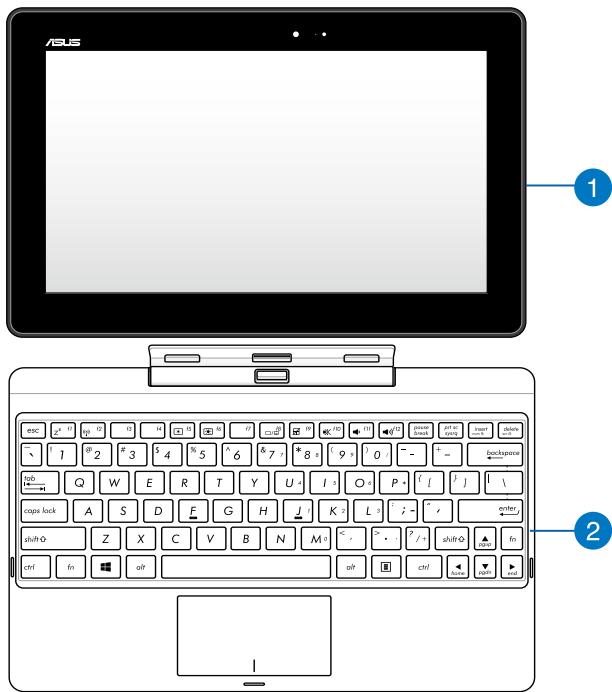

Chapter 1: Hardware Setup
NOTE: The keyboard's layout may vary per region or country.
Tablet
Your Notebook PC comes with a tablet to suit your mobile needs. The tablet is also equipped with its own features for work and play which can be accessed using touch screen gestures.
NOTE: For more details on using the tablet, refer to the Tablet features and Gestures for the tablet and touchpad sections in this manual.
Mobile dock
Connecting the mobile dock to your tablet allows you to use both devices as a Notebook PC. The mobile dock provides additional input features to your touch screen panel via its touchpad and keyboard functions.
IMPORTANT! To know more about connecting or disconnecting your tablet from its mobile dock, refer to the Docking the tablet on the mobile dock and Undoing the tablet sections in this manual.
Tablet features

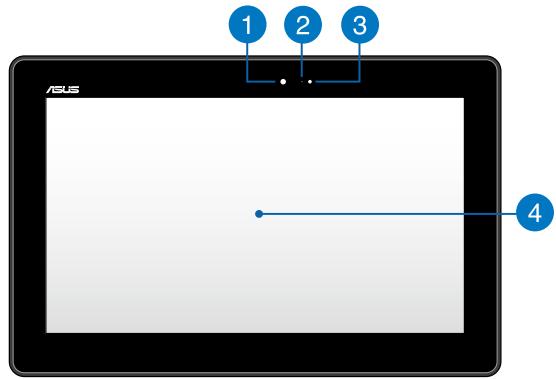

Top and back view
Front camera
The built-in 1.2-megapixel front camera allows you to take pictures or record videos using your Notebook PC.
Camera indicator
The camera indicator lights up when the built-in camera is in use.
Ambient light sensor
The ambient light sensor detects the amount of ambient light in your environment. It allows the system to automatically adjust the brightness of the display depending on the ambient light condition.
Touch screen panel
This high-definition touch screen panel provides excellent viewing features for photos, videos, and other multimedia files on your Notebook PC. It also allows you to operate your Notebook PC using touch gestures.
NOTE: To know more about using touch screen gestures when operating your Notebook PC, refer to the Using the tablet section in this manual.
MicroSD card slot
The tablet comes with a built-in memory card reader slot that supports microSD, microSDHC, and microSDXC card formats.
Audio speakers
The built-in audio speaker allows you to hear audio straight from the Notebook PC. The audio features of this Notebook PC are software-controlled.
Micro USB 2.0 port
Use the micro USB (Universal Serial Bus) port 2.0 to charge or supply power to your Notebook PC.
Micro HDMI port
This port is for a micro HDMI (High-Definition Multimedia Interface) connector and is HDCP compliant for HD DVD, Blu-ray, and other protected content playback.
Headphone output/Microphone input combo jack port
This port allows you to connect your Notebook PC to amplified speakers or headphones. You can also use this port to connect your Notebook PC to an external microphone.
Microphone
The built-in microphone can be used for video conferencing, voice narrations, or simple audio recording.
Battery charge indicator
This two-color LED provides a visual indication of the battery's charge status.
Refer to the table below for details:
Color
White Fully charged.
Orange Charging mode.
OFF The Notebook PC is not plugged to a power source.
Power button
Press the power button to turn your Notebook PC on, put it to sleep mode, and wake it up from sleep mode.
In the event that your Notebook PC becomes unresponsive, press and hold the power button for about ten (10) seconds to force it to shut down.
IMPORTANT! Forcing the system to restart may result in data loss. We strongly recommend that you back up your data regularly.
Volume button
The volume button allows you to increase or decrease the volume level of your Notebook PC.
Windows® button
Press this button to go back to Start screen. If you are already in the Start screen, press this button to go back to the last app you opened.
Bottom side
Dock port
Connect the mobile dock to this port to support keyboard, touchpad, and USB 3.0 port functions.
Hinge holes
Align and insert the latch hooks into these holes to securely attach the tablet to the mobile dock.
NOTE: The keyboard's layout may vary per region or country.

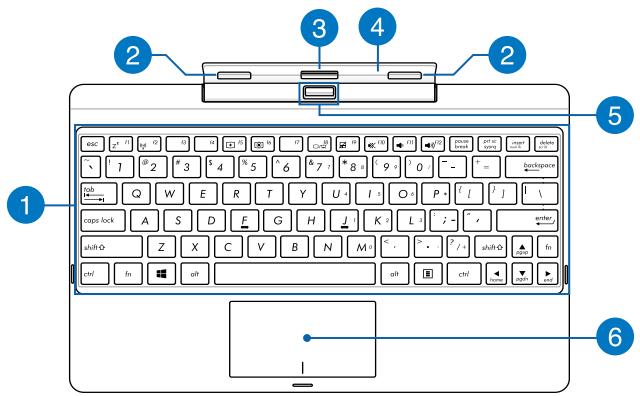

Top view
1 Keyboard
The keyboard provides QWERTY keys with a comfortable travel depth for typing. It also enables you to use the function keys, allows quick access to Windows®, and controls other multimedia functions.
NOTE: The keyboard layout differs by territory.
Latch hooks
The latch hooks allow you to securely attach the tablet on the mobile dock.
Dock connector
Securely attach the tablet into the mobile dock by aligning the dock port on top of this connector.
Hinge
This hinge supports the tablet while it is connected to the mobile dock. It also holds the tablet in place while you adjust it into different viewing angles.
Release button
Press this button to safely detach the tablet from the mobile dock.
Touchpad
The touchpad allows the use of multi-gestures to navigate onscreen, providing an intuitive user experience. It also simulates the functions of a regular mouse.
NOTE: For more details, refer to the Using the touchpad section in this manual.
Left view
USB 3.0 port
The USB 3.0 (Universal Serial Bus 3.0) port provides a transfer rate up to 5Gbit/s and is backward compatible to USB 2.0.
Chapter 2: Using your Notebook PC
Getting started

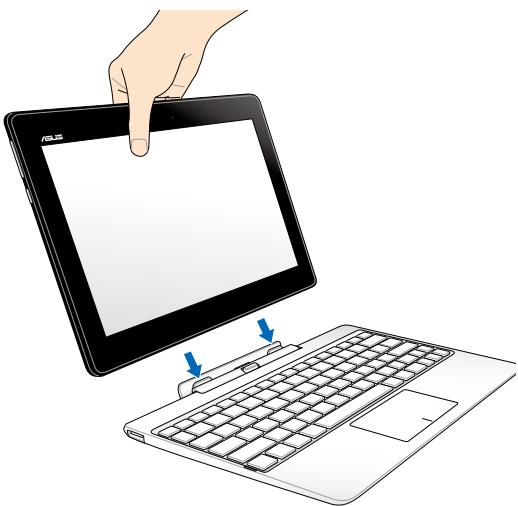

Docking the tablet on the mobile dock
IMPORTANT!
- Ensure to fully insert the tablet to the mobile dock.
Always pick up the entire assembly from the bottom when the tablet is attached to the mobile dock.

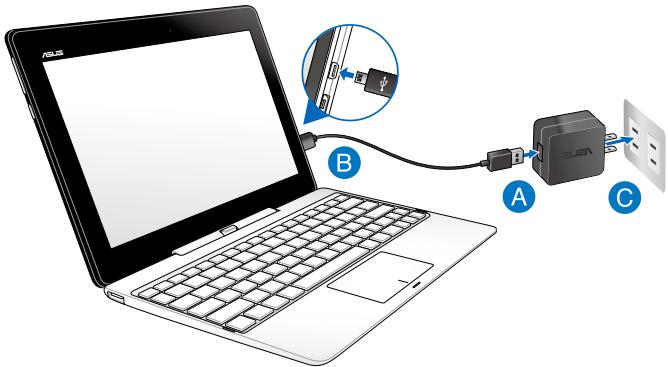

Charging your Notebook PC
To charge your Notebook PC:
A. Connect the micro USB cable to the power adapter.
B. Plug the micro USB connector into the tablet's micro USB 2.0 port.
C. Plug the power adapter into a grounded power outlet.
Charge the Notebook PC for 8 hours before using it in battery mode for the first time.
NOTE: The power adapter may vary in appearance, depending on your country or region.
IMPORTANT!
- Locate the input/output rating label on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
- Ensure that your Notebook PC is connected to the power adapter before turning it on for the first time. We strongly recommend that you use a grounded wall socket while using your Notebook PC on power adapter mode.
- The socket outlet must be easily accessible and near your Notebook PC.
- To disconnect your Notebook PC from its main power supply, unplug your Notebook PC from the power socket.
NOTE:
Power adapter information:
Input voltage: 100-240Vac
Input frequency: 50-60Hz
Rating output current: 2A (10W)
Rating output voltage: 5V
WARNING!
Read the following precautions for your Notebook PC's battery.
Only ASUS-authorized technicians should remove the battery inside the device.
- The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
- Follow the warning labels for your personal safety.
- Risk of explosion if battery is replaced by an incorrect type.
Do not dispose of in fire.
- Never attempt to short-circuit your Notebook PC's battery.
- Never attempt to disassemble and reassemble the battery.
Discontinue usage if leakage is found.
- The battery and its components must be recycled or disposed of properly.
- Keep the battery and other small components away from children.
Turning on your Notebook PC
Press the power button.
NOTE: The power adapter may vary in appearance, depending on your country or region.
Gestures for the tablet and touchpad
Gestures allow you to launch programs and access the settings of your Notebook PC. Refer to the following illustrations when using hand gestures on your tablet and touchpad.
Using the tablet
Left edge swipe
Swipe from the left edge of the screen to shuffle your running apps.
Right edge swipe
Swipe from the right edge of the screen to launch the Charms bar.
Zoom out
Bring together your two fingers on the touch screen panel.
Top edge swipe
In the Start screen, swipe from the top edge of the screen to view the Customize bar.
In a running app, swipe from the top edge of the screen to view its menu.
Zoom in
Spread apart your two fingers on the touch screen panel.
Finger slide
Slide your finger to scroll up and down and slide your finger to pan the screen left or right.
Using the touchpad
Moving the pointer
You can click the pointer anywhere on the touchpad to activate its pointer, then slide on the touchpad to move the pointer onscreen.
Slide horizontally
Slide vertically
Slide diagonally
One finger gestures
Tap/Double tap
In the Start screen, tap an app to launch it.
In Desktop mode, double-tap an application to launch it.
Drag and drop
Double-tap an item, then slide the same finger without lifting it off the touchpad. To drop the item to its new location, lift your finger from the touchpad.
Left-click
Right-click
In the Start screen, click an app to launch it.
- In Desktop mode, double-click an application to launch it.
In the Start screen, click an app to select it and launch the settings bar. You can also press this button to launch the Customize bar.
- In Desktop mode, use this button to open the right-click menu.
NOTE: The areas inside the dotted line represent the locations of the left mouse button and the right mouse button on the touchpad.
Top edge swipe
In the Start screen, swipe from the top edge to launch the Customize bar.
In a running app, swipe from the top edge to view its menu.
Left edge swipe
Right edge swipe
Swipe from the left edge to shuffle your running apps.
Swipe from the right edge to launch the Charms bar.
Two finger gestures
Tap
Tap two fingers on the touchpad to simulate the right-click function.
Rotate
To rotate an image, place two fingers on the touchpad then turn one finger clockwise or counterclockwise while the other stays still.
Two-finger scroll (up/down)
Slide two fingers to scroll up or down.
Two-finger scroll (left/right)
Slide two fingers to scroll left or right.
Zoom out
Bring together your two fingers on the touchpad.
Zoom in
Spread apart your two fingers on the touchpad.
Drag and drop
Select an item then press and hold the left button. Using your other finger, slide down the touchpad to drag and drop the item to a new location.
Three-finger gestures
Swipe up
Swipe down
Swipe three fingers upward to show all running applications.
Swipe three fingers downward to show the Desktop mode.
Using the keyboard
Function keys
The function keys on your Notebook PC's keyboard can trigger the following commands:
Puts the Notebook PC into Sleep mode
Turns the Wi-Fi function on or off
Decreases display brightness
Increases display brightness
Activates the second screen settings
NOTE: Ensure that the second display is connected to your Notebook PC.
Enables or disables the touchpad
Turns the speaker on or off
Turns the speaker volume down
Turns the speaker volume up
Windows® keys
There are two special Windows® keys on your Notebook PC's keyboard used as below:
Press this key to go back to the Start screen. If you are already in the Start screen, press this key to go back to the last app you opened.
Press this key to simulate the right-click functions.
Keyboard as numeric keypad
This Notebook PC comes with 15 select keys that you can also use for numeric input.
Press _n + to toggle between using these keys as number keys or as their original keyboard function.
Undocking the tablet
Press the release button on the mobile dock to securely detach the tablet from the latch hooks, then gently pull out the tablet.
Chapter 3:
Working with Windows® 8.1
Starting for the first time
When you start your computer for the first time, a series of screens appear to guide you in configuring the basic settings of your Windows® 8.1 operating system.
To start your Notebook PC for the first time:
- Press the power button on your Notebook PC. Wait for a few minutes until the setup screen appears.
- From the setup screen, pick a language to use on your Notebook PC. As other settings appear, select your country or region, app language, keyboard layout, and time zone then tap Next.
- Carefully read the License Terms, then tap I Accept.
- Follow the onscreen instructions to configure the following basic items:
Personalize
Connect
- Settings
Your account
- After configuring the basic items, the Windows®8.1 tutorial appears. Watch this to learn more about Windows®8.1 functionalities.
Windows® 8.1 lock screen
The Windows®8.1 lock screen may appear when your Notebook PC enters the Windows®8.1 operating system. To proceed, tap on the lock screen or press any key on your Notebook PC's keyboard.
Windows® UI
Windows® 8.1 comes with a tile-based user interface (UI) which allows you to organize and easily access Windows® apps from the Start screen. It also includes the following features that you can use while working on your Notebook PC.
Start screen
The Start screen appears after successfully signing in to your user account. It helps organize all the applications you need in just one place.
Windows® Apps
These are apps pinned on the Start screen and displayed on tiled-format for easy access.
NOTE: Some apps require signing in to your Microsoft account before they are fully launched.

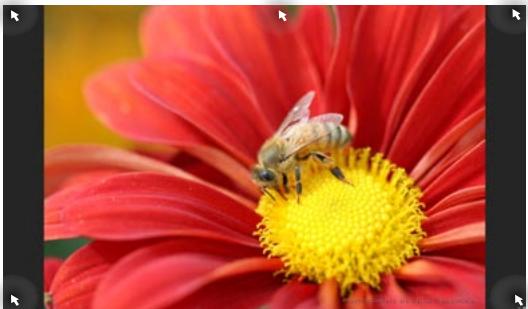

Hotspots
Onscreen hotspots allow you to launch programs and access the settings of your Notebook PC. The functions in these hotspots can be activated using the touchpad of your mobile dock.
Hotspots on a running app
Hotspots on the Start screen
| Hotspot | Action |
| upper left corner | Hover your mouse pointer on the upper left corner then tap on the recent app's thumbnail to revert back to that running app. |
| If you launched more than one app, slide down to show all running apps. | |
| lower left corner | From a running app screen: Hover your mouse pointer on the lower left corner then tap to go back to the Start screen. NOTE: You can also press the Windows key on your keyboard to go back to the Start screen. |
| From the Start screen: Hover your mouse pointer on the lower left corner then tap to go back to that app. | |
| top side | Hover your mouse pointer on the top side until it changes to a hand icon. Drag then drop the app to a new location. |
| NOTE: This hotspot function only works on a running app or when you want to use the Snap feature. For more details, refer to the Snap feature under Working with Windows® apps. | |
| upper or lower right corner | Hover your mouse pointer on the upper or lower right corner to launch the Charms bar. |
Working with Windows® apps
Use your Notebook PC's touch screen panel, touchpad, or keyboard to launch, customize, and close apps.
Launching apps
Tap an app to launch it.
Position your mouse pointer over the app then left-click or tap once to launch it.
Press tab thrice then use the arrow keys to browse through the apps. Press enter to launch an app.
Customizing apps
You can move, resize, unpin, or close apps from the Start screen using the following steps:
Moving apps
Tap and hold the app tile then drag it to a new location.
Double-tap on the app then drag and drop the app to a new location.
Resizing apps
- Tap and hold the app tile for one (1) second, then release it to launch the Customize bar.
- Tap and select an app tile size.
Right-click on the app to activate its settings bar, then tap and select an app tile size.
Unpinning apps
- Tap and hold the app tile for one (1) second, then release it to launch the Customize bar.
- Tap Unpin from Start to unpin an app.
Right-click on the app to activate the Customize bar
then tap Unpin from Start
Closing apps
Tap and hold the top side of the running app then drag it down to the bottom of the screen to close it.
- Move your mouse pointer on the top side of the launched app then wait for the pointer to change to a hand icon.
- Drag then drop the app to the bottom of the screen to close it.
From the running app's screen, press + 4 .
Accessing the Apps screen
Aside from the apps already pinned on your Start screen, you can also open other applications through the Apps screen.
Launching the Apps screen
Launch the Apps screen using your Notebook PC's touch screen panel, touchpad, or keyboard.
Swipe the Start screen up to open the Apps screen.
On the Start screen, click the button.
From the Start screen, Press tab then press
Pinning more apps on the Start screen
You can pin more apps on the Start screen using your touch screen panel or touchpad.
-
Tap and hold the app tile for one (1) second, then release it to launch the Customize bar.
-
Tap to pin the selected app on the Start screen.
-
Position the mouse pointer over the app you want to pin on the Start screen.
-
Right-click on the app to activate its settings.
-
Tap on the
Charms bar
The Charms bar is a toolbar that can be triggered on the right side of your screen. It consists of several charms that allow you to share applications and provide quick access for customizing the settings of your Notebook PC.
Launching the Charms bar
NOTE: When called out, the Charms bar initially appears as a set of white icons. The image above shows how the Charms bar looks like once activated.
Use your Notebook PC's touch screen panel, touchpad, or keyboard to launch the charms bar.
Swipe from the right edge of the screen to launch the Charms bar.
Move your mouse pointer on the upper or lower right corner of the screen.
Press C
Inside the Charms bar
Search
This charm allows you to look for files, applications, or programs in your Notebook PC.
Share
This charm allows you to share applications via social networking sites or email.
Start
This charm reverts the display back to the Start screen. From the Start screen, you can also use this to revert back to a recently opened app.
Devices
This charm allows you to access and share files with the devices attached to your Notebook PC such as an external display or printer.
Settings
This charm allows you to access the PC settings of your Notebook PC.

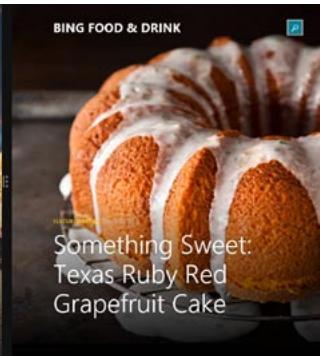

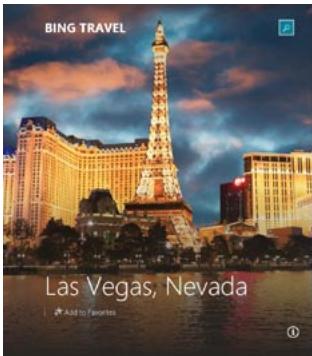

Snap feature
The Snap feature displays two apps side-by-side, allowing you to work or switch between apps.
IMPORTANT! Ensure that your Notebook PC's screen resolution is set to 1366 x 768 pixels or higher before using the Snap feature.
Snap bar
Using Snap
Use your Notebook PC's touch screen panel, touchpad or keyboard to activate and use Snap.
- Launch the app you wish to snap.
- Tap and hold the app's topmost part then drag it to the left or right side of the screen until the snap bar appears.
- Launch another app.
- Launch the app you wish to snap.
- Hover the mouse point on the top side of your screen.
- Once the pointer changes to a hand icon, drag then drop the app to the left or right side of the display panel.
- Launch another app.
Other keyboard shortcuts
Using the keyboard, you can also use the following shortcuts to help you launch applications and navigate Windows®8.1.
| Switches between the Start screen and the last running app | |
| + D | Launches the desktop |
| + E | Launches the Computer window on Desktop mode |
| + F | Opens the File charm |
| + H | Opens the Share charm |
| + I | Opens the Settings charm |
| + K | Opens the Devices charm |
| + L | Activates the Lock screen |
| + M | Minimizes the Internet Explorer window |
Opens the Second screen pane
Opens the Apps search pane
Opens the Run window
Opens Ease of Access Center
Opens the Settings charm
Opens a menu box of
*tools
Launches the magnifier icon and zooms in your screen
Zooms out your screen
Opens the Narrator Settings
Connecting to wireless networks
Wi-Fi
Access e-mails, surf the Internet, and share applications via social networking sites using your Notebook PC's Wi-Fi connection.
IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Wi-Fi connection of your Notebook PC.
Enabling Wi-Fi
Activate Wi-Fi in your Notebook PC using the following steps on your touch screen panel or touchpad.
or
- Launch the Charms bar.
- Tap.click Settings and tap.click Available
- Select an access point from the list of available Wi-Fi connections.
or
- Tap/click Connect to start the network connection.
NOTE: You may be prompted to enter a security key to activate the Wi-Fi connection.
- If you want to enable sharing between your Notebook PC and other wireless-enabled systems, tap.click Yes. Tap.click No if you do not want to enable the sharing function.
Bluetooth
Use Bluetooth to facilitate wireless data transfers with other Bluetooth-enabled devices.
IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Bluetooth connection of your Notebook PC.
Pairing with other Bluetooth-enabled devices
You need to pair your Notebook PC with other Bluetooth-enabled devices to enable data transfers. To do this, use the touch screen panel or touchpad as follows:
or
- Launch the Charms bar.
- Tap.click Settings then tap.click Change PC settings.
- Under PC Settings, select PC & devices > Bluetooth then move the Bluetooth slider to On.
or
- Select a device from the list. Compare the passcode on your Notebook PC with the passcode sent to your chosen device. If they are the same, tap/click Yes to successfully pair your Notebook PC with the device.
NOTES:
- For some bluetooth-enabled devices, you may be prompted to key in the passcode of your Notebook PC.
- Ensure that your bluetooth-enabled devices are discoverable.
Airplane mode
The Airplane mode disables wireless communication, allowing you to use your Notebook PC safely while in-flight.
Turning Airplane mode on
or
-
Launch the Charms bar.
-
Tap.click
and tap.click
- Move the slider to the right to turn the Airplane mode on.
Press _n +
Turning Airplane mode off
or
-
Launch the Charms bar.
-
Tap.click
and tap.click
- Move the slider to the left to turn the Airplane mode off.
Press _n +
NOTE: Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.
Turning your Notebook PC off
You can turn off your Notebook PC by doing either of the following procedures:
or
Tap.click
from the Charms bar then
tap.click > Shut down to do a normal
shutdown.
From the log-in screen, tap/click
Shut
down.
You can also shut down your Notebook PC using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Shut Down from the drop-down list then select OK.
If your Notebook PC is unresponsive, press and hold the power button for at least ten (10) seconds until your Notebook PC turns off.
Putting your Notebook PC to sleep
To put your Notebook PC on Sleep mode, press the power button once.
You can also put your Notebook PC to sleep mode using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Sleep from the drop-down list then select OK.
Chapter 4: Troubleshooting your Notebook PC
Troubleshoot
By pressing during POST, you can access Windows® 8.1 troubleshoot options which includes the following:
Refresh your PC
Reset your PC
Advanced options
Refresh your PC
Use Refresh your PC if you want to refresh your system without losing your current files and applications.
To access this during POST:
- Restart your Notebook PC then press during POST.
- Wait for Windows® to load the Choose an option screen then tap Troubleshooting.
- Tap Refresh your PC.
- In the Refresh your PC screen, read the bullet points to learn more about using this option then tap Next.
- Tap the account you would like to refresh.
- Type your account password then tap Continue.
- Tap Refresh.
IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before refreshing your system.
IMPORTANT! Back up all your data before performing this option.
Use Reset your PC to restore your Notebook PC to its default settings.
To access this during POST:
- Restart your Notebook PC then press during POST.
- Wait for Windows® to load the Choose an option screen then tap Troubleshooting.
- Tap Reset your PC.
- In the Reset your PC screen, read the bullet points to learn more about using this option then tap Next.
- Tap your preferred reset option: Just remove my files or Fully clean the drive.
- Tap Reset.
IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before resetting your system.
Advanced options
Use Advanced options to perform additional troubleshooting options in your Notebook PC.
To access this during POST:
- Restart your Notebook PC then press during POST.
- Wait for Windows® to load the Choose an option screen then tap Troubleshooting.
- Tap Advanced options.
- In the Advanced options screen, select the troubleshooting option you wish to perform.
- Follow the succeeding steps to complete the process.
Using System Image Recovery
Under Advanced options, you can use System Image Recovery to recover your system using your Notebook PC's original image file.
To access this during POST:
- Restart your Notebook PC then press during POST.
- Wait for Windows® to load the Choose an option screen then tap Troubleshooting.
-
Tap Advanced options.
-
In the Advanced options screen, select System Image Recovery.
- Choose an account you would like to recover using a system image file.
- Type your account password then tap Continue.
- Select Use the latest available system image (recommended), then tap Next. You can also choose Select a system image if your system image is in an external device or DVD.
- Follow the succeeding steps to complete the system image recovery procedure.
NOTE: We strongly recommend that you regularly backup your system to prevent data loss in case your Notebook PC stops working.
Tips and FAQs
Useful tips for your Notebook PC
To help you maximize the use of your Notebook PC, maintain its system performance, and ensure all your data are kept secured, here are some useful tips that you can follow:
- Update Windows® periodically to ensure that your applications have the latest security settings.
Use ASUS Live Update to update ASUS-exclusive applications, drivers and utilities in your Notebook PC. Refer to the ASUS Tutor installed in your Notebook PC for more details.
Use an anti-virus software to protect your data and keep this updated too.
Unless absolutely necessary, refrain from using force shutdown to turn off your Notebook PC.
Always backup your data and make it a point to create a backup data in an external storage drive. - Refrain from using the Notebook PC at extremely high temperatures. If you are not going to use your Notebook PC for a long period of time (at least a month), we recommend that you take out the battery if the battery is removable.
- Disconnect all external devices and ensure you have the following items prior to resetting your Notebook PC:
Product key for your operating systems and other installed applications
- Backup data
- Log in ID and password
- Internet connection information
Hardware FAQs
- A black dot, or sometimes a colored dot, appears onscreen when I turn on the Notebook PC. What should I do?
Although these dots normally appear onscreen, they will not affect your system. If the incident continues and subsequently affects system performance, consult an authorized ASUS service center.
- My display panel has an uneven color and brightness. How can I fix this?
The color and brightness of your display panel may be affected by the angle and current position of your Notebook PC. The brightness and color tone of your Notebook PC may also vary per model. You may use the function keys or the display settings in your operating system to adjust the appearance of your display panel.
- How can I maximize my Notebook PC's battery life?
You can try doing any of the following suggestions:
Use the function keys to adjust the display brightness.
If you are not using any Wi-Fi connection, switch your system into Airplane mode.
Disconnect unused USB devices.
- Close unused applications, especially those that take up too much system memory.
4. My battery charge indicator does not light up. What's wrong?
- Check whether the power adapter or battery pack is attached correctly. You may also disconnect the power adapter or battery pack, wait for a minute, then reconnect them again to the power outlet and Notebook PC.
If the problem still exists, contact your local ASUS service center for assistance.
5. Why is my touchpad not working?
Press _n + _n to enable your touchpad.
- Check if ASUS Smart Gesture has been set to disable the touchpad when connecting an external pointing device.
6. When I play audio and video files, why can't I hear any sound from my Notebook PC's audio speakers?
You can try doing any of the following suggestions:
Press _n + _12 to turn up the speaker volume.
Check if your speakers were set to mute.
- Check if a headphone jack is connected to your Notebook PC and remove it.
7. What should I do if my Notebook PC's power adapter gets lost or my battery stops working?
Contact your local ASUS service center for assistance.
- Why does audio still come out from my Notebook PC's audio speakers even if I already connected my headphone into the right jack port?
Go to Control Panel > Hardware and Sound then access Audio Manager to configure the settings.
- My Notebook PC cannot do keystrokes correctly because my cursor keeps on moving. What should I do?
Make sure that nothing accidentally touches or presses on your touchpad while you type on the keyboard. You can also disable your touchpad by pressing _n + _n^ .
- My Notebook PC's touchpad is not working. What should I do?
You can try doing any of the following suggestions:
-
Check if ASUS Smart Gesture is set to disable touchpad by connecting an external pointing device to your Notebook PC. If yes, disable this function.
Press _n + -
Instead of showing letters, pressing the "U", "I", and "O" keys on my keyboard displays numbers. How can I change this?
Press the num lk key or shift + (on selected models) on your Notebook PC to turn off this feature and use the said keys for inputting letters.
Software FAQs
1. When I turn on my Notebook PC, the power indicator lights up but nothing appears on my screen. What can I do to fix this?
You can try doing any of the following suggestions:
- Force shutdown your Notebook PC by pressing the power button for about ten (10) seconds. Check if the power adapter and battery pack are inserted correctly then turn on your Notebook PC.
If the problem still exists, contact your local ASUS service center for assistance.
2. What should I do when my screen displays this message: "Remove disks or other media. Press any key to restart."?
You can try doing any of the following suggestions:
- Remove all connected USB devices then restart your Notebook PC.
If the problem still exists, your Notebook PC might have a memory storage problem. Contact your local ASUS service center for assistance.
3. My Notebook PC boots slower than usual and my operating system lags. How can I fix this?
Delete the applications you recently installed or were not included with your operating system package then restart your system.
4. My Notebook PC does not boot up. How can I fix this?
You can try doing any of the following suggestions:
- Remove all connected devices to your Notebook PC then restart your system.
Press F9 upon startup. When your Notebook PC enters Troubleshooting, select Refresh or Reset your PC.
If the problem still exists, contact your local ASUS service center for assistance.
5. Why can't my Notebook PC wake up from sleep mode?
You need to press the power button to resume your last working state.
- Your system might have completely used up its battery power. Connect the power adapter to your Notebook PC and connect to a power outlet then press the power button.
Appendices
Internal Modem Compliancy
The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems you should contact your equipment supplier in the first instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).
CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the analogue public switched telephone networks of terminal equipment (excluding terminal equipment supporting the voice telephony justified case service) in which network addressing, if provided, is by means of dual tone multifrequency signalling.
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notified Body and the vendor: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have interworking difficulties."
Statement to be made by the manufacturer to the user: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where network compatibility is dependent on physical and software switch settings. It will also advise the user to contact the vendor if it is desired to use the equipment on another network."
Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The results are Europe's first modems which do not require regulatory approvals in each individual European country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines, auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.
This table shows the countries currently under the CTR21 standard.
| Country | Applied | More Testing |
| Austria1 | Yes | No |
| Belgium | Yes | No |
| Czech Republic | No | Not Applicable |
| Denmark1 | Yes | Yes |
| Finland | Yes | No |
| France | Yes | No |
| Germany | Yes | No |
| Greece | Yes | No |
| Hungary | No | Not Applicable |
| Iceland | Yes | No |
| Ireland | Yes | No |
| Italy | Still Pending | Still Pending |
| Israel | No | No |
| Lichtenstein | Yes | No |
| Luxemburg | Yes | No |
| The Netherlands1 | Yes | Yes |
| Norway | Yes | No |
| Poland | No | Not Applicable |
| Portugal | No | Not Applicable |
| Spain | No | Not Applicable |
| Sweden | Yes | No |
| Switzerland | Yes | No |
| United Kingdom | Yes | No |
This information was copied from CETECOM and is supplied without liability. For updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.html
1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).
In The Netherlands additional testing is required for series connection and caller ID facilities.
Federal Communications Commission Interference Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)
FCC Radio Frequency (RF) Exposure Caution Statement
WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.
Declaration of Conformity (R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant and sufficient:
Essential requirements as in [Article 3]
Protection requirements for health and safety as in [Article 3.1a]
Testing for electric safety according to [EN 60950]
Protection requirements for electromagnetic compatibility in [Article 3.1b]
Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
Effective use of the radio spectrum as in [Article 3.2]
Radio test suites according to [EN 300 328-2]
CE Marking
CE
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".
C∈
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
This device may not cause interference and
This device must accept any interference, including interference that may cause undesired operation of the device.
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
This device complies with Industry Canada licence-exempt RSS standard(s).
CANICES-3(B)/NMB-3(B)
Wireless Operation Channel for Different Domains
N. America
2.412-2.462 GHz
Ch01 through CH11
Japan
2.412-2.484 GHz
Ch01 through Ch14
Europe ETSI
2.412-2.472 GHz
Ch01 through Ch13
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:
10mW for the entire 2.4 GHz band (2400 MHz-2483.5 MHz)
100mW for frequencies between 2446.5 MHz and 2483.5 MHz
NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.
There are few possibilities for outdoor use: on private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5-2483.5 MHz band. Use outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
Maximum authorized power indoors is 100mW
Maximum authorized power outdoors is 10mW
Departments in which the use of the 2400-2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:
| 01 Ain | 02 Aisne | 03 Allier |
| 05 Hautes Alpes | 08 Ardennes | 09 Ariège |
| 11 Aude | 12 Aveyron | 16 Charente |
| 24 Dordogne | 25 Doubs | 26 Drôme |
| 32 Gers | 36 Indre | 37 Indre et Loire |
| 41 Loir et Cher | 45 Loiret | 50 Manche |
| 55 Meuse | 58 Nièvre | 59 Nord |
| 60 Oise | 61 Orne | 63 Puy du Dôme |
| 64 Pyrénées Atlantique | 66 Pyrénées Orientales | 67 Bas Rhin |
| 68 Haut Rhin | 70 Haute Saône | 71 Saône et Loire |
| 75 Paris | 82 Tarn et Garonne | 84 Vaucluse |
| 88 Vosges | 89 Yonne | 90 Territoire de Belfort |
| 94 Val de Marne |
This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.arcep.fr)
NOTE: Your WLAN Card transmits less than 100mW , but more than 10mW .
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).
When using the Notebook PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
DO NOT use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
DO NOT use the Notebook PC during an electrical storm. There may be a remote risk of electric shock from lightning.
DO NOT use the Notebook PC in the vicinity of a gas leak.
Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.
- Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
- Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .
TV Notices
Note to CATV System Installer—Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance.
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispense of used batteries according to the manufacturer's instructions. (English)
BHHAMAH!E! Prn 3aemeHe aKKyMynIaTOp Ha aKKyMynIaTOp INHO TnA BO3MOXHO erO BO3rpanHe. YtJIIN3uPyTe aKKyMynIaTOp B COOTBETCTBnC INHCTpyKzIMn npO3BQdITeRn.(Russian)
Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.
CTR 21 Approval (for Notebook PC with built-in Modem)
Danish
The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.
In the event of problems, you should contact your equipment supplier in the first instance.
Finnish
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 15 and 30 minutes of user inactivity. To wake your computer, click the mouse or press any key on the keyboard. Please visit http://www.energy.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.
NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.
European Union Eco-label
This Notebook PC has been awarded the EU Flower label, which means that this product has the following characteristics:
- Decreased energy consumption during use and stand-by modes.
- Limited use of toxic heavy metals.
- Limited use of substances harmful to the environment and health.
- Reduction of the use of natural resources by encouraging recycling.
- Designed for easy upgrades and longer lifetime through providing compatible spare parts such as batteries, power supplies, the keyboard, the memory, and if available the CD drive or DVD drive.
- Reduced solid waste through takeback policy.
For more information on the EU Flower label, please visit the European Union Ecolabel website at http://www.ecolabel.eu.
Global Environmental Regulation Compliance and Declaration
ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/ english/Takeback.htm for detailed recycling information in different regions.
Regional notice for Singapore
Complies with IDA Standards DB103778
This ASUS product complies with IDA Standards.
EC Declaration of Conformity
We, the undersigned,
| Manufacturer: | ASUSTEK COMPUTER INC. |
| Address, City: | 4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN |
| Country: | TAIWAN |
| Authorized representative in Europe: | ASUS COMPUTER GmbH |
| Address, City: | HARKORT STR. 21-23, 40880 RATINGEN |
| Country: | GERMANY |
declare the following apparatus:
| Product name : | Notebook PC |
| Model name : | T10GT, H10GT, R104T |
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
| EN 55022.2010 | EN 55024.2010 |
| EN 61009.3-A+2000 | EN 61008.2009 |
| EN 55013.2001+A1 2003+A2 2006 | EN 55020.2007+A11.2010 |
1999/5/EC-R &TTE Directive
| EN 300 328 V1.7(2006-10) | EN 301 489-1 V1.9(2011-09) |
| EN 300 440-1 V1.6(2010-08) | EN 301 489-3 V1.4(2002-08) |
| EN 301 489-30 (2010-08) | EN 301 489-30(1.5V1.005-11) |
| EN 301 511 V9.0(2002-03-03) | EN 301 489-1 V7.1(2005-11) |
| EN 301 908-1 V5.2(2011-05) | EN 301 489-9 V1.4(2007-11) |
| EN 301 908-2 V5.2(2011-07) | EN 301 489-17 V2.1(1.009-05) |
| EN 301 489-34.1 V8.3(2011-01) | EN 301 489-34.1 V8.3(2011-09) |
| EN 302 544-2 V1.1(2009-01) | EN 302 326-2 V1.2(2007-06) |
| EN 302 623 V1.1(2009-01) | EN 302 326-3 V1.3(2007-09) |
| EN 50360-2001 | EN 301 357-2 V1.4(2008-11) |
| EN 50349-2010 | EN 302 291-1 V1.1(2005-07) |
| EN 50385-2002 | EN 302 291-2 V1.1(2005-07) |
| EN 62311-2008 |
2006/95/EC-LVD Directive
| EN 60950-1 / A12:2011 | EN 60065:2002 / A12:2011 |
2009/125/EC-ErP Directive
| Regulation (EC) No. 1275/2008 | Regulation (EC) No. 278/2009 |
| Regulation (EC) No. 642/2009 |
2011/65/EU-RoHS Directive
CE marking
Ver. 130208
(EC conformity marking)
Position: CEO
Name: Jerry Shen
Signature :
Declaration Date: 10/09/2013
Year to begin affixing CE marking:2013
