USER MANUAL SoundBeat 2.0 Overmax

Black outdoor baby electronic device with digital display and speaker control buttons (no visible text or symbols)

OVERMAX

You • unlimited

SOUNDBEAT 2.0

PL

Thank you for purchasing our product. Before you use the product for the first time, please read this manual carefully to get familiar with all its functions. The manual must be kept for future reference.

Safety information

1. Store the loudspeaker away from humid areas, high temperature, oil and other liquids.
2. Do not expose the product to direct sunlight and rain.
3. Set a suitable volume to avoid hearing impairment.
4. If you do not use the product for a long time, charge it at least once per three months in order to avoid damage to lithium battery.
5. It is forbidden to disassemble, repair or open the product.
6. Keep out of the reach of children to avoid electric shock or suffocation.

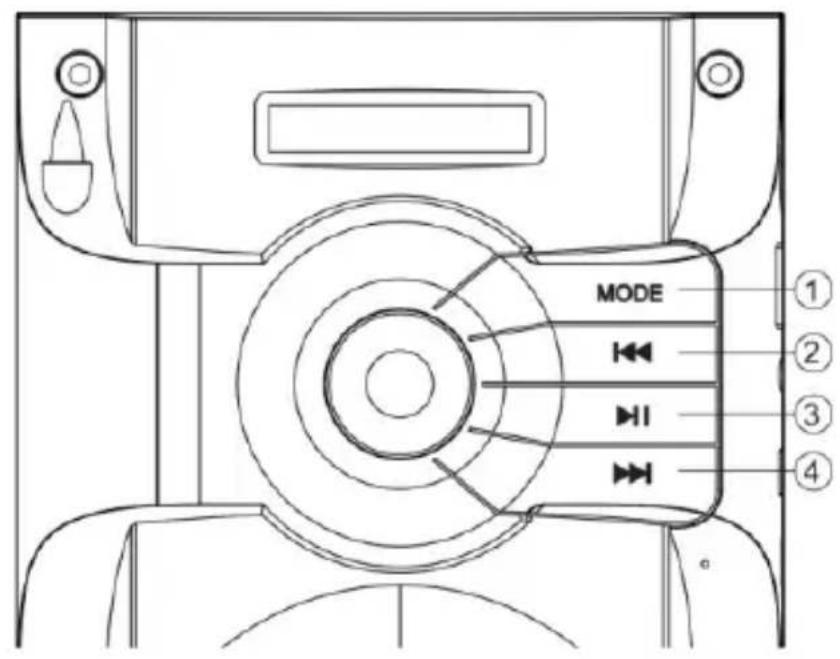

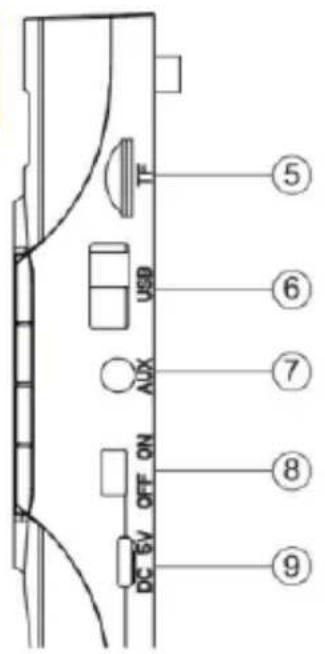

Description of functions:

EN

TF USD AUX DC TV OFF ON ⑤ ⑥ ⑦ ⑧ ⑨

MODE ① ② ③ ④

1. „Mode” button serves to switch modes of the speaker: bluetooth, radio FM and input devices, i.e. pendrive, micro SD card and AUX
2. Previous (track/station)
3. Play/pause
4. Next (track/station)
5. Micro SD slot
6. USB port
7. AUX port
8. ON/OFF
9. DC port micro USB 5V

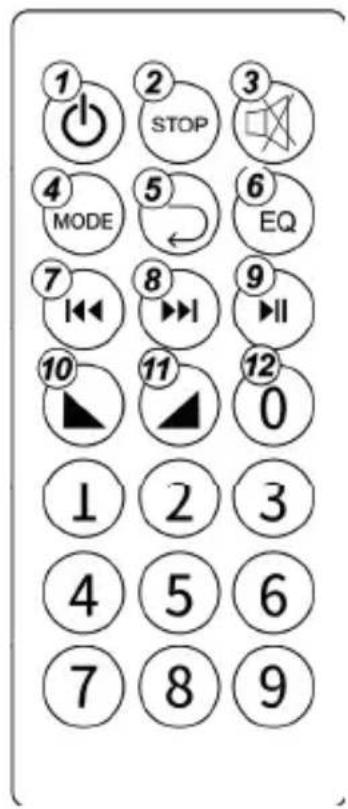

Remote control functions:

1 ① ② STOP ③ ④ MODE 5 ← ⑥ EQ ⑦ ◀◀ ⑧ ▶◀ ⑨ ▶◀ ⑩ 10 11 12 0 1 2 3 4 5 6 7 8 9

1. Standby
2. Stop
3. Mute
4. Switch mode
5. Replay
6. Equalizer
7. Short press for previous track/frequency. Under FM, long press for manually search of FM
8. Short press for next track/frequency. Under FM, long press for manually search of FM.
9. Short press for play/pause; Under FM, Long press for automatically search of FM and memory
10. Volume down
11. Volume up
12. Number button from 0-9

MODES:

„Mode” button serves to switch modes of the speaker: bluetooth, Radio FM and input devices, i.e. pendrive, micro SD card and AUX.

BLUETOOTH MODE:

To activate bluetooth mode, switch the loudspeaker on. Use “Mode” button to select bluetooth. In the device you wish to use to connect to the loudspeaker, activate bluetooth function and find the device called Soundbeat 2.0. Select the device from the list of devices to make a connection. Once the pairing process has been completed successfully, the device is ready for transmitting sound.

EN

RADIO MODE:

To activate radio FM mode, switch the loudspeaker on. Use „Mode” button to select Radio. To search for available radio stations automatically, click and hold ▶Stations will be saved automatically. To switch stations, click or ▶. To start searching radio stations manually, click and hold

AUX MODE:

To activate AUX mode, switch the loudspeaker on. Use „Mode“ button to select AUX. Once you have selected this mode, sound will be played through AUX port.

SD MODE

To activate SD mode, switch the loudspeaker on. Use “Mode” button to select SD. Once you have selected this mode, sound will be played from previously installed micro SD memory card.

CHARGING:

To charge the battery, connect micro USB cable to the loudspeaker port, and then connect it to source of power supply 5V.

Please be advised that pictures are for reference only, the real design of products may differ from the pictures presented.

SOUNDBEAT 2.0

Description of functions:

IT

TF USB AUX DC TV OFF ON ⑤ ⑥ ⑦ ⑧ ⑨

MODE ① ② ③ ④

1 ① ② STOP ③ ④ MODE ⑤ ← ⑥ EQ ⑦ ◀◀ ⑧ ▶▶▶ ⑨ ▶▶▶ ⑩ ▲ 11 ▲ 12 0 ① 2 3 ④ 5 6 ⑦ 8 9

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

BrandLine Group Service – Support

List of Authorized Service Centers: Lista autoryzowanych centrów serwisowych Liste der autorisierten Service-Center: Elenco dei centri di assistenza autorizzati: Liste des centres de service autorisés : Lista de centros de servicio autorizados: Lijst met erkende servicecentra:

www.overmax.eu/en/service

Software updates are available on our website www.overmax.eu in "Technical support" tab.
