USER MANUAL N1S Ultimate 4K JMGO

Thank you for choosing JMGO projectors to enhance your life! Whether it is for an immersive home cinema experience, creating a healthier viewing environment for your children, or elevating your outdoor adventures, we are truly honored to be part of your journey. Your trust and expectations inspire us to keep innovating. With advanced pure Triple-color laser technology, a revolutionary gimbal design for versatile projection, and our proprietary operating system, we have redefined the audiovisual experience. We have also introduced eco-friendly, portable packaging to make your projector travel-friendly, ensuring you can take your cinematic experience anywhere.

At JMGO, our mission goes beyond delivering outstanding visuals; we strive to inspire a more relaxed, diverse lifestyle. Whether it is bonding with family, celebrating with friends, or enjoying peaceful moments alone, we hope JMGO becomes your trusted companion. We are excited to continue surprising you with more as you explore your JMGO projector. If you have any feedback or suggestions, we would love to hear from you via email at: [e-mail].

Thank you for letting us be part of your story.

Warm regards,

Chief Executive Officer & Chief Experience Officer JMGO

Safety Notice

• Read this product manual thoroughly before attempting to use this product. Store the product manual in a safe location so it may be referenced at any time.
• Do not look directly into the light source lens of the device, as intense light may damage your eyes.
• When the projector is working, do not block the projection lens with any object.
• If you encounter an issue with the product, do not attempt to disassemble it without authorization. Contact professional after-sales personnel to resolve the issue.

Made in china

Certificate of Conformity

CERTIFICATE INSPECTED

Scope of Delivery

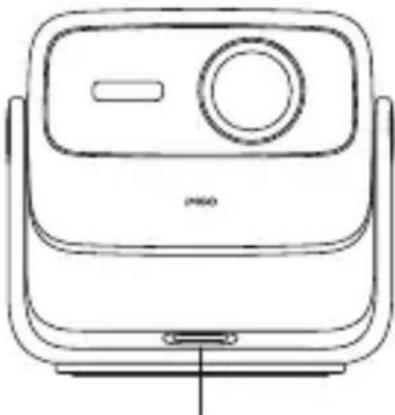

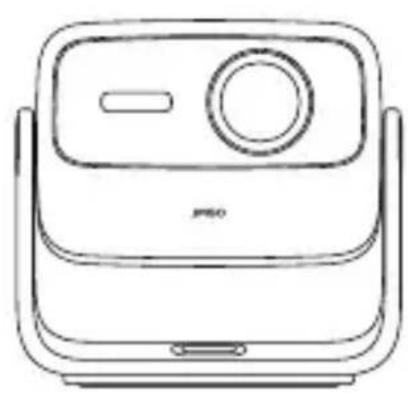

Line drawing of a stylized device with a circular button and a rectangular frame (no text or symbols)

Projector Body

Front view of a remote control device with no visible text or symbols on the device itself

Remote Control

Coiled cable with a bulb and connector (no text or symbols visible)

Simple line drawing of a rectangular device connected to a cable with two connectors (no text or symbols)

Power Cable Power Adapter

Quick Start Guide

AAA Battery x 2

Allen Wrench

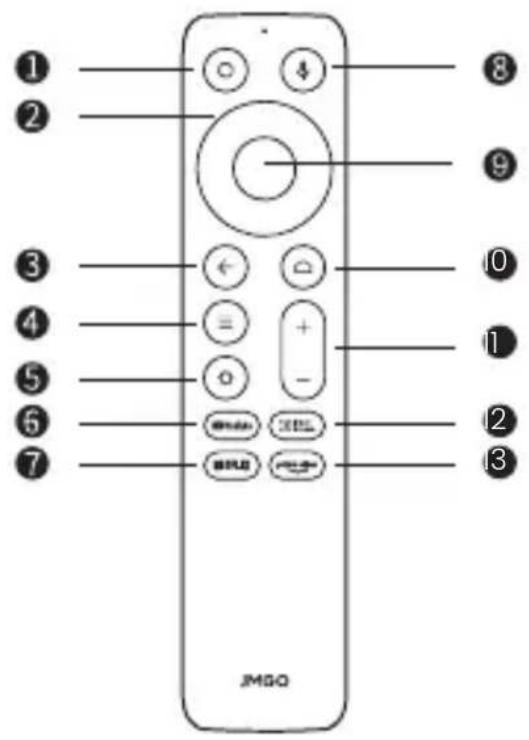

Remote Control

① ② ③ ④ ⑤ ⑥ ⑦ JMSQ ⑧ ⑨ ⑩ ⑪ ⑫ ② ③

1 Power On/Off
2 Direction Keys
3 Return
4 Menu
5 Settings
6 YouTube
7 Netflix
8 Google Assistant
9 Confirm
0 Home
Volume
② Input Source
3 Prime Video

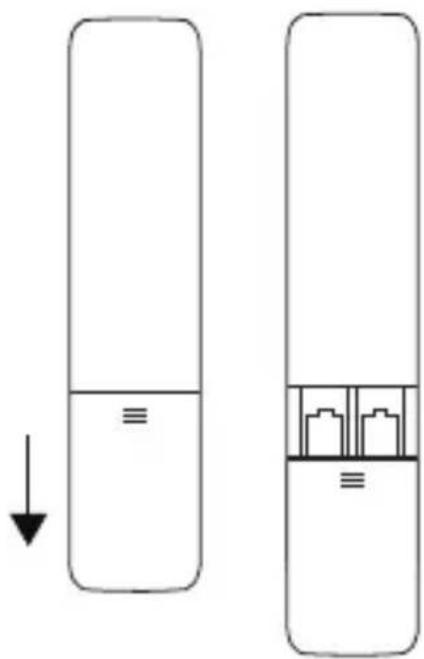

Diagram showing two vertical containers with internal compartments, one downward and one with three stacked boxes inside.

1. Slide down to open the back cover, and then install 2 AAA batteries.
2. Insert new batteries matching the polarity (+/-) and close the battery compartment.

• After the projector is turned on, press and hold return button and home button on the remote control for 3 seconds at the same time to enter Bluetooth pairing.

Product Manual

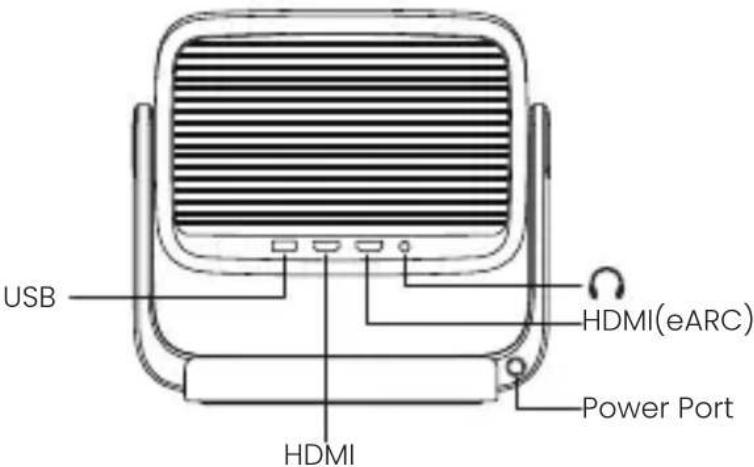

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

Power Button

USB HDMI(eARC) HDMI Power Port

Power on/off: The power button is a physical button, short press to power on or off.

Download and Install of "JMGO App"

• JMGO App is a mobile application for multi-screen interaction with JMGO projector. Using JMGO App can help you obtain better projection experience.
• Mobile phone for remote control—the mobile phone is also a remote control with JMGO App, and the projection remote control is more convenient.

QR code image with central logo containing 'JN50'

Product Laser Safety Parameters

Laser Safety Standard: Class 1 in compliance with the IEC 60825-1:2014.

The maximum output of laser radiation: 0.39mW

Emission Wavelength:

Blue: 455\~475nm

Red: 635\~655nm

Green: 515\~535nm

Caution

Class 1 Laser product

Do not stare into the beam

RG2

Complies with IEC 60825-1:2014 and IEC

62471-5:2015.

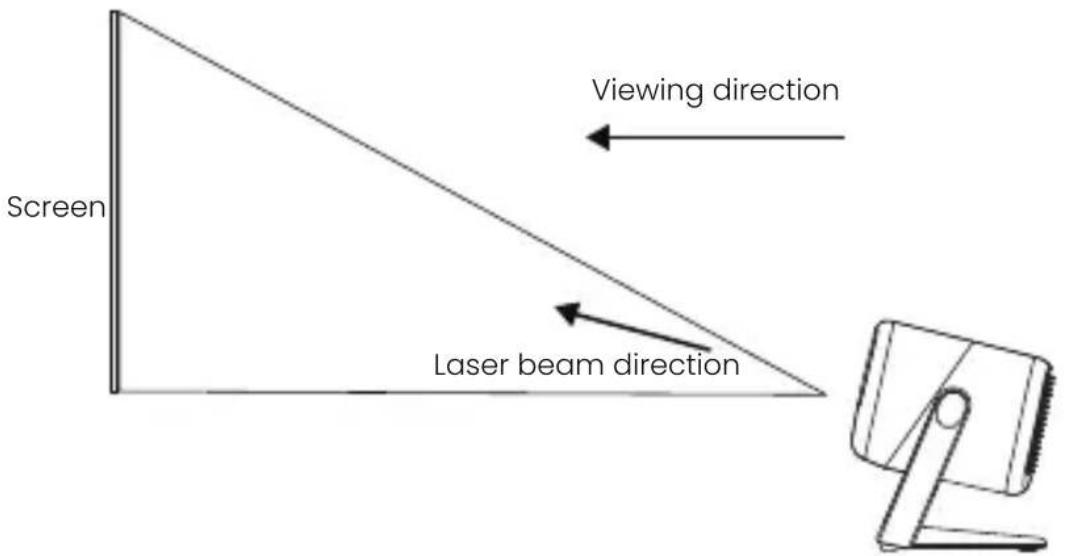

Screen Viewing direction Laser beam direction

Safety Warning:

This product contains a laser module. Do not disassemble or modify this module in a manner not specified in the manual without authorization. Failure to follow this guideline may result in personal injury.

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

Google TV is the name of this device's software experience and a trademark of Google LLC.

Google and YouTube are trademarks of Google LLC.

Google Assistant is not available in certain languages and countries. Availability of services varies by country and language.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This projector complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20cm between the radiator and user body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This remote has been evaluated to meet general RF exposure requirement.

This remote can be used in portable exposure condition without restriction.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [licensee name] is under license. Other trademarks and trade names are those of their respective owners

dtsHD

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. or DTS Licensing Limited. DTS, DTS-HD, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries.

© 2021 DTS, Inc. ALL RIGHTS RESERVED.

CE

EU Declaration Conformity

Hereby, SHENZHEN HOLATEK CO., LTD. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article10(2) and Artical10(10), This product is allowed to use in all EU member states. A complete declaration of conformity can be obtained at: https://global.jmgo.com/

The device can operate in EU Member State without restricted.

D
AT BE BG			HR
CY	CZ	DK SE
EE FI FR DE
EL	HU	IE	LI
IT LV LT			LU
MT NL		PL	ES
PT RO SK SI

The device is restricted to indoor use only when operating in the 5150 to 5250MHz frequency range.

Warnings

1. EUT operation temperature range: 0°C to 40°C.
2. Do not store the device in temperatures lower -20 °C and higher than 60 °C.
3. Adapter shall be installed near the equipment and shall be easily accessible.
4. To power the device, Please use a matching power supply adapter offered by the authorized producer, unauthorized adapter may cause charger exploding or damage the machine.
5. Plug the adapter power socket in 100-240VAC socket, others may cause charger exploding or damage the machine. The plug considered as disconnect device of adapter.

Adapter:

Input: AC 100-240V 50/60Hz 2.5A

Output: 24V—10A 240W

Technical description:

Rating: 24V_10A

Frequency Range: Bluetooth:2402-2480 MHz

2.4G WiFi (20 MHz): 2412 - 2472 MHz

2.4G WiFi (40 MHz): 2422 - 2462 MHz

5G WiFi(H20): 5180 - 5240 MHz

5G WiFi(H40): 5190 - 5230 MHz

5G WiFi(H80): 5210 MHz

5G WiFi: 5745 - 5825 MHz

Transmit Power: Bluetooth: 4.15 dBm EIRP

2.4G WiFi: 12.63 dBm EIRP

5G WiFi: 14.25 dBm EIRP

Radiation Exposure Statement

This device complies with RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device must operate with a minimum distance of 20 cm between the radiator and user body.

After-Sales Service Policy

Shenzhen Holatek Co., Ltd. (hereinafter "JMGO") formulates its after-sales policies in strict accordance with relevant laws and regulations to provide the "three guarantees" of repair, replacement and return.

Warranty Policy

Service Period: The validity period of "three guarantees" commences from the date of purchase or the date of receipt of the package. If the product experiences a performance failure, the package must be returned within 30 days. The projector is guaranteed for 1 year.

Scope of Warranty	Warranty Content	Warranty Period
Projector	The projector and its constituent components	1 year
Accessories	Separately sold accessories and internal accessories	1 year

*Note: The warranty period shown in the table above is distributor recommendation only. Specific local laws and regulations shall prevail. If you encounter any problems or want to know more about the after-sales information, you can email [e-mail] for advice.

Non-Warranty Policy

This product is not covered by warranty in the following circumstances: The validity period of "three guarantees" has been exceeded; maintenance, misuse, collision, negligence, abuse, liquid ingress, accident, alteration, disassembly, or improper use of accessories has been carried out without authorization from JMGO; quality problems have occurred due to the installation of unauthorized software; or labels, device serial numbers, or anti-counterfeiting labels have been destroyed or altered; the model of the "three guarantees" certificate does not match or the model of the damaged product, or has otherwise been altered; damage caused by force majeure; damage caused by use in environments that do not conform to the specifications of the product manual; damage caused by use in environments that do not conform to the specifications of the product manual; failure or damage caused by computer viruses, hacker intrusion, or other malicious intrusions; damage caused by the use of software that is not authorized by JMGO.

Three Guarantees Policy

Return or replacement will not be provided in the following circumstances: Damage caused by human action; missing or damaged packaging; or missing or damaged internal components. When seek for return or replacement, please return all provided accessories as well (including but not limited to product accessories, gifts, warranty cards, manual, etc.). To ensure a smooth return or replacement process, we recommend that you keep the outer packaging, accessories, and any free gifts provided with the products for 30 days from the date of receipt. JMGO has the right to refuse the return or replacement of products that do not meet the replacement requirements or exceeded the warranty period. Back up your personal data and applications before seeking replacement or repair. The maintenance process may result in the loss of your personal data and applications. JMGO will protect your personal privacy but takes no responsibility for any damage or loss of personal data and applications resulting from the repair or replacement process.

After-Sales Service Channels

If you encounter any problems while using the product, contact us through one of the following channels:

After-Sales Website: https://global.jmgo.com/ After-Sales service email: [e-mail]

FR

Line drawing of a coiled cable or wire with a bulb-like connector (no text or symbols)

Line drawing of a rectangular device connected to a cable with a plug (no text or symbols)

Adaptateur secteur

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ JMOO

Diagram showing two vertical containers with internal compartments and a downward arrow, no text or symbols present

QR code image with central logo and text 'APSO' visible

CE

Description technique :

Chief Executive Officer & Chief Experience Officer:

Sicherheitshinweise

Line drawing of a mobile phone device with a circular screen and speaker grille (no text or symbols)

Front view of a remote control device with multiple buttons and a blank display (no text or symbols visible)

Line drawing of a cable with a circular connector and USB port (no text or symbols)

Line drawing of a rectangular electronic device with a coiled cable and two USB connectors (no text or symbols)

Netzkabel Adapter

Diagram showing two vertical containers with internal compartments, one downward and one with stacked boxes, indicating a process or storage setup.

Line drawing of a portable electronic device with a circular button and ventilation slots (no text or symbols)

Schalter

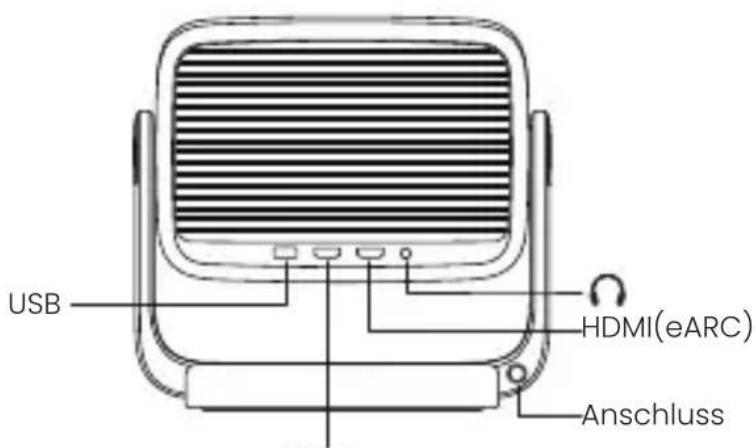

USB HDMI(eARC) Anschluss

HDMI

CEO & Chief Experience Officer:

Line drawing of a portable electronic device (no text or symbols)

Front view of a remote control with multiple buttons and a small screen (no text or symbols visible)

Mando a Distancia

Coiled cable with a bulb and connector (no text or symbols visible)

Line drawing of a rectangular device with attached cables and connectors (no text or symbols)

Diagram showing two cylindrical containers with symbols indicating '=} and '≡', one downward arrow, suggesting a process or transformation.

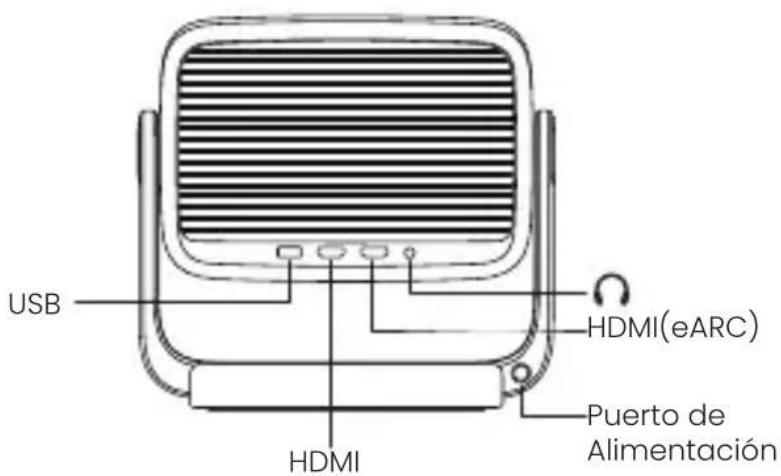

Line drawing of a device with a circular button and a rectangular body, no text or symbols present

Botón de Encendido

CEO & Chief Experience Officer:

Forrest

Line drawing of a portable electronic device with a circular button and side arm (no text or symbols)

Front view of a remote control with multiple buttons and ports (no text or symbols visible)

Telecomando

Line drawing of a coiled cable with connectors (no text or symbols)

Simple line drawing of a rectangular device connected to a coiled cable (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ JMSO ⑧ ⑨ ⑩ ⑪ ⑫ ⑫ ③

Diagram showing two cylindrical containers with battery symbols, one downward and one with stacked batteries inside.

Line drawing of a device with a circular button and a rectangular body, no text or symbols present

QR code image containing the text 'JIMGO' in the center

CE

Line drawing of a coiled cable with a bulb (no text or symbols)

Simple line drawing of a rectangular device connected to a coiled cable (no text or symbols)

電源ケーブル 電源アダプター

クイックスタートガイド

单4電池 × 2

六角レンチ

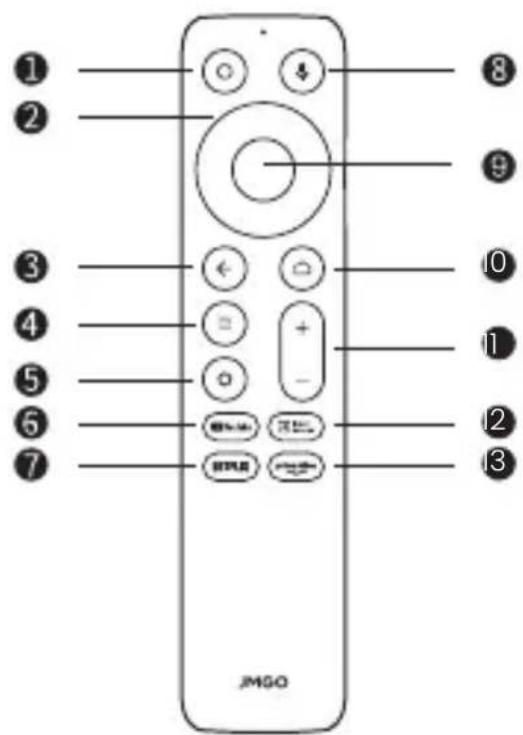

リモコン

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ JMOG

Diagram showing two cylindrical containers with battery symbols, one with a downward arrow and the other with stacked batteries.

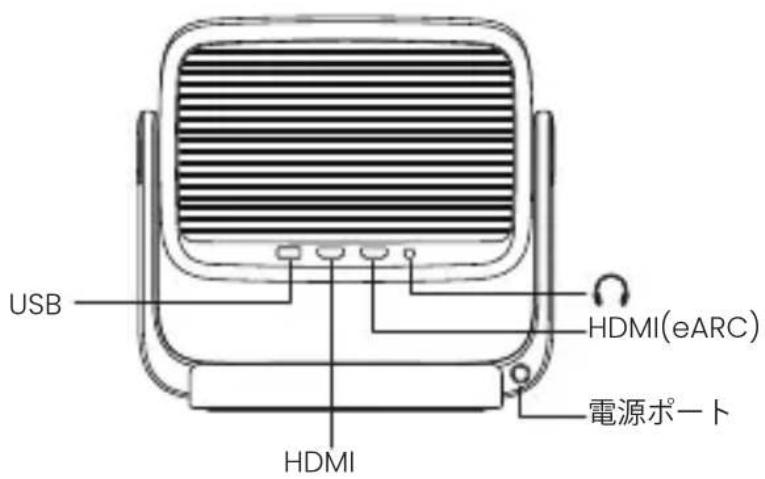

Line drawing of a portable electronic device with a circular button and a label 'MAG' at the base (no text or symbols on the device itself)

電源ボタン

QR code image containing the text 'JIMGO' in the center

アフターサービスについて

CEO & Chief Experience Officer:

Forrest

Line drawing of a portable electronic device with a circular button and speaker grille (no text or symbols)

Corpo do projeto

Front view of a remote control with buttons and a 'P50' label (no readable text beyond branding)

Controle remoto

Line drawing of a coiled cable with connectors (no text or symbols)

Simple line drawing of a rectangular device with attached cables and connectors (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ② ③ JMSO

Diagram showing two cylindrical containers with battery symbols and a downward arrow indicating flow or change.

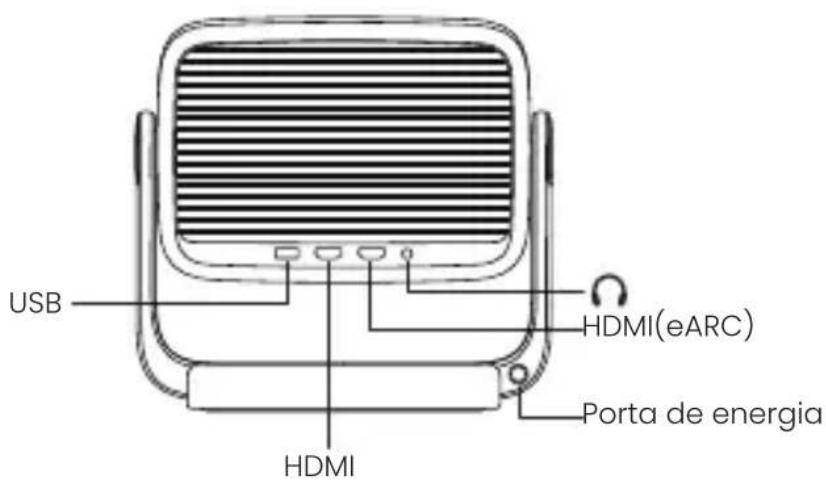

Line drawing of a portable electronic device with a circular button and base (no text or symbols)

Botão de energia

USB HDMI(eARC) HDMI Porta de energia

Line drawing of a P30 electronic device with a circular button and rectangular body (no text or symbols)

投影機本體

Front view of a remote control with buttons and dials (no text or symbols visible)

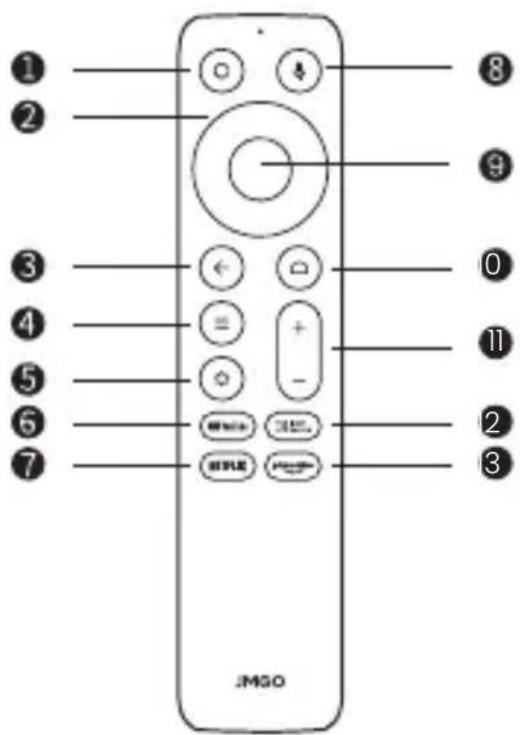

遙控器

Line drawing of a coiled cable with a bulb and connector (no text or symbols)

電源線

Simple line drawing of a rectangular device with attached cables and a plug (no text or symbols)

電源供應器

快速啟動指南

電池 AAA x 2

六角扳手

遙控器

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ JMOO

Diagram showing two cylindrical containers with battery symbols, one downward and one with stacked batteries inside.

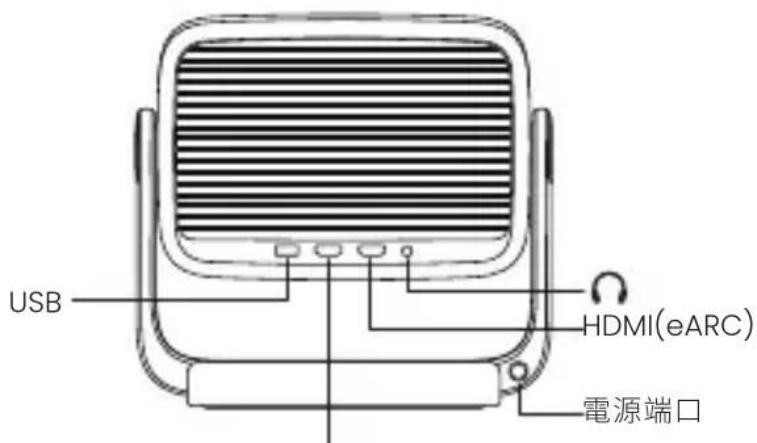

Line drawing of a device with a circular button and a label 'M30' at the base (no other text or symbols)

電源按鈕

QR code image containing the text 'JIMGO' in the center

PL

Chief Executive Officer & Chief Experience Officer JMGO

Line drawing of a mobile phone device with a circular screen and speaker grille (no text or symbols)

Projektor

Front view of a remote control with multiple buttons and a 'MEO' label (no readable text or symbols beyond the label)

Pilot

Line drawing of a coiled cable with a terminal connector (no text or symbols)

Kabel zasilający

Simple line drawing of a rectangular device with attached cables (no text or symbols)

Zasilacz

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ JMSO

Diagram showing two cylindrical objects with internal compartments, one downward and one with three stacked blocks inside.

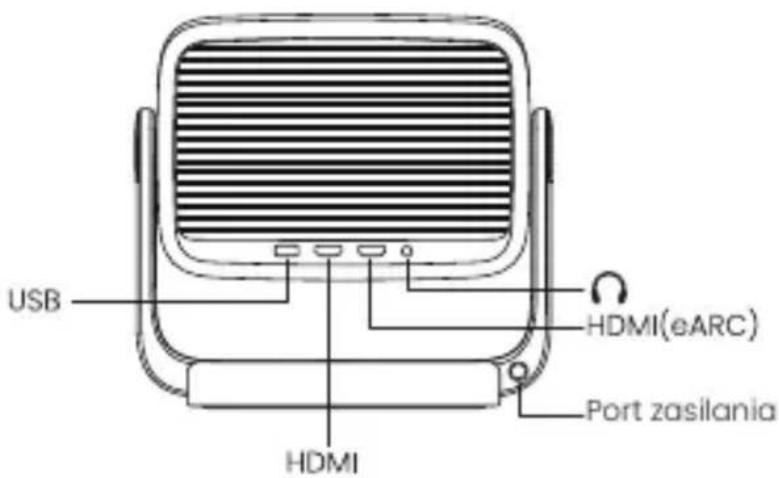

Line drawing of a portable electronic device with a circular button and speaker grille (no text or symbols)

Przycisk zasilania

USB HDMI(eARC) HDMI Port zasilania

QR code image containing the text 'JIMGO' in the center
