USER MANUAL VPSBSND532EZ Veripart

American refrigerator

American refrigerator

Serial Number:

Batchcode:

Climate category 5N/N/ST
Electric shock classification Class
Voltage 220-240V~
Rated frequency 30Hz
Rated current 1.5A
Total input power 150W
Defrost power 240W
Refrigerant 8600μl/75g]
Freezing capacity 14kg/24h
Temperature rise time 9h
Freezer compartment volume 18xL
Fresh food compartment volume 3471
Insulation blowing gas Cyclopentane
Product code 958381

Vanport is a registered trademark of Coolblue B.V. Woepa 664.

3012CN, Rotterdam, The Netherlands www.coolblue.nl/klantenservice Made in China

Climate category	Klimaatklasse / Classification climatique / Klimaklassifizierung
Electric shock classification	Classificatie van elektrische schokken / Classement des chocs électriques / Elektroschock-Klassifizierung
Voltage	Spanning / Tension / Spannung
Rated frequency	Frequentie / Fréquence / Frequenz
Rated current	Nominale stroom / Courant nominal / Nennstrom
Total input power	Totaal ingangsvermogen / Puissance d'entrée totale / Gesamteingangsleistung
Defrost power	Ontdooivermogen / Puissance de dégivrage / Leistung abtauen
Refrigerant	Koelmiddel / Réfrigérant / Kältemittel
Freezing capacity	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Temperature rise time	Temperatuur stijging tijd / Temps de montée en température / Temperaturanstiegszeit
Freezer compartment volume	Opslagvolume vriezer / Volume de stockage du congélateur / Gefrierspeichervolumen
Fresh food compartment volume	Volume verschoudcompartment / Volume du compartiment à aliments frais / Volumen des Frischhaltefachs
Insulation blowing gas	Isolatie blaasgas / Gaz de soufflage pour l'isolation / Gas zum Einblasen von Dämmstoffen
Product code	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

3

1. VEILIGHEID 4

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple line drawing of a square frame with a black 'X' symbol on the top and two small blocks at the bottom (no text or labels)

Simple diagram showing a black checkmark inside a white rectangle with two side supports (no text or symbols)

4. Reinig

Line drawing of a hand installing or adjusting a shelf panel on a cabinet (no text or symbols)

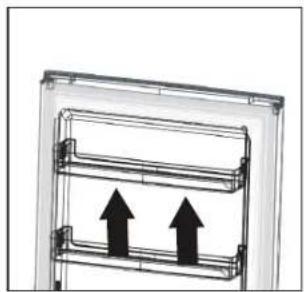

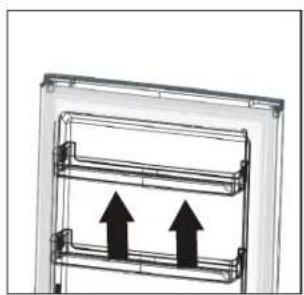

Diagram of a mechanical device with two upward-pointing arrows indicating motion or force (no text or symbols present)

Line drawing of two screwdrivers with different tip positions (no text or symbols)

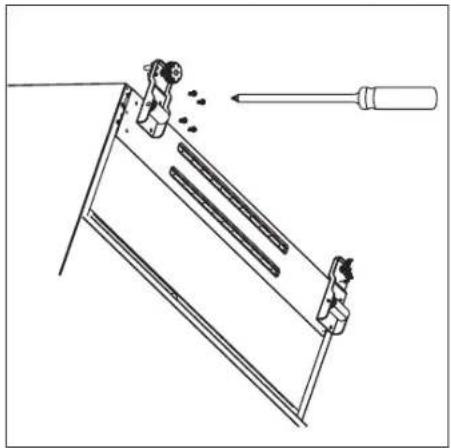

Technical line drawing of a mechanical assembly with a screwdriver above a workbench (no text or symbols)

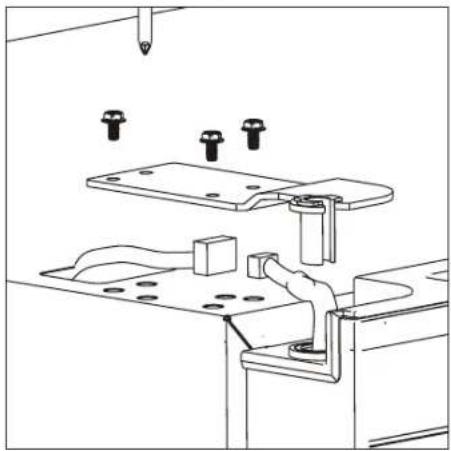

Technical line drawing of a mechanical assembly with mounting brackets and a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a hand operating a workbench (no text or symbols)

Simple line drawing of a mechanical setup with a tool and a spring scale (no text or symbols)

3.3 VERVANGEN VAN DE LED-VERLICHTING

1.1 Intended use and anticipated unintended use 22
1.2 Safety warnings and regulations 22
1.3 Safety instructions: installation 23
1.4 Safety instructions: use 25

2. PRODUCT FEATURES 26

2.1 Dimensions 26
2.2 Guarantee 27
2.3 Technical Data 27

3. INSTALLATION 28

3.1 Installing the appliance 28

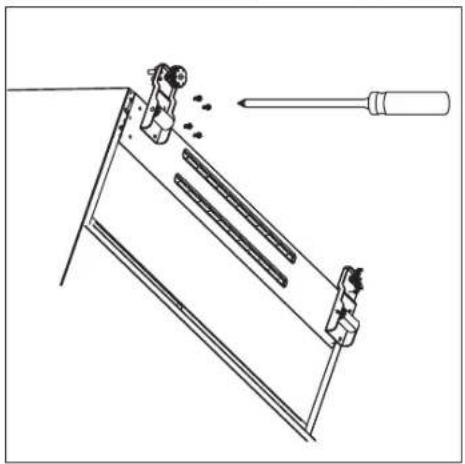

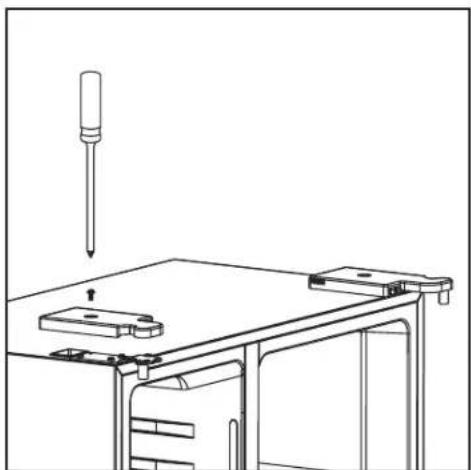

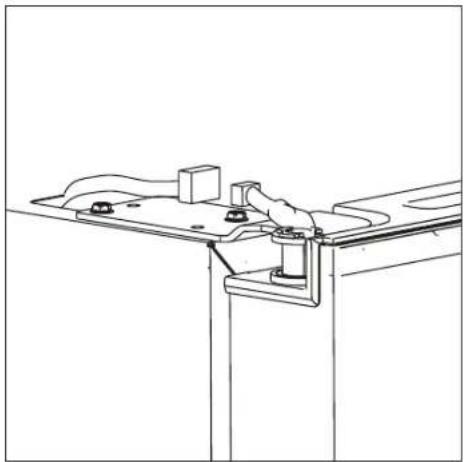

3.2 Remove doors 29
3.3 Replacing the LED lighting 30

4. USE 31

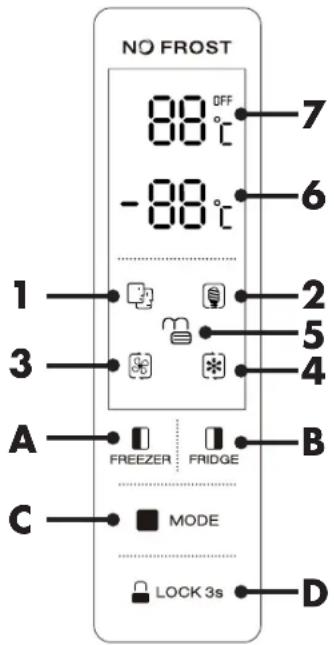

4.1 Control panel 31
4.2 Setting the temperature 31

1. MAINTENANCE AND CLEANING 33

2. TROUBLESHOOTING 34

3. TAKING OUT OF SERVICE 36

4. SAFE DISPOSAL 36

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as:

• staff kitchens in shops, offices and other work environments;
• farms and guests in hotels, motels, B&B and other residential environments;
• catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

• Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.
  • This appliance may not be exposed to rain.
  • Children must be supervised to ensure that they do not play with the appliance.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.
• Do not damage the cooling circuit.
• Only fill with drinking water.
• Only connect to drinking water.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.

- Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.

- Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

- Keep the power cable away from heat, oil, sharp edges or moving parts.

- Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50/60Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

WARNING!

WARNING! Do not place multiple portable power strips or portable power supplies on the back of the appliance.

WARNING! When installing the appliance, ensure that the power cable is not pinched or damaged.

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.

• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.

• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.
• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N and ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4 SAFETY INSTRUCTIONS: USE

! CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.

Observe the following instructions to prevent food contamination:

• The prolonged opening of the door can considerably increase the temperature in the compartments of the appliance.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Clean water tanks if they have not been used for 48 hours; flush the water system connected to the water supply if no water has been taken for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not come into contact with or drip on other food.
• Two-star freezer compartments are suitable for storing frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.
• If the appliance remains empty for a long time, switch it off, defrost it, clean it, dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1 DIMENSIONS

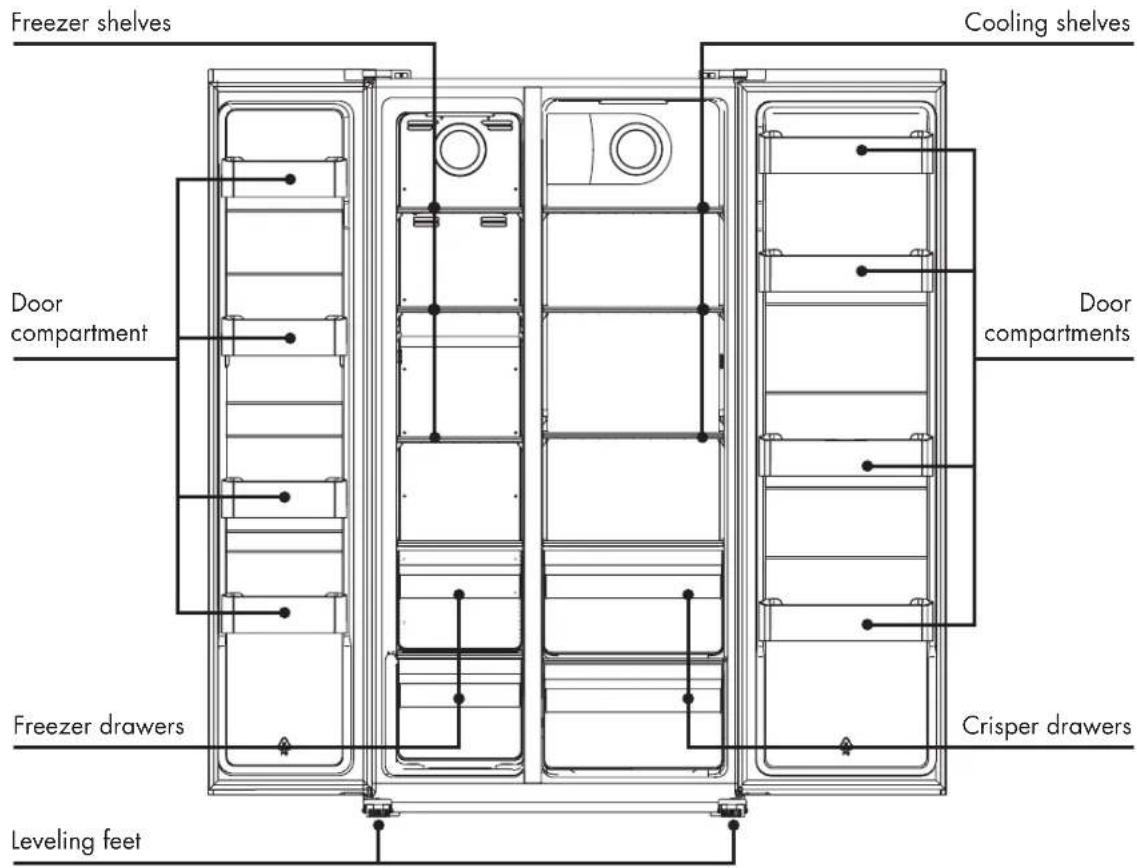

Freezer shelves Cooling shelves Door compartment Door compartments Freezer drawers Crisper drawers Leveling feet

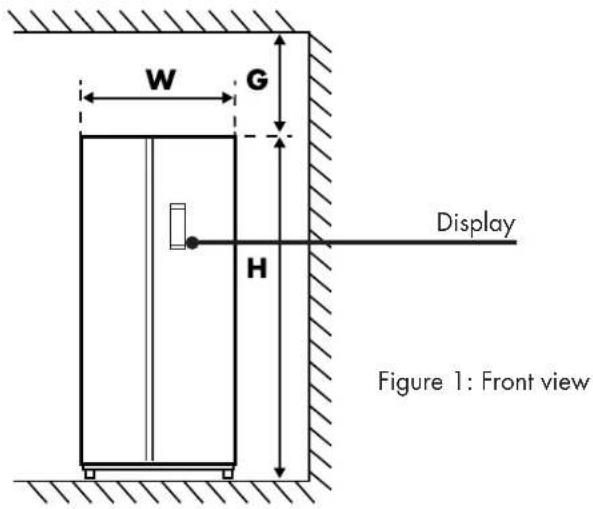

W G H Display Figure 1: Front view

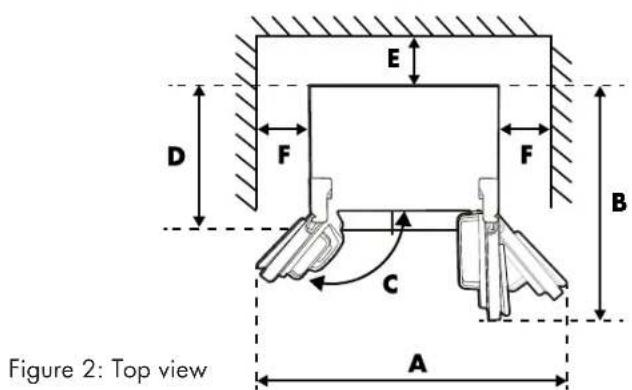

Figure 2: Top view A B C D E F F

W D H A B C(°) E F G
90cm 6	6cm 177	cm 180cm	156cm	135° ≥5cm	≥5cm	≥5cm

Figures 1 and 2 only illustrate the space required for the appliance.

2.2 GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
  • Always place the appliance on a moisture-resistant and dry surface.
• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

Simple line drawing of a square frame with a black 'X' symbol on the top and two small supports at the bottom (no text or labels)

Simple line drawing of a monitor with a black checkmark on the screen (no text or symbols)

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories: door compartments and shelves

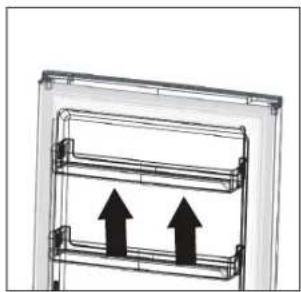

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

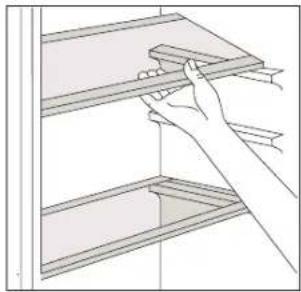

The walls of the refrigerator are equipped with a series of guide profiles so that the shelves can be inserted if desired. To remove the shelf, lift it first and then pull it out. To put the shelf back in place, push it into place before lowering.

For the two-piece shelf, first push back the first part and then pull out the second part.

Raise the rear edge of the shelf to prevent food coming into contact with the wall lining. Hold the shelf firmly when removing or replacing it and take care to avoid damage.

8. Storing food

See Section 4 "Use".

Line drawing of a hand placing a wooden plank on a shelf (no text or symbols)

Diagram of a vertical structure with two upward-pointing arrows, no text or symbols present

3.2 REMOVE DOORS

If the appliance is placed on its back or side for some time during this process, it must be made to stand upright for six hours before connecting it to prevent damage to the internal components.

Tools required: crosshead screwdriver, flat screwdriver.

Unplug and empty the appliance.

• Tilt the appliance backwards to remove the door. Rest the appliance on a firm surface so that it does not slip away as you remove the door.
• Keep all removed parts to remount the door later.
• Do not lay the appliance down flat; this may damage the cooling system.
  • We recommend doing this with two people.

Line drawing of two screwdrivers with different tip positions (no text or symbols)

1. Unscrew the hinge cover with a crosshead screwdriver.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

1. Unplug the wiring harness.

Technical line drawing of a mechanical bracket or mounting bracket assembly (no text or symbols)

1. Unscrew the top hinge. Then lift the door and place it on a soft surface so as not to damage the door. Do the same to remove the other door.

Technical line drawing of a mechanical assembly with mounting holes and a hand operating a workbench (no text or symbols)

1. Unscrew the bottom hinges.

Work the other way around to remount the doors.

Line drawing of a mechanical setup with a tool and a spring-like component (no text or symbols)

3.3 REPLACING THE LED LIGHTING

This product contains a LED light source of energy efficiency class G. Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualified person.

4. USE

Carefully review the safety information (Section 1) before you start using the appliance.

4.1 CONTROL PANEL

三

NO FROST 88.0 °C OFF -88.0 °C 1 2 3 4 A FREEZER FRIDGE B C MODE LOCK 3s D

ID DISPLAY

ID DISPLAY
1	Smart mode
2	ECO mode
3	Super Cool symbol
4	Super Freeze symbol
5	Locking icon
6	Freezer temperature
7	Refrigerator temperature

ID OPERATION

ID OPERATION
A	FREEZER - Regulate freezer temperature
B	FRIDGE - Regulate refrigerator temperature
C	MODE - Preferred modes
D	LOCK - Lock or unlock

ATTENTION!

Before first use, the control panel must be unlocked. You do this by pressing the 'LOCK' button (D) for three seconds.

Mode settings

With button C: 'MODE' you can set the preferred mode. With it you can switch between 'Smart', 'Eco', 'Super Cooling', 'Super Freeze' modes.

MODE ICON DISPLAY			DISPLAYCOOLING TEMPERATURE
		FREEZING TEMPERATURE
SMART Smart set	used	on ambient temperature.	Smart settings based on ambient temperature.
ECO -15°C +8°C
SUPERCOOL No	ice	+2°C
SUPERFREEZE -25	difference

4.2 SETTING THE TEMPERATURE

Locking or unlocking controls

Press and hold the D 'LOCK' button for three seconds to activate or deactivate the lock function.

You can set the cooling temperature using button B 'Fridge'. Press this button to set the refrigerator temperature. At this point the cooling temperature icon will illuminate and the digital temperature display will flash.

With button 'B' you can select temperatures between 2°C and 8°C. Select the desired temperature, the temperature flashes for five seconds as confirmation.

The freezing temperature can be set using the 'A' ('FREEZER') button. Press this button to set the freezer temperature.

At this point the freezing temperature icon will illuminate and the digital temperature display will flash. With button 'A' you can select temperatures between -14°C and -22°C; select the desired temperature, the temperature flashes for five seconds as confirmation).

Recommended temperature setting

The recommended temperature setting for this appliance is:

• Refrigerator at 4°C
- Freezer at -18°C

Door alarm

If the door remains open for more than 90 seconds, the door alarm goes off until the door is closed. The alarm sounds every 35 seconds until the door is closed.

Lock or unlock

Press and hold the D 'LOCK' button to activate or deactivate the lock function.

- Unlock:

when the buttons are locked, press and hold the D 'LOCK' button for three seconds; the buzzer will beep long and all buttons will be unlocked and the lock icon light goes off.

- Lock:

when the buttons are unlocked, press and hold the D 'LOCK' button for three seconds; the buzzer will give a long beep and all buttons will be locked and the lock icon light will turn on.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

! CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the freezer compartment if your hands are wet/damp as this
- may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

! ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING

This appliance is a no-frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: www.coolblue.nl/en/customer-service

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all	- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 10°C.	- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
Abnormal noise	- The appliance is not stable/level.- The appliance is in contact with the wall or other objects.	- Readjust the appliance's adjusting legs.- Move the appliance.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
Poor cooling efficiency	- Are you placing hot food or too much food in the appliance?- The door does not close properly.- Direct sunlight or near a cooker or heater?- Is the appliance well ventilated?- Is the temperature set too high?	- Cool hot food before placing it in the appliance.- Check the door and door rubbers, and see if the door is blocked.- Place the appliance further away from the heat source.- Provide sufficient distance to ensure good ventilation.- Set the appropriate temperature.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Coolblue B.V. when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China

NOTICE D'UTILISATION

RÉFRIGÉRATEUR AMÉRICAIN

VPSBSND532EZ

VERIPART

TABLE DES MATIÈRES

AVANT-PROPOS

39

1. SÉCURITÉ 40

Le service client est joignable via

Simple line drawing of a square frame with a black 'X' symbol on the top and two small supports at the bottom (no text or labels)

Simple diagram with a black checkmark inside a white rectangle, no text or symbols present.

4. Nettoyage

Line drawing of a hand installing or adjusting a shelf panel (no text or symbols)

Diagram of a mechanical or electrical component with two upward-pointing arrows indicating direction (no text or symbols present)

3.2 DÉMONTAGE DES PORTES

Line drawing of two screwdrivers with different tip positions (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver and mounting bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a tool (no text or symbols)

Simple line drawing of a mechanical setup with a tool and a spring-like component (no text or symbols)

Simple line drawing of a square frame with a black 'X' symbol on the top and two small supports at the bottom (no text or labels)

Simple line drawing of a rectangular frame with a black checkmark symbol on the left side (no text or labels)

Line drawing of a hand installing or adjusting a shelf panel (no text or symbols)

Diagram of a mechanical or electrical component with two upward-pointing arrows indicating direction (no text or symbols present)

3.2 ABNEHMEN VON TÜREN

Line drawing of two screwdriver tips (no text or symbols)

Technical line drawing of a mechanical assembly with a pipette and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and joints (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and mounting bracket (no text or symbols)

Simple line drawing of a mechanical setup with a tool and a rod, no text or symbols present.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China
