USER MANUAL WBBC4F1 Wisberg

INBOUW INDUCTIEKOOKPLAAT

WBBC4F1

EN - User manual 18

Built-in induction hob

BUILT-IN INDUCTION HOB

Model NO: WBBC4F1

Product ID: 957621

Rated Voltage: 220-240V\~AC

Rated frequency: 50/60Hz

Power supply: 3500W

Max. electrical power: 3800W

Plug: 1 phase

Wisepick Productions B.V

Weena 664

3012 CN Rotterdam, The Netherlands

www.wisberghome.com

[e-mail]

Made in China

ATTENTION: This appliance must be installed in accordance with the regulations currently in force and must be only used in well ventilated premises. Read the instructions before installing or using this appliance.

B0000

Serial Number:

CE

INHOUDSOPGAVE

Voorwoord

4

1. Veiligheid 5

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.3. VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

2.1. BESCHRIJVING VAN HET APPARAAT

G H K J I 00

Z

Isometric diagram of a black electronic component with internal structure, showing a downward arrow indicating compression or disassembly (no text or symbols present)

8.1. VERPAKKINGSMATERIAAL AFVOEREN

8.2. HET APPARAAT AFVOEREN

BUILT-IN INDUCTION HOB

WBBC4F1

TABLE OF CONTENTS

Foreword

20

1. Safety 21

1.1. Intended use and foreseeable unintended use 21
1.2. Safety symbols and labels on the device 21
1.3. Safety warnings and regulations 21

2. Product features 24

2.1. Description of the device 24
2.2. Warranty 24
2.3. Spare parts 24
2.4. Technical data 24

3. Installation 25

3.1. Requirements on the location of installation 25
3.2. Removing packaging material and checking 25
3.3.Main parts 25
3.4. Installing the appliance 26
3.5. Connecting the appliance 27

4. Use 27

4.1. Operating panel 27
4.2. Overview of functions 27
4.3. Choosing the right cookware 28
4.4. Using the device 28

5. Cleaning and maintenance 30

6. Troubleshooting 31

6.1. Troubleshooting 31
6.2. Error messages on the display 32

7. Transport and storage 32

8. Safe disposal 33

8.1. Disposing of packaging material 33
8.2. Disposing of the appliance 33

FOREWORD

About this document

• This user manual contains all information for correct, efficient and safe use of the device.
• This user manual is intended for the end user and/or buyer of this device.
- Please make sure that you have completely read and understood the instructions in this manual before you install or use the device. Keep this document for future use as long as you are using and/or are in possession of this device.
- Wisepick Productions B.V. cannot be held responsible in any way for immaterial damage to you or others, or material damage to the device, your property or the property of others caused by not or not correctly following the instructions in this manual.
• The warnings and safety regulations in this manual do not cover all possible circumstances and situations.
- If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This user manual was originally written in Dutch. All other languages are translated documents. In case of translation errors, the Dutch version shall prevail.

Used symbols

SYMBOL DESCRIPTION
DANGER!	Indicates fire hazard and/or flammable materials.
WARNING!	Indicates a hazardous situation which, if not avoided, could result in serious immaterial damage to you or others.
CAUTION!	Indicates a hazardous situation which, if not avoided, could result in light immaterial damage to you or others.
TICE!	Indicates a situation related to material damage.
TE	Indicates useful, additional information.

You can also find the latest version of this manual online, at www.wisberghome.com if you search by item number.

Copyright

The data displayed in this manual, including text, photographs, graphic drawings, graphic brands, (trade) names and logos are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never permitted to reproduce, transfer, distribute, store, or make available to third parties for payment, the contents of this user manual in its entirety or partially without prior written permission from Wisepick Productions B.V. and/or the third party the data belongs to.

Compliance

Wisepick Productions B.V. hereby declares that the appliance complies with Regulation (EU) 2019/2017. The full text of the EU declaration of conformity can be accessed at: www.wisberghome.com if you search for the article number.

Wisberg contact details

Customer service can be reached at: www.wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

Please make sure that you have completely read and understood the safety instructions, before you install, use or perform maintenance on the device. This will prevent possible material damage and immaterial damage to you or others, the device, your other property or the property of others.

1.1. INTENDED USE AND FORESEEABLE UNINTENDED USE

• This device is intended for indoor use only.
• This appliance is intended as a built-in appliance.

• This appliance is intended for domestic use and similar applications such as:

– staff kitchens in shops, offices and other work environments;
– farms and guests in hotels, motels, B&B and other residential environments;
– catering and similar non-retail applications.

- This device is not meant for use by persons (including children) with limited physical, sensory or mental capacity or with lack of experience and knowledge, unless they are under supervision or received instruction regarding the use of the device from someone who is responsible for their safety.

- Any use of the device other than described in the user manual is considered unintended use and may result in property damage and non-material damage to you or others, the device, your other property or property of others, and may void the warranty.

1.2. SAFETY SYMBOLS AND LABELS ON THE DEVICE

SYMBOL DESCRIPTION
	Warning! Hot surface.
	The CE marking on this appliance indicates that Wisepick Productions B.V. declares that this appliance meets the requirements of the relevant European legislation relating to health, safety and environmental protection. The declaration of conformity is available on request from Wisepick Productions B.V. See Foreword for the contact details.
	This symbol on the appliance, accessories or packaging indicates that this appliance must not be disposed of with ordinary household waste but must be returned to a collection point.

1.3. SAFETY WARNINGS AND REGULATIONS

WARNING!

• Always be alert and careful. Do not use electrical appliances if you suffer from impaired concentration or lack of awareness, or if you are under the influence of drugs, alcohol or medications. Even the slightest distraction can lead to serious accidents and injuries when using electrical appliances.

• FIRE HAZARD DUE TO HIGHLY FLAMMABLE MATERIALS. Never place the appliance near flammable materials. Make sure that the distance between the appliance and flammable materials is at least one metre.

• FIRE HAZARD DUE TO HIGHLY FLAMMABLE MATERIALS. Use only an induction protector developed by the appliance manufacturer or an induction protector indicated by the appliance manufacturer in the manual. Using unsuitable hob protectors can lead to accidents.

• FIRE HAZARD DUE TO INSTABILITY. Always place the appliance on a flat and stable surface.
• EXPLOSION HAZARD DUE TO HEAT RADIATION. Never use the appliance near explosive substances.
• EXPLOSION HAZARD DUE TO FLAMMABLE SUBSTANCES. Do not place flammable objects or objects soaked with flammable products on the appliance.
• EXPLOSION HAZARD DUE TO FLAMMABLE SUBSTANCES. Do not throw the appliance away with household waste. When disposing of the appliance, follow national and local regulations regarding the environmentally friendly disposal of the appliance.
• RISK OF INTERFERENCE WITH PACEMAKERS. Consult your doctor before using this device.
• RISK OF SUFFOCATION. Never let children play with the packaging material. Keep the packaging material out of reach of children.
• RISK OF SUFFOCATION. Only use the appliance in a well-ventilated area.
• FIRE HAZARD FROM OIL AND GREASE. Never leave the appliance unattended while in use. Cooking with fat or oil can be dangerous and can lead to fire. Never extinguish a fire with water. Switch off the appliance and cover the flames with a lid or fire blanket.

FIRE HAZARD DUE TO SHORT CIRCUIT.

• Always have the appliance installed by an authorised service technician.
- Do not use this appliance with an extension lead or power strip.
- Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
- Never pull on the power cable to move the appliance or to unplug it from the earthed socket.
- Keep the power cable away from heat, oil, sharp edges or moving parts.
- Never use the device if the power cable is damaged. The power cable may only be replaced by an authorised service technician.
- Before use, check that the voltage on the earthed socket you want to use matches that on the type plate of the appliance (220 – 240V \~ 50/60 Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

FIRE HAZARD DUE TO OVERHEATING.

• Never use the device on top of or nearby other heat sources.
• Never use a timer or separate remote control that turns the device on automatically.
• Clean the ventilation openings regularly to avoid dust accumulation.
• Maintain the minimum distance between the appliance and the extractor hood that is specified by the extractor hood's supplier.
  • Always continuously monitor the cooking process while using the appliance.
• Do not store any objects on the appliance.
• Do not heat empty pans or thin-bottomed pans on the cooking zones.
• Never use the appliance to heat a room.
• Do not install the appliance under a surface or in a cabinet.
• Never cover the device.
• Never use the appliance if the glass surface is cracked. Turn the appliance off.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT.

• Do not perform any repairs to the appliance that are not described in this manual. The appliance may only be repaired by an authorised service technician.
• Never use the device if a part is damaged or faulty. Replace a damaged or faulty device immediately. Disconnect the power cable from the wall socket and contact customer service.

- Never open the device. The device may only be opened for maintenance by an authorised service technician.

• Never insert objects into the ventilation openings.
• Never submerge the device in water or other fluids.
  • Always place the appliance on a dry and moisture-resistant surface.

- Never use the device in a damp space, like a bathroom, or nearby a bath, shower or swimming pool.

• Never install the appliance above a dishwasher, refrigerator, freezer, washing machine or dryer.
• Only use the power cable installed on the appliance from the factory. Do not change the power cable.

CAUTION!

TRIP HAZARD DUE TO LOOSE CABLES. Never leave the power cable in such a way that someone could trip over it or accidentally pull it.

RISK OF BURNS FROM HEAT.

• Never touch the hot parts of the device. Only touch the operating panel or wait until the device is cooled down completely.
• Always allow the appliance to cool completely and remove the plug from the earthed socket before maintenance or cleaning.
• Never place metal objects such as knives, forks, spoons or lids on the cooking zone. Metal objects may become hot.

• After use, always switch off the appliance via the control panel.
• Always place the appliance on a heat-resistant surface.

• Children, legally incompetent persons and domestic animals must be supervised while using the appliance. Children must be supervised to ensure that they do not play with the appliance.
• This appliance must not be used by children under 8 years of age.
• This device is not meant for use by persons (including children) with limited physical, sensory or mental capacity or with lack of experience and knowledge, unless they are under supervision or received instruction regarding the use of the device from someone who is responsible for their safety.

TICE!

RISK OF DAMAGE TO THE DEVICE.

• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Never use damaged cookware or cookware with notched edges. Damaged cookware can scratch the glass surface.
• Always use the appliance with cast iron, enamel or stainless steel cookware suitable for induction.

• Never slide cookware across the glass surface. Sliding cookware can scratch the glass surface.

• Never use a steam cleaner to clean the appliance.

• Do not climb, sit or stand on the appliance.
• Cleaning and user maintenance must not be carried out by children without supervision.

2. PRODUCT FEATURES

2.1. DESCRIPTION OF THE DEVICE

The WBBC4F1 is a built-in induction hob suitable for preparing food. Each cooking zone can be operated individually and has 9 settings. All cooking zones have a booster function that allows pans to be heated up more quickly. The timer function allows you to set exactly how long a pan should be heated. The timer function can also be used as a cooking timer. With the child lock function, the buttons on the control panel are locked to prevent them from being accidentally pressed.

2.2. WARRANTY

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit www.wisberghome.com. In any case, you must have the proof of purchase with purchase and/or delivery date in order to be able to claim the guarantee.

2.3. SPARE PARTS

To order spare parts or for more information, go to: www.wisberghome.com

2.4. TECHNICAL DATA

Article number WBBC4F1
Placement of appliance Built-in
Hob heating Induction
Dimensions (l x w x h) 59 × 52 × 6 cm
Flush-fit dimensions (L × B) 56 × 49 cm
Weight 8,32 kg
Number of cooking zones 4
Dimensions of cooking zones ∅ 16 cm (rear left and front right) / ∅18 cm (front left and rear right)
Power supply	220 – 240 V ~ 50 – 60 Hz
Maximum electrical capacity 3800 W
Consumption off mode	0.34 W
Mains plug	1-phase with Schuko plug (supplied and fitted)

The technical data can be found on the type plate on the inside of the appliance (also printed on page 2).

3. INSTALLATION

Before installing the appliance, carefully review the safety information in Section 1.

WARNING!

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Always have the appliance installed by an authorised service technician.

3.1. REQUIREMENTS ON THE LOCATION OF INSTALLATION

Place the appliance at a location that satisfies the following conditions:

• A flat, stable, heat-resistant and moisture-resistant surface.
• At least 65 cm free space on the sides of the appliance to a cabinet or wall.
• At least 65 cm of free space at the top of the appliance.
• Not in direct sunlight.
• Well ventilated.
• Not directly next to heat sources, such as heaters or stoves.
  • Not above machines that emit moisture, such as refrigerators and washing machines.
  • If the appliance is installed above an oven, the oven must be fitted with a built-in cooling fan.
• An earthed socket within 130 cm.
• Direct access to the earthed socket at all times.
• The earthed socket is connected to one or more separate power groups with sufficient power for the appliance and a properly accessible isolation switch. Are one or more of the above connections missing? If so, call on a qualified technician to install the required connections before installing the appliance.

3.2. REMOVING PACKAGING MATERIAL AND CHECKING

WARNING!

RISK OF SUFFOCATION. Never let children play with the packaging material. Keep the packaging material out of reach of children.

1. Remove the packaging and packaging material from the appliance. Keep the packaging to store the device in.
2. Check the contents of the pack using the picture in Section 3.3.Main parts. If parts are missing or damaged, please contact Customer Service: www.wisberghome.com

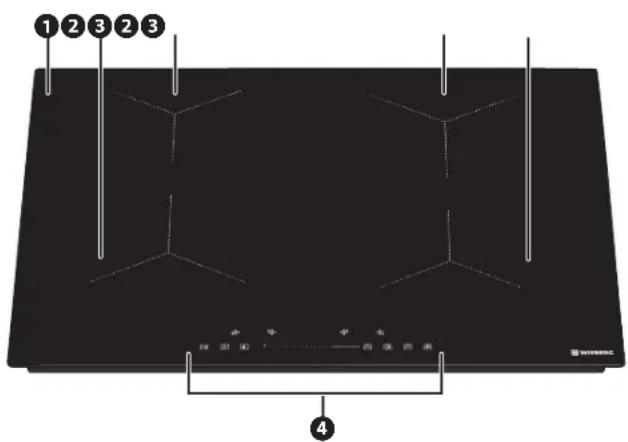

3.3. MAIN PARTS

① Glass surface
② Cooking zone (∅ 18 cm)
③ Cooking zone (∅ 16 cm)
4 Operating panel

①②③②③ ④

3.4. INSTALLING THE APPLIANCE

WARNING!

FIRE HAZARD DUE TO SHORT CIRCUIT. Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.

1. Check that the dimensions of the hob cutout meet the minimum dimensions. The hob cutout ensures good heat dissipation and prevents overheating of the appliance.

A. > 5 cm
B. > 3 cm
C. > 5 cm

1. Check that the dimensions of the surface meet the minimum dimensions.

D. 49 cm
E. 56 cm
F. > 5 cm

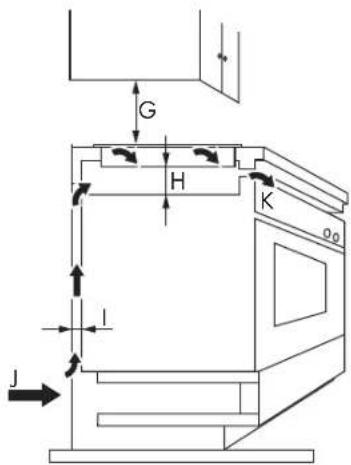

1. Check that the air inlets and outlets are not blocked and that they meet the minimum dimensions.

G. 60 cm
H. 5 cm
1. 2 cm
J. Air inlet
K. Air outlet

A B C A A

D E F F

G H K J I 00

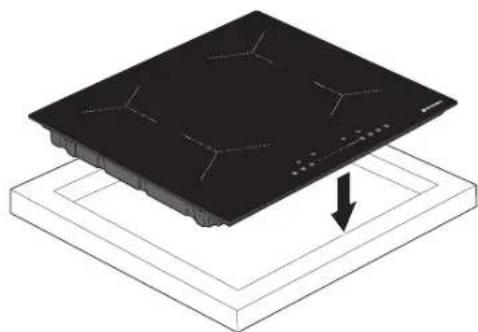

Isometric diagram of a layered electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

1. Place the appliance with the control panel facing down on the packaging.
2. Stick the sealing tape provided onto the bottom of the appliance along the entire outer edge. Make sure the sealing tape overlaps so that there are no cracks between the different sections of sealing tape.
3. Place the appliance in the hob cutout.
4. Check that the appliance fits fully in the hob cutout and that the glass plate makes full contact with the surface.

The appliance is correctly placed if it fits in the hob cutout and the glass plate makes full contact with the surface.

1. Place a thermal protective barrier at the bottom of the appliance.
2. Remove the protective film from the glass plate.

3.5. CONNECTING THE APPLIANCE

WARNING!

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Always have the appliance installed by an authorised service technician.

4. USE

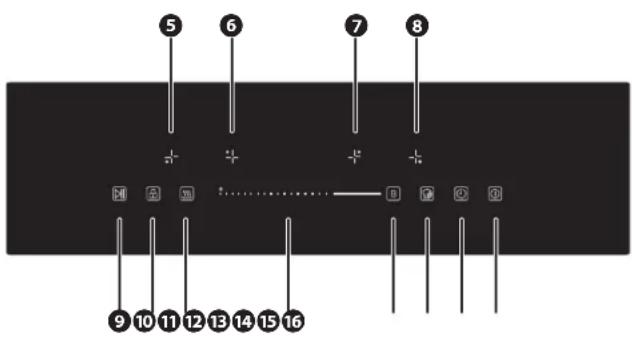

4.1. OPERATING PANEL

5 Front left cooking zone control button
6 Rear left cooking zone control button
⑦ Rear right cooking zone control button
8 Front right cooking zone control button
9 Stop and start button
10 Child safety lock
11 Keep warm button
12 Power setting control
13 Booster button
14 Memory button
15 Timer
16 On/Off switch

5 6 7 8 + + + + +

10 11 12 13 14 15 16

4.2. OVERVIEW OF FUNCTIONS

SYMBOL DESCRIPTION
	Slider for increasing and reducing the power of a cooking zone.
	Keep warm function where one zone maintains a lower power level in order to keep the temperature stable.
	Stop and start function for temporarily pausing all active cooking zones.
	Booster button to assign the highest power level of a cooking zone.
	Timer button for setting a timer.
	Child lock button for locking the control panel.
	On/off button for switching the appliance on and off.
	Memory function to adjust the setting for a particular cooking zone.

4.3. CHOOSING THE RIGHT COOKWARE

NOTICE!

RISK OF DAMAGE TO THE DEVICE.

• Never use damaged cookware or cookware with notched edges. Damaged cookware can scratch the glass surface.
• Never slide cookware across the glass surface. Sliding cookware can scratch the glass surface.
  • Always use the appliance with cast iron, enamel or stainless steel cookware suitable for induction.

Choose a pan suitable for induction. Pans suitable for induction are marked with the following symbol:

The following types of pans are not suitable for induction:

• Pans made entirely from stainless steel, aluminium or copper without a magnetic bottom, glass, wood, porcelain, ceramic or earthenware.
• Hollow-bottomed pans.
• Pans smaller than 10 cm in diameter on the 16 cm diameter cooking zones.
• Pans smaller than 12 cm in diameter on the 18 cm diameter cooking zones.

4.4. USING THE DEVICE

WARNING!

FIRE HAZARD FROM OIL AND GREASE. Never leave the appliance unattended while in use. Cooking with fat or oil can be dangerous and can lead to fire. Never extinguish a fire with water. Switch off the appliance and cover the flames with a lid or fire blanket.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT.

• Never use the device if a part is damaged or faulty. Replace a damaged or faulty device immediately. Disconnect the power cable from the wall socket and contact customer service.
• Never use the device in a damp space, like a bathroom, or nearby a bath, shower or swimming pool.
  • Only use the power cable installed on the appliance from the factory. Do not change the power cable.

FIRE HAZARD DUE TO OVERHEATING.

• Always continuously monitor the cooking process while using the appliance.
- Do not store any objects on the appliance.
- Do not heat empty pans or thin-bottomed pans on the cooking zones.
- Never use the appliance to heat a room.
- Never use the appliance if the glass surface is cracked. Turn the appliance off.

CAUTION!

RISK OF BURNS DUE TO HEAT. Never place metal objects such as knives, forks, spoons and lids on the cooking zone. Metal objects can become hot.

4.4.1. TURNING ON THE APPLIANCE

1. Press the on/off button to turn on the appliance.
   A sound signal is heard.
2. Place a pan on the cooking zone. Make sure the cooking zone and the bottom of the pan are clean and dry.
   After one minute of inactivity, the appliance automatically switches off.

4.4.2. ADJUSTING THE POWER SETTING

1. Press any point on the power level control of a cooking zone of your choice.
2. Swipe over the power level control or press any point to adjust the power level.
   The power setting can be adjusted during cooking.

NOTE

The letter "H" on the display indicates which cooking zone is too hot to touch. The letter "H" disappears when the surface has cooled to a safe temperature. If you want to heat another pan immediately after using the cooking zone, you can place it on the still warm cooking zone to save energy.

4.4.3. USING THE STOP AND START FUNCTION

1. Press the stop and start button to activate the function.
   The display shows ||.
2. Press the stop and start button to cancel the function.
   The cooking zone returns to the previously set position.

NOTE

Make sure the cooking zone is switched on before using this function.

4.4.4. USING THE BOOSTER FUNCTION

The booster button can set a cooking zone to the maximum power.

1. Press the control button of a cooking zone of your choice.

2. Press and hold the booster button for 3 seconds.

The booster is switched on. The cooking zone heats up. The display shows the letter P.

After five minutes, the booster function switches off. The cooking zone continues to heat at the highest power setting.

You can also turn off the booster function before the booster has expired:

1. Press the control button of the cooking zone with the booster.

2. Press the power level button to turn off the booster. The cooking zone continues heating at the power level that you have pressed.

3. Swipe the power setting control adjust the power.

4.4.5. SETTING THE COOKING TIMER

1. Select a cooking zone.
2. Press - or + under TIMER.
   The number 30 flashes on the display.
3. Set the cooking timer in one of the following two ways:
   A. Press - or + to increase or decrease the time by 1 minute.
   B. Press and hold - or + to increase or decrease the time by 10 minutes.
   When the cooking timer is activated, the display shows the remaining time and flashes for 5 seconds.
   When the time is up, the cooking timer switches off and the display shows --.

NOTE

Press - to cancel the cooking timer. The display shows 00 and then --.

4.4.6. SETTING THE TIMER

1. Press - or + under TIMER.
   The number 30 flashes on the display.
2. Set the timer in one of the following two ways:
   A. Press - or + to increase or decrease the time by 1 minute.
   B. Press and hold - or + to increase or decrease the time by 10 minutes.
   When the timer is set, the display shows the remaining time and flashes for 5 seconds.
   When the time is up, the buzzer will beep for 30 seconds and the timer switches off automatically.
   The timer time can be set between 0 and 99 minutes.
   When multiple timers are used, the display shows the time of the timer that expires first.
   Press the control button of a cooking zone to see the remaining time of the timer.

NOTE

Press - to cancel the timer. The display shows 00 and then --.

4.4.7. USING THE MEMORY FUNCTION

1. Select a cooking zone.
2. Set the power level and/or time.
3. Press and hold the memory button for 3 seconds.
   The display flashes to save your setting.
4. Select the chosen cooking zone.
5. Press the memory button.
   This cooking zone can now be used with the preset power setting and/or time.
6. Return to step 1 to cancel or change your settings.

4.4.8. USING THE CHILD SAFETY LOCK

1. Press the child lock button to enable the child lock.
   The display shows L0. You can only operate the on/off button and child lock button.
   The display also shows L0 if another button is pressed, this is to indicate that the child lock is enabled.
2. Press and hold the child lock button for 3 seconds to disable the child lock.
   The child lock does not switch off when the appliance is switched off.

4.4.9. USING THE KEEP WARM FUNCTION

The keep warm function allows a zone to maintain a lower power level in order to stay at a constant temperature.

1. Select a cooking zone.
2. Press the keep warm button.
   The display shows A.
3. Repeat steps 1 and 2 to switch off the keep warm function.

5. CLEANING AND MAINTENANCE

Before servicing and cleaning the appliance, carefully review the safety information in Section 1.

WARNING!

• ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Never immerse the appliance in water or other liquids.
• ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Always unplug the appliance before cleaning.

CAUTION!

RISK OF BURNS DUE TO HEAT. Always allow the appliance to cool down completely before touching the housing or power cable.

RISK OF DAMAGE TO THE APPLIANCE. Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.

Clean the appliance after each use.

1. Remove lime and water rings, grease splashes and metallic shiny discolorations with a damp cloth and detergent.
2. Remove shiny metal discolorations with a damp cloth and a solution of water and vinegar.
3. Clean the outside of the device with a soft, damp cloth.
4. Dry all parts with a soft cloth.

6. TROUBLESHOOTING

WARNING!

• ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT. Do not perform any repairs to the appliance that are not described in this manual. The appliance may only be repaired by an authorised service technician.
• RISK OF BURNS DUE TO HEAT. Always allow the appliance to cool completely and remove the plug from the earthed socket before maintenance or cleaning.
• RISK OF BURNS DUE TO HEAT. Never touch hot parts of the appliance. Do not touch anything except the control panel or wait until the appliance has cooled down completely.

Some problems can be easily solved by yourself using the table below. If the descriptions below do not solve your problem, please contact our customer service team: www.wisberghome.com

6.1. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The appliance refuses to turn on. The power cable is not connected to an earthed socket.		Plug the power cable into an earthed socket.
		The power cable is not connected correctly to an earthed socket.
		There is no voltage on the earthed socket.
		The fuse is blown or defective. Check the fuse and replace if necessary.
The control buttons do not respond. The buttons on the control panel are locked.		Unlock the control panel. See section 4.4.8. for instructions.
The control buttons are difficult to operate.	There could be a thin layer of water on the control panel or you might be using your fingertip to touch the control buttons.	Make sure the control panel is dry and touch the control buttons with a flat finger.
There are scratches on the glass plate. Pans with jagged edges or damaged pans have been used, or the glass plate has been cleaned with an abrasive sponge or unsuitable detergent.		Use pans with a flat and smooth bottom. See section 4.3. Choosing the right cookware and 5. Cleaning and maintenance.
There is a creaking or clicking sound.	The pan is made of different materials.	The different materials of the pan do not affect the preparation process and do not damage the appliance. You don't have to do anything.
There's a buzzing sound. The cooking zone is used at a high power level.		The high power setting does not affect the preparation process and does not damage the appliance. You don't have to do anything.The sound gradually softens or disappears when the power level is reduced.
The pan does not heat up and a U appears on the display.	The induction hob cannot detect the pan because it is not suitable for cooking using induction.	Use pans that are suitable for cooking using induction. See section 4.3.Choosing the right cookware.
	The induction hob cannot detect the pan because it is too small for the cooking zone or is not properly centred.	Place the pan in the centre of the cooking zone, making sure its bottom is exactly the same size as the cooking zone.
The induction hob or a cooking zone unexpectedly switches off, a beep sounds and an error code is displayed (usually alternating with one or two digits on the timer display).	The appliance has a technical problem.	Note the letters and numbers of the error message, switch off the power to the induction hob and contact a qualified service technician.

6.2. ERROR MESSAGES ON THE DISPLAY

ERROR MESSAGE POSSIBLE CAUSE POSSIBLE SOLUTION
F3/F4 There is a fault in the temperature	sensor of the coil.	Please contact customer service.
F9/FA There is a fault in the temperature	sensor of the IGBT.
E1/E2 The supply voltage is too high or too low.		Check that the power supply is normal. Reset the device.
E3 The coil's temperature sensor has	become overheated.	Press the on/off switch to switch off the device. Allow the appliance to cool down completely. Reset the device.
E5 The temperature sensor of the IGBT has	become overheated.

In the event of an error message, the appliance will stop heating. The display shows the error message. Please contact customer service.

7. TRANSPORT AND STORAGE

1. Clean the appliance. Follow the instructions in chapter 5. Cleaning and maintenance.
2. Cut the sealing tape with a knife.
3. Carefully remove the appliance from its place.
4. Unplug the power cable from the earthed socket.
5. Store the appliance in its original packaging in a dry and ventilated space.

8. SAFE DISPOSAL

8.1. DISPOSING OF PACKAGING MATERIAL

The packaging material consists of various materials. When disposing of packaging material, follow national and local regulations regarding the environmentally friendly disposal of packaging material.

8.2. DISPOSING OF THE APPLIANCE

The materials used in this appliance and marked with this symbol are recyclable. The marking indicates that this product should not be disposed of with household waste throughout the EU.

This symbol indicates that the appliance must not be disposed of with other household waste within the EU. By properly disposing of the appliance, you help prevent potential hazards to the environment and public health. Recycling materials contributes to the conservation of our natural resources. Therefore, do not dispose of waste electronic appliances along with household waste. When disposing of the appliance, follow national and local regulations regarding the environmentally friendly disposal of electronic appliances. You can also contact Wisepick Productions B.V. if you do not want to use the appliance anymore or to return the appliance.

马

FR - NOTICE D'UTILISATION

PLAQUE DE CUISSON À INDUCTION ENCASTRABLE

WBBC4F1

WISBERG

SOMMAIRE

Avant-propos

36

1. Sécurité 37

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Pays-Bas

Fabriqué en Chine

1. SÉCURITÉ

G H K 00 I J

Isometric diagram of a black electronic component with internal structure, showing a downward arrow indicating compression or disassembly (no text or symbols present)

3.5. BRANCHER L'APPAREIL

AVERTISSEMENT!

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Niederlande

Made in China

1. SICHERHEIT

G H K 00 I J

Isometric diagram of a layered electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

Wisepick Productions B.V.

Weena 664

3012 CN, Rotterdam

The Netherlands

Made in China V1.3 - 04/2025
