RC-1L - Rice cooker Grunkel - Free user manual and instructions
Find the device manual for free RC-1L Grunkel in PDF.
| Product type | Rice cooker |
| Brand | Grunkel |
| Model | RC-1L |
| Capacity | 1 liter (max. 5 cups of rice) |
| Power supply | 220-240 V ~ 50/60 Hz, 300 W |
| Main functions | Automatic cooking and keep warm |
| Inner pot material | Metal with non-stick coating |
| Included accessories | Measuring cup, rice spoon (not mentioned but typical) |
| Care and cleaning | Exterior: soft, slightly damp cloth. Interior: hot water and non-abrasive sponge. Heating plate: soft brush. Never immerse. |
| Safety | Automatic shut-off, do not touch hot surfaces, do not use without inner pot, do not immerse. |
| Warranty | 3 years from date of purchase |
| After-sales service | Telephone: 902 110 909, Email: tecnico@counter.com |
| Intended use | Household only, not industrial |
| Max number of cups | 5 cups (1L model) |
| Keep warm | Automatic as soon as the appliance is plugged in |
| Indicator light | Turns on during cooking, turns off at end of cycle |
| Dimensions | Approximately 25 x 25 x 20 cm (estimated) |
| Weight | Approximately 1.5 kg (estimated) |
| Repairability | Material under warranty; repairs by approved technical service |
Frequently Asked Questions - RC-1L Grunkel
User questions about RC-1L Grunkel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Rice cooker in PDF format for free! Find your manual RC-1L - Grunkel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RC-1L by Grunkel.
USER MANUAL RC-1L Grunkel
Modelo: RC-1L
GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL
Diagram showing three test tubes with different fill patterns: beaker, checkmark, and beaker filled with granules, each marked with an 'X' symbol.THANK YOU FOR CHOOSING THIS GRUNKEL PRODUCT
GRUNKEL puts at your disposal innovative, durable and practical products. When used responsibly and with proper maintenance, it will provide you with a long useful life and will help make everyday life a much easier task.
We appreciate your trust and hope you enjoy it.
Discover the rest of our range at www.grunkel.com
BEFORE PUTTING THE APPLIANCE ON WORKING
- Please read carefully the instructions for use of this manual in its entirety before putting it into operation.
- Pay special attention to safety instructions.
- Keep this instruction manual. If you give the device to a third party, these instructions must also be given.
- Also keep the guarantee, the purchase receipt or invoice and, if possible, the box with the inner packaging for possible future requests.
Safety measures for its use
ABefore using the appliance, make sure that the voltage used corresponds to that shown on the appliance's label. Always connect the plug to a suitable power source.
To prevent electrical hazards, do not immerse cord, plug, or appliance in water or other liquid. Please read the cleaning instructions carefully.
Do not use unauthorized accessories. This will void the warranty and may cause accidents.
Do not let cord hang over edge of table or shelf. Keep it away from hot surfaces. Do not allow it to come into contact with sharp or blunt objects. Do not operate if the cord or plug is damaged or if you notice that the appliance is not working properly.
Do not leave the appliance running unattended. Always switch off the appliance or unplug it (by pulling the plug, not the cable). To disconnect, grasp plug and remove from outlet. Never disconnect by pulling on the cable.
In case of any repair, cable replacement or adjustment, please consult a qualified technician, or take the device to the Official Technical Service.
CAUTION: For the safety of your children, do not leave packing materials (plastic bags, cardboard, polyethylene, etc.) within their reach.
Always supervise the appliance when it is used in the vicinity of children. Never leave the appliance running unattended.
Use the appliance only for its intended use.
The appliance is not intended to be operated by means of an external timer or a separate remote control system.
Do not touch hot parts of the appliance. Do not cover it with a cloth or similar, or place it near flammable materials.
Do not use the appliance near or over a heat source, such as a gas or electric heater or a hot oven.
Never use a fork or other sharp object to clean the appliance, as this may cause serious damage or an accident.
CAUTION: The appliance may remain hot during or after use.
Do not handle the unit with wet hands.
Before cleaning the unit, make sure that it is disconnected from the mains. Let it cool down before cleaning.
If you need a copy of the instruction manual, please contact an authorized service center.
Do not use the appliance incorrectly. Serious injury could result. In case of misuse by the customer
If the customer misuses the appliance, it will be out of warranty.
Do not use it outdoors.
Do not place the appliance on unstable surfaces or surfaces with low heat resistance. Do not place the appliance on top of any other appliance.
Do not fill the inner container of the appliance with oil. This could cause a fire.
Do not touch the inside of the appliance while it is in operation.
Unplug the appliance when it is not in use. Remember that the keep warm function remains active as long as the appliance is connected to the mains.
Never use the appliance without the inner container.
Do not attempt to force the switch button if it shows resistance when pressed. This happens when the inner pot has been fully inserted or when the appliance has finished cooking.
Do not place any objects on top of the appliance.
Switch off the appliance immediately if you see black smoke coming out of the appliance.
Wait until the smoke emission has completely stopped before opening the appliance cavity.
Always keep the bottom of the inner container and the surface of the heating plate clean and free of debris. This will prevent possible malfunctions or household accidents.
CAUTION: Once switched off and disconnected, the appliance may remain hot for several minutes. Do not touch or move it until it has cooled down completely.
WARNING: In case of improper use, there is a risk of possible injury and loss of warranty for the appliance.
Children should be supervised to ensure that they do not play with this appliance.
WARNING: This appliance is for DOMESTIC use only. It is not intended for industrial use.
CAUTION: THIS APPLIANCE SHOULD NOT BE USED OR CLEANED BY CHILDREN UNDER 8 YEARS OF AGE WITHOUT ADULT SUPERVISION. IT IS ALSO NOT INTENDED FOR USE OR CLEANING BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE OR KNOWLEDGE IN THE USE OF THE APPLIANCE, OR WHO HAVE NOT BEEN PROPERLY TRAINED UNDER THE DIRECT SUPERVISION OF A QUALIFIED PERSON..
CAUTION
Hot
surface
Operation
CAUTION: Before starting cooking, clean the base of the inner pot and the surface of the heating plate. When inserting the inner pot into the cavity, turn it gently left and right until it is correctly positioned on the heating plate.


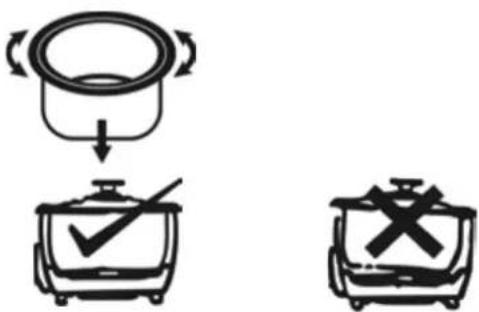

Diagram showing cooking process with a pot dropping into a stove and a crossed-out stove, indicating cooking or testing.I Insert the inner container into the cavity of the appliance.
Use the measuring cup included in the package to add the desired amount of rice for cooking and place it in the inner container (max. 3 cups in 0.6L model / 5 cups in 1L model).


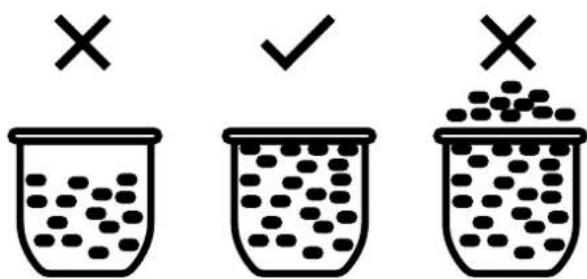

Diagram showing three test tubes with different fill patterns: beaker, checkmark, and beaker filled with granules, each marked with an 'X' symbol.Add the appropriate amount of water according to the amount of rice added to the inner vessel. It is recommended to add one cup of water for each cup of rice added to the inner vessel. You can add up to half a glass of water to the total amount if necessary.
Place the lid on the appliance and close it tightly. Gently turn the container left and right.
Insert the power cord into a suitable socket. Do not switch on the appliance until you are ready to cook, as the keep warm function will be activated as soon as the appliance is connected to the mains.
Press the switch button. The indicator light will come on to indicate that cooking has started.
When cooking is finished the switch button will be deactivated. Keep the inner pot covered with the lid for at least 15 minutes to allow the steam to cook the rice.
Once the process has been completed, disconnect the plug from the socket.
CAUTION: The vessel reaches very high temperatures. Do not touch the pan during operation or immediately after cooking.
CAUTION: Once switched off and disconnected, the appliance may remain hot for several minutes. Do not touch or move it until it has cooled down completely.
Cleaning
WARNING: Before cleaning the appliance, make sure that it is disconnected from the mains and that the appliance has cooled down completely.
Clean the outside of the unit with a soft, slightly damp cloth. Clean the cavity with warm water and a non-abrasive sponge. Clean the heating plate with a soft brush to remove food debris.
Do not use hard brushes, metal utensils or abrasive detergents to clean the appliance.
You can use an anti-grease product to clean the dirt accumulated in the basket.
Use only suitable products that do not damage the surface of the appliance. Then clean the appliance with hot water to remove any remaining grease remover in the basket.
CAUTION: Never immerse the device in water.
This appliance is intended for household use. Do not use it for commercial use. Failure to do so will invalidate the warranty.
220-240V \~50/60Hz / 300W
Removal of the unit
Waste electrical equipment regulations according to the WEEE DIRECTIVE 2002/96/EC. This symbol means that this product must not be treated as normal household waste, but must be returned to the distributor, or handed over to the appropriate collection point for electrical or electronic equipment, or taken to a collection point set up for this purpose so that its components can be recycled and not mixed with household waste.
You can also notify the collection service of your municipality so that it can be collected and treated in the appropriate manner, following the instructions for environmental protection or for advice on how to do so. The disposal of a household appliance means avoiding possible negative consequences for the environment and health. Proper disposal will result in significant energy and resource savings.
As a reminder of the need for separate disposal of electrical appliances, a crossed-out wheeled dustbin appears on the product.
COINTER ELECTRÓNICA S.L. issues this document as a guarantee of the quality of the product you have purchased under the legally established terms for a period of three years from the date of purchase, so it is recommended to keep the original purchase receipt or invoice.
This warranty covers the repair of the device for any failure caused by manufacturing defects. It does not cover deficiencies or damage caused by negligence, blows, misuse or improper manipulation, voltage or incorrect installation carried out by installers outside the authorized Technical Service or by an Unauthorized Technical Service. Nor does it cover materials subject to wear due to normal use.
In the event of incidents that justify the use of this guarantee, repair will be chosen, in the legally established terms.
This guarantee will be invalidated:
If the ticket or original purchase invoice of the device is not presented
If any of the data on the same, on the receipt or purchase receipt are modified, altered or replaced.
If both the number or model, the serial number or the guaranteed device itself are tampered with or repaired without the knowledge of the authorized Technical Service.
If it lacks the signature or stamp of the establishment where it was purchased.
In the event of any incident that may arise, you can contact the establishment where you purchased it or the official Technical Service by calling the number mentioned below.
Customer Service: Phone: 902 110 909
Email: tecnico@counter.com
CUSTOMER CONTROL CARD
Brand Serial number
Model Date of purchase
Gender acquired in
Dealer signature
CONTROL CARD TO SEND BY MAIL
Brand Serial number
Model ____ Date of purchase ____
Name of the buyer
Address
Population Province
Phone Acquired in
Dealer signature
User signature
To obtain technical assistance you can contact
954 185 320
