Operating and installation instructions for:

•Headroom hood BKH 80 EGB E00
•Headroom hood BKH 90 EGB E00

Descriptions are identical for all models. Differences are noted separately. Illustrations show:

•Headroom hood Ergoline BKH 90 EGB

•Originalinstructions.
- Part of the product.
•Copyrightprotected.
- Duplications, re-printing and distribution only with permission.
- Subject to alteration.

Safety information

⚠️ DANGER!

Notes with the word DANGER warn of a hazardous situation that results in serious injuries or death.

⚠ WARNING!

Notes with the word WARNING warn of a hazardous situation that could result in serious injuries or death.

⚠️CAUTION!

Notes with the word CAUTION warn of a situation that could result in minor injuries.

ATTENTION!

Notes with the word ATTENTION warn of a situation that could result in damage to property or to the environment.

Symbol clarification - text

Handling requirement
•Listing
→Reference to another point in this document
☐Reference to other documents that should be observed

Symbol clarification - illustrations

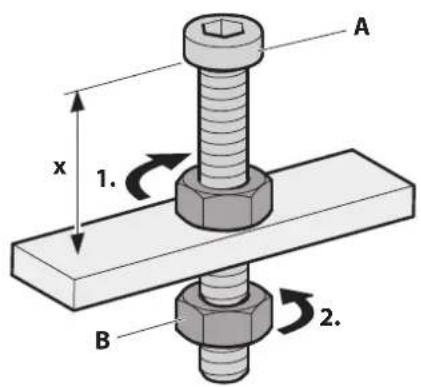

A x 1. B 2.

Highlighting of the parts involved in the action with shading

1. Handling steps with numbering
   A Part designations with upper case characters
   x Dimensions with lower case characters or units in mm
   → Movement and direction arrows

Table of contents

1. Safety information .... 108

1.1 Proper intended use 108
1.2 Authorised target groups....108
1.3 General safety instructions 108

2. Product information....109

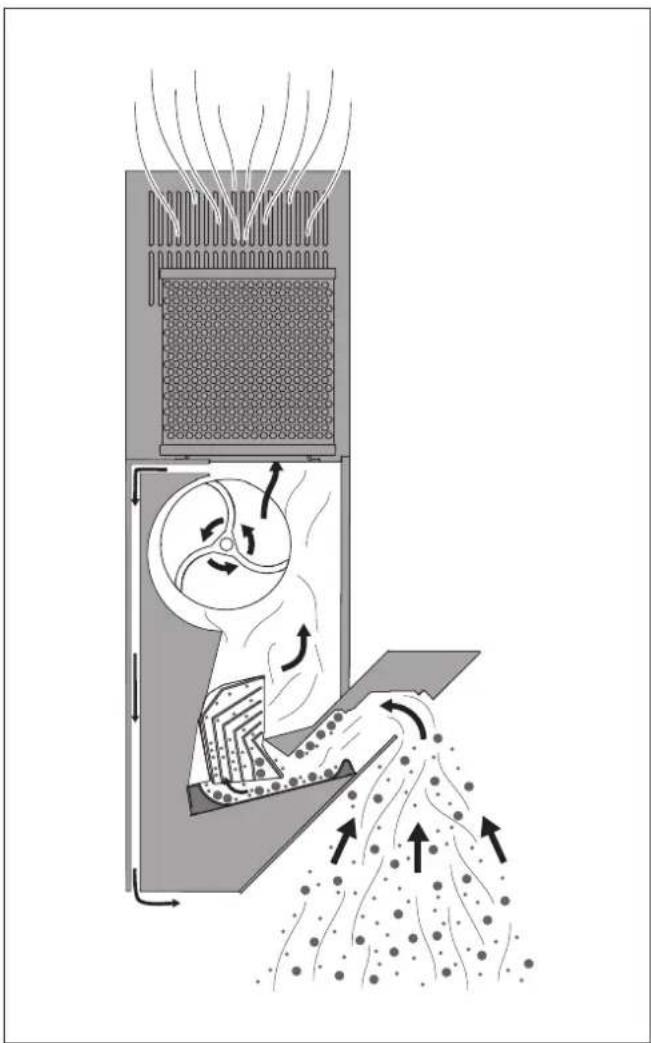

2.1 Functional principle ..... 109

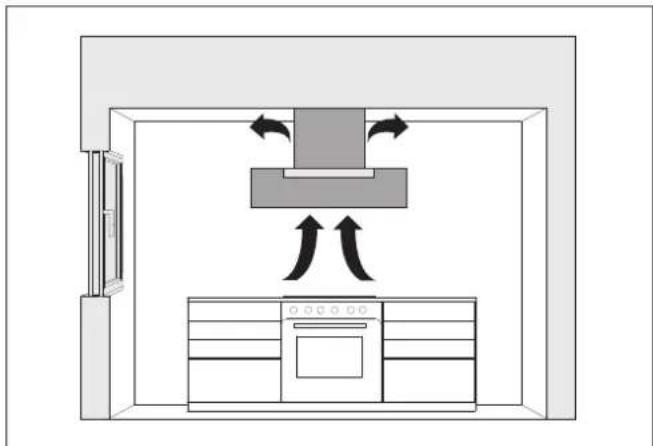

2.2 Recirculated air mode 109

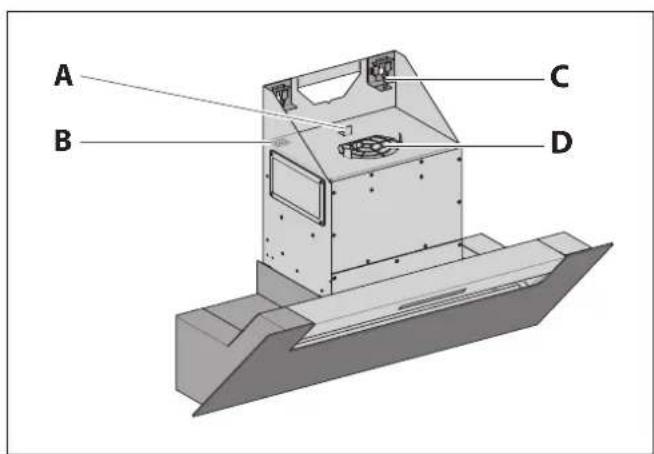

2.3 Product overview....110
2.4 Scope of delivery 110
2.5 Technical data....111

3. Installation....112

3.1 Safety instructions for installation.....112

3.2 Requirements for the installation location ..... 112

3.3 Requirements for recirculated air mode.....112

3.4 Installation procedure 113

3.4.1 Preparation for installation 113
3.4.2 Unpack the device 113
3.4.3 Removing the lower section, bulging edge and Capillar Trap....114

3.4.4 Hang the device in place....115

3.4.5 Install filter 117

3.4.6 Establish electrical power supply....117

3.4.7 Mounting the chimney....118

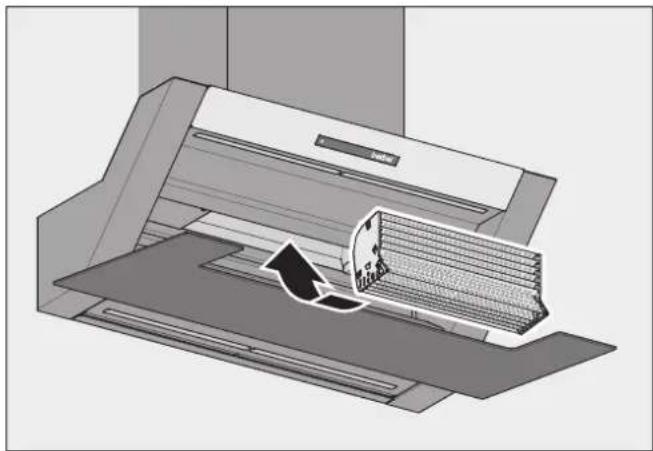

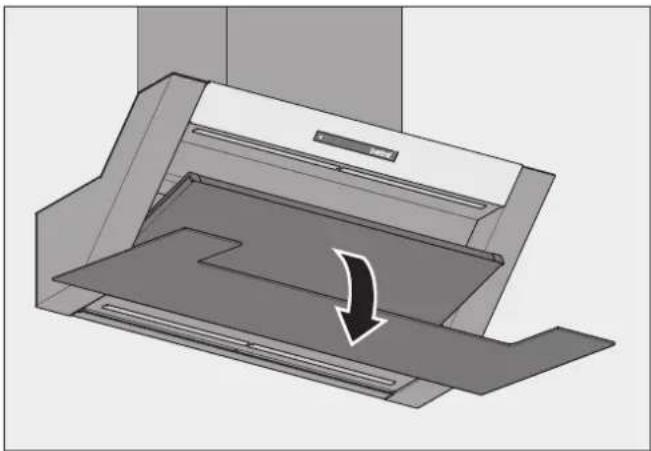

3.4.8 Insert the Capillar Trap, bulging edge and lower section 118

3.4.9 Check and carry out commissioning ..... 119

4. Operation....120

4.1 Safety instructions for operation ..... 120
4.2 Operating the device 121
4.2.1 Normal operation....121
4.2.2 Filter filling indicator 122
4.2.3 Cooktop lighting....122
4.2.4 Run-on function 122

4.3 Configuring the device 123

5. Cleaning 124

5.1 Safety information for cleaning 124

5.2 Cleaning procedures....124

6. Maintenance 126

6.1 Safety instructions for maintenance ..... 126

6.2 Maintenance....126

6.2.1 Changing the lamps 126

6.2.2 Replacing filter filling....126

6.3 Fault rectification ..... 128

7. Dismounting 129

8. Disposal....130

8.1 Dispose of packaging 130

8.2 Dispose of the device 130

9. Contact....131

1. Safety information

1.1 Proper intended use

The device serves to extract cooking vapours.

The device is intended exclusively for use in recirculated air mode and in private domestic use.

The device must only be used with original filters from the manufacturer.

It is only permitted to use the device when it is in technically flawless condition and after correct installation.

Any other use shall be considered improper use.

The reading and observance of this manual are also included in the proper use of the device.

1.2 Authorised target groups

Electrical work only to be undertaken by qualified electricians. Requirements on qualified electricians:

•Knowledge of the basics of electrics.
- Knowledge of country-specific regulations and standards.
- Knowledge of the applicable safety regulations.
- Knowledge of the relevant legal requirements for gas installations.
•Knowledge of this manual.

Installation and repair only by qualified specialist personnel. Requirements on qualified specialist personnel:

• Knowledge of the regulations on safety at work.
  •Knowledge of fastening systems.
• Basic knowledge of ventilation systems.
  •Experienced in using electrical and mechanical tools.
• Ability to read technical drawings.
  • Knowledge of this manual.

Operation, cleaning and maintenance by the user. Requirements for the user:

• Knowledge of this manual.

There are separate requirements for the following users:

•Children from 8 years and older.
- Persons with restricted physical, sensory or mental capabilities.
- Persons with a lack of experience and knowledge.

These users are only permitted to carry out operation, cleaning and maintenance. Special requirements:

• Users are supervised.
• Users are instructed with regard to safe use of the device.
• Users understand the hazards involved with the device.
  •Children may not play with the device.

1.3 General safety instructions

⚠ WARNING!

Hazard through a disregard of the operating and installation instructions!

This manual contains important information for the safe handling of the device. Separate reference is made to possible hazards.

Read through this manual thoroughly.
Follow the safety instructions in this manual.
Store the manual in an accessible location.

Naked flames can damage the device and can cause fires.

• Gas operation only with low gas flames (not rising above the edge of the base of the pots).
• Do not flambé underneath the device.
• No unattended deep frying underneath the device.

The use of the device is forbidden under the following circumstances:

• If necessary safety devices are missing (e.g. whilst using a heating point which uses air from the room as its oxygen supply).
  • If essential approvals are missing (e.g. from chimneysweeps).
  • In potentially explosive atmospheres.
• If the device or individual components are damaged.
• In the event of unauthorised alterations or changes to the device.
• If liquid has penetrated the device.
• When heavily soiled.
• For children under 8 years old and persons who would not be able to properly assess the hazards associated with handling the device.

The manufacturer accepts no liability for damage occurring in the following circumstances:

•Disregard of this manual.
- Improper use of the device.
- Improper installation and handling of the device.
- Use of the device by unauthorised target groups.
- Bypassing safety equipment on the device.
- Use of replacement parts (e.g. mains cable) that were not produced or approved by the manufacturer.
- In the case of incorrect use (e.g. heating cooking oils and cooking fats with a temperature above the smoke point).

Further safety instructions can be found in the respective relevant chapters of this manual.

→"3.1 Safety instructions for installation" (page 112).
→"4.1 Safety instructions for operation" (page 120).
→"5.1 Safety information for cleaning" (page 124).
→"6.1 Safety instructions for maintenance" (page 126).

2. Product information

2.1 Functional principle

Diagram of a steam turbine with airflow and particle dispersion, showing internal components and directional arrows (no text or labels)

Centrifugal force

• Cooking vapours are drawn through a gap and into the hood where they are accelerated and routed through bends.
• The resultant centrifugal force ejects particles of dirt (e.g. particles or grease and oil) out of the air.
• The dirt particles are separated out and collected on the upper and lower section as well as a catchment screen ("Capillar Trap").

BackFlow technology

• Condensate or droplet formation on the decorative panel (e.g. if steam touches the cold surface) is prevented by a vent installed from the bottom to the top.
• Part of the vented air quantity is fed to the back of the extractor hood, blown over the glass front and directed into the suction gap.

2.2 Recirculated air mode

Interior layout diagram showing a room with furniture and airflow arrows (no text or symbols)

The device is used in recirculated air mode.

The filter filling in the recirculated air filter neutralises any smelly odours present. The odour-free, cleaned room air is fed back into the room. The humidity in the room can be reduced with the fresh air feed.

In recirculated air mode, it is necessary to use the run-on function so that the device can remove the remaining odours. Using the run-on function increases the life of the filter filling. The filter filling must be replaced at regular intervals.

2.3 Product overview

A B C D E F G H I

A Chimney

B Hood body

C Upper section with bulging edge (removable)

D Lower section (removable)

E Capillar Trap (removable) - behind the lower section

F Front panel made of glass

G Control panel

H Hob lighting

I Type plate - on the inside of the front panel

A B C D

A Guide aid for installing the recirculated air filter

B Connector for the mains cable

C Adjusting screws for alignment

D Fan outlet with grille

2.4 Scope of delivery

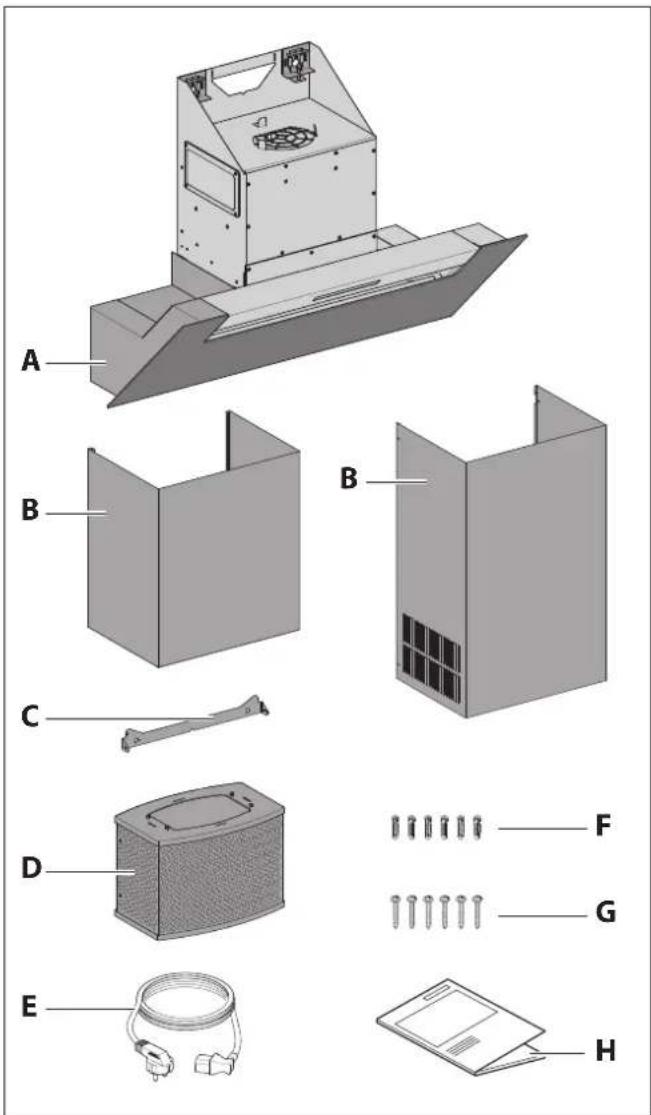

A B C D E F G H

A Hood body with front panel
B Chimney (two-part, can be pulled apart)
C Chimney fastening
D Recirculated air filter BUF 150 +
E Mains cable with plug and cold device plug
F 6 nylon wall plugs 8 mm
G 6 Torx screws TX30 with integrated washers
H Operating and installation instructions

The fastening materials are only suitable for solid walls.

Further accessories may be required depending on the operating mode.

2.5 Technical data

	BKH 80 EGB E00	BKH 90 EGB E00
Connection voltage	230 V/50 Hz	230 V/50 Hz
Total power 176.1 W 176.1 W
Fan power consumption 160 W 160 W
Lighting LED 16.1 W LED 16.1 W
Illuminance on the hob surface 555 lx 555 lx
Colour temperature 4000 K 4000 K
Width 800 mm 900 mm
Depth	429 mm 429 mm
Height	900 -1220 mm	900 -1220 mm
Net weight	31 kg	32 kg

Information on the model (e.g. serial number, year of construction) is quoted on the front panel.

→ "2.3 Product overview" (page 110).

3. Installation

3.1 Safety instructions for installation

⚠ WARNING!

Hazard through disregard of the installation instructions!

This chapter contains important information for the safe installation of the device.

Read through this chapter carefully before installing the device.
Follow the safety instructions.
Carry out the installation as described.

• Installation only by qualified specialist personnel.
→"1.2 Authorised target groups" (page 108).

• Electrical work only to be undertaken by qualified electricians.
  →"1.2 Authorised target groups" (page 108).

• Installation requires two persons.

- When working at heights, ensure good stable footing (e.g. stable stepladder).

- The hob and other parts that can be touched must be allowed to cool prior to installation.

- Store the film or other parts of the packaging in a location which is inaccessible to children.

- The device must be in an undamaged and fault-free condition prior to installation.

•Cables must not be kinked, crushed or damaged.

- Never open the fan housing.

- It is not permissible to attach further components (e.g. panels, air ducts) to the device.

- The power supply voltage must match the voltage information quoted on the ratings plate. "2.5 Technical data" (page 111).

- Ensure that the power supply is stable and remains so prior to the installation. Connect the power supply only when instructed to do so in the installation instructions.

3.2 Requirements for the installation location

⚠ WARNING!

Risk of death due to improper installation!

Disregard of the ambient conditions can lead to hazardous situations, e.g. in the handling of electrical power or gas.

Make sure that the requirements for the installation location are complied with.

• Do not install in potentially explosive atmospheres.
• With simultaneous use of a heating point which uses air from the room as its oxygen supply (e.g. chimneys):
  •A safety device is absolutely essential.
• The safety device must prevent gases being drawing to the room.
• It is essential to ensure that the negative pressure in the heating point installation room does not exceed 4 Pa.
• An approval for commissioning (e.g. from a chimneysweep) must be available.

- Installation is only permitted on structural building elements capable of bearing the load (solid structure).

- If installed above fireplaces that use solid fuels (e.g. coal stove):

The fireplace must have a sealed cover which cannot be removed. Otherwise there is a fire risk due to flying sparks. Applicable legal and country-specific regulations must be observed.

- The air flowing out must be able to dissipate unimpeded. Do not impede the air flow, e.g. through the installation of objects on or above the device.

- Make sure that the building electrical supply is properly earthed.

•The power supply voltage present must match the voltage information quoted on the ratings plate.

- There must be an electrical power outlet in the vicinity of the hood installation.

- The mains plug must be accessible after the installation of the hood. Alternatively, all-pole isolating device (with a contact gap of at least 3mm ) must be provided.

Country-specific, legal provisions must be observed.

3.3 Requirements for recirculated air mode

- Filter filling freely accessible for changing.

3.4 Installation procedure

Short overview:

1. Preparation for installation
2. Unpack the device
3. Removing the lower section, bulging edge and Capillar Trap
4. Hang the device in place

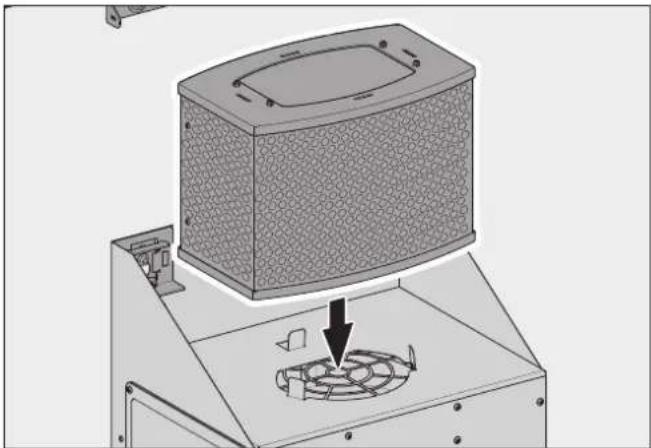

5. Install filter
6. Establish electrical power supply

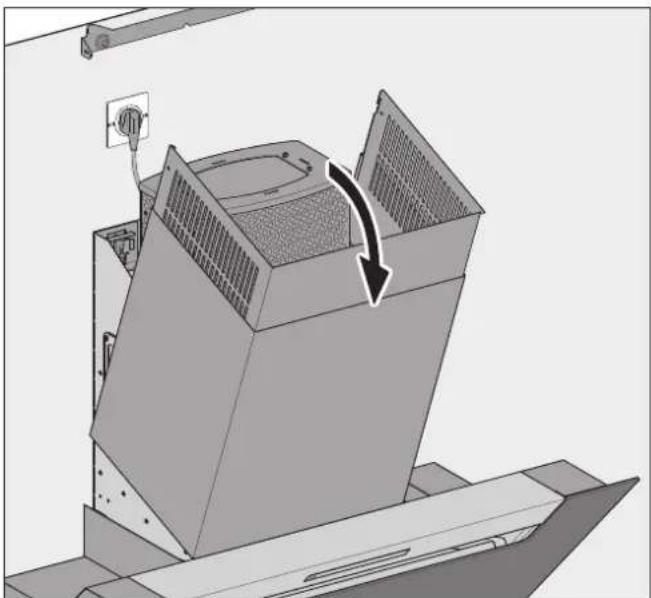

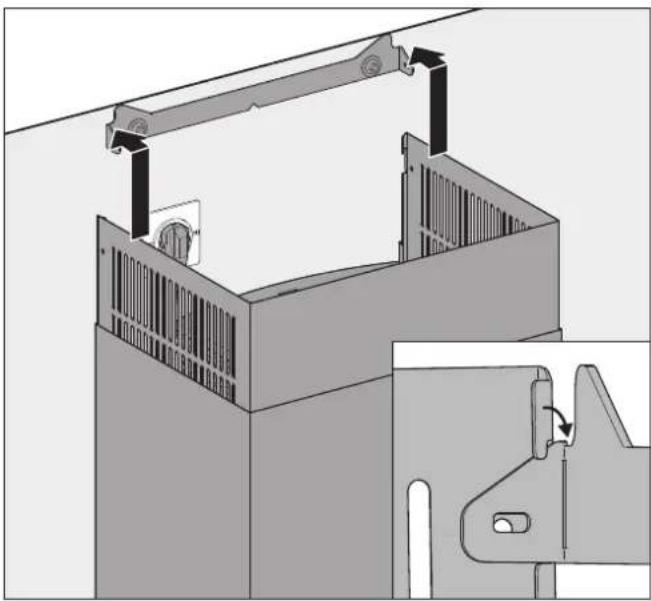

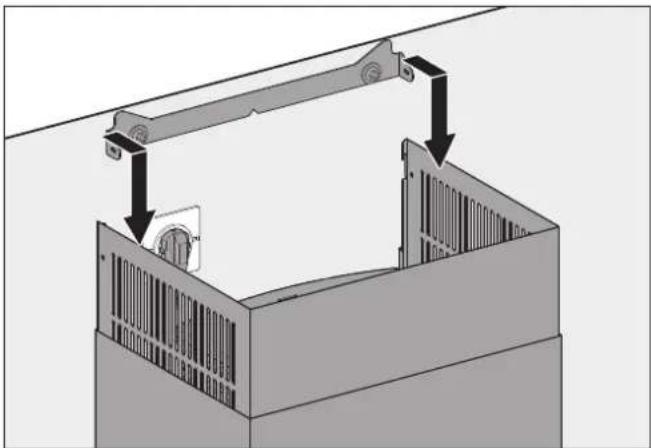

7. Mounting the chimney

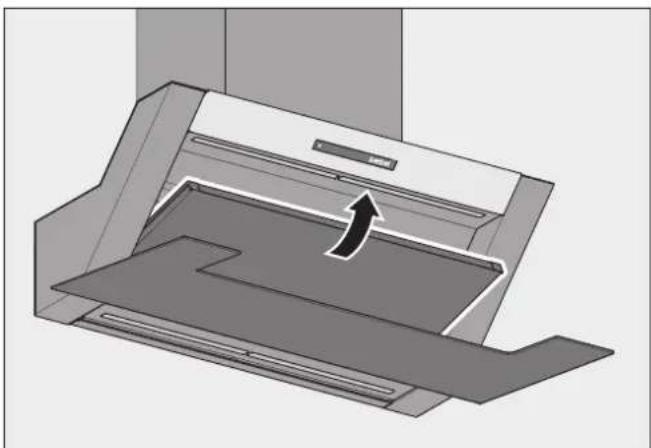

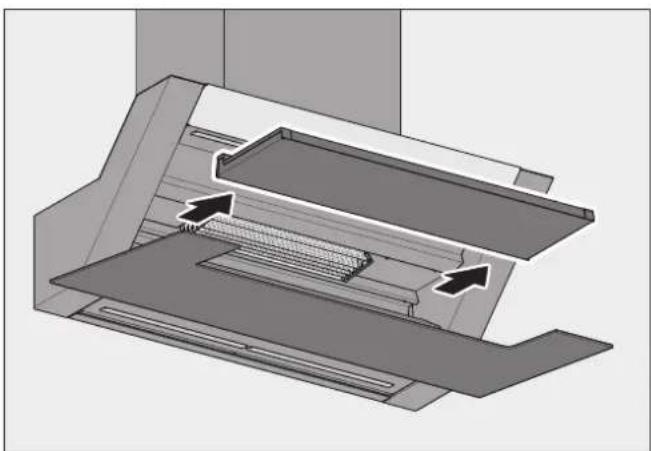

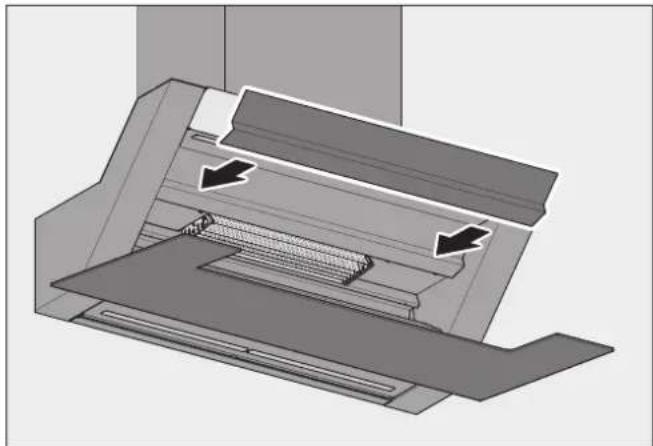

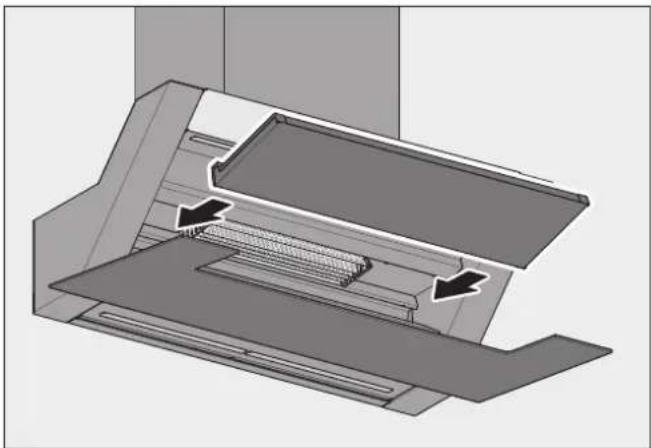

8. Insert the Capillar Trap, bulging edge and lower section
9. Check and carry out commissioning

3.4.1 Preparation for installation

Familiarise yourself with the installation situation and the associated documents.
•Device and instructions.
• Installation location.
Assemble the tools and materials required:
•Stable stepladder
•Folding rule or measuring tape
•Pencil
- Spirit level
•Slotted screwdriver SL 2.5 x 0.4
•Torx screwdriver TX30
- 08 mm masonry bit
- Hammer drill
- 10 mm spanner
- Protective material (e.g. thick cardboard) for the hob and the worktops

Keep the installation area free of objects that could be in the way or that could be damaged.
Make sure that the hob and other parts that could be touched have cooled down.
Protect the hob and other surfaces in the installation area (e.g. with thick cardboard).

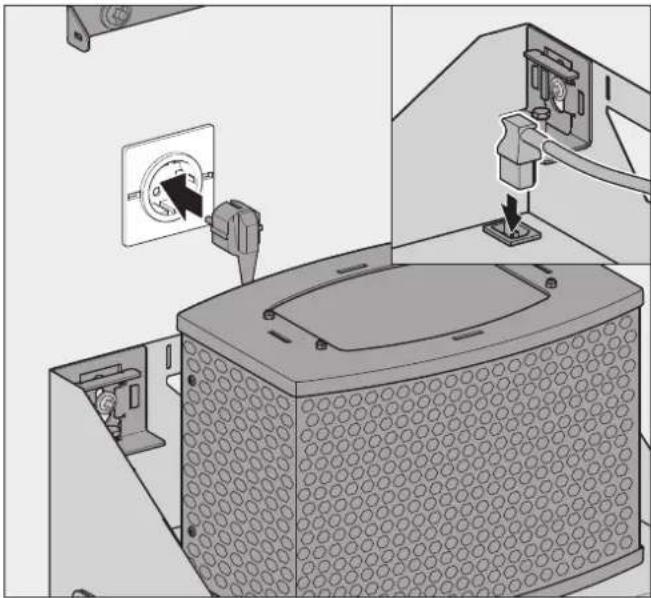

■ Ensure that the power supply is switched off and remains so. Connect the power supply only when instructed to do so in the installation instructions.

3.4.2 Unpack the device

ATTENTION!

Hazard of glass breaking or other damage due to incorrect handling!

The device and its surfaces can be damaged when being unpacked or transported.

Do not cut into the protective cardboard packaging.
Keep objects that could scratch the device far away from it (e.g. tools, belt buckles).

Unpack the device and all accompanying parts carefully.

Place the device on its back on a firm, clean and protective surface (e.g. thick cardboard).

Check the device and its constituent parts for damage.

Check the delivery is complete.

→"2.4 Scope of delivery" (page 110).

If parts are missing or damaged:

Please consult the customer services.

Remove the packaging material and the protective film.

→"8.1 Dispose of packaging" (page 130).

3.4.3 Removing the lower section, bulging edge and Capillar Trap

ATTENTION!

Danger of property damage through falling parts!

When moving the device, the front panel may open and parts lying inside could fall out.

Remove the parts lying inside before installation.

The lower section is secured in the end positions and can only be removed in a central position.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

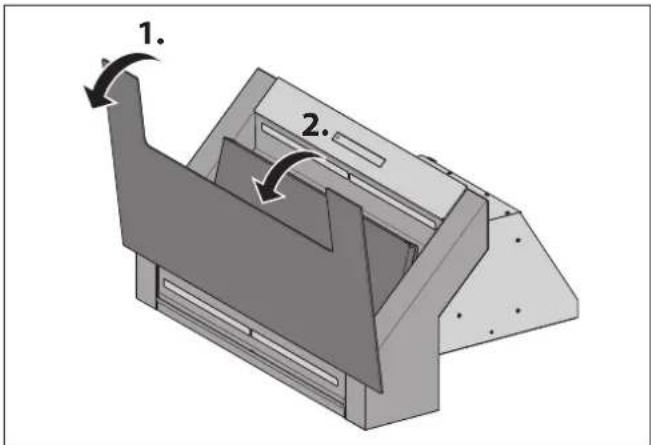

Open the front panel.

Fold the lower section into a central position.

3D mechanical assembly diagram showing a component with a highlighted section and an arrow indicating direction (no text or symbols present)

Draw the lower section up and out.

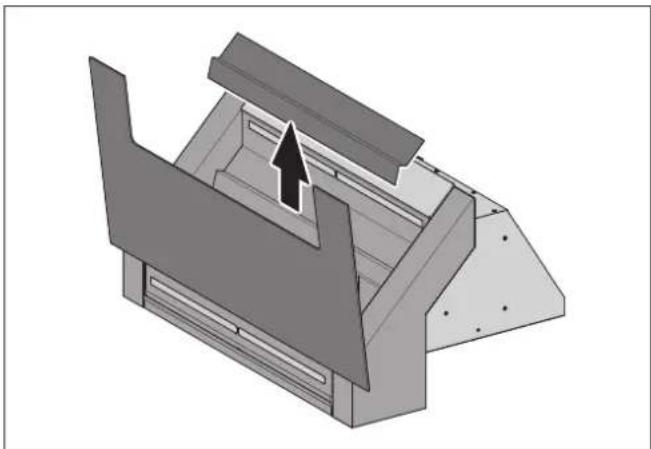

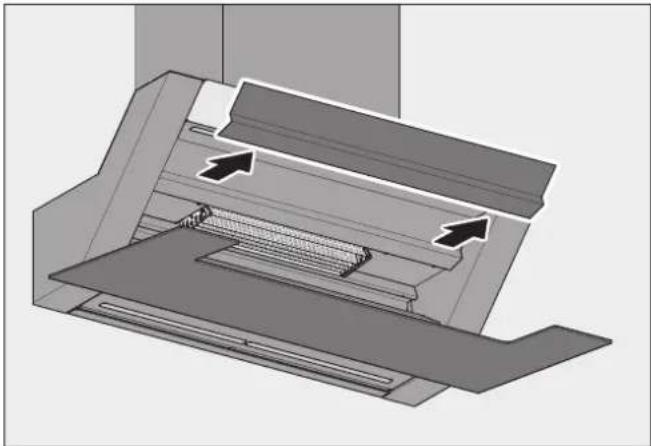

The bulging edge is attached and held in the device by magnets.

3D mechanical assembly diagram showing a bracket with an arrow indicating direction (no text or symbols)

Pull the bulging edge from the upper section.

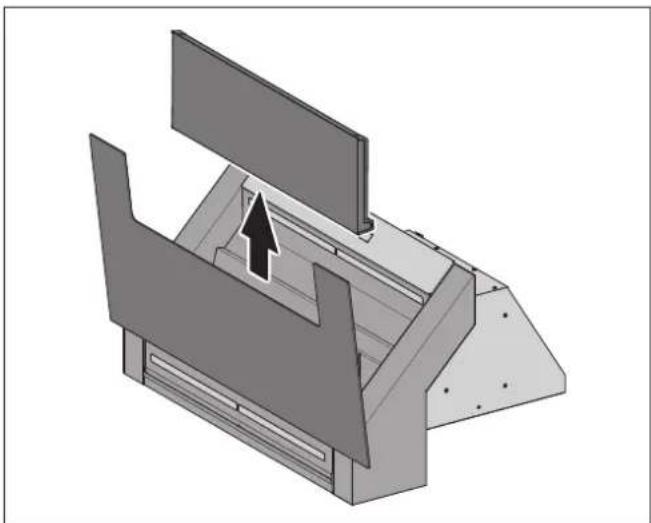

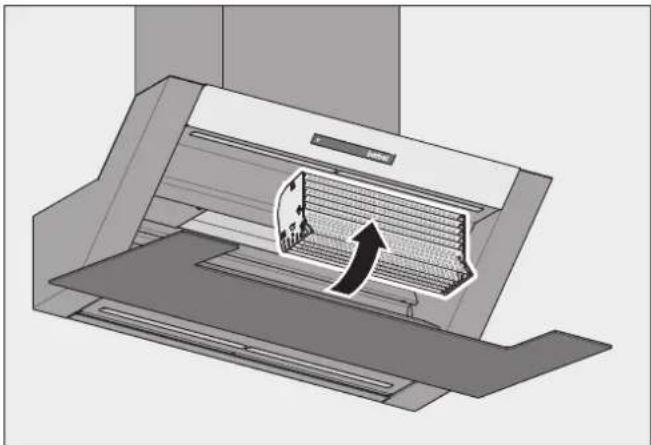

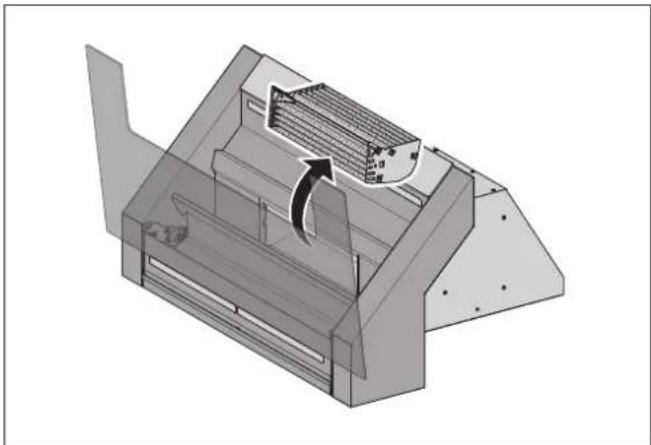

The Capillar Trap is inserted and is held in the device through a side lock.

3D mechanical assembly diagram showing a component with internal structure and directional arrow (no text or symbols)

Grasp the Capillar Trap on its sides with both hands.

Pull the Capillar Trap out in a bow movement.

3.4.4 Hang the device in place

The device is designed to be hung on walls. The chimney can be adapted to the ceiling height by pulling it out.

When mounting on a solid wall:

Make sure that the wall has sufficient load bearing capacity.

Use the fastening materials provided.

With different installation situations:

Enquire about alternative fastening systems (e.g. consult with your architect).

■ Only use fastening hardware suitable for the type of wall.

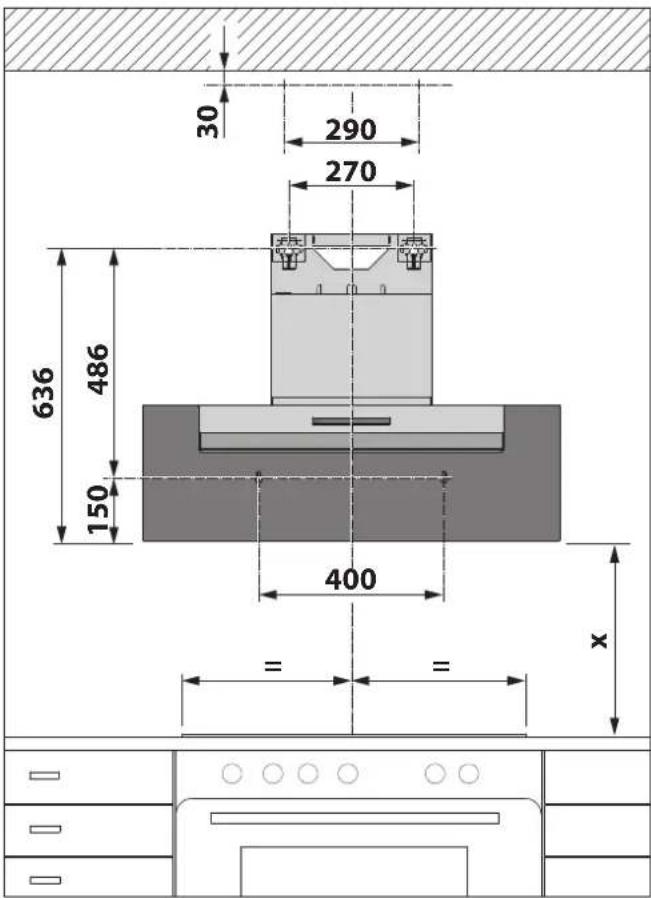

30 290 270 636 486 150 400 = = x

Safety distance (x):

• Recommendation 500 mm.
•With gas hobs, at least 650 mm.
- With electric hobs, at least 500 mm.

☐ Observe the specifications for the cooking appliances

(e.g. installation above a solid fuel stove).

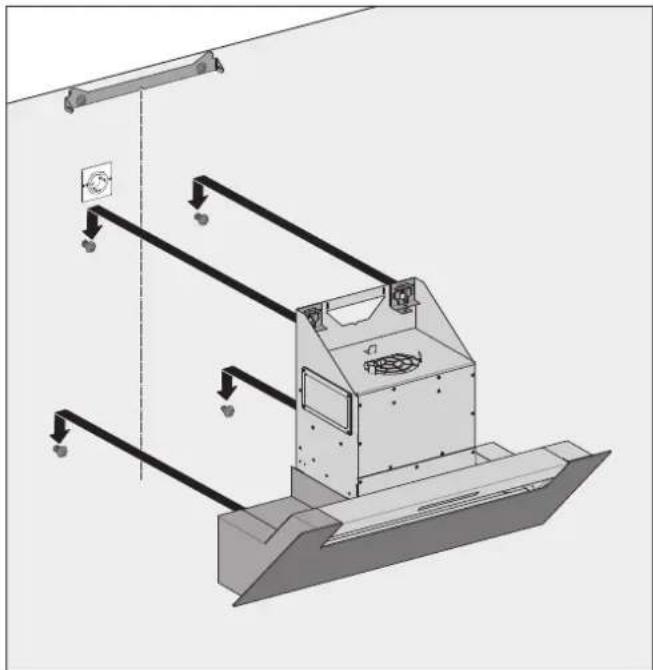

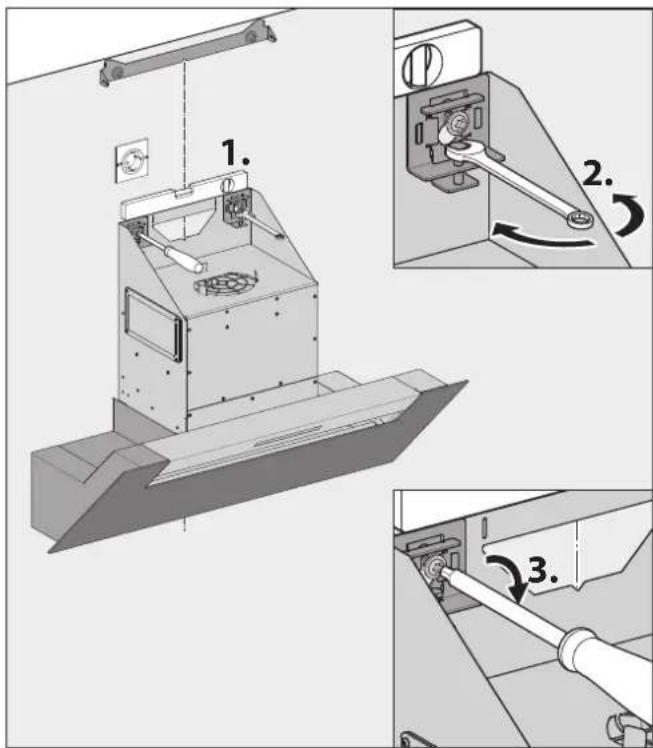

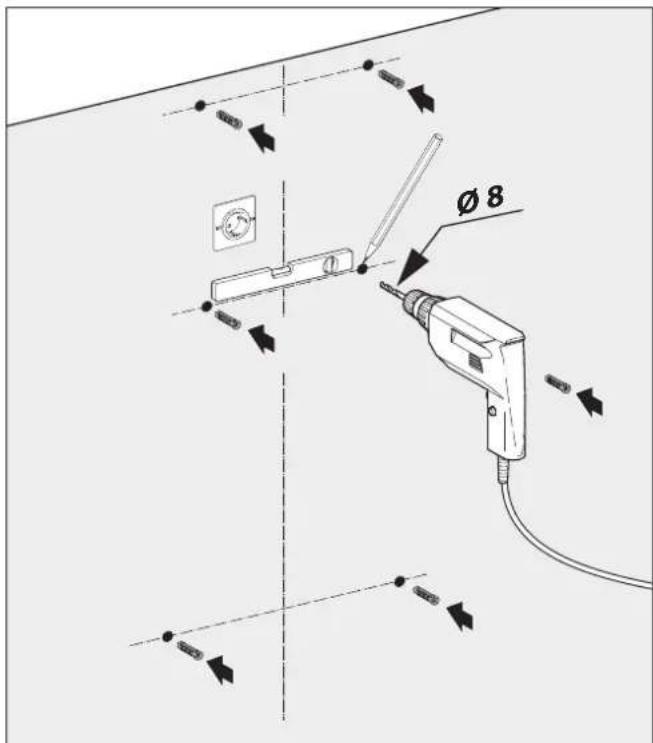

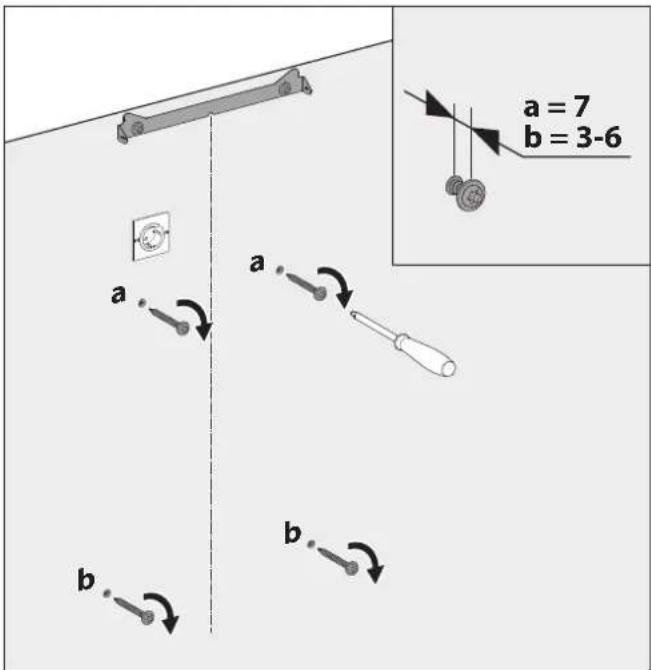

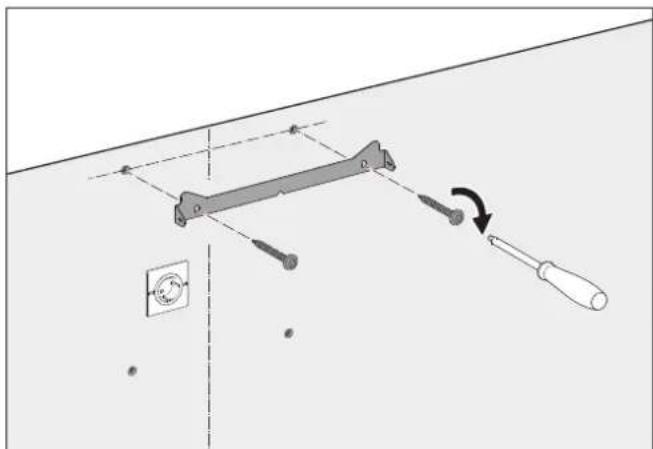

Determine the hanging position.
Ensure that the chimney mount is correctly positioned:

• The chimney cannot be mounted if it falls below the required measurement (30 mm).

- Any irregularities (e.g. in the ceiling) can be compensated with slotted holes.

Make sure that the safety distance is complied with.

⚠ WARNING!

Risk of death due to explosions or electric shock!

Drilling through gas, water or electrical lines can lead to hazardous situations.

■ Ensure that there are no lines in the wall at the fastening points.

Ø 8

Determine the locations of the fastening points and mark them.
Drill the holes in the wall.
Insert the wall plugs into the holes.

Technical diagram showing a mechanical clamp assembly with a screwdriver and a switch, annotated with angular motion arrows.

Screw the chimney fastening bracket on.

a = 7 b = 3-6 a a b

The top fastening screws should only be tightened once the device has been aligned.

The lower fastening screws prevent the device pulling away from the wall and are no longer accessible after the device is hung in place.

Tighten the mounting screws appropriately.

⚠ WARNING!

Danger of injuries through improper handling!

Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible.

Two persons are required to hang the device.
■ Ensure stable footing when hanging the device.
■ Ensure that no other people are in the working area.

ATTENTION!

Danger of property damage through improper handling!

Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls, the device, kitchen furnishings and other objects could be damaged.

Cover the cooled hob.
Keep the installation area clear.

Technical diagram of a mechanical or electrical device with directional arrows indicating flow or movement (no text or symbols present)

Hang the device on the mounting points.

Technical diagram showing three-step assembly of a machine tool with labeled components and directional arrows indicating motion.

Check the horizontal alignment of the device.
Align the device with the adjusting screws.
Tighten the mounting screws.

3.4.5 Install filter

The filter is placed correctly when the bottom edge of the filter is parallel to the top edge of the fan's housing.

CAUTION!

Danger of injuries due to sharp edges!

The side panels of the fan box have edges that can cause cutting injuries to the hands, e.g. with rough handling of the filter attachment.

Carefully fit the filter from above.
Avoid contact with the side panels.

Diagram of a mechanical device with a top component and a circular base, showing a downward arrow indicating motion or force (no text or symbols present)

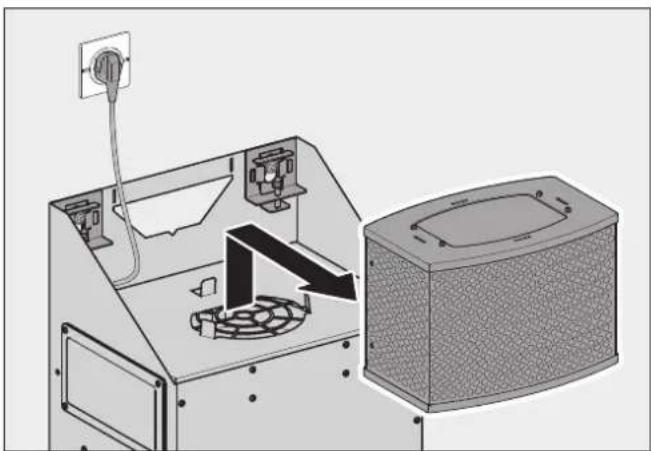

Place the recirculated air filter on the guide aids on the fan outlet from above.
■ Ensure that the recirculated air filter is correctly installed.

3.4.6 Establish electrical power supply

Observe the voltage specifications on the type plate.

Diagram of a washing machine with a wall-mounted socket and a plug inserted into the air gap (no text or symbols present)

Plug the cold device plug into the socket on the fan housing.
Plug the mains plug into the socket.
Route the cable such that it is not kinked, crushed or damaged and so that it will not get in the way when replacing the filter filling.
Make sure that the device can be disconnected on all poles from the electricity supply after installation.

The device is ready for operation.

3.4.7 Mounting the chimney

The chimney comprises two chimney ducts that slide inside one another. There are two ventilation slots inside the inner chimney duct.

ATTENTION!

Danger of damage through improper handling!

The body of the hood and the chimney could be damaged by movements during the installation.

Keep a distance between the chimney and the body of the hood.
Keep objects that could scratch the device far away from it (e.g. tools, belt buckles).

The ventilation slots are located at the top and are not covered.

Lift the chimney up with two persons.
Place the lower edge of the chimney into the groove of the device.

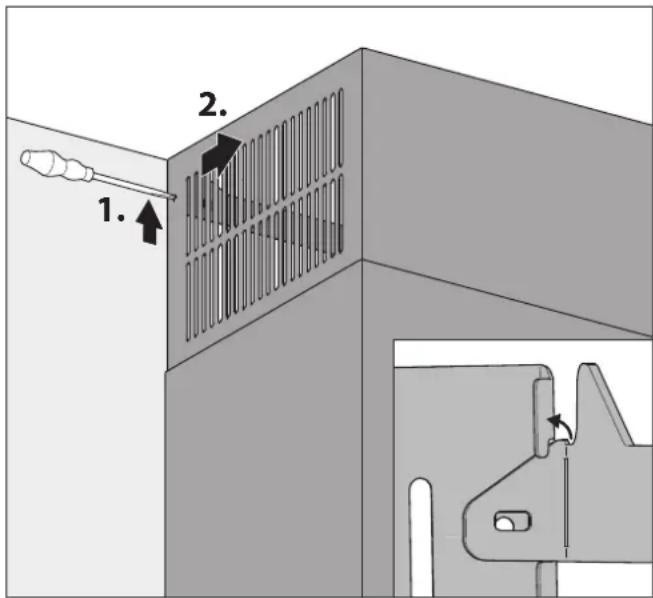

Pivot the chimney flush against the wall.

Technical diagram of a mechanical assembly with a bracket and mounting bracket, showing internal components and alignment (no text or symbols)

Pull the inner chimney duct upwards.
Hang the inner chimney duct up on the chimney mount.

3.4.8 Insert the Capillar Trap, bulging edge and lower section

After the installation, the parts lying inside should be re-fitted.

Diagram of a printer or printer with a paper feeding into a slotted sheet, showing internal structure and airflow direction (no text or symbols)

Insert the Capillar Trap into the mounting slot in a bow movement with both hands.
■Push the Capillar Trap upwards until it latches into place.

3D diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Place the bulging edge onto the upper section.
Check whether the bulging edge is correctly placed and held by the magnets.

3D diagram of a mechanical component with internal channels and directional arrows indicating flow or movement (no text or symbols)

Insert the lower section horizontally into the device until it reaches the rear stop.

Diagram of a printer or printer with an arrow indicating a process or movement, no text or symbols present.

Pivot the lower section upwards until both magnetic fasteners can be heard to click into place.

Check that the lower section is inserted correctly and is held by the retaining magnets.

3D diagram of a kitchen air conditioner unit with a directional arrow indicating airflow or movement (no text or symbols)

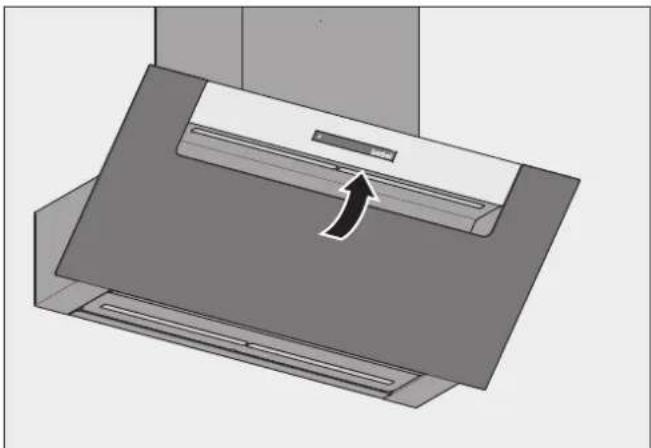

Close the front panel.

3.4.9 Check and carry out commissioning

ATTENTION!

Risk of disruptions due to moisture in the device!

If the device is moved from a cold environment into a hot one, condensation may form inside.

Wait about 2-3 hours before bringing the device into service.

Check that the mains plug is freely accessible or that an all-pole isolating device (min. 3 mm contact gap) is present.
Check that the mains cable and the electrical connection cable are not kinked, crushed or damaged.
Ensure that air outlets are not closed or covered.
Make sure that the ventilation slots are free.
Make sure that the protective film is removed.
Check the correct functioning of the device.
→"4. Operation" (page 120).

4. Operation

4.1 Safety instructions for operation

⚠ WARNING!

Hazard through a disregard of the operating instructions!

This chapter contains important information for the safe operation of the device.

Read through this chapter carefully before operating the device.

Follow the safety instructions.

•Operation only by authorised users.
→"1.2 Authorised target groups" (page 108).
- Not to be operated by children under 8 years old or people who cannot assess the hazards of handling the device.
•The extractor hood must not be operated unsupervised.
- Do not use during a fire or when there is an imminent danger of fire (e.g. a smell of gas).
- Gas operation only with low gas flames (not rising above the edge of the base of the pots). Naked flames can damage the device and can cause fires.
- Do not flambé underneath the device. Fire hazard.
- No unattended deep frying underneath the device.
- When in use, the cooktop and other parts that could be touched can become very hot. There is a risk of burning.
- Grease residues should be removed. Grease residues pose a fire hazard.
- No moisture in the device.
- Avoid dripping or splashing water.
- Containers with liquids (e.g. vases, bottles) must not be placed on the device.
- Do not impede the air flow.
- Do not impede the air channel on the underside of the device.
- Use only when the capillary trap is used and the lower section closed.
- Do not cover the air outlets (e.g. glasses/plates on or in front of the ventilation slots). Out-flowing air must be able to escape through the ventilation slots without impediment. Otherwise backpressure may form. If the cooking vapours are no longer able to escape there is a danger of fire.

Measures to ensure a sufficient supply of fresh air:

Open the windows.
Open the doors.
With heating points which use air from the room as their oxygen supply (e.g. chimneys):
Make sure that the mandated safety devices are functioning correctly.

Cooking oils and fats have different smoke points. The smoke point is the temperature at which smoke clearly develops over the hot oil or fat. The smoke can settle on furniture, the fronts of kitchen units and the ceiling.

Be aware of the smoke point of the cooking oil or fat you are using. You can obtain this information from the respective manufacturer.

If you switch the machine on and hear an unusually loud fan noise:

Clean the device.
Follow the cleaning instructions.
→"5. Cleaning" (page 124).

If you switch the machine on and notice a smell:

Change the filter filling.
Follow the instructions for changing the filter filling.
→“6.2.2 Replacing filter filling” (page 126).

If the control indicator for the filter filling flashes:

Change the filter filling.
Follow the instructions for changing the filter filling.
→"6.2.2 Replacing filter filling" (page 126).

4.2 Operating the device

The device is operated from the control panel.

berbel

The position of the control panel can be seen by the recess of the ON/OFF button at any time. The other buttons illuminate if the device is switched on.

• Button glows brightly = Function active
• Button glows dimly = Function not active

Button Function
	ON / OFF, configuration mode access
	Recirculated air mode, filter filling control indicator
	Cooktop lighting
	Effect lighting (no function)
	Power level 1
	Power level 2
	Power level 3
	Power level POWER
	Run-on function
	Multifunction button (no function)

After the electrical power is switched on, the device needs a few seconds to adjust to the surrounding conditions. No entries are possible during this time. The process is complete when the buttons illuminate weakly.

4.2.1 Normal operation

⚠ WARNING!

Fire hazard due to grease residue!

In operation grease residue, which is highly inflammable, collects in and on the device.

Clean the device properly.
→"5. Cleaning" (page 124).

To achieve optimal efficiency in removing cooking fumes:

Turn the device on 1-2 minutes before you start cooking. This allows the flow of air to build up, and the fumes are removed at an early stage.
During the cooking process, switch to a power level that is appropriate for the intensity of the cooking vapours:
- Power level 1 - lowest fan power - when simmering food.
- Power level 2 - medium fan power - when cooking on one cooking zone.
- Power level 3 - high fan power - when cooking on several cooking zones.

If the intensity of the cooking fumes does not subside, switch to a higher power level.

Switch to the Power setting when searing. After 6 minutes, the device automatically switches back to power level 3. To activate the Power setting permanently, the corresponding button must be pushed again. Then the device doesn't switch back.

Check the fresh air supply at regular intervals.

Use the device also to reduce other unpleasant smells. Such as from:

•Onions and garlic

- Oven, microwave and steamer

•Fondue and raclette

Turn on the run-on function when you have finished cooking.

After use, turn the device off. If the automatic run-on function is activated, the run-on time (10 minutes) starts in power level 1.

With use of the BackFlow technology, if a power level is active then a gentle air flow is routed from the air channel on the underside of the device to the front air inlet. This air circulation is necessary. The air channel on the underside of the device must never be closed off.

After 12 hours without operation, the device (including lighting), the device automatically shuts off.

4.2.2 Filter filling indicator

The device has a control indicator to remind the operator to change the filter filling. If no air circulation filter is used, the control indicator has no meaning.

The function is set so that the button flashes every 1,000 fan operating hours (flash duration 120 seconds) as soon as the device is turned off. The hours counter is restarted by switching off the control indicator.

Button Function
	Button flashes:The filter filling must be replaced.⇨"6.2.2 Replacing filter filling" (page 126).⇨Hold the button (> 1 second) to restart the hours counter.

4.2.3 Cooktop lighting

The cooktop lighting is equipped with energy-saving LEDs. The lighting can be used independently of the fan. It can be switched on when the device is on. It can be switched off at any time.

4.2.4 Run-on function

The device comes with a run-on function. When the function is used, the device continues to work 10 minutes after being switched off.

In recirculated air mode, it is necessary to use the run-on function so that the device can remove the remaining odours. Using the run-on function increases the life of the filter filling. The filter filling must be replaced at regular intervals.

The run-on function can be switched on manually or automatically. The device is delivered with the automatic run-on function active, and settings are made in configuration mode.

→"4.3 Configuring the device" (page 123).

Button Function
	The device is switched on.If the automatic run-on function is activated:■Touch the button one time.•The device switches off.•The run-on time (10 minutes) starts automatically in power level 1.•The button for power level 1 goes on.•The run-on function button flashes.It is possible to switch between the power levels.If the button is touched again, the device shuts off completely.
	The device is switched on, and any power level is selected.■Touch the button one time.•The run-on time (10 minutes) starts in the selected power level.•The button for the active power level lights up.•The run-on function button flashes.It is possible to switch between the power levels.If the button is touched again, the run-on function stops.

4.3 Configuring the device

Button Function
	The device is turned on.■● Touch and hold 1x button for longer than 5 seconds until the configuration steps are complete.All buttons flash.The device switches to configuration mode.The configuration mode is turned on.To exit the configuration mode:■● Release the button.The settings are now saved.The device is in normal mode again.

In configuration mode, the following functions can be set by touching the corresponding button.

Button Function
	Reset hours counterThe control indicator for changing the filter filling blinks every 1000 fan operating hours.A reset can be used to reset the hours counter to zero.Hold the button (> 1 second).The counter restarts.The buttons 1, 2, 3 and P flash quickly, configuration mode is exited.
	Automatic run-on.As delivered, the function is turned on.Touch the button one time.Button glows brightly:Automatic run-on is activated.Touch the button one time.Button flashes:Automatic run-on is deactivated.

5. Cleaning

5.1 Safety information for cleaning

⚠ WARNING!

Hazard through a disregard of the cleaning instructions!

This chapter contains important information for the safe cleaning of the device.

Read through this chapter carefully before cleaning the device.

Follow the safety instructions.

• Cleaning only by authorised users.
  →"1.2 Authorised target groups" (page 108).
• No cleaning permitted by children under 8 years old and persons who would not be able to properly assess the hazards associated with handling the device.
  •After use, the hob and other parts that could be touched may still be hot. There is a risk of burning.
• Grease residues should be removed. Grease residues pose a fire hazard.

The device should be cleaned regularly:

• Control panel, surface, upper section, bulging edge and lower section after each cooking process.
• With daily use, the Capillar Trap after three weeks at the latest.

5.2 Cleaning procedures

The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated and collected in the upper section, on the bulging edge, in the lower section and in the Capillar Trap.

Before every cleaning:

Turn off the device.

Make sure that the hob and other parts that could be touched have cooled down.

ATTENTION!

Danger of damage through improper cleaning!

Sharp-edged objects, abrasive or unsuitable cleaning agents can damage the device.

The following cleaning agents are unsuitable and must not be used:

• Acetone
  •Trichloroethylene
• Solutions on a cellulose basis (e.g. cellulose thinner)
  •Artificial resin thinner
• Abrasive media
  •Polishes containing silicone
  •Polishes containing oil
  •Wax
  •Water vapour
  • On painted surfaces: Microfibre cloth
  Keep objects that could scratch the device away from it (e.g. rings).
  Use mild household cleaner (e.g. alkali-free, pH-neutral multipurpose cleaner).
  Use a soft, damp cloth.
• Clean without exercising excessive pressure.

☐ The instructions and information on the cleaning agent should be observed.

Control panel

Clean the control panel with a lint-free, slightly damp cloth (e.g. a microfibre cloth).
Dry the control panel with a lint-free, soft cloth.

Surfaces

• Clean the surfaces with a soft, damp cloth and a mild household cleaner.
  Dry the surfaces with a soft cloth.

Lower section

The lower section is secured in the end positions and can only be removed in a horizontal position.

3D diagram of a printer with a paper feeding into a tray, showing a curved arrow indicating flow or movement (no text or symbols present)

Fold the lower section into a central position.

3D diagram of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

Pull the lower section out forwards.
Clean the lower section with a soft, moist cloth.
Dry the lower section with a soft cloth.

Upper section and bulging edge

The upper section is permanently attached to the device. The bulging edge is attached and held in the device by magnets.

3D diagram of a mechanical assembly with arrows indicating direction of motion or force (no text or symbols present)

Pull the bulging edge from the upper section.
Clean the upper section with a soft, moist cloth.
Clean the bulging edge, such as in a dishwasher.
Make sure the bulging edge is completely dry.
Dry the upper section with a soft cloth.

Capillar Trap

The Capillar Trap is inserted and is held in the device through a side lock.

Diagram of a printer's internal structure showing airflow or ventilation (no text or symbols)

Grasp the Capillar Trap on its sides with both hands.
Pull the Capillar Trap out in a bow movement.
Clean the Capillar Trap e.g. in a dishwasher.
Clean the surfaces and edges on the recess for the Capillar Trap with a soft, moist cloth.
Make sure that the Capillar Trap is completely dry.

After cleaning, the interior parts should be reinserted.

→"3.4.8 Insert the Capillar Trap, bulging edge and lower section" (page 118).

6. Maintenance

6.1 Safety instructions for maintenance

⚠ WARNING!

Hazard through a disregard of the maintenance instructions!

This chapter contains important information for the safe maintenance of the device.

Read through this chapter carefully before carrying out maintenance work on the device.
Follow the safety instructions.
Carry out the maintenance work as described.

•Repairs only by qualified specialist personnel.
→"1.2 Authorised target groups" (page 108).

- Electrical work only to be undertaken by qualified electricians.

→"1.2 Authorised target groups" (page 108).

• Maintenance only by authorised users.
  →"1.2 Authorised target groups" (page 108).
• No maintenance work permitted by children under 8 years old and persons who would not be able to properly assess the hazards associated with handling the device.

- When working at heights, ensure good stable footing (e.g. stable stepladder).

- The hob and other parts that can be touched must be cooled down.

- Never open the fan housing.

6.2 Maintenance

6.2.1 Changing the lamps

The device is fitted with maintenance-free LED lighting. In the event of a fault:

Please consult the customer services.

6.2.2 Replacing filter filling

Odours are trapped in the filter filling in the recirculating air filter. The odour-free, cleaned room air is fed back into the room.

Recirculating air filters are maintenance-free for up to two years. Then filter filling must be replaced at regular intervals.

Maintenance intervals

- When the control indicator blinks - every 1000 fan operating hours.

→"4.2.2 Filter filling indicator" (page 122).

- With odours in the exhaust air.

- With daily use, after 24 months at the latest.

- With occasional use, after 36 months at the latest.

ATTENTION!

Danger of property damage through falling parts!

When working on the device, parts of the device or tools could fall and damage the kitchen equipment.

Protect the cooled hob and other surfaces in the cooking area (e.g. with thick cardboard).

1. 2.

Loosen the inner chimney duct on both sides from the chimney mount.

Diagram of a mechanical assembly with two components, one suspended and one fixed, showing directional arrows (no text or symbols)

Slide the inner chimney duct downwards.

☐The replacement of the filter filling is carried out as described in the associated instructions.

Change the filter filling.

Clean the filter from the outside (e.g. through extraction with a vacuum cleaner).

Re-fit the filter.

→"3.4.5 Install filter" (page 117).

Mount the chimney.

→"3.4.7 Mounting the chimney" (page 118).

Switch off the check indicator on the control panel.

→"4.3 Configuring the device" (page 123).

Diagram of a kitchen appliance with a downward arrow indicating a process or change, showing internal components and airflow direction (no text or symbols)

Lift the chimney away from the device.

Technical illustration of a device with internal components and a close-up view of the exterior wall (no text or symbols)

Lift the filter at least 30 mm.
Remove the filter to the front.

6.3 Fault rectification

Possible faults are described below:

Description of the fault.

- Possible cause.

Remedy.

Fan and lighting do not work.

- No power supply.

Check that the mains cable is connected on both sides.

•The breaker may have been tripped or is defective.

Check to see if the breaker has tripped.

If you use electric circuit breakers, turn the circuit breaker on again.

For other types of fuse, consult a qualified electrician.

The fan does not work.

•The device is not switched on.

Check all power levels.

→"4.2.1 Normal operation" (page 121).

- The device is connected to a safety device. The safety device detects a critical under-pressure.

Open a window.

Wait until the air pressure returns to normal.

The lighting does not work.

•The device software requires a restart.

Interrupt the power supply for approx. 10 seconds.

•The lamp has blown.

Please consult the customer services.

Smells occur during operation.

•The filter filling is used up.

Change the filter filling.

→"6.2.2 Replacing filter filling" (page 126).

Poor device performance.

•The recirculated air filter is clogged.

Replace the filter filling of the recirculated air filter.

→"6.2.2 Replacing filter filling" (page 126).

Control panel does not react after being touched several times.

•The control panel is soiled.

Clean the control panel.

→"5. Cleaning" (page 124).

•The device software requires a restart.

Interrupt the power supply for approx. 10 seconds.

The smoke can settle on furniture, the fronts of kitchen units and the ceiling.

- Smoke development by heating cooking oils and cooking fats to too high a temperature.

Note the smoke point of the cooking oil or fat you are using. You can obtain this information from the respective manufacturer.

Moisture in the device.

- Dripping or splashing water has penetrated the device.

- Liquid (e.g. from vases, bottles on the device) has penetrated the device.

Immediately shut off the power supply, by removing the fuse.

Make sure that the power supply cannot be unintentionally reconnected. For example by tasking a person with ensuring that the fuse/breaker is not restored/switched on.

■ Ensure that no more liquid can penetrate the device.

Allow the device to dry.

Have the device checked and repaired by qualified, specialist personnel prior to using the device again.

If a fault persists:

Please consult the customer services.

7. Dismounting

⚠ WARNING!

Risk of death due to electric shock!

Touching live parts can cause an electric shock, burns or death.

Disconnect all poles of the power supply for the device.
■ Ensure that the voltage supply is and remains disconnected while the following work is in progress.

⚠ WARNING!

Danger of injuries through improper handling!

Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible.

Two persons are required to take the device down.
■ Ensure stable footing when taking the device down.
Ensure that no other people are in the working area.

ATTENTION!

Danger of property damage through improper handling!

Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls, the device, kitchen furnishings and other objects could be damaged.

Cover the cooled hob.
Keep the installation area clear.

Pull out the mains plug.
Loosen the inner chimney duct from the chimney mount.
Lift the chimney away from the device.
Remove the filter.
Loosen the mounting screws by approx. one turn.
Lift the device with two persons.
Lift the device off, forwards.
Set the device down on a firm and protective surface.

8. Disposal

8.1 Dispose of packaging

ATTENTION!

Risk of environmental damage due to improper disposal of the packaging!

Do not put the packaging into the normal household waste.
Take the packaging for environmentally friendly and proper recycling.

The packaging provides protection from transport damage. Only the original packaging guarantees sufficient protection during transportation.

Store the packaging in a location which is inaccessible to children.

The packaging materials have been selected from an environmentally friendly perspective and are made from re-usable materials. The packaging materials can be returned to the raw materials cycle after use. This saves valuable raw materials.

•The outer packaging is made from cardboard.
- The filling material and the insets are made from cardboard or polythene (PE).
- The protective film and bags are made from polythene (PE).
■ Dispose of the packaging in an environmentally friendly manner, separated by materials.

8.2 Dispose of the device

ATTENTION!

Risk of environmental damage due to improper disposal of the device!

The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste.

Do not put the device into the normal household waste at the end of its service life.
Enquire about the disposal options or environmentally friendly and proper recycling opportunities with your municipal or regional authorities.

Correct submission of the device at the time of disposal makes a contribution to the reuse of materials and the protection of resources.

Disposition of the device in accordance with the legal provisions via a professional disposal centre, at your local disposal facility, or by returning it to a distributor subject to take-back obligations.

If primary batteries or rechargeable batteries are used:

Remove the batteries from the device.

- Dispose of primary batteries and rechargeable batteries by returning them to the distributor of the respective type of battery, or through submission to a local disposal facility.

If you have any questions or suggestions, please select from the following options:

Mon to Thu 8:00 – 17:30 hrs

and Fri 8:00 – 16:30 hrs

Fax: [phone]

Internet: www.berbel.de

Email: [e-mail]

Contact the manufacturer's customer support department

There are several ways for you to contact our customer service. Please select from the following options:

Telephone: [phone]

Mon to Thu 8:00 – 17:00 hrs

and Fri 8:00 – 16:30 hrs

Fax: [phone]

Email: [e-mail]
