Cordless One Temperature - Iron RUSSELL HOBBS - Free user manual and instructions

Product type	Cordless iron
Brand	Russell Hobbs
Model	Cordless One Temperature
Power supply	Mains (via base)
Water tank capacity	250 ml (approx)
Soleplate	Ceramic
Ironing functions	Dry ironing, steam, spray, steam boost, vertical steam
Operation indicator	Smart LED (solid red = heating, flashing green = ready, flashing red = needs heating, slow red = auto shut-off)
Auto shut-off	Yes, after approx 8 minutes of inactivity
Self-cleaning function	Yes (anti-scale)
Weight	1.2 kg (approx)
Dimensions (L x W x H)	30 x 12 x 15 cm (approx)
Maintenance	Clean with damp cloth; soleplate with vinegar; regular self-cleaning
Safety	Protection cut-off in case of overheating; do not use near water; supervise children
Usage	Household use only

Frequently Asked Questions - Cordless One Temperature RUSSELL HOBBS

How to fill the water tank?

Open the filling hole cover. Pour water slowly up to the max mark. Close the cover and wipe up any spilled water.

How to heat the cordless iron?

Place the iron on the base, plug in the base. The solid red light indicates heating. When it flashes green, the iron is ready.

What does the solid red light mean?

The solid red light indicates that the iron is in heating phase. It turns flashing green when temperature is reached.

How to use the steam function?

Set the steam control to the desired position. Wait for the light to flash green, then iron normally.

How to use the spray?

Remove the iron from the fabric. Aim the sprayer and press the ⚪ button. Press 2-3 times to prime.

How to do a steam boost?

Remove the iron from the fabric. Press the button. Wait 4 seconds between each burst to allow steam to rebuild.

How to use vertical steam?

Remove the iron from the fabric. Press the button. Ensure adequate ventilation behind the fabric and wait 4 seconds between bursts.

How to clean the iron?

Unplug and let cool. Clean the exterior with a damp cloth. Remove stains from the soleplate with a little vinegar.

How to use the self-cleaning function?

Set steam to ✉. Place the iron on its heel, plug it in, wait until the light stays on. Hold the iron soleplate down over a sink, turn the steam control to ⚙ and hold while moving the iron. Release when water and steam stop.

What to do in case of auto shut-off?

If the iron remains still for about 8 minutes, it turns off and the light flashes slowly. To turn it back on, lift it off the base, then put it back and wait for it to heat up again (flashing green).

USER MANUAL Cordless One Temperature RUSSELL HOBBS

Black and white photo of a steam iron with visible branding and technical marks (no readable text or symbols)

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Use the iron, or set it on its heel, on a stable, level, heat-resistant surface, preferably an ironing board.

Don't leave the iron unattended while plugged in, or while it's standing on the ironing board.

Unplug the iron before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the iron, to avoid hazard.

The surfaces of the appliance will get hot during use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't iron clothing while it's being worn – you'll injure the wearer.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't scratch the soleplate – avoid buttons, zips, etc.
• The appliance has a protective thermal fuse, which will blow if it overheats. If this happens, the appliance will stop working, and must be returned for repair.

HOUSEHOLD USE ONLY

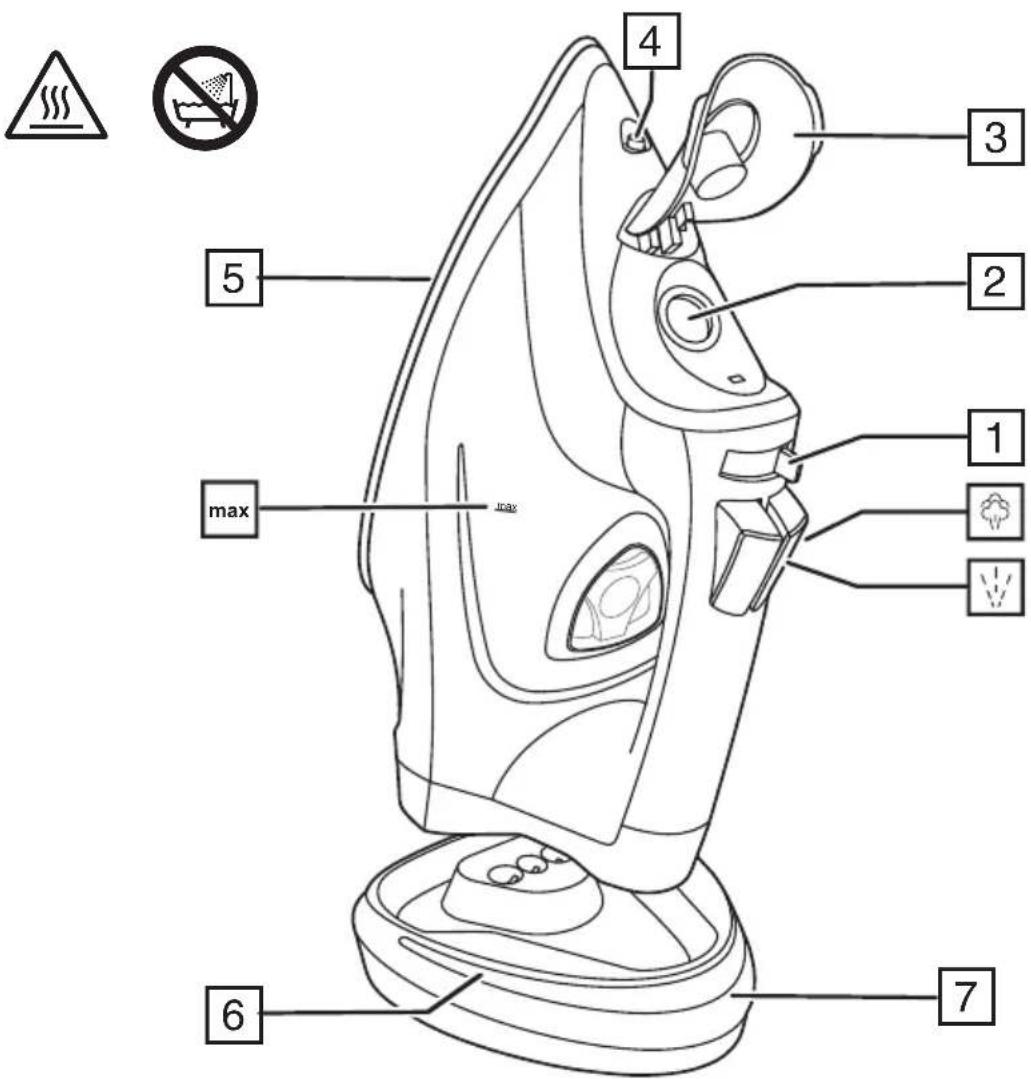

PARTS

1. Steam control
2. Water inlet
3. Cover

4. Spray nozzle

5. Soleplate

6. Smart status light
7. Stand

BEFORE USING FOR THE FIRST TIME

• Remove labels, stickers and packaging from the iron and soleplate.
• Don't worry if the iron smokes a bit at first, it'll stop as the element cures.
• Iron an old piece of cotton fabric, to clean the soleplate.

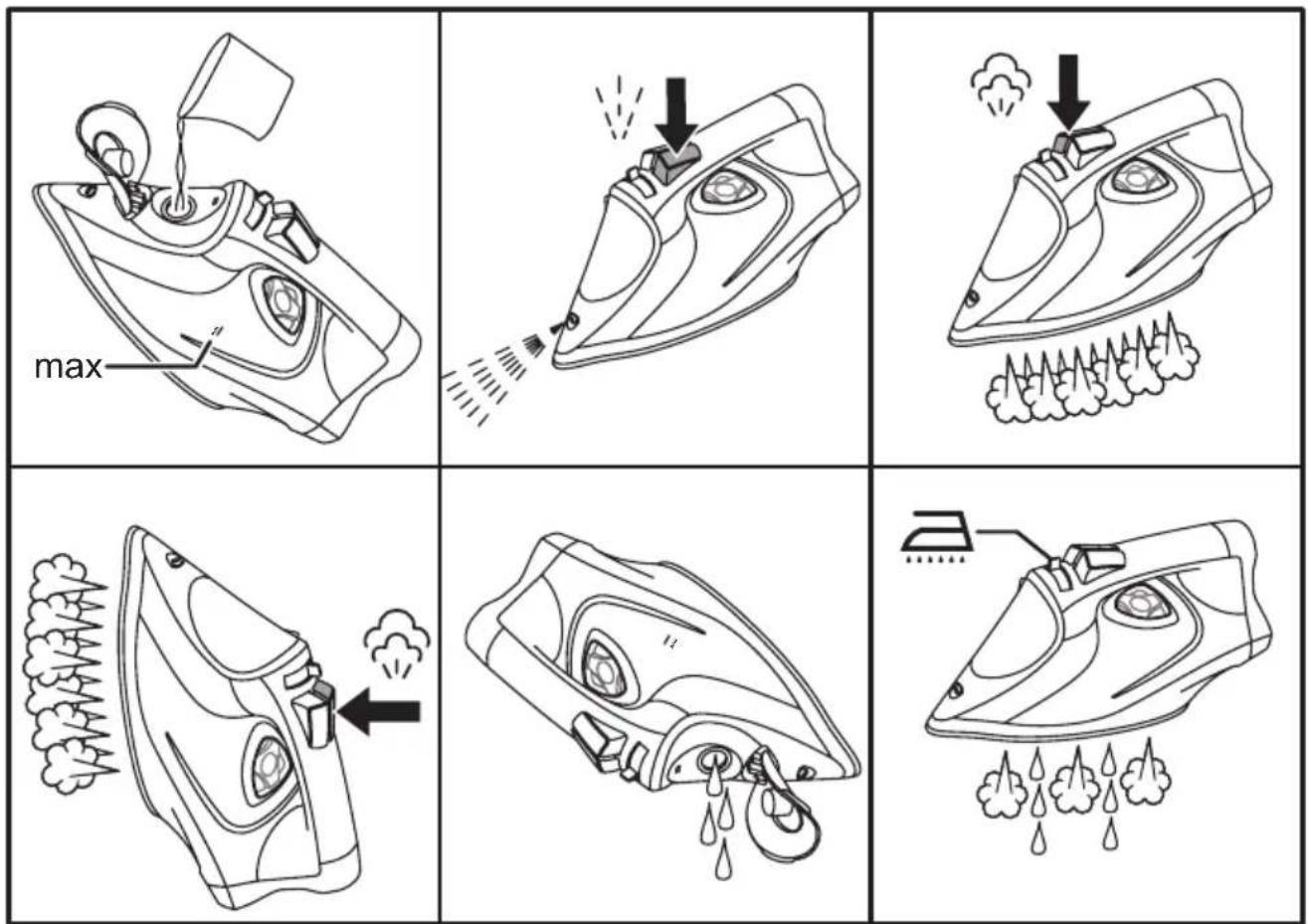

FILLING

You may use the iron with tap-water, but if you live in a hard water area, you should use distilled water (not chemically descaled or softened water). If you buy distilled water, check that it's suitable for use in irons.

1. Open the water inlet cover.
2. Pour slowly, to let the air in the reservoir escape, otherwise you'll cause an air lock and the water will overflow.
3. Don't fill past max, or water will escape during use.
4. Wipe up any spillage.

HEATING YOUR IRON

Your iron is heated by placing it onto the stand. The smart status light will show you when you need to reheat your iron and when it is ready to use. The smart status light operates as follows:

Smart Status Light Remarks
Steady red Your iron is heating up
Flashing green Your iron is ready to use
Flashing red Your iron needs reheating but you can carry on ironing for a little longer
Flashing red, 3 beeps Your iron must be reheated as soon as possible
Slowly pulsing red Auto shut-off activated

Important Note:

Between ironing tasks always put the iron back onto the stand. This ensures the most efficient heating and gives you the best performance from your iron.

1. Set the temperature control to the setting you require.
2. Put the iron onto the stand and plug the stand into the power socket (switch the socket on, if it's switchable). The smart status light will light up red and your iron will start to heat up.
3. When the smart status light flashes green your iron is ready to use.

USING

The temperature of your iron is safe to use on all ironable fabrics and garments.

DRY IRONING

If you're going to be dry ironing for 20 minutes or more, empty the reservoir first to avoid spontaneous bursts of steam.

1. Set the steam control to ⚡.
2. When the smart status light flashes green your iron is ready to use.

STEAM IRONING

1. Set the steam control to the setting you want, = no steam, = high steam.
2. When the smart status light flashes green your iron is ready to use.

SPRAY

Water spotting affects some fabrics. Test this out first on a hidden part of the fabric.

1. Lift the iron off the fabric.
2. Aim the spray nozzle at the fabric.
3. Press the button – you may have to press it 2 or 3 times to pump water through the system.

SHOT OF STEAM

1. Steam is available when the temperature control is at 🌐 or above.
2. Lift the iron off the fabric.
3. Press the 🎨 button.
4. Leave 4 seconds between shots, to let the temperature build up.

VERTICAL STEAMING

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

• Check that there's adequate ventilation behind the fabric, otherwise moisture may build up, causing mildew.
• Check that there's nothing behind the fabric that may be damaged by the steam.
• Check that pockets, turn-ups, and cuffs are empty.

• Check that there's water in the reservoir.

• Hold the iron close to (but not touching) the fabric.

• Press the 🤨 button (you're using the "shot of steam" function vertically).

• Leave 4 seconds between shots, to let the temperature build up.

AFTER USE

1. Unplug the appliance.
2. Open the water inlet cover.
3. Hold the iron over a sink, turn it upside down, and drain the water from the reservoir.
4. Close the cover.
5. Sit the iron on the base and leave it to cool down completely.
6. When cold, wipe off any moisture.
7. Wipe outer surfaces with a damp cloth.
8. Remove spots from the soleplate with a little vinegar – take care not to scratch it.

SELF CLEAN

To avoid scale build up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

You'll need a basin or a large bowl to catch the water coming out of the soleplate.

1. Fill the reservoir to the max mark.
2. Sit the iron on the stand.
3. Plug in the stand and wait till the smart status light flashes green.
4. Hold the iron over the basin or bowl with the soleplate down.
5. Move the steam control past to and hold it there.
6. Gently move the iron to and fro, over the basin or bowl.
7. Water and steam will wash scale and dust through the soleplate, and into the sink.
8. When water and steam stop coming from the soleplate, release the steam control.

AUTO SHUT-OFF

1. If the iron is motionless for about 8 minutes it will switch off.
2. The smart status light will slowly pulse red.
3. To switch on again, lift it off the stand then return it and allow it to heat up again until the smart status light flashes green.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
