USER MANUAL Jewel DCU

Smartwatch with a digital display showing date 10/08/07-25, featuring a fairy character on a star-patterned strap (no readable text beyond clock and date)

Smartwatch Jewel

IOS - ANDROID

34157070 / 34157071 / 34157072

Manual de usuario 3

User manual 13

Manual d'usuari 23

Mode d'emploi 33

QR code image containing encoded data, no visible human-readable text

CARGA Y ACTIVACIÓN:

Close-up of a smartwatch with red battery icon and green charging button (no text or symbols visible)

Circular icon with eight circular symbols including gear, sun, and battery, arranged in a grid (no readable text or labels)

Centro de control

Circular icon set with colorful geometric shapes and symbols (no text or labels)

Menú

10000 00:22 05:55 0

08:08 05:07 M | 02:07 M

Dormir:

Basketball Football Badminton

Modo deporte:

LIU KE Jack, let's go on a date.

Circular optical lens diagram with concentric rings and central lens (no text or symbols)

Circular black button with a pink play button and directional arrows (no text or symbols)

Close-up of a black analog stopwatch with pink alarm clock design and '02:34' text below (no other readable data)

Alarmas:

Turn on mute mode reduce the brightness

Modo teatro:

Circular icon with a yellow armchair symbol and the word 'MOVE' below it, no additional text or symbols present.

Thank you very much for purchasing this watch, the DCU team has been working hard to offer you a comfortable, beautiful and functional watch.

If you have any questions that this manual cannot solve, we will be happy to assist you, you can write to [e-mail] and in less than 24 hours we will answer you.

We wish you enjoy it!

If you want to know a little more, go to www.dcutec.com or visit our Instagram profile @dcutecnologic. Sometimes we do raffles.

Device maintenance

Remember the following tips to keep your Smartwatch in good condition:

• Clean the watch regularly, especially the back side, and keep it dry.
• Adjust the watch strap to ensure the air circulation.
• Skin care products should not be used on the wrist with the smartwatch.
• Please stop wearing the watch in case of skin allergy or any discomfort.

www.dcutec.com

DOWNLOAD THE SMARTWATCH APP:

Scan the QR code to download and install the APP, or search in your APP Store or Play Store the name of the APP "Da Fit".

Device requirements: iOS 8.0 and above; Android 5.1 and above, compatible with Bluetooth 5.0.

QR code image containing encoded data, no visible human-readable text

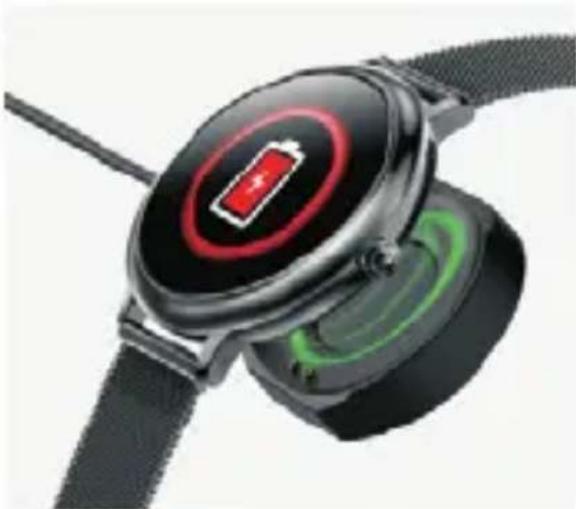

CHARGE AND ACTIVATE THE SMARTWATCH:

Before using the watch for the first time, you need to fully charge the battery, use the magnetic charging cable provided to connect the metal charging contacts on the back of the watch, connect the other end of the charging cable to an USB charger or an USB computer interface that provides a minimum of 5V/1A and a maximum of 5V/2A.

The estimated time for a full charge is between 2-3 hours. To extend battery life, never let it discharge to 100% and charge it regularly, even if you are not going to use it.

Caution: Don't connect the 2 pins of the magnetic charging cable with conductive material at the same time, it may cause a short circuit

The battery of smartwatch can be damaged or discharged very quickly at very low or very high temperatures.

Close-up of a smartwatch with red battery icon and green usage rings (no text or symbols visible)

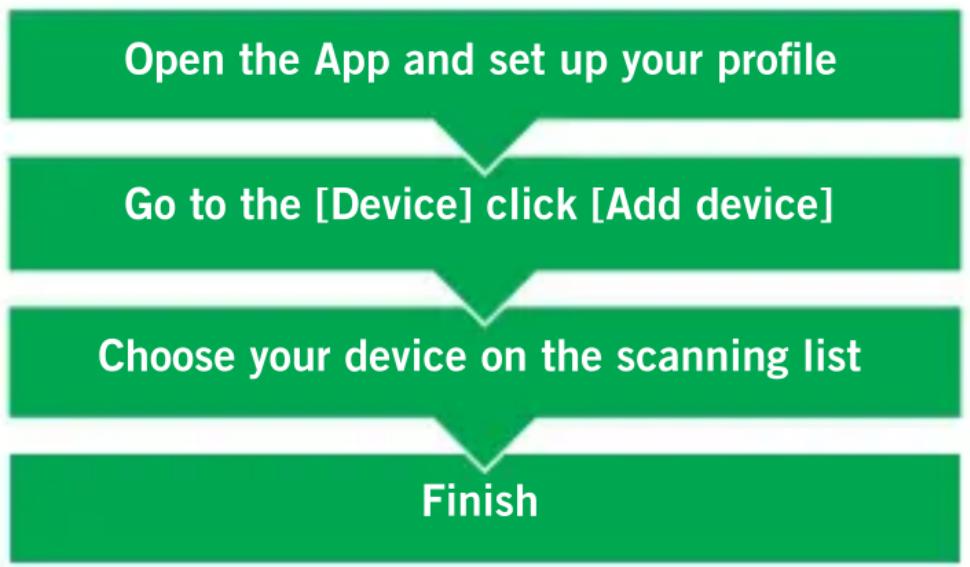

BLUETOOTH CONNECTION WITH THE APP:

The MAC address on the “Setting”-“About” page could help you to identify your device on the scanning list.

After successfully pairing the smartwatch, every time that you will open the App in the future, the smartwatch watch will automatically connect to the phone and the data can be synced by swiping up and down from the main page in the App.

Remark: The product supports waterproof with IP68 level, it is available to wear it while wash hands, 30min swimming pool, in raining, etc.

Do not use it with saltwater or when have a hot shower/bath or sauna, the vapors will get into the host, scratch damage of peripheral components. All these are beyond the scope of the warranty.

ENG

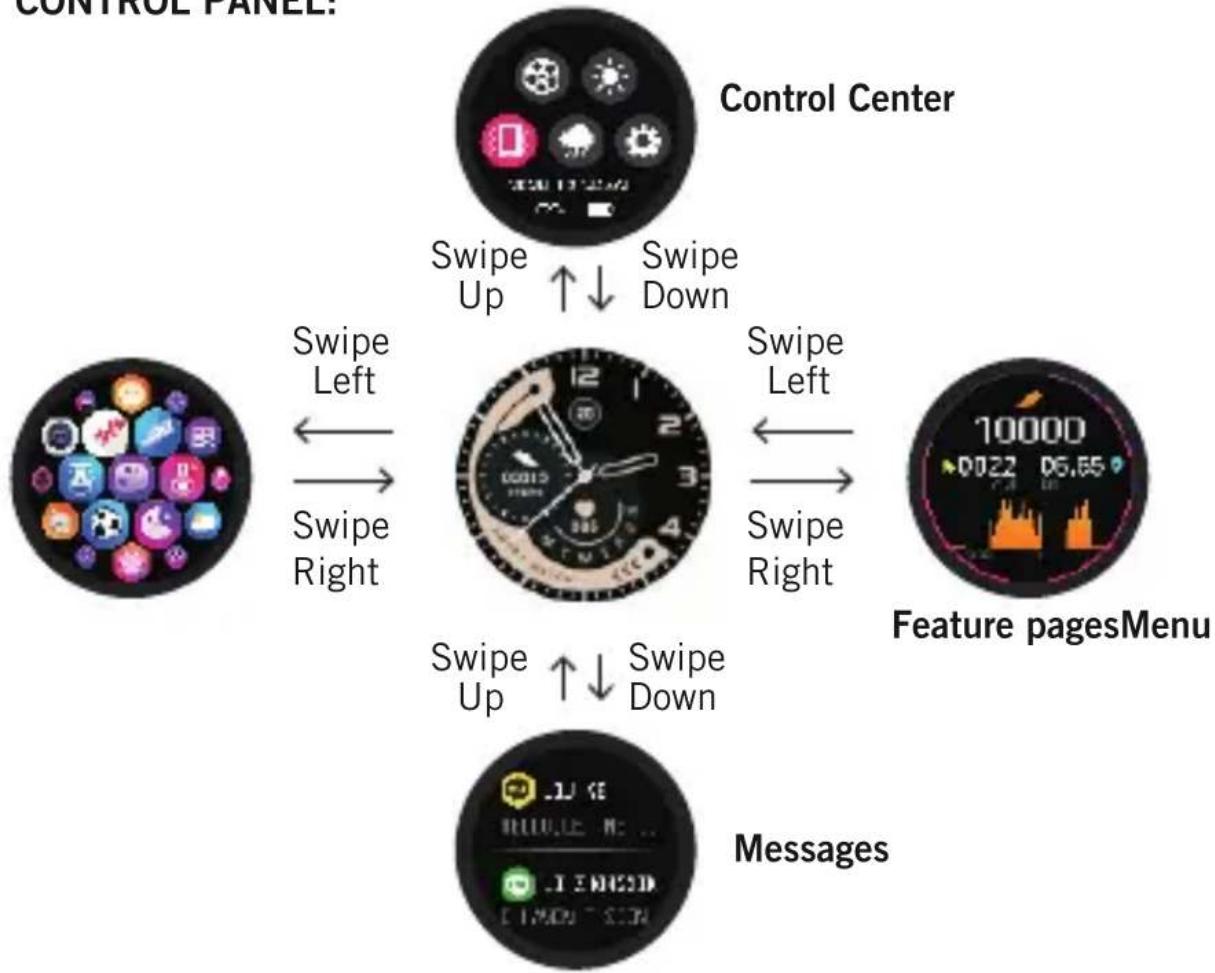

CONTROL PANEL:

SMARTWATCH FEATURES:

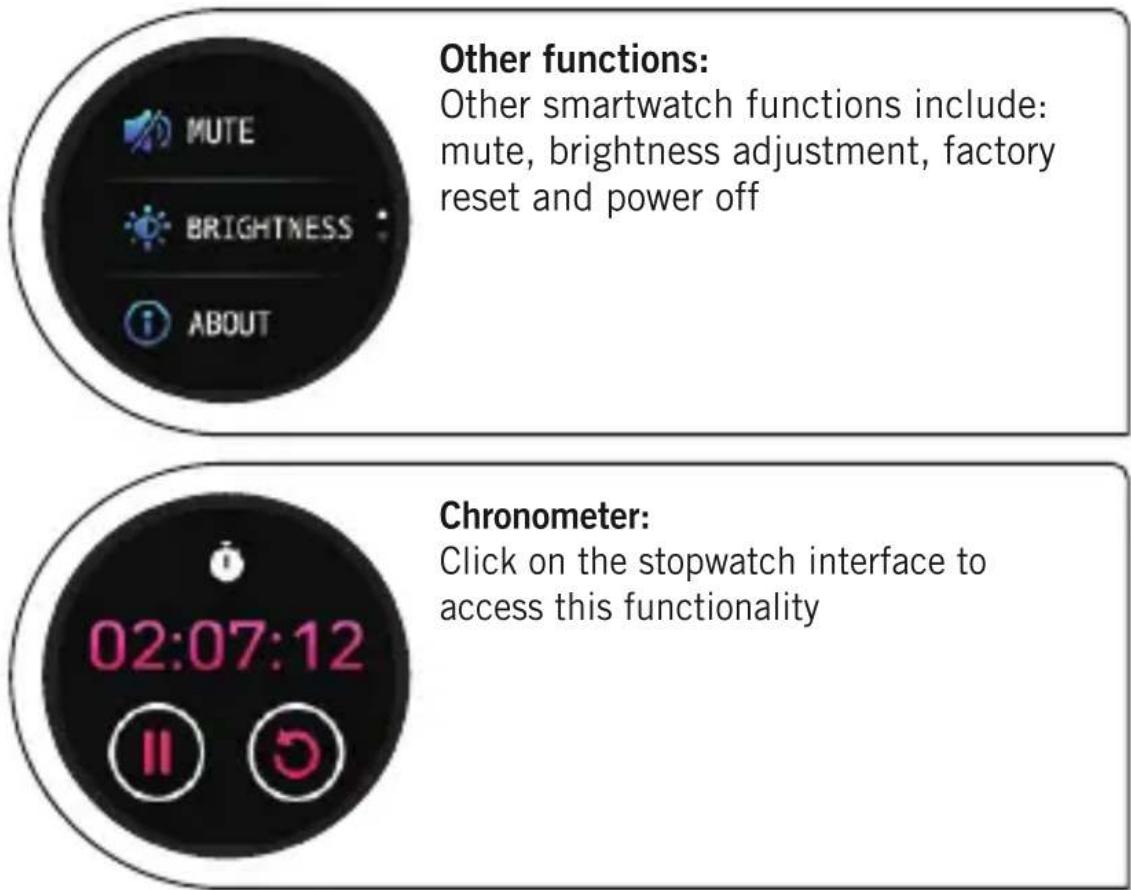

Other functions: Other smartwatch functions include: mute, brightness adjustment, factory reset and power off Chronometer: Click on the stopwatch interface to access this functionality

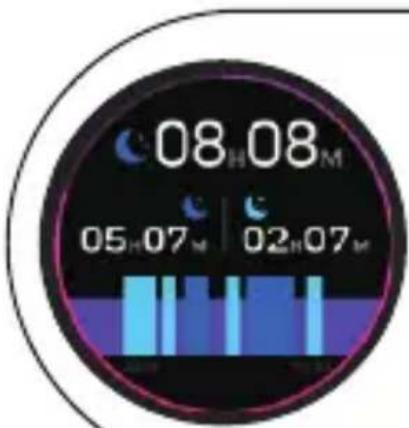

08:08 05:07 M 02:07 M

Sleep:

If you keep wearing Smartwatch in your sleep, it can provide the hours slept and quality of sleep stats on both the screen and the APP.

NOTE: Sleep stats reset to zero at 8:00 pm.

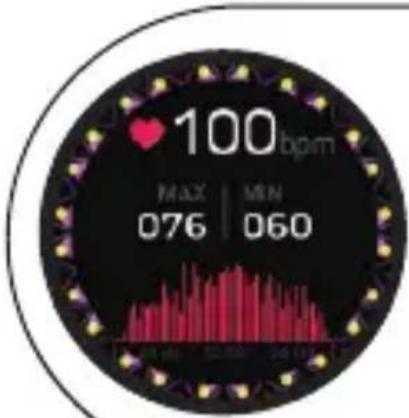

100 bpm MAX | MIN 076 | 060

Heart Rate Test:

The Smartwatch could record your heart rate daily.

You also could tap on the heart rate interface to start measuring the current heart rate.

10000 0022 | 06.65 kcal | kan

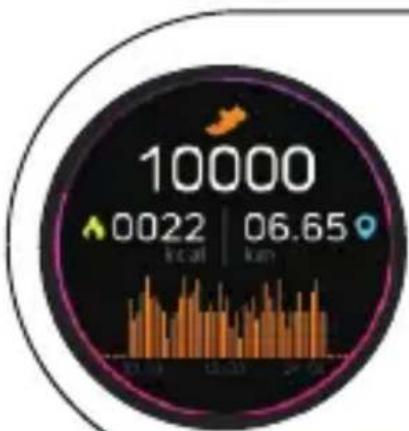

Steps:

Smartwatch automatically records the steps during the day.

NOTE: Your movement stats reset to zero at midnight.

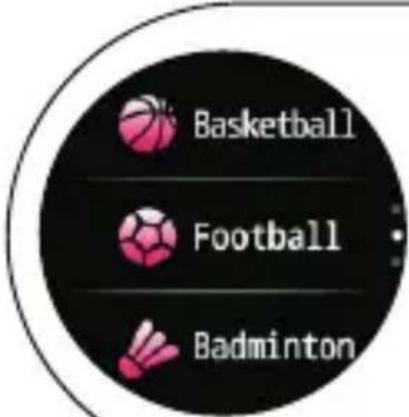

Basketball Football Badminton

Training:

Tap the training icon on the menu to start a new training measure recording, there are 7 sport modes to be chosen: walking, running, cycling, basketball, football, badminton and skipping rope.

The last training recording will be showed on the training interface

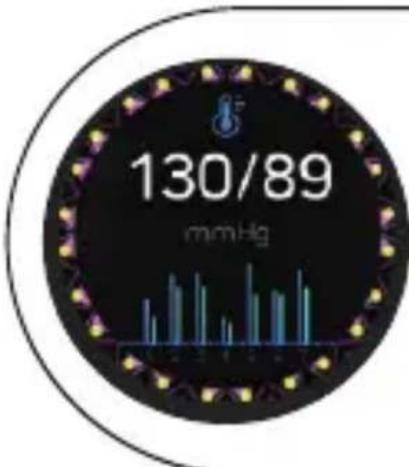

130/89 mmHg

Blood pressure test:

Tap on the blood pressure page to start measuring your blood pressure. On the blood pressure page, it can show the blood pressure measured data of the last times.

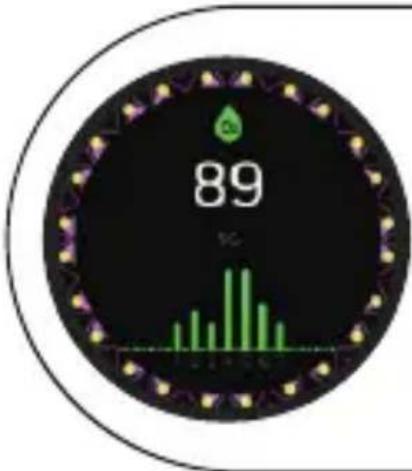

SpO_2 Test:

Tap the SpO_2 interface to start measuring your SpO_2 . On the SpO_2 interface, it can show the SpO_2 measured data of the last times.

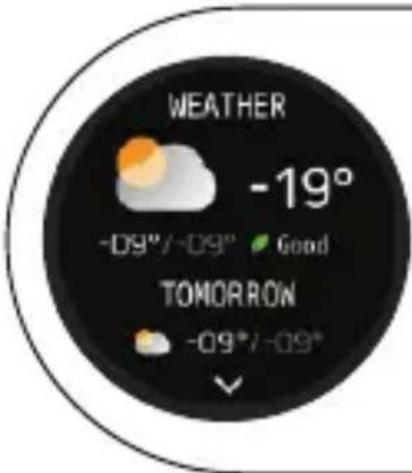

WEATHER -19° -09°/-09° Good TOMORRON -09°/-09°

Weather:

The weather page shows the current weather and the information for the next day. Weather information must be connected to the DaFit APP before data can be obtained. The weather information cannot be updated if it is disconnected from the APP for a long time.

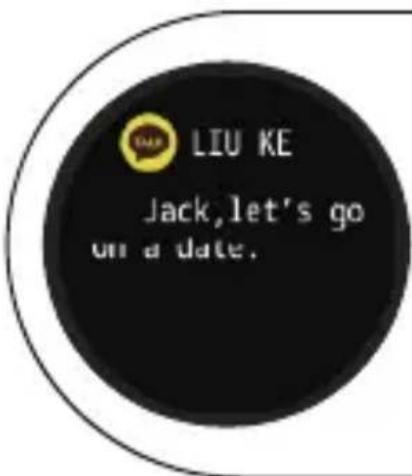

LIU KE Jack, let's go on a date.

Messages reminder:

The device can sync incoming notifications from Twitter, Facebook, Whatsapp, Instagram etc. Recently 5 messages can be stored. Note: You can switch off/on the incoming notification in the APP DaFit.

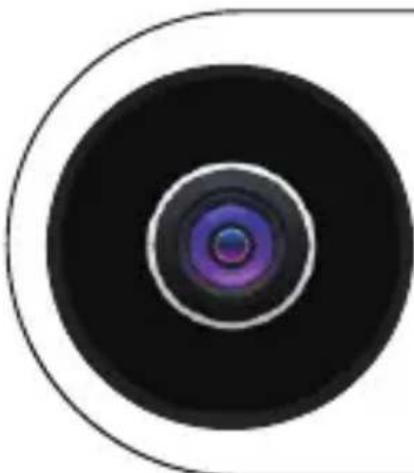

Circular optical lens diagram with concentric rings and central lens (no text or symbols)

Remote shutter:

After connecting the device, you can remotely control your phone's camera.

Circular black button with a pink play symbol and directional arrows (no text or symbols)

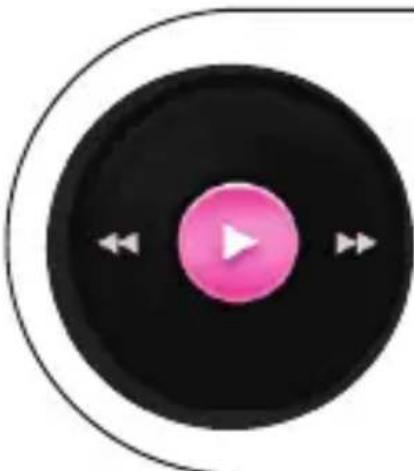

Player shutter:

After connecting the device, you can remotely control the music player on your phone.

Close-up of a black analog clock with pink alarm clock design and '02:34' time label (no additional text or symbols)

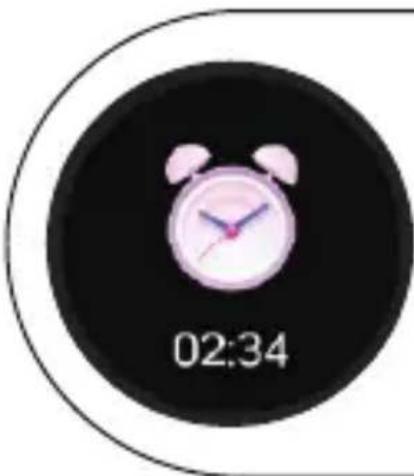

Alarms:

Set up the alarm on the APP, the device will vibrate to remind on time.

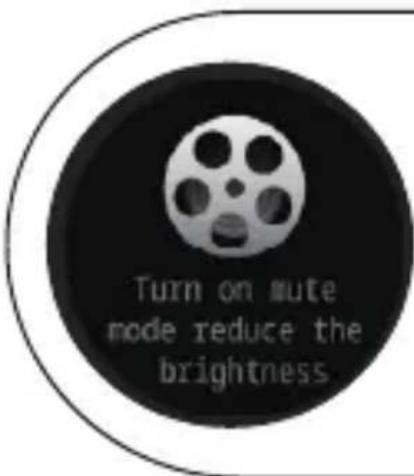

Turn on mute mode reduce the brightness

Theater Mode:

The device will turn off the vibration and turn down the brightness when the theater mode is turned on.

Note: You can turn on/off the theater mode in the control center.

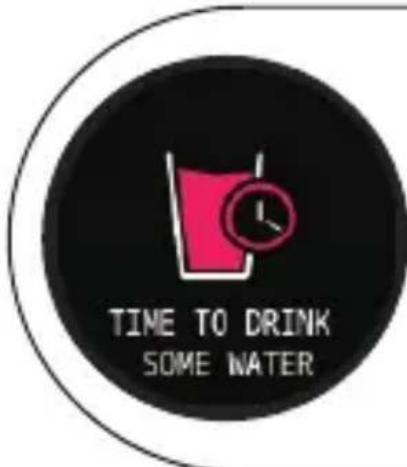

TIME TO DRINK SOME WATER

Remind to Drink:

The smartwatch will remind you “Time to Drink Some Water” at the planned drinking time.

Note: You can set the feature in the APP DaFit.

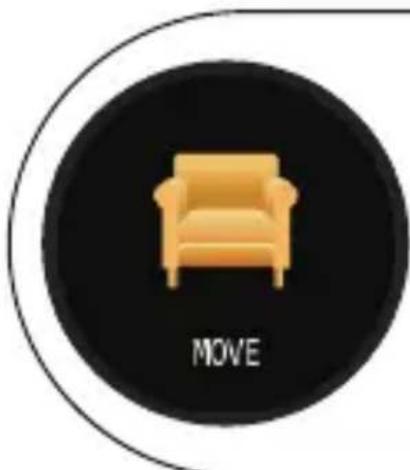

Circular icon with a yellow armchair symbol and the word 'MOVE' below it, set against a black background (no additional text or symbols)

Remind to Move:

The device will vibrate to remind you to make a relax after 1 hour sitting. Note: You can switch on/off the feature in the APP DaFit.

FREQUENTLY ASKED QUESTIONS AND ANSWERS

Why do the blood pressure values deviate from the blood pressure monitor?

The deviation between the watch and the blood pressure monitor measurements is due to several factors. The blood pressure monitor measures the brachial artery and the watch measures the two main branches of the microartery; Under normal circumstances, the difference between the aortic blood pressure measurement and the microartery blood pressure measurement will be thirty to forty; If you use a watch and a blood pressure monitor to take measurements at the same time, as the blood flows through the arteries in a centrifugal direction, the strap puts pressure on the area below the middle of the elbow when the blood pressure monitor is measuring, preventing Temporarily allowing blood to flow smoothly into the arterial branches below; increased blood pressure will deviate the upper and lower blood pressure measurements even more.

Why can't the watch be worn in a hot shower?

The temperature of the bath water is relatively high, which will produce a large amount of water vapor, and the water vapor is in the gas phase, its molecular radius is small, easy to filter through

ENG

the gap of the watch case, when the temperature drops and will condense into liquid phase water droplets, easy to cause the watch's internal circuit short circuit, damage the watch's circuit board, and then damage the watch.

Why is my smartwatch not receiving notifications?

1. Confirm that you have given all the necessary permissions to the DaFit APP to read the notifications and that the APP is running in the background.
2. Confirm that the messages are displayed normally in the notification bar of the phone. Watch message notifications are done by reading the message from the phone's notification bar; If there is no message in the notification bar of the phone, the watch will not receive it.
3. Confirm that you have enabled notifications in the DaFit watch APP settings.

CHANGE THE MAIN SCREEN STYLE:

Hold down the main screen, swipe from left to right to change the dial, click confirm.

You can find more designs available in the DaFit APP.

PAY SPECIAL ATTENTION TO THESE TIPS:

1. Avoid the watch being subjected to strong impacts, extreme heat and/or sun exposure.

2. Do not disassemble, repair or modify the watch yourself.

3. This device uses 5V 500mA for charging. It is strictly forbidden to use a power supply with a load greater than 5V.

4. The operating environment of this device is 0^ 45^ . Keep it away from extreme heat sources.

5. When the watch is wet, wipe it dry with a soft cloth before charging, otherwise it will corrode the charging contacts and cause charging failure.

6. Do not touch chemicals such as gasoline, cleaning solvents, propanol, alcohol, or insect repellent.

7. Do not use this device in high voltage and high magnetism environment.

8. If you have sensitive skin or wear the watch too tight, it may feel uncomfortable.

9. Wipe the sweat beads off your wrist from time to time, as the strap may be exposed to soap, sweat, allergens, or contaminants for a long time, which can cause itchy skin.

10. If you wear it frequently, it is recommended to clean the watch every week. Wipe with a damp cloth and remove oil or

ENG

dust with a mild soap. It is not recommended to use the watch in hot water. Water vapor could enter the sphere and damage the components.

WARNING:

This product is not a medical device. The Smartwatch and their applications should not be used for the diagnosis, treatment or prevention of diseases or ailments. To change your exercise and sleep habits, be sure to consult a qualified medical professional to avoid serious damages. Our company reserves the right to modify and improve any of the functions described in this manual without prior notice. At the same time, the company reserves the right to update the contents of the product. All contents are subject to the real product.

WARRANTY

1. The warranty covers quality problems caused by manufacturing, materials or design within the first year of purchase and battery and charger problems within the first 6 months.
2. About the fault caused by the user's personal reasons, we don't offer free warranty, as follows:
   1). Disassemble or refit the product.
   2). Caused by immodesty drop
   3). All artificial damage or misuse (such as: make water into the host, the external force shatter, scratch damage of peripheral components, etc.), all these are beyond the scope of the warranty.
3. When ask for free warranty, you must provide a receipt of purchase.
4. If you met problems during use, please contact the shop customer service which you bought from.

DCU Tecnologic's Customer service

Live web chat: www.dcutec.com/eng

Email: [e-mail]

Telephone: [phone]

CAT

QR code image containing encoded data, no visible human-readable text

CARREGAR I ACTIVAR EL RELLOTGE:

Close-up of a smartwatch with red battery icon and green charging button (no text or symbols visible)

CONNEXIÓ AMB L'APP:

Circular black button with six white icons and a pink square icon, no readable text or symbols

Centre de control

Circular icon composed of colorful, stylized icons (no text or symbols)

Menú

Close-up of a wristwatch face showing time, minute, and second hands (no readable text or symbols)

08:08 05:07 M | 02:07 M

Dormir:

Basketball Football Badminton

Mode esport:

Oxígen en sang:

LIU KE Jack, let's go on a date.

Circular optical lens diagram with concentric rings and central lens (no text or symbols)

Control remot per a fotografies:

Circular black button with a pink play button and directional arrows, no text or symbols present.

Close-up of a black analog clock with pink alarm clock design and '02:34' time label (no additional text or symbols)

Alarmes:

Turn on mute mode reduce the brightness

Mode cinema:

Circular icon with a yellow armchair symbol and the word 'MOVE' below it, no additional text or symbols present.

Recordatori de moviment:

PREGUNTES FREQUENTS I RESPOSTES

QR code image containing encoded data, no visible human-readable text

CHARGER ET ACTIVER LA MONTRE:

Close-up of a smartwatch with red battery icon and green charging button (no text or symbols visible)

CONNEXION BLUETOOTH AVEC L'APP DAFIT:

Circular black button with six white icons including gear, gear symbol, and battery icon (no readable text or symbols)

Centre de contrôle

Circular arrangement of colorful, stylized icons on black background (no text or symbols)

Menu

Close-up of a black analog clock face with hand and wrist markings (no readable text or symbols)

Glisser vers le bas

10000 00:22 06:55

08:08 M 05:07 M | 02:07 M

Dormir:

Basketball Football Badminton

Mode sport:

LIU KE Jack, let's go on a date.

Notifications de les APP's:

Circular optical lens diagram with concentric rings and central lens (no text or symbols)

Circular black button with a pink play button and directional arrows, no text or symbols present.

Black circular icon with a pink alarm clock and '02:34' text, no additional symbols or text present.

Alarmes:

Turn on mute mode reduce the brightness

Mode théâtre:

Service client DCU Tecnologic

QR code image containing encoded data, no visible human-readable text

CARREGUE E ATIVE O RELÓGIO:

Close-up of a smartwatch with red battery icon and green circular motion indicators (no text or symbols)

Circular icon with six circular icons including a battery and cloud, no readable text or symbols

Centre de controle

Circular icon set with colorful abstract shapes and symbols, no readable text or labels

Close-up of a black analog clock face showing time, speed, and hand signals (no readable text or symbols)

10000 00:22 05:55 0

Tela de recursosCaro

Basketball Football Badminton

Mode esporte:

LIU KE Jack, let's go on a date.

Circular optical lens diagram with concentric rings and central lens (no text or symbols)

Controle remoto para fotos:

Circular black button with a pink play button and directional arrows, no text or symbols present.

Close-up of a black analog stopwatch with pink alarm clock design and '02:34' time label (no additional text or symbols)

Turn on mute mode reduce the brightness

Modo teatro:

PERGUNTAS E RESPOSTAS MAIS FREQUENTES
