Curved Glass PRO - Smartwatch DCU - Free user manual and instructions

USER MANUAL Curved Glass PRO DCU

Smartwatch Curved Glass Pro
iOS - Android

Manual de usuario

User manual

Manual d'usuari

Mode d'emploi

Manual de usuário

3

12

21

30

39

ESP

ENG

CAT

FRA

PORT

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a smartwatch with a blue arrow pointing to the screen (no text or symbols)

Black square app icon grid with colorful circular icons (no text or symbols)

Menú

Message 08.30 ■ Mingming It's been a hot to... ■ Mingming It's been a hot to... ■ Mingming

Notificaciones

QR code image containing encoded data, no visible human-readable text

ENG

Thank you very much for purchasing this watch, the DCU team has been working hard to offer you a comfortable, beautiful and functional watch.

If you have any questions that this manual cannot solve, we will be happy to assist you, you can write to [e-mail] and in less than 24 hours we will answer you.

We wish you enjoy it!

If you want to know a little more, go to www.dcutec.com or visit our Instagram profile @dcutecnologic. Sometimes we do raffles.

Device maintenance

Remember the following tips to keep your Smartwatch in good condition:

• This device uses 5V 1A for charging. It is strictly prohibited to use charging power supply higher than 5V, maximum allowable 5V/2.4A.
• If you are not going to use the watch for a period of time longer than 1 month, make sure that the battery is not completely discharged, please charge it periodically.
• Clean the watch regularly, especially the inner side and the metal charging contacts, and keep it dry.
• Adjust the watch strap to ensure air circulation.
• Do not overuse skin care products or perfumes on the wrist where the watch is worn.
• Please stop using the watch in case of skin allergy or any discomfort.

Remark: The product supports waterproof with IP67 level, it is available to wear it while wash hands, 30min swimming pool, in raining, etc.

Do not use it with saltwater or when have a hot shower/bath or sauna, the vapors will get into the host, scratch damage of peripheral components. All these are beyond the scope of the warranty.

DOWNLOAD THE SMARTWATCH APP:

Scan the QR code to download and install the APP, or search in your APP Store or Play Store the name of the APP "Da Fit".

Device requirements: iOS 9.0 and above; Android 5.0 and above, support Bluetooth 5.1

QR code image containing encoded data, no visible human-readable text

Please use the DaFit app to connect your smartwatch to the smartphone, DO NOT CONNECT THE SMARTWATCH DIRECTLY TO THE BLUETOOTH OF SMARTPHONE

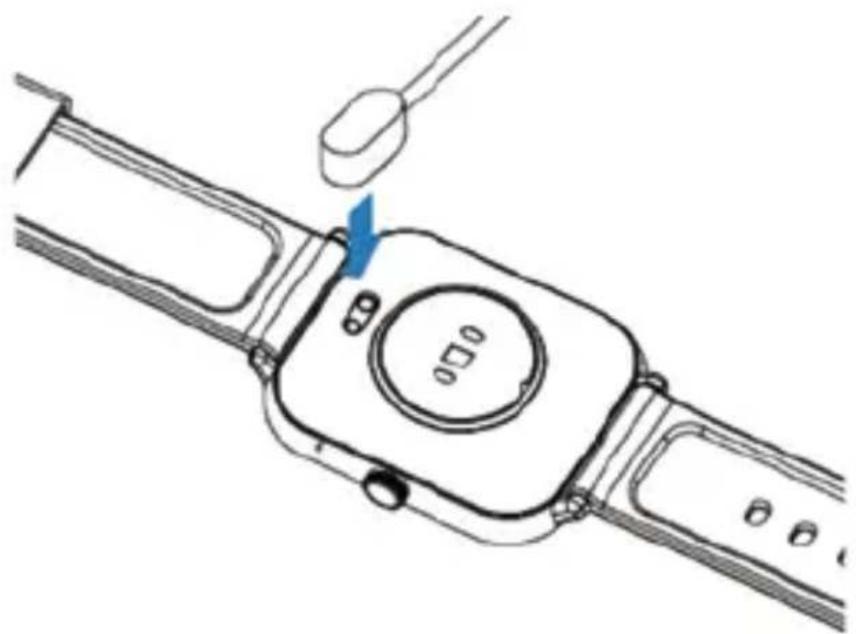

CHARGE AND ACTIVATE THE SMARTWATCH:

Before using the watch for the first time, you need to fully charge the battery, use the magnetic charging cable provided to connect the metal charging contacts on the back of the watch, connect the other end of the charging cable to an USB charger or an USB computer interface that provides a minimum of 5V/1A and a maximum of 5V/2A.

Line drawing of a smartwatch with a blue arrow pointing to the lens (no text or symbols)

The estimated time for a full charge is between 2-3 hours. To extend battery life, never let it discharge to 100% and charge it regularly, even if you are not going to use it.

CONNECTION WITH THE APP:

Open the DaFit app and click "Add Device" to find the smartwatch you want to connect to. If there is more than one device nearby, filter by the MAC address of the smartwatch (Settings > About).

TOUCH SCREEN:

SP, 23:50%

Control Center

Swipe Down ↑↓ Swipe Up

Grid of colorful app icons on black background, no text or symbols present

Menu

Swipe Left → ← Swipe Right

09:30 SHOP NEED

Swipe Down ↑↓ Swipe Up

Swipe Left ← Swipe Right

Heart Rate 102 points 124 76

Heart Rate Monitor

Message 08:30 ■ Mingming It's been a hot to... ■ Mingming It's been a hot to... ■ Mingming

Notifications

CHANGE THE SMARTWATCH DIAL:

Touch and hold the main smartwatch face and swipe right or left to select between different watch dials. You can download more designs or put a personal photo from the DaFit APP.

SMARTWATCH FEATURES:

Bluetooth calls

When the smartwatch is connected to the phone, you can use the smartwatch to dial the phone number to call, dial a favourite number, or you can answer calls directly on the smartwatch.

You can also view the call history of your smartwatch. To use the call function, you need to make sure that the smartwatch is connected to the phone in a stable state, within 10m with no obstacles, and never disconnect the Bluetooth.

Heart rate record

The smartwatch can record your heart rate daily.

You can also touch the heart rate interface to start measuring the current heart rate.

Blood pressure record

Touch the blood pressure interface to start measuring your blood pressure.

The blood pressure interface can display the blood pressure measured data of the last times.

Blood oxygen

Touch the SpO_2 interface to start measuring your SpO_2 . In the SpO_2 interface, it can display the last times SpO_2 measured data.

Female cycle

Touch the women's cycle interface to view the schedule and predictions. The configuration must be done from the DaFit APP.

Daily activity information

The smartwatch automatically records the steps taken during the day

NOTE: Steps are measured by moving your arms Daily activity information will be reset every day at midnight

Sport modes

Touch the training icon in the menu to start a new training recording, there are 123 sport modes to choose from: walking, running, cycling, spinning, mountaineering, yoga, dance, elliptical, rowing, basketball, football, badminton, tennis, jump rope, snow sports, swimming pool (do not use in salt water), etc.

The latest training recording will be displayed on the training interface.

Sleep recording

If you wear the Smartwatch while sleeping between 8pm and 8am, you can record the hours slept during the previous night and the quality of your sleep. You can see the statistics both on the screen and in the DaFit APP.

NOTE: Sleep stats reset to zero at 8:00 PM.

Control music player

After connecting the smartwatch to your phone, you can remotely control the music player on your phone (play/pause/next/previous). You need to make sure that the smartwatch is connected to the phone in a stable state, within 10m with no obstacles, and never disconnect the Bluetooth.

Remote control for pictures

After connecting the smartwatch to your phone, you can remotely control the phone's camera.

APP's notifications

The device can sync your phone's incoming notifications like Twitter, Facebook, Whatsapp, Instagram, etc. after setting up in the DaFit APP.

The last 5 messages can be stored.

Weather information

The weather information page displays the current weather and information for the next day. Weather information must be connected to the DaFit app before you can get the data. The weather information cannot be updated if it is disconnected from the APP for a long time.

Movement reminder

The device will vibrate to remind you to move after sitting for 1 hour.

Note: You can enable/disable the feature in the DaFit app.

Drink reminder

The smartwatch will remind you "Time to drink some water" at the scheduled drinking time.

Note: You can set the feature in the DaFit app.

Other functions

Includes stopwatch, alarm, timer, brightness adjustment, mute on/off, theatre mode, factory reset, power off, and device information.

PRECAUTIONS:

1. Avoid subjecting the smartwatch to strong impacts, extreme heat and/or sun exposure.

2. Please do not disassemble, repair or modify the smartwatch by yourself.

3. This device uses 5V 1A for charging. It is strictly prohibited to use charging power supply higher than 5V, maximum allowable 5V/2.4A.

4. The operating environment of this device is 0^ 45^ . Do not bring it close to extreme sources of heat.

5. When the smartwatch is wet, dry it with a soft cloth before charging, otherwise it will corrode the charging contacts and cause charging failure.

6. Do not bring the smartwatch near chemicals such as gasoline, cleaning solvents, propanol, alcohol, insect repellent, or perfume.

7. Please do not use this device in high voltage and high magnetism environment

8. If you have sensitive skin or wear the smartwatch too tight, you may feel uncomfortable.

9. Wipe beads of sweat from your wrist from time to time, as the strap may be exposed to soap, sweat, allergens or pollutants for a long time, which can cause itchy skin.

10. If you use it frequently, it is recommended to clean the smartwatch every week. Clean with a damp cloth and remove oil or dust with a mild soap. It is not recommended to use the smartwatch with hot water. Water vapour could enter to the sphere and damage the components.

WARNING:

This product is not a medical device. The Smartwatch and their applications should not be used for the diagnosis, treatment or prevention of diseases or ailments. To change your exercise and sleep habits, be sure to consult a qualified medical professional to avoid serious damages. Our company reserves the right to modify and improve any of the functions described in this manual without prior notice. At the same time, the company reserves the right to update the contents of the product. All contents are subject to the real product.

WARRANTY:

1. The warranty covers quality problems caused by manufacturing, materials or design within the first 3 years of purchase and battery and charger problems within the first 6 months. REGISTER YOUR SMARTWATCH ON OUR WEBSITE TO ACCESS THE WARRANTY (scan the QR code below).

2. The guarantee does not cover damage caused by misuse of the product or by the following cases:

1). Disassemble or reassemble the product.

2). Damage caused by falls

3). Any man-made damage or misuse (such as: getting water into the dial, external force causing it to break, scratch damage to peripheral components, etc.)

4) Damages caused by water are outside the scope of the guarantee because we cannot verify if the tightness of the product has been tampered with or affected by small blows that have reduced its resistance.

1. When requesting the warranty, you must provide the purchase receipt with the place and date of purchase.

2. If you have problems using the product, please don't hesitate to contact our customer service:

DCU Tecnologic customer service

Live web chat: www.dcutec.com

Email: [e-mail]

Telephone: [phone]

REGISTER YOUR WATCH ON OUR WEBSITE TO ACCESS THE WARRANTY (scan the QR code below).

QR code image containing encoded data, no visible human-readable text

CAT

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a smartwatch with a blue arrow indicating a component (no text or symbols present)

30P, 23:50%

Centre de control

Grid of colorful app icons on a dark background, no text or symbols present

Menú

Message 08:30 ■ Mingming It's been a fan g to... ■ Mingming It's been a fan g to... ■ Mingming

Notificacions

CANVIAR EL DISSENY DE LA PANTALLA DEL RELLOTGE:

QR code image containing encoded data, no visible human-readable text

FRA

QR code image containing encoded data, no visible human-readable text

Line drawing of a smartwatch with a blue arrow pointing to the screen (no text or symbols)

30P, 23:30%

Centre de contrôle

App icon grid with colorful circular icons representing various devices (no text or symbols)

Menu

Message 08:30 ■ Mingming It's been a hot go to... ■ Mingming It's been a hot go to... ■ Mingming

Notifications

MODIFIER LA DISPOSITION DU CADRAN DE LA MONTRE:

Service client DCU Tecnologic

Chat Web en direct: www.dcutec.com

Email: [e-mail]

Téléphone: [phone]

ENREGISTREZ VOTRE MONTRE SUR NOTRE SITE INTERNET POUR ACCÉDER À LA GARANTIE (scannez le QR code ci-dessous).

QR code image containing encoded data, no visible human-readable text

PORT

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a smartwatch with a sensor and control panel (no text or symbols)

23P, 23:07%

Centre de controle

Circular app icon grid with colorful icons on black background (no text or symbols)

Cardápio

Message 08:30 ■ Mingming It's been a hot g is... ■ Mingming It's been a hot g is... ■ Mingming

Lista de menus

ALTERAR O LAYOUT DO MOSTRADOR DO RELÓGIO:

QR code image containing encoded data, no visible human-readable text

DCU

TECNOLOGIC

Good People

Any questions about our products:

www.dcutec.com

C/ Industria, 34

Designed in BCN / Made in PRC / B55166847
