USER MANUAL CRUST PO2B-E2200 WILFA

Exterior view of a modern kitchen toaster with digital display and control buttons (no visible text or symbols)

CRUST

PO2B-E2200, PO2DB-E2200, PO2DB-E2200CH PIZZA OVEN

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Make sure the voltage in your outlet is the same as the voltage indicated on the appliance's rating label.
• To protect against the risk of electric shock. Do not immerse the cord, plug or unit in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow unit to cool before cleaning or storing it.
• Never yank the cord to disconnect the unit from the electrical outlet. Instead, grasp the plug and pull it to disconnect.
• The use of replacement parts or accessories not recommended by the manufacturer may cause fire, electrical shock or injuries.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for purposes other than the one for which it was designed.
• Do not let the electrical cord hang over the edge of the table or countertop or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, heated oven or microwave oven. Use it on a heat-resistant, flat level surface only.

- Extreme caution must be used when moving any appliance containing hot foods or oils.

- When using this appliance, provide adequate air space above and on all sides for air circulation.

- Do not leave unit unattended during use.

- When using this appliance, make sure there are no flammable materials close to it, such as curtains, paper, plastic, etc.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

EN

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• The surface gets hot during use and must not be touched.

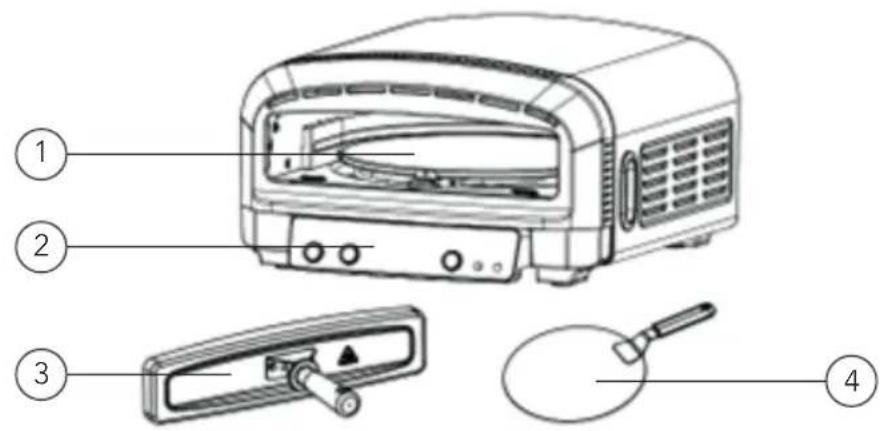

PRODUCT OVERVIEW – OVEN

Labeled diagram of a toaster oven showing four parts: front panel, interior tray, control panel, and fan.

1. Pizza stone

2. Control panel

3. Oven door

4. Pizza peel

EN

PRODUCT OVERVIEW - CONTROL PANEL

1 3 5 9 888 °C inch on 888 °C inch on 88:08 a.m. p.m. hour min. cooling temp. ready MANUAL AMERICAN NEAPOLITAN ROMANA FROZEN FOCACCIA 2 4 6 7 8 10 11 SELECTION • / START

1. Top Heater Temperature Display
2. Top Heater Temperature Adjustment Dial
3. Bottom Heater Temperature Display

4. Bottom Heater Temperature Adjustment Dial

5. Functional Display

6. Time Adjustment Button*
7. Reset Button
8. Functional Dial
9. Preset Programmes
10. Power Button
11. Rotation Button

PRODUCT OVERVIEW - ICONS

Icon Description

Do not insert food into the pizza oven.

The unit is preheating. Its time and temperature can not be adjusted.

Preheating is finished, and it has reached the desired temperature.

The heaters are on.

BEFORE FIRST USE

• Remove and discard all packaging materials, promotional labels, and tape from the appliance.
• Take out all accessories from the package and read the manual carefully. Pay particular attention to the operational instructions, warnings, and important safeguards to avoid injury or property damage.
• We recommend placing the pizza stone inside and positioning the oven door on the appliance. Then, run the oven at maximum temperature for 10 minutes without adding food. This process helps eliminate any packaging residue or odour traces, ensuring safe and optimal performance.
• It is normal for some smoke and odours to appear during the first use. This is due to the protective coating on the surface of the heating elements. This will lessen and eventually disappear with regular use.
• Ensure the area is well-ventilated.

PRESET PROGRAMMES

The appliance is equipped with preset programmes with default time and temperature settings. You can adjust these settings for optimal cooking results based on your preferences.

Function User remark Temperature (Top/Bottom °C)		Time Pizza Style/ Type
Manual Customise time and temperature for a personalised cooking experience.	350/350 max 4 min Your own style
Neapolitan Designed for classic Neapolitan pizza.	450/400 1 min 30 s Neapolitan style
Frozen Perfect for shop-bought frozen pizzas.	230/250 15 min Shop-bought frozen pizza
American Ideal for thin pizzas (1.5 cm thick).	350/350 5 min 30 s Sicilian pizza
Romana Designed for very thin pizzas (0.3–0.5 cm thick).	300/300 6 min Roman pizza
Focaccia Suited for thick pizzas (3–4 cm thick).	230/230 20 min Pizza barese, focaccia, Chicago, Detroit

Note: Defrost the frozen pizza on your countertop for 5-10 minutes before inserting it into the oven. This is to prevent the pizza stone to crack due to big temperature changes.

USE

STEP 1: POWER ON

• Evenly place the pizza stone on the rack.
- Press power (10) and rotation (11).
- Ensure the stone is rotating smoothly.

STEP 2: SELECT PROGRAMME AND SET TEMPERATURE

• Rotate the functional dial (8) to choose a program.
• Adjust the temperature using the temperature dial (2/4) if needed.
• Press the dial (8) again to confirm, and the pizza oven starts up.

STEP 3: PREHEAT

• The pizza oven will preheat for about 15 minutes before it has reached the desired temperature.
• During preheating, time and temperature settings are not adjustable.
• A preheat icon on the display will indicate preheating.
• Do not insert food during preheating.

STEP 4: SET TIME AND INSERT PIZZA

• Press the time button (6) and adjust the time using the functional dial (8).
• Press the functional dial (8) to start the timer countdown.
  Note: The timer is only for reference. When the time is up, the appliance will continue to operate until manually stopped or after 25 minutes of inactivity.
• Place the pizza in the centre of the stone for even cooking. If you are a beginner, we recommend stopping the rotating stone when inserting your pizza.
• It is recommended to monitor closely during cooking, as food can easily burn in high temperatures.

STEP 5: COOKING FINISHED

• Remove the pizza from the appliance using the pizza peel.
• Allow the steaming hot pizza to cool slightly before cutting it into slices.

SETTING MEMORY

This appliance is equipped with an automatic memory function:

• After setting the time and temperature and operating the appliance, the new settings are automatically saved, overwriting the previous ones.
• These settings will be displayed the next time you press the reset button or during the next startup.

To restore the default original settings for time and temperature:

- Press and hold the reset button (7) and the time button (6) simultaneously for 3 seconds.

CLEANING AND MAINTENANCE

• The appliance should be cleaned after every use.
• Do not clean the main unit or accessories in the dishwasher.
• All cleaning and maintenance should only be carried out when the appliance is cool and unplugged from the power outlet.

CLEANING

1. Remove all accessories from the appliance.
2. Clean the main unit and the control panel with a slightly damp cloth. Avoid excessive moisture.
3. Rinse the pizza peel and the oven door with water and dry before storing.

PIZZA STONE CLEANING

It is completely normal that the pizza stone will darken, and staining will occur with use.

1. Scrape off burnt bits using a plastic or metal scraper. A stiff brush may help with stains.
2. Use a slightly damp cloth to gently wipe the stone.
3. For stubborn stains, mix equal parts baking soda and water into a paste. Apply it to the stain, let sit and rinse with water.
4. Store the pizza stone in a dry or warm place to avoid moisture damage.

PIZZA STONE CARE

- Avoid extreme temperature changes to the stone. This can cause the stone to crack.

• Do not put frozen foods on the pizza stone.
• Do not put a cold pizza stone into a hot oven.

• Do not cool the stone with water while it is still hot.

• Do not use the pizza stone over open flame.

• Handle the pizza stone carefully. It is fragile and can break if bumped or dropped.
• If you clean the stone with water, ensure it is completely dry before the next use. The moisture can cause cracking.

TIPS AND TRICKS

• If you are using large fresh vegetables, meat, or seafood, it is advised to switch to the American pizza programme, as these ingredients require longer cooking times.
• For large frozen vegetables, meat, or seafood, use the frozen pizza programme, as frozen ingredients require longer cooking time.
• When preparing Deep dish pizza, pay attention to its thickness when baking, as it may rise and touch the top heater and burn.

EN

TROUBLESHOOTING

Problem Possible cause and solution

The pizza is undercooked or not evenly cooked.	Cooking time or temperature may not be sufficient.Too many ingredients on the pizza.Preheating time may not have been long enough.Pizza may not be centred on the stone.Stone may not be rotating properly during cooking.Adjust the time and temperature if needed. Place the pizza back in the appliance for a few more seconds if needed.Monitor the cooking process closely to prevent overcooking.
Should I add the pizza before or after preheating?	If the Temp. Ready icon is displayed (but not the preheat icon), you can place the pizza in the oven.Do not place the pizza in the oven before the preheating is finished.
The appliance is not working or does not heat up.	The power cord may not be plugged in correctly, or the outlet may be faulty.Ensure the power cord is securely plugged in and try a different outlet.Press the Power Button to check if it lights up.The appliance may have overheated after extended use.If it overheats, the appliance will automatically shut off for safety.
The appliance produces smoke when it is on.	Food may be touching the heating element.Switch off the appliance and reposition the food so it is not in contact with the heating element. If smoke continues, stop the process immediately and allow the appliance to cool before reheating.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220V-240V\~, 50-60Hz, 2200W

After connecting to the power supply, the appliance enters standby mode in less than 1 minute. The power consumption in standby mode is 0.3W.

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

EN

NO

NO

INNHOLD

20 VIKTIGE SIKKERHETSANVISNINGER

23 PRODUKTOVERSIKT – OVN

23 PRODUKTOVERSIKT - BETJENINGSPANEL

24 PRODUKTOVERSIKT – IKONER

24 F∅R F∅RSTE GANGS BRUK

25 FORHÅNDSINNSTILTE PROGRAMMER

26 BRUK

26 INNSTILLING AV MINNE

27 RENGJ∅RING OG VEDLIKEHOLD

28 TIPS OG TRIKS

29 FEILS∅KING

30 GARANTI

31 PRODUKTSPESIFIKASJONER

31 SUPPORT OG RESERVEDELER

31 RESIRKULERING

VIKTIGE SIKKERHETSANVISNINGER

Diagram of a toaster oven with labeled parts including front panel, rear panel, and screen

1. Pizzastein

2. Betjeningspanel

3. Ovnsdør

4. Pizzaspade

PRODUKTOVERSIKT – BETJENINGSPANEL

1 3 5 9 888 °C inch cm 888 °C inch cm 88:08 a.m. p.m. hour min. cooking temp. ready MANUAL AMERICAN NEAPOLITAN ROMANA FROZEN FOCACCIA 2 4 6 7 8 10 11 SELECTION • / START

1. Temperaturdisplay for øvre varmeelement

2. Temperaturjusteringshjul for øvre varmeelement

3. Temperaturdisplay for nedre varmeelement

4. Temperaturjusteringshjul for nedre varmeelement

5. Funksjonsdisplay

6. Knapp for justering av tid*

7. Nullstillingsknapp

8. Funksjonsvelger

9. Forhåndsinnstilte programmer

10. Av/på-knapp

11. Rotasjonsknapp

FORHÅNDSINNSTILTE PROGRAMMER

INNSTILLING AV MINNE

Dette apparatet er utstyrt med en automatisk minnefunksjon:

Diagram of a toaster oven with labeled parts including front panel, rear panel, and screen

1. Pizzasten

2. Kontrollpanel

3. Ugnslucka

4. Pizzaspade

PRODUKTÖVERSIKT – KONTROLLPANEL

1 3 5 9 888 °C inch cm 888 °C inch cm 88:08 a.m. p.m. hour max. cooking temp. ready MANUAL AMERICAN NEAPOLITAN ROMANA FROZEN FOCACCIA 2 4 6 7 8 10 11 BELECTION • / START

Diagram of a portable toaster with labeled parts including front panel, screen, and control panel

1. Pizzasten

2. Ovnlåge

3. Kontrolpanel

4. Pizzaspade

PRODUKTOVERSIGT - KONTROLPANEL

1 359 888 ℃ 888 ℃ 88:88 MANUAL NEAPOLITAN FINANCE AMERICAN ROMANA FOANCIA 2 4 6 7 8 10 11

Diagram of a toaster oven with labeled parts including front panel, rear panel, and screen

5. VAIHE: KYPSENNYS VALMIS

PRODUKTÜBERSICHT – OFEN

Diagram of a toaster oven with labeled parts including front panel, rear panel, and screen

PRODUKTÜBERSICHT – BEDIENFELD

1 3 5 9 888 °C inch cm 888 °C inch cm 88:08 a.m. p.m. hour min. cooking temp. ready MANUAL AMERICAN NEAPOLITAN ROMANA FROZEN FOCACCIA 2 4 6 7 8 10 11 SELECTION • / START

Diagram of a toaster oven with labeled parts including front, rear, and side views

PRODUKTÜBERSICHT – BEDIENFELD

1 3 5 9 888 °C inch cm 888 °C inch cm 88:08 a.m. p.m. hour min. cooking temp. ready MANUAL AMERICAN NEAPOLITAN ROMANA FROZEN FOCACCIA 2 4 6 7 8 10 11 SELECTION • / START

CARACTÉRISTIQUES DU PRODUIT

220V-240V\~, 50-60Hz, 2200W

FSC www.fsc.org 100% From wall- managed forsets FSC® C000000
