USER MANUAL Mirage 7470140 Vollrath

Mirage® Drop-in Induction Warmers and Rethermalizers

Thank you for purchasing this Vollrath® equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleaseread carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• Plugonlyintogroundedelectricaloutletsmatchingthenameplate ratedvoltage.
• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
• Asaprecaution, persons using apacemakers should stand back 12 (30cm) from an operating equipment. Studies have shown that the induction element will not disrupt apacemaker.
• Keepallcreditcards, driverlicenses and other items with electromagnetic strip away from an operating equipment. The equipment's magnetic field will damage the information on these strips.
• Donotputwaterintheouterwellofthewarmer/rethermalizer.Itis intendedtorundry.Waterwilldamagetheequipmentandvoidthe warranty.
• UseonlyVollrathinduction-readyinsetswiththisequipment.Failure touseVollrathinduction-readyinsetsmaydamageequipmentand voidthewarranty.
• Donotspraycontrolsoroutsideofequipmentwithliquidsor cleaningagents.
• Unplugwhennotinuse.
• Keepequipmentandpowercordawayfromopenflames,electric burnersorexcessiveheat.
• Donotoperateunattended.
• Closelysuperviseequipmentoperatinginpublicareasand/or aroundchildren.
• Donotoperateiftheequipmentisdamagedorismalfunctioning.

Modern kitchen appliance with digital display and control panel (no visible text or symbols)

741101D

ItemNo.Description		Plug
74701DW	7 Qt. Warmer	NEMA5-15P
741101DW	11 Qt. Warmer
74701D	7 Qt. Rethermalizer
741101D	11 Qt. Rethermalizer

TableofContents

UnpacktheEquipment......page2

ClearanceRequirements......page2

Installation......page3

All models are intended to keep food at properserving temperatures. For hot food holding, food must beat properserving temperature when placed into the drop-in. The equipment is not designed to cook raw food.

800W models are intended to thermalize refrigerated, previously cooked food and hold hot food at a safe serving temperatures.

UseonlyVollrathinduction-readyinsets(items88184or88204). FailuretouseVollrathInduction-readyinsetsmaydamageequipment andvoidthewarranty.

This equipment is not intended for household, industrial or laboratory use.

FCCSTATEMENT

This equipment has been tested and found to comply with Part 18 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference or radiocommunication. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference or radioor television reception, which can be determined by turning the equipment off and, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna
- Increase these separation between the equipment and receiver
- Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected
- Consultthedealeroranexperiencedradio/TVtechnicianforhelp Toassurecontinuedcompliance,anychangesormodificationsnot expresslyapprovedbythepartyResponsibleforcompliancecouldvoid theuser'sauthoritytooperatethisequipment.

UNPACKTHEEQUIPMENT

1. Remove all packing material and tape, as well as any protective plastic from the equipment.
2. Cleananyglueresidueleftoverfromtheplasticortape.

CLEARANCEREQUIREMENTS

Drop-in

• Zeroclearancebetweenthesidesofthedrop-inandany surroundingsurface.
• Donotblockairflowtothebottomoftheequipment.Sufficient airflowmustbeallowed.Blockingtheairflowcouldcausethe equipmenttooverheat.

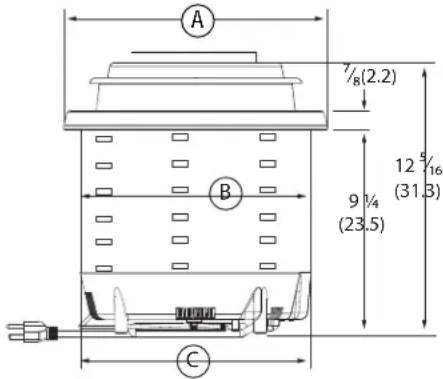

A 7/8(2.2) 12 5/16 (31.3) 9 1/4 (23.5) B C

	ProductDimensions
	7Qt.11Qt.
A	1178(30.3)	1378 (35.3)
B	1038 (26.4)	1238 (31.4)
C	10716 (26.5)	12716 (31.2)

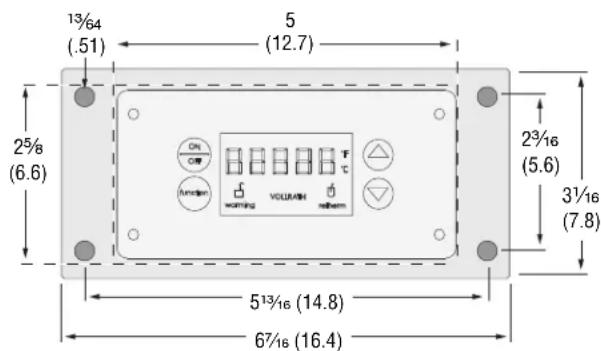

ControlBox

-4"(10cm)behindthecontrolboxandanysurroundingsurface.

13/64 (.51) 5 (12.7) 25/8 (6.6) ON OFF VOLUME FUNCTION VOLUME FUNCTION 23/16 (5.6) 31/16 (7.8) 513/16 (14.8) 67/16 (16.4)

31/32 (2.4) 1½ (3.8) 115/16 (4.9)

INSTALLATION

NOTICE: Installation must be performed by personalexperienced within installing drop-inequipment in a commercial food service environment.

NOTICE: Failure to follow these directions could damage the product. Damageduetoimproperinstallation is NOT covered under warranty.

CutoutOpenings

1. Choose a flat, level countertop for themountings surface.

2. Measure the area for the cutouts.

ItemCut-outDiameter

7Quart105%(27cm)

11Quart125%(32.1 cm)

ControlBoxSeedrawingonpage2.

1. Applysiliconesealanttothecutoutareastopreventmoisturefrom penetratingtheexposedsurfaces.

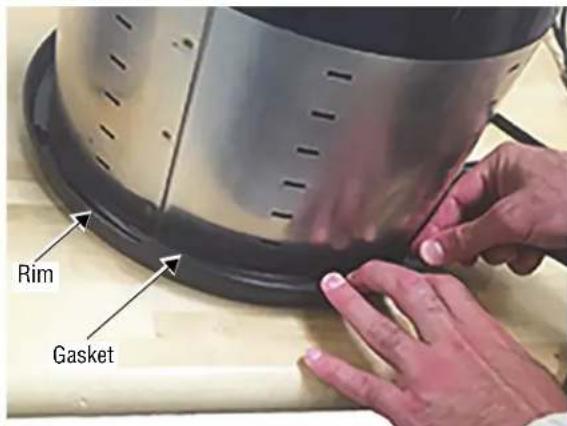

InstalltheGasket

NOTICE: Gasketinstallationismandatory. Failuretoinstallthe gasketwillvoidthewarranty.

1. Turntheequipmentsothebottomisfacingup.

2. Settheequipmentonastablesurface, such as a countertop.

3. Lubricatethegasketwithasmallamountofliquiddishsoapor water.

4. Carefullypressthegrooveofthegasketontotheundersideedgeoftherim. Takecaretoevenlypressthegasketasyoufeeditontotherim, withoutstretchingit.

Rim Gasket

1. If needed, use ascissorstotrimthegaskettotheproperlength.

InstalltheDrop-in

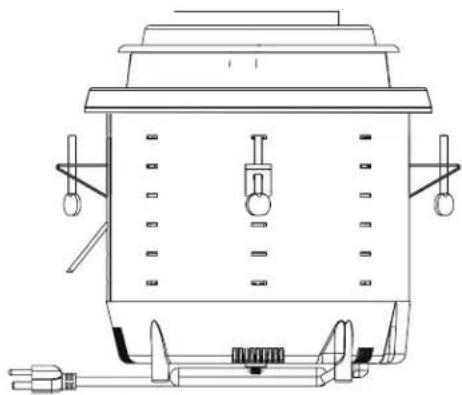

1. Insertthedrop-inintothecountertopasshownintheillustration below.

Technical line drawing of a portable stove or boiler unit with control panel and side-mounted fans (no text or symbols)

1. Insert the included four brackets with thumbscrewsintoslots. Chooseslotsthat position the thumbscrewsclosetothebottom of the countertop
2. HAND-TIGHTEN the thumbscrew slowly and in an alternating pattern. Tighten just to resistance approximately when the screw just touches the bottom of the countertop, then tighten an additional ½ turn. Don to overtighten.

NOTICE: Donotuseanyhandtoolswhentighteningthethumb screwsonthisproduct.

1. If desired, place bead of siliconecaulk between the gasket and the countertop.
   5.Plugthepowercordintoagroundedelectricaloutletwiththe matchingnameplateratedvoltage.

NOTICE: Usingavoltageotherthanthenameplateratedvoltage willcausedamagetotheunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewarranty.

InstalltheControlBox

1. Use the included four nuts and screws to secure the control box to themountings surface.

NOTICE: Tightenthescrewstoamaximumof35in-lbs. Do NOT over-tighten.

2.PlugtheUSBcableintothecontrolboxandintothebottomofthedrop-in.

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock. Donotspraywaterorcleaningproducts. Liquidcouldcontactthelectricalcomponentsandcausea shortcircuitoranelectricalshock.

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

Hotfoodandliquidscanburnskin.Inductionheatingsurfacesheat rapidly.

NOTICE: Donotputwaterinthewell. It is intended forundry. Water will damage the equipment and void the warranty.

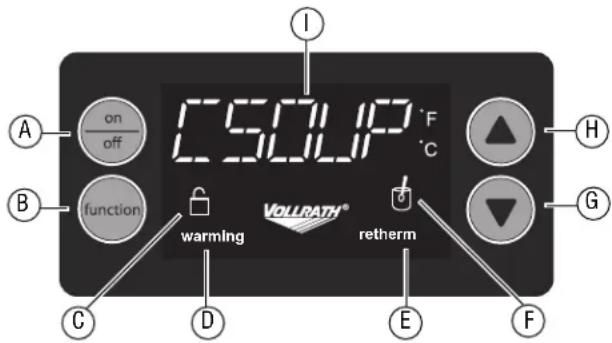

on off function warming 190.19 °F °C VOLUPATH® retherm A B C D E F G H

AON/OFFbutton.Presstoturnequipmenton.

BFunctionbutton.Changesthefunctionormodeofoperation.

CLocklight.Illuminateswhenthecontrolpanelislocked.

DWarminglight.Illuminateswhenthedrop-inisoperatingin warmingmode.Blinkswhilethefoodheatstotemperature.

ERethermlight.(800WModelsOnly)Illuminateswhenthedrop-in isoperatinginrethermalizingmode.Blinkswhilethefoodheats totemperature.

FStirlight.Flasheswhenthefoodshouldbestirred.

GArrowDownbutton.Lowersthetemperaturesetting.

HArrowUpbutton.Raisesthetemperaturesetting.

IDisplaypanel.Displaysthepresetprogram,temperature,oran errorcode,dependinguponthemodeselected.

JAlarm(notshown).Alarmbeepswhenthereisafaultcode.

Rethermalization(800WModelsOnly)

1. PresstheON/OFFbuttontoturnontheequipment.

2. FilltheincludedVollrathinductionreadyinsetwithcooked,chilled food. Placetheinsetintotheequipment.Closethelid.Forbestresults keepthelidclosedwhileheatingandserving.

3.PressthefunctionbuttontoselecttheRetherm(Rethermalize)mode.

1. While the food is thermalizing, therether light will illuminate and display will show the target temperature of 165^ F ( 74^ C).

2. Thestirlightmayblinktoindicatethefoodshouldbestirredforeven heating. For best results stir the food often, approximately every 15 minutes.

3. Monitor the food temperature closely for foods safety. The United States Public Health Service recommend sthathot food beheldat a minimum of 140°F (60°C) to help prevent bacteriagrowth.

Note: This equipment monitor the temperature of the inset and automatically adjust the output to maintain the user controlled setpoint. Temperatures displayed may vary from actual food temperatures depending on the type of food and stirring frequency. For best results, adjust these settings as needed to achieve the desired temperature of each menu item. Some food may require higher setting to hold the desired temperature.

1. Thedisplaywillblinkiftheinsetisremovedfromthedrop-in.
2. After the einset has reached approximately 165^ F ( 74^ C), the equipment will switch to hot food holding mode. The warm light will illuminate and the display will show the default setting for Hot Food Holding.
3. Follow the instructions for Hold Hot Food at Serving Temperature. Do not add cold food to thermalized hot food.

HotFoodHolding(AllModels)

Selecteitheratemperatureatwhichtoholdhotfoodoroneofthepreset programs.

PreheattheWarmer

1. PresstheON/OFFbuttontoturnontheequipment.
2. Placetheempty Vollrathinductionreadyinsetintotheequipment.
   3.Pressthearrowuporarrowdowntoselectatemperatureabove 155°F(68°C). Toswitchto°For°C, pressthefunctionbuttonuntilthe displayshowsyourpreference.
3. Allow the equipment to heat for 5 minutes.

HoldHotFoodatServingTemperature

1. FilltheincludedVollrathinductionreadyinsetwithpre-heatedfood, above 155^(68^) . Placetheinsetintotheequipment.Closethelid. Forbestresultskeepthelidclosedwhileheatingandserving.
2. Selectaholdingtemperatureorpresetprogram.Pressthefunction buttontoselectWarmingoroneofthepresetprograms:Soup,CSoup (CreamSoup),Chili,orMac(MacandCheese).
3. Thewarminglightblinksuntiltheinsetheatstothesettemperature.
4. Thestirlightmayblinktoindicatethefoodshouldbestirredforeven heating. For best results stir the food often, approximately every 15 minutes.
5. Monitor the food temperature closely for foods safety. The United States Public Health Service recommend sthat food beheld at a minimum of 140^ F ( 60^ C) to help prevent bacteriagrowth.

Note: This equipment monitor the temperature of the inset and automatically adjust the output to maintain the user controlled setpoint. Temperatures displayed may vary from actual food temperatures depending on the type of food and stirring frequency. For best results, adjust these settings as needed to achieve the desired temperature of each menu item. Some food may require higher setting to hold the desired temperature.

1. Thedisplaywillblinkiftheinsetisremovedfromthedrop-in.

LocktheControlPanel(optional)

Lock

Atthesametime, pressandholdthefunctionbuttonandthearrowdown buttonuntilthelocklightappears.

Unlock

Atthesametime, pressandholdthefunctionbuttonandthearrowdown buttonuntiltheunlocklightappears.

CLEANING

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock. Donotspraywaterorcleaningproducts. Liquidcouldcontacttheelectricalcomponentsandcausea shortcircuitoranelectricalshock.

CAUTION

BurnHazard

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.Donotdroporspillwaterontothe cookingsurfaceasitcansprayorsplatter.

Tomaintaintheappearanceandincreasetheservicelife,cleanthis equipmentdaily.

Whatyouwillneed:

• Threesoftcleancloths,oneeachforcleaning,rinsinganddrying
  •Mildishwashingdetergent
• Cleanwarmwater

NOTICE: Failure to follow these cleaning instructions may lead to product damage that will not be recovered under warranty.

1. Unplugtheequipmentandletitcompletelycool.

2. Use as soft cloth moistened with warm water and mild dish washing detergent to clean the well and therim.
   NOTICE: Do NOT use cleanings solution that contain chlorine or bleaching ingredients. Use of solutions with these ingredients will damage the well and will void the warranty.

3. Use the second clean soft cleans soft cloth moistened with clean warm watertowipe all detergent from the well and therim.

4. Usethethirdsoftcleanclothodrythewellandtherim.

NOTICE: Failure to throughly remove all detergentorthoroughly dry the equipment may result in damage to the equipment.

1. The stainless steel insert is dish washers safe.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Theequipmentison,butnotheating andthedisplayisflashing.	TheinsetisnotaVollrathinduction-ready insetoristhewrongsizeVollrathinduction-readyinset.	ReplacetheinsetwiththecorrectsizeVollrathinduction-ready insetfortheequipment.Vollrathinduction-readyinsetsare stamped“InductionReady.”Resettheequipmentbyturningit OFFandthenON.
	Troublewiththeelectricalconnectionis causinglowinputvoltage.	Makesuretheplugisfullyinsertedintoanelectricaloutletthat matchestheratingontheequipment’snameplate.
		Makesuretheelectricalcircuitisnotoverloaded.
Alarmissounding.Anerror.SeetheDisplayMessagesinthetablebelow.
Theequipmentsuddenlystopped working.	Theequipmentmaybetooclosetoanexternalheatsourceortheairintakemaybe restricted.	Relocatetheequipmentawayfromexternalheatsources.Clear anyobstructionstotheairintake.ContactVollrathTechnical Servicesiftheproblempersists.
	Theinsetmaybetoohot.	Removetheinset.Allowtheinsetandequipmenttocoolbefore resuminguse.ContactVollrathTechnicalServicesiftheprob-lempersists.
DisplayMessageCauseCourseofAction
BadPan	TheinsetisnotaVollrathinduction-readyinsetoristhewrongsize Vollrathinduction-readyinset.	ReplacetheinsetwiththecorrectsizeVollrathinduction-ready insetfortheequipment.Vollrathinduction-readyinsetsare stamped“InductionReady.”Resettheequipmentbyturningit OFFandthenON.
HOT	Iftheequipmentisturnedoff,thisisnormal.Itindicatestheequipmentisstillhot.	Allowtheequipmenttocool(about5-10minutes)beforeclean-ing.
	Iftheequipmentisinuse,theinsetmaybetoohot.	Removetheinset.Allowtheinsetandequipmenttocoolbefore resuminguse.Donotplaceexcessivelyhotfoodintotheinset.Donotanplaceexcessivelyhotinsetintotheequipment.ContactVollrathTechnicalServicesiftheproblempersists.
F-2Theinsetmaybetoohot.		Removetheinset.Allowtheinsetandequipmenttocoolbefore resuminguse.Donotplaceexcessivelyhotfoodintotheinset.Donotanplaceexcessivelyhotinsetintotheequipment.ContactVollrathTechnicalServicesiftheproblempersists.
F-1	Theequipmentmayhaveoverheated.	Relocatetheequipmentawayfromexternalheatsources.Clear anyobstructionstotheairintake.ContactVollrathTechnical Servicesiftheproblempersists.
F-8
Othererror codes	Internalerror.ContactVollrathTechnicalServices.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

Serviceable parts are available on vollrathfoodservice.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

For complete warranty information, product registration and new product announcement, visit vollrathfoodservice.com.

VOLLRATH

vollrathfoodservice.com

The Vollrath Company, L.L.C.

1236 North 18th Street

Sheboygan, WI 53081-3201 U.S.A. Main Tel:

800.624.2051 or 920.457.4851 Main Fax:

800.752.5620 or 920.459.6573 Customer

Service: 800.628.0830 Canada Customer

Service: 800.695.8560

© 2024 The Vollrath Company L.L.C.

Technical Services

[e-mail]

Induction Products: 800.825.6036 Countertop

Warming Products: 800.354.1970 Toasters:

800-309-2250

All Other Products: 800.628.0832

Part 2350219-1 ml

7/10/24
