USER MANUAL Cake Factory KD8043 TEFAL

Two electric air fryer machines with digital display screens, one white and one black, shown against a plain background (no text or symbols visible)

TABLE DES MATIÈRES

Labeled diagram of a food microwave oven with numbered parts for identification

Description

• Safety Instructions 24
• Description 28
• Using the Moulds 29
• Product Presentation 30
- Preparation 30
• Installation and Connection 30
• Presentation of the Programs 31
• A. Choosing the Cooking Program 32
• B. Using an Automatic Program 33
• C. Using the Manual Program 34
• D. End of a Program (Automatic or Manual) 35
• E. Extend a Cooking Cycle (Automatic or Manual) 35
• F. Relaunch the Same Program 36
• G. Relaunch a Different Program 36
- Modifying the Time and the Program Under Way 37
- Maintenance and Cleaning 39
- Cooking Guide 40
- Troubleshooting to achieve great results 41
- Troubleshooting Guide 42

Safety Instructions

IMPORTANT PRECAUTIONS

Product use, maintenance and installation: for your safety, please read through all the sections in these instructions or the corresponding pictograms.

This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. This appliance should not be used outdoors. This appliance is intended for domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

Remove all packaging, stickers and various accessories from both the inside and outside of the appliance.

This appliance is not intended to be used by those (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Supervise children to ensure they do not play with the appliance or use it as a toy.

Never leave the appliance unattended when in use.

The temperature of accessible surfaces can be high when the appliance is in operation.

Do not touch hot surfaces of the appliance.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Unwind the power cord fully before use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance. Take all necessary precautions to ensure that no one trips over the cord.

Always plug the appliance into a socket outlet with an earth connection.

Check that your mains supply voltage matches that indicated on the appliance data plate.

Never immerse the appliance or its power cord in water or any other liquid.

This appliance can be used by children 8 years of age and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

User cleaning and maintenance must not be carried out by children, unless they are over 8 years of age and under supervision.

Keep the appliance and its cord out of reach of children younger than 8 years old.

• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.
• WARNING: Do not heat or preheat the product unless the cooking moulds are inside it.

Do

• Carefully read through these instructions and keep them to hand. They apply to all the different versions of this appliance, depending on the supplied accessories.
• In the event of an accident, immediately run cold water over the site of the burn and, if necessary, call a doctor.
• Position the power cord carefully to be free of working areas, whether an extension is used or not.
• Cooking smoke may be dangerous for animals with particularly sensitive respiratory systems, such as birds. We recommend that bird owners keep their birds away from the cooking area.
  • Always keep the appliance out of reach of children.
• Prior to first use, wash the aluminium cooking mould, pour a little oil on top and wipe it using a soft cloth.
• Prior to first use, wash the silicone moulds, then wipe them using a soft cloth.
• Check that the cooking moulds have been properly cleaned after use.
• To prevent damage to the cooking moulds, only use them with the equipment for which they were designed (e.g. do not place them in the oven, on the hob or on a hot plate).
• Ensure that the cooking moulds are stable and correctly positioned on the appliance base. Only use cooking moulds provided or acquired from the authorised service centre.
• To preserve the cooking mould coating, always use a plastic or wooden spatula.
• Only use the accessories provided with the appliance or those purchased from an authorised service centre. Do not use them with other appliances.
• Only use PROflex Tefal and Crispy Bake Tefal moulds indicated as being compatible.
• Use oven gloves to remove the moulds when cooking is completed.
• When melting chocolate, use the Cake Factory non-stick aluminium mould or the PROflex chocolate melting mould (if included).

Do not

• Do not use the appliance outdoors.
• Never transport the product when it is hot or while in operation.
• Never plug the appliance in when it is not in use.
  • To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place your appliance directly on a fragile surface (e.g., glass table, tablecloth, varnished furniture, etc.) or a surface such as a plastic tablecloth.

• Do not place the appliance on or near slippery or hot surfaces, nor let the cord hang above a heat source (e.g., cook top, gas stove, etc.)

• Never place the appliance underneath a piece of furniture attached to a wall or a shelf or beside flammable materials such as blinds, curtains or drapes.

• In order to prevent damage to the cooking surface (non-stick coating), never use a scouring pad or scouring powder.
• Do not carry the appliance by the handle or the metal wires.
• Never use the appliance when empty.
• Do not place hot cooking moulds under water or on a fragile surface.
• To preserve the non-stick qualities of the coating and the silicone, do not heat the appliance when empty.
  • The cooking moulds should never be handled when hot.
• Do not cook food in bags or parcels ("en papillote").
• To avoid damage to your appliance, never flambé food on it.
• Never put aluminium foil or any other object between the cooking moulds and the food to be cooked or between the cooking moulds and the elements.
• Do not cut directly on the cooking moulds.
• Do not heat the appliance unless the reflector and a cooking mould are inside it.
• Never heat or cook while in the "appliance open" position.
• To preserve the silicone's non-stick qualities, we recommend refraining from washing it in the dishwasher.
• To ensure the proper operation of your appliance, when filling the moulds, do not exceed the proportions indicated.
• Do not oil, butter or grease the silicone moulds.

Recommendations/Information

• For your safety, this appliance complies with the applicable standards and regulations (directives regarding low voltage appliances, electromagnetic compatibility, materials in contact with foodstuffs, the environment, etc.).
• Thank you for choosing this appliance, designed for household use only.
• Our company reserves the right to change the characteristics or components of its products at any time, in the consumer's interest.
• When using the appliance for the first time, a slight odour and/or smoke may be emitted during the first minutes of use.
• Any solid or liquid foods that come into contact with parts marked with the logo must not be consumed.
  • To clean the cooking moulds, use a sponge, some hot water and some washing-up liquid.
• The element must not be washed. If it is really dirty, wait for it to cool completely and rub with a dry cloth.

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Labeled diagram of a food microwave oven with numbered parts for identification

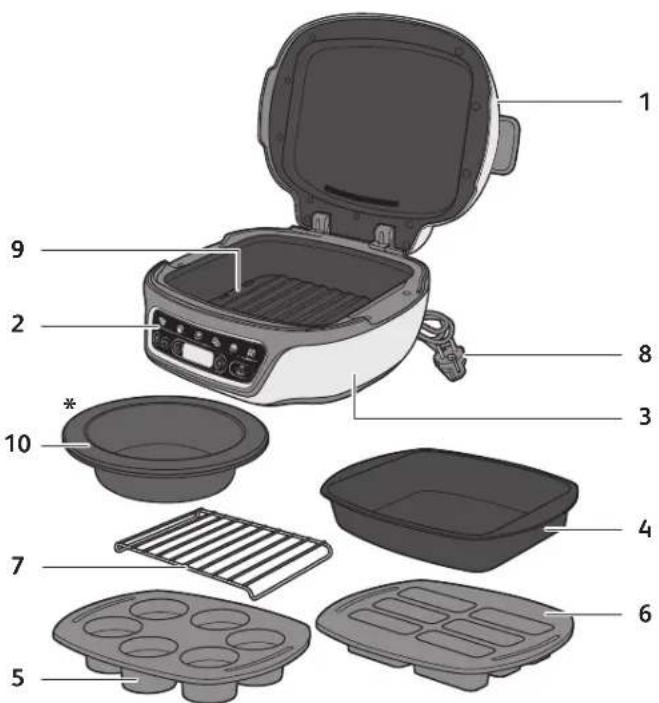

Description

1 lid
2 Control panel
3 Appliance base
4 Non-stick aluminum bowl
5 Silicone PROflex 6-muffin mould
6 Silicone PROflex 6-mini-cake mould
7 Support grid for some PROflex moulds and for melting chocolate
8 Power cord
9 Black reflector
*10 PROflex silicone chocolate melting mould (depending on model)

Using the Moulds

To ensure the proper operation of your appliance, when filling the moulds, do not exceed the proportions indicated.

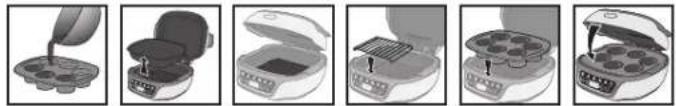

Silicone PROflex Mould

The Cake Factory is only compatible with moulds belonging to the Tefal PROflex range, dimensions 30 x 21 cm.

Pour into the mould Remove the
move the Ensure that the
aluminium bowl
Ensure that the
black reflector is
properly in place
and attached to
the bottom of the appliance
Place the grid on
the reflector
Place the mould Close
sc

* To cook cannelles or for any use of a mould taller than 4.5 cm, directly place the PROflex mould in the Cake Factory without the support grid.

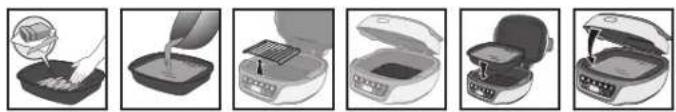

Non-stick aluminium bowl

Grease the bowl Fill the bowl Remove the grid Ensure that the
he bowl Remove the grid Ensure that the
grid Ensure that the
2019年1月1日
Insert the bowl Close
e

black reflector is

properly in place

and attached to

the bottom of the appliance

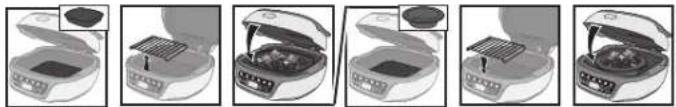

Melting chocolate

Place the chocolate
in the aluminium mould
Remove the grid Close Put chocolate in a
[Non-Text]
1
suitable container
Place the grid on
the reflector
Close

To melt chocolate, use the Cake Factory non-stick aluminium mould or the PROflex chocolate melting silicone mould (if included).

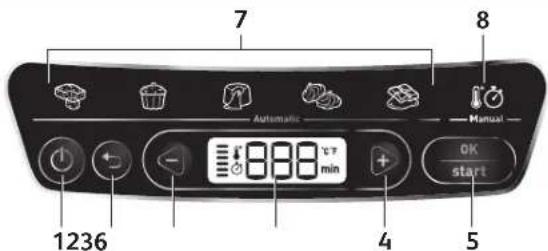

Product Presentation

7 Automatic 8 Manual 1236 4 5 OK start

1 On/Off button

5 OK / Start button

2 Back button

6 Control panel

3 Minus button (-)

7 Automatic programs

4 Plus button (+)

8 Manual program

Preparation

1. Remove all packaging, stickers and various accessories from both the inside and outside of the appliance.
2. Prior to first use, thoroughly clean the 3 different moulds using some hot water and some washing-up liquid, carefully rinse and dry.

Installation and Connection

Appliance start-up applies to all programs

1

2

3

1. Plug in your appliance.
2. Next, wait a few seconds before pressing the On/Off button. The first program flashes, indicating the "Program Selection" mode.

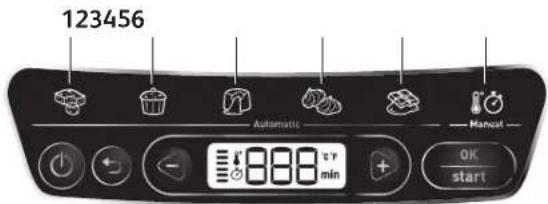

Presentation of the Programs

If you are unsure of which cooking mode to use, please refer to the Cooking Guide, page 40.

123456 Automatic Manual 888 min OK start

5 Automatic Programs:

1 Cakes to share program
2 Individual cakes program
3 Lava cake program

4 Meringue program
5 Melting chocolate program
6 Manual program

Cooking Tip: There is a program suited for each recipe type. Depending on the selected program, a default cooking time is indicated. There are several recipes per program. For this reason, it may be necessary to adjust the time based on the chosen recipe (see the list of recommended times per recipe). Preheating is not required, and cooking starts when the program is launched, once the appliance is closed and start has been pressed.

Caution: To ensure best results, it is essential to follow the recipe and to respect the proportions.

A. Choosing the Cooking Program

1

2

Once the preparation has been poured into the mould and the cover has been closed:

1. Scroll through the cooking programs using the - and + buttons.
2. The chosen pictogram flashes.
3. Press the OK button to confirm.

3

B. Using an Automatic Program

1

2

1. Once the cooking program is selected, the corresponding indicator light is solidly lit.
2. A default cooking time flashes.
3. Press the + and - buttons to modify the time, if required.
4. Ensure that the lid is closed. Press the Start button to confirm and start cooking. The time display stops flashing.
5. Cooking has started. The graphic on the screen's left indicates that a cooking cycle is under way and that the appliance is heating. The time counts down by the minute, and then by the second during the last minute.

3

4

Note: Each subsequent time the appliance is used, the time displayed defaults to the previous time used.

5

C. Using the Manual Program

1

2

3

4

5

6

7

8

1. Once the cooking program is selected, the corresponding indicator light is solidly lit.
2. A default temperature flashes.
3. Press the + and - buttons to modify the temperature, if required.
4. Press the OK button to confirm.
5. A predefined cooking time flashes.
6. Press the + and - buttons to modify the time, if required.
7. Press the Start button to confirm and start cooking, and the time display will stop flashing.
8. Cooking has started. The graphic on the screen's left indicates that a cooking cycle is underway and that the appliance is heating. The time counts down by the minute, and then by the second during the last minute.

Note: Each subsequent time the appliance is used, the time and temperature displayed default to the previous time and temperature used.

D. End of a Program (Automatic or Manual)

123

1. The time reaches 000 and the appliance beeps to signal the end of cooking.
2. Press OK once to stop the ring, the display 000 flashes.
3. The use of hand protection (oven glove) to prevent burns when handling hot dishes or moulds is necessary.

Caution: It is important to open the appliance and to quickly remove the cakes so that they do not continue to cook.

E. Extend a Cooking Cycle (Automatic or Manual)

1

2

3

1. At the end of the program, in the event where the cake is undercooked, it is possible to increase the cooking time by directly pressing the + and - buttons. Close the cover again.
2. Once the additional time has been entered, press Start to continue cooking.
3. The time display stops flashing and the minute-by-minute countdown starts. Cooking continues. The graphic on the screen's left indicates that a cooking cycle is under way and that the appliance is heating.

F. Relaunch the Same Program

Automatic and Manual

1

1. After having turned off the beep, press the OK button a second time to display the time. The last cooking time used is displayed and flashes.
2. Press OK to start the program.

G. Relaunch a Different Program

After an Automatic Program

1

1. After having turned off the beep, press the Back button to return to the program selection screen.
2. Please refer to Part A to choose the program.

After a Manual Program

1

1. After having turned off the beep, press the Back button to return to the program selection screen.
2. Please refer to Part C to start the program.

Modifying the Time and the Program Under Way

Caution: when the time is modified during cooking, the results can no longer be guaranteed. It is preferable to relaunch the full program.

Only possible if the elapsed cooking time <2min

1

2

1. Press the Back button to return to the time selection screen. The displayed time flashes.
2. If required, press the Back button a second time to return to the program selection screen.
3. Press the + and - buttons to choose a program again and/or to modify the time.
4. Confirm by pressing Start to restart cooking.

3

4

Caution: the + and - buttons are inactive as long as the time is <2min.

Only possible if the elapsed cooking time >2min

Ability to modify the time.

1

2

3

1. After the first two minutes of cooking, the Back button is no longer active. Press the + or - button directly to modify the time. The time flashes.
2. Press OK to confirm the new value.
3. The time is modified and the display stops flashing again, and cooking continues.

Caution: If no confirmation occurs within 5 seconds, the time returns to the original time, without modifying the program.

The Back button is no longer active after the first two minutes of cooking.

Maintenance and Cleaning

1

2

3

4

5

6

7

8

Caution: All repairs must be done by an authorised service centre.

1. Press the ON/OFF button to turn off the appliance.
2. Unplug the device.
3. Let the Cake Factory cool for at least 2 hours.
4. The cooking accessories are dishwasher-safe. Putting the silicone moulds in the dishwasher is not recommended. The appliance and its power cord must never be put in the dishwasher, nor under water. Wash the moulds in hot water and some washing-up liquid, then rinse thoroughly to remove all residue.
5. Dry them thoroughly. Do not use any metal scouring pads, steel wool or abrasive cleaning products to clean the non-stick mould. Only use nylon or non-metallic cleaning pads. To clean the lid, use a sponge soaked in hot water and dry using a soft, dry cloth. Never immerse the appliance in water or in another liquid.
6. Always ensure that the appliance is clean and dry prior to storage.
7. Do not touch the hot parts of the appliance when in use. Please keep hands and face away from steam releasing from the back of the appliance.
8. Do not carry or hang the appliance by it base or power cord. Be careful when moving the appliance.
9. Regularly clean the outside of the appliance.

After use, there may be a change in colour. This phenomenon is normal and linked to the temperatures required to cook food. Any yellowing is not a health hazard and does not change the appliance's operating qualities.

Cooking Guide
The cooking times are provided for information only.

Dedicated Programs Recipe		Time Accessory
	1. Cakes to share	Sponge cake 25 min
		Yoghurt cake 35 min
	2. Individual cakes	Blueberry muffins 34 min
		Cupcakes 35 min
	3. Lava cakes Chocolate	7 min
	4. Meringues Swiss meringue	105 min
	5. Melting chocolate	White or milk chocolate	6 min/9 min
		Dark chocolate	7 min/11 min
		Chocolate+butter 8min		Non-stick aluminium mould

Find complete recipes on our application.

Troubleshooting to achieve great results

Examples Tips
Lava cakes will be undercooked if there is too much butter with respect to the recommended ingredient weight.Lava cakes will be overcooked if there is too much flour with respect to the recommended ingredient weight.	Carefully observe ingredient quantities.
Lava cakes or cakes will be overcooked if left in the Cake Factory after the ringing signal is produced at the end of cooking.	Carefully remove the mould at the end of cooking, as recommended in the guide.
Lava cakes will be overcooked if the batter has been beaten rather than simply stirred.	Carefully follow the actions recommended in the recipe.
Muffins will be crumbly when turned out if the ingredients are mixed indiscriminately.	Carefully follow the order of the steps for incorporating the recipe's ingredients.
The flavour and texture of my cakes are lacking.	To ensure optimal results, take care to check that the ingredients are of good quality and unexpired.
The bottom of the red berry lava cake will be undercooked if the fruit coulis centre is not placed in the freezer for 4 hours prior to baking.	Carefully observe the ingredient set-up times recommended in the recipe.

Troubleshooting Guide

Problem Solution
Er00 or Er003	Appliance failure:Unplug the appliance and contact your customer service or a repair centre.
Er01/Er02/Er04/Er05/Er06	Unplug the appliance and wait a few minutes.Then plug in your appliance again and turn it on.If the problem persists, contact your customer service or a repair centre.
The displayed time flashes If the displayed time is correct, press OK to confirm.
The displayed temperature flashes	If the displayed temperature is correct, press OK to confirm.
The illuminated program flashes If the displayed program is correct, press OK to confirm.
The appliance does not close properly	Open the appliance, check that the support grid has not been left under the non-stick cooking mould.Check whether you are using a silicone mould taller than 4.5 cm. If this is the case: remove the support grating.The mould used is not suitable for this appliance: use a mould that conforms with this appliance's conditions for use.
The time has reached 000, but the level of cooking is insufficient	At the end of cooking, after having turned off the beep sound by pressing OK once, close the appliance again and add some time using the – and + buttons, then confirm by pressing OK.
During cooking, after a modification to the cooking time, the cooking time automatically returns to the initial time	After having modified the time, press OK to confirm.
After a cooking program has been launched, it is not possible to modify the cooking time	Wait for 2 minutes to elapse after the launch of the program to modify the time using the – and + buttons.

INHOUDSOPGAVE

Labeled diagram of a food microwave oven with numbered parts for identification

Beschrijving
