Pie & Co SM2225 - Sandwich maker TEFAL - Free user manual and instructions

Brand	Tefal
Model	Pie & Co SM2225
Product Type	Sandwich Maker
Power Consumption	750 W
Voltage	220-240 V
Frequency	50/60 Hz
Dimensions (approx.)	25 x 25 x 10 cm
Weight (approx.)	1.5 kg
Material	Plastic body, non-stick coated plates
Number of Plates	2 (top and bottom)
Indicator Lights	Operating and temperature indicator lights
Closure Latch	Yes, for secure closing during cooking
Handle	Cool-touch handle for safe operation
Accessories	Pastry cutter (dishwasher safe)
Cleaning Method	Hand wash plates with sponge and mild detergent; do not immerse appliance
Safety Features	Automatic temperature control; do not leave unattended; keep away from children
Repairability	No user-serviceable parts; damaged cord must be replaced by qualified personnel
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - Pie & Co SM2225 TEFAL

What is the first thing I should do before using the sandwich maker?

Remove all packaging materials, stickers, and accessories from inside and outside. Wash the plates with warm soapy water, wipe dry, then lightly oil the plates with cooking oil and wipe with a soft cloth.

How do I use the Pie & Co SM2225?

Follow the steps in sections 1-5 of the manual. Plug in the appliance; the green operating light will come on. Once the temperature light goes out, place your sandwich on the plates, close the lid, and cook until golden. The green light cycles on/off to maintain temperature.

Can I cut food directly on the plates?

No, never cut food directly on the plates to avoid damaging the non-stick coating. Use a wooden or plastic spatula.

How do I clean the sandwich maker?

Unplug the appliance and let it cool. Wipe the plates and body with a sponge, hot water, and washing-up liquid. Do not immerse in water or use abrasive cleaners. The pastry cutter is dishwasher safe.

Is the appliance dishwasher safe?

No, the appliance itself is not dishwasher safe. Only the pastry cutter can be placed in the dishwasher. The plates and body must be hand washed.

What should I do if the power cord is damaged?

To avoid hazard, the cord must be replaced by the manufacturer, its service agent, or a similarly qualified person. Do not attempt to repair it yourself.

Can I use the sandwich maker with an extension cord?

If necessary, use an extension lead of equivalent diameter with an earthed socket. Take precautions to prevent tripping over the cord.

Why does the green light go on and off during cooking?

This is normal. The temperature indicator light cycles on and off to show that the selected cooking temperature is being maintained.

What if there is a slight smell or smoke on first use?

This is normal due to initial heating of non-stick coatings. It should disappear after a few minutes. Ensure good ventilation.

Where can I dispose of the appliance at end of life?

Do not throw it with household waste. Take it to a local civic waste collection point for recycling, as it contains valuable recoverable materials.

USER MANUAL Pie & Co SM2225 TEFAL

White Tefal pie & cup appliance with three small kitchen cutouts (no text or symbols visible on the appliance itself)

1

Illustration of a computer mouse with an arrow indicating motion (no text or symbols)

Illustration of a pizza box with an upward arrow and letter labels A, B, C (no text or symbols on the main image)

Illustration of a medical or laboratory device with a cross symbol overlay (no text or symbols present)

Illustration of a hand pressing down on a medical device with arrows indicating motion (no text or symbols)

Illustration of a person using a microwave oven to prepare food, with an inset showing the step (no text or symbols)

2

Illustration of a handheld device with a thermometer and pointer, no text or symbols present

Illustration of a cell with labeled nucleus and cytoplasm, showing cellular structures (no text or symbols present)

3

Illustration of a microwave oven with six cups and an upward arrow indicating rotation (no text or symbols)

Illustration of a baking mold with three small food items inside, no text or symbols present

Illustration of hands holding a small object, with a magnified inset showing a circular view (no text or symbols)

Circular diagram showing a mechanical component with a downward arrow and label K3 (no readable text or symbols)

Close-up of a mechanical component with circular features and a small circular detail (no text or symbols)

Diagram showing a device with circular components and an arrow pointing to a circular component (no text or symbols)

4

Thank you for buying this appliance. Read the instructions in this leaflet carefully and keep them within reach.

Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

This appliance is intended for domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Our company has an ongoing policy of research and development and may modify these products without prior notice.

Prevention of accidents at home

• Never leave the appliance unattended when in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

• Accessible surface temperatures can be high when the appliance is operating.

• Never touch the hot surfaces of the appliance.

• Never leave the appliance unattended when plugged in or in use.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

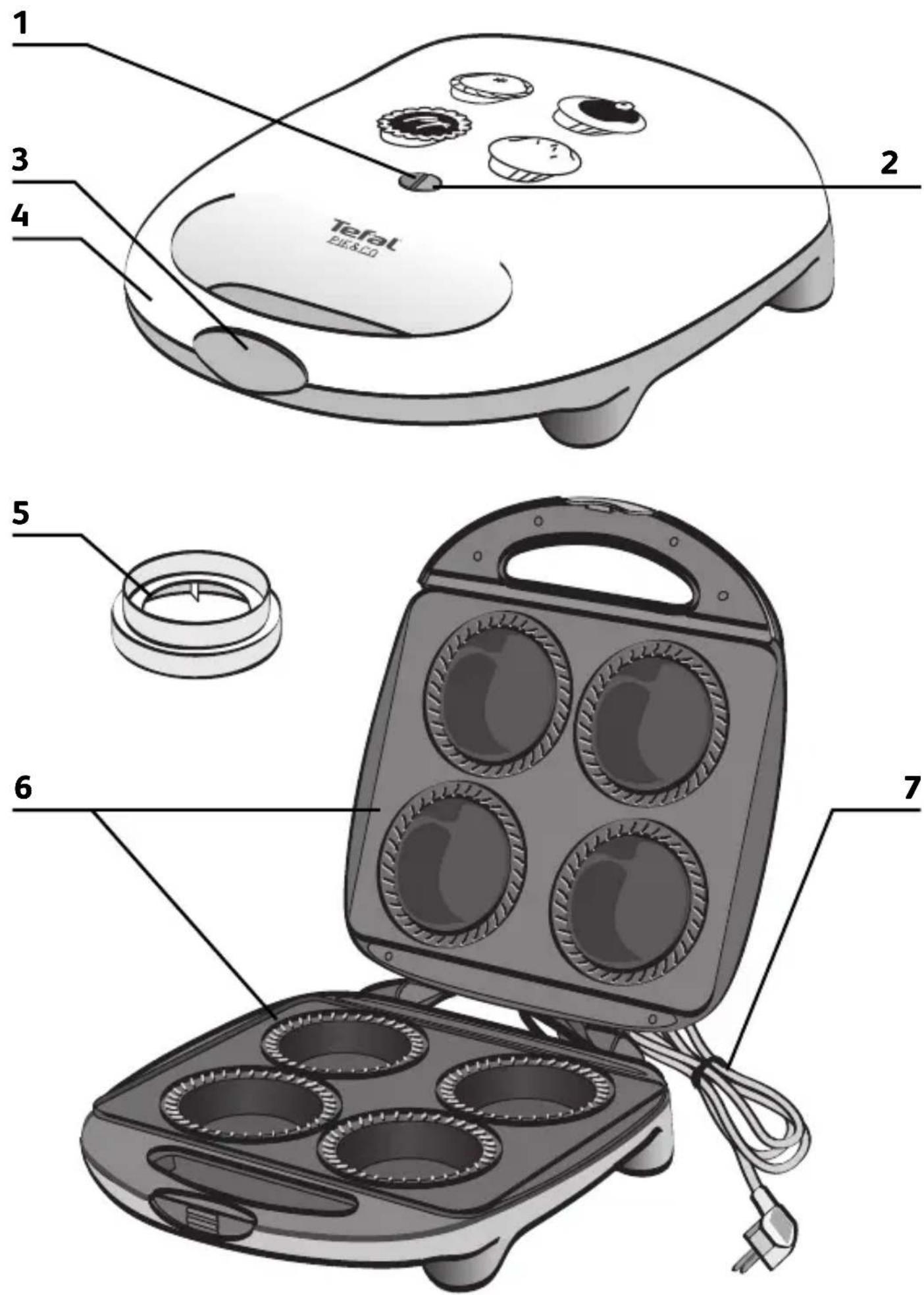

Description

1 - Operating indicator light
2 - Temperature indicator light
3 - Closure latch
4 - Handle

5 - Pastry cutter
6 - Plates
7 - Power cord

Using

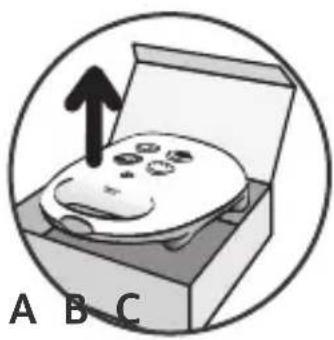

• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

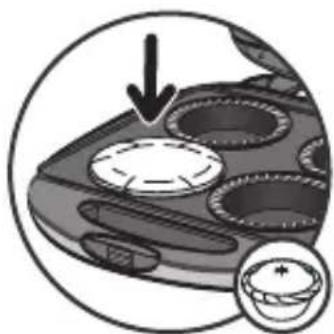

• Follow the steps in sections 1 - 5 on pages 4 and 5.
• On first use, wash the plates (follow paragraph Cleaning), pour a little cooking oil onto the plates and wipe with a soft cloth.
• Do not touch the hot surfaces of the appliance but use the handle.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel. Always use the appliance on a flat, stable, heat-resistant work surface.
• Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.) or over the edge of the worksurface.

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

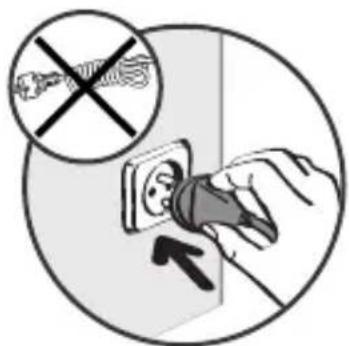

• Always plug the appliance into an earthed socket.

• If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• If need be, make sure to choose an extension lead of equivalent diameter with an earthed socket; take all necessary precautions to prevent anyone tripping over an extension cord.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not place cooking utensils on the cooking surfaces of the appliance.
• Always use a wooden or plastic spatula to avoid damaging the cooking plate.
• Never cut food directly on the plates.

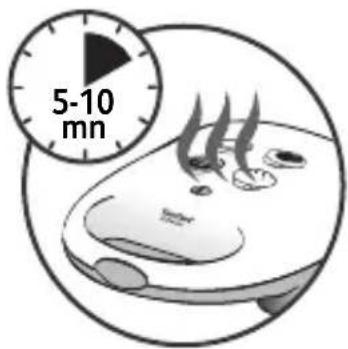

On first use, there may be a slight odour and a little smoke during the first few minutes.

The green light goes out and lights up again regularly during the cooking process, to show that the selected temperature is maintained.

Cleaning

• Check that the appliance is unplugged before cleaning.
• Clean the plates and the body of the appliance with a sponge, hot water and washing up liquid.
• Never immerse the appliance or the power cord in water. They are not dishwasher safe.

Do not use a metal scouring pad or scouring powder.

Do not immerse the appliance in water.

The pastry cutter can be washed in a dishwasher.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.
