USER MANUAL Direct Serve LM6001 MOULINEX

Line drawing of a kitchen blender with handle and base (no text or symbols)

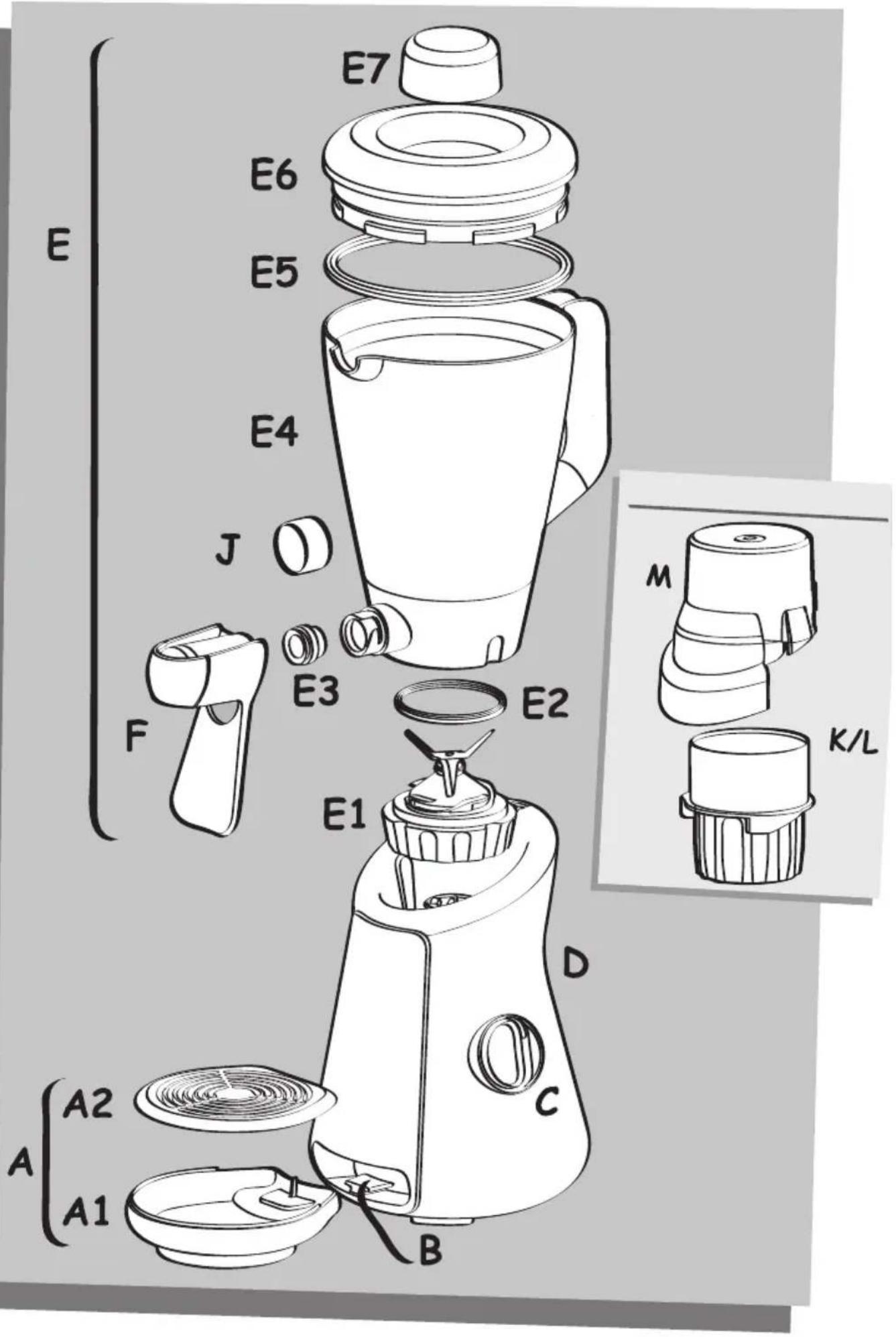

E E7 E6 E5 E4 J F E3 E2 M K/L E1 D C A2 A1 B

7 F2 F3 F4 F1

8 M K L

9 1 2

10 1 2

F

Solid gray image with no visible content, text, or symbols.

The accessories that come with the model that you have bought are shown on the label located on the top of the packaging.

* according to model.

SAFETY INSTRUCTIONS

• Read the instructions for use carefully before using your blender for the first time, and follow them closely. The manufacturer cannot be held responsible for any use that does not comply with the instructions.
• Check that the power voltage of your blender is the same as that of your mains installation. Any incorrect connection invalidates the warranty.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Always unplug your blender from the mains as soon as you have finished using it, when you are cleaning it, or whenever there is a power cut.
• Use your blender on a work surface that is flat, clean and dry.
• Never place your fingers or any other object in the blender jug while the appliance is operating.
• Handle the blades with extreme care, they may injure you.
• Do not immerse the appliance, the power cord or the plug in water or any other liquid.

• Do not leave the power cord within the reach of children, close to or in contact with the hot parts of your appliance, close to a heat source or a sharp edge, or in contact with the blades.

• Do not place the accessories in a microwave oven.

• Do not use the blender jug without any ingredients or with only dry ingredients, and do not pour boiling liquids into it.
• Do not leave long hair, scarves, ties, etc. dangling over the jug and the accessories when they are working.
• This appliance is not intended for use by persons (including children) with impaired physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• All repair work other than cleaning and basic maintenance by the customer must be carried out by an approved centre.
• For your safety, only use accessories and spare parts designed for your appliance, sold by an approved centre.
• Do not use the appliance for more than 3 minutes continuously. Wait for a few minutes before using it again if it has been used for 3 minutes non-stop.
• When emptying the appliance, be careful with the blades: they may injure you.

USING FOR THE FIRST TIME

- Before using the appliance for the first time, clean all of the accessories in hot soapy water (except for the motor unit (D): see cleaning §). Rinse and dry them carefully.

-- ENSURE THAT ALL PACKAGING HAS BEEN REMOVED BEFORE USE.

USING THE BLENDER (E)

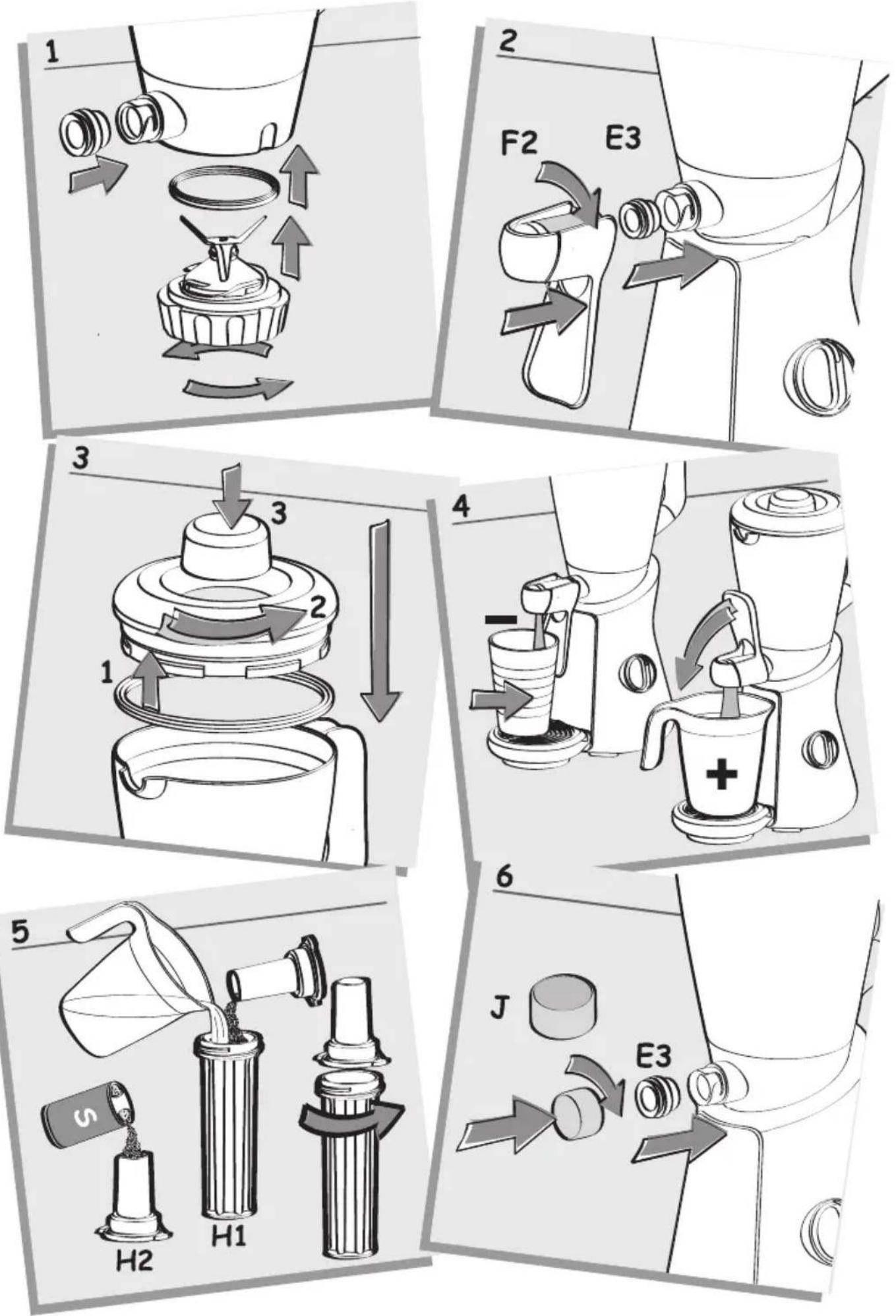

Diagram 1 :

• Place the seal (E2) on to the removable blade holder (E1).
• Lock the blade holder on to the blender by giving it a quarter turn.
• Insert the joint (E3) into the blender outlet.

- Place the blender on the motor unit (D).

FITTING THE TAP (F) ON TO THE BLENDER

Diagram ② :

- Hold the tap by its body (F2) (with the lever facing downwards) and lock the tap on to the blender outlet by giving it a quarter turn clockwise.

NB: The pedal can be turned freely all the way round the body of the tap.

- Place the food to be blended into the jug (E4), starting with the liquid ingredients first, never exceed the maximum level (1.25 litre).

Diagram ③ :

Fit the lid seal (E5) around the lid (E6), lock the lid on to the blender by turning anti-clockwise (E4) and place the cap (E7) in the lid.

- Place the grid (A2) on the drip tray (A1).

- Slide the drip tray unit (A) into the motor unit (D), into its housing (B).

- Plug the appliance in, turn it on and choose the speed most suitable for your preparation using the speed selection switch (C).

To stop the appliance, turn the speed switch (C) to 0.

The lid and its cap must always be properly fitted when the appliance is working.

Always hold your glass firmly on the grid.

To add ingredients while the blender is operating, insert them through the feeder hole in the lid (E6).

After use, if necessary, throw away the contents of the drip tray (A1) and wash the drip tray unit (A) carefully.

DISPENSING THROUGH THE TAP (F)

Diagram 4

Two positions are possible, by pivoting the tap (F1):

- When the lever faces downwards, you can serve yourself by pressing it directly with a glass.

- When the lever is facing upwards you can serve yourself by pulling it with your hand and the liquid will flow faster.

NB: To make thicker mixtures (such as milkshakes or smoothies) flow better, set the blender to speed 1 and then pull the pedal forward). Turn the appliance off when you have finished serving.

Clean the tap after each use (see Cleaning §) If you do not need the tap, you can replace it with the cap (J) (see diagram the sealing joint (E3).

USE OF THE ICE STICK (H)\*

(according to model)

This accessory enables you to cool mixtures down, or keep them cool.

- Fill the square part of the handle(H2) with crystal salt right up to the brim (diagram and then pour the salt into the container(H1)).

- Fill the container (H1) with cold water.

- Screw the handle of the container on very tightly and shake until the salt dissolves.

- Place the handle in the deep freezer (at least - 18°C), preferably in an upright position, until the salt water mixture has frozen (12 hours minimum).

- Make your preparation in the blender, and then introduce the frozen ice stick(H) through the

hole in the lid (E6), instead of the cap(E7). The mixture will then be cooled.

- You can use the ice stick as a mixing stick to help mix up your drinks, by introducing it through the feeder hole in the lid (E6).

USE OF THE ACCESSORIES (K & L) \*

(according to model)

SPICE GRINDER ACCESSORY (K):

this accessory allows you:

• to grind up to 40 g of coffee in 30 seconds maximum operating time;
• to grind or chop various spices, dried fruits and nuts such as hazelnuts, walnuts, almonds or dates in a matter of seconds. E.g. 50 g of dates in 4 seconds.

GRATER ACCESSORY (L):

this accessory can reduce to powder nutmeg and grate coconut, hard cheeses (eg 60g of Parmesan) cut into small cubed pieces with a 30 second maximum operating time.

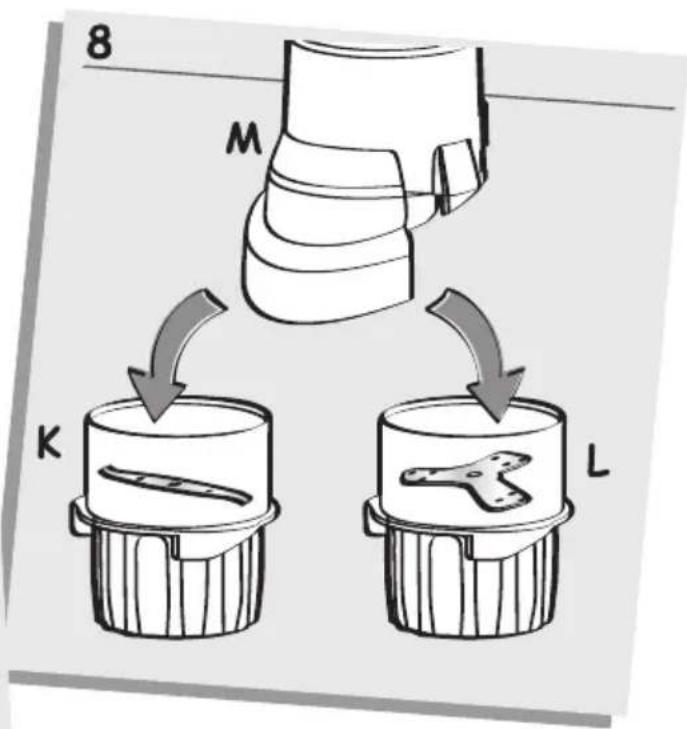

- These accessories are fitted with a safety lid (M) which prevents access to the blades during operation.

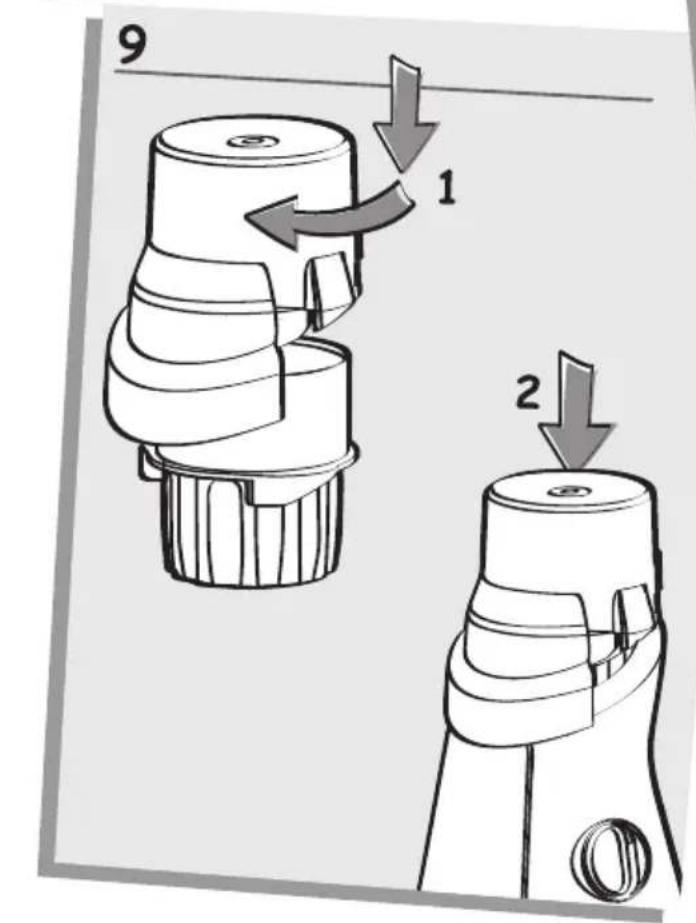

- Introduce the ingredients into the container (KK or L). Fit the lid (M) to the container of the accessory (only one position is possible) and turn it in a clockwise direction to lock it (towards the closed padlock symbol), then fit this assembly onto the blender body (D) (see diagram 9).

- Plug in the blender and set the speed selector (C) to "pulse". Hold the lid during operation.

- To stop the blender, turn the speed selector(C) to the "0" position and only remove the accessory when the appliance has completely stopped.

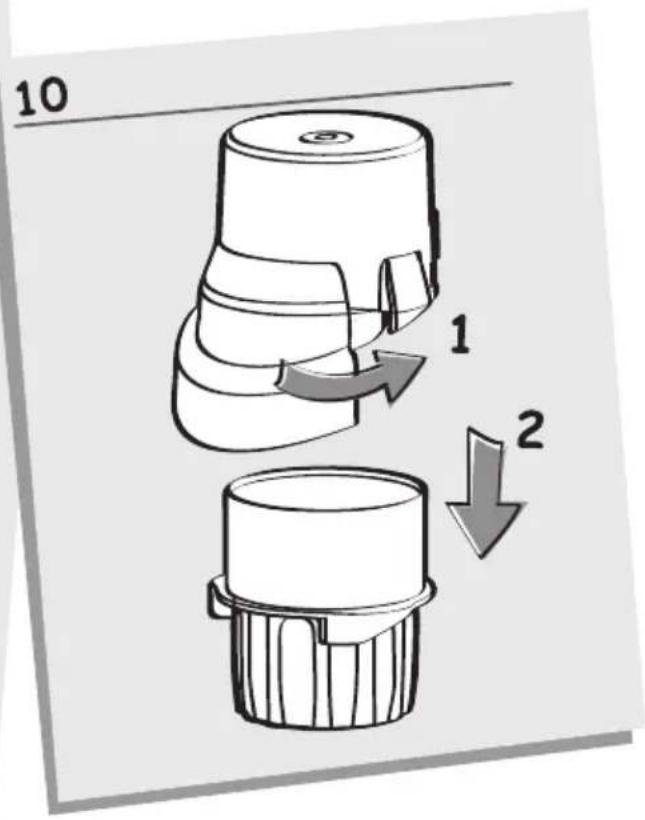

Turn the assembly upside down on the work surface before unlocking the lid of the accessory (K or L) (see diagram 10).

The preparation may then be taken directly from the lid, which acts as a bowl.

• Unplug the blender and remove the accessories.
• Wipe the motor unit (D) down with a damp cloth. Dry carefully.
• Never plunge the motor unit (D) into running water.
• Rinse the jug (E) under running water, along with its accessories.
• To make the blender easier to clean (E), unlock the blade holder (E1), remove the seal (E2), remove the tap unit (F) before cleaning everything.

Diagram

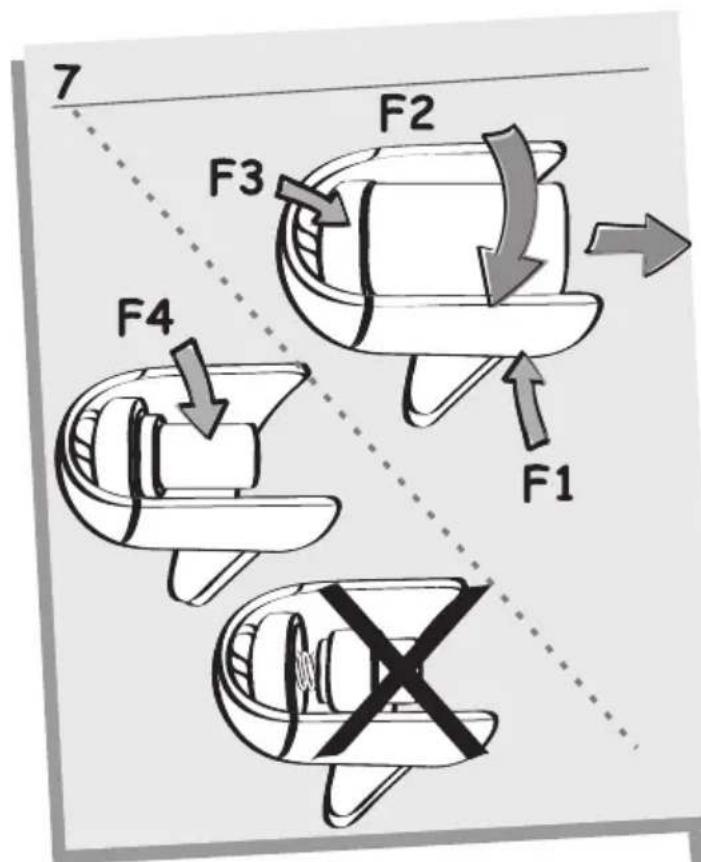

Dismantling the tap (F) to make cleaning easier: - Unscrew the body (F2) of the lever (F1), holding the bolt tightly (F3). To reassemble it, do the same operations in reverse, making sure that the seal (F4) is fully tightened.

• Handle the blades with extreme care, they are very sharp.
• All the accessories are dishwasher-safe.

WHAT TO DO IF MY BLENDER DOESN'T WORK?

Start by checking the power cord and plug, then check:

• that the blender is properly set on the motor unit.
• that the speed selection switch is in the right position.

Your blender is leaking, check:

• that all the seals are properly positioned.
• the jug has not been overfilled above the maximum level (1.25 litre)

Your appliance still does not work?

Call our Customer Relations Helpline:

0845 602 1454 or

[phone] - Ireland

or consult our website - www.moulinex.co.uk

You can customise your blender and obtain the following accessories from your usual

retailer or an approved centre:

• Grinder accessory
• Ice stick
• cap (J)

RECYCLING

Solid gray image with no visible content, text, or symbols.

Play your part in protecting the environment!

Your appliance contains a lot of recoverable or recyclable material.

Leave it at a local civic waste collection point so that it can be recycled.

DISPOSAL OF THE PACKAGING OF THE APPLIANCE

The packaging does not contain any materials that are harmful to the environment, they may all be disposed of in compliance with the recycling rules in force.

For disposal of your appliance, please contact the appropriate municipal department.

MILKSHAKES

Chocolate milkshake:

For 2 glasses: 750 ml very cold milk

- 3 tablespoons drinking chocolate

- 2 tablespoons caster sugar - 3 scoops of chocolate ice cream.

Pour the milk into the blender with the drinking chocolate and the sugar. Blend for 20 sec. Add the scoops of ice cream and blend for another 10 sec. Serve immediately.

Strawberry milkshake:

For 2 glasses: 200 g fresh strawberries - 400 ml very cold milk -2 teaspoons caster sugar.

Hull the strawberries and cut them in half. Place all the ingredients in the blender and blend for 30 sec. Serve cold.

Variation: You can also replace the strawberries by 200 g of fresh raspberries or a banana.

For 4 glasses: 400 g sweetened condensed milk (1 tin) - 250 ml cold milk - 300 g fresh raspberries - 10 ice cubes - 4 small meringues.

Place the milk, condensed milk, raspberries and ice cubes in the blender. Use the pulse button 10 times, then blend for 1 minute 30 seconds. Crush the meringues. Pour the mixture into the glasses and decorate with the pieces of meringue. Serve straight away.

Summer strawberry delight:

For 2 glasses: 250 g hulled strawberries - 250 ml red berry drinking yoghurt - 4 scoops frozen strawberry yoghurt - 1 tablespoon of strawberry coulis - a few drops of natural vanilla extract - ice cubes.

Place the strawberry yoghurt in the freezer for at least three hours before you make the recipe. Place the strawberries, drinking yoghurt, frozen yoghurt, strawberry coulis and vanilla extract into the blender. Blend until the mixture becomes thick and smooth. Pour the mixture over the ice cubes. Serve straight away.

Café frappé:

For 2 glasses: 12 litre cold milk - 6 teaspoons of instant coffee - 4 - 6 tablespoons caster sugar - 6 ice cubes

Place all the ingredients in the blender and blend 20 secs. Adjust sweetness according to your personal taste. Serve immediately.

SMOOTHIES / VITAMIN COCKTAILS

Vitamin cocktail:

For 4 glasses: 2 slices pineapple - 6 fresh strawberries - 1 sliced banana - juice of 4 oranges - 150 ml very cold sparkling water - 1 sachet vanilla sugar (optional) - 2 ice cubes.

Place the pineapple, strawberries, banana, orange juice and vanilla sugar into the blender. Blend for 15 sec. Add the sparkling water and the ice cubes. Blend 15 sec. Serve immediately.

Energy cocktail:

For 6 glasses: juice of 3 oranges - juice of 1 lemon - 6 tablespoons clear honey - 2 egg yolks - 4 tablespoons single cream - 4 ice cubes.

Place all the ingredients in the blender and blend 30 sec. Serve very cold.

Spicy tomato juice:

For 2 glasses: 500 g very ripe tomatoes - juice of 12 lemon - 4 basil leaves - 3 sprigs parsley - 12 teaspoon ground cumin - 2 drops Tabasco sauce - pinch of celery salt - 4 ice cubes.

Peel the tomatoes, remove the pips and cut into quarters. Place all the ingredients in the blender. Blend for 1 min. Serve very cold.

Kiwi delight:

For 4 small glasses: 3 kiwi fruit peeled and sliced - 80 g fresh pineapple cut into chunks - 1 sliced banana - 250 ml tropical fruit juice - 2 ice cubes.

Place all the ingredients into the blender and blend until creamy.

Iced lime coconut:

For 2 large glasses: 400 ml chilled coconut milk - juice of 4 limes - 2 teaspoons natural vanilla extract - 80 g caster sugar - 7 g fresh mint (optional) - 8 large ice cubes.

Place all the ingredients into the blender and blend until creamy. Serve straight away.

Gaspacho:

For 6 glasses: 12 cucumber - 12 sweet red pepper - 500g tomatoes - 1 small onion

- 1 clove of garlic - 20g fresh breadcrumbs - 2 teaspoons wine vinegar - 2 tablespoons olive oil - 1 teaspoon tomato puree - 500 ml cold stock - salt - pepper - 1 pinch of Cayenne pepper.

Peel the cucumber, garlic and onion. Remove the seeds from the pepper. Peel the tomatoes, remove the pips. Place all of the ingredients into the blender and blend for one minute. Leave for 1 hour in the refrigerator (or use the ice stick) before serving with garlic croutons.

COCKTAILS

(to be consumed in moderation)

Margarita :

For 4 glasses: 160 mlf Tequila - 80 ml Cointreau - 40 ml lime - 1 teaspoon salt - 5 ice cubes.

In the blender, put the Tequila, the Cointreau and the lime. Blend 10 sec. Add the ice cubes and blend. Wet the edges of the glasses and dip them in the salt. Pour in the mixture and decorate the glasses with a slice of lemon.

Piña Colada :

For 4 glasses: 500 ml pineapple juice - 200 ml coconut liqueur - 100 ml white rum

- 1 tablespoon caster sugar - 1 pinch ground cinnamon - a few drops of vanilla extract - 6 ice cubes.

Place all the ingredients in the blender, add the ice cubes and blend 30 sed.

Irish Cocktail :

For 4 glasses: 160 ml Irish whisky - 4 teaspoons crème de menthe - 4 scoops of vanilla ice cream.

Place all the ingredients in the blender and turn to speed 1 for a few seconds. Serve immediately
