USER MANUAL X-Plorer Serie 220 Animal & Allergy RR9475 ROWENTA

Black robotic vacuum cleaner with red accent, no visible text or symbols

What's in the box? page 04

Product overview page 05

Before cleaning page 07

Install the robot page 08

Connect the robot with the free app page 11

Use the main app features page 11

Use the robot without the app page 12

The difference between the two tanks page 13

Use the robot without the mopping function page 13

("vacuum only" mode)

Use the robot with the mopping function page 14

("vacuum & mop" mode)

Maintain the robot and its accessories page 18

Component replacement frequency page 22

Store the robot when you don't use it page 23

Do's and don'ts page 23

Common issues and solutions page 27

Please read carefully the "Safety and use instructions" booklet before first use.

For more information:

www.rowenta.com

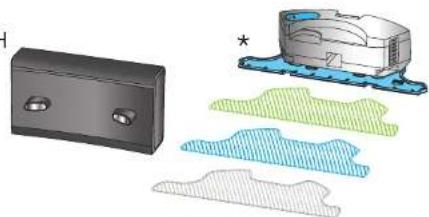

What's in the box?
RR9465WH

3D CAD model of a mechanical component with blue base and hatched pattern below (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printer with colored print patterns and a small asterisk symbol (no text or labels)

Illustration of a robotic vacuum cleaner with attached power supply and tripod base (no text or symbols)

*Depending on model

Product Overview

EN

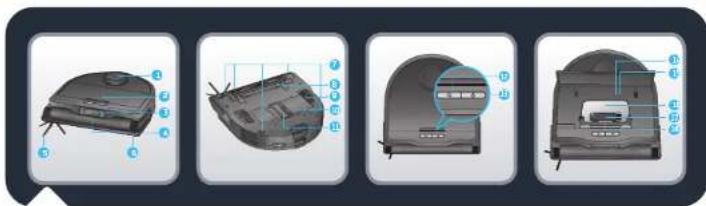

Technical diagram showing four views of a robotic device with numbered components and labeled parts

1. LiDAR
2. Flip cover
3. Obstacle detector
4. Main brush
5. Side brush
6. Bumper
7. Anti-drop sensors
8. Main brush cover
9. Wheel

10. Battery

11. Dustcollecting
    channel cover

12. Home button
13. Press to return to station
14. Power / Start / Pause button
15. Press and hold to turn on or off

16. Press to start or pause cleaning

17. WiFi indicator light

18. Off: WiFi disabled
19. Blinking slowly: waiting for connection
    • Steady: WiFi connected
20. Reset button
21. Dust box
22. Cleaning tool
23. Dust box handle

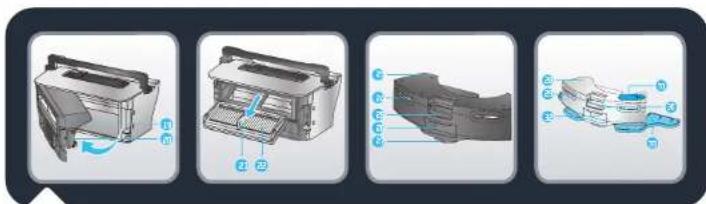

Technical diagram showing four views of a printer with numbered parts and labeled arrows indicating process flow.

1. Dust box opening
2. Dust box latch
3. Filter handle
4. Filter
5. «Vacuum only» module (keep it installed in the robot when you don't use the mopping function)

6. Charging contacts

7. «Vacuum only »
   module latch

8. Dust trap door
9. Wheel

10. Vibrating water tank (to use the mopping function, unclip the "vacuum only" module and replace it by the water tank)

11. Charging contacts

12. Water tank latch
13. Stopper
14. Dust trap door
15. Vibrating mop bracket

EN

Product Overview

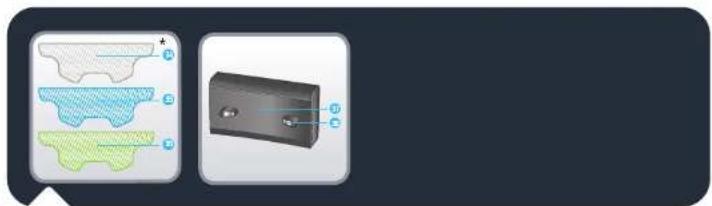

Two 3D model diagrams showing different component shapes, one with colored outlines and the other a gray rectangular block (no text or symbols)

*Depending on model
34. Washable grey mop for standard use
35. Washableblue scrubbing mop for hard stains

1. Washablegreen microfiber mop to capture fine dust (to use without water)
2. Docking station
3. Charging contacts
   microfiber mop to capture fine dust (to use without water)
4. Docking station
5. Charging contacts

Before cleaning

EN

Interior layout of a modern living room with sofa, pendant lights, and a red 'X' symbol (no text or symbols present)

Interior layout of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

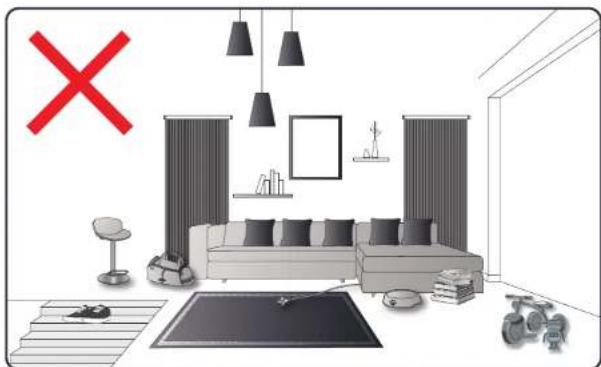

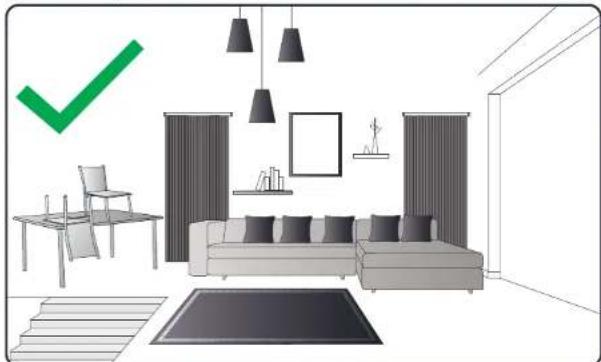

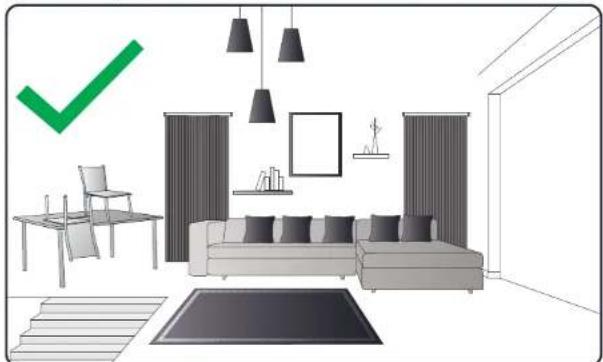

Although the robot is able to autonomously avoid some obstacles, please read the following tips to improve cleaning efficiency. Tidy up cables, cords, small and loose items. Remove any unstable, fragile, precious or dangerous items from the ground. Make sure each room door is open. Your robot may encounter some difficulties on dark floors and on carpets: with fringes, too thick, with long piles, too light (ex: bathroom carpet). For optimum anti-drop sensors efficiency, remove any item (ex: shoe) from the stairs. When using the robot in a raised area, place a physical barrier at the edge of a drop to prevent accidental falls. Do not stand in narrow spaces, such as hallways so the robot is not blocked.

Install the robot Install the robot

QR code image with a white border and dark blue background, likely for digital scanning or linking.

Flash the QR-Code above to know how to install and connect the robot in video. Read the following instructions for more detailed informations.

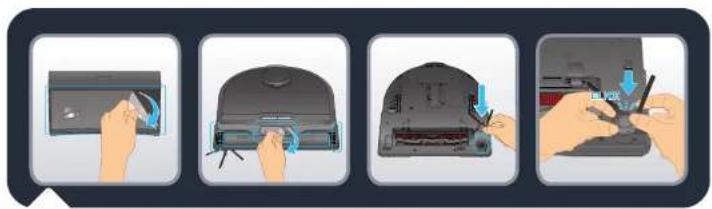

Four-step illustration showing hands using a device to adjust or install a device into a container (no text or symbols present)

Remove all protections (protective films) on the station and on the robot. Reverse the robot, install the side brush by gently clipping it. The side brush is correctly installed when you hear a click sound.

EN

Illustration showing a hand holding a device with cable and plug, labeled in Chinese for steps of assembly or installation.

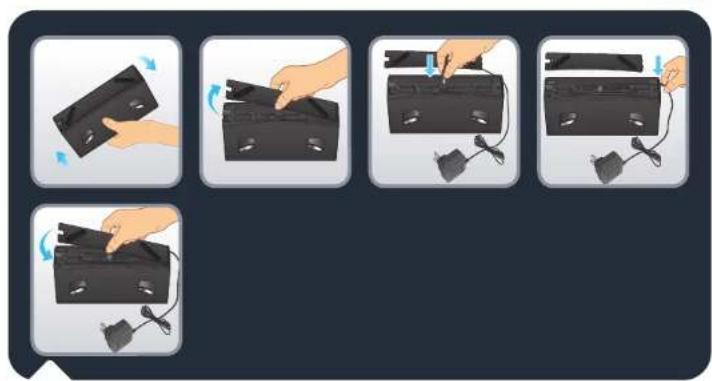

Turn the station upside down. Remove the bottom cover of the docking station and connect the adapter. Pay attention to arranging adapter connection wire to avoid being wound during sweep. Put the bottom cover back.

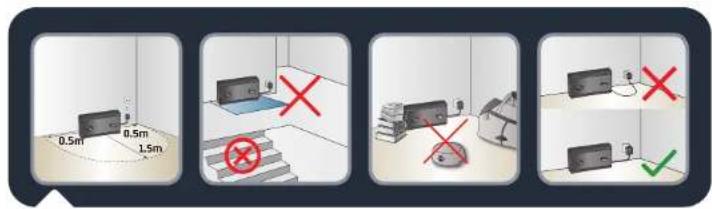

0.5m 0.5m 1.5m × × × ×

Install the docking station on a hard and flat floor. Avoid parquet, wooden floors and carpet. Place the station in a clear space against a wall, with no stairs in front of the station. Keep at least 0.5 m of clearance on either side and 1.5 m in front. Make sure the chosen location is close to the Wi-Fi box or has good Wi-Fi signal strength. Keep the area around the station clear from any object, reflective surface, mirror, table and chair. Keep the station away from direct sunlight. Plug the power cable. Make sure the power cable remains against the wall.

EN

Install the robot

Turn the robot on by pressing and holding the START button until the robot lights turn on (\~5 seconds). Manually place the robot against the station. Wait 3-4 hours for the robot to be fully charged. For the first-time cleaning, please ensure that the robot is fully charged. For the first cleaning in a new environment, the robot will create the home map. In order to improve the accuracy of the map, don't use the vibrating water tank, keep the « vacuum only » module installed in the robot.

Do not lift the robot during the first cleaning, it prevents the map creation.

If you have carpets with fringes, please place barriers around carpets to prevent the robot from getting stuck in the fringes, it prevents the map creation.

If you have an outdoor area (garden, balcony, patio, etc.) accessible with a threshold less than 2 cm high or without threshold (for example with a French window, a patio door, a bay window, etc.), please close this access so the robot doesn't go outside your home.

Connect the robot with the free app

EN

Flash the QR-Code above to know how to install and connect the robot in video. You can also find the detailed pairing instructions step by step in a PDF document by flashing the QR-Code below.

Use the main app features

Flash the QR-Code above to know how to use the main features of the application in video.

EN

Use the robot without the app

Illustration of two hand gestures inserting a mailbox into a device (no text or symbols present)

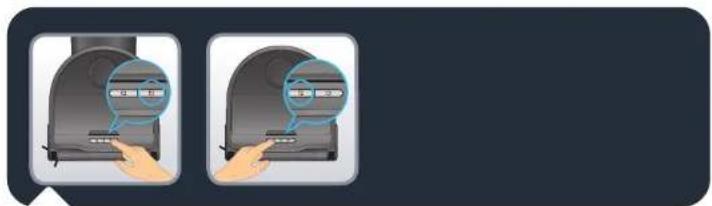

Press the button « Start » to start automatic cleaning. The robot will scan the area. It will automatically split the room into small zones, first cleans inside the zone in a zigzag, and then cleans zone edges. The robot will clean all accessible area, zone by zone. Press the button « Start » at any time to pause cleaning and press it again to resume cleaning. If the robot is on standby, press the button « Start » once to wake up the robot and a second time to start cleaning.

If you start the robot from the station, it will automatically return to its station at the end of the cleaning session or if the battery level is too low. If the battery runs low during the cleaning session, the robot will automatically return to its station to charge. After charging, the robot will resume cleaning where it left off.

If the robot is not on its station when it starts cleaning, it will automatically return to its starting point at the end of the cleaning session or if the battery level is too low.

If the robot doesn't start when you press the button « Start », the battery level may be too low, please charge the robot.

At the end of the cleaning session, the robot will automatically return to the station. But if you want to manually end the cleaning session, press the « Home » button once to stop the robot at any time and press it again to send the robot back to the station. If the robot is on standby, press the « Home » button once to wake up the robot and a second time to send it back to the station. If the robot fails to find the station, manually place the robot in front of the station and press the « Home » button.

Note: At the start of a cleaning session, the robot goes few meters away from the station and comes back (relocation sequence). During this sequence, the robot reduces the motor power and stops water tank vibrating. This behavior is normal.

The difference between the two tanks

EN

Two 3D mechanical components shown in two cropped views: one with a gray housing and one with a blue container (no text or symbols visible)

To work properly, the robot always needs one of the two tanks installed:

• Install the "vacuum only" module to use the robot in "vacuum only" mode (without mopping function);
• Or install the water tank to use the robot in "vacuum & mop" mode.

Both tanks are equipped with charging contacts to allow the robot to dock to its station and to charge its battery.

Warning: the robot will not charge if no tank is installed.

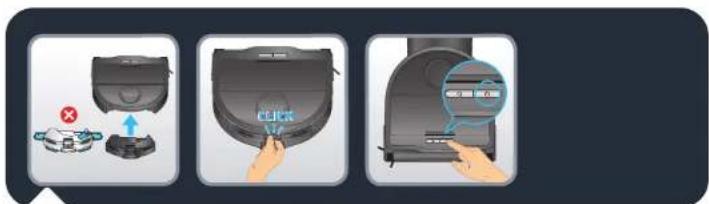

Use the robot without the mopping function («vacuum only» mode)

Illustration showing three steps of a device cleaning process: adding a switch, opening a device, and adjusting the button.

To use the robot without the mopping function ("vacuum only" mode), install the "vacuum only" module at the back of the robot. The module is correctly installed when you hear a « click » sound. Press the « Start » button or use the app to start cleaning. Keep the "vacuum only" module installed in the robot when you don't use the mopping function. The "vacuum only" module is equipped with charging contacts to allow the robot to dock to the station and to charge its battery.

EN

Use the robot with the mopping function («vacuum & mop» mode)

Flash the QR-Code above to know how to use the mopping function in video. Read the following instructions for more detailed informations.

The different types of mops (depending on model):

• Washable grey mop for standard use
• Washable blue scrubbing mop for hard stains
• Washable green microfiber mop to capture fine dust (to use without water) Warning: Do not try to disassemble the water tank and the vibrating mop bracket. The vibrating mop bracket is not removable from the water tank.

Moisten the mop cloth with water before use. If you use the green mop, don't moisten it. Attach the mop to the vibrating mop bracket.

Use the robot with the mapping function («vacuum & mop» mode)

EN

Open the stopper of the water tank and fill it with clean water until the water tank is full. Do not use hot water. Warning: Do not add cleaning agents in the water tank. This may clog the pipes and make the water tank not functioning anymore.

Unclip the "vacuum only" module by pressing the latch and pull to remove the "vacuum only" module. Take the water tank and clip it at the back of the robot. The water tank is correctly installed when you hear a « click » sound. Press the « Start » button or use the app to start cleaning. The vibrating mop bracket will be automatically activated with a left-to-right motion.

Note: Keep the "vacuum only" module installed in the robot when you don't use the mopping function.

The robot will be more agile at crossing threshold, at moving on carpets.

Warning: Do not use the mopping function on carpets. You can use the "vacuum only" module or if you want to use the mopping function avoiding carpets, you can set "no mop zones" in the app.

EN

Use the robot with the mopping function («vacuum & mop» mode)

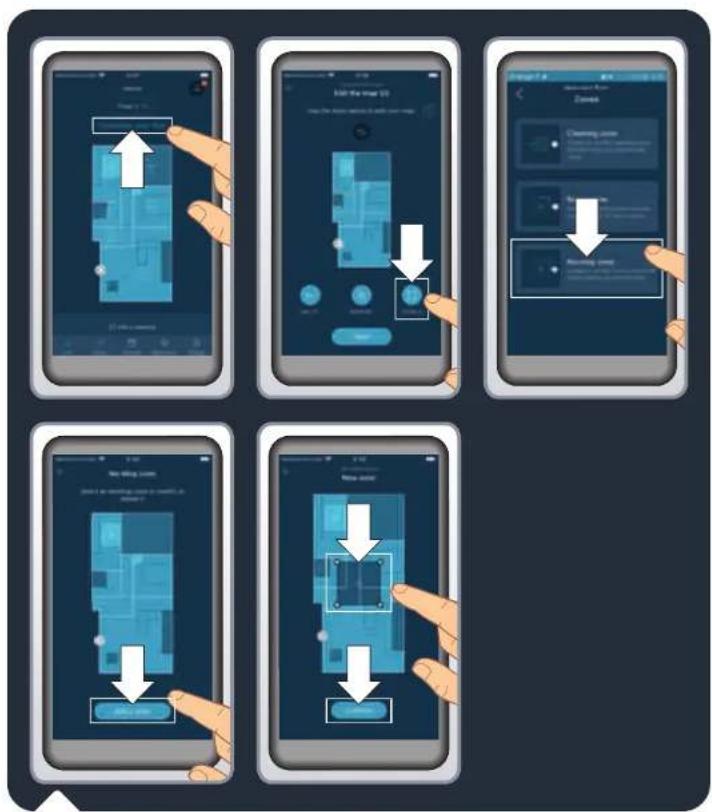

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

To preserve fragile floors or carpets, you can set « no mop zones » in the app. On the homepage, click on « Customize your floor », then on « Zones ». Select « No mop zones » and add a zone on the map that you can customize (size, location). To save the no mop zone, click on « Confirm ». You can create as many « no mop zones » as necessary. When the water tank is installed, the robot is not allowed to clean in these zones.

Use the robot with the mapping function («vacuum & mop» mode)

EN

Illustration showing three-step cleaning process: washing machine, cleaning device, and cleaning container with water displacement.

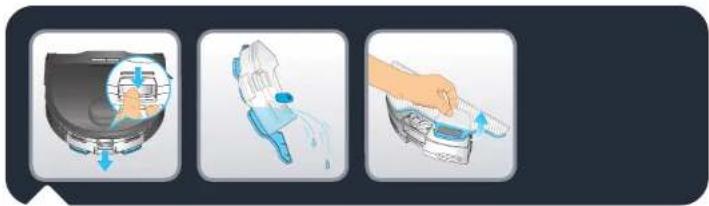

At the end of the cleaning session, unclip the water tank by pressing the latch and pull to remove the water tank. Empty the water tank of the remaining water. Remove the dirty mop cloth.
Install the « vacuum only » module for charging.

<100 >100 NEW

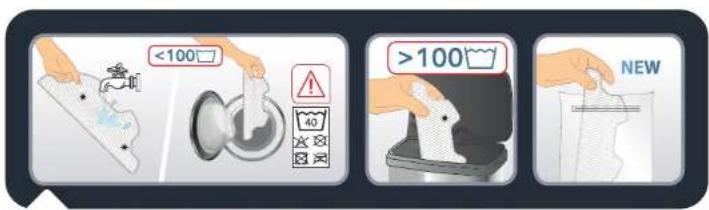

Wash the mop cloth under water or in the laundry machine. Let it dry for 24 hours. Please replace the mop cloth after 100 washes. You can buy kit of new mops on www.rowenta.com

Maintain the robot and its accessories

Three-panel image showing a QR code, a 3D model of a helmet with blue circular features, and a close-up of a device (no text or symbols visible)

Flash the QR-Code above to know how to use the maintain the robot to keep its performance.

Always switch off the robot by pressing and holding the START button for 5 seconds, and unplug the station before any manipulation.

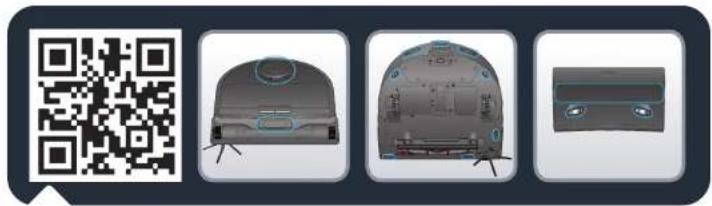

Once a week, clean the sensors

With a clean, soft and dry cloth, wipe the robot sensors (in front, top, back and bottom of the robot) and the sensors and charging contacts of the station.

Wipe the two buttons on top of the robot.

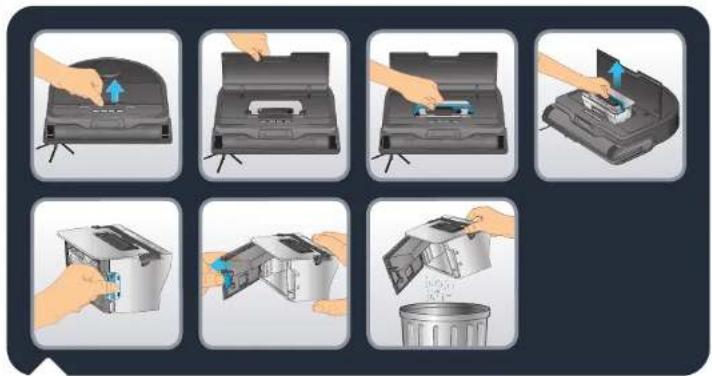

Illustration showing six steps of cleaning a waste bin with labeled components and directional arrows

After each use, clean the dust box

Open the flip cover, take the dust box handle and lift the dust box by the handle to take it out of the robot. Push on the latch on the side of the dust box to open. Empty the dirt into the bin. Close the dust box.

Note: The flip cover may not open or close properly if there is too much dust in the hinges. Please clean hinges with a clean, soft and dry cloth to remove dust.

Maintain the robot and its accessories

Illustration showing a 12-step process of appliance cleaning and cleaning, with icons and Chinese labels indicating steps like washing, cleaning, and disassembly.

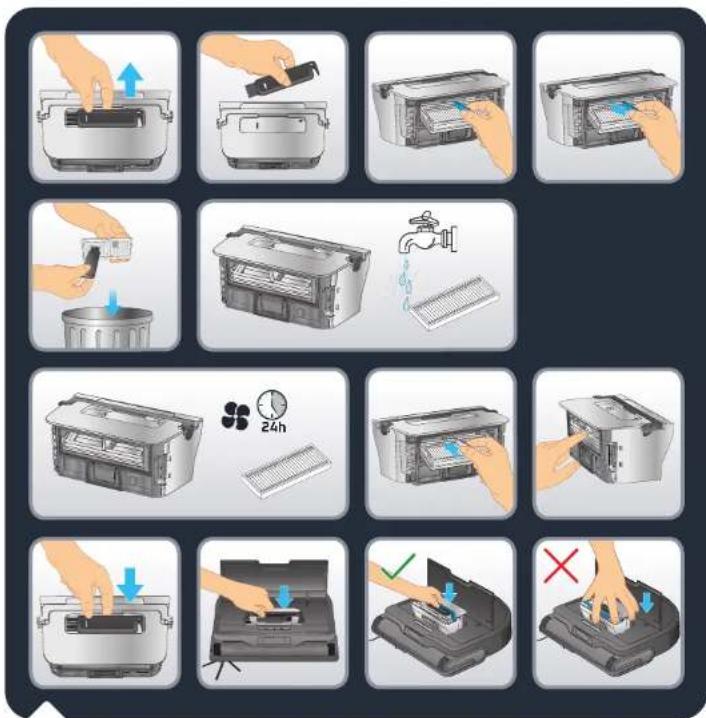

Once a week, clean the filter

Always switch off the robot by pressing and holding the START button for 5 seconds, and unplug the station before any manipulation.

Take the cleaning tool located on top of the dust box. Remove the filter from the dust box by grabbing the center part of the filter holder. Use the brush part of the cleaning to clean the filter. You can also wash the filter and the dust box under water. Let them out to dry for 24 hours. Put the filter back to its original place. Replace the cleaning tool on top of the dust box. Reinstall the dust box in the robot by grabbing the dust box handle. Warning: do not reinstall the dust box in the robot without grabbing the dust box handle, it will not be correctly installed and the robot will not start. Note: Never use the robot without the pleated filter. It would damage the robot.

EN

Maintain the robot and its accessories

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

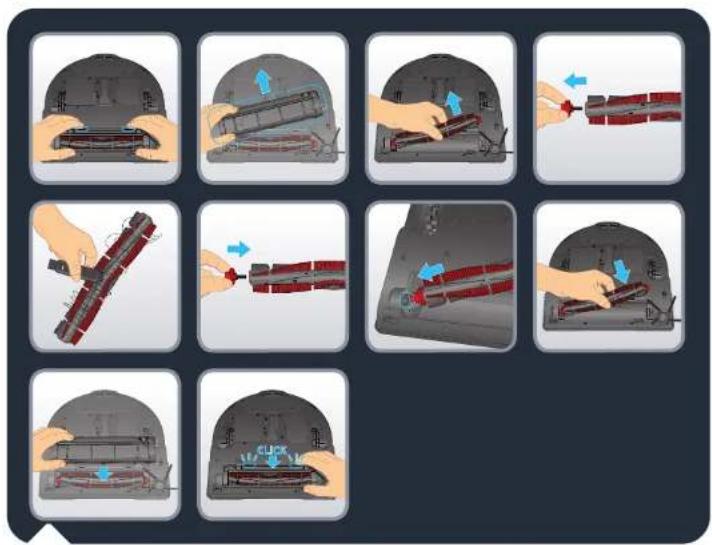

Once a week, clean the main brush

Always switch off the robot by pressing and holding the START button for 5 seconds, and unplug the station before any manipulation.

Turn the robot upside down. Press the latches of the brush cover and pull to remove it. Take out the brush. Pull the brush heads on the left and right sides of the brush to remove them and get rid of tangled hair. Take the cleaning tool and use the blade part to cut off the tangled hair. Replace the brush heads before re-installing the brush in the robot. Re-install the brush cover. The cover is correctly installed when you hear a click sound.

Maintain the robot and its accessories

EN

Illustration of a hand using a helicopter to adjust the component in four sequential steps (no text or symbols present)

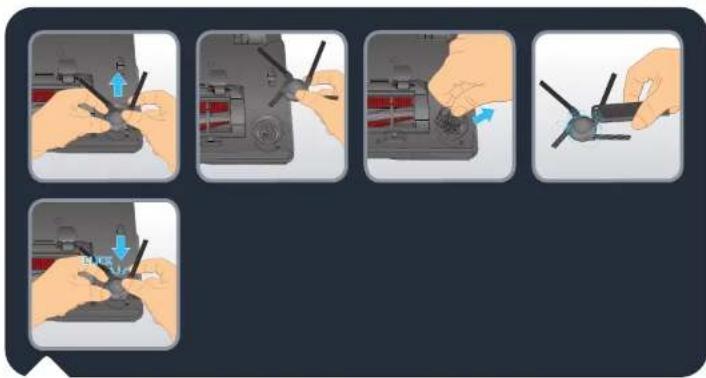

Once a week, clean the side brush

Always switch off the robot by pressing and holding the START button for 5 seconds, and unplug the station before any manipulation.

Turn the robot upside down. Take the side brush with two hands by the plastic parts and pull to unclip it. Do not pull by the bristles of the side brush. Remove the tangled hair. Re-install the side by gently clipping it. The side brush is correctly installed when you hear a click sound.

Note: The side brush can be difficult to remove, if you can't unclip it, try pulling from a different angle. To remove the tangled hair, you can use the blade of the cleaning tool on top of the dust box.

Two views of a spacecraft's back panel showing internal components and a hand inserting a component (no text or symbols visible)

Once a month, clean the wheels

Always switch off the robot by pressing and holding the START button for 5 seconds, and unplug the station before any manipulation.

The wheels may be entangled by hair or dirt. Turn the robot upside down. Clean the wheels by removing the tangled hair.

EN

Component replacement frequency

Components and accessories can be bought on www.rowenta.com

Component Clearing the component Replacing the component
Dust box After each use Not applicable
Water tank After each use Not applicable
Mops After each use After 100 washes
Filter Once a week Twice a year
Main brush Once a week If required
Side brush Once a week Twice a year
Sensors Once a week Not applicable
Station	Once a week Not applicable
Wheels	Once a month	Not applicable

Store the robot when you don't use it

EN

In order to extend the battery lifespan, always keep the robot charging at its station. When not using the robot for a long time, please fully charge the battery, switch off the robot by pressing and holding the START button for 5 seconds. Store the robot in a cool dry place.

Do's and don'ts

YES NO

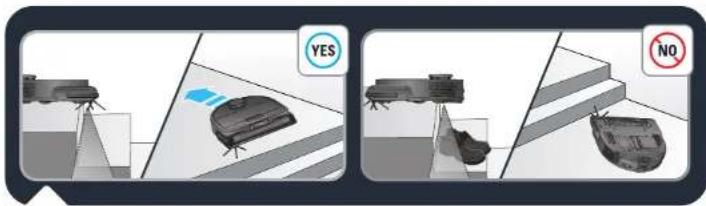

The robot has anti-drop sensors to detect stairs. The robot will change direction when detecting them. For optimum anti-drop sensors efficiency, remove any item (ex: shoe) from the stairs. When using the robot in a raised area, place a physical barrier at the edge of a drop to prevent accidental falls.

Do's and don'ts

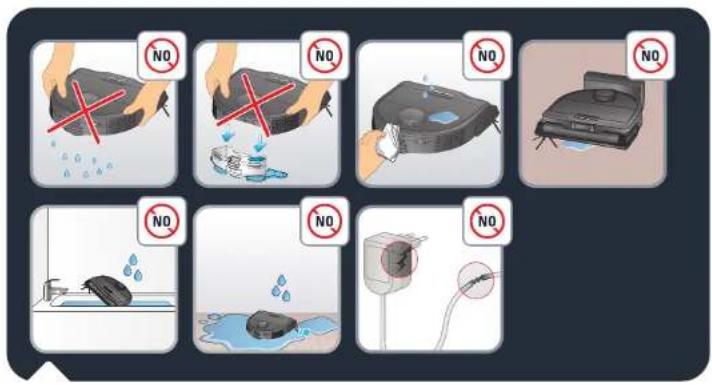

Do not shake the robot. Do not try to disassemble the vibrating mop bracket from the water tank. Do not put water or any wet cloth on the robot. Do not charge the robot when the ground is flooded. Do not submerge the robot in water. Do not use the robot on wet surfaces or surfaces with standing water.

Do not use the product if the cord or charger is damaged.

Diagram illustrating four steps of installing a plastic bag on a device, with a 'NO' symbol indicating no change.

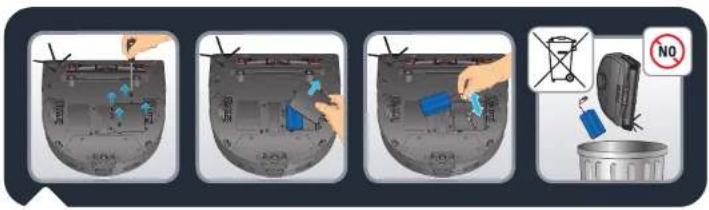

Before disposing of the device, remove the battery and dispose of it in accordance with local laws and local arrangements. If you have any questions, please contact your product dealer who can tell you what to do.

Do's and don'ts

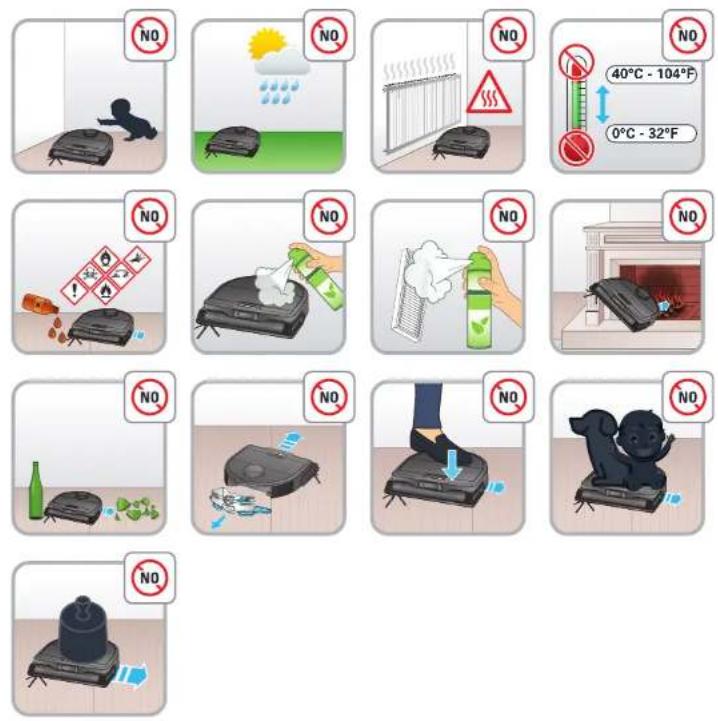

Do not leave children unattended, do not allow children to play with the robot.

Do not use the robot outside home.

Do not use the robot in a overheated environment.

Do not use the robot when the home temperature is below 0^ C ( 32^ F) and above 40^ C ( 104^ F).

Do not spread cleaning agents on the floor before using the robot.

Do not use cleaning agents, aerosol cleaners or cleaning spray to clean the robot and the filter.

Do not throw the robot in the fire.

Do not use the robot to clean broken glass.

Do not try to use the robot without the « vacuum only » module or the water tank, do not remove the « vacuum only » module or the water tank when the robot is running.

Do not walk or climb on the robot, do not move the robot with the foot.

Do not allow children or pets to ride on the robot.

Do not put any item on the robot.

Do not use the robot without the filter, it would damage the robot.

Common issues and solutions

EN

FAULT SOLUTION
Cannot start the robot	Make sure the robot is connected to power supply.Make sure the battery is fully charged.Make sure the robot is ON. Press and hold the START button for 5 seconds until the robot lights are on.Do not try to use the robot without the « vacuum only » module or the water tank.Check whether the dust box and water tank are properly installed.
The robot suddenly stops working	Check whether the robot is stuck or blocked by obstacles.Check whether the battery is too low.If the problem persists, please switch OFF the robot by pressing and holding the START button for 5 seconds. Wait for 30 seconds, and switch ON by pressing the START button for 5 seconds to restart it.The appliance may be overheating:Stop the appliance and leave cool for at least 1 hour.If it overheats on repeated occasions, contact the Approved Services Center.
Cannot charge the robot	Make sure the station is properly connected to the power.Make sure the robot is ON. Press and hold the START button for 5 seconds until the robot lights are on.Check whether the indicator on the robot is flashing during charging.Wipe dust off charging contacts with dry cloth.Make sure the robot and the station are connected through the charging contacts.Do not try to use the robot without the « vacuum only » module or the water tank.Make sure the station light is white when it's connected to power and robot is not on the station.
The charger is getting hot	This is perfectly normal. The robot can remain permanently connected to the station without any risk.
The robot cannot return to the station	Clear the station of objects within 0.5 m on the left and right sides and within 1.5 m ahead.Make sure that the robot starts cleaning from the station without abnormal movement.When the robot is near the station, it can return faster. But if the station is located far away, the robot will need more time to return. Please wait during its return.Clean the charging contacts with dry cloth.Make sure the station light is white when it's connected to power and robot is not on the station.
The cleaning schedule is not executed	Make sure the robot has been powered on. Press and hold the START button for 5 seconds until the robot lights are on.Make sure the cleaning schedule has been set correctly in the application at the desired time, and the cleaning schedule is saved.Check whether the battery level is too low to start cleaning.The robot will not start any scheduled cleaning when a task is being performed.Check whether the dust box and water tank are properly installed.
The suction is whistling or running is very loud during cleaning	Check the suction inlet for any obstruction.Empty the dust bin.Clean the filter.Check whether the filter is wet due to water or other liquids on the floor. Let the filter dry naturally thoroughly before use.Check whether the dust box and water tank are properly installed.Check whether the main brush or side brush is blocked by any foreign item, remove the main brush or side brush and clean it.
The central brush does not rotate	Check whether the main brush is blocked by any foreign item, remove the main brush and clean it.Check whether the central brush and the brush cover are correctly installed.

FAULT SOLUTION
Abnormal action or sweep route of the robot	Carefully clean the sensors with dry cloth.Switch OFF the robot by pressing and holding the START button for 5 seconds, wait for 30 seconds and switch on by pressing and holding the START button for 5 seconds to restart the robot.
No water released during mopping	Make sure there is enough water in the water tank.Check wether the water tank is correctly installed.Check wether the humidity level is set at the desired level in the application.Check whether the water outlet is blocked.
The robot cannot connect to your Wi-Fi network	Ensure that your Wi-Fi router supports 2.4GHz and 802.11 b/g/n bands as this equipment does not support 5GHz bands.Check if the automatic reconnection to your domestic WiFi network is correctActivate the mobile data of your smartphoneDon't use a VPN (Virtual Private Network)Retry the process and check that you have selected the correct WiFi networkRetry the process and make sure you have entered the correct WiFi passwordKeep your phone close to the robot and the station until the end of the pairing processAfter several attempts, unplug and replug the productReset the robot, open the flip cover, press and hold the « Home » button for 15 secondsPress and hold for 5 seconds the « Home » and « Start » button until the two buttons lights are blinkingRestart your smartphoneIn case a warning window appears for internet connection, please maintain the connection with the robotIf the failure persists, contact our support team (telephone number depending on your country of residence, find it on the assistance leaflet in the packaging).Make sure the station light indicator is white when it's connected to power and when the robot is not on the station.
The map is lost	The map may be lost if the robot has been manually moved to another location during cleaning or if the home environment has been changed (moved furniture). Please restart mapping by launching in the app a new exploration or a new cleaning session from the station.
The robot returns to the station before it has finished cleaning	The battery level may be too low to finish cleaning, the robot will return to the station to charge. When its battery is full, the robot will resume cleaning where it has left to finish cleaning.The robot may be unable to reach certain areas blocked by furniture or barriers, tidy up these area to make them accessible.Verify the no go zones and no mop zones set in the application. Add, modify or delete zones according to your needs.
The robot gets stuck	The robot may be tangled with something, manually remove the blocked item and restart the cleaning session by pressing the START button.The robot may be stuck under furniture with an entrance of similar height, please set a physical barrier or a no go zone in the app.Rotate and press the wheels to check whether there is any foreign object wrapped or stuck, remove it.

3D mechanical part with blue base and hatched pattern, no visible text or symbols

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printing machine with colored printing patterns (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

*Selon le modèle

Technical diagram showing four views of a car's internal components with numbered labels indicating parts of each view.

Technical diagram showing four views of a printer's internal structure with numbered annotations indicating parts of each view.

Two 3D model diagrams showing different component shapes, one with colored outlines and the other a gray rectangular block (no text or symbols)

Interior layout of a modern living room with sofa, chairs, lamp, and wall-mounted furniture (no text or symbols)

Interior layout of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Illustration of four steps of a printer or scanner operation, showing hand tool application and tool path (no text or symbols)

Illustration of five steps of a device being handled, showing hand placement and cable installation (no text or symbols)

0.5m 0.5m 1.5m × × × × ×

Illustration of two hand gestures inserting a mailbox into a device, showing the same actions (no text or symbols present)

Two 3D mechanical components shown in grayscale, one with a folded edge and the other with a blue handle (no text or symbols)

Illustration showing three steps of a device with a 'CLICK' button, indicating a press or control operation.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Three-step illustration showing a hand cleaning a car interior with arrows indicating motion (no text or symbols)

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of a helicopter being adjusted for a device, showing step-by-step instructions (no text or symbols present)

Two views of a spacecraft's internal structure, one showing a hand adjusting the interior panel (no text or symbols visible)

Diagram illustrating four steps of installing a device with blue components, including a 'No' symbol and a trash can.

3D CAD model of a mechanical housing with blue base and hatched pattern below (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printer with colored hatched patterns and a small asterisk symbol (no text or labels)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

*je nach Modell

Produktübersicht

DE

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Four-panel illustration of a printer's internal components with numbered labels (1-12), showing exploded and assembled views without any readable text or symbols.

Two 3D model parts: a meshed surface with colored sections and a gray rectangular block with circular features (no text or symbols)

Interior layout of a modern living room with sofa, curtains, pendant lights, and a red 'X' symbol (no text or symbols present)

Interior layout of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Four-step illustration showing hands using a device to adjust the internal components of a device (no text or symbols present)

Illustration of a device being processed with a cable, showing four sequential steps (no text or symbols)

0.5m 0.5m 1.5m × × × ×

Illustration of two hand gestures inserting a mailbox into a device, showing eye control (no text or symbols)

Two 3D mechanical parts shown in grayscale, one with a gray outline and one with a blue handle (no text or symbols)

Illustration showing three steps of a device with a 'CLICK' button, indicating a process to press or install.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Three-step diagram showing a hand cleaning a car interior with arrows indicating motion (no text or symbols)

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of five-step industrial automation procedure showing hand tool application and motor shift (no text or symbols)

Two views of a military vehicle head showing internal components and a hand adjusting the interior (no text or symbols visible)

Diagram illustrating four steps of installing a device on a trash bin, with a 'NO' sign indicating no waste.

3D mechanical part with blue base and hatched pattern, no visible text or symbols

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printing machine with layered printing patterns (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power supply and tripod base (no text or symbols)

Technical diagram showing four views of a car's internal components with numbered labels indicating parts of each view.

Four-panel illustration of a printer's internal structure and assembly, showing exploded view with labeled parts (no text or symbols present)

Two 3D model parts: a meshed surface with colored sections and a gray rectangular block with circular features (no text or symbols)

Interior layout of a modern living room with sofa, chairs, lamp, and wall art (no text or symbols)

Interior layout diagram of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Four-step illustration showing hands using a device to adjust or install a device into a container (no text or symbols present)

Illustration of a device being processed with a cable, showing four sequential steps (no text or symbols)

0.5m 0.5m 1.5m × × × × ×

Illustration of two hand gestures inserting a mailbox into a device (no text or symbols present)

Two 3D mechanical components shown in two cropped views: one with a gray housing and one with a blue container (no text or symbols visible)

Illustration showing three steps of a device cleaning or inspection process, with icons and labels indicating action buttons.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Three-step diagram showing a hand cleaning a car interior with arrows indicating motion (no text or symbols)

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of a hand using a handheld device to adjust a component, showing step-by-step instructions (no text or symbols present)

Two views of a spacecraft's helmet showing internal components and a hand inserting a component (no text or symbols visible)

Diagram illustrating four steps of cleaning a trash bin with labeled components and a 'NO' symbol indicating no waste.

3D CAD model of a mechanical housing with blue base and hatched pattern below (no text or symbols)

Illustration of a vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printer with colored hatched patterns and a small asterisk symbol (no text or labels)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

*Según el modelo

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Four-panel illustration of a printer's internal components with numbered labels (1-12), showing exploded and assembled views without any readable text or symbols.

Two 3D model parts: a meshed surface with colored sections and a gray rectangular block with circular features (no text or symbols)

Interior layout of a modern living room with sofa, curtains, pendant lights, and a red 'X' symbol (no text or symbols present)

Interior layout diagram of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Four-step illustration showing hands using a device to adjust or install a device into a container (no text or symbols present)

Illustration of a device being adjusted for a cable, showing four sequential steps with no text or symbols.

0.5m 0.5m 1.5m × × × ×

Illustration of two hand gestures inserting a mailbox into a device, showing eye and finger positioning (no text or symbols)

Two 3D mechanical components shown in two views: a gray bracket and a blue cylindrical component (no text or symbols visible)

Illustration showing three steps of a robotic vacuum cleaner with warning symbols and a magnified view of the component being removed.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Illustration showing three-step cleaning process: washing machine, hand holding tool, and cleaning device.

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of five-step industrial automation procedure showing hand tool application and motor shift (no text or symbols)

Two views of a spacecraft's back panel showing internal components and a hand adjusting the interior (no text or symbols visible)

Diagram illustrating four steps of cleaning a trash bin with labeled components and a 'NO' symbol indicating no waste.

3D CAD model of a mechanical housing with blue base and hatched pattern below (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printing machine with layered printing patterns (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Technical diagram showing four views of a printer with numbered parts and labeled parts in Chinese

Two 3D model parts shown in different orientations: one with layered surfaces and one with a rectangular block, both without any visible text or symbols.

Interior layout of a modern living room with sofa, wall art, and a red 'X' symbol (no text or symbols on main objects)

Interior layout diagram of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Illustration of four steps of a device being cleaned or damaged, showing hand positioning and tool application (no text or symbols)

Illustration of two hand gestures inserting a mailbox into a larger arm (no text or symbols present)

Two 3D mechanical components shown in two views: a gray bracket and a blue cylindrical component (no text or symbols)

Diagram illustrating three steps of a device cleaning process: adding a switch, adjusting a device, and adjusting the interior space.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons, illustrating home control and navigation steps.

Three-step diagram showing a car interior with hand placement, cleaning, and cleaning the interior (no text or symbols)

Illustration of a helicopter being adjusted for a device, showing step-by-step instructions (no text or symbols present)

Two views of a spacecraft's internal structure, one showing a hand adjusting the interior panel (no text or symbols visible)

Diagram illustrating four steps of installing a plastic bag on a device, with a 'NO' symbol indicating no change.

3D CAD model of a mechanical component with blue base and hatched pattern below (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printing machine with layered printing patterns (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power supply and tripod base (no text or symbols)

*consoante o modelo

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Technical diagram showing four views of a printer with numbered components and labeled parts

Two 3D mechanical parts with colored cross-sectional views and mounting holes, shown against a dark background (no text or symbols)

Interior scene of a modern living room with sofa, wall-mounted furniture, and a red 'X' symbol (no text or symbols present)

Interior layout of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Four-step illustration showing hands using a tool to adjust or install a device into a device casing (no text or symbols present)

Illustration of a device being adjusted for a cable, showing four sequential steps with no text or symbols.

0.5m 0.5m 1.5m × × × ×

Illustration of two hand gestures inserting a mailbox into a larger arm (no text or symbols present)

Two 3D mechanical components shown in separate panels: a gray bracket and a blue cylindrical component (no text or symbols visible)

Illustration showing three steps of a device cleaning process: disassembly, press release, and packaging with a magnified view.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Illustration showing three-step cleaning process: washing machine, hand holding tool, and cleaning device with water droplets.

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of a hand using a helicopter to adjust the component in five sequential steps (no text or symbols present)

Two views of a spacecraft's internal structure, one showing a hand adjusting the interior panel (no text or symbols visible)

Diagram illustrating four steps of installing or removing a device, with Chinese labels and a 'NO' sign indicating no change.

3D CAD model of a mechanical part with blue base and hatched pattern below (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power cord and tripod base (no text or symbols)

RR9475WH

Illustration of a 3D printing machine with layered printing patterns (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power supply and tripod base (no text or symbols)

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Technical diagram showing four views of a printer with numbered parts and labeled parts in Chinese

Two 3D mechanical parts with colored cross-sectional views and mounting holes, shown from different angles (no text or symbols)

Interior layout of a modern living room with sofa, chairs, lamp, and scooter (no text or symbols)

Interior layout diagram of a modern living room with sofa, chairs, curtains, and wall-mounted furniture (no text or symbols)

Illustration of four steps of a printer or scanner operation, showing hand tool application and close-up of the device (no text or symbols present)

Illustration of five steps of a device being handled, showing hand placement and cable installation (no text or symbols)

0.5m 0.5m 1.5m × × × × × ✓

Illustration of two hand gestures inserting a mailbox into a larger arm (no text or symbols present)

Two 3D mechanical components shown in separate panels: a gray bracket and a blue cylindrical component (no text or symbols visible)

Illustration showing three steps of a device cleaning process: adding a switch, adjusting a device, and adjusting a closed lid with a magnified view.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Illustration showing three-step cleaning process: washing machine, hand holding tool, and cleaning device.

Illustration showing a step-by-step installation of a mechanical component with blue arrows indicating direction and timing.

Illustration of a hand using a handheld device to adjust a component, showing step-by-step instructions (no text or symbols present)

Two views of a spacecraft's back panel showing internal components and a hand adjusting the interior space (no text or symbols visible)

Diagram illustrating four steps of cleaning a device with labeled components and a 'NO' symbol indicating no detectable parts.

Technical illustration of a mechanical component with two circular holes and a cross-sectional view showing internal features (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

RR9475WH

3D CAD model of a mechanical housing with colored plastic sheeting and a black rectangular component (no text or symbols)

Illustration of a robotic vacuum cleaner with attached power strip and cable (no text or symbols)

Technical diagram showing four views of a robotic device with numbered components and labeled parts

Four-panel illustration of a printer's internal components with numbered labels (1-12), showing exploded and assembled views without any readable text or symbols.

Two 3D model parts: a meshed surface with colored sections and a gray rectangular block with circular features (no text or symbols)

Interior layout of a modern living room with sofa, chairs, lamp, and scooter (no text or symbols)

Interior layout diagram of a modern living room with sofa, chairs, and wall-mounted furniture (no text or symbols)

Illustration of four steps of a printer or scanner operation, showing hand tool application and tool path (no text or symbols)

Illustration of five steps of a device being handled, showing hand placement and cable installation (no text or symbols)

0.5m 0.5m 1.5m × × × ×

Illustration of two hand gestures inserting a mailbox into a larger arm (no text or symbols present)

Two 3D mechanical components shown in separate panels: a gray bracket and a blue cylindrical component (no text or symbols)

Illustration showing three steps of a device cleaning process: adding a switch, adjusting a device, and adjusting a closed lid with a zoomed-in detail.

Illustration showing five-step smartphone home screen interface with Chinese UI labels and action buttons

Three-step diagram showing a piston-cylinder assembly, cleaning a bottle, and cleaning a container (no text or symbols)

Illustration of a hand using a helicopter to adjust the component in five sequential steps (no text or symbols present)

Two views of a spacecraft's internal structure, one showing a hand adjusting the interior panel (no text or symbols visible)

Diagram illustrating four steps of cleaning a trash bin with labeled components and a 'NO' symbol indicating no waste.
