USER MANUAL Fresh Extreme EP7244 ROWENTA

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

5-MISE HORS TENSION

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Illustration of a human leg with bandages and a directional arrow indicating movement (no text or symbols)

- Mode opératoire

Diagram showing hands holding a component with upward arrows indicating movement or force, labeled in Chinese.

Simple line drawing of a device with a monitor and base, showing a downward arrow (no text or symbols)

Line drawing of a hand adjusting a seatbelt with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands assembling a battery with a switch (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-EPILATION DES JAMBES

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's seatbelt being adjusted for a piece of weight (no text or symbols)

Diagram showing a hand holding a device with an upward arrow and motion lines, no text or symbols present.

Line drawing of a person applying a cotton swab to their arm (no text or symbols)

Line drawing of a person performing a finger movement with an arrow indicating direction (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

↑ 机械结构

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands assembling a mechanical component with three upward arrows (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to a small object (no text or symbols)

Diagram of a hairbrush with a textured cap and an arrow indicating upward motion (no text or symbols)

IMPORTANT

Hand holding a connector with three arrows indicating upward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a component with directional arrows (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols present)

Illustration of a hand using a tool to spray or spray onto a surface with a curved pipe (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Diagram of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Illustration of a hand using a tool to clean or spray liquid from a pipe, with no text or symbols present.

• Nettoyage de la Tête Exfoliation

Diagram of a hand holding a tool above a diagonal line, no text or symbols present

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol image showing a skull and warning box over battery packs, with a diagonal stripe crossing the bars.

Simple line drawing of a container being poured into a container (no text or symbols)

1-DESCRIPTION OF YOUR APPLIANCE

1-Pivoting head

2-Depilator head

3-Tweezers

4-Massaging beads

5-Exfoliator head (according to model)

6-2 exfoliating bands

7-Release button for removable head

8-Cap

9-2-speed and stop switch

10-Cleaning brush

11-Adaptor

12-Armpit accessory (according to model)

13-Bikini/line accessory (according to model)

14-Shaving head (according to model)

15-Micro grid

16-Clipper

17-Release buttons

18-Blade unit

19-Protective hood

20-Lubricant for bikini head

21-Bikini trimmer head (according to model) a-Trimmer head with ceramic blade b-Interchangeable combs (3, 6, 9 mm)

22 - Vision

23 - Pain-relieving function

• Vision function: The Vision system installed in your device gives perfect epilation results first time. By diffusing an ultraluminous halo on the skin, this system makes all your hair – even the finest, shortest and fairest hairs – easier to see.
• Pivoting head function: For comfort of use, your appliance is fitted with a pivoting head that adapts to every contour of the areas to be shaved (legs, armpits, bikini line) for a smooth, efficient result.
• Pain-relieving function: Fresh Extreme is equipped with a high-speed turbine which blows air onto the skin and cools it. This helps to reduce the pain caused by epilation.

2-SAFETY

• For your safety, this appliance complies with the applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Environmental...).
• Check that the voltage of your electricity supply matches the voltage of your appliance. Any error when connecting the appliance can cause irreparable harm, not covered by the guarantee.
• The installation of the appliance and its use must however comply with the standards in force in your country.
• Never use if the appliance (depilator or adaptor) is damaged or in the event of any damage caused by dropping the appliance (invisible damage may be dangerous).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Stop using your appliance and contact an Authorised Service Centre if:

• your appliance has fallen,

• it does not work correctly.
  • The appliance must be unplugged:
• before cleaning and maintenance procedures.
• if it is not working correctly.
• as soon as you have finished using it.
• if you leave the room, even momentarily.
• Do not use if the cord is damaged.

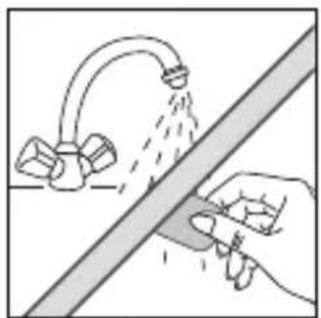

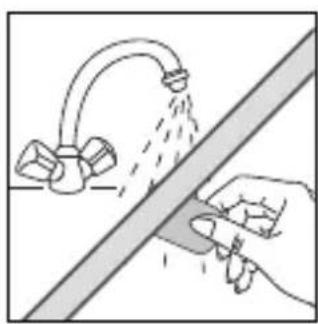

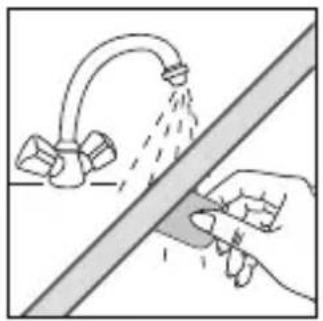

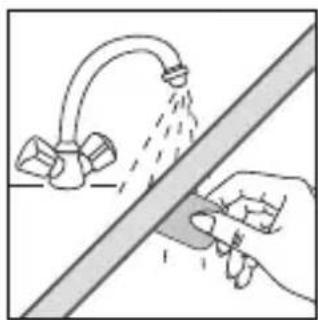

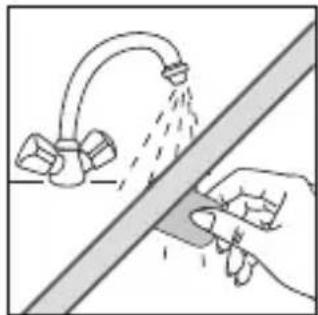

• Do not immerse or put under running water the appliance, even for cleaning purposes.

• Do not hold with damp hands.

• Do not unplug by pulling on the cord, rather pull out by the plug.

• Do not use an electrical extension lead.

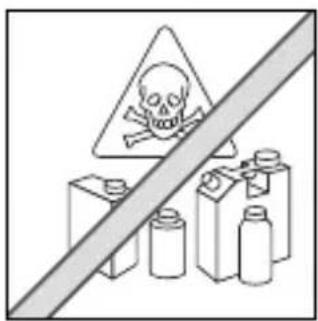

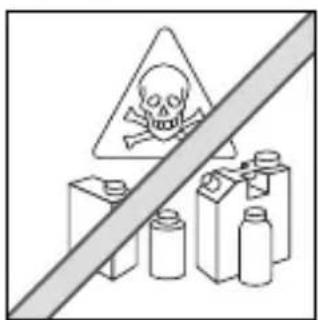

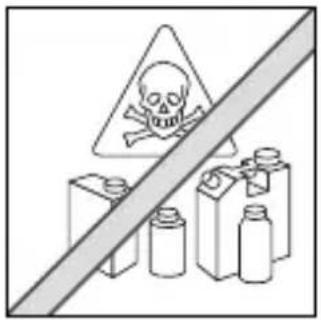

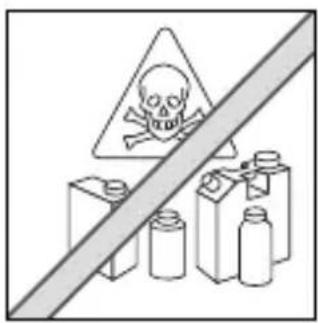

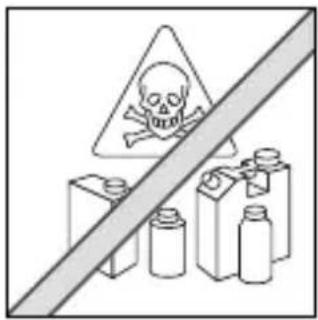

• Do not clean with abrasive or corrosive products.
• Do not use at temperatures below 0^ and above 35^ .
• When the depilator is in use, it must not come into contact with eyelashes, hair, clothes or any other objects, in order to avoid any danger of injury or blockage.
• Do not use the depilator:

- on your face

• on broken, burnt or sore skin
• on sensitive areas (varicose veins, moles, birthmarks, warts...)
• if you suffer from skin complaints, (eczema, inflam-mations, acne...).

If using on the bikini line, only use this appliance for the external area. Do not use it for more intimate zones (pubic lips).

For hygiene reasons, it is advised that you do not allow anyone else to use your appliance.

GUARANTEEYour appliance is designed for use in the home only. It should not be used for professional purposes. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. The guarantee becomes null and void in the case of improper usage.

3-PREPARATION OF THE SKIN

Your skin must be clean and dry.

• Do not apply either cream or hydrating milk before depilation.
• If you previously used a razor for depilation:
• the first few times you use the depilator, your skin may feel more sensitive, as shaving has made your hair thicker and stronger. This sensation will lessen the more you use your depilator: the hair will grow back less quickly and become thinner.
• Your depilator will be much more effective and easier to use if you use it regularly. We advise you to use your depilator as soon as your hair starts to grow back.

4-SWITCH ON

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

5-SWITCH OFF

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-PEELING (according to model)

Peeling will enable you to limits growth of subcutaneous hair if practised regularly.

We strongly recommend that you use the Exfoliator Head 2 days before using your epilator to avoid irritating your skin.

• And not to use a peeling gel or cream at the same time.
• Never carry out peeling on sensitive areas (armpits / bikini line / face).
• After peeling, we advise you to wipe over the area with a moist flannel to remove any dead skin. Dry the skin thoroughly afterwards.

Illustration of a human leg with a bandage and directional arrow indicating movement (no text or symbols)

- Method:

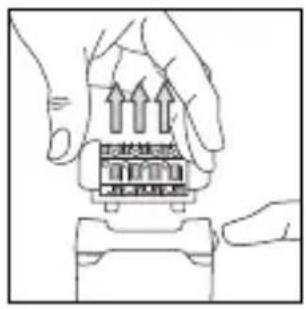

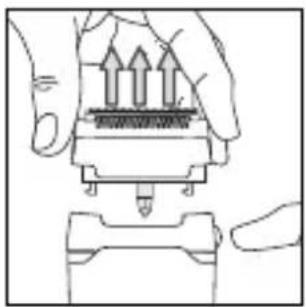

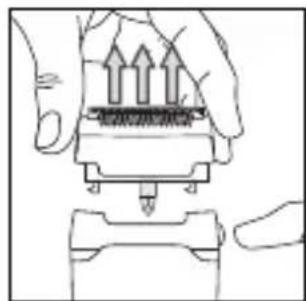

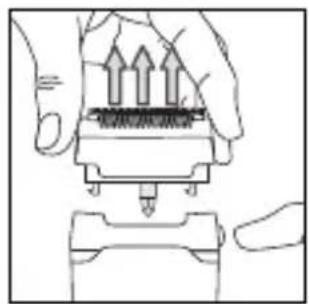

• Press the release button to remove the epilator head.
• Clip the Exfoliator Head to the epilator.
• Select speed 1.

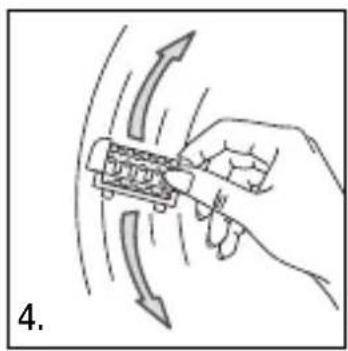

• Start exfoliating with a slow, gentle up and down movement.

Line drawing of hands holding a component with three upward arrows indicating motion (no text or symbols)

Diagram showing a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

When using the Micro-Peeling function for the first time or if your skin is very delicate, we recommend:

1. skin is wet before peeling, use cotton wool or a flannel to do this
2. making slow and gentle rotating movements when using the appliance
3. not to use the appliance more than twice on the same area.

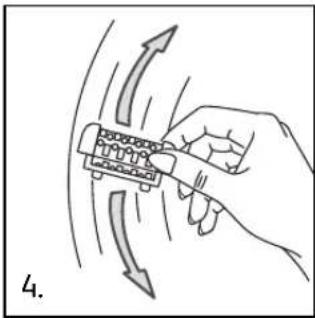

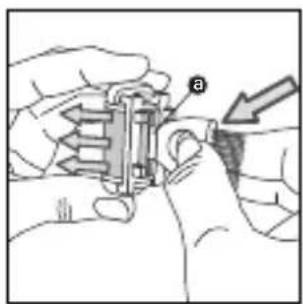

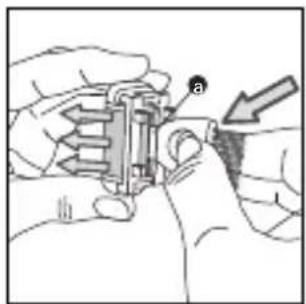

- Replacing the exfoliating band

- Press the release button to remove the Exfoliator Head from the epilator.

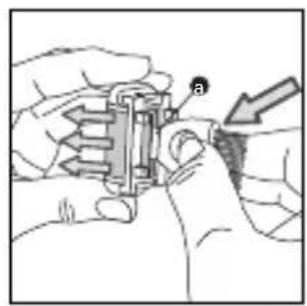

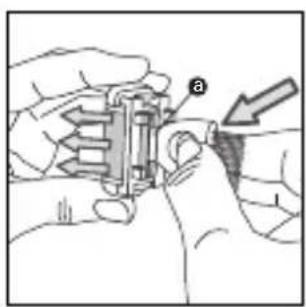

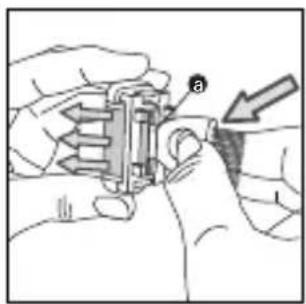

- Using the plastic end of the cleaning brush unclip the band as follows:

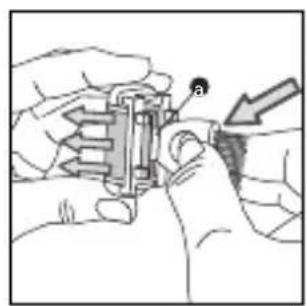

1. Turn the Exfoliator Head over and hold it in place by gripping the edges between your thumb and forefinger.
2. Turn the band so that its groove comes round to the central position.
3. Insert the end of the cleaning brush in the groove and push to eject the band.

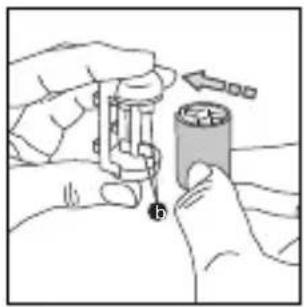

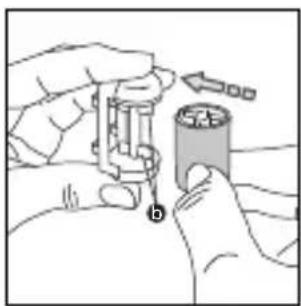

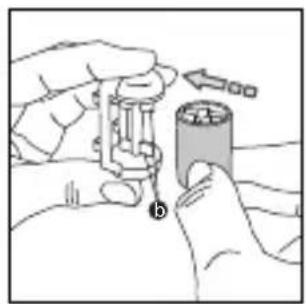

4. Insert the new band by slotting the fins (b) of the exfoliator unit in the groove of the band and pushing until it clicks!

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a directional arrow (no text or symbols)

Illustration of hands assembling a cylindrical device with a labeled part (no text or symbols present)

CLIC!

Diagram showing a vehicle with motion lines and an upward arrow, no text or symbols present

7-LEG HAIR REMOVAL

For optimum epilation, we recommend that you tilt the e pilator slightly towards your skin in the direction of epilation, as shown in the diagram.

Line drawing of a hand holding a cable with a connector (no text or symbols)

Line drawing of a hand pressing down on a small object, possibly a tool or device (no text or symbols present)

• Select speed 1 or 2.
• The switch must always remain visible during use.
• Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

8-HAIR REMOVAL FROM SENSITIVE AREAS

CLIC!

We recommend that you use the "sensitive areas" accessory when removing hair in the armpits and around the bikini line.

This accessory has been designed to reduce the number of active tweezers, for a more gentle hair removal.

For optimum epilation, we recommend that you tilt the epilator slightly towards your skin in the direction of epilation, as shown in the diagram.

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

• Preparing the area where you want to remove hair:

- If the hairs are long trim to approximately 1cm.

- Dry the area thoroughly to ensure any trace of deodorant or perspiration are removed.

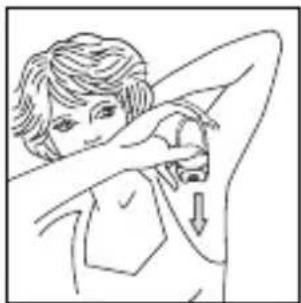

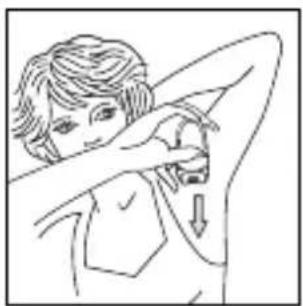

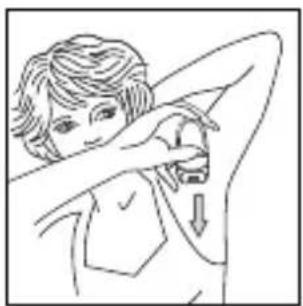

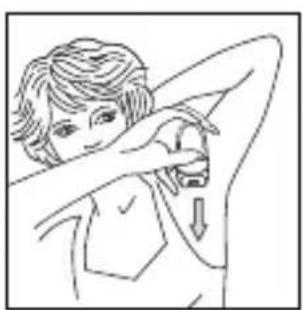

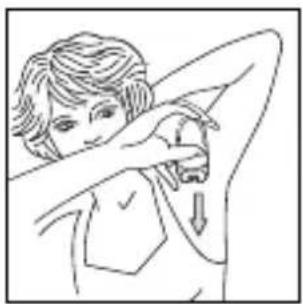

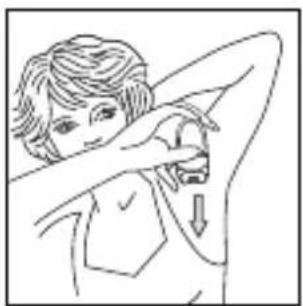

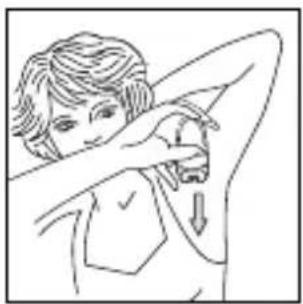

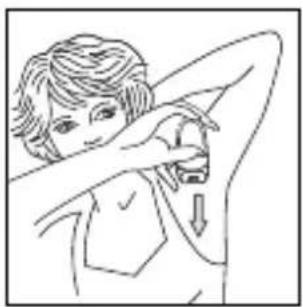

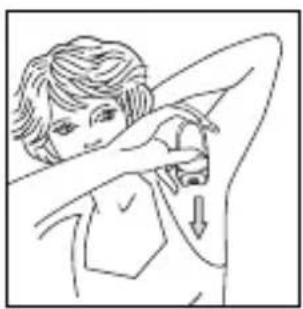

1) Armpit epilation:

- Fit the armpit accessory (12) onto the epilator head and push in until you hear a click.

- Select speed 1.

Line drawing of a person applying a medical or surgical tool to another person (no text or symbols present)

Line drawing of a person adjusting a small object with an arrow indicating motion (no text or symbols)

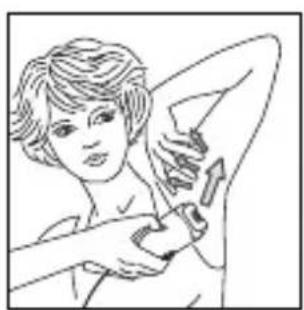

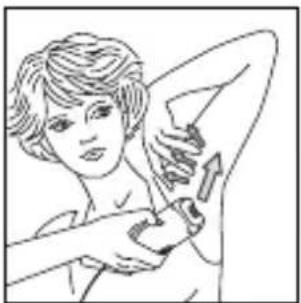

First from bottom to top...

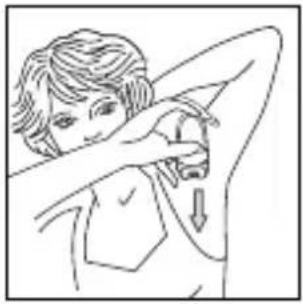

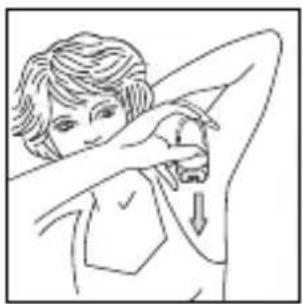

... Then from top to bottom.

Important:

a) Keep your arm raised and stretched throughout the hair removal process.

b) Stretch the skin to make it easier.

2) Bikini line epilation:

- Fit the bikini line accessory (13) onto the epilator head and push in until you hear a click.

- Select speed 1.

Important:

Make sure the skin is stretched properly.

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow and internal components (no text or symbols)

Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

B-With the shaver head (according to model):

- Operating instructions:

Diagram showing hands holding a device with upward arrows indicating motion or force direction, labeled in Chinese.

Mechanical component diagram showing a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands assembling a mechanical component with upward arrows indicating motion (no text or symbols)

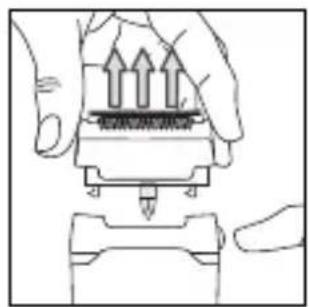

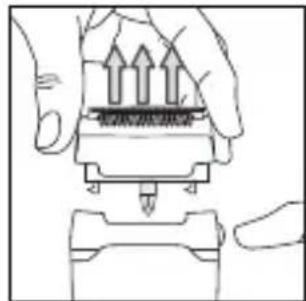

- Remove the epilator head by pressing the ejection button.

- Fit the shaver head (14) onto the appliance.

- Set the switch to position 2.

- After use, stop the appliance.

- Remove the shaver head by pressing the ejection button.

9-TRIM AND EVEN OUT HAIR IN THE BIKINI AREA (according to model)

Put the bikini line trimmer head in place (21). Your bikini line trimmer head is equipped with 3 combs to lift long hairs for cutting by the blade.

Choose the desired comb before switching the appliance on.

IMPORTANT

For your first use, we advise you to use the comb for the longest cutting length.

• If you want a hair length of approximately 9 mm, use the largest comb.
• If you want a hair length of approximately 3 mm, use the smallest comb.
• If you want a hair length of approximately 6 mm, use the medium-sized comb.

Diagram of a hairbrush with a textured brush applying material to a small object (no text or symbols)

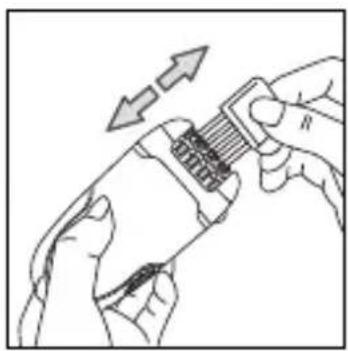

Slide the comb into the two grooves on the trimmer head (a), then set the switch to 2.

Hold the appliance upright so that you can see the appliance name, and move it slowly against the hair.

IMPORTANT

If your skin becomes irritated, apply some talc after use.

- For a neat bikini outline

If you want a closer shave, use the bikini line trimmer head without the comb:

Stop the appliance by pressing 0 and unplug it.

Push to remove the comb (b).

Then switch on the machine by selecting speed 1 or 2.

Hold the appliance upright and move it slowly against the hair.

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

IMPORTANT For greater effectiveness, pull hair outward with the other hand to make it stand out. This will give you a more precise shave with little irritation.

10-CLEANING THE APPLIANCE

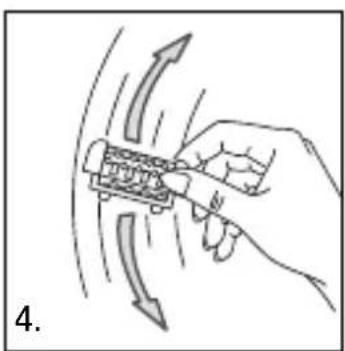

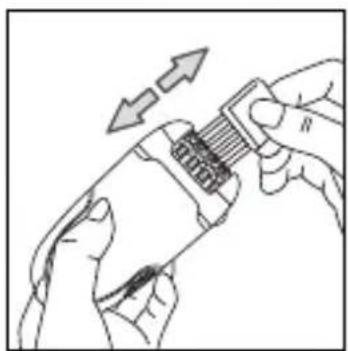

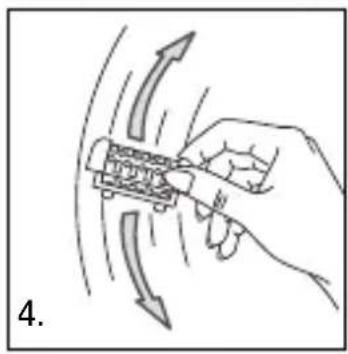

- Cleaning the epilator head

1. Unplug the epilator.

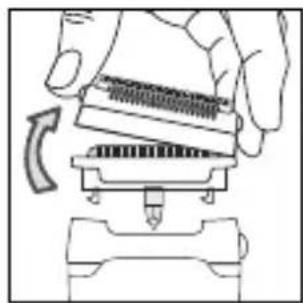

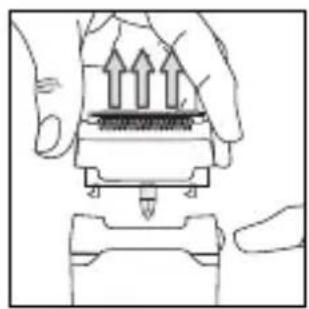

2. Press the release button on the head and remove the epilator head.

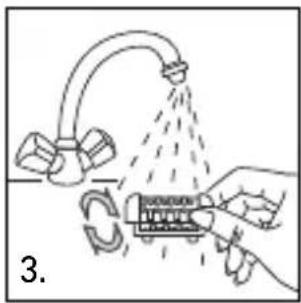

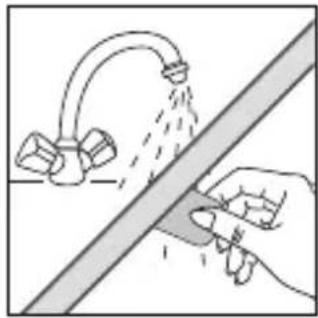

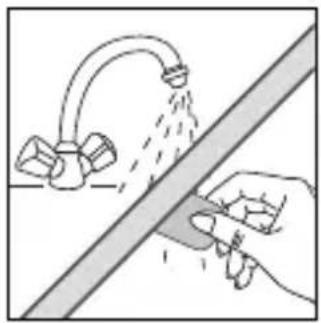

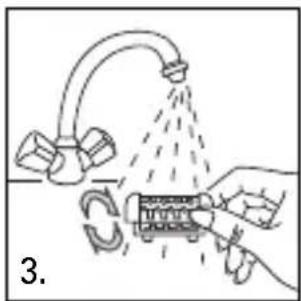

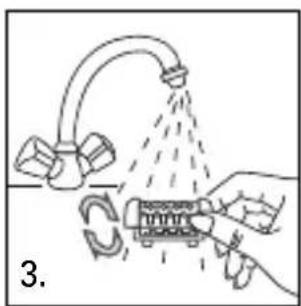

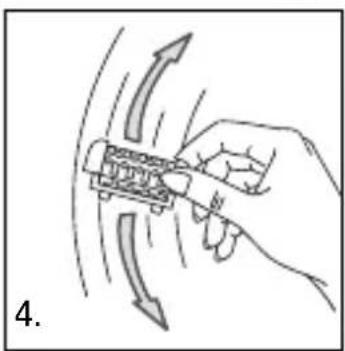

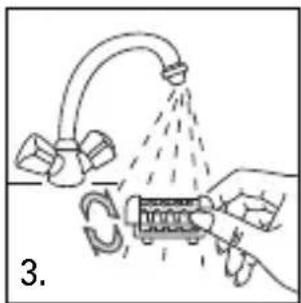

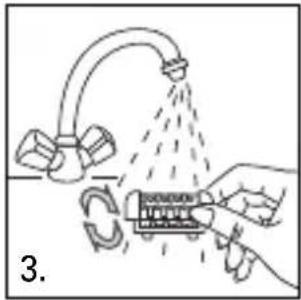

3. Rinse the epilator head under cold running water by turning it for 5 to 10 seconds.

1. 2 1

Illustration of hands holding a mechanical component with three upward arrows (no text or symbols)

Illustration of a hand using a showerhead to lift a submerged object with a circular arrow indicating rotation (no text or symbols)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands inserting a connector into a cable (no text or symbols)

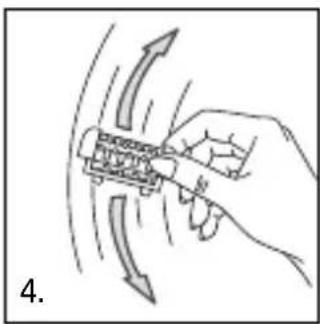

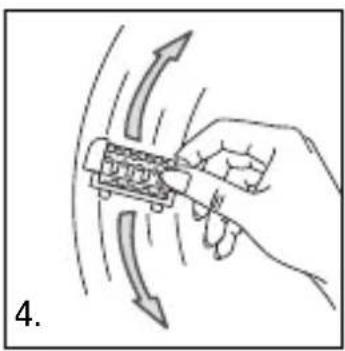

1. Shake the epilator head vigorously and dry it with a towel before fitting it to the epilator again.

You can also use the small cleaning brush supplied.

- Cleaning the shaving head (according to model)

- Stop and unplug the device.

- Remove the protective hood (19).

To do so: press the release buttons and pull upwards. You will remove the protective hood (19) from the blade block (18).

- Carefully remove the hairs by blowing on and around the micro grid (15)

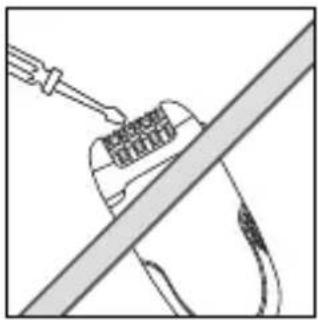

Illustration of a hand using a screwdriver to press a component, with no visible text or symbols

Never use the small brush for cleaning the micro grid (15).

Diagram of a hand pressing down on a mechanical component with arrows indicating force or movement (no text or symbols)

You can also run the protective hood (19) and the blade block (18) under running cold water to remove all the hair. Shake the parts well and then dry them using a towel without pressing down on the micro grid before reassembling them.

- Put the protective hood (19) back on the blade block (18). You will hear a click.

DO NOT PRESS ON THE MICRO GRID WHEN PUTTING IT BACK INTO PLACE.

Do not apply alcohol to the body of the appliance in order to avoid damaging its colours. Do not use a metal or sharp tool.

- Clean the trimmer head (according to model)

Stop the appliance and unplug it.

Press the release button to remove the epilator head.

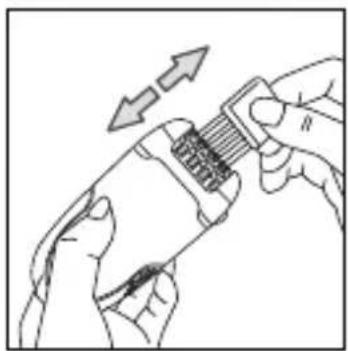

Remove the comb and clean hair from the trimmer head with the brush.

Rinse the trimmer head under cold tap water for 5 or 10 seconds.

Shake the trimmer head vigorously and dry it with a towel.

Illustration of a hand using a tool to spray or spray onto a surface with a curved pipe (no text or symbols)

IMPORTANT Systematically clean the appliance's trimmer head after each use.

The appliance must not be submerged in water. It must not be used in the shower or bath.

- Cleaning sensitive areas accessory

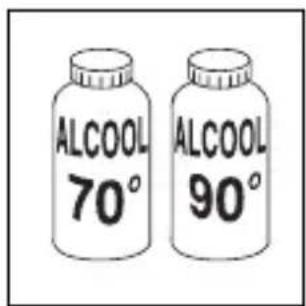

ALCOOL 70° ALCOOL 90°

Illustration of a hand using a tool to spray liquid onto a pipe with two valves (no text or symbols)

Illustration of a hand spraying water onto a surface with a pipe and spray bottle (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a pipe (no text or symbols)

- Cleaning the Exfoliator Head

We recommend that you change the exfoliating band after three sessions of exfoliation or when it is worn out.

Do not clean the band under running water.

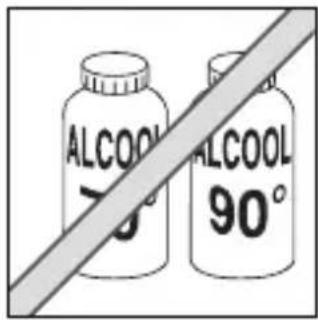

ALCOOL 75° ALCOOL 90°

Diagram of a hand using a tool to tie a spring-loaded object on a diagonal line (no text or symbols)

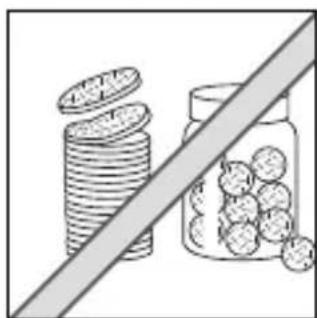

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning sign with skull and warning symbol, overlaid on battery pack and safety icons

11-LUBRICATION (according to model)

To keep your appliance working effectively, the blades should be oiled regularly (notably after washing in water) using the lubricant supplied or, if you have none, with the type of oil used for sewing machines.

Stop the appliance and unplug it.

Clean the trimmer head with the brush.

Lubricate the blades : one drop is enough.

Run the trimmer for a few seconds.

Clean the excess oil off with a cloth.

Simple line drawing of a container with liquid being poured into it (no text or symbols)

IMPORTANT

Avoid applying alcohol to the body of the appliance so as not to fade its colours.

12-SKIN CARE

Small red spots may appear. They will disappear quickly.

For this reason it is preferable to use your depilator in the evening.

If necessary, apply calming cream after depilation.

13-ENVIRONNEMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

1-BESCHREIBUNG

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

5-AUSSTECKEN

Diagram showing a hairdryer with labeled parts and directional arrows indicating movement or force

Line drawing of a person's leg and foot with a belt, showing motion direction (no text or symbols)

Line drawing of hands holding a component with three upward arrows (no text or symbols)

Simple line drawing of a device with a downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with an arrow indicating assembly (no text or symbols present)

Illustration of hands assembling a battery with a hand holding a cylindrical component (no text or symbols visible)

CLIC!

Simple line drawing of a vehicle with motion lines and an upward arrow, no text or symbols present.

Line drawing of a hand holding a cable or cable next to a rolled-up cable (no text or symbols)

Line drawing of a hand pressing down on a small object, possibly a device or tool, with no visible text or symbols.

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a person adjusting a device with an arrow indicating motion (no text or symbols)

Line drawing of hands cutting a piece of paper with arrows indicating motion (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text labels indicating 'Mechanical Component'

Illustration of hands holding a small electronic component with upward arrows indicating motion (no text or symbols)

Mechanical component diagram showing a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands assembling a mechanical component with three upward arrows (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating process (no text or symbols)

Diagram of a hand holding a textured object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand spraying water onto a showerhead with a circular motion arrow (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Diagram of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram showing a hand pressing down a component with arrows indicating downward motion, labeled in Chinese.

Illustration of a hand using a spray gun to spray liquid onto a mechanical component (no text or symbols)

Illustration of a hand spraying water from a pipe to a valve (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface with two valves (no text or symbols)

Illustration of a hand cleaning a pipe with a faucet (no text or symbols)

Simple line drawing of a hook being inserted into a horizontal bar, no text or symbols present

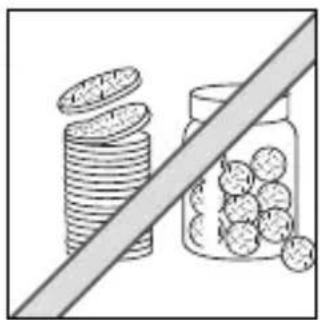

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and warning box over battery pack, indicating hazard or safety warning

11-WARTUNG

Simple line drawing of a container being poured into a container with a droplet (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

5-MESSA FUORI TENSIONE

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Line drawing of a human leg with a bandage and directional arrow indicating movement (no text or symbols)

- Modalità d'uso:

Illustration of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram showing a device with a screen and a downward arrow, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands assembling a cylindrical component with a tool, no text or symbols present

CLIC!

Diagram showing a vehicle with motion lines and an upward arrow, no text or symbols present

Line drawing of a hand holding a cable inserted into a device (no text or symbols)

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram showing a device emitting exhaust smoke from a vertical line, with an upward arrow indicating motion (no text or symbols)

1) Armpit epilation:

- Fit the armpit accessory (12) onto the epilator head and push in until you hear a click. - Selezionate la velocità 1.

Line drawing of a person applying a product to another person's arm (no text or symbols)

Line drawing of a person adjusting their sleeve with a downward arrow (no text or symbols)

- Fit the bikini line accessory (13) onto the epilator head and push in until you hear a click.

Diagram showing hands performing a curved motion with directional arrows, no text or symbols present

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of hands holding a component with upward arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands using a mechanical component to press or install a component (no text or symbols visible)

Diagram of a hand holding a connector with a gear-like top component, no text or symbols present

Diagram of a hairbrush with a textured cap and an arrow indicating upward motion (no text or symbols)

IMPORTANTE

Illustration of a hand using a spray gun to clean water from a showerhead (no text or symbols)

Hand holding a tool with curved arrows indicating motion or force (no text or symbols)

Illustration of hands fastening a cable with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust a component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a spray gun to lift a small object, with no visible text or symbols.

Illustration of a hand using a tool to spray liquid from a pipe onto a surface, with no text or symbols present.

Illustration of a hand using a tool to spray liquid onto a surface with two spray bottles (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a pipe (no text or symbols)

Simple line drawing of a hook being inserted into a horizontal bar, no text or symbols present

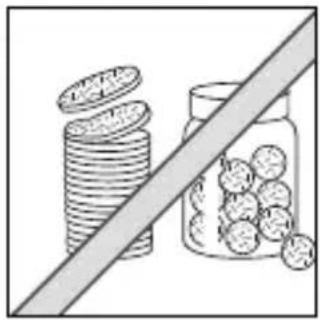

Illustration of stacked coins and a jar with fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and warning box over battery pack, indicating hazardous safety

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

5-APAGADO

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Line drawing of a human leg with a bandage and arrow indicating motion (no text or symbols)

- Método:

Diagram showing hands holding a device with upward arrows indicating motion or movement, labeled in Chinese.

Diagram showing a monitor on top with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a directional arrow (no text or symbols)

Illustration of hands assembling a cylindrical battery with a pin labeled 'b' (no text or symbols present)

CLIC!

Diagram showing a vehicle with motion lines and an upward arrow, no text or symbols present

7-DEPILACION DE LAS PIERNAS

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand pressing down on a small object, possibly a device or tool, with no visible text or symbols.

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person receiving an injection from a surgical instrument (no text or symbols)

Illustration of a person adjusting a device with an arrow indicating motion (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Importante : Tensar bien la piel.

Illustration of hands holding a connector with three upward arrows (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Illustration of hands assembling a mechanical component with upward arrows indicating motion (no text or symbols)

Diagram of a mechanical component with a threaded end and a downward arrow, labeled 'a' (no text or symbols on the diagram itself)

Diagram of a mechanical device with a gear and an arrow indicating motion (no text or symbols)

IMPORTANTE

Illustration of a hand using a spray gun to interact with a mechanical device (no text or symbols present)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands inserting a USB into a connector (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to spray liquid onto a surface with a pipe (no text or symbols)

Illustration of a hand spraying water from a showerhead into a sink (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a pipe, with no text or symbols present.

Diagram showing a hand using a tool to tie a metal object on a diagonal line (no text or symbols present)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning sign with skull and warning symbol, crossed over a battery pack and vial

Simple line drawing of a container with liquid being poured into it (no text or symbols)

12-CUIDADO DE LA PIEL

Diagram showing a device with two labeled arrows indicating directional movement or connection points.

5-DESLI GAR

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-LIMPEZA DA PELE (consoante o modelo)

Line drawing of a human leg with bandages and a directional arrow indicating movement (no text or symbols)

- Procedimento:

Diagram showing hands holding a device with three upward arrows indicating motion or movement, labeled in Chinese.

Diagram showing a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram showing a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Illustration of hands assembling a cylindrical battery with a hand holding the plug (no text or symbols visible)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

Line drawing of a hand holding a USB flash drive (no text or symbols)

Line drawing of a hand pressing down on a small object, possibly a tool or device (no text or symbols present)

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person with short hair holding an object, no text or symbols present

Line drawing of a person adjusting a device with an arrow indicating motion (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram showing hands holding a device with upward arrows indicating motion or movement, labeled in Chinese.

Diagram of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands using a mechanical component to press or install a component (no text or symbols visible)

Diagram showing a hand holding a small electronic component with a gear-like top, no text or symbols present

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

IMPORTANT

Line drawing of hands holding a mechanical component with upward arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a mechanical device with a valve, no text or symbols present

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a component with directional arrows (no text or symbols)

Diagram of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram showing a hand pressing down a component with arrows indicating downward motion, labeled in Chinese.

Illustration of a hand using a spray gun to spray liquid onto a surface with a tool (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a pipe with two fittings (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a pipe (no text or symbols)

Illustration of a hand using a tool to clean or spray water from a faucet onto a surface (no text or symbols)

Diagram of a hand holding a tool interacting with a diagonal line, no text or symbols present

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Warning symbol image showing a skull and warning box over battery packs, with a diagonal line indicating safety or hazard.

Simple line drawing of a container being poured into a bottle, with a droplet hanging from the liquid (no text or symbols)

IMPORTANT

Diagram showing a device with labeled parts and directional arrows indicating movement or connection.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

Line drawing of a person's leg and foot with a bandage and directional arrow indicating movement (no text or symbols)

- Τρόπος χρήσης

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Simple line drawing of a monitor and a device with a downward arrow, no text or symbols present.

Diagram showing a hand pressing down on a car seatbelt, with arrows indicating motion direction (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical battery with a plug (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

Line drawing of a hand holding a cable with a connector (no text or symbols)

Line drawing of a person's leg and foot with a belt buckle, no text or symbols present

Diagram of a handheld device emitting sound waves, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person applying a product to another person (no text or symbols)

Line drawing of a person adjusting a device with an arrow indicating motion (no text or symbols)

Diagram of hands operating a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram showing hands holding a device with upward arrows indicating motion or movement, labeled in Chinese.

Diagram of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands assembling a mechanical component with arrows indicating upward motion (no text or symbols)

Diagram of a hairpin with a textured head and a downward arrow indicating process (no text or symbols)

Diagram of a hairbrush with a textured cap and an arrow indicating direction (no text or symbols)

Σημαντική σημείωση

Illustration of hands holding a small electronic component with three upward arrows indicating motion (no text or symbols)

Illustration of a hand using a spray gun to lift a mechanical component (no text or symbols visible)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a rectangular object (no text or symbols present)

Illustration of a hand spraying water from a pipe to a valve (no text or symbols)

Illustration of a hand spraying water from a pipe into a sink (no text or symbols)

Illustration of a hand cleaning a pipe with a hose and bucket, no text or symbols present

Diagram of a cable being inserted into a wire, showing the cable being inserted into a cable (no text or symbols present)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning sign with skull symbol, warning box, and safety icons including battery, pills, and bottles

Diagram showing a device with labeled parts and directional arrows indicating movement or connection.

5- ELEKTRİK BAĞLANTISINI

Diagram showing a device with labeled arrows indicating directional movement or flow, including '1' and '2' annotations.

6-PEELING (modele göre)

Line drawing of a human leg with a bandage and arrow indicating movement (no text or symbols)

Line drawing of hands holding a small electronic component with three upward arrows (no text or symbols)

Diagram showing a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

Illustration of a hand holding a cylindrical device with a battery and arrow indicating action (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7- BACAKLARIN EPİLASYONU

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram showing a hand holding a device with an upward arrow and motion lines, no text or symbols present.

Line drawing of a person applying a product to another person's arm (no text or symbols)

Line drawing of a person holding an object with a downward arrow (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow, showing internal structure (no text or symbols)

Line drawing of hands holding a small electronic component with three upward arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands using a tool to press or install a component with upward arrows (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to a small component (no text or symbols)

Diagram of a hairbrush with a textured brush and an arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a mechanical component (no text or symbols present)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands fastening a cable or connector with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press or adjust a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a mechanical component (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface with two valves (no text or symbols)

Illustration of a hand spraying water from a pipe to a sink (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a faucet, with no text or symbols present.

Diagram of a mechanical assembly with a tool and diagonal line (no text or symbols)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, warning triangle, and battery/cranked items below a diagonal stripe

11-YAĞLAMA (modele göre)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

ÖNEMLİ

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with two directional arrows labeled 1 and 2, indicating movement or flow.

Line drawing of a human leg with a bandage and arrow indicating movement (no text or symbols)

- Fremgangsmåde

Simple line drawing of a device with a monitor and base, showing a downward arrow (no text or symbols)

Line drawing of a hand adjusting a seatbelt with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands assembling a mechanical component with a directional arrow (no text or symbols)

Illustration of hands holding a battery and a cylindrical component with an arrow indicating direction (no text or symbols)

CLIC!

Diagram showing a car being pulled off a road with an upward arrow, no text or symbols present

7-EPILERING AF BENENE

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person's leg with a belt buckle, showing posture and movement (no text or symbols)

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person applying a product to their arm (no text or symbols)

Line drawing of a person performing a finger movement with an arrow indicating direction (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and a labeled component below, likely illustrating a motion or assembly process.

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands assembling a mechanical component with three upward arrows (no text or symbols)

- Vælg hastighed 2.

Diagram of a hairbrush with a textured brush applying material to a connector (no text or symbols)

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

VIGTIGT

Illustration of a hand using a tool to spray or spray onto a mechanical component (no text or symbols present)

Hand holding a tool interacting with a mechanical component, showing motion lines (no text or symbols)

Illustration of hands fastening a cable connector with arrows indicating motion (no text or symbols)

Diagram of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a pipe with a valve (no text or symbols)

Illustration of a hand spraying water from a pipe to a small valve (no text or symbols)

Illustration of a hand cleaning a faucet with water spray, no text or symbols present

Diagram of a cable or cable fastening operation with a tool and wire (no text or symbols)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning sign with skull symbol, warning box, and safety icons including batteries and containers

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with labeled arrows indicating directional movement or force, including '1' and '2' annotations.

Line drawing of a hand holding a cylindrical device with a cable, no text or symbols present

Line drawing of a hand adjusting a seatbelt on a car (no text or symbols)

Illustration of a hairdryer with an upward arrow indicating motion (no text or symbols)

Illustration of a person applying a cotton swab to their chest area (no text or symbols)

Line drawing of a person performing a neck massage or acupressure technique (no text or symbols)

Line drawing of hands performing a medical or surgical procedure on a surface, with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols)

KLÕPS!

Line drawing of hands holding a component with upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Illustration of hands using a tool to press or install a mechanical component with three upward arrows (no text or symbols)

Diagram of a hairbrush with a textured brush applying material to a small object (no text or symbols present)

Diagram of a hairbrush with a brush tip and an arrow indicating direction (no text or symbols)

Illustration of a hand using a showerhead to spray water onto a mechanical component (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand using a tool to adjust a mechanical component, showing motion arrows (no text or symbols)

Diagram of a hand using a tool to press or install a component, showing mechanical parts and arrows indicating motion (no text or symbols)

Illustration of hands using a spray gun to spray a component (no text or symbols)

Simple line drawing of a container being poured into a bottle (no text or symbols)

Line drawing of a hand using a spray gun to spray liquid onto a kitchen sink (no text or symbols)

Illustration of a hand using a spray gun to spray liquid onto a curved pipe (no text or symbols)

Illustration of a hand using a tool to clean or spray liquid from a pipe (no text or symbols)

Diagram of a mechanical assembly with a tool and a diagonal bar (no text or symbols)

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, warning triangle, and battery/cylinder arrangement

12- NAHAHOOLDUS

Diagram showing a device with labeled parts and directional arrows indicating sequence or flow

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

6-PīLINGS (atbilsto i modelim)

Diagram showing hands holding a component with upward arrows indicating motion or force, labeled in Chinese.

Simple line drawing of a monitor and a base with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand adjusting a seatbelt with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Technical diagram showing hands assembling a mechanical component with an arrow indicating assembly direction

Illustration of hands assembling a cylindrical device with a pointer and label 'b' (no text or symbols on the device itself)

CLIC!

Diagram showing a device emitting motion lines with an upward arrow, no text or symbols present

7- KĀJU EPILĀCIJA

Line drawing of a human leg with a belt and arrow indicating movement (no text or symbols)

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand adjusting a seatbelt on a car (no text or symbols)

Diagram showing a hairdryer emitting vapor or smoke from a vertical surface, with an upward arrow indicating motion (no text or symbols present)

Illustration of a person receiving a medical or cosmetic procedure on a patient's arm (no text or symbols present)

Line drawing of a person performing a medical or cosmetic procedure with an arrow indicating direction (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols)

KLIKŠ!

Line drawing of hands holding a component with upward arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Illustration of hands assembling a mechanical component with three upward arrows indicating motion (no text or symbols)

Diagram of a hairbrush with a brush applying material to its base (no text or symbols)

Diagram of a hairbrush with a textured brush tip and an arrow indicating direction (no text or symbols)

Illustration of a hand using a showerhead to spray water onto a mechanical component (no text or symbols)

Hand holding a spring scale with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a component with directional arrows (no text or symbols)

Diagram of a hand using a tool to press or install a spring-loaded component, with no visible text or symbols.

Diagram of a hand using a tool to press or install a component, showing mechanical parts and arrows indicating motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a small mechanical component (no text or symbols present)

Simple line drawing of a container being poured into a bottle (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a curved pipe (no text or symbols)

Illustration of a hand spraying water from a faucet (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a pipe (no text or symbols)

Diagram of a cable or cable connector with a diagonal line and cable (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, crossbones, and battery components on a diagonal stripe

12-ĀDAS KOPŠANA

Var rasties mazi sarkani punktini. Tie ātri vien izzudis.

Diagram showing a device with labeled parts and directional arrows indicating flow or movement.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Illustration of a human leg with a bandage and directional arrows indicating movement or force (no text or symbols)

Diagram showing hands holding a component with upward arrows indicating movement or force, likely illustrating electrical or mechanical assembly.

Simple line drawing of a device with an arrow indicating downward motion (no text or symbols)

Line drawing of a person's arm holding a small object with directional arrows indicating motion (no text or symbols)

Diagram showing a vehicle chassis with an upward arrow and a left-pointing arrow indicating motion (no text or symbols)

Illustration of hands using a mechanical tool to adjust a component (no text or symbols visible)

Illustration of hands assembling a cylindrical component with a labeled part (b), no text or symbols present

CLIC!

Diagram showing a device interacting with a surface, with an upward arrow and dashed line indicating motion (no text or symbols)

7-KOJŲ PLAUKELIŲ ŠALINIMAS

Line drawing of a hand holding a cylindrical device with a cable, no text or symbols present

Line drawing of a person using a tool to adjust or install a component, no text or symbols present

- Pasirinkite 1 arba 2 greitj.

Illustration of a hairdryer with an upward arrow and motion lines, no text or symbols present

Line drawing of a person applying a medical or cosmetic procedure to another person's chest (no text or symbols present)

Line drawing of a person performing a medical or cosmetic procedure on another person's arm (no text or symbols present)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols)

SPRAGTELEJIMAS!

Illustration of hands holding a connector with arrows indicating upward motion (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Line drawing of hands using a tool to press or install a component with upward arrows (no text or symbols)

Diagram of a hairbrush applying material to a connector (no text or symbols)

Diagram of a hairbrush applying material to a textured brush (no text or symbols)

Illustration of hands holding a connector with arrows indicating upward motion (no text or symbols)

Illustration of a hand using a showerhead to spray liquid onto a surface with a valve (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand using a tool to press or install a mechanical component, showing motion arrows (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a spray gun to clean a small object on a surface (no text or symbols)

Simple line drawing of a container being poured into a bottle (no text or symbols)

Illustration of a hand using a spray gun to spray liquid onto a surface with a pipe (no text or symbols)

Illustration of a hand spraying water from a showerhead into a sink (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a pipe (no text or symbols)

Diagram of a cable or cable fastening mechanism with no visible text or symbols

Illustration of stacked coins next to a jar with scattered coins, separated by a diagonal line (no text or symbols)

Safety warning symbol with skull, crossbones, and battery components

12-ODOS PRIEŽIŪRA

Diagram showing a hairdryer with labeled parts and directional arrows indicating movement or flow.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-KUORINTA (mallista riippuen)

Line drawing of a human leg with a bandage and arrow indicating movement (no text or symbols)

- Käyttöohjeet

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram showing a device with a screen and a downward arrow, no text or symbols present

Line drawing of a hand pressing down on a car seatbelt (no text or symbols)

Diagram showing a monitor and a device with directional arrows, no text or symbols present

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical battery with a switch (no text or symbols)

CLIC!

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-SÄÄRTEN EPILOINTI

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand pressing down on a small object, possibly a tool or device (no text or symbols present)

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person applying a product to another person's arm (no text or symbols)

Line drawing of a person performing a finger movement with a downward arrow (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text indicating 'Mechanical part'

2) Bikinirajan epilointi:

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands assembling a mechanical component with upward arrows indicating motion (no text or symbols)

- Valitse nopeus 2.

Diagram of a hairbrush with a textured brush applying material to a connector (no text or symbols)

Diagram of a hairbrush with a textured cap and an arrow indicating upward motion (no text or symbols)

TÄRKEÄÄ

Illustration of hands installing or adjusting a component with arrows indicating upward movement (no text or symbols present)

Illustration of a hand using a tool to spray liquid onto a mechanical component (no text or symbols)

Hand holding a mechanical component with curved arrows indicating motion (no text or symbols)

Illustration of hands holding a connector with arrows indicating direction (no text or symbols)

Diagram of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram showing a hand pressing down a component with arrows indicating downward motion, likely illustrating a mechanical or electrical process.

Illustration of a hand using a spray gun to spray liquid onto a mechanical component (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a pipe with a valve (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a pipe (no text or symbols)

Illustration of a hand using a tool to clean or spray liquid from a pipe, with no text or symbols present.

Diagram of a hand using a tool to tie a metal object on a diagonal line (no text or symbols)

Illustration of stacked coins and a jar with scattered coins, separated by a diagonal line (no text or symbols)

Warning sign with skull and plastic bottle imagery, indicating hazardous material hazard

Simple line drawing of a container being poured into a bottle (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating movement or connection.

5-DRA UT UR VÄGGUTTAG

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-PEELING (BEROENDE PÅ MODELL)

Diagram showing hands holding a component with upward arrows indicating motion or force, labeled in Chinese.

Simple line drawing of a monitor on top with a downward arrow indicating compression or disassembly (no text or symbols)

Line drawing of a hand pressing down on a car seatbelt, showing motion arrows (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a battery with a hand holding a cylindrical component (no text or symbols visible)

CLIC!

Line drawing of a human leg with a bandage and arrow indicating movement (no text or symbols)

Diagram showing a car with motion lines and an upward arrow, no text or symbols present

7-EPILERING AV BENEN

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand pressing down on a small object, possibly a device or tool, with no visible text or symbols.

Diagram showing a device emitting sound waves with an upward arrow, no text or symbols present

Line drawing of a person receiving an injection from a surgical instrument (no text or symbols present)

Line drawing of a person performing a finger movement with a downward arrow (no text or symbols)

Illustration of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and a labeled component below it.

Illustration of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands using a tool to press or install a component with three upward arrows (no text or symbols)

Diagram of a hairbrush with a textured cap and a downward arrow indicating process (no text or symbols)

Diagram of a hairpin with a textured cap and an arrow indicating direction (no text or symbols)

VIKTIGT

Illustration of hands installing or adjusting a component with arrows indicating upward movement (no text or symbols present)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands holding a connector with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with arrows indicating downward force (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface, with no visible text or symbols.

Illustration of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Diagram of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Illustration of a hand using a tool to clean or spray water from a pipe (no text or symbols)

Diagram of a hand holding a tool above a diagonal line, no text or symbols present

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and battery icons, indicating hazardous substances

11-SMÖRJNING (BEROENDE PÅ MODELL)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

VIKTIGT

17-Knapper for uttak

18-Bladenhet

19-Beskyttelsesdeksel

20-Smøreolje til bikinitrimmers hode

21-Bikinihode (Avhengig av modell)

a. Klippehode med blad i keramikk

b. 3 demonterbare kammer (3-6-9 mm)

22 - Sikt

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

5-KOPLE FRA

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

6-PEELING (AVHENGIG AV MODELL)

Ved regelmessig peeling vil du redusere utvekst av hår under huden.

Diagram showing hands holding a component with upward arrows indicating motion or force, labeled in Chinese.

Diagram showing a monitor on top with a downward arrow indicating motion or change (no text or symbols)

Line drawing of a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of hands using a mechanical tool to adjust a component (no text or symbols visible)

Illustration of hands assembling a cylindrical battery with a switch (no text or symbols)

CLIC!

Illustration of a person's lower leg with a bandage and directional arrow indicating movement (no text or symbols)

Diagram showing a mechanical device with motion arrows and an upward arrow, no text or symbols present

7-FJERNING AV HÅR PÅ BENA

- For en optimal härfjernning anbefales det å holde epilatoren lett skrånet mot huden, mot hårvektsretningen, som vist på tegningen.

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a hand pressing down on a small object, possibly a device or tool, with no visible text or symbols.

Diagram showing a device emitting sound waves from a vertical line, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person applying a medical or cosmetic procedure to another person (no text or symbols present)

Line drawing of a person performing a finger movement with a downward arrow (no text or symbols)

Line drawing of hands performing a manual task with directional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow and Chinese text indicating 'Mechanical part'

2) Hårfjerning langs bikinilinjen:

- Klipse tilbehøret for bikinilinjen (13) på epilatorhodet. - Velg hastighet 1.

Line drawing of hands holding a connector with three upward arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Illustration of hands assembling a mechanical component with three upward arrows (no text or symbols)

- Velg hastighet 2.

Diagram of a hairbrush with a textured brush applying material to its base, labeled 'a' (no text or symbols on the diagram itself)

Diagram of a hairbrush with a textured cap and an arrow indicating upward motion (no text or symbols)

VIKTIG

10-VEDLIKEHOLD AV APPARATET

Illustration of hands installing or adjusting a component with arrows indicating upward movement (no text or symbols present)

Illustration of a hand using a showerhead to spray liquid onto a mechanical component (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands holding a connector with directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Diagram showing a hand pressing down a component with arrows indicating downward motion, possibly illustrating a mechanical or electrical process.

Illustration of a hand using a spray gun to spray liquid onto a mechanical component (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Diagram of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Illustration of a hand using a tool to clean or spray liquid from a pipe, with no text or symbols present.

Diagram of a hand holding a tool above a diagonal line, no text or symbols present

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, battery pack, and vial, indicating hazardous material or safety hazard

11-SM∅RING (AVHENGIG AV MODELL)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

13-LA OSS TENKE MILJ∅

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Diagram showing hands holding a device with upward arrows indicating motion or movement, labeled in Chinese.

Simple line drawing of a monitor and a mechanical component with a downward arrow (no text or symbols)

Diagram showing a hand pressing down on a curved surface with directional arrows indicating movement (no text or symbols)

Illustration of a human leg with bandages and an arrow indicating motion (no text or symbols)

Diagram showing a device with an upward arrow and a left-pointing arrow, no text or symbols present.

Illustration of a hand using a mechanical tool to adjust or install a component (no text or symbols visible)

Illustration of hands assembling a cylindrical component with a label '6' (no text or symbols on the diagram itself)

CLIC!

Diagram showing a mechanical device with an upward arrow and motion lines, no text or symbols present.

7-ONTHAREN VAN DE BENEN

Line drawing of a hand holding a cylindrical object with a cable, no text or symbols present

Line drawing of a person using a device to grip a small object (no text or symbols)

Diagram showing a hand holding a device with an upward arrow and motion lines, no text or symbols present.

Line drawing of a person receiving a swab or swab treatment (no text or symbols present)

Line drawing of a person performing a finger massage or gesture (no text or symbols)

Illustration of hands performing a mechanical operation with arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow, showing internal structure (no text or symbols)

Line drawing of hands holding a device with arrows indicating upward movement (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of hands using a tool to press or install a component with upward arrows (no text or symbols)

Diagram of a mechanical component with a gear-like top and a downward arrow, labeled 'a' (no text or symbols on the diagram itself)

Diagram of a device with a textured top and an arrow pointing to it, labeled 'et' and 'b' (no text or symbols on the diagram itself)

Illustration of a hand using a tool to spray liquid onto a mechanical component (no text or symbols)

Hand holding a battery with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand holding a component with arrows indicating downward motion (no text or symbols)

Illustration of a hand using a spray gun to spray a small object on a surface (no text or symbols)

Illustration of a hand using a tool to spray liquid onto a pipe with a valve (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface with two spray bottles (no text or symbols)

Illustration of a hand using a tool to clean or disinfect water from a curved pipe (no text or symbols)

Diagram of a hand holding a tool above a diagonal line, no text or symbols present

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning sign with skull symbol, warning triangle, and safety icons including battery, pills, and bottles

11-SMEERMIDDEL VOOR BIKINILIJN TRIMKOP

Simple line drawing of a container with liquid being poured into it (no text or symbols)
