USER MANUAL WBTTKV55CB Wisberg

Batchcode:

Climate classification N / ST
Net volume 109L
Freezing capacity 2.4kg/24h
Electric shock classification Class I
Voltage 220-240V~
Frequency 50Hz
Rated current 0.75A
Power consumption 75W
Refrigerant R600a,26g
Insulating agent Cyclopentane
Product code 958420

Wisepick Productions B.V.

Waena 664

3012CN, Rotterdam

The Netherlands

www.wisberghome.com

[e-mail]

Made in China

CE

WBTTKV55CW

WISBERG

WBTTKV55CW
Refrigerator

Serial Number:

Batchcode:

Climate classification N / ST
Net volume 109L
Freezing capacity 2.4kg/24h
Electric shock classification Class I
Voltage 220-240V~
Frequency 50Hz
Rated current 0.75A
Power consumption 75W
Refrigerant R600a,26g
Insulating agent Cyclopentane
Product code 9S8449

Wiespick Productions B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

www.wisberghome.com

[e-mail]

Made in China

CE

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Freezing capacity -	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Net volume -	Netto inhoud / Volume de stockage total / Gesamtspeichervolumen
Electric shock classification -	Classificatie elektrische schok / Classification des chocs électriques / Klassifizierung von Stromschlägen
Voltage -	Spanning / Tension / Spannung:
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale stroom / Courant nominal / Nennstrom
Power consumption -	Stroomverbruik / Consommation électrique / Stromverbrauch
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Insulating agent -	Isolatiemiddel / Agent isolant / Isoliermittel
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

3

1. VEILIGHEID 5

Wisepick Productions B.V.

Weena 664

3012CN, Rotterdam

Nederland

Made in China

1. VEILIGHEID

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple line drawing of a square frame with a black 'X' symbol on the top and two small supports at the bottom (no text or labels)

Simple line drawing of a whiteboard with a black checkmark on the top (no text or symbols)

4. Reinig

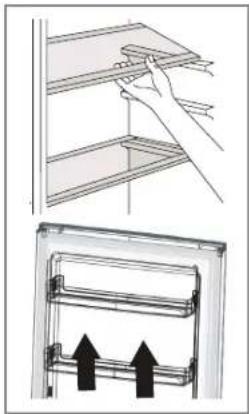

Technical illustration showing a hand placing a component into a shelf, and a close-up of a mechanical device with upward arrows indicating motion (no text or symbols)

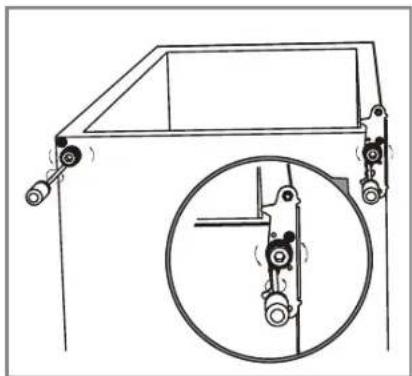

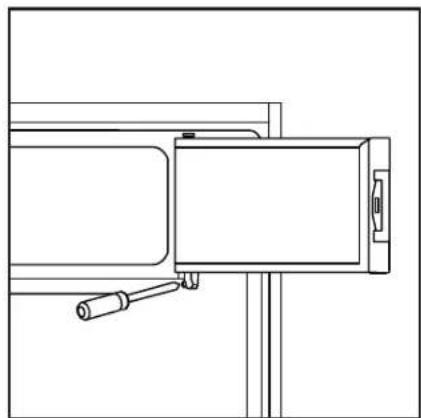

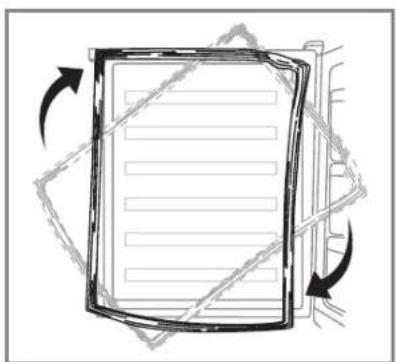

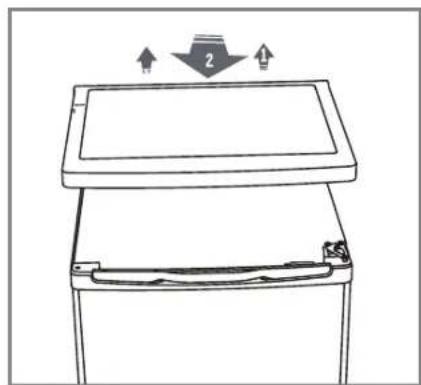

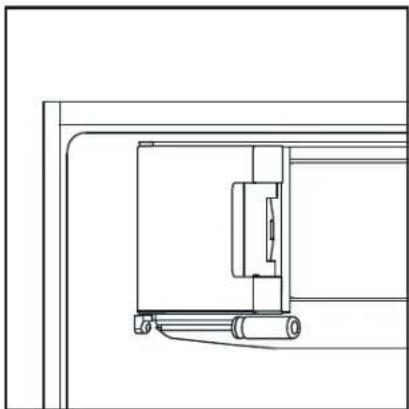

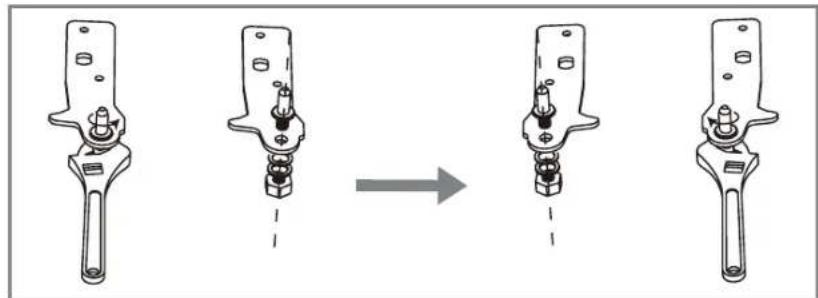

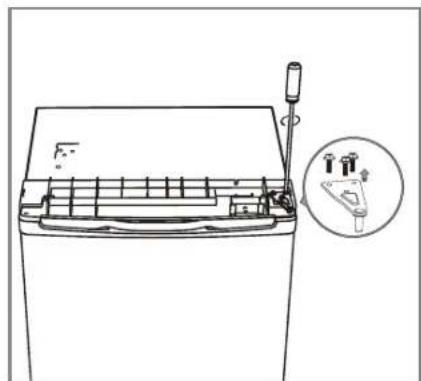

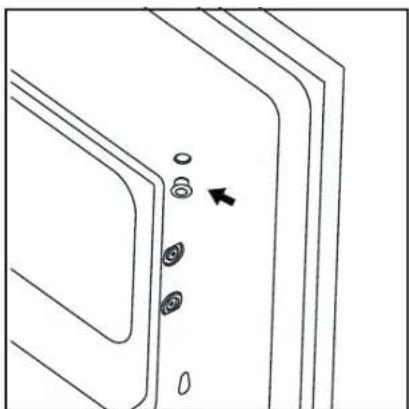

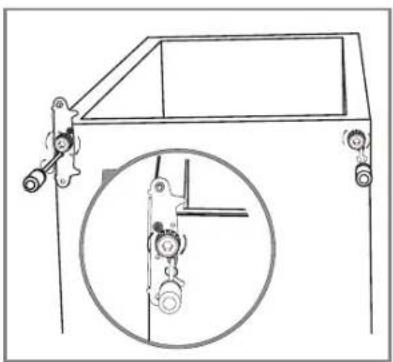

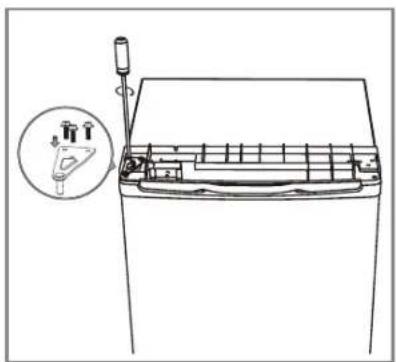

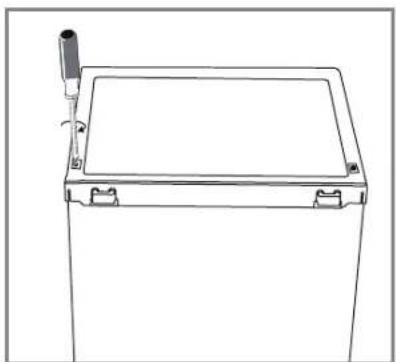

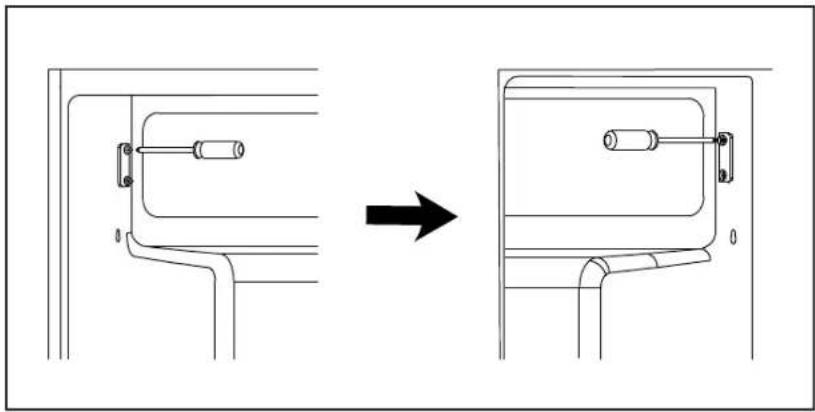

3.2 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of a rectangular electronic device with a handle and mounting bracket, no text or symbols present

Line drawing of a refrigerator with lid and side door, no text or symbols present

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Z

Line drawing of a door panel with four circular buttons and an arrow pointing to the door (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical frame with a circular inset showing a gear mechanism (no text or symbols)

Diagram showing a mechanical assembly process with four sequential steps, no text or symbols present

Technical line drawing of a mechanical frame with a magnified inset showing a pulley mechanism (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Line drawing of a rectangular electronic device with a screwdriver inserted, no text or symbols present

Diagram of a document being rotated with arrows indicating rotation, no text or symbols present

4. GEBRUIK

4.1 VOORZORGSMAATREGELEN BIJ GEBRUIK

Wisepick Productions B.V.

Weena 664

3012CN, Rotterdam

Nederland

Made in China

EN - USER MANUAL

REFRIGERATOR

WBTTKV55CB

WBTTKV55CW

WISBERG

TABLE OF CONTENT

FOREWORD

24

1. SAFETY 25

1.1 Intended use and anticipated unintended use 25
1.2 Safety warnings and regulations 25
1.3 Safety instructions: installation 26
1.4 Safety instructions: use 27

2. PRODUCT FEATURES 28

2.1 Dimensions 28
2.2 Guarantee 29
2.3 Technical Data 29

3. INSTALLATION 29

3.1 Installing the appliance 29
3.2 Reversing the direction in which the door opens 30

4. USE 34

4.1 Precautions for use 34
4.2 Setting the temperature 34
4.3 Storage of food 35

1. MAINTENANCE AND CLEANING 36

2. TROUBLESHOOTING 37

3. TAKING OUT OF SERVICE 39

4. SAFE DISPOSAL 39

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Wisepick Productions B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
DANGER!	Fire hazard and/or flammable materials
WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at wisberghome.com if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Wisepick Productions B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Wisepick Productions B.V. and/or the third party to whom the data belong.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as:
- staff kitchens in shops, offices and other work environments;
- farms and guests in hotels, motels, B&B and other residential environments;
- catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

• Keep the power cable away from heat, oil, sharp edges or moving parts.

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

! CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

! ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
• Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.

• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range N, ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST From +16°C to +38°C
T From +16°C to +43°C

1.4 SAFETY INSTRUCTIONS: USE

! CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

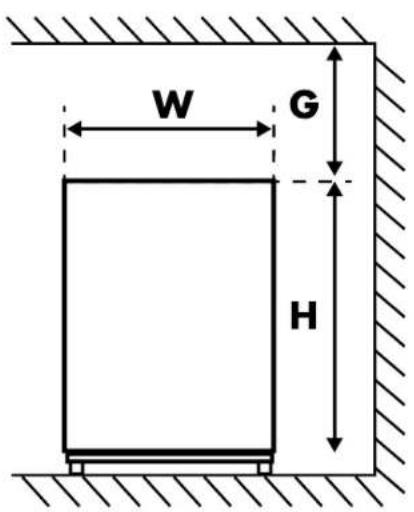

2.1 DIMENSIONS

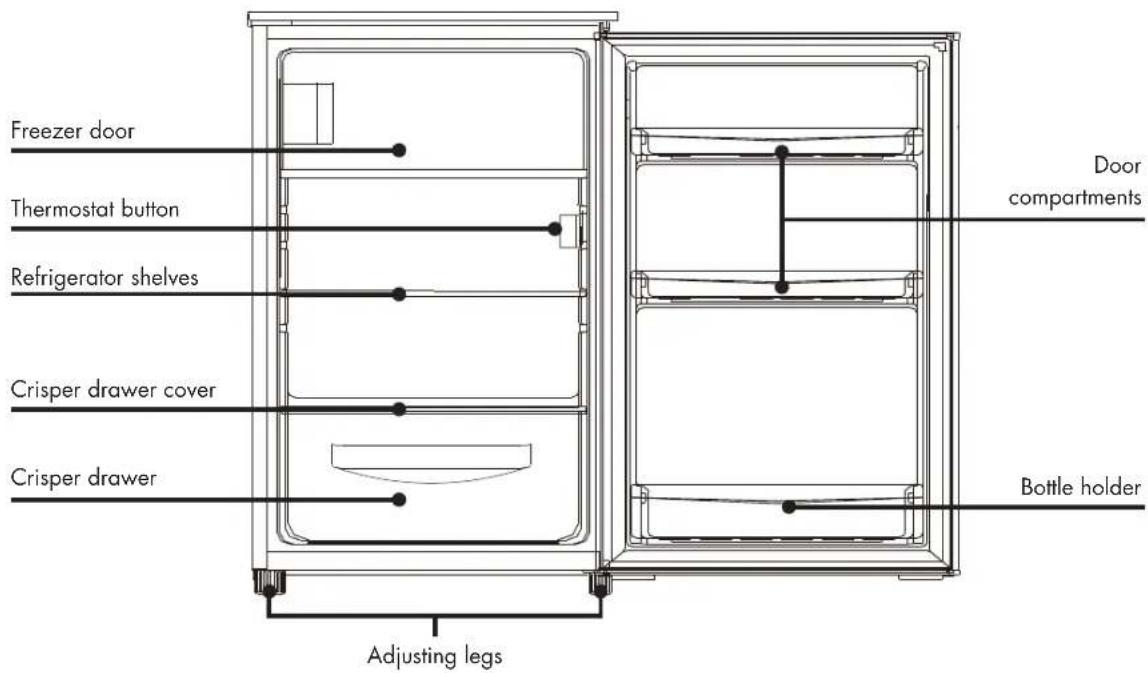

Freezer door Thermostat button Refrigerator shelves Crisper drawer cover Crisper drawer Adjusting legs Door compartments Bottle holder

W G H

E D F F B C A

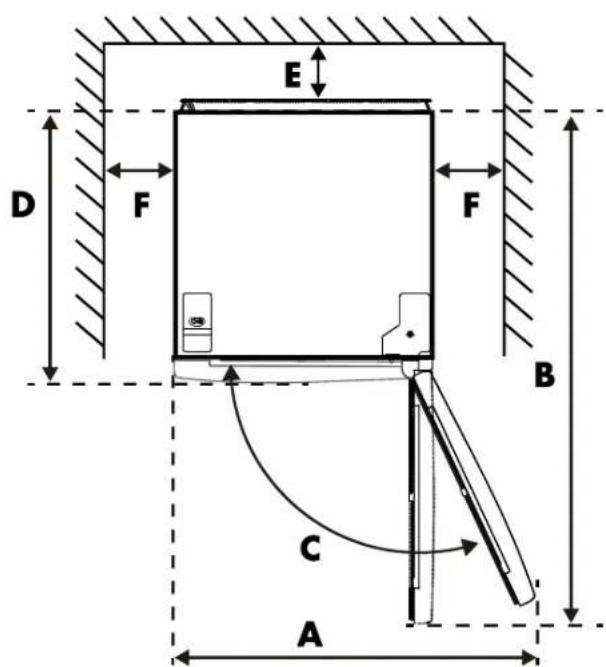

• Figure 1. Front view • Figure 2. Top view

*Figures 1 and 2 illustrate the space required for the appliance.

2.2 GUARANTEE

This appliance comes with a guarantee period of three years after purchase. For more information on guarantee conditions, please visit wisberghome.com. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit: wisberghome.com.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

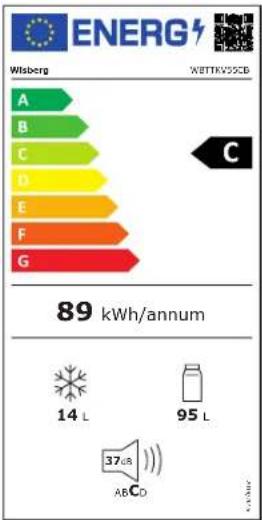

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
  • Always place the appliance on a moisture-resistant and dry surface.

- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

Simple line drawing of a rectangular frame with a black 'X' symbol on the top and two base supports at the bottom (no text or labels)

Simple line drawing of a rectangular object with a black checkmark on top, placed on a base (no text or symbols)

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

8. Storing food

See Section 4 "Use".

Diagram showing two views of a refrigerator with hand positioning and internal structure (no text or symbols)

3.2 REVERSING THE DIRECTION IN WHICH THE DOOR OPENS

To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.

Keep all removed parts to remount the door later.

During this process, the appliance must be placed on its back. After this, wait four hours before connecting the appliance so that the oil can flow back to the compressor.

Necessary tools:

Line drawing of a screwdriver with no text or symbols

• Crosshead screwdriver

- 8 mm socket spanner

- Flat head screwdriver

- 10 mm socket spanner

1. Unplug and empty the appliance.

Remove the two screws at the back of the top cover.

Line drawing of a rectangular electronic device with a screwdriver inserted, showing no text or symbols

1. Remove the top cover and set it aside.

Line drawing of a refrigerator with a lid and side panel, no text or symbols present

1. Unscrew the top hinge and then remove the door; place it on a soft surface to avoid scratching.

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

1. Unscrew the bottom hinge of the freezer door. Then dismantle the door.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Move the handle from the left-hand side to the right-hand side of the door.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

1. Move the hinge cover from the left-hand side to the right-hand side of the door.

Diagram of a door panel with four buttons and an arrow pointing to the door (no text or symbols present)

1. Rotate the freezer door and place the hinge on the left-hand side. Close the door with the handle.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Unscrew the bottom hinge. Then remove the adjusting legs on both sides.

Technical line drawing of a mechanical frame with a magnified inset showing a circular component (no text or symbols)

1. Unscrew and remove the pin on the bottom hinge, turn the bracket over and replace it.

2. Mount the bottom hinge pin bracket. Mount both adjusting legs.

3. Mount the door. When fitting the door, make sure the top of the door is level with the top of the cabinet. Otherwise the rubber gasket does not seal the cabinet properly, which can cause the appliance to malfunction.

4. Replace the top cover and secure it with two screws at the back.

5. Remove the door gaskets from the appliance, rotate and re-attach them.

Diagram showing four sequential views of a mechanical clamp or lever mechanism, with no text or symbols present.

Technical line drawing of a vehicle door frame with an inset showing a pulley mechanism (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Line drawing of a rectangular electronic device with a vertical scroll and mounting bracket (no text or symbols)

Diagram of a document being rotated with arrows indicating rotation (no text or symbols present)

4. USE

4.1 PRECAUTIONS FOR USE

• On first use or after a long period of downtime: run the appliance for at least four hours at position '7' before placing products in the freezer. After 24 hours, set the temperature control back to position '4'.
• The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the type plate, which is explained in section 1.3.
• The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.
• If vibration noise occurs because the appliance is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the appliance away from the wall.
• Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.
• Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
• Only use the power cable installed on the appliance from the factory. Do not change the power cable. The power cable may only be replaced by an authorised service technician.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

4.2 SETTING THE TEMPERATURE

You can set the temperature of the appliance by turning the thermostat button.

• The thermostat can be set between 1 and 7.
• 1 is the warmest setting.
- 7 is the coldest setting.
• The recommended setting is 4.
- Turn the dial to 0 to turn the appliance off.

6 7 5 0 4 1 2 3

The internal temperature of the appliance may vary due to the ambient temperature, the amount of products stored and the frequency with which the door is opened.

Under normal operating conditions we recommend setting the temperature to 4. In summer, when the ambient temperature is high, we recommend setting the temperature to 3-4.

In winter, when the ambient temperature is low, we recommend setting the appliance to 5-6.

NOTE

The thermostat setting '6' or '7' is suitable when the ambient temperature is below 16^ C, but this can lead to ice formation if the appliance continues to run at such a setting for a long time below the normal ambient temperature, which is a normal phenomenon. In this case we recommend setting the appliance to a higher temperature (position 1-5) provided that the articles in the appliance allow this.

4.3 STORAGE OF FOOD

• The freezer is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours is for this appliance: 2,4 kg.
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• The temperature of the freezer is kept below -18°C if the thermostat is set to position '4'. This allows food to be stored for a long time. The storage period on the packaging must be observed.
• The ideal temperature setting for the freezer is -18^ . It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.
• Allow hot food to cool to room temperature before putting it in the freezer.
• Only freeze fresh and thoroughly cleaned foods.
• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.
• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.
• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.
• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.
• Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.
• Packaging bags you use should be dry, in case several packaging bags are frozen together.
• Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.
• To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free. Tips for buying frozen goods
• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.
• Ensure that frozen food packaging is in perfect condition.
  • Always buy frozen products at the end of your shopping trip or visit to the supermarket.
• Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.
• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.
• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.
• Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

Tips for buying frozen goods

• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.
• Ensure that frozen food packaging is in perfect condition.
  • Always buy frozen products at the end of your shopping trip or visit to the supermarket.
• Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.
• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.
• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.
• Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

! CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the freezer compartment if your hands are wet/damp as this
- may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

! ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING

When the appliance is in use for some time, a thin layer of ice is formed on the surface of the inner wall of the freezer compartment (or evaporator). If this layer is more than 3 mm thick, it can affect the cooling effect. Energy consumption increases by about 10 percent for every 2 millilitres of ice. The ice layer should be removed approximately every three months.

Go through the following steps to remove the ice layer:

• Remove frozen food from the appliance. Place the food temporarily in a cool box, cooler bag or an extra freezer.
• Turn the appliance off, open the door and allow the freezer to defrost.
• Place a drip tray under the freezer, or place towels in and under the freezer. Stay nearby to drain meltwater.
• Remove the fixed ice crust when it softens. Do not use scrapers or spatulas as this can damage the freezer.
  • After defrosting, clean the inside of the appliance and turn the appliance on.
• Run the unit for at least four hours on position '7' before putting products back in the freezer. After 24 hours, set the temperature control back at '4'.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service: wisberghome.com

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS
The appliance does not cool at all	- The temperature control knob is in the highest position.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than 16°C, such as a balcony, garage or storage room.	- Switch the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 16°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The appliance freezes or cools too much.	- The temperature is set too cold or the appliance is in the coldest position.	- Temporarily set the temperature control knob to a warmer position.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Wisepick Productions B.V. if you no longer wish to use the device or to return the device.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Wisberg contact details

Customer service can be reached at: wisberghome.com

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China

FR - NOTICE D'UTILISATION

RÉFRIGÉRATEUR

WBTTKV55CB

WBTTKV55CW

WISBERG

TABLE DES MATIÈRES

AVANT-PROPOS

42

1. SÉCURITÉ 43

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

1. SÉCURITÉ

1.1 UTILISATION PRÉVUE ET UTILISATION INVOLONTAIRE PRÉVISIBLE

Simple line drawing of a rectangular frame with a black checkmark symbol on the left side (no text or labels)

Simple line drawing of a square frame with an 'X' symbol on the top and two base supports at the bottom (no text or labels)

4. Nettoyage

Illustration showing a hand holding a shelf and a mechanical device with upward arrows (no text or symbols)

3.2 INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a screwdriver with no text or symbols

- Tournevis cruciforme

- Tournevis plat

Line drawing of a rectangular electronic device with a handle and mounting bracket, no text or symbols present

Line drawing of a mechanical device with a lid and base, showing no text or symbols

Line drawing of a battery casing with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Diagram of a door with four buttons and an arrow pointing to one (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical frame with a magnified inset showing internal components (no text or symbols)

马

Diagram showing four sequential views of a mechanical clamp or bracket assembly, with no text or symbols present.

Technical line drawing of a vehicle door frame with an inset showing a pulley mechanism (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing a tool interacting with a component (no text or symbols)

Line drawing of a rectangular electronic device with a lid and handle (no text or symbols)

Diagram of a document with arrows indicating rotational movement around it, no text or symbols present

4. UTILISATION

PROBLÈME CAUSE POSSIBLE SOLUTIONS

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Les Pays-Bas

Made in China

DE - BENUTZERINFORMATION

KÜHLSCHRANK

WBTTKV55CB

WBTTKV55CW

WISBERG

INHALT

VORWORT

61

1. SICHERHEIT 62

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

1. SICHERHEIT

Simple line drawing of a box with a black checkmark on top, placed on a stand (no text or symbols)

Simple line drawing of a square frame with a black 'X' symbol on the top and two small blocks at the bottom (no text or labels)

Technical illustration showing a hand installing or adjusting a panel on a shelf, with an inset diagram of a mechanical device (no text or symbols present)

Line drawing of a rectangular electronic device with a screwdriver inserted, showing no text or symbols

Line drawing of a refrigerator with a lid and front panel, no text or symbols present

Line drawing of a battery pack with a close-up inset showing internal components (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Line drawing of a door with buttons and an arrow pointing to the door (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a pulley mechanism (no text or symbols)

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Line drawing of a rectangular electronic device with a handle and mounting base (no text or symbols)

Diagram of a document with arrows indicating rotational movement, no text or symbols present

4. BENUTZUNG

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

Die Niederlande

Made in China

Wisberg contact details

Wisepick Productions B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

Made in China
