USER MANUAL SPOT-240LED-FC AFX

Technical line drawing of a mechanical device with top and side views (no text or symbols)

View the product on our website and download the multilanguage manual

Illustrations - p. 2-3

DMX channels - p. 4-7

GB - User Manual - p. 7

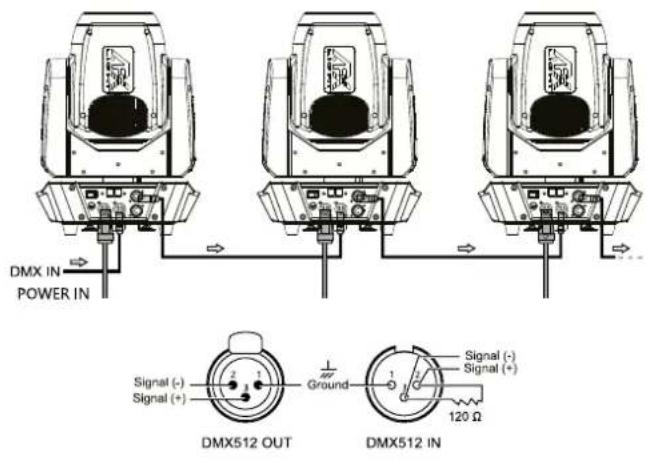

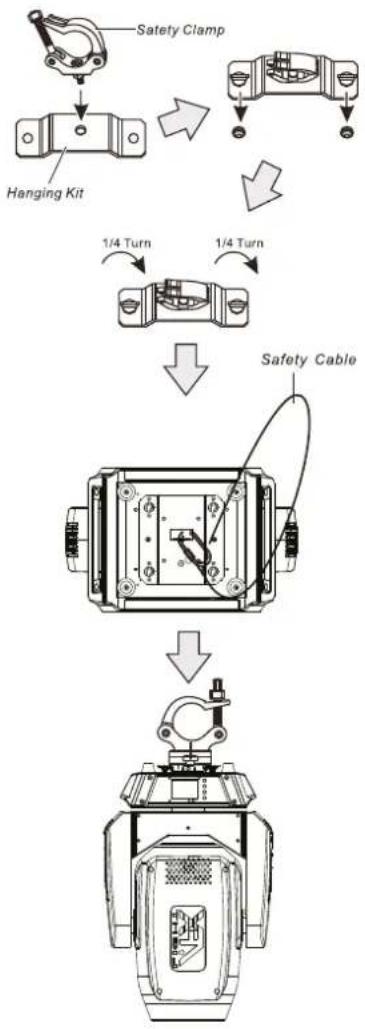

INSTALLATION DIAGRAM (FIG. 3) FIXTURE LINKING (FIG. 4)

DMX IN POWER IN Signal (-) Signal (+) DMX512 OUT Ground Signal (-) Signal (+) DMX512 IN 120 Ω

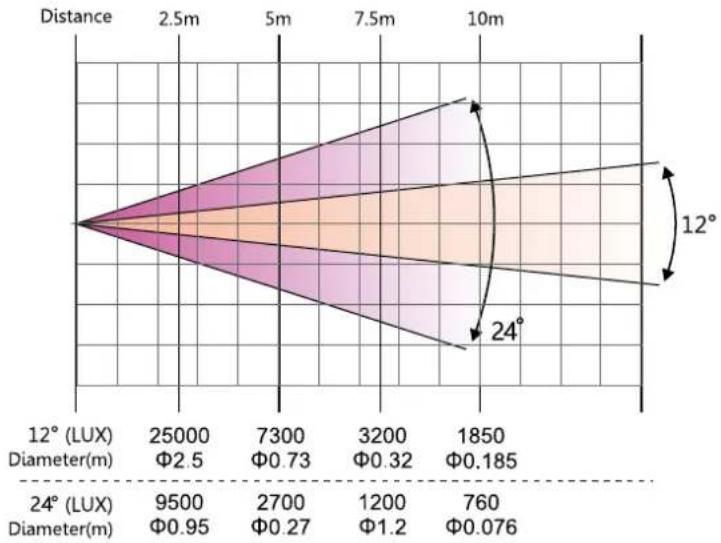

PHOTOMETRIC DIAGRAMS (FIG. 5)

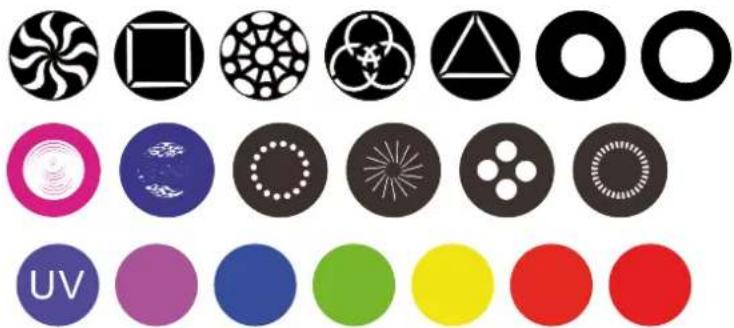

GOBO & COLOUR WHEEL

Collection of colorful circular icons including swirls, squares, patterns, and symbols (no text or labels)

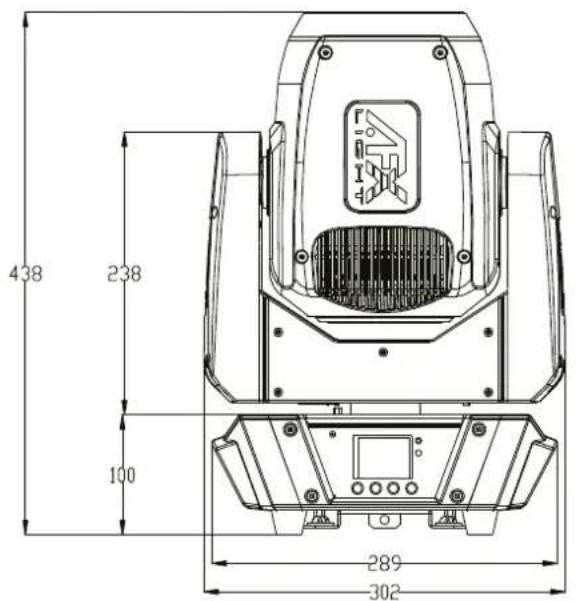

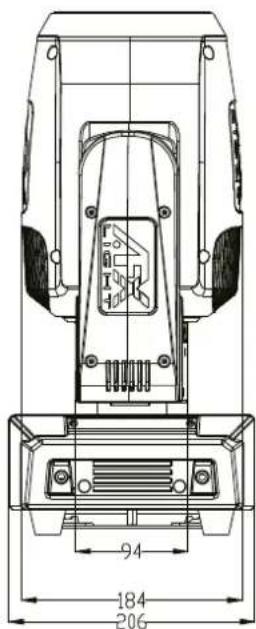

DIMENSIONS

438 238 100 289 302

WWW.AFX-LIGHT.COM

94 184 206

Mode/Channel			Value	Function
23CH	21CH	31CH
1	1	1		Pan
			0..255	PAN Movement
2		2		Pan-fine
			0..255	Fine control of Panmovement
3	2	3		Tilt
			0..255	TiltMovement
4		4		Tile-fine
			0..255	Fine control of Tiltmovement
5	3	5		Color wheel
			0..15	Open/ white
			16..31	Color1
			32..47	Color2
			48..63	Color3
			64..79	Color4
			80..95	Color5
			96..111	Color6
			112..127	Color7
			128..189	Forwards rainbow effect from fast to slow
			190..193	Color rotation stop
			194..255	Backwards rainbow effect from slow to fast
6	4	6		Gobo wheel 1
			0..19	Open
			20..39	gobo1
			40..59	gobo2
			60..79	gobo3
			80..99	gobo4
			100..119	gobo5
			120..139	gobo6
			140..154	Gobo 1 shake slow to fast
			155..169	Gobo 2 shake slow to fast
			170..184	Gobo 3 shake slow to fast
			185..199	Gobo 4 shake slow to fast
			200..214	Gobo 5 shake slow to fast
			215..229	Gobo 6 shake slow to fast
			230..255	Rot. gobo wheel cont. rotation slow to fast
7	5	7		Gobo1 rotation
			0..3	no function
			4..127	Forwards gobo rotation from fast to slow
			128..131	Gobo rotation stop
			132..255	Backwards gobo rotation from slow to fast
8	6	8		Gobo wheel 2
			0..14	Open
			15..29	gobo1
			30..44	gobo2
			45..59	gobo3
			60..74	gobo4
			75..89	gobo5
			90..104	gobo6
			105..119	gobo7
			120..134	Gobo1 shakeslowto fast
			135..149	Gobo2 shakeslowto fast
			150..164	Gobo3 shakeslowto fast
			165..179	Gobo4 shakeslowto fast
			180..194	Gobo5 shakeslowto fast
			195..109	Gobo6 shakeslowto fast
			210..224	Gobo7 shakeslowto fast
			225..255	Rot. gobo wheel cont. rotation slow to fast
9	7	9		Shutter
			0..31	Shutter closed
			32..63	shutter open
			64..95	Strobe effect slow to fast
			96..127	shutter open
			128..143	Pulse-effect insequences open light slow to fast
			144..159	Pulse-effect insequences close light fast to slow
			160..191	shutter open
			192..223	Random strobe effect slow to fast
			224..255	shutter open
10	8	10		Dimmer
			0..255	Dimmer0%...100%
11	9	11		Focus
			0..255	In(near)to out(far)
12	10	12		Zoom
			0..255	In(near)to out(far)
13	11	13		Rotating prism, Prism
			0..5	OFF
			6..127	ON
			128..189	Forwards rotation from fast to slow
			190..193	Prism rotation stop
			194..255	Forwards rotation from fast to slow
14	12	14		Speed pan/tile
			0..225	max to min speed
			226..235	blackout by movement
			236..245	blackout by all wheel changing
			246..255	no function
15	13	15		Special function
			0..19	No function
			20	FAN AutoMode
			21..38	FAN Slow to Fast
			39	FAN Minimum Speed
			40..79	No function
			80..84	All Motor reset
			85..87	Scan motor reset
			88..90	Colors motor reset
			91..93	Gobo motor reset
			94..96	no function
			97..99	Other motor reset
			100..108	Internal program 1
			109..117	Internal program 2
			118..126	Internal program 3
			127..135	Internal program 4
			136..144	Internal program 5
			145..153	Internal program 6
			154..162	Internal program 7
			163..171	Internal program 8
			172..180	Internal program 9
			181..189	Internal Sound program 1
			190..198	Internal Sound program 2
			199..207	Internal Sound program 3
			208..216	Internal Sound program 4
			217..225	Internal Sound program 5
			226..234	Internal Sound program 6
			235..243	Internal Sound program 7
			244..252	Internal Sound program 8
			253..255	Internal Sound program 9
Vector Mode Value				Function
		16		Color Time
			0..255	maxtominspeed
		17		Gobo Time
			0..255	maxtominspeed
16	14	18		Pix_Dimmer
			0..255	Pix_Dimmer 0%...100%
17	15	19		Pix_Strobe
			0..255	Pix_Strobe Speed0%...100%
18	16	20		Pix_Red
			0..255	0-100% Pix_Red dimmerfromdarkto bright
19	17	21		Pix_Green
			0..255	0-100% Pix_Green dimmerfromdarkto bright
20	18	22		Pix_Blue
			0..255	0-100% Pix_Blue dimmerfromdarkto bright
21	19	23		Pix_color
			0..0	No Function
			1..15	Red
			16..31	Green
			32..47	Blue
			48..63	Red+Blue
			64..79	Red+Green
			80..95	Green+Blue
			96..111	Red+Blue+Green
			112..127	2700K
			128..143	3200K
			144..159	3500K
			160..175	5000K
			176..191	5500K
			192..207	6000K
			208..223	6500K
			224..239	7000K
			240..255	8000K
22	20	24		Pix_Macro
			0..15	No Function
			16..29	PixDynamic Scene1
			30..43	PixDynamic Scene2
			44..57	PixDynamic Scene3
			58..71	PixDynamic Scene4
			72..85	PixDynamic Scene5
			86..99	PixDynamic Scene6
			100..113	PixDynamic Scene7
			114..127	PixDynamic Scene8
			128..143	PixDynamic Scene9
			142..155	PixDynamic Scene10
			156..169	PixDynamic Scene11
			170..183	PixDynamic Scene12
			184..197	PixDynamic Scene13
			198..211	PixDynamic Scene14
			212..225	PixDynamic Scene15
			226..239	PixDynamic Scene16
			240..255	PixDynamic Scene17
23	21	25		Pix_Macro_Speed
			0..255	Slowto Fast

		26		Expand Patterns
			0..15	No Function
			16..29	PixDynamic Scene1
			30..43	PixDynamic Scene2
			44..57	PixDynamic Scene3
			58..71	PixDynamic Scene4
			72..85	PixDynamic Scene5
			86..99	PixDynamic Scene6
			100..113	PixDynamic Scene7
			114..127	PixDynamic Scene8
			128..143	PixDynamic Scene9
			142..155	PixDynamic Scene10
			156..169	PixDynamic Scene11
			170..183	PixDynamic Scene12
			184..197	PixDynamic Scene13
			198..211	PixDynamic Scene14
			212..225	PixDynamic Scene15
			226..239	PixDynamic Scene16
			240..255	PixDynamic Scene17
		27		Pix_Foreground dimmer
			0..255	Pix_ExpandPatternsForegrounddimmer0-100%. (Foreground ColorSharewith "Pix_Macro"Channel)
		28		Pix Background dimmer
			0..255	Pix_ExpandPatternsBackgrounddimmer0-100%.
		29		Pix Background Red
			0..255	Pix_Expand Patterns BackgroundRed0-100%.
		30		Pix Background Green
			0..255	Pix_Expand Patterns BackgroundGreen0-100%.
		31		Pix Background Blue
			0..255	Pix_Expand Patterns BackgroundBlue0-100%.

USER MANUAL

UNPACKING INSTRUCTIONS

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. Keep the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

CONTENTS OF THE CARTON

• 1 x LED light effect
• 2x omega clamps
• 1x Powercon cable
• 1x DMX lead
• 1x User Manual

EXPLANATION OF SYMBOLS ON THE SILKSCREEN

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

The unit complies with UK standards

For indoor use only

Minimum distance between the appliance and other objects

Don't stare into the light beam

IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

Please read this manual carefully before operating this product.

SAFETY RECOMMENDATIONS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the bottom of the fixture.
• The appliance is part of class I and must exclusively connected to an earthed mains outlet.
• This product is intended for indoor use only!
• To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• The minimum distance luminaire from that part of the luminaire or lamp to the lighted object is 0.5m.
• The max. ambient temperature (Ta) is 40^ . Don't operate the fixture at higher temperatures.
• The surface temperature of the unit may reach up to 85^ C. DO NOT TOUCH the housing bare-hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or servicing.
• DO NOT OPEN the unit within 5 minutes after switching off.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!
• The product is for decorative purposes only and not suitable as a household room illumination.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• The lenses, housing or ultraviolet filter must be replaced if they are visibly damaged.
• The light source of this device is not replaceable. If it is defective, the entire unit must be discarded.

DISCONNECT DEVICE

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

FEATURES

• 240W white LED + 25 x 0.2W RGB SMD LED
• 23/21/31 DMX channels

• ArtNet
• DMX, master-slave, sound controlled and auto mode (8 built-in programs)
  • 1 static gobo wheel with 7 gobos + open
• 1 rotating gobo wheel with 6 interchangeable gobos + open, speed adjustment, clockwise/anti-clockwise rotation
• Stream effect
• Gobo shake
• Improved optics and flat beam field
• Smooth electronic linear zoom 12^ - 24^
  • PAN 630°/540°/360°
  • TILT 270°/180°/90°
• 8/16 bit smooth and precise resolution for PAN/TILT movement
• Scan position memory, auto reposition after unexpected movement.
  • 0-100% smooth linear LED dimmer
• 1-25x/sec high speed LED strobe/shutter effect with variable speed
• Pre-set variable/random strobe and dimming pulse effects
• 1.8" TFT LCD display
• Constant temperature readout and management function
  • IN/OUT Powercon connector
  • RJ45 IN/OUT connectors for ArtNet
• Side-mounted handles for ease of transport
• Supplied with 2x omega clamps
• Eyelet for a safety rope

FUSE REPLACEMENT

Disconnect the power cord before replacing a fuse and always replace with the same type fuse. With a screwdriver wedge the fuse holder out of its housing.

Remove the damaged fuse from its holder and replace with exactly the same type of fuse.

Insert the fuse holder back in its place and reconnect power.

Warning: If after replacing the fuse you continue to blow fuses, STOP using the unit. Contact customer support for further instructions. Continuing to use the unit may cause serious damage.

CONTROL CONNECTION (FIG4)

Connect the provided XLR cable to the 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple moving heads together through serial linking. The cable needed should be 2-core, screened cable with XLR input and output connectors. Please refer to diagram 4.

DMX512 CONNECTION WITH DMX TERMINATOR

For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX termiantor. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminaotr is simply an XLR plug with a resistor connected between pins 2 and 3 which is then plugged into the output XLR socket of the last fixture in the chain. Please refer to diagram 4.

INSTALLATION (FIG.3)

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit's weight.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope. Never stand directly below the device when mounting, removing or servicing the fixture. This fixture may be mounted in any position provided there is adequate room for ventilation.

The LED moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included 'omega bracket' and the safety cable rigging point in one unit (see illustration 3). When mounting this fixture on a truss, be sure to use an appropriate clamp with the included omega bracket using a M10 screw fitted through the center hole of the 'omega bracket'. As

an added safety measure, be sure to attach at least one properly rated safety cable to the fixture using one of the safety cable rigging points integrated in the base assembly.

POWER LINK

Connect an IEC cable from the POWER OUT connector of the 1st unit to the POWER IN connector of the second unit, etc.

CONTROL PANEL (FIG. 2)

To access the main menu press the MENU button. Press the UP or DOWN buttons until you reach function you wish to change. When you reach the function you wish to change, press the ENTER button. When a function is selected, use the UP or DOWN buttons to change the function settings. Once your changes are made, press the ENTER button.

Tip: Press UP & DOWN buttons at the same time for 3 seconds. The display will reverse.

ARTNET FUNCTION

Art-Net uses a network protocol that greatly extends the use of DMX, simplifies cabling by using RJ45 Ethernet cables and the possibility of using existing networks, HUBs and WIFI.

Art-Net theoretically allows the use of up to 32,768 universes, offering a huge range of possibilities.

Connect an RJ45 cable to the RJ45 connectors on the rear panel, and the other end to your network.

FUNCTION MENU

MENU DESCRIPTION
DMX Mode	DMX address A001-	AXXX DMX address setting
	Channel Mode	23CH 23 channel mode
		21CH 21 channel mode
		31CH 31 channel mode
	Auto run	Internal pro-gram 1-9	Master/Alone Auto mode
	Music run	Internal pro-gram 1-9	Master/Alone Sound controlled mode
Option	Reset Default Yes/No Reset to default values
	Ethernet Function	ArtNet to DMXDevice IP addr:Host IP Addr:Universe:Share signal:	(On/Off)XXX.XXX.XXX.XXXX.XXX.XXX.XXX.XXX000(On/Off)	Connect ArtNet to DMXSetting Device IP addressSetting Host IP addressSetting the Universe Send ArtNet signal to DMX
	Reverse Pan (on/off) Reverse Pan
	Reverse Tilt (on/off) Reverse Tilt
	Select Pan	630/540/360		Select Pan
	Select Tilt	270/180/90		Select Tilt
	Mic sensitivity	0-99%		Mic sensitivity
	OFF signal mode	(On/Off)		Off at original status and ON at reset status if no DMX signal
	Fast scan	(On/Off)		Fast scan
	Totem mode	OFF/CEN./R/L		Restricts pan & tilt motion
Manu	Reset	Total resetPan/Tilt resetColour resetGobo resetOther Resets	Reset AllReset Pan/TiltReset ColourReset goboReset the others
	Channel PAN=XXX...	Manual channel control
ADV(Advanced)(Access code 0888)	CalibrationUID code	PAN=XXX...	CalibrationUID code

MAINTENANCE AND CLEANING

DANGER! DISCONNECT FROM THE MAINS BEFORE STARTING ANY MAINTENANCE WORK

It is essential that the fixture is kept clean and that no dust, dirt or smoke fluid residues are allowed to build up on or in the fixture. Failure to do so will significantly reduce the luminaire's light output. Regular cleaning will not only ensure maximum light output but will also give the fixture a long and reliable life. A soft, lint-free cloth moistened with any good glass cleaning fluid is recommended. Never use alcohol or solvents!

The front lens should be cleaned weekly as smoke fluid tends to build up and reduce light output very quickly. The cooling fans should be cleaned monthly.

The inside of the fixture should be cleaned at least once a year with a vacuum cleaner or blower. Use a soft brush and vacuum cleaner to remove dust and dirt from the fans and cooling vents.

IMPORTANT! Check the air filters regularly and clean them before they become clogged!

Clean two air filters located in the fixture covers and two in the fixture base. Use a vacuum cleaner, compressed air or you can wash them and put them back dry.

After replacing the air filters, reset the elapsed time counter in the Information menu (Information -> Air filters -> Elapsed time).

SPECIFICATIONS

Power supply 100-240V\~50/60Hz

Consumption 260W

Light source ...... White 240W LED + 25 x 0.2W SMD RGB LED

PAN 630°/540°/360°

TILT 270°/180°/90°

Dimensions 302 x 206 x 438mm

Weight 10.38kg

MANUEL D'UTILISATION

DÉBALLAGE

DISPOSITIF DE COUPURE

REPLACEMENT DU FUSIBLE

INSTALLATION (FIG. 3)

Consommation.... 260W

Source lumineuse.... 1 LED blanche 240W + 25 LED SMD RGB 0.2W

Dimensions 302 x 206 x 438mm

Poids 10,38kg

INSTALLATIE (AFB. 3)

View the product on our website and download the manual

Follow us on Instagram

QR code with Instagram logo in the center, likely linking to a digital resource or website.

AFXLIGHTPRO

Any problem or question?
Join us on facebook

Assembled in PRC

Designed by LOTRONIC S.A.

Rue F. Englert 17·Bt 2

B-1480 TUBIZE

CE

UK CA

[Non-Text]

FR
