Brand	Braun
Model	Series X XT5200
Category	Trimmer / Body shaver
Product type	Cordless rechargeable trimmer
Dimensions (approx.)	18 x 4 x 4 cm
Weight (approx.)	180 g
Power supply	Mains charger 100-240 V, safety extra low voltage output
Runtime (approx.)	50 minutes
Charging time (approx.)	8 hours
Battery indicator	LED indicator: slow blinking when charging, fast if battery low
Cutting head	Stainless steel blade (variable design)
Face trimming combs	4 combs: 1, 2, 3, 5 mm
Sensitive body comb	0 mm for delicate areas
Body comb	3 mm
Usage	Dry or in the shower / bath
Cleaning	Rinse under running water (device on)
Charging temperature	5 to 35 °C
Operating temperature	15 to 35 °C
Safety	Cordless use only; do not open; batteries not replaceable
Spare parts / Repairability	Batteries not user-replaceable; use only original Braun accessories
Included accessories	Charger, charging base, protective cap, 6 combs
Recycling	Do not dispose of with household waste; return to store or recycling center
Warranty	2 years (subject to legal conditions)

Frequently Asked Questions - Series X XT5200 BRAUN

Can I use the trimmer in the shower?

Yes, the device can be used in the bath or shower. It is fully waterproof and can be rinsed under running water.

How to clean the Braun Series X XT5200 trimmer?

Turn on the device and rinse it under running water until all residues are removed. You can also clean it with the supplied brush. Make sure it is unplugged before any water cleaning.

How long does it take to fully charge the battery?

The charging time is approximately 8 hours. During charging, the LED indicator blinks slowly.

What does the fast blinking LED indicator mean?

A fast blinking LED indicates a low battery. It is time to recharge the device.

Can I use the trimmer while it is plugged in?

No, for safety reasons, the device can only be used cordless. Unplug it before use.

Is the battery replaceable?

No, the battery is built-in and non-replaceable by the user. Do not attempt to open the device.

What combs are included with the Series X XT5200 model?

The device comes with 6 combs: 4 for face (1, 2, 3, 5 mm), 1 sensitive body comb (0 mm) and 1 body comb (3 mm).

Can I use the trimmer on sensitive areas?

Yes, use the sensitive body comb (0 mm) specially designed for delicate areas.

How to recycle the trimmer at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electrical waste or to a store. The product contains recyclable batteries.

What is the recommended storage temperature?

The recommended ambient temperature for storage and shaving is between 15 and 35 °C. Avoid prolonged exposure above 50 °C.

USER MANUAL Series X XT5200 BRAUN

Line drawing of a Braun electric toothbrush with power button (no text or symbols on body)

21173394/VIII-24

P&G RESTRICTED
Scan Me!

Braun Infolines

Deutsch 9

English 10

Français 14

Español 16

Português 17

Italiano 19

Nederlands 21

Dansk 22

Norsk 24

Svenska 25

Suomi 27

Ελληνικά 28

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 800 200 766

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

GR 800 801 3458

HK (852)2986 9886

(Customer Service Center)

Type 5590

Braun GmbH

1 mm

2 mm

3 mm

5 mm

0 mm

3 mm

Battery light

On/off button

7 Power outlet

8 Power supply

! Accessories, features and design may vary by model

Illustration of a person using a hairbrush and a handheld tool (no text or symbols visible)

Illustration showing a person applying a hairbrush to another person's neck, with red arrows indicating the motion (no text or symbols present)

Technical illustration of a hairbrush with five numbered components (1-5), shown from two different angles (no text or symbols present)

Two-step illustration showing a hand using a hairbrush to clean or wear a textured surface, with red arrows highlighting the process (no text or symbols present)

Simple line drawing of a pipe with a handle and three dotted lines below indicating a drop or stroke (no text or symbols)

Close-up of a mechanical component with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a spray bottle with liquid, no text or symbols present

Illustration of a hand using a brush to press down liquid droplets, with an upward arrow indicating flow or pressure (no text or symbols)

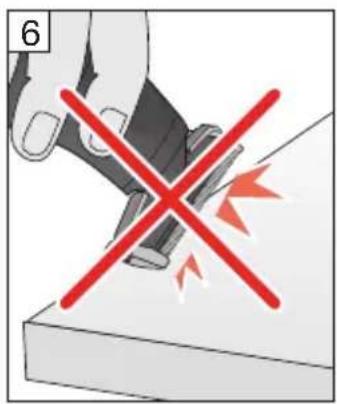

Illustration of a hand using a tool to mark a red X symbol on a surface, with no text or symbols present.

Deutsch

Read these instructions completely, they contain safety information. Keep them for future reference.

WARNING

This appliance is suitable for cleaning under running water and use in a bathtub or shower.

For safety reasons, it can only be operated cordless.

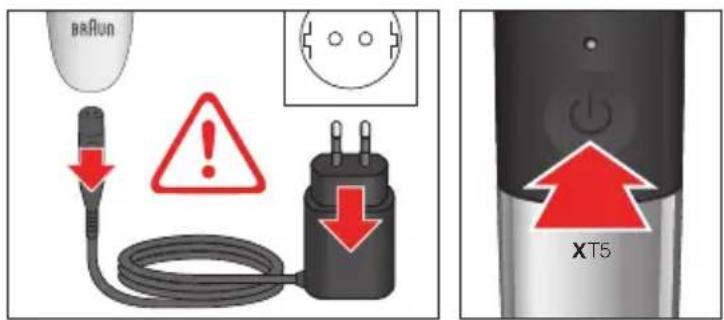

Detach the shaver from the power supply before using it with water.

This appliance is provided with a Safety Extra Low Voltage plug-in power supply. Do not exchange or tamper with any part of it, other wise there is risk of an electric shock.

10

D-□-C Only use with the provided power supply type 492-XXXX.

Do not use if the appliance, the power supply or any attachment is damaged. Do not open the appliance.

The appliance contains batteries that are non-replaceable. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Caution

Keep power supply dry.

Recommended temperature for charging is 5° to 35°C and for usage and storage 15° to 35°C. Do not expose the appliance to temperatures higher than 50°C for extended periods of time.

Only use this appliance for its intended purpose.

For delicate areas only use with sensitive body comb attached.

For hygienic reasons, the appliance should only be used by one person.

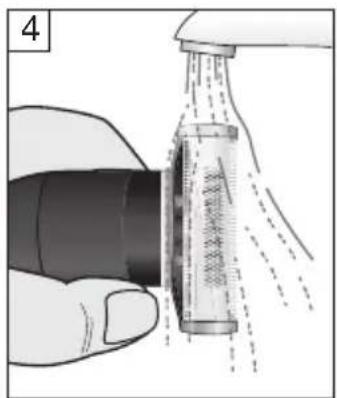

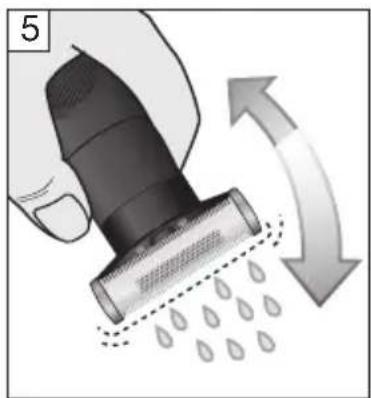

Wet Cleaning

Switch the appliance on and rinse until all residues have been removed.

Product contains batteries and / or recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

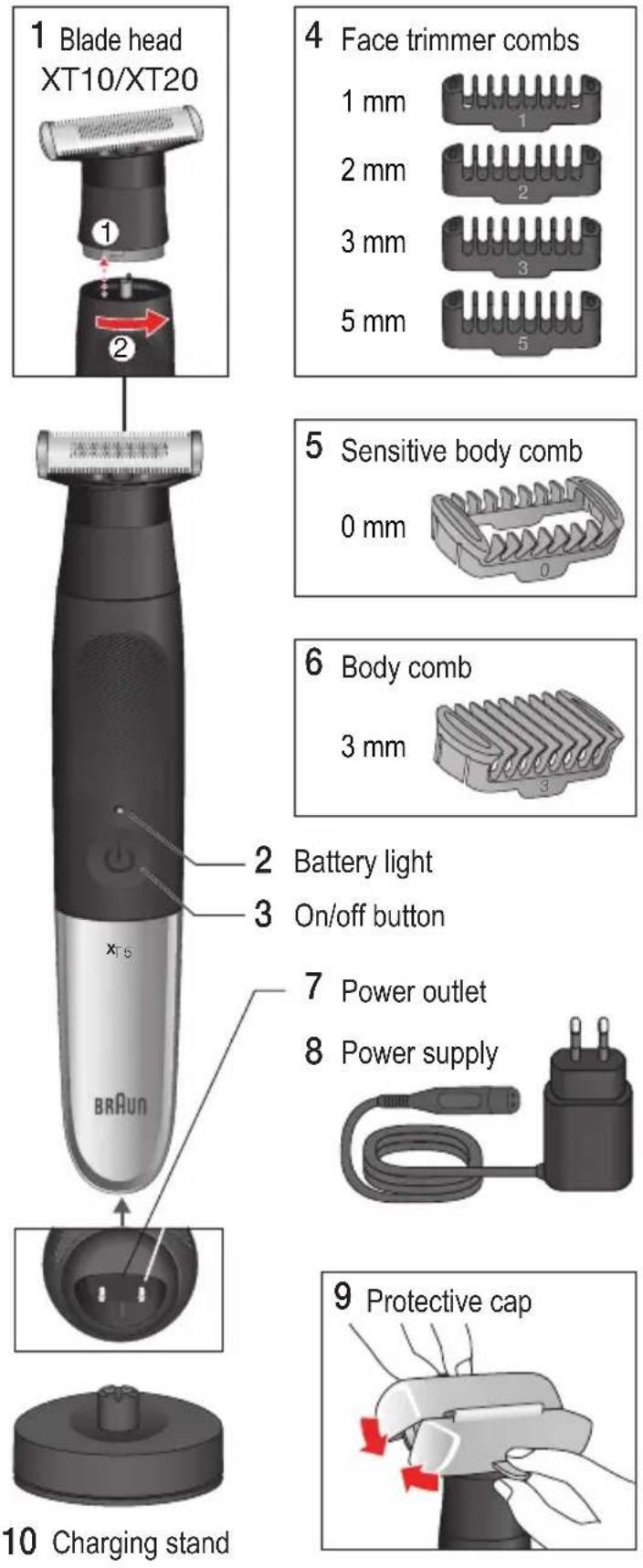

Description

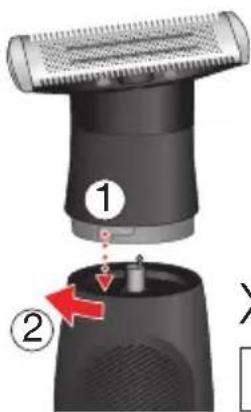

1 Blade head (design can differ)

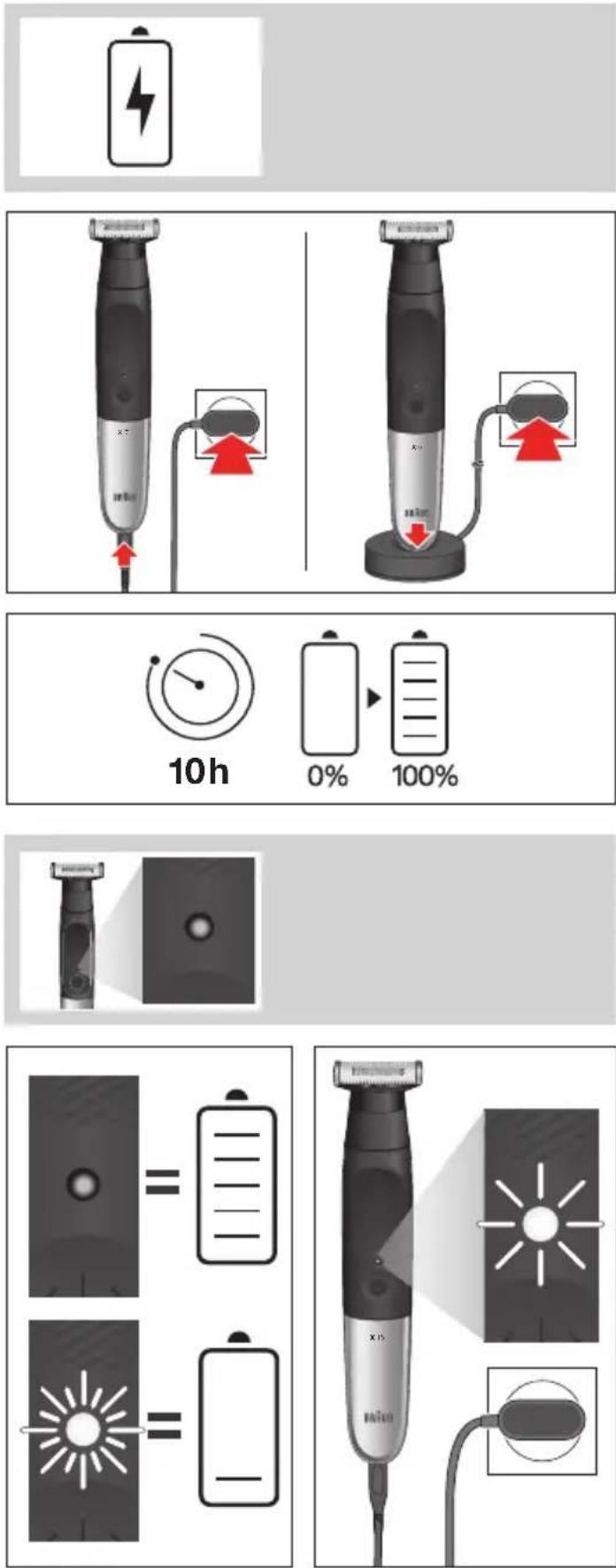

2 Battery light
- Low charge: LED flashes fast
- Charging: LED flashes slow
3 On/off button

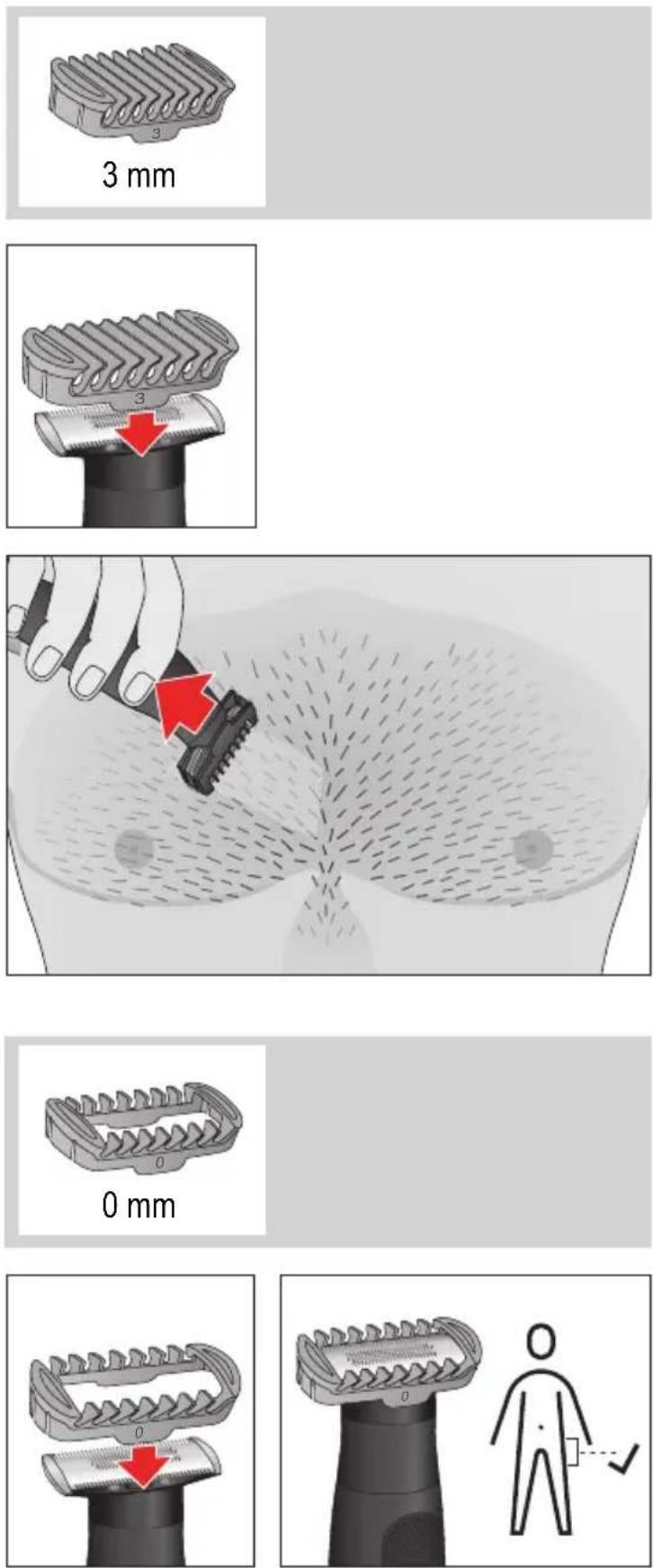

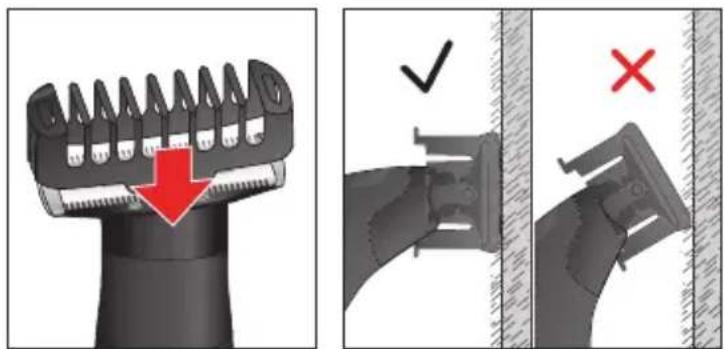

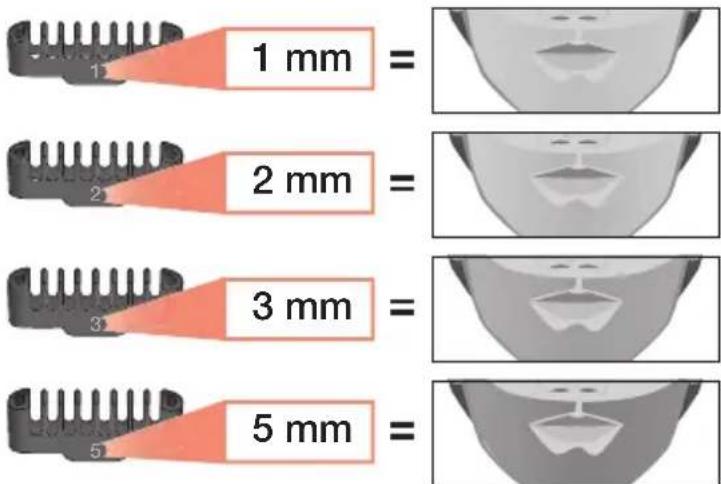

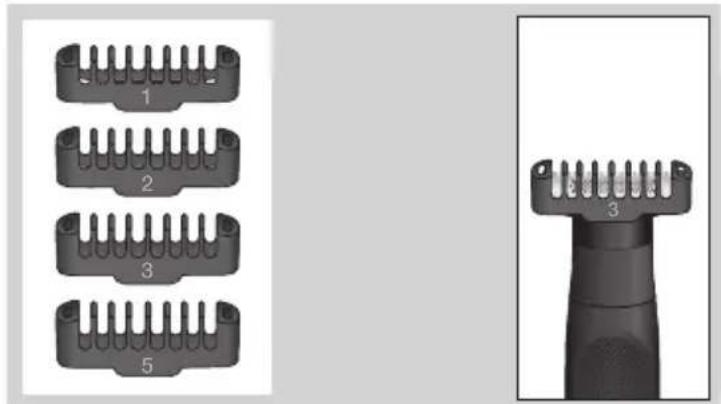

4 Face trimmer combs (1mm, 2mm, 3mm, 5mm)
5 Sensitive body comb (0mm) for delicate areas

6 Body comb (3mm)
7 Power outlet
8 Power supply
9 Protective cap
10 Charging stand

Note: Accessories, features and design may vary by model.

For Australia & New Zealand only:

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct 12

operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for

Australia 1800 641 820 or New Zealand 0800 108 909

to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

Français

EN Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons. This will destroy the appliance.

FR Seulement à la fin de la durée de vie utile du produit, démontez la batterie rechargeable pour des raisons de mise au rebut. Cela détruirait l'appareil.
ES Sólo al final de la vida útil del producto, desmonte la batería recargable para su eliminación. Esto destruirá el aparato.
PT Somente no final da vida útil do produto desmonte a bateria recarregável para fins de descarte. Isto destruirá o aparelho.
IT Solo al termine della vita utile del prodotto smontare la batteria ricaricabile per motivi di smaltimento. Ciò distruggerà l'apparecchio.
NL Demonteer de oplaadbare batterij pas aan het einde van de levensduur van het product om verwijderingsredenen. Hierdoor wordt het apparaat vernietigd.
DK Først ved slutningen af produktets levetid skal det genopladelige batteri adskilles af hensyn til bortskaffelse. Dette vil ødelægge apparatet.
NO Først på slutten av produktets levetid, demonter det oppladbare batteriet av kasseringsgrunner. Dette vil ødelegge apparatet.
SE Först i slutet av produktens livslängd, ta isär det uppladdningsbara batteriet av kasseringsskäl. Detta kommer att förstöra apparaten.
FI Pura ladattava akku hävittämistä varten vasta tuotteen käyttöiän lopussa. Tämä tuhoaa laitteen.
GR Μόνο στο τέλος της ωφέλιμης ζωής του προϊόντος, αποσυναρμολογήστε την επαναφορτιζόμενη μπαταρία για λόγους απόρριψης. Αυτό θα καταστρέψει τη συσκευή.

BRAUN

Please note down the suggested replacement date (in 6 months from now) below replacement part reference number.

XT20/XT10

DE Bitte notieren Sie das Austauschdatum (heute in 6 Monaten) unterhalb der Scherteilenummer. FR Merci de noter la date de remplacement suggérée (dans les 6 mois à partir de maintenant) sous la référence de la cassette de rasage. ES Por favor, apunte la fecha recomendada de sustitución (6 meses a partir de hoy) bajo los números de serie de las piezas de recambio. PT Por favor, tome nota da data sugerida para a substituicao (dentro de 6 meses) por baixo do numero das pecas. IT Prendere nota della data di sostituzione (6 mesi a partire da oggi), sotto i dati delle parti di ricambio. NL Noteer de geadviseerde vervangdatum (binnen 6 maanden vanaf nu) onder het nummer van de onderdelen. DK Noter den foreslåede udskiftningsdato (om 6 måneder fra i dag) under reservedelsnummeret. NO Noter gjerne anbefalt byttedato (6 måneder fra nå) under delenumrene. SE Om du skriver upp det föreslagna utbytesdatumet (6 månader från nu) nedanför huvuddelarnas nummer, så glömmer du det inte. FI Merkitse suositeltu vaihtopäivämäärä muistiin (6 kuukauden kuluttua nykyhetkestä) osanumeron alle. GR Παρακαλούμε σημειώστε την προτεινόμενη ημερομηνία αντικατάστασης (σε 6 μήνες από τώρα) κάτω από τον αριθμό των ανταλλακτικών.

BRAUN

DE Die Garantiebestimmungen und weitere Service-, Ersatzteil- und Produktinformationen finden Sie auf service.braun.com.
GB For guarantee, service, replacement parts and further product information, please refer to service.braun.com.
FR Pour la garantie, le service, les pièces de rechange et d'autres informations sur les produits, veuillez consulter le site service.braun.com.
ES Contacte con service.braun.com para cuestiones relacionadas con garantía, servicio técnico, recambios y más información sobre el producto.
PT Para obter informações sobre a garantia, manutenção, peças de substituição e outras informações sobre o produto, consulte service.braun.com.
IT Per la garanzia, l'assistenza, le parti di ricambio e ulteriori informazioni sul prodotto, consultare il sito service.braun.com.
NL Ga naar service.braun.com voor garantie, service, vervangende onderdelen en meer informatie over je product.
DK Se service.braun.com for at få oplysninger om garanti, service, reservedele og yderligere produktinformation.
NO For garanti, service, reservedeler og ytterligere produktinformasjon, se service.braun.com.
SE För garanti, service, reservdelar och ytterligare produktinformation, se service.braun.com.
FI Takuuta, huoltoa, varaosia ja tuotteita koskevia tietoja on osoitteessa service.braun.com.
GR Για εγγύηση, σέρβις, ανταλλακτικά και περαιτέρω πληροφορίες για το προϊόν, ανατρέξτε στη διεύθυνση service.braun.com.
