SKW 100 A1 - Electric hot water bottle SILVERCREST - Free user manual and instructions

USER MANUAL SKW 100 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

KUSCHEL-WÄRMFLASCHE / HEAT PAD / BOUILLOTTE DOUCE SKW 100 A1

DE AT CH

KUSCHEL-WÄRMFLASCHE

Operating instructions and safety advice

NL BE

KNUFFELIGEKRUIK

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operating instructions and safety advice Page 15

A 1 2 SATECISF

B 3

Intended use......Page 17

Parts description Page 17

Scope of delivery....Page 17

Technical data......Page 17

Important safety instructions......Page 18

Safety system....Page 20

Special features......Page 20

Start-up Page 20

Switching on/off/Selecting the temperature......Page 20

Temperature levels....Page 21

Automatic switch-off....Page 21

Cleaning and care....Page 21

Storage Page 22

Disposal Page 22

Warranty / Service centre Page 22

Declaration of conformity....Page 23

List of pictograms used
	Read the instructions! Do not dry in a tum		er.
V~	Volt (AC) Do not iron.
Hz	Hertz (mains frequency) Do not dry-clean
W	Watt (effective power)		This heating pad is machine washable.Set the washing machine to an ex-tra gentle washing cycle at 30 °C.
	Safety class II		6 temperature settings
	Observe the warning and safety instructions!		Breathable
	Not suitable for very young children age 0-3 years!		Machine washable
	Do not stick needles into it!		Dispose of the packaging and the heating pad in an environmentally friendly way!
	The textiles used in this heating pad meet the strict human ecological requirements of Oeko-Tex Standard 100, as verified by the German Hohenstein Research Institute.		Packaging made from recycled material
	Do not use folded or rucked! Do not use
	Caution - Risk of electric shock!Danger to life!		This product meets the requirements of the applicable European and national directives.

Heat Pad

●Introduction

Please familiarise yourself with the heating pad before getting started and using it for the first time. To do so, please carefully read the following operating instructions and the important safety information. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This heating pad is intended for applying heat to the human body. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer assumes no liability for damage arising out of improper use.

Partsdescription

1 Control unit (see fig. A)
2 Function display (see fig. A)

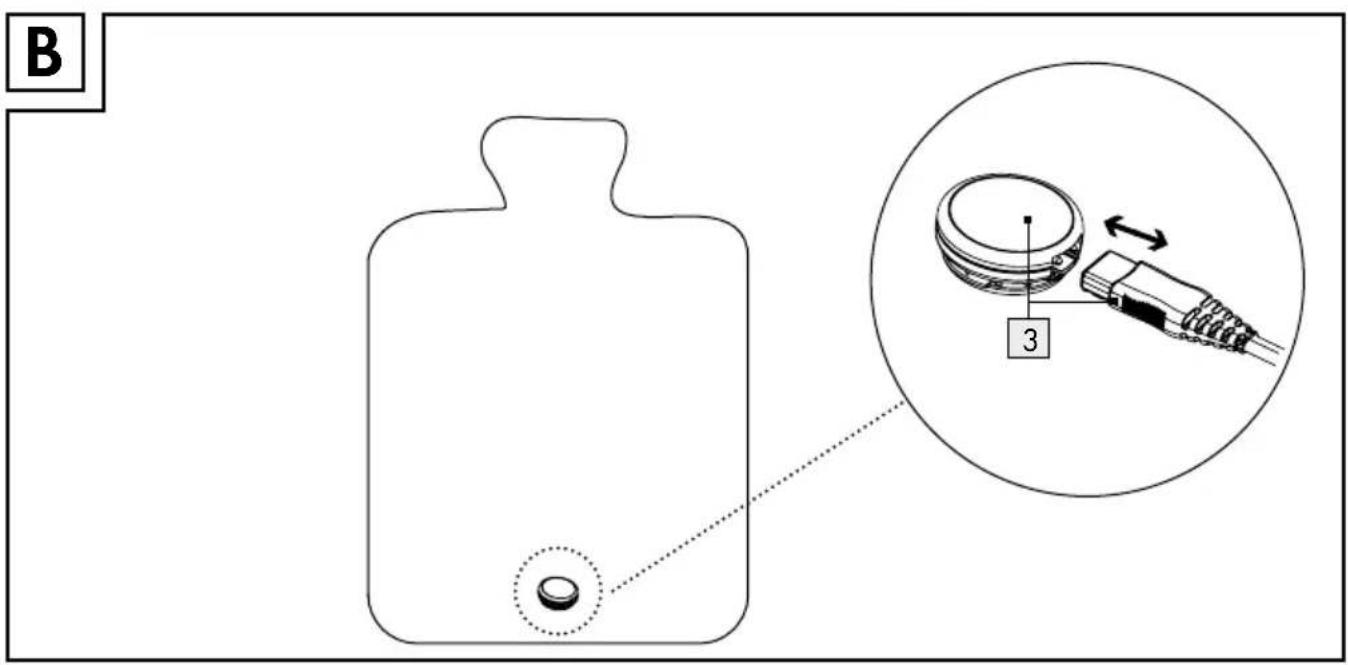

3 Plug-in connector (see fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.

1 Heat Pad
1 Control unit / Plug-in connector
1 Set of operating instructions

●Technicaldata

Model: SKW 100 A1

Type: P10W

Power supply: 220-240V/50-60Hz

Power input: 100W

Dimensions: approx. 50 x 30 cm

Protection class: II/☐

Electric field strength: max. 5000 V / m

Magnetic field strength: max. 80 A / m

Magnetic flux density: max. 0.1 milli-Tesla

Material:

Top/bottom: 100% polyester

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf

GERMANY

IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!

Importantsafety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.

SCALDINGHAZARD!

This heating pad may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area, after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING!

heating pad may not be

used for very young children (0–3 years), as they are unable to react to overheating. There is a risk of receiving skin burns.

The heating pad may be used by children over 3 years and under 8 years on the lowest setting when supervised. Burns may otherwise occur.

This heating pad may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heating pad and understand the associated risks.

■ Never allow children to play with the heating pad. There is a risk of injury.

■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.

This heating pad is not intended for hospital or commercial use. This poses a risk of injuries and / or damage to the heating pad.

WARNING!

Do not insert needles or pointed objects into the heating pad. There is a risk of electric shock.

WARNING!

Do not switch on the

heating pad whilst folded or pushed together. The heating pad may otherwise be damaged.

• Do not use when wet! Otherwise there is a risk of electric shock.
  This heating pad may only be operated together with the control unit specified on the label. The heating pad may otherwise be damaged.

The electric and magnetic fields emitted by this heating pad could potentially interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V/m, mag netic field strength: max. 80 A/m, magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this heating pad.

- Do not pull, twist or kink the cables. The heating pad may otherwise be damaged.

The cable and the switch of the heating pad may pose risk of catching, strangulation, tripping or being stepped on if positioned incorrectly. The user must ensure excess cable and cables in general are positioned safely.

■ Frequently check the heating pad for wear or damage. If signs thereof are detected, the heating pad was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.

If the power cord of the heating pad is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to avoid hazards.

■ With the heating pad switched on, never

• place objects on it (e.g. suitcases or clothes baskets),
• place a heating source such as a hot-water bottle, heating pad or similar items on it. The heating pad may otherwise be damaged.

The electronic components inside the control unit will heat up whilst operating the heating pad. For this reason, the control unit must not be covered or be lying on the

heating pad during operation. This poses a risk of injuries and / or damage to the heating pad.

■ Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.

●Safetysystem

Note: The heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.

Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.
Under no circumstances should you connect the defective heating pad to another switch of the same type. This would also result in a permanent shutdown by the safety system in the switch.

- Special features

This heating pad has been provided with an especially soft and hygienic velour fabric. The tex-

tiles used in this heating pad meet the strict human ecological requirements of Oeko-Tex Standard 100, as verified by the German Hohenstein Research Institute.

- Start-up

Note: The heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.

☐ To begin, first connect the control unit 1 to the heating pad with the plug-in connector 3 (see fig. B).
☐ Then insert the mains plug into the socket.
- Switching on / off / Selecting the temperature

Switching on:

Set the control unit to 1, 2, 3, 4, 5 or 6 to switch on the heating pad.

Note: The function display 2 illuminates after the heating pad is switched on.

Note: This heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.

Switching off:

Set the control unit to 0 to switch off the heating pad.

Note: The operating display 2 will switch off.

Selecting the temperature:

☐ Just before using the heating pad, set it to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.
☐ When using the heating pad for several hours, set it to the lowest temperature setting (setting 1).

WARNING!

When opera-

ting the heating pad for several hours, we commend setting the control unit 1 to the lowest setting to prevent overheating and potential burns to the part of the body heat is applied to.

●Temperaturelevels

Set the required temperature level on the control unit 1 (see fig. A).

Level0:off

Level 1: minimum heat

Level 2-5: customised heat

Level 6: maximum heat

●Automaticswitch-off

Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.

☐ Then select the setting 0 and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.

If the heating pad is no longer used after the timer expires:

• switch off the heating pad (setting 0),
• unplug from the socket,
• disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad.

- Cleaning and care

DANG RACING!

LIFE BY ELECTRIC SHOCK! Always remove the mains plug from the socket and the plug-in connector 3 with the control unit 1 from the heating pad (see fig. B) before cleaning the heating pad. Otherwise there is a risk of electric shock.

Use a dry, lint-free cloth for control unit cleaning and care.

RISK OF DAMAGE TO THE PRO-

DUCT OR PROPERTY! Never immerse the control unit 1 in water or

other liquids. It may otherwise be damaged.

If the heating pad is slightly soiled, use a dam-pened cloth and a little liquid mild detergent, if necessary.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Do

not use chemical cleaning or scouring agents to clean the heating pad and control unit

1. The heating pad and control unit 1 may otherwise be damaged.

he heating pad is machine-washable.

Set the washing machine at an extra washing cycle for delicate items at

30^ C.

For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.

Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY!

Please note that the heating pad may not be dry-cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.

Do not use bleach. Do not use any

cleaning agents containing bleach (such as heavy duty detergents).

Do not dry in a tumbler dryer.

Do not iron.

Do not dry-clean.

Reshape the still damp heating pad to the original size immediately after washing, and dry flat, spread on a clothes drying rack.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Do

not hang the heating pad up to dry with pegs or similar. The heating pad may otherwise be damaged.

DANGER OF ELECTRIC SHOCK!

Do not reconnect the control unit 1

to the heating pad until the plug-in

connector 3 and the heating pad are

completely dry. Otherwise there is a risk of electric shock.

DANGER OF ELECTRIC SHOCK! RISK OF PROPERTY DAMAGE!

Do not under any circumstances switch

the heating pad on to dry. Otherwise there is a risk of electric shock.

●Storage

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Let

the heating pad cool before putting it away. The heating pad may otherwise be damaged.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! To

prevent the heating pad from becoming sharply creased, do not store other objects on top of the heating pad. The heating pad may otherwise be damaged.

If you do not intend to use the heating pad for any length of time, store it in the original packaging in a dry environment and without weighing it down. Disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad to do so.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

● Warranty / Service centre

We provide a 3-year warranty from the date of purchase for defects in material and manufacture of the heating pad.

The warranty does not cover:

- Damage from improper use.

·Wearparts.

- Damage caused by the customer.

- If the device has been opened by an unauthorised repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below:

Service Hotline (toll-free):

GB

∅ 0800 93 10 319

(Mon-Fri: 8 am-6 pm)

[e-mail]

IE

∅ 1800 93 92 35

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective heating pad, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

GERMANY

IAN 375211_2101

● Declaration of conformity (€)

This heating pad complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.

Service hotline (gratis):

NL

∅ 0800 54 30 543

(ma.-fr.: 8-18 klok)

[e-mail]

BE

∅ 0800 70 611 (ma. - fr.: 8-18 klok)

[e-mail]

DÔLEŽITÉ POKYNY – USCHOVAJTE PRE NESKORŠIE POUŽITIE!

Nivel 2–5: calor individual

Nivel 6: calor máximo

Overside/underside: 100% polyester

Producent:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf

TYSKLAND

VIGTIGE ANVISNINGER – OPBEVARES TIL SENERE BRUG!

Service Hotline (gratis):

DK

80 70 57 89 (man-fre: 8-18 Ur)

[e-mail]

100A1_2021-03-31_01_IM_Lidl_LB8_OS
