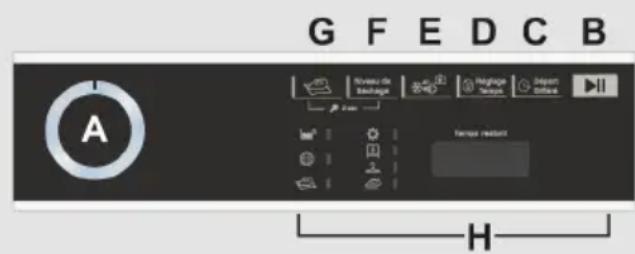

E Bouton HYGIENE REFRESH

F Bouton NIVEAU DE SÉCHAGE

G Bouton ANTI-FROISSAGE

H AFFICHEUR

F+G SÉCURITÉ ENFANT

ATTENTION

ANNULATION DU PROGRAMME CONFIGURE

Bouton HYGIENE REFRESH

REVITALISER IMPERMÉABLE

Thank you for choosing this product.

We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation.

To contact the Service, ensure that you have the unique 16-character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste;
● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. DRAIN HOSE KIT
3. WATER CONTAINERS
4. DOOR AND FILTERS
5. PRACTICAL HINTS
6. QUICK USER GUIDE
7. CONTROLS AND PROGRAMMES
8. TROUBLESHOOTING AND WARRANTY
9. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION

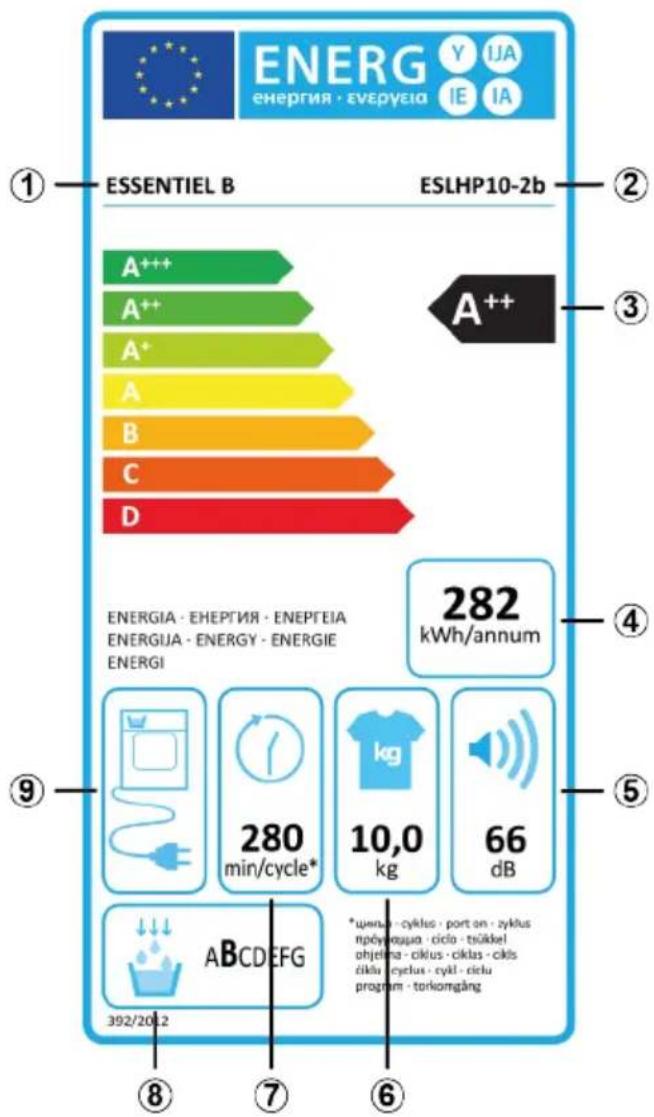

10. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY

1. GENERAL SAFETY RULES

- This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
  ● Children of less than 3 years should be kept away unless continuously supervised.

WARNING

Misuse of a tumble dryer may create a fire hazard.

• This machine is solely for domestic use, i.e. to dry household textiles and garments.
• Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not continue to use this machine if it appears to be faulty.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

items are left at a temperature that ensures that the items will not be damaged.

WARNING

Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

WARNING

Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.

● Always remove the plug before cleaning the appliance.

- The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the

WARNING

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Z

WARNING

During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown.

Simple line drawing of a device with a cross mark and circular body, no text or symbols present.

Simple line drawing of a washing machine with a checkmark and globe icon (no text or symbols)

If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

Installation

- Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

- In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the configuration of your appliance:

- Stacking kit "standard size": for washing machine with minimum depth of 44 cm;

- Stacking kit "slim size": for washing machine with minimum depth of 40 cm.

- Universal stacking kit with sliding: for washing machine with minimum depth of 47 cm.

The stacking kit shall be obtainable from service. The instructions for installation and any fixing attachments, are provided with the stacking kit.

• NEVER install the dryer up near curtains.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted.
• For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Service for advice.
• Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a hand holding a small mechanical component with a rotating arrow indicating rotation (no text or symbols)

Electrical connections and safety instructions

- The technical details (supply voltage and power input) are indicated on the product rating plate.

- Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

WARNING

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Do not use adapters, multiple connectors and/or extensions.
• The plug should be accessible for disconnection after the appliance has been installed.
• Do not plug the machine in and switch it on at the mains until the installation is completed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
  ● Install the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet air should be kept clear of obstruction.
• Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.
  ● Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint.

- Check frequently the fluff filter after use, and clean, if necessary.

The Laundry

● Always refer to the laundry care labels for directions on suitability for drying.
● Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- Do not dry unwashed items in the tumble dryer.
- Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
- Clothes that are dripping wet should not be put into the dryer.

WARNING

Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

WARNING

Do not tumble dry fabrics treated with dry cleaning fluids.

• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
  ● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
  ● Maximum load drying weight: see energy label.
  ● To consult the product technical specification please refer to the manufacturer website.

Warning sign depicting a flame symbol in yellow and black on white background

WARNING

Fire hazard / Flammable materials.

• The appliance contains R290, an refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance.
• Check there is no visible damage on the appliance. Do not use the appliance if it is damaged.
• Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres.

WARNING

Ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions.

WARNING

Do not damage the refrigerating circuit.

• Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.
• Disposing of the device incorrectly could cause fires or poisoning.
• Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.

2. DRAIN HOSE KIT

In order to avoid to empty the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe. Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of: 1 hose and 1 bung.

WARNING

Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

The hose must be connected to a drain system with a maximum height of 85 cm compared to the base of the dryer (figure 1).

Fitting the drain hose

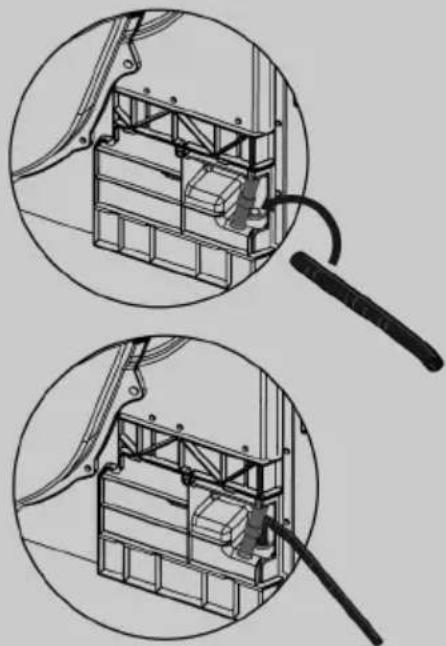

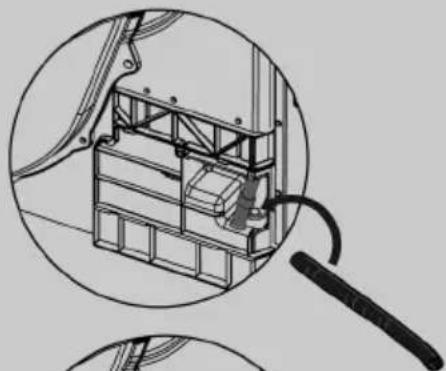

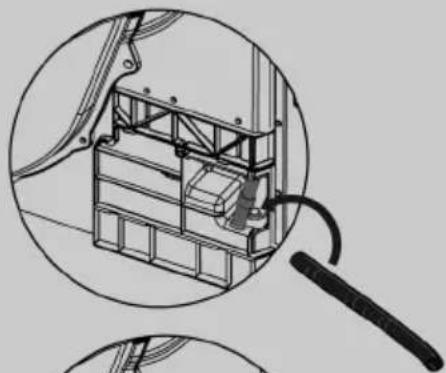

1. The water drainage system is located at the back of the machine on the lower right side (figure 2).

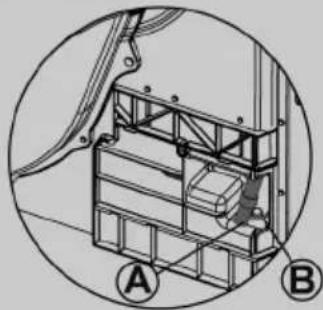

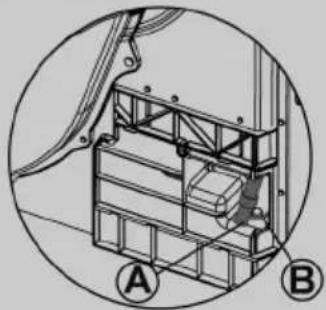

2. Disconnect the hose (A) from the fitting (B) by pulling it upwards (figure 3).

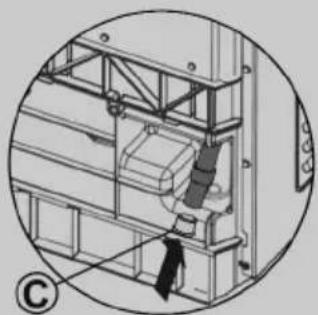

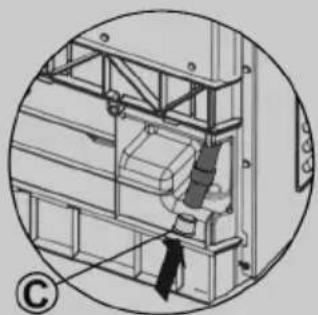

3. Close the extracted tube with the cap (C) supplied with the kit (figure 4).

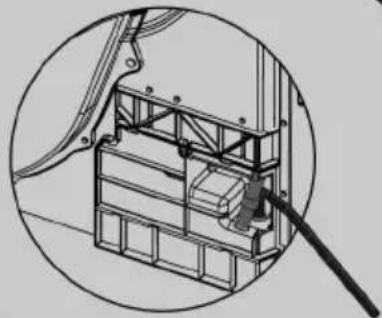

4. Connect the hose into the fitting (B) making sure it is inserted securely (figures 5-6).

Once the machine is in place, check to ensure that the new hose does not kink when pushing the tumble dryer into position.

①

max 85 cm

Technical line drawing of a mechanical component with circular features and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

②

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

③

Technical line drawing of a mechanical assembly with no visible text or symbols

④

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and a tool interacting with it (no text or symbols present)

⑤

Technical line drawing of a mechanical assembly with no visible text or symbols

⑥

3. WATER CONTAINERS

The water removed from the laundry during the drying cycle is collected in a container. When the container is full, an indicator light, or on some models a message on the display, will advise you that it MUST be emptied (however, we recommend to empty it after each drying cycle).

Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To remove the container tank in door drawer \*

1. Gently pull out the water container holding the handle (A). When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the water out through the spout (B). When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

3. Press the programme start button to restart the cycle.

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

*Depending on model

ONLY FOR MODELS WITH DRAIN HOSE KIT

If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

To remove the container bottom water drawer \*

1. Gently pull the top of the kickplate so that it unclips from the dryer. The bottom section can then be unhinged allowing the kickplate to be completely removed(A).
2. Pull firmly on the handgrip and slide the water container out of the dryer (B). Support the container with both hands (C). When full, the water container will weigh about 4 kg.
3. Open the lid located on the top of the container and empty the water at the end of each drying cycle and before starting the next one (D).
4. Refit the lid and slide the water container back into position (D). PUSH FIRMLY INTO PLACE.
5. Refit the kickplate by engaging the hinges at the top and 'snapping' the lower clips into place.

Illustration of hands holding a fan with a circular pattern inside, next to a circular object (no text or symbols)

Diagram showing a hand pressing a component labeled 'B' with an arrow pointing to it, indicating a step or direction.

Line drawing of a mechanical component or part with no visible text, numbers, or symbols

Line drawing of a hand holding a ring above a wooden surface with two circular indentations (no text or symbols)

*Depending on model

4. DOOR AND FILTERS

Door

● Pull on handle to open the door.
● To restart the appliance, close the door and press the programme start button.

WARNING

When the tumble dryer is in use the drum and door may be VERY HOT.

WARNING

(For models with water collection tray) If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

Filters

Clogged filters could increase the drying time and cause damages and expensive cleaning operation.

In order to have the maximum effectiveness of the machine, checking the cleanliness of all filters before each drying cycle is essential.

WARNING

Do not use the tumble dryer without the filters.

Lint filters and sponge filter cleaning indicator light

The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

If the laundry is not drying check that the filters are not clogged.

If you clean filters under water, remember to dry them.

To clean the lint filters

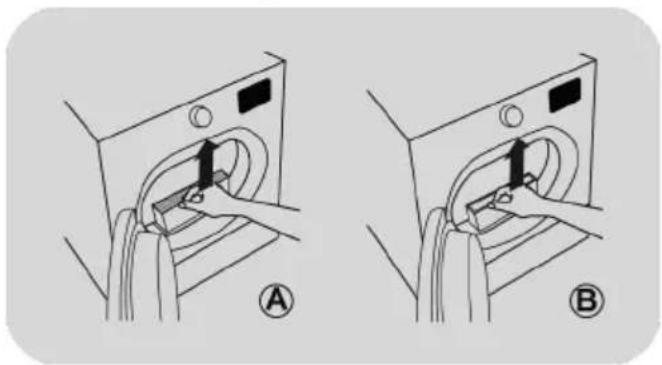

1. Extract the two filters A and B in sequence pulling them upwards, as shown in the figure.

Two identical diagrams (A and B) showing hands inserting a cable into a device, with no text or symbols present.

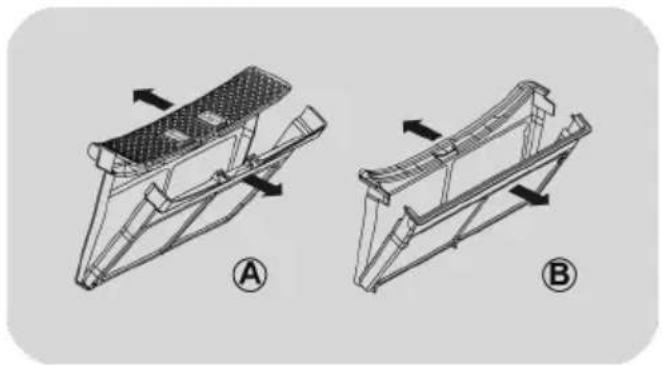

1. Open the filters.

Two technical diagrams of a folding table frame (A and B) showing internal structure with arrows indicating movement, no text or symbols present.

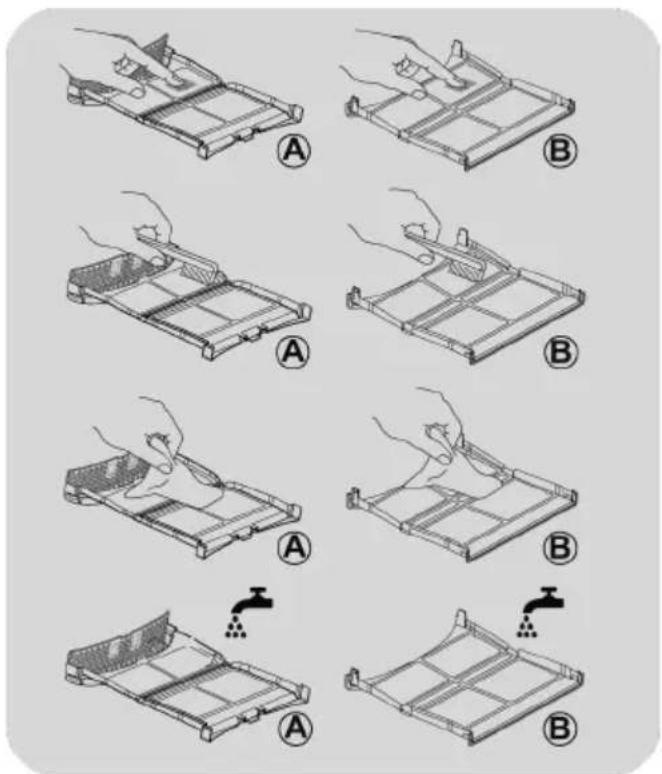

1. Gently remove lints from both filters using your fingertips or a soft brush, a cloth or under water running.

Illustration showing nine different steps of a mechanical device with labeled components (A and B), likely illustrating step-by-step assembly or cleaning instructions.

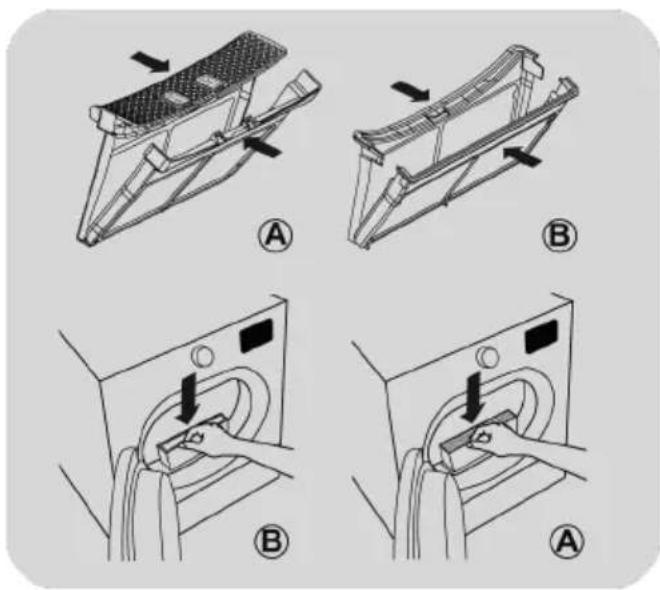

1. Close both filters by repositioning them inside the door, making sure they are positioned correctly in place.

Technical diagram showing four different mechanical assembly steps labeled A, B, and C, with arrows indicating motion direction.

! WARNING

Before reinserting the filters, make sure there is no lint residue inside the compartment; if not, remove it with a vacuum cleaner.

WARNING

Clean the lint filters before every cycle.

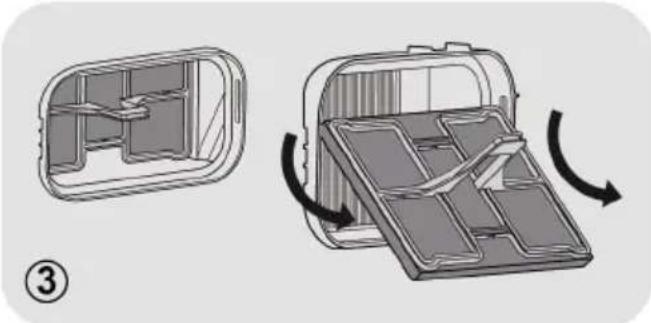

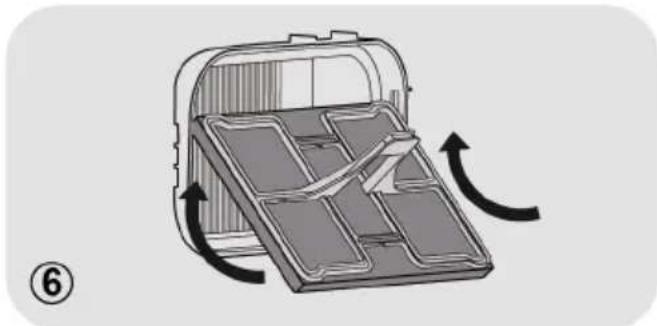

To clean the sponge filter

1. Remove the kickplate.
2. Turn the handle anti-clockwise and pull out the front cover.

Illustration of hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with number 2 (no text or symbols on the diagram itself)

1. Gently remove the sponge filter frame.

Diagram showing two views of a battery pack with internal compartments and internal structure, no text or symbols present.

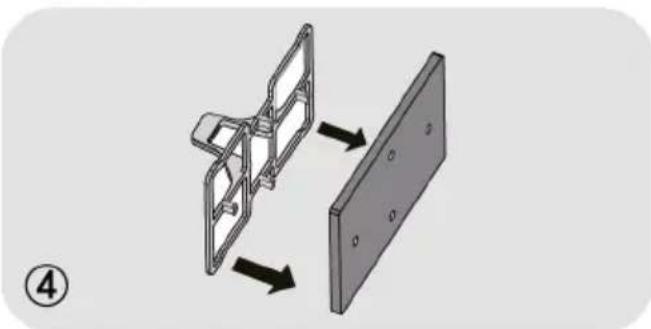

1. Gently remove the sponge from the frame.

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols present)

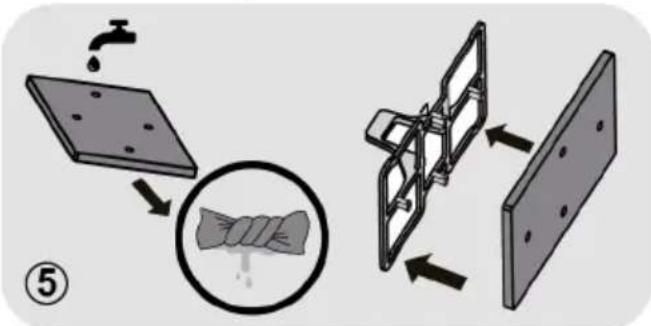

1. Wash the sponge by holding it under a running tap turning it so to remove any dust or fluff. Wring out the sponge and refit it carefully on the frame.

1. Refit the sponge filter frame ensuring that it is in the correct position.

Diagram of a battery pack with internal compartments and directional arrows indicating rotation (no text or symbols)

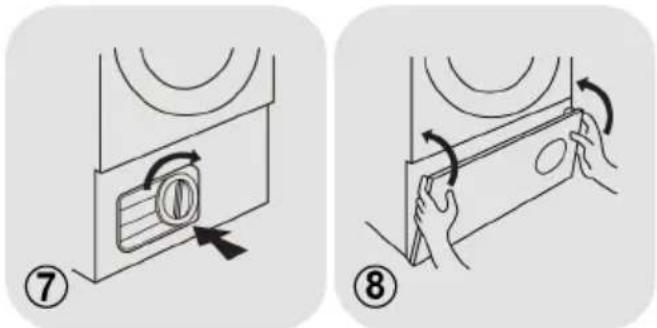

1. Refit the front cover ensuring it is in the right position. Turn the handle clockwise to lock the front cover.

2. Refit the kickplate.

Diagram illustrating two steps of a device or panel handling, labeled ⑦ and ⑧, with arrows indicating rotation and movement.

! WARNING

Do not touch the fins behind the sponge filter frame with hands in order to avoid injury.

WARNING

Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

5. PRACTICAL HINTS

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not tumble dry

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

WARNING

Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filters are clean before every drying cycle.

NEVER

● Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the load as follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.
Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

WARNING

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Cleaning the dryer

● Clean the lint filters after every drying cycle.
- In models equipped with a water collection tray, the tray should be emptied after every drying cycle.
● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
● Wipe the outside of the machine and the door with a soft cloth.
- DO NOT use abrasive pads or cleaning agents.
- To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING

The drum, door and load may be very hot.

WARNING

Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

6. QUICK USER GUIDE

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Select the desired drying programme by turning the programme knob or, in some models, by pressing the specific button (check the programme table for specific details).
4. Press the programme start button. The dryer will start automatically.
5. If the door is opened during the programme to check the laundry, it is necessary to press programme start to recommence drying after the door has been closed.
6. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programmes in order to obtain a proper drying.

Technical data

Power input / Power current fuse amp/

Supply voltage: see rating plate.

Maximum load: see energy label.

Energy class: see energy label.

7. CONTROLS AND PROGRAMMES

G F E D C B A Niveau de Échéance Highage Tempur Départ Diffaire Tempur resort H

A PROGRAMME SELECTOR with OFF position

E HYGIENE REFRESH button

F DRYING SELECTION button

G ANTI CREASE button

H DISPLAY

F+G CHILD LOCK

WARNING

Don't touch the buttons while inserting the plug because the machines calibrates the systems during the first seconds: touching the buttons, the machine couldn't work property. In this case, remove the plug and repeat the operation.

PROGRAMME SELECTOR with OFF position

• Rotating the programme selector in both directions it's possible to select the desired drying programme.
• To cancel the selections or switch off the appliance rotate the programme selector on OFF (remember to unplug the appliance).

First starting

- Language setting

• After connecting the machine to the network and turning it on, press the button "D" or "E" to see on the display the available languages. ENGLISH is always the first language shown.
• Select the desired language pressing the START/PAUSE button.

- Change the language

If you want to change the setting language you will have to press simultaneously "D" and "E" buttons for about 5 seconds. ENGLISH will appear on the display, and you will be able to choose a new language.

START/PAUSE button

Close the porthole BEFORE pressing the START/PAUSE button.

• To start the selected cycle with the preset parameters, press START/PAUSE. When the programme is running, the display will show the time to elapse.
• Moreover, if you want to modify the chosen programme, press the desired options buttons, modify the default parameters and then press START/PAUSE button to start the cycle.

Only the options compatible with the set programme can be selected.

● After switching on the appliance, wait a few seconds for the programme to start running.

PROGRAMME DURATION

• When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.
• Once the programme has started you will be kept informed constantly of the time remaining to the end of the drying cycle.
  ● The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to the humidity level of the load.

PROGRAMME END

● "END" ("End" on some models) will appear in the display at the end of the programme, it is now possible to open the door.
- At the end of the cycle, turn off the appliance by turning the programme selector to the OFF position.

The programme selector must ALWAYS be put in the OFF position at the end of the drying cycle before a new one can be selected.

PAUSING THE MACHINE

• Keep the START/PAUSE button pressed for about 2 seconds (the name of the programme and the residual time display will flash, showing that the machine is paused).
• Press the START/PAUSE button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

- To cancel the programme, turn the programme selector to the OFF position.

If there is a break in the power supply whilst the machine is operating, when the power is restored, by pressing the START/PAUSE button, the machine will restart from the beginning of the phase it was in when the power was lost.

DELAY START button

• This button allows to delay the start of the programme from 30 minutes (1 hour on some models) to 24 hours in 30 minutes intervals (1 hour on some models). The delay selected is shown on the display.
  ● After pressing the START/PAUSE button the time showed decrease minute after minute.

Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

TIME CYCLE SELECTION button

- It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle.

● The progressive pressure increases the time in 10 minute intervals. After this selection to reset the automatic drying functioning is necessary to switch off the dryer.
- In case of incompatibility, all indicator lights flash quickly for 3 times.

HYGIENE REFRESH button

● HYGIENE REFRESH is the perfect cycle to use if you want to remove bad smells, germs, spores and bacteria in a natural way and gently refreshes clothes guaranteeing the best result in a very short time.
- If you want to select this option, press the HYGIENE REFRESH button once. It is available only during program selection. This option overwrites the program selected with a dedicated one.
- If you want to deselect the HYGIENE REFRESH option, press the HYGIENE REFRESH button. When you deselect the option, the machine will show again the original program name.

DRYING SELECTION button

- This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle:

Ready to Iron: it leaves the garments slightly wet to facilitate ironing.

Dry Hanger: to get garment ready to be hang.

Dry wardrobe: for laundry that can be directly stored.

Extra-dry: to get completely dry garments, ideal for full load.

● This appliances is equipped with Drying Manager function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached.

In case of incompatibility, all indicator lights flash quickly for 3 times.

ANTI CREASE button

• During the cycle the option sets alternate movements of the drum to reduce the folds and automatically sets the drying level to "Ready to Iron". Moreover this option activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle.
• To stop the movements set the programme selector to OFF. Useful when it's not possible to remove immediately the laundry.

CHILD LOCK

• Pressing simultaneously the buttons "F" and "G" for about 2 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.
• The key lock can be simply cancelled by pressing the two buttons simultaneously again.
• In case of opening of porthole with activated CHILD LOCK, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and press START/PAUSE again.
• CHILD LOCK can be modified at any time of the cycle.

Display

The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.

4 3 2 1 Temps resistant

1) DRYING SELECTION INDICATOR LIGHTS

The indicator lights display the degrees of dryness that can be selected by the relevant button.

2) ANTI CREASE INDICATOR LIGHT

The indicator light shows the selection of the relevant option.

3) LINT FILTERS AND SPONGE FILTER CLEANING INDICATOR LIGHT

The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

4) WATER CONTAINER INDICATOR LIGHT

It lights up when it's necessary to empty the condensate water tank.

Drying Guide

The standard cycle COTTON DRY is the most energy efficient and best suited for drying normal wet cotton laundry.

Maximum Drying Weight
Cottons	Max. capacity declared
Synthetics or Delicates	Max. 4 kg

Information for Test Laboratory

EN 61121 - Programme To Use

• STANDARD DRY COTTON
• IRON DRY COTTON (WHITES - Ready to Iron)
• EASY-CARE TEXTILE (SYNTHETICS - Dry Hanger)

WARNING

Clean the lint filters before every cycle.

WARNING

Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

WARNING

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

WARNING

Only for 10/11 kg capacity Tumble Dryer supplied with drain hose kit: connect the drain hose for recovering the condenser water (according to instruction in the dedicated chapter).

Table of programmes

PROGRAMMES		Selectable Options					CAPACITY(kg)	DRYINGTIME (min)
		DépartDifféré	RéglageTemps		Niveau deSéchage
	MIX&DRY	√	√	√	√	√	4 *
	WHITES	√	√	√	√	√	Full *
	COTTON	√	--	--			Full *
	WOOL	√	--	--			1 70'
	WATERPROOFREVITALIZE	√	-	√	-	-	2 *
	SYNTHETICS	√	√	√	√	√	4 *
	SHIRTS	√	-	√	√	√	2,5 *
[Swed]	JEANS	√	--	-		-	4 *
	SPORT	√	-	√	√	-	4 *
	DELICATES	√	√	√	√	√	4 *
[Swed]	REFRESH	√	-	√	--		2,5 20'
[SYTX]	ANTIALLERGY	√	√	√	-	-	4	Max 220'
[Swed]	RAPID 59 MIN	√	-	√	-	-	2,5 *
[Swed]	BED&BATH	√	√	-	√	√	6 *
AUTO	AUTODRY	√	-	√	√	√	4 *

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Description of programmes

To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table of programmes).

MIX&DRY

To dry all together different kind of fabrics as cotton, linen, mix, synthetics.

WHITES

The right cycle to dry cottons, sponges and towels.

COTTON

The cotton program (hang dry) is the most efficient program in energy consumption. Suitable for cottons and linens.

WOOL

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

WATERPROOF REVITALIZE

A special service to revitalize the waterproofing treatment of the linens.

SYNTHETICS

To dry synthetic fabrics that need an accurate and specific treatment.

SHIRTS

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.

JEANS

Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.

SPORT

Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers.

DELICATES

To dry delicate fabrics that need an accurate and specific treatment.

REFRESH

The perfect cycle to remove the smells from the linens smoothing creases.

ANTIALLERGY

One specific cycle that dries and in the same time helps to reduce the main allergens as dust mites, pet hair, pollens and residual of powder detergents.

RAPID 59 MIN

This drying cycle allows you to have items ready in only 59 minutes.

BED&BATH

Specific cycle dedicated to dry large items e.g. bed sheets, towels and bathrobes. Thanks to a specifics movement of the drum the fabrics will be dry minimizing tangles and folds.

AUTODRY

Auto Dry cycle is capable to adapt its drying technology to the capacity and typology of clothes automatically.

Technical specifications

Brand	ESSENTIEL B
Model name	ESLHP10-2b
Height	Min: 825 mm / Max: 850 mm*
Width	596 mm
Depth 585 mm
Capacity (max.)	10 kg**
Net weight (with plastic door) 41,2 kg
Net weight (with glass door)	-
Voltage	220-240 V
Power	900 W

*Min. height: Height with the adjustable feet not used. Max. height: Height with the adjustable feet extended to the maximum.
**Dry laundry weight before washing.
IMPORTANT: To improve the quality of the dryer, technical specifications are subject to change without prior notice.
IMPORTANT: The values declared have been obtained in a laboratory environment according to the relevant standards. These values may change depending on the environmental conditions and use of the dryer.

ATTENTION:

1. Due to safety reasons, legislation forces a room of at least 1 m^3 per 8 g refrigerant for such equipment. For 150 g propane, the minimum allowed room size would be 18.75 m^3 .

2. Coolant :Risk of fire/risk of poisoning/risk of material damage and damage to the appliance. The appliance contains R290 refrigerant which, although it has a low global warming potential and no impact on the ozone layer, is flammable. Failure to dispose of it properly may result in a fire or poisoning. Dispose of the appliance properly and do not damage the pipes in the refrigerant circuit.

3. Type of refrigerant : R290
   • Quantity of gas : 150 g
   • ODP (Ozone Depletion Potential) : 0
   • GWP (Global Warning Potential) : 3

4. Risk of explosion or fire. Remove any cigarette lighters and matches from pockets.

5. Do not place the dryer near open fires and ignition sources.

8. TROUBLESHOOTING AND WARRANTY

What might be the cause of...

Defects you can remedy yourself

Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

● Have you selected the correct drying time/programme?
● Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Do the lint filters need cleaning?
- Does the sponge filter need cleaning?
● Is the dryer overloaded?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

• Is the plug properly connected to the mains supply?
  ● Is there a power failure?
  ● Has the fuse blown?
  ● Is the door fully closed?

• Is the dryer switched on, both at the mains supply and at the machine?
  ● Has the drying time or the programme been selected?
  ● Has the machine been switched on again after opening the door?
  ● Has the machine stopped working because the water container is full and must be emptied?

The dryer is noisy...

- Switch off the dryer and contact Service for advice.

The filters cleaning indicator light is on...

- Do the lint filters or the sponge filter need cleaning?

The water container indicator light is on ^* ...

- Does the water container need emptying?

* In some models, this will be indicated with a message appearing on the display.

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

● Is found to be in working order.
● Has not been installed in accordance with the installation instructions.
● Has been used incorrectly.

Spares

Always use genuine spares, available direct from Service.

Service

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an Authorised Service engineer.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contact us at the number indicated on the support page of our web site.

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

9. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION

Packaging Information

The packaging of this product is made of recyclable materials. Do not dispose of the packaging, waste together with household or other waste. Instead, take it to a packaging collection point defined by your local authority.

10. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY

Energy Labelling

ENERG Y IJA ENERGIE - EVEPEIA IE IA ① ESSENTIEL B ESLHP10-2b A+++ A++ A++ A B C D ENERGIA - EHEPTIJA - ENEPTEIA ENERGIJA - ENERGY - ENERGIE ENERGI 282 kWh/annum min/cycle* 10,0 kg 66 dB ⑨ ABCDEFG 392/2012 *wenu - cyklus - port on - zyklus npolyoupa - ciclo - tsükbel ohjetna - ciklus - ciklas - cikls ziklu - cyelus - cykl - cielu program - torkomgång

1. Trademark
2. Model
3. Energy Class
4. Annual Power Consumption
5. Noise During Drying
6. Dry Laundry Capacity
7. Cotton Cupboard Dry Cycle Time
8. Condensing Efficiency Class
9. Machine Technology

Energy Efficiency

• You should operate the dryer to full capacity, but make sure that it is not overloaded.
• When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.
  ● Make sure that the same kinds of laundry are dried together.
• Please follow the recommendations in the user manual for programme selection.
• For air circulation, leave an appropriate clearance on the front and back sides of the dryer. Do not cover the grills on the front side of the machine.
  ● Unless necessary, do not open the door of the machine when drying. If you have to open it, do not keep it open for a long time.
• Do not add new (wet) laundry during the drying process.
• Hairs and lint that detach from the laundry and merge in the air are collected by the "Lint Filters". Please make sure that the filters are cleaned before and after each use.
• For models with a heat pump, make sure that the heat exchanger is cleaned at least once a month or after each 30 uses.
  ● During the drying process, the environment where the dryer is installed must be well ventilated.

Simple line drawing of a smartphone with a cross symbol on the screen (no text or labels)

Simple line drawing of a washing machine with a checkmark and globe, no text or symbols present.

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

ATENCIÓN

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

②

Technical diagram of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

③

Technical diagram of a mechanical assembly with no visible text or symbols

④

Technical line drawing of a mechanical assembly with two views showing internal components and a tool interacting with a component (no text or symbols present)

⑤

Technical line drawing of a mechanical assembly with no visible text or symbols

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

Illustration of hands holding a rectangular device with a circular fan-like pattern on the side (no text or symbols)

UP B

Line drawing of a mechanical component or part with no visible text, numbers, or symbols

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

Two identical diagrams (A and B) showing hands inserting a cable into a device, with no text or symbols present.

1. Abra los filtros.

Technical line drawings of two mechanical device assemblies labeled A and B, showing internal components and directional arrows (no text or symbols beyond labels)

Diagram illustrating nine steps of a mechanical or electrical device operation, labeled A and B with Chinese characters.

Technical diagram showing four different mechanical or electrical assembly steps labeled A, B, and C, with arrows indicating motion direction.

! ATENCIÓN

Illustration of hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with number 2 (no text or symbols on the diagram itself)

Diagram showing two views of a battery pack with internal compartments and a moving panel, no text or symbols present.

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Diagram illustrating a mechanical or structural process with labeled steps and components, including a drop, arrow, and fabric swatch.

Diagram of a battery pack with internal compartments and directional arrows indicating rotation (no text or symbols)

Diagram showing a device with an arrow pointing to a circular component, labeled with number 7 (no text or symbols on the diagram itself)

Illustration of hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

ATENCIÓN

Simple line drawing of a washing machine with a cross symbol on its side (no text or labels)

Simple line drawing of a washing machine with a checkmark and circular dial (no text or symbols)

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in a yellow triangle with black border

WARNUNG

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

②

Technical diagram of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

③

Technical diagram of a mechanical assembly with no visible text or symbols

④

Technical line drawing of a mechanical assembly with hanger and structural components (no text or symbols)

⑤

Technical line drawing of a mechanical assembly with structural components and a tool (no text or symbols)

⑥

3. WASSERBEHÄLTER

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

* je nach Modell

NUR FÜR MODELLE MIT ABLAUFSCHLAUCH-KIT

Illustration of hands holding a fan blade next to a circular component, with no visible text or symbols

UP B

Line drawing of a hand holding a rectangular object with a circular hole, no text or symbols present

Simple line drawing of a hand holding a ring over a wooden surface with two circular indentations (no text or symbols)

* je nach Modell

4. TÜR UND FILTER

Tür

Two identical diagrams (A and B) showing hands connecting a cable into a washing machine, with no text or symbols present.

Two technical diagrams labeled A and B showing mechanical assembly with arrows indicating motion (no text or symbols beyond labels)

Diagram illustrating nine steps of a mechanical or filtration device operation, labeled A and B with Chinese characters.

Technical diagram showing four different mechanical or electrical component configurations labeled A, B, and C.

! WARNING

Simple line drawing of a device with a cross mark and circular components, no text or symbols present.

Simple line drawing of a washing machine with a checkmark and globe, no text or symbols present.

Illustration of a hand holding a small antenna with an arrow indicating rotation (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

WAARSCHUWING

Brandgevaar/brandbare materialen.

Technical diagram of a mechanical component with circular features and an inset view showing internal components (no text or labels)

Technical line drawing of a mechanical assembly or lifting device inside a circular frame (no text or symbols)

②

Technical diagram of a mechanical assembly with labeled parts A and B (no text or symbols beyond labels)

③

Technical line drawing of a mechanical assembly with no visible text or symbols

④

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and a tool (no text or symbols)

⑤

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

⑥

3. WATERBAKKEN

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container pouring liquid into a tank (no text or symbols)

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

Illustration of hands holding a rectangular device with a circular fan inside, next to a circular ring (no text or symbols)

Illustration of a hand inserting a device into a container with a label B (no text or symbols on the device itself)

Line drawing of a folded garment with a circular mark and a small inset detail (no text or symbols)

Line drawing of a hand holding a ring over a wooden surface with two circular indentations (no text or symbols)

Two-step diagram showing hands inserting a cable into a washing machine (labeled A and B), no text or symbols present.

1. Open de filters.

Technical line drawings of two mechanical device assemblies labeled A and B, showing internal components and directional arrows (no text or symbols beyond labels)

Diagram illustrating nine steps of a mechanical device with labeled components A and B, showing hand positioning and water displacement.

Technical diagram showing four steps of a mechanical device with labeled components (A, B) and directional arrows indicating motion.

WAARSCHUWING

Illustration of hands installing or adjusting a panel with directional arrows (no text or symbols)

Diagram showing a device with a circular component and directional arrows, no text or symbols present

Diagram showing two views of a battery pack with internal compartments and internal structure, labeled with number ③ (no text or symbols on the diagram itself)

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a water tap, magnified view of a fabric swatch, and final assembly.

Diagram of a battery pack with internal compartments and directional arrows indicating rotation (no text or symbols)

Diagram illustrating two steps of a door handle replacement, labeled ⑦ and ⑧ with arrows indicating rotation and adjustment.

WAARSCHUWING

WATERDICHT REVITALISEREN

8. PROBLEEM OPLOSSEN EN GARANTIE

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.
