USER MANUAL ERMTS1-01B ErgoAV

TV Mount Instruction Manual

(A)

English pages 02–14

French pages 15–27

Spanish pages 28–40

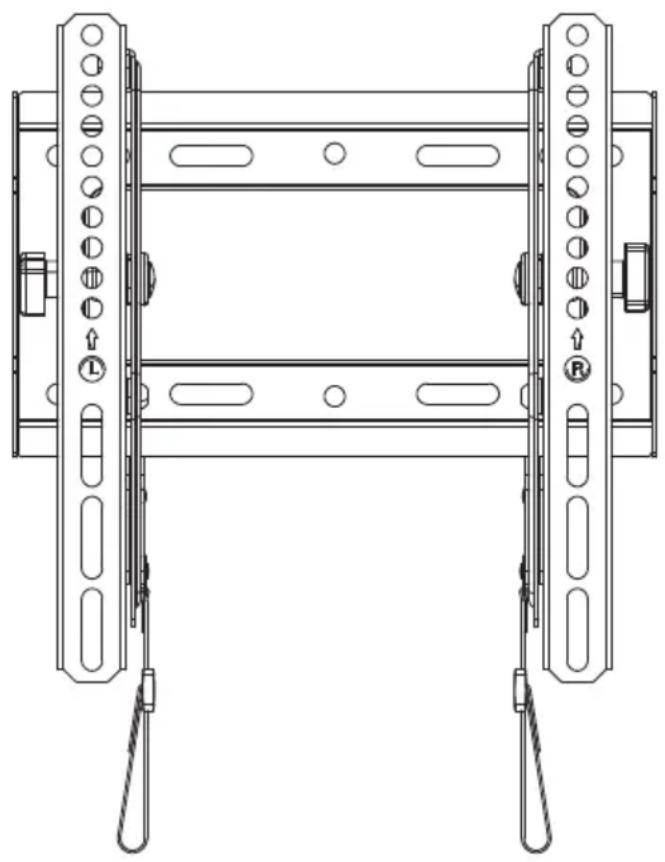

Technical line drawing of a mechanical frame structure with mounting holes and adjustment knobs (no text or symbols)

Model: ERMTS1-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

address: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

DANGER! Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].
CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

• Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, and solid concrete walls. – DO NOT install into drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS

Weight Restrictions

If your TV weighs more, do not use this product.

WARNING

DO NOT exceed the maximum weight indicated. This mounting system is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the mount and its accessories, causing damage and or injury.

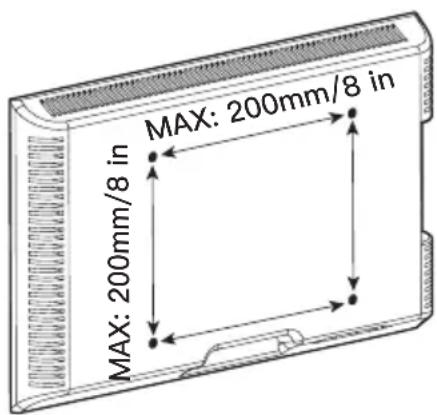

Check the VESA Pattern of Your TV before the Installation

75 mm ≈ 3 in

100 mm ≈ 4 in

200 mm ≈ 7 7/8 in

Minimum VESA pattern: 75mm/3 in (W) x 75mm/3 in (H)

If your TV VESA is greater than 200x200 mm/8x8 in or less than VESA 75x75mm/3x3 in, this mount is NOT compatible.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

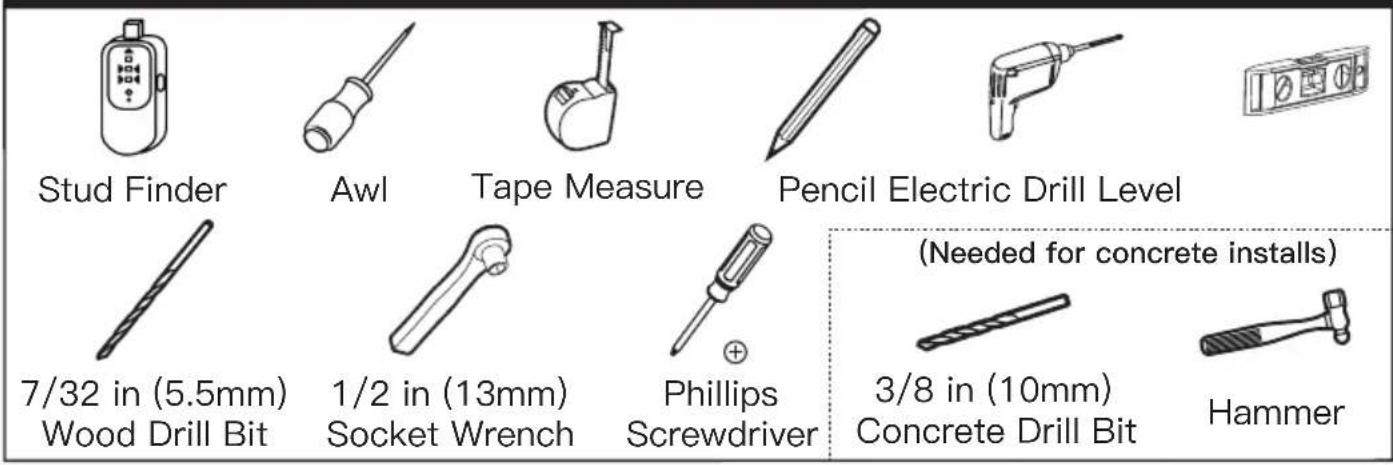

Tools Needed (Not Included)

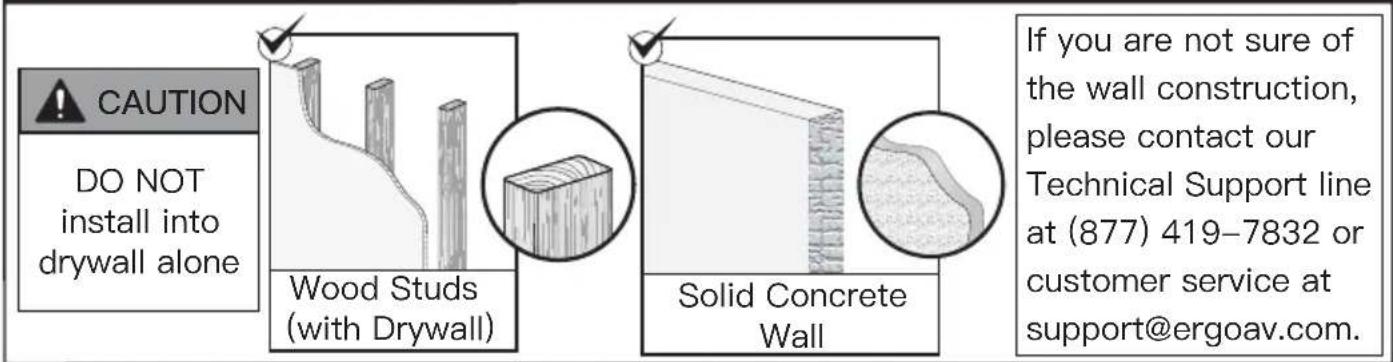

Verify Your Wall Construction

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail]. PLEASE NOTE: Not all hardware included in this package will be used.

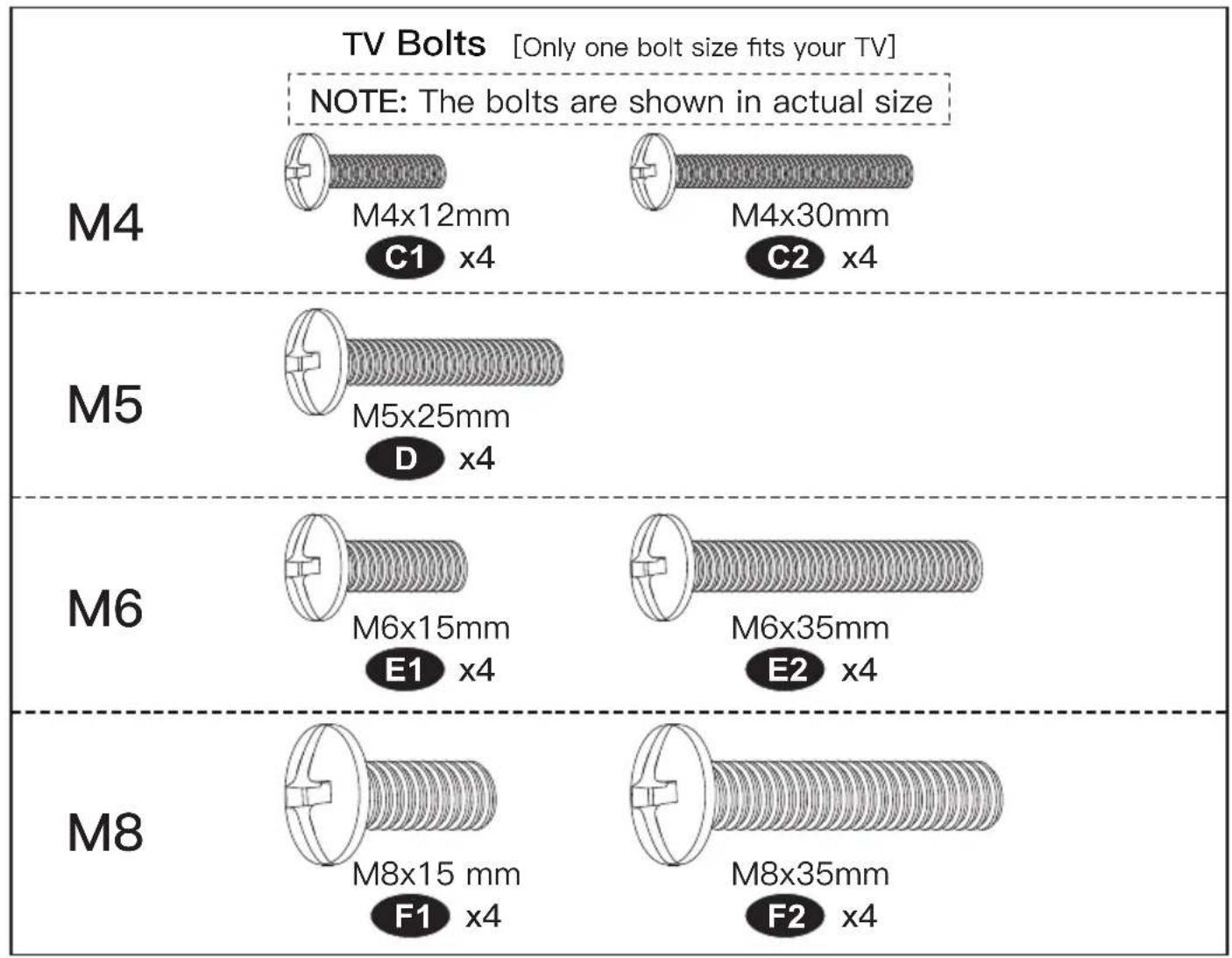

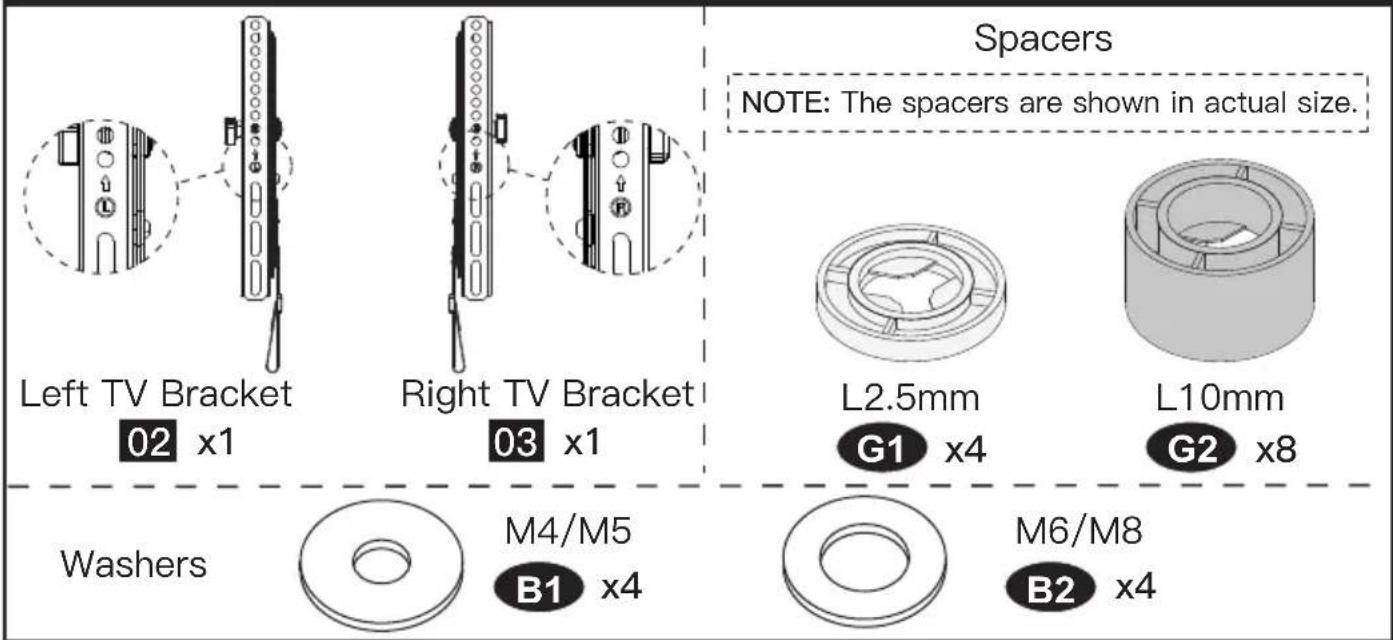

Supplied Parts and Hardware for Step 1

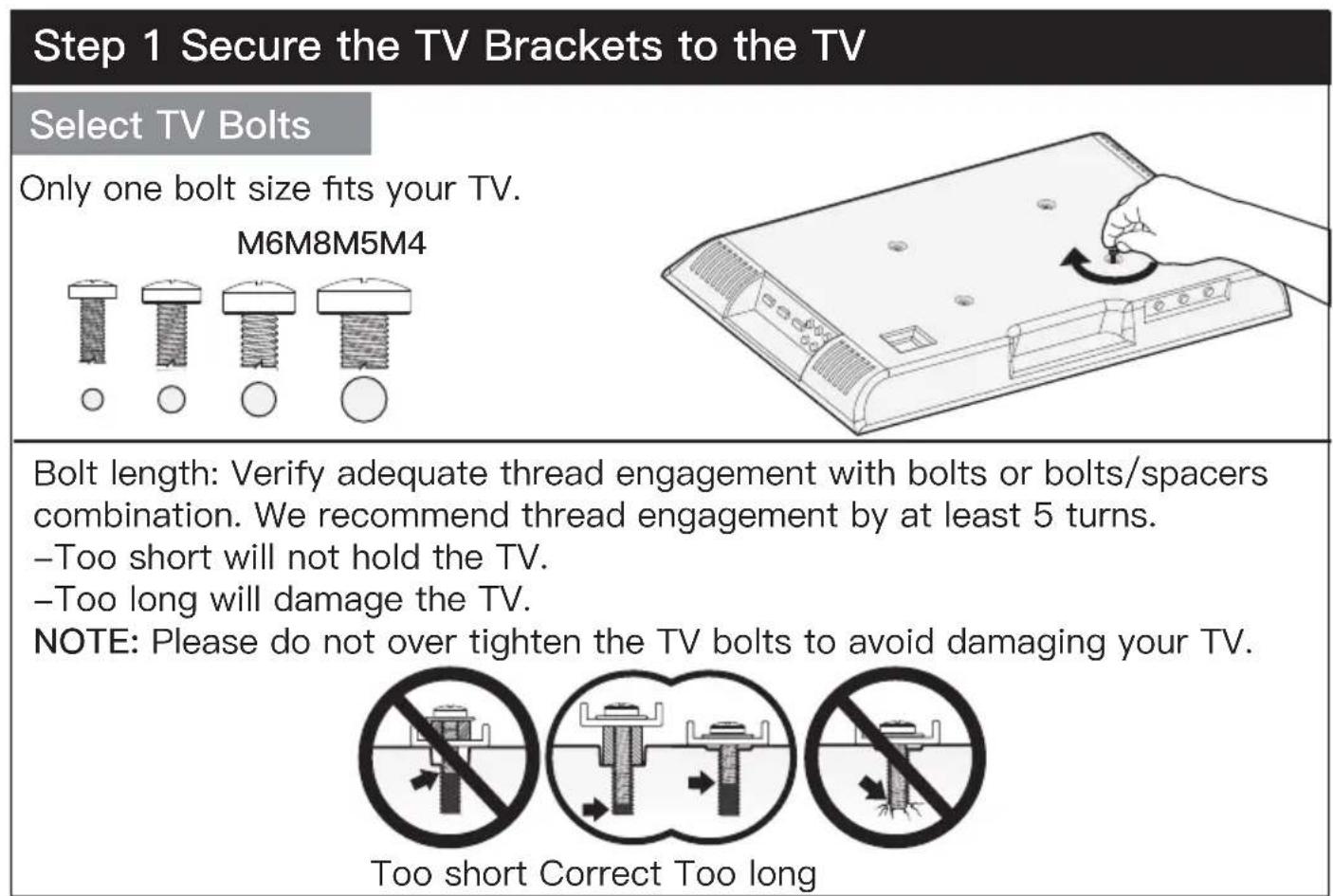

PLEASE NOTE: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

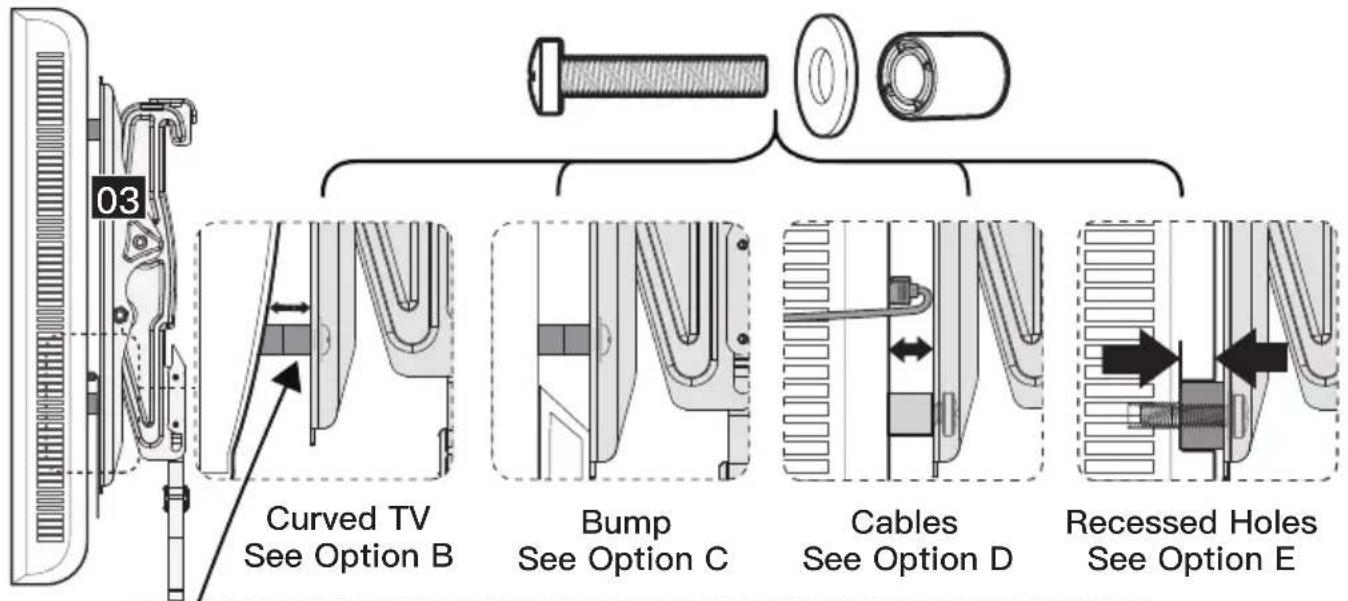

Parts Needed if You Have a TV as Shown Below

Spacers

G1 G1+G2 G2+G2G2 G1+G2+G2

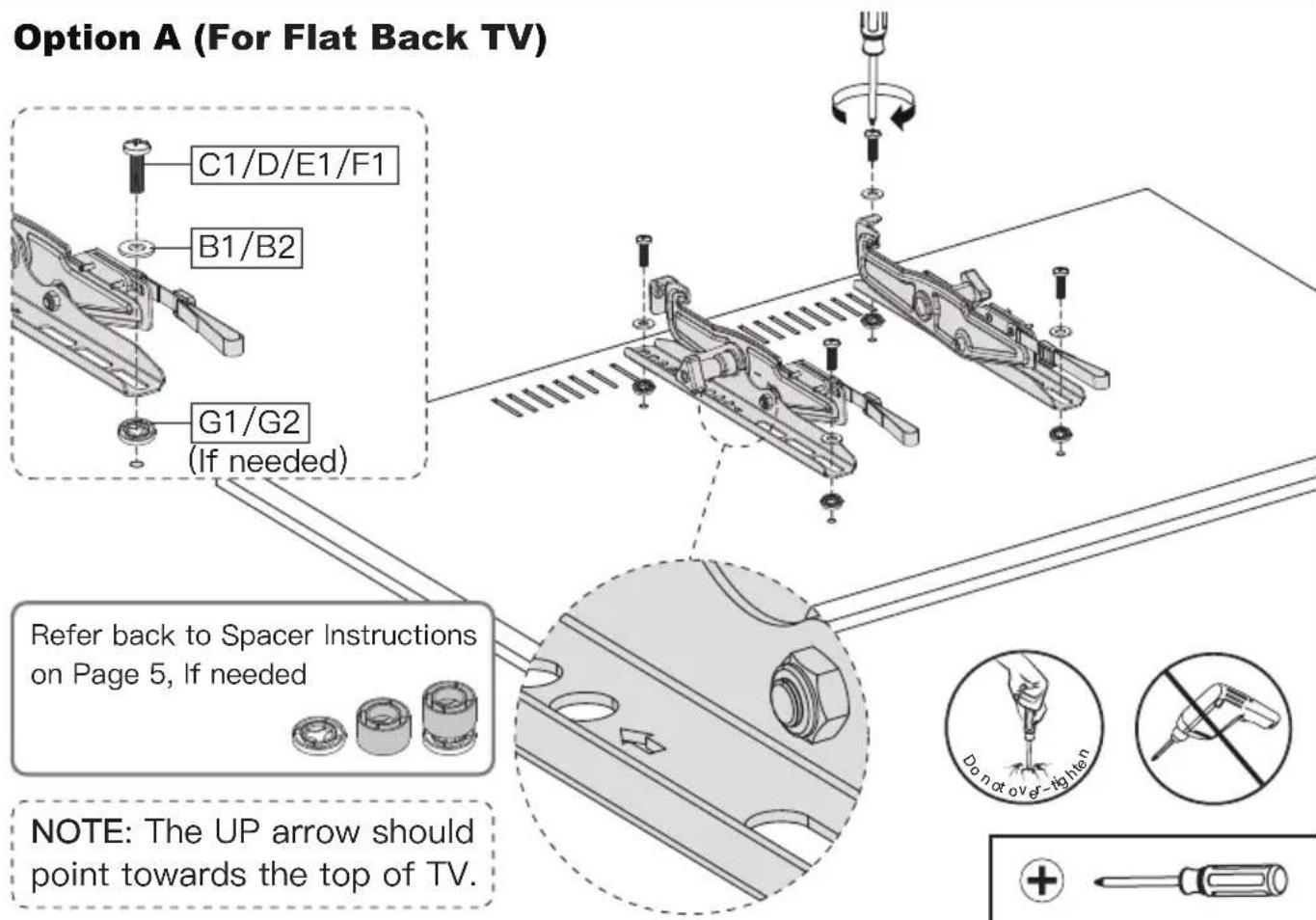

CAUTION: When attaching the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

⚠️ PLEASE NOTE: The bolt hole locations on your TV may vary in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

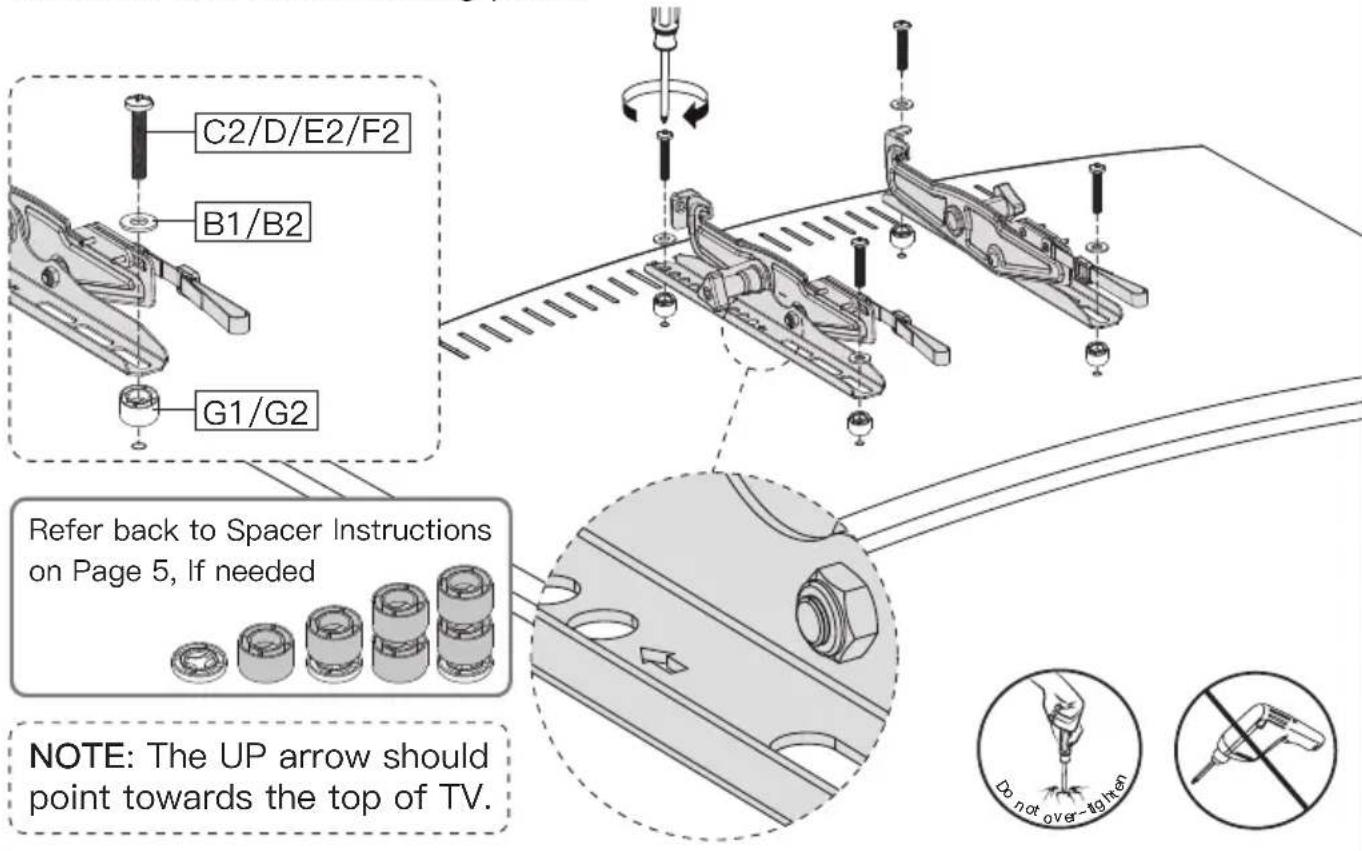

Option B (For Round Back TV)

Phillips Screwdriver (Not Included)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

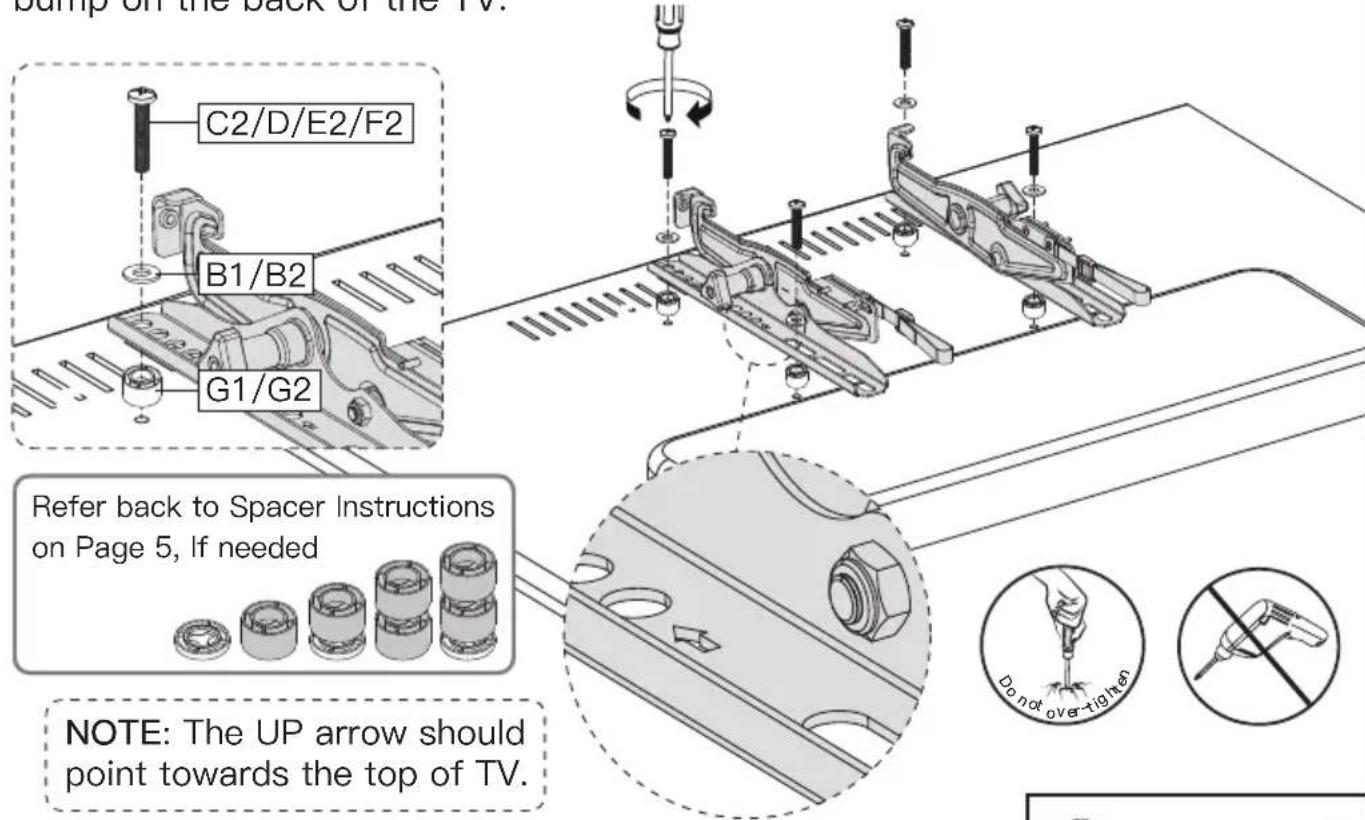

Option C (For TV with A "Bump")

Spacers must be tall enough so there is no gap between TV bracket and bump on the back of the TV.

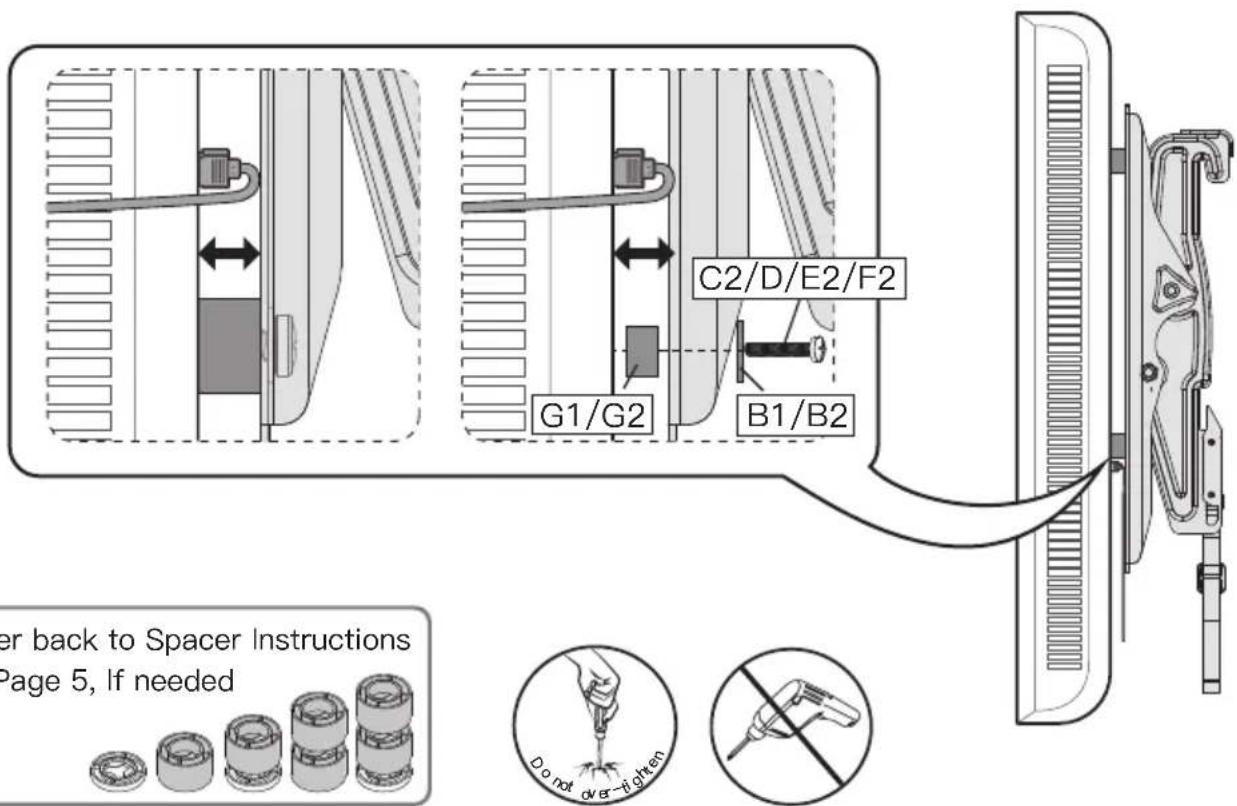

Option D (for TV with Cable Interference)

For cable interference, use spacers [G1] and [G2] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

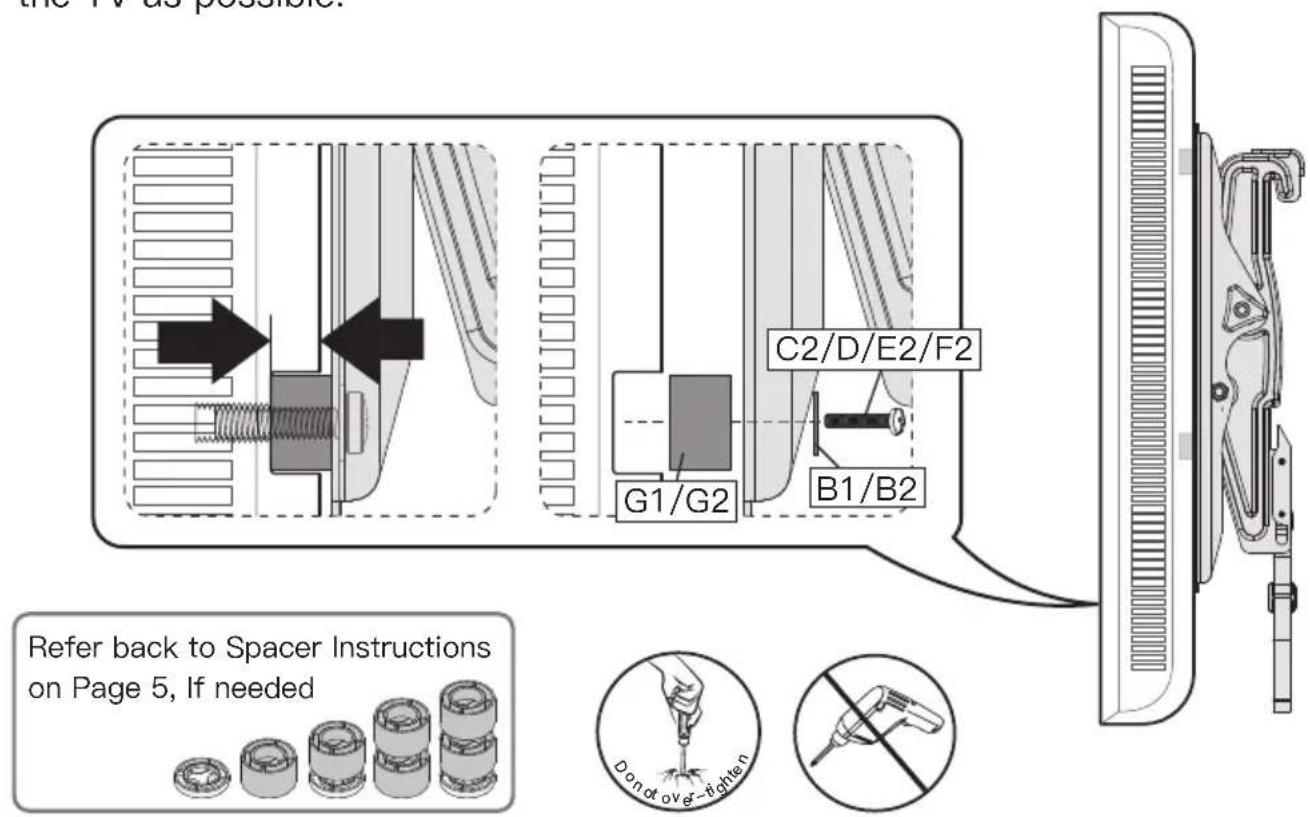

Option E (For Recessed Holes)

The spacer needs to fill in the recessed holes on the back of the TV so that the TV brackets are as close to the TV as possible.

Phillips Screwdriver (Not Included)

Supplied Parts and Hardware for Step 2

Technical line drawing of a rectangular frame with internal compartments and mounting holes (no text or symbols)

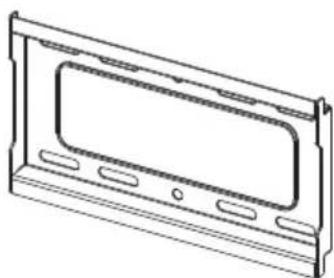

Wall Plate 01 x1

NOTE: The lag screw is shown in actual size

x3

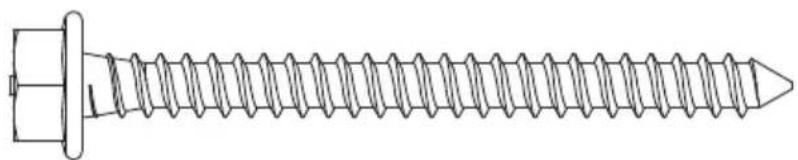

Lag Screw 5/16 X 2 3/4 in

Technical line drawing of a screw with threaded shaft and mounting bracket (no text or symbols)

Step 2 Attach the Wall Plate [01] to the Wall

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B

Step 2A Wood Stud Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against the wall plate [01].

DO NOT USE ANCHOR [A2] FOR THIS STEP.

Ensure the wall plate is securely fastened to the wall before continuing to the next step.

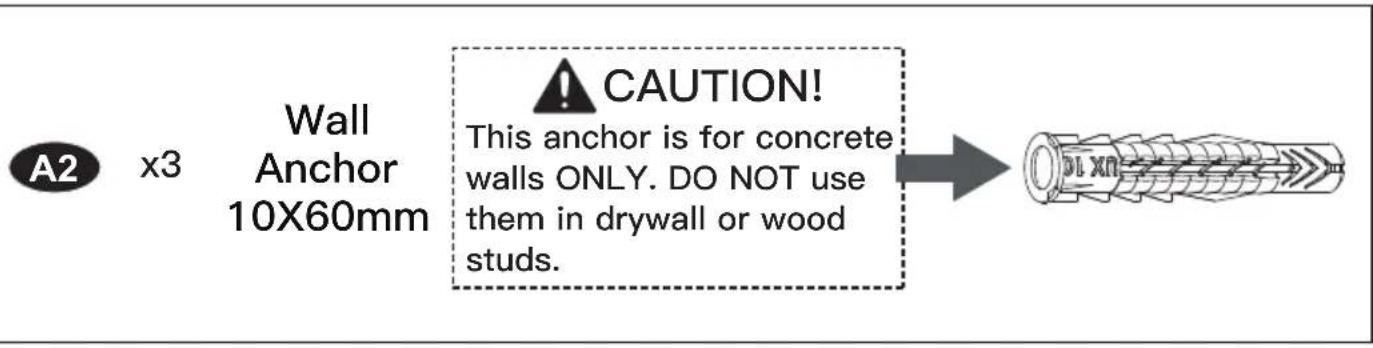

Wall Anchor
A2

● Nominal wood stud size: common 2 x 4 in (51 x 102 mm)
● Stud center must be verified.

2A-1

Stud Finder (Not Included)

Awl (Not Included)

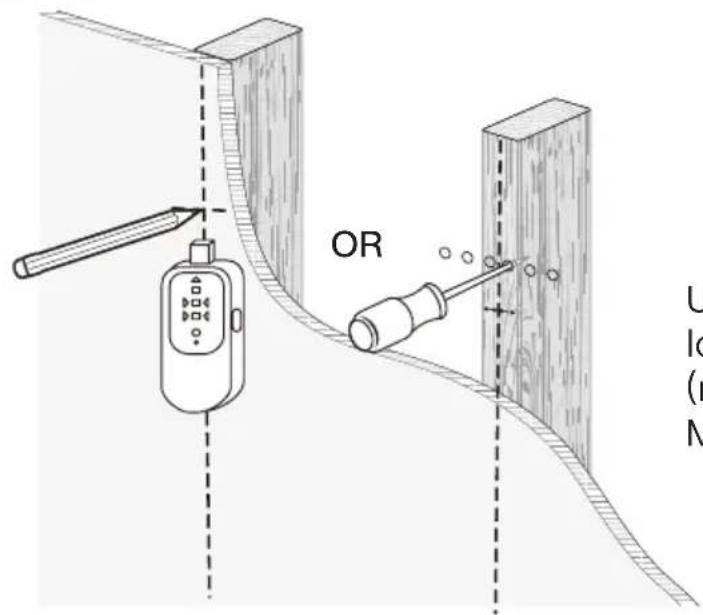

Use a stud finder (not included) to locate wood studs or use an awl (not included) to verify the edges. Mark the edge and center locations.

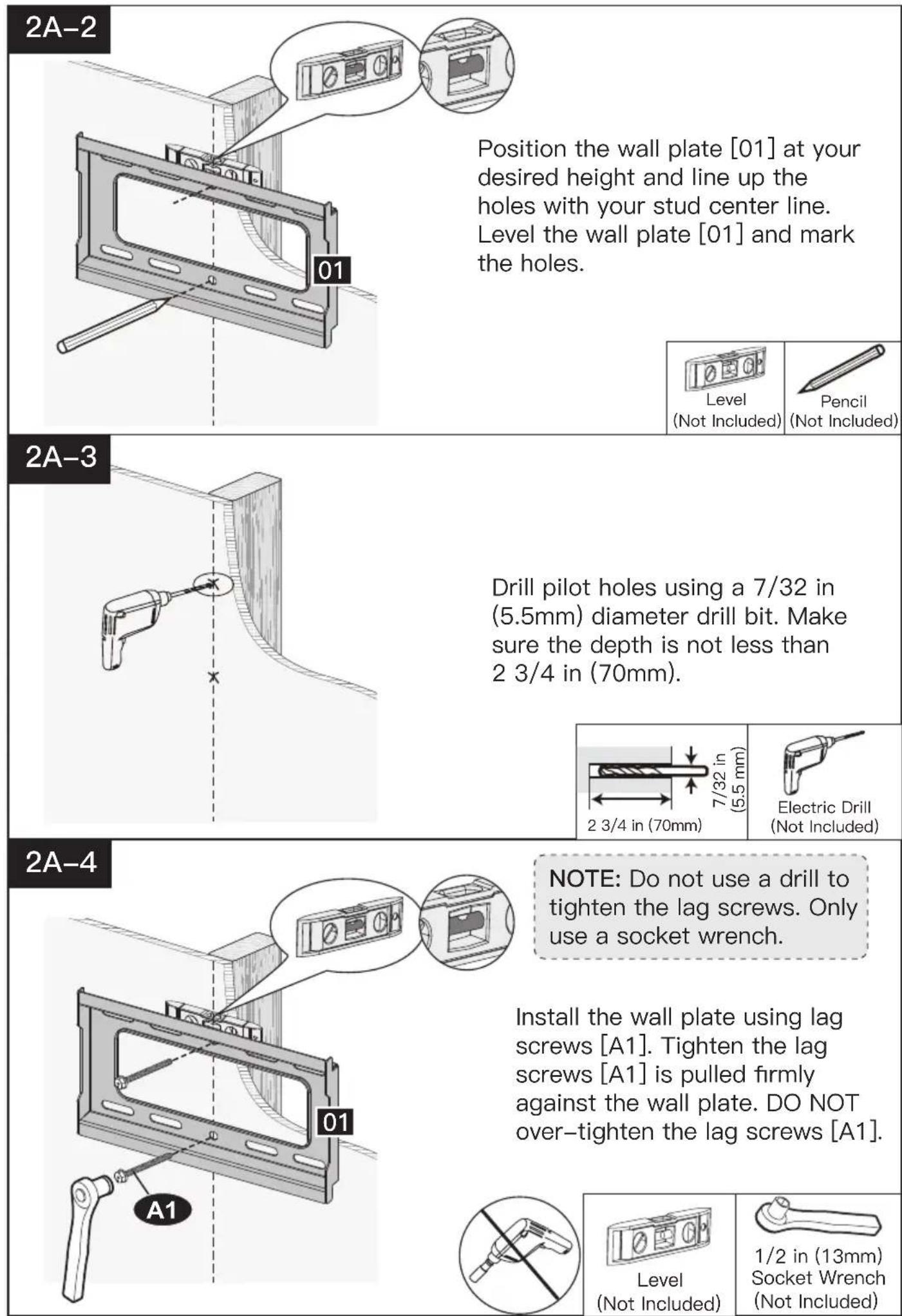

Position the wall plate [01] at your desired height and line up the holes with your stud center line. Level the wall plate [01] and mark the holes.

Drill pilot holes using a 7/32 in (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4 in (70mm).

NOTE: Do not use a drill to tighten the lag screws. Only use a socket wrench.

Install the wall plate using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate. DO NOT over-tighten the lag screws [A1].

Step 2B Solid Concrete Wall Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

• Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate.
  ● Ensure the wall plate is securely fastened to the wall before continuing to the next step.
  ● Mount the wall plate directly onto the concrete surface without any covering.
  ● The thickness of the concrete wall must exceed 5.5 in (140 mm).

Wall Anchor

2B-1

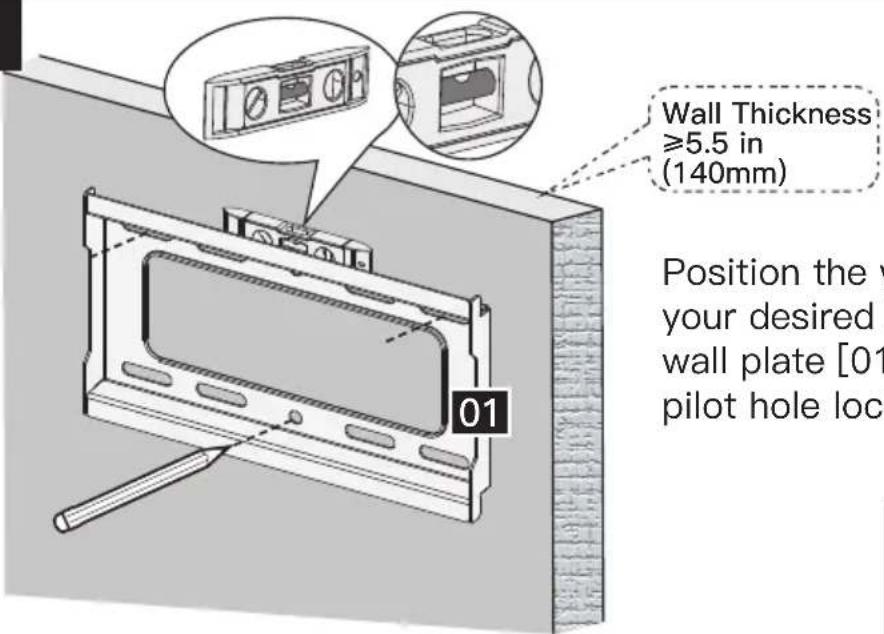

Position the wall plate [01] at your desired height. Level the wall plate [01] and mark the pilot hole locations.

2B-2

Diagram of a tool interacting with a rectangular block, showing a cursor pointing at a circular target labeled 'X' (no text or symbols beyond the label)

Drill 3 pilot holes using a 3/8 in (10mm) diameter drill bit. Make sure the depth is not less than 3 in (75mm).

2B-3

Hammer
(Not Included)

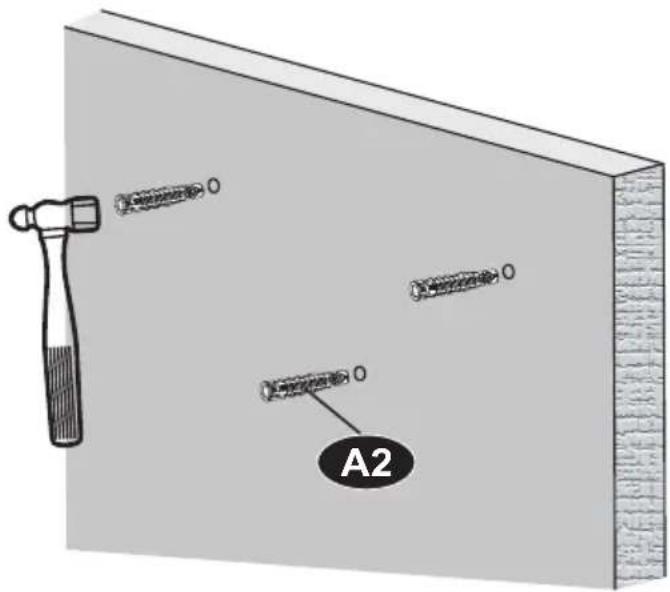

Use the hammer to knock anchors [A2] into the wall. Be sure the anchors [A2] are seated flush with the concrete surface.

2B-4

Symbol of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or labels)

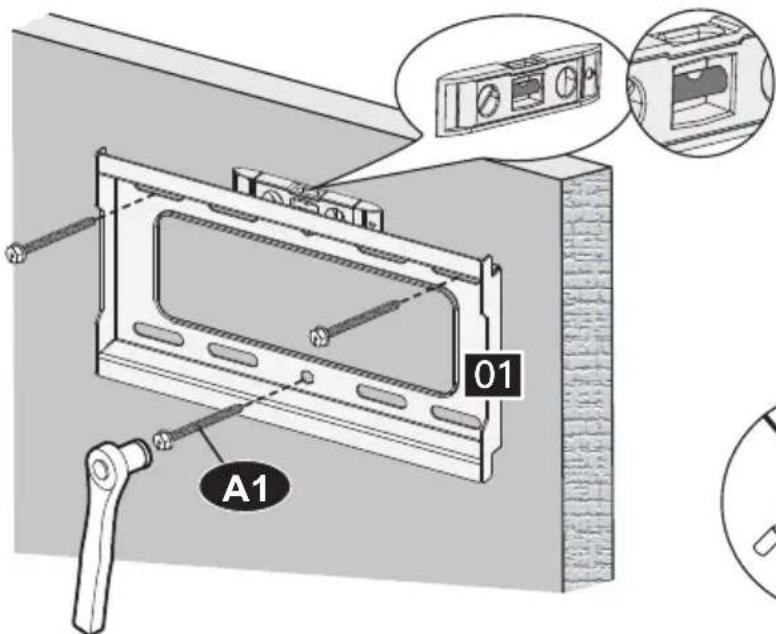

Install the wall plate [01] using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate [01]. DO NOT over-tighten the lag screws [A1].

NOTE: Do not use a drill to tighten the lag screws. Only use a socket wrench.

Level
(Not Included)

1/2 in (13mm)
Socket Wrench
(Not Included)

Step 3 Secure the TV onto the Wall Plate

To Hang TV onto the Wall Plate

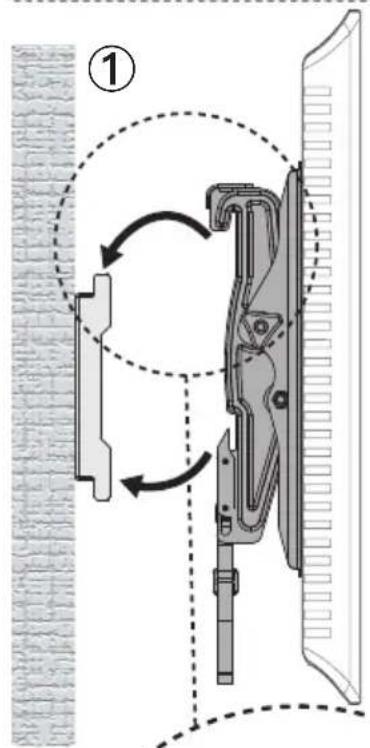

1. Hang the TV with brackets [02] and [03] onto the wall plate.

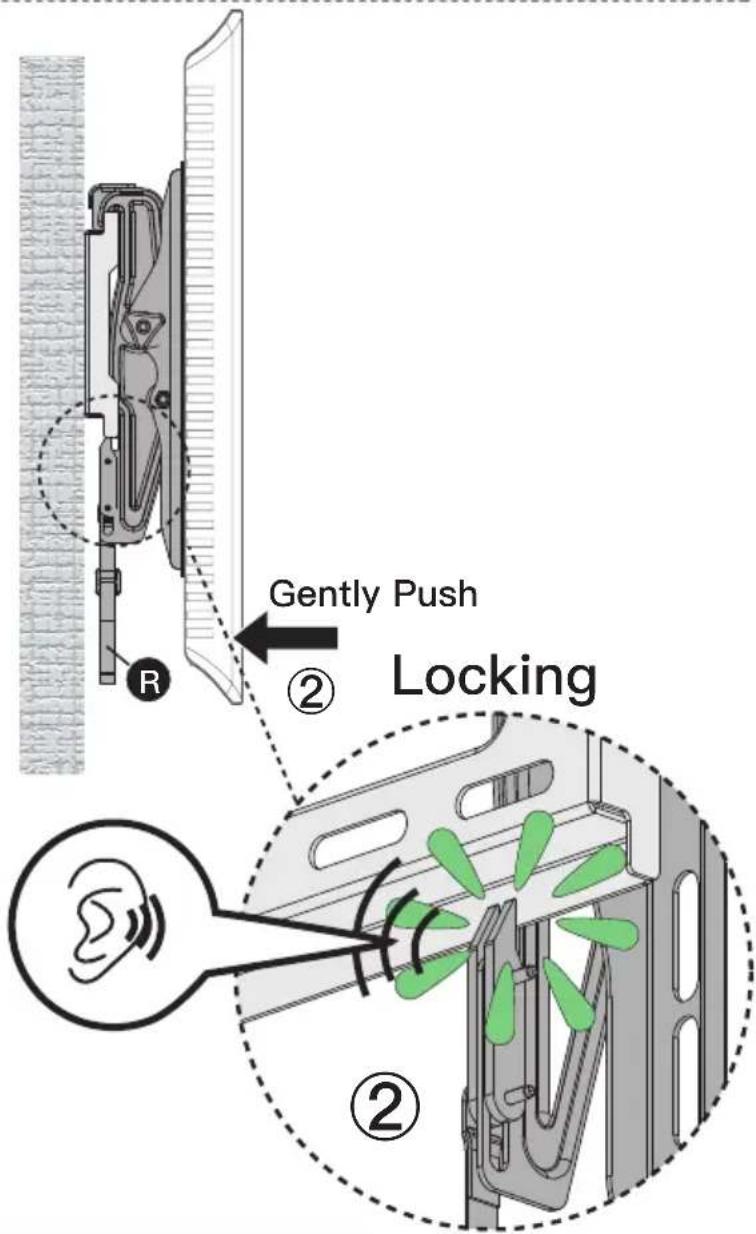

2. Gently press the bottom of the TV towards the wall until you hear the safety locks "click" into place on both sides of the mount.

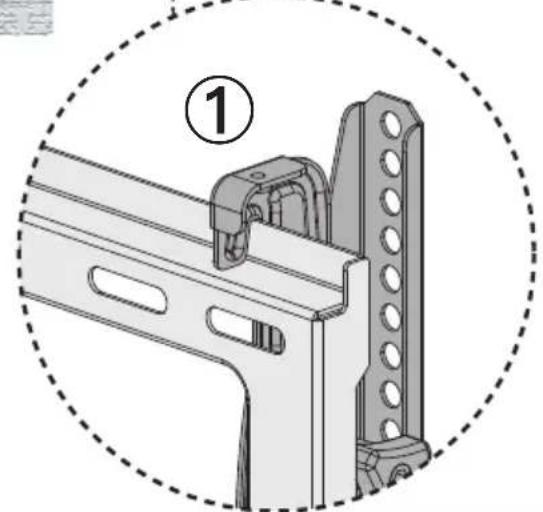

Technical diagram of a mechanical bracket assembly with mounting holes and a numbered callout (1), enclosed in a dashed circular border.

HEAVY! You may need assistance with this step.

CAUTION: to avoid potential injury and person property damage, two people should assist in removing the TV from the mount.

1. Verify that all cables are disconnected from the back of the TV and the TV is unplugged from wall.
2. While gently applying pressure to the front of the TV towards the wall, pull down on the safety straps until they are full disengaged.
3. While keeping the straps in the disengaged position, move the bottom of the TV away from the wall and lift the TV off the wall plate.

Supplied Hardware for Step 4

3/16in(5mm)

Allen Key

x1

Step 4 Adjustment

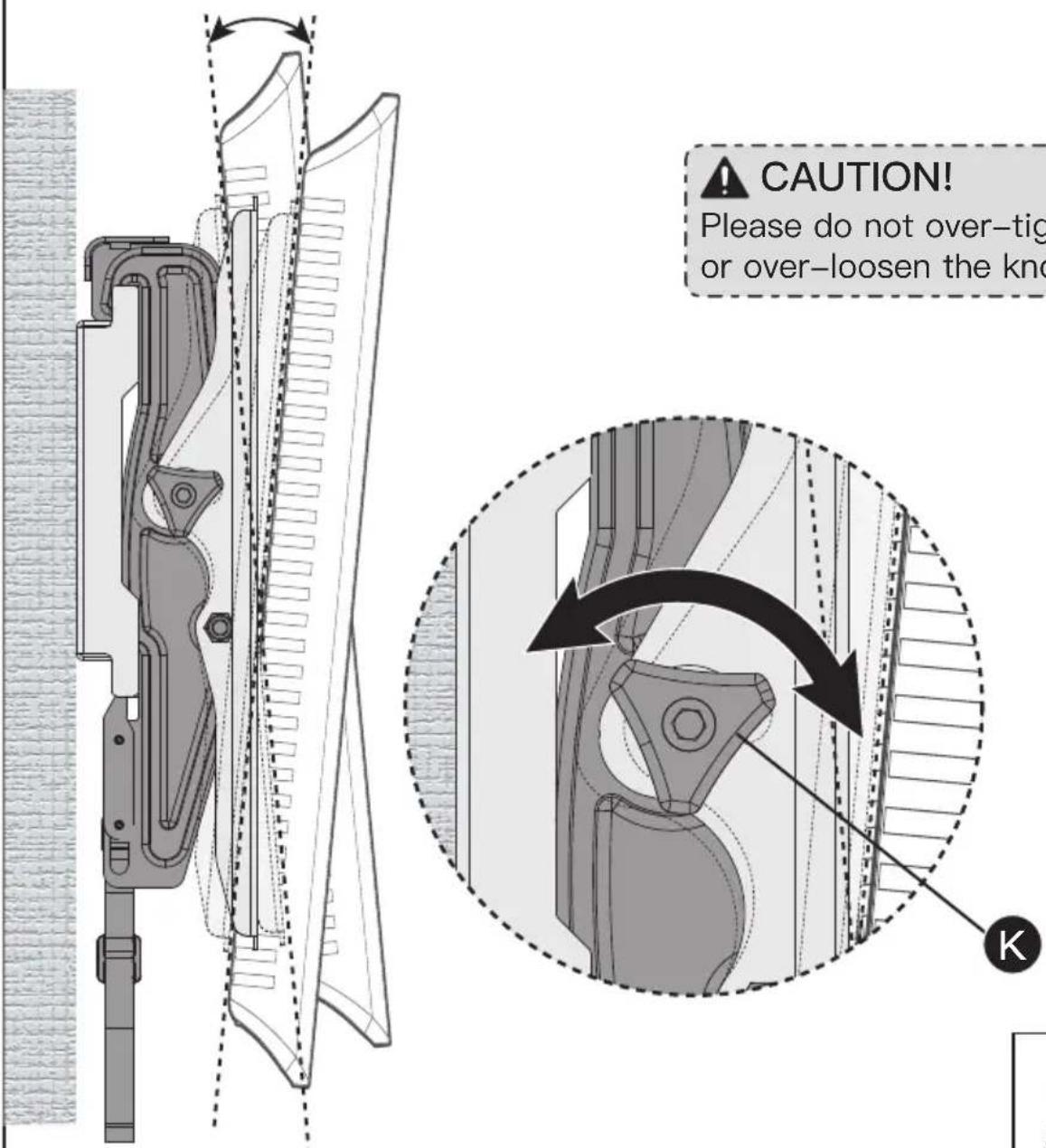

Tilt Adjustment

1. Tilt the TV to your desired angle (if it is difficult to adjust the TV, you can slightly loosen the side tension knobs [K] by hand or using the allen key).
2. Re-tighten the side tension knobs [K] to hold the TV in place and prevent unwanted movement.

CAUTION!

Please do not over-tighten or over-loosen the knobs.

3/16in(5mm)

Allen Key

Diagram showing a wooden fence with three vertical posts and a magnified inset of a rectangular block (no text or symbols)

Diagram showing a cross-section of a layered material with a magnified inset highlighting a specific layer (no text or symbols present)

Mur en béton massif

Support TV gauche

02 x1

Technical line drawing of a door handle assembly with an inset close-up view (no text or symbols)

Support TV droit

03 x1

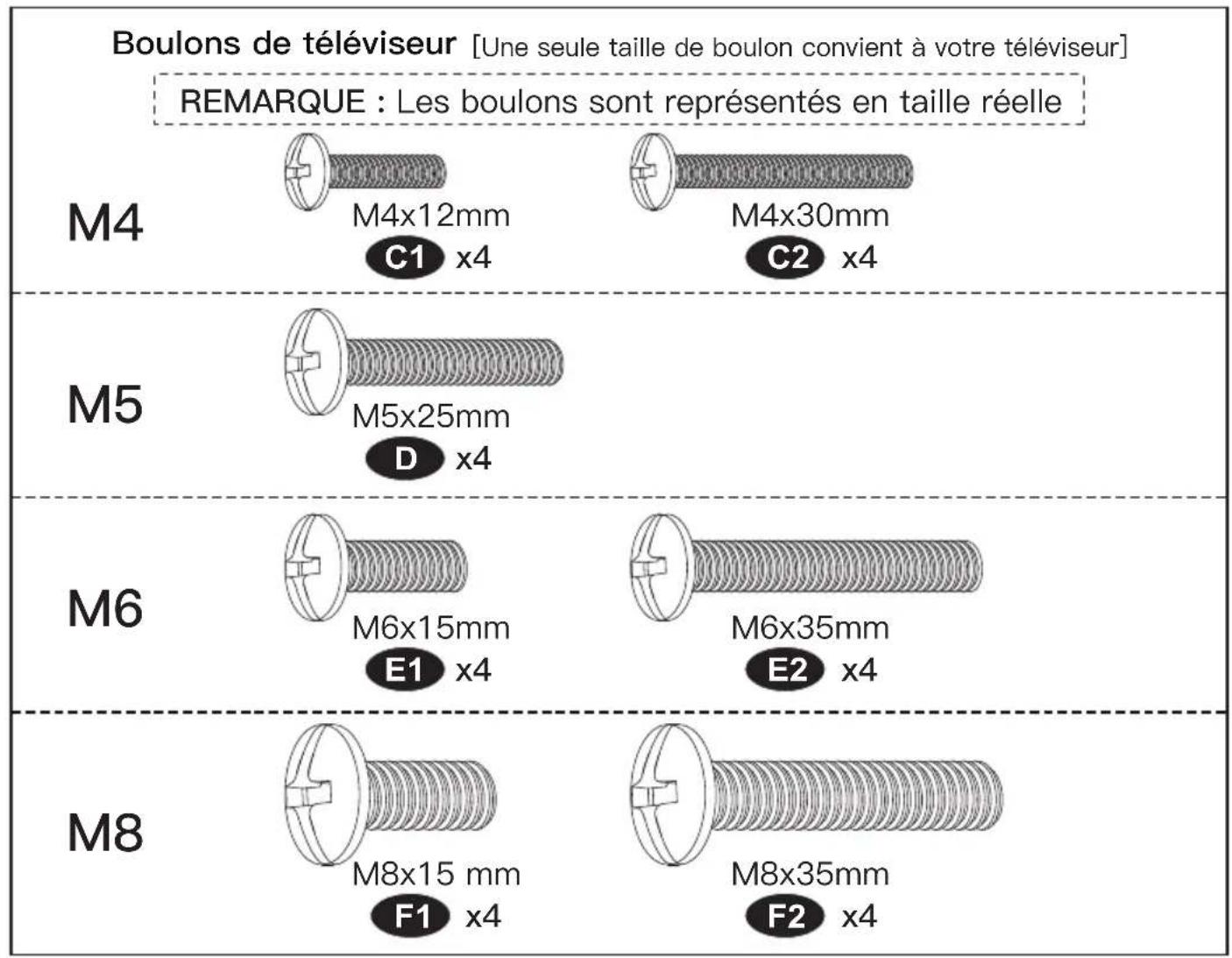

Entretoises

3D rendering of a cylindrical mechanical part with internal cavities and mounting holes (no text or symbols)

L10mm

G2 x8

Rondelle

M4/M5

B1 x4

M6/M8

B2 x4

Trop court Correct Trop long

Option D (for TV with Cable Interference)

Technical line drawing of a rectangular frame with internal compartments and mounting holes (no text or symbols)

Plaque murale

01 x1

Tire-fond 5/16 X 2 3/4pouce

Technical line drawing of a screw with threaded head and mounting bracket (no text or symbols)

x3

Ancre de mur 10X60mm

ATTENTION!

Diagram of a tool interacting with a rectangular block, showing a circular component and cross marks (no text or symbols)

Symbol of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

ATTENTION!

Mechanical assembly diagram showing a rotating component with directional arrows, no text or symbols present

3/16 pouce(5mm)

Clé hexagonale

Diagram showing a wooden fence with three vertical posts and a magnified inset of a rectangular block (no text or symbols)

Diagram showing a cross-section of a layered material with a magnified inset highlighting a specific layer (no text or symbols present)

3D rendering of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols)

L10mm

G2 x8

Arandela

M4/M5

B1 x4

M6/M8

B2 x4

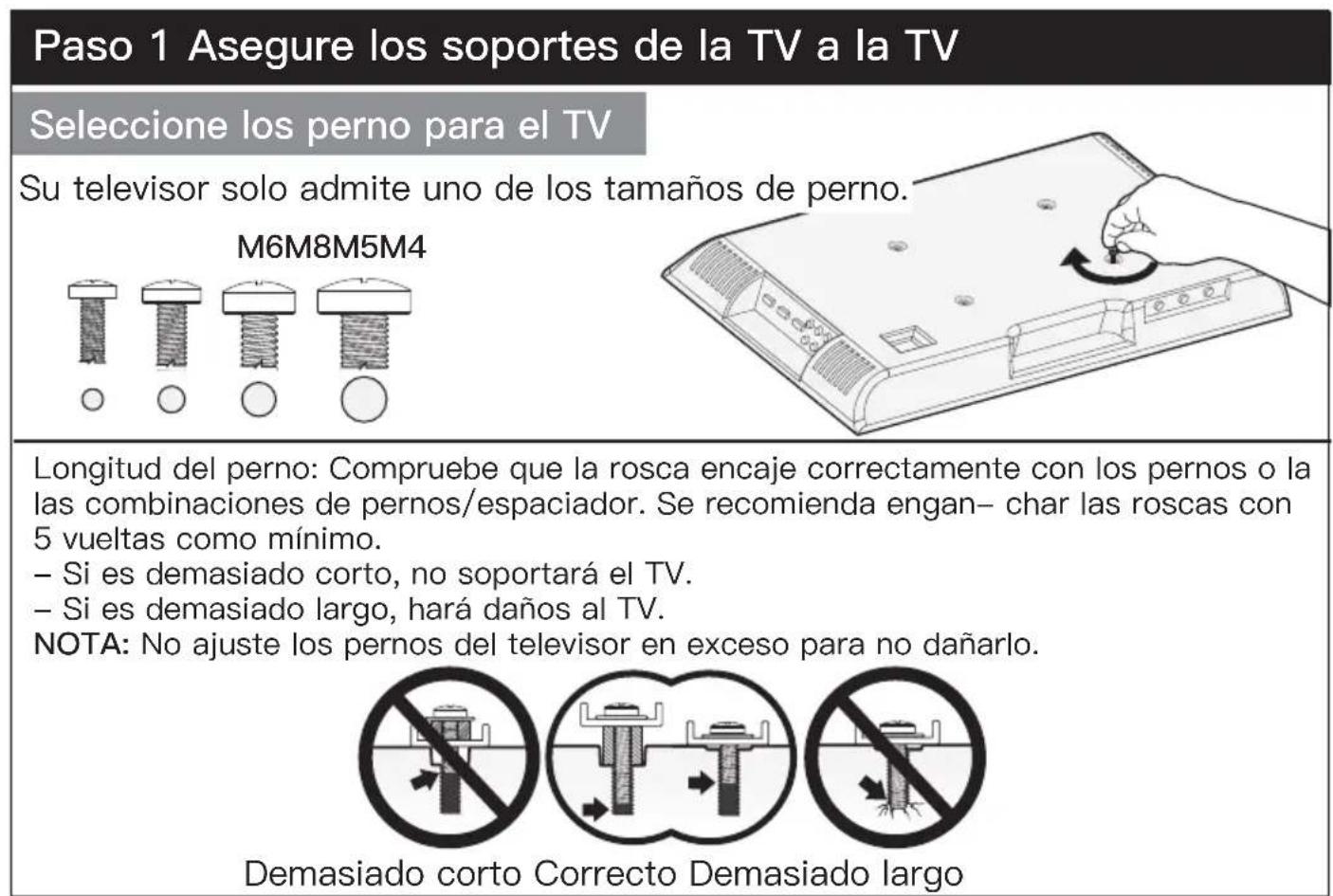

Technical line drawing of a rectangular frame with internal compartments and mounting holes (no text or symbols)

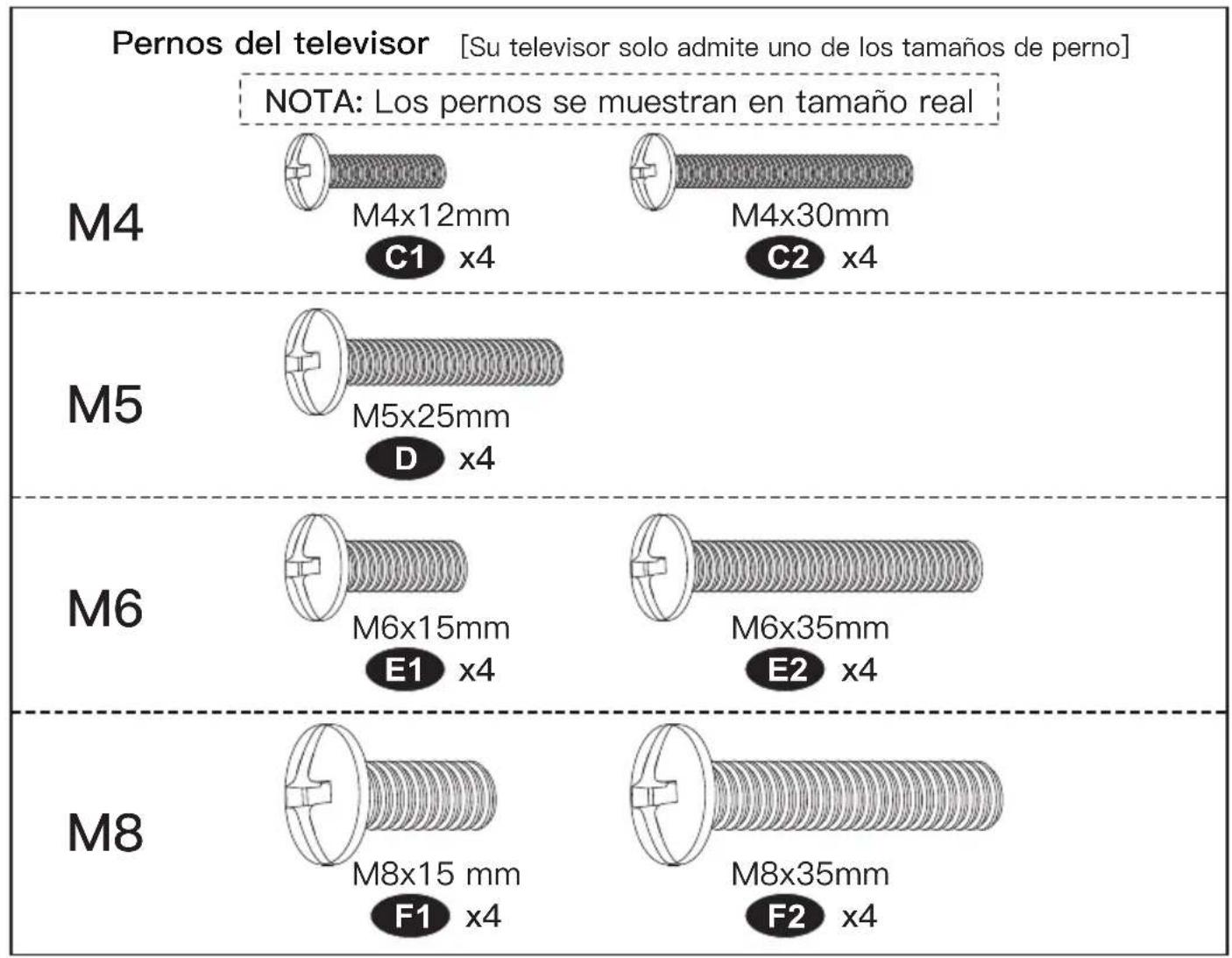

Placa de pared 01 x1

Technical line drawing of a screw with threaded shaft and mounting bracket (no text or symbols)

A2

x3

Anclas de pared 10X60mm

PRECAUCIÓN!

Diagram showing a tool inserted into a curved wooden structure with a dashed line indicating alignment or measurement (no text or symbols present)

Diagram of a tool interacting with a rectangular block, showing a circular component and marked points (no text or symbols present)

Simple line drawing of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At ErgoAV, we strive to provide the highest valued products.

We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

Simple line drawing of a vertical cylindrical platform with base and wheels (no text or symbols)

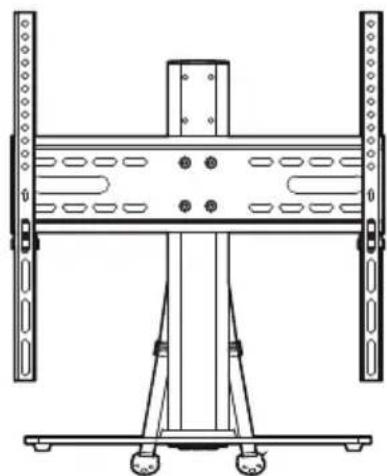

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central shaft (no text or symbols)
