USER MANUAL Routa 45 Skandika

13 Safety precautions

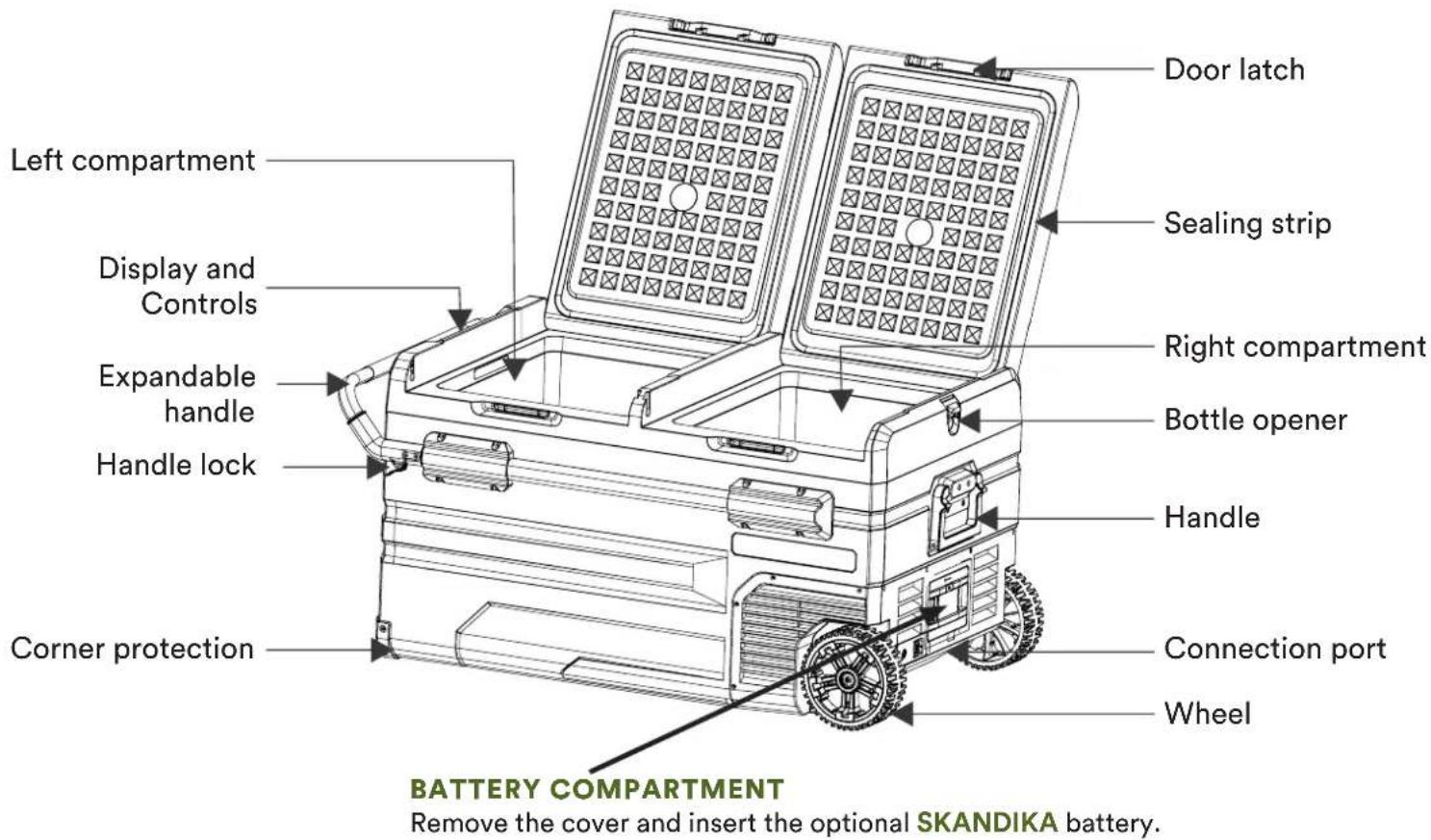

14 Product components
14 Charging the optional battery
16 Use
18 Care and maintenance
18 Troubleshooting
19 Technical specifications
20 Guarantee conditions / Disposal

skandika.com/service

Please visit the Skandika Service portal on our website for setup & help videos, FAQs and downloadable instructions. For more information about Skandika, simply visit our main page www.skandika.com

IMPORTANT INFORMATION

The manufacturer is not liable for damage or accidents that may result from failure to observe these instructions for use, from modifications to parts or from the use of parts other than the manufacturer's original parts. The warnings, cautions and instructions in this document cannot cover all possible situations - therefore the operator understands that common sense and caution must be used. It is your responsibility to pass these instructions on to any third party using this item.

SAFETY PRECAUTIONS

• Do not use the item if it is damaged.
• Do not block the openings of the box with objects such as pins, wires, etc.
• Do not expose the box to rain and do not immerse it in water. Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens, etc.).
• Do not store explosive substances such as spray cans with flammable propellants, electrical devices, medicines or toxic substances in the box.
• Ensure that electrical cables are dry and not pinched or damaged. Do not place multiple portable sockets or portable power supplies at the rear of the appliance.
• After unpacking and before use, the box must be placed on a flat surface and left to rest for at least 6 hours.
• Ensure that the freezer box is as level as possible during operation. The angle of inclination must be less than 45^ for short periods of operation and less than 5^ for continuous operation.
• NEVER turn the box upside down to empty it and allow it to drain. Do not use sharp tools for defrosting; do not damage the refrigerant circuit.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• Repairs may only be carried out by qualified personnel. Improper repairs can lead to hazards.

• The freezer box may only be used with the original SKANDIKA battery (art. no. 8018X_E01). Make sure that the voltage specification on the rating plate matches that of the power supply when charging the battery. Using the wrong voltage or unauthorised batteries can cause damage and/or injury.

• If you notice that the battery is very hot, leaking, smelling, warping or showing other abnormalities during use or storage, stop using it immediately and disconnect the power supply. Keep away from the appliance until it has cooled down. Never take batteries apart!
• Food may only be stored in its original packaging or in suitable containers in accordance with the packaging labelling.
• The box is intended for use in households and similar areas, such as staff kitchens in shops, offices and other working environments, camping and farms, for catering and similar non-retail applications.
• Only use the freezer box for its intended purpose - to cool suitable food and drinks. Any misuse will invalidate the guarantee.
• If the appliance is not to be used for a long period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent mould from forming in the appliance.
• Observe the applicable local disposal regulations and our instructions under "Disposal" further on in these instructions.
• The information, illustrations and technical data in these instructions are correct at the time of publication and are subject to change without notice.

Capacity: 15,600mAh/173Wh Nominal voltage: 11.1V

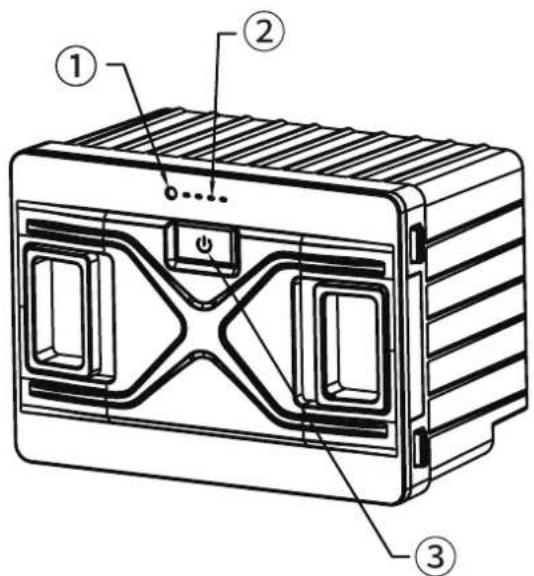

(1) Status indicator (green: charging; blue: discharging)
(2) Battery indicator (indicates the charge status)
(3) On/off button (press and hold to switch on the battery). When the battery is switched off, briefly press to display the charge status.

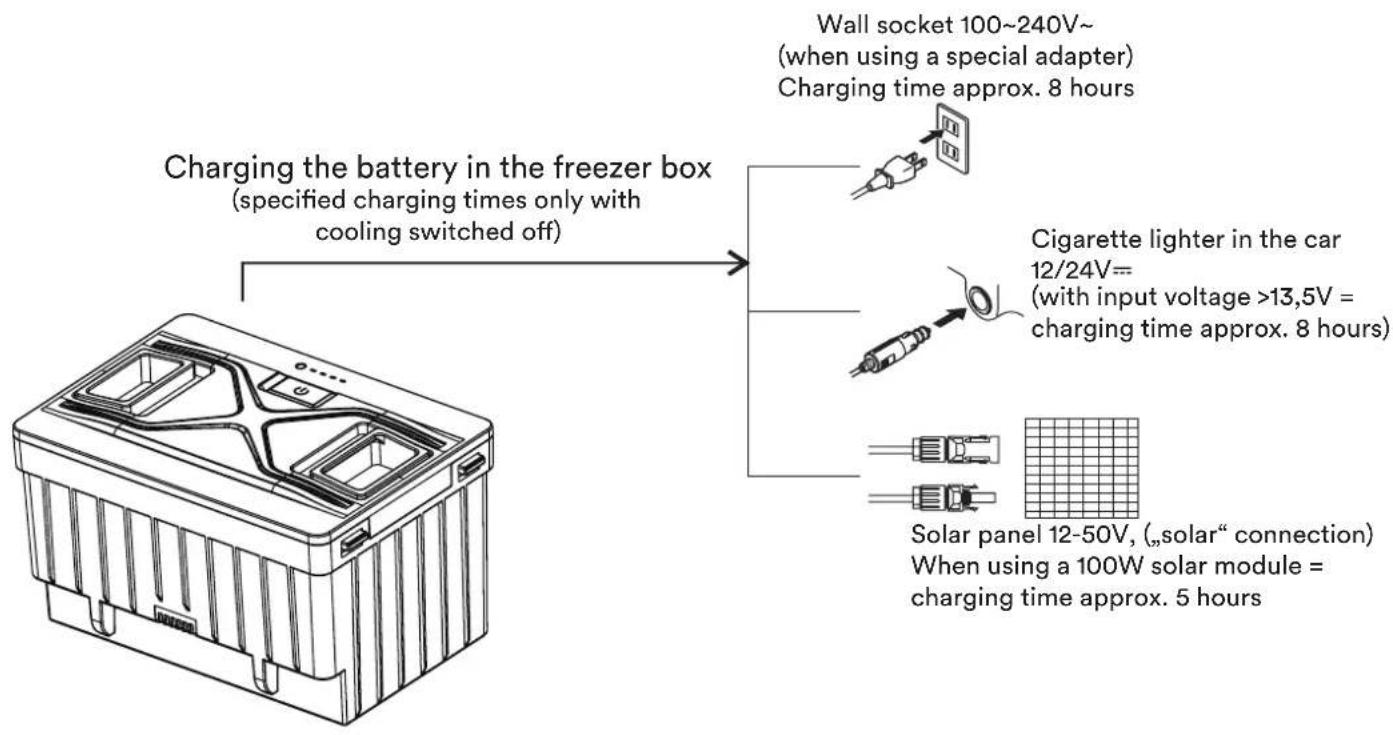

CHARGING THE OPTIONAL BATTERY

The battery can be charged only when installed (in the freezer box). For example, it can be charged via an adapter on the mains supply or with a suitable cigarette lighter connection on the vehicle electrical system or via a solar panel. Please refer to the illustrations and technical data on the next page.

We generally recommend charging with the freezer box switched off, but if necessary it can also be charged while the refrigerator is running. In this case, make sure that the input power of the charger is higher than the working power of the box (approx. 40-45 W). If this is not the case, the battery will discharge in any case.

If you connect the box to a solar panel, please place it in a cool place to dissipate the heat.

It is recommended to use a 100W solar panel. The maximum solar input voltage must not exceed 50V and the maximum input current must not exceed 10A.

Note: The output of the solar panel is unstable, so it cannot power the freezer box directly.

For your information:

Discharge time: The battery has a discharge protection that automatically switches off the power supply when the charge level is low. The battery lasts about 4 hours after it has been fully charged. If the temperature of the freezer box is set to +2 to +8^ (ambient temperature 25^ ), it can last for 12 hours after the internal temperature has stabilised. Remove the battery or switch it off to prevent self-discharge when the box is not in use.

USE

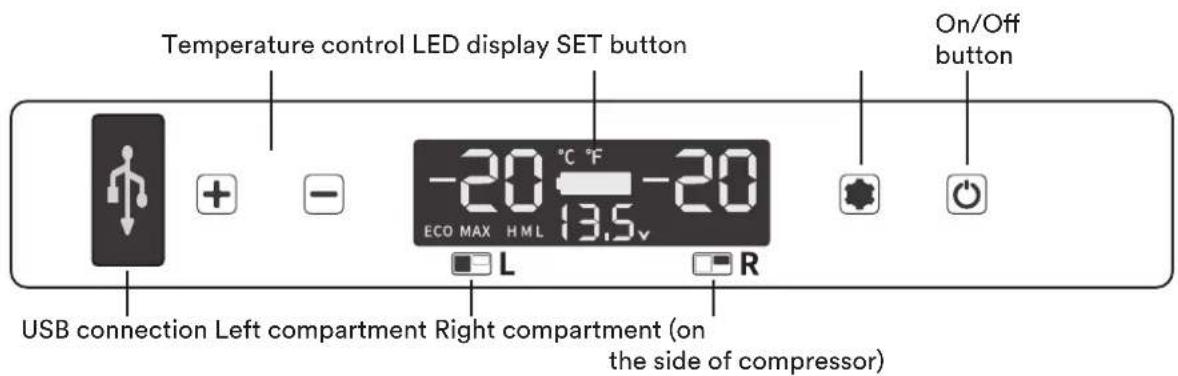

Explanation of the display and controls:

Power supply (with suitable adapter): 12V/24V DC or 100~240V AC or solar (12-50V)

Initializing: After switching on (pressing the on/off button), a beep sounds and the display is initialised. After approx. 2 seconds, it switches to standby mode. If you want to switch off the device, press and hold the on/off button for approx. 3 seconds until the device switches off.

Temperature setting: You can set the temperature for each of the two storage compartments (left and right) from -20^ to +20^ (-4^ to +68^)

You can also operate both or just one storage compartment. During operation, press and hold the two + + and SET buttons for approx. 3 seconds to switch the left-hand storage compartment on or off and the two - - and SET buttons for approx. 3 seconds to switch the right-hand storage compartment on or off. Both compartments cannot be switched off at the same time.

To set the temperature when a storage compartment is switched on, press r + ^ (increase temperature) and r - ^ (decrease temperature). To select the storage compartment on the right and left for the setting (if both are in operation), press the SET button. The setting is saved automatically.

Please note that the temperature shown on the LED display in normal operation is the current temperature - it takes some time until the set target temperature is reached.

Cooling mode: In normal operation, you can use the SET button to switch between the two cooling modes MAX(faster cooling) or ECO resource-saving). The MAX mode is preset on delivery.

Battery discharge protection: You can switch between 3 discharge protection levels for the battery by pressing and holding (for approx. 3 seconds) the SET button during normal operation: H (High) / M (Medium) / L (Low). "H" is preset on delivery.

Current voltage limits of the respective stages:

Mode H: a) with 12V connection: switch-off at 11.1V, restart at 12.4V

b) with 24V connection: switch-off at 24.3V , restart at 25.7V

Mode M: a) with 12V connection: switch-off at 10.1V, restart at 11.4V

b) with 24V connection: switch-off at 22.3V , restart at 23.7V

Mode L: a) with 12V connection: switch-off at 8.5V, restart at 10.9V

b) with 24V connection: switch-off at 21.3V, restart at 22.7V

You should use mode H when the car cigarette lighter is connected; mode M or L are suitable for use with other power sources.

Change temperature unit: With the appliance switched off, press and hold the SET button for approx. 3 seconds until E1^ appears on the display. Scroll to E5^ by repeatedly pressing the SET button. Then set the temperature unit (Celsius or Fahrenheit) using the +^ or -^ button. The factory setting is Celsius.

Reset: With the device switched off, press and hold the SET button for approx. 3 seconds until E1 appears on the display. Then press and hold both the +^ and -^ buttons simultaneously until the reset is carried out.

Temperature recommendations for storing various foods:

Drinks 5^ (41°F)

Fruits 5-8°C(41-46°F)

Vegetables 3-10°C (37-50°F)

Delicacies 4^ (39^)

Wine 10^(50^)

Ice cream -10°C / (14°F)

Meat -18°C(0°F)

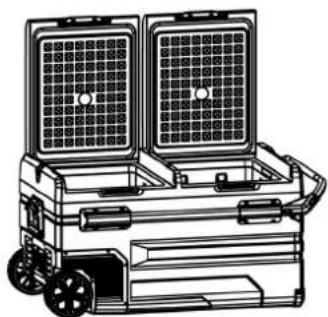

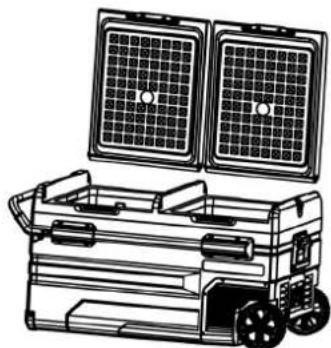

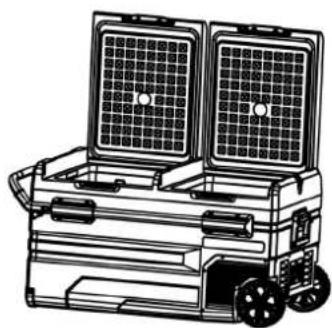

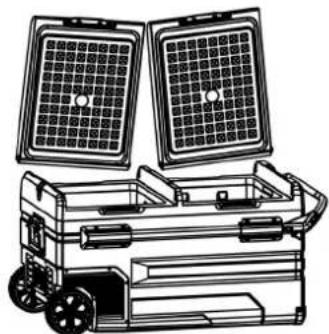

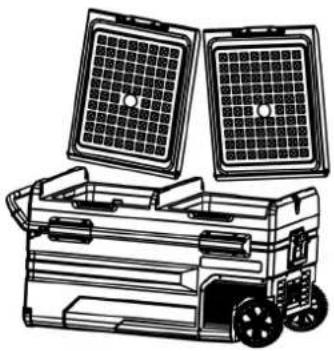

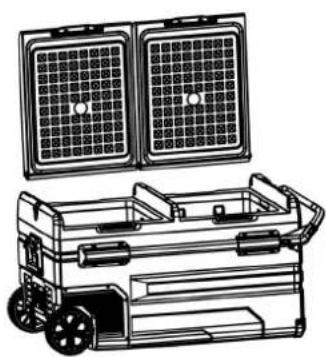

Door opening direction: You can vary the opening direction of the two storage compartment covers as required. If you want to change the current opening direction, you can remove the covers as shown below and replace them rotated by 180^ :

Open the covers by 90^

Remove the two covers.

Turn the covers by 180^

Align the cover shaft with the hole on one side and insert it.

Fix the cover on the other side.

CARE AND MAINTENANCE

Cleaning:

Switch off the appliance first and disconnect the power supply to avoid electric shock. Remove the lid and the drain from the opening at the bottom of the appliance.

Clean the appliance with a damp cloth and dry it. Do not soak the box in water and do not wash it directly. Do not use abrasive cleaning agents when cleaning, as these can damage the appliance.

Storage:

If you are not using the appliance for a longer period of time, please follow these instructions:

• Switch off the appliance and disconnect the power supply.
• Remove all items stored in the appliance.
• Wipe off excess water with a soft cloth.
• Place the appliance in a cool and dry place.
• Leave the storage compartment covers slightly open to prevent odours from forming.
• Recommended storage environment: Ambient temperature: 25^ C ,ambient humidity: ≤ 75% .

Defrost:

Moisture can lead to frost forming inside the cooling unit or on the evaporator. This reduces the cooling capacity. Defrost the appliance in good time to avoid this. To do this, switch off the appliance beforehand and disconnect the power supply to avoid an electric shock.

Remove all items stored in the appliance. Leave the storage compartment covers open. Wipe off the defrosted water.

Never use hard or pointed tools to remove ice or loosen frozen objects that are frozen!

TROUBLESHOOTING

Problem: Cooling is not working or not working correctly

Check whether the switch is switched on and the power supply is connected correctly.

Check whether the fuse has blown or the power supply is otherwise faulty.

Frequently switching the cooling on and off can lead to a delay in starting the compressor. If you have the impression that it is too warm in the storage compartments, this may be due to frequent opening of the covers or the recent storage of hot food.

Problem: Stored food is frozen

Check whether the temperature is set too low.

Problem: Loud noises can be heard when switching on or „running water“ can be heard during operation or drops of water are forming on the outside of the appliance.

These are all normal phenomena and do not indicate a malfunction.

Display „F1“:

Possible cause: undervoltage. Set the battery protection from High to Medium or from Medium to Low. Switch off the battery or connect the compressor and the battery to a 12/24V or 100-240V (with the adapter) power supply in good time to prevent the battery from discharging via leakage current over a longer period of time.

Display ,F2“:

Possible cause: Fan is overloaded. Disconnect the box from the power supply for 5 minutes and restart it.

Display „F3“/ „F4“:

Possible cause: The compressor starts too often (F3) or does not start (F4). Disconnect the power supply for 5 minutes and restart.

Display ,F5“:

Possible cause: Overheating of the compressor and electronics. Disconnect the power supply for 5 minutes and restart.

Display „F6“:

Possible cause: The control unit cannot recognise a parameter. Disconnect the power supply for 5 minutes and restart.

Display 7^ / 8^

Possible cause: Temperature sensor defective. Contact customer service.

If you cannot solve the problem with these instructions, please contact customer service.

TECHNICAL SPECIFICATIONS

Model Rated	power	Capacity D	Dimensions approx. Net weight	approx.
80180 Routa 35	60W 36.7L 7	1*460*441 mm	(28 *18 1/8 *17 3/8 inch)	17.6 kg / 38.8 lb
80181 Routa 45	60W 45.6L 7	1*460*506 mm	(28 *18 1/8 *19 15/16 inch)	18.4 kg / 40.6 lb
80182 Routa 55	60W 54.2L 7	1*460*571 mm	(28 *18 1/8 *22 1/2 inch)	19.1 kg / 42.1 lb
80183 Routa 75	80W	72L	937*535*465 mm	25.7 kg / 56.7 lb
80184 Routa 95	80W	90.2L	1005*571*465 mm	28 kg / 61.7 lb
			(39 9/16 *22 1/2*18 5/16 inch)
80185 Routa 115	80W	107L	1005*571*522 mm	30.8 kg / 67.9 lb
			(39 9/16 *22 1/2*20 9/16 inch)

Nominal voltage: 12/24V direct current or 100~240V alternating current (with special adapter) or solar (12~50V)

Noise level: ≤45dB

Temperature setting range: -20^ 20^ (-4^ - 68^)

Climate category: T/ST/N/SN

Due to product improvements, the technical data may deviate from the actual conditions. Please refer to the rating plate on the product.

GUARANTEE CONDITIONS

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.

2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.

3. The warranty is void if repairs or adjustments are made, which are not authorized by us or if our devices are equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observation of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

4. Warranty services do not extend the warranty period nor do they initiate a new warranty period.
5. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.
6. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.
7. Parts of wear and tear are not included in the warranty.
8. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

CE

DISPOSAL

13/14

This item must not be disposed of with household waste. Dispos of it via an authorised waste disposal company or your municipal waste disposal facility. Please observe the local regulations for disposing of the appliance due to the flammable refrigerant and the blowing gas. If in doubt, contact your local waste disposal centre.

The packaging is made of environmentally friendly materials that can be disposed of at local recycling centres. Battery: At the end of its service life, the battery should be removed from the appliance immediately.

Please dispose of used batteries properly, do not dispose of them in fire or water.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For spare parts please contact: [e-mail] Service centre: MAX Trader GmbH, Wilhelm-Beckmann-Straße 19, 45307 Essen, Germany
