Kappa 8130M - Loudspeaker INFINITY - Free user manual and instructions

Product Type	Marine Speaker
Brand	Infinity
Model	Kappa 8130M
Continuous Power Handling	200 W
Peak Power Handling	500 W
Frequency Response	30 Hz - 22 kHz
Nominal Impedance	3 ohms
Sensitivity	92 dB
Outer Diameter	241 mm (9-1/2")
Cutout Diameter for Woofer	177.4 mm (7")
Cutout Diameter for Tweeter	115.9 mm (4-9/16")
Total Depth	108.1 mm (4-9/32")
Mounting Depth	80.5 mm (3-3/16")
LED Power Supply	12 V DC, 0.205 mm² (24 AWG) wires
Main Features	Marine speaker with multicolor LED lighting (7 colors), swivel tweeter, waterproof installation
Maintenance and Cleaning	Clean with a soft, damp cloth. Do not use abrasive products or solvents.
Safety	Do not wire two or more speakers in parallel on an amplifier due to low impedance (risk of overheating).
Spare Parts and Repairability	Contact an authorized Infinity dealer for any repair or replacement part.
General Information	Designed for marine use, with included foam sealing gasket. Installation required by a professional.
Box Contents	Woofer, tweeter, cables, LED connector, tweeter removal tool, screws, quick fasteners, foam gasket.

Frequently Asked Questions - Kappa 8130M INFINITY

How to install the Kappa 8130M speaker?

Cut a hole to the indicated dimensions (177.4 mm for the woofer, 115.9 mm for the tweeter). Apply the self-adhesive foam gasket on the speaker frame for waterproofing. Secure with the included screws. For the tweeter, use the 2-pin tool to remove it from the woofer, then place it in the mounting bracket and lock it by turning 45° counterclockwise.

How to connect the LED lighting?

Connect the LED wires (black for +12V, red, green, blue) to the included female connector. If using a separate controller, connect each wire to the corresponding output. For direct wiring, connect the black wire to the positive terminal and the colored wires (R, G, B) to the negative terminal to obtain the desired color (7 possible combinations).

What are the available lighting colors?

7 colors depending on wiring: red (red wire), green (green wire), blue (blue wire), yellow (red+green), purple (red+blue), cyan (blue+green), white (red+green+blue). Connect the black wire to +12V and the colored wires to ground.

How to remove the tweeter from the woofer?

Use the supplied 2-pin tool. Insert the pins into the holes of the tweeter grille and turn 45° clockwise to loosen it, then remove it.

What is the speaker impedance?

The nominal impedance is 3 ohms. Due to this low impedance, do not wire two or more speakers in parallel on an amplifier, as this could cause overheating and damage the amplifier.

Can I use this speaker in a non-marine environment?

Yes, it can be used indoors, but it is specifically designed for marine use with water-sealing gaskets. Installation must be done carefully to ensure waterproofing.

What tools are needed for installation?

Basic tools: drill, hole saw or utility knife for cutouts, screwdriver, and the supplied 2-pin tool for the tweeter. Follow the indicated cutout dimensions.

How to clean the speaker?

Use a soft, damp cloth. Do not use abrasive products, solvents, or harsh cleaners that could damage the surface or gaskets.

What to do if the speaker does not work?

Check the audio cable connections (polarity + and -) and the LED power supply. Make sure the amplifier is on and the total impedance is correct (do not exceed 3 ohms per channel). If the problem persists, consult an authorized Infinity dealer.

Where to find spare parts?

Contact an authorized Infinity dealer or customer service. Keep the invoice and instructions for reference. Parts like the tweeter, cable, or LED connector can be ordered separately.

USER MANUAL Kappa 8130M INFINITY

Infinity Kappa 6, Kappa 8, and Kappa 10 marine speaker - Owner's Manual

Your Infinity product has been designed to provide you with the performance and ease of operation you would expect from Infinity.

ABOUT THE MANUAL

This manual describes general installation guidelines. However, please note that proper installation of marine audio components requires qualified experience. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized Infinity dealer about your installation options. Keep all instructions and sales receipts for reference.

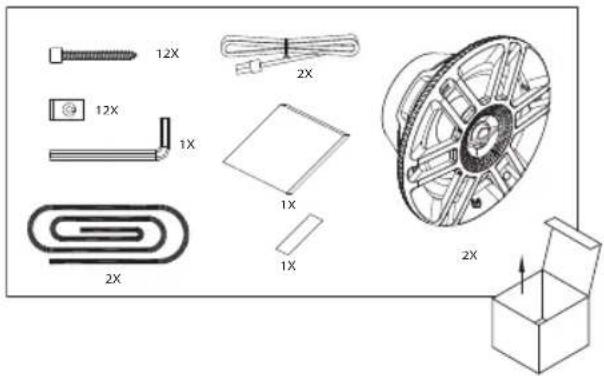

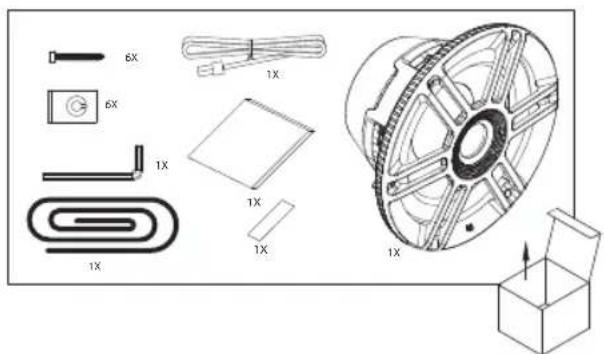

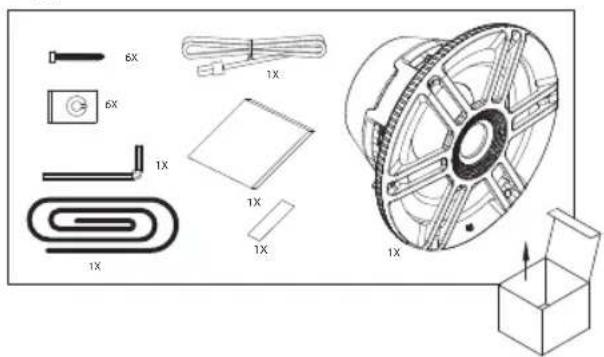

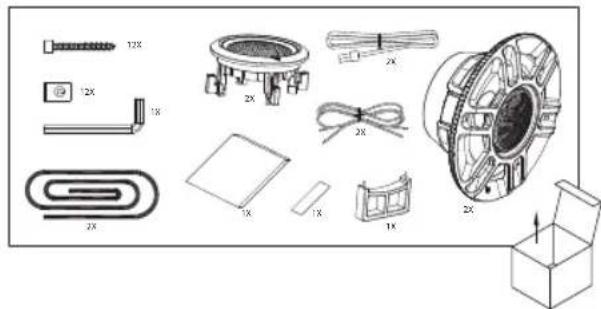

WHAT'S IN THE BOX

Kappa 6

Kappa 8

Kappa 10

EN

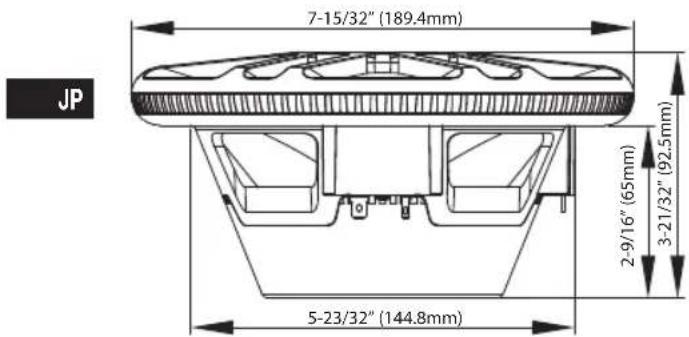

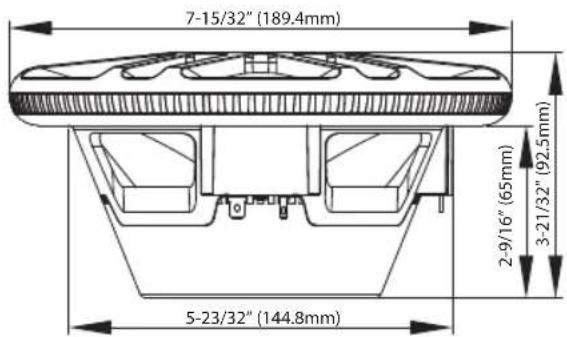

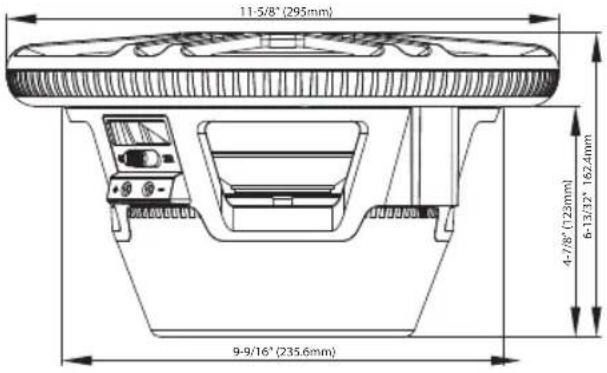

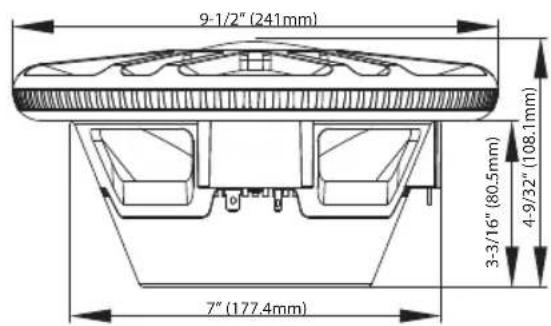

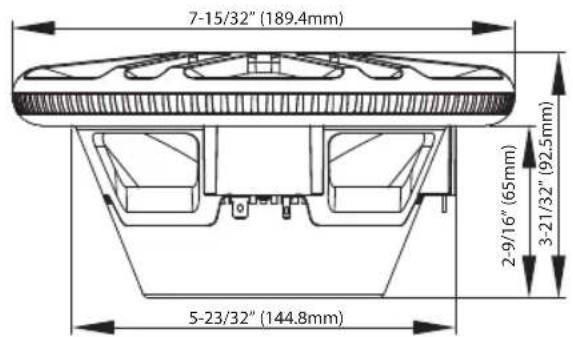

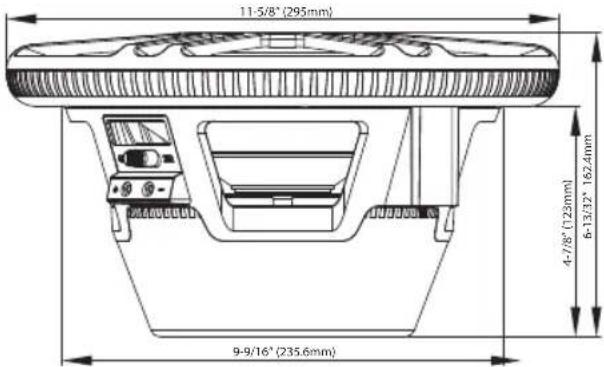

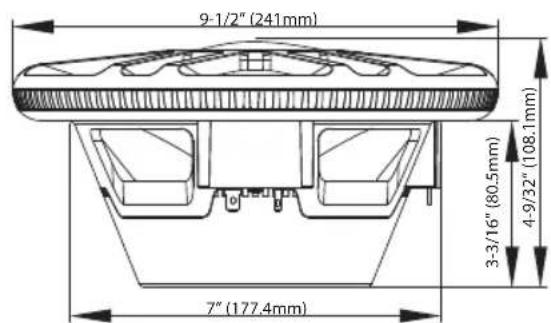

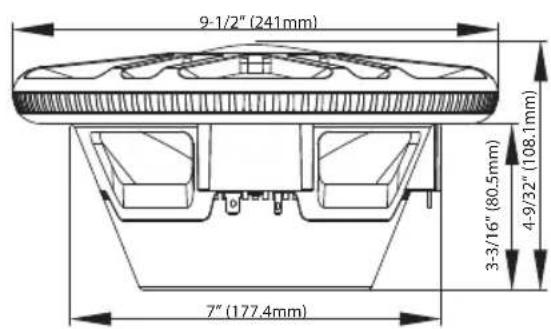

DIMENSIONS

Kappa 6

Kappa 8

Kappa 10

SPEAKER SIGNAL WIRING

To send signal to the Infinity marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker outputs of your source unit or amplifier. Be sure to observe proper polarity.

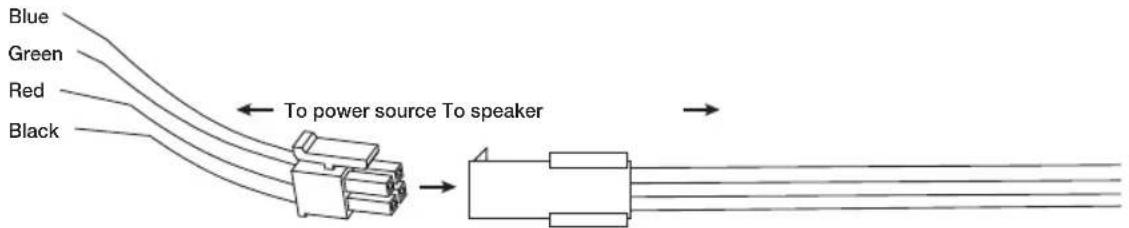

SPEAKER LED WIRING

To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the included female connector, then run the wires from the female connector to your compatible 12-volt power source or light controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.

If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.

There are 7 possible colors, depending on the wiring configuration you choose:

Wire connected to positive (+12V) terminal	Wire connected to negative (-) terminal	Color produced
Black	Red Red
	Green Green
	Blue Blue
	Red + Green Yellow
	Red + Blue Purple
	Blue + Green Aquamarine
	Red + Blue + Green White

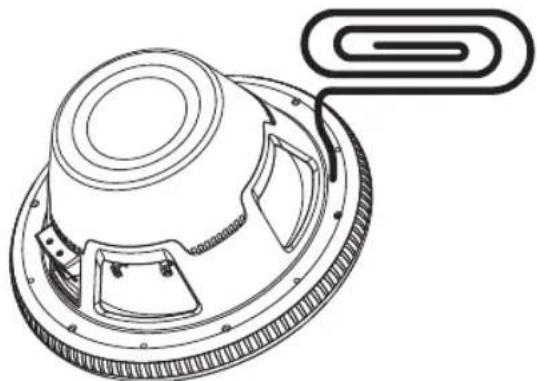

APPLYING FOAM SEAL

To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the speaker frame.

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

EN

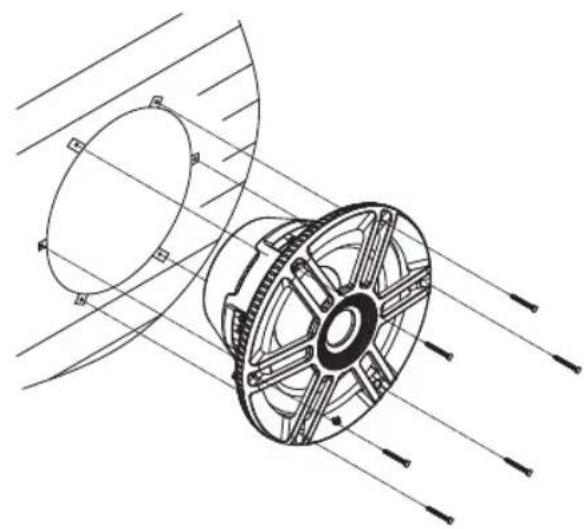

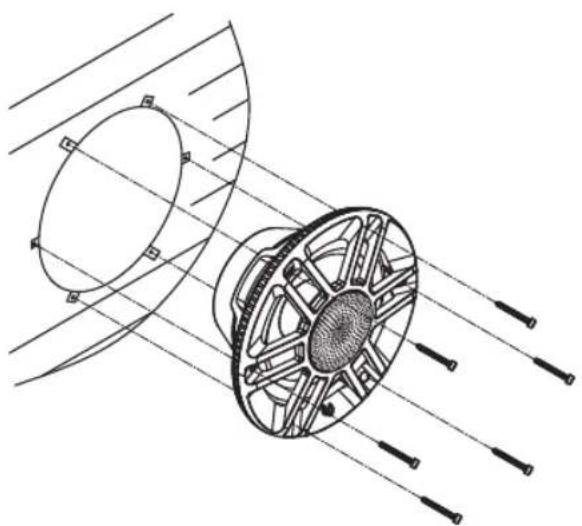

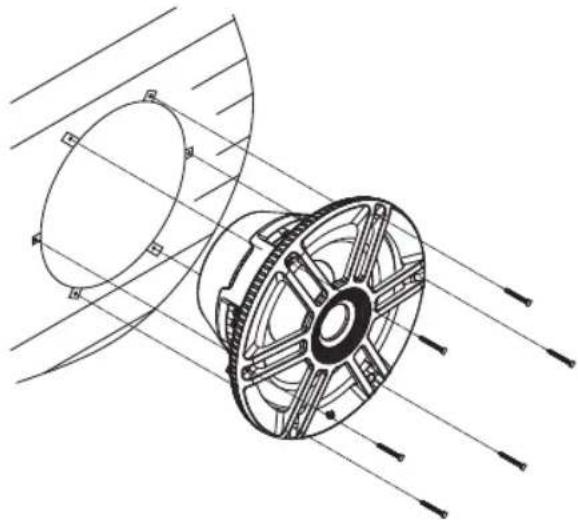

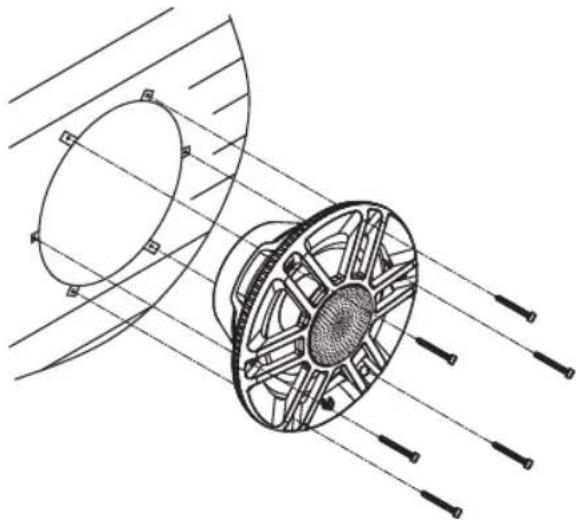

MOUNTING THE SPEAKER

Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure mount.

NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

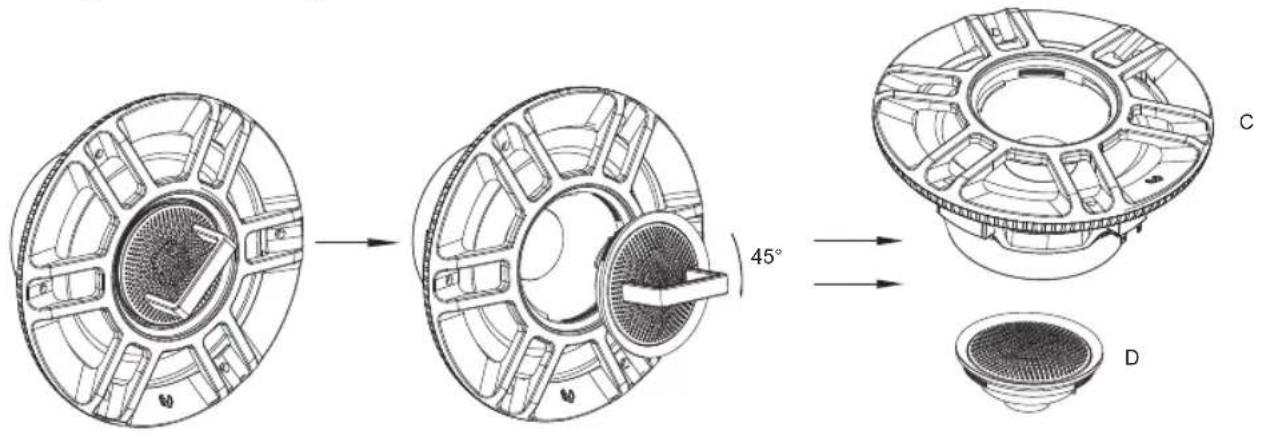

REMOVING THE TWEETER FOR SEPARATE MOUNTING (KAPPA 8 ONLY)

Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the tweeter grille and rotate 45 degrees clockwise to loosen and remove.

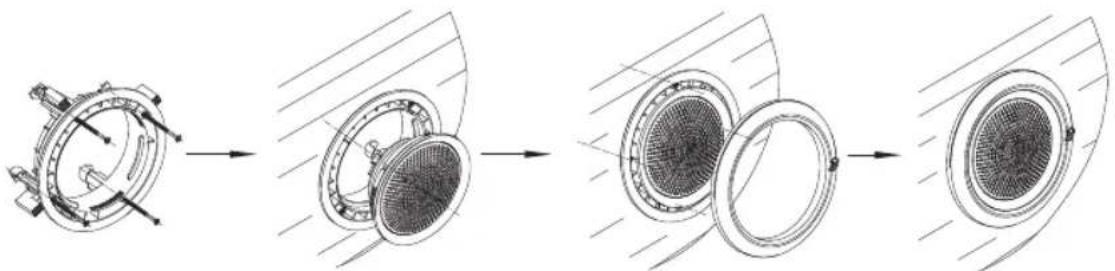

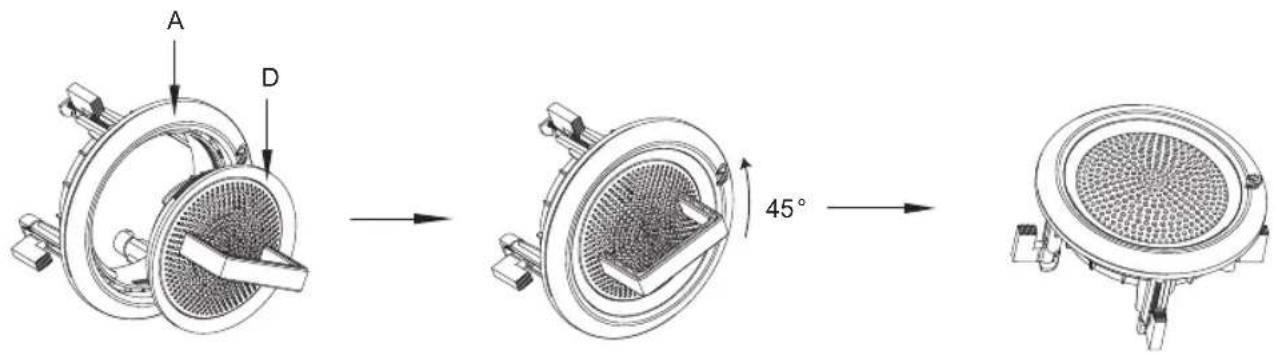

FLUSH-MOUNTING THE TWEETER

Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.

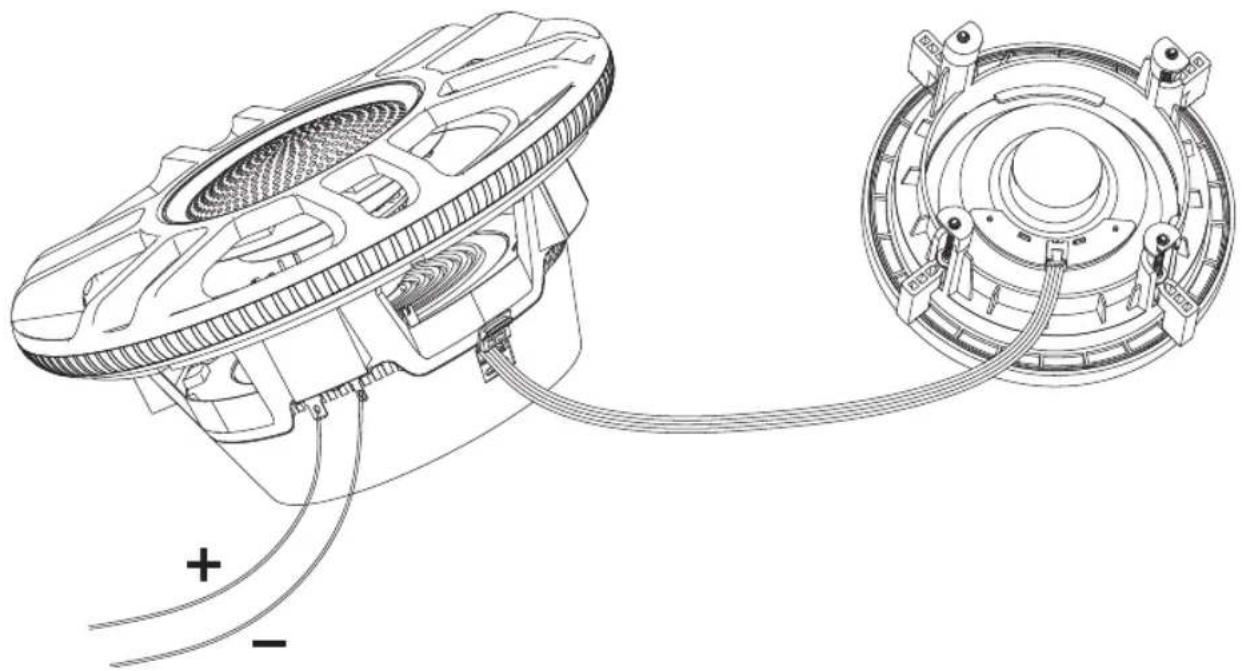

To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Specifications	Kappa 6 Kappa	8 Kappa 10
Continuous power handling	100W 200W 300W
Peak power handling 300W	500W 900W
Frequency response 40Hz –	25kHz 30Hz – 22kHz 20Hz – 2kHz
Nominal impedance 3 Ohms*	3 Ohms* 2 or 4 Ohms (use		switch to select)
Sensitivity 92dB 92dB 89dB
External diameter	7-15/32" (189.4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Mounting cutout diameter	5-23/32" (144.8mm)	Woofer: 7" (177.4mm)Tweeter bracket: 4-9/16"(115.9mm)	9-9/16" (235.6mm)
Total depth	3-21/32" (92.5mm)	4-9/32" (108.1mm)	6-13/32"(162.4mm)
Mounting depth	2-9/16" (65mm)	3-3/16" (80.5mm)	4-7/8" (123mm)

EN

*NOTE: Because of the woofer's low impedance, do not wire two or more in parallel to an amplifier; doing so can result in overheating and damage to the amplifier.

MERCI POUR VOTRE ACHAT ...

Kappa 10

DIMENSIONS

Kappa 6

Kappa 8

Kappa 10

CÂBLAGE DU SIGNAL DU HAUT-PARLEUR

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

MONTAGE DU HAUT-PARLEUR

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

DÉPOSE DU TWEETER POUR UN MONTAGE SÉPARÉ (KAPPA 8 UNIQUEMENT)

MONTAGE AFFLEURANT DU TWEETER

Technical line drawing of a mechanical device with attached housing and wiring (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Kappa 10

DIMENSIONES

Kappa 6

Kappa 8

Kappa 10

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

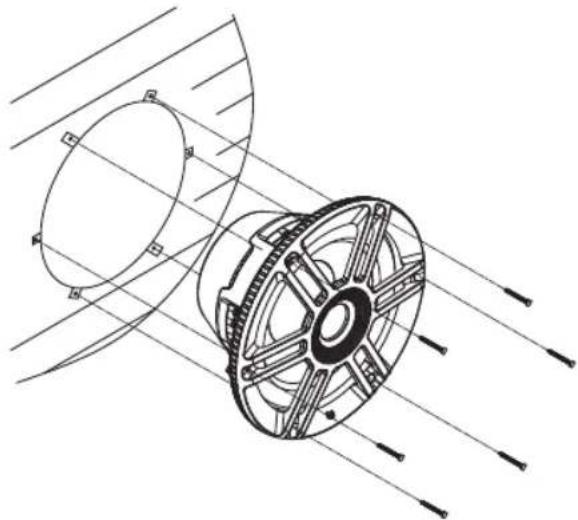

MONTAJE DEL ALTAVOZ

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

RETIRADA EL ALTAVOZ DE AGUDOS PARA SU MONTAJE SEPARADO (SOLO KAPPA 8)

MONTAJE DEL ALTAVOZ DE AGUDOS EMPOTRADO

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Kappa 10

尺寸

Kappa 6

Kappa 8

Kappa 10

扬声器信号设置

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

安装扬声器

Technical line drawing of a mechanical component with internal gear and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

嵌装高音扬声器

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.

规格	Kappa 6 Kappa	8 Kappa 10
连续功率承受能力	100W 200W 300W
峰值功率承受能力	300W 500W 900W
频率响应	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
标称阻抗	3 Ohms* 3 Ohms* 2 或 4 Ohms		(使用开关选择)
灵敏度	92dB 92dB 89dB
外径	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安装切口直径	5-23/32” (144.8mm)	低音扬声器:7” (177.4mm)高音扬声器支架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
总深度	3-21/32” (92.5mm)	高音扬声器支架:4-9/16” (115.9mm)	6-13/32”(162.4mm)
安装深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Kappa 10

CHT

尺寸

Kappa 6

Kappa 8

Kappa 10

喇叭訊號接線

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

安装喇叭

Technical line drawing of a mechanical component with internal structure and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

嵌装高音喇叭

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

規格	Kappa 6 Kappa	8 Kappa 10
連續的功率處理	100W 200W 300W
峰值的功率處理	300W 500W 900W
頻率回應	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
標稱阻抗	3 歐姆* 3 歐姆*	2 或 4 歐姆	(使用開關選擇)
靈敏度	92dB 92dB 89dB
外徑	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安裝開孔直徑	5-23/32” (144.8mm)	低音喇叭:7” (177.4mm)高音喇叭托架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
總深度	3-21/32” (92.5mm)	4-9/32” (108.1mm)	6 - 1 3 / 3 2 ”(1 6 2 . 4 mm)
安裝深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Kappa 10

DIMENSI

Kappa 6

Kappa 8

Kappa 10

PEMASANGAN KABEL SINYAL SPEAKER

Technical line drawing of a mechanical component with a curved handle and flange (no text or symbols)

MEMASANG SPEAKER

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Kappa 10

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

MELEPAS TWEETER UNTUK PEMASANGAN TERPISAH (KAPPA 8 SAJA)

MEMASANG-BENAMKAN TWEETER

Technical line drawing of a speaker with attached microphone and ear (no text or symbols)

Diagram showing a mechanical assembly process with four sequential steps, no text or symbols present.

Spesifikasi	Kappa 6 Kappa	8 Kappa 10
Penanganan daya kontinu 1	100W 200W 300W
Penanganan daya puncak 3	300W 500W 900W
Respon frekuensi 40Hz – 25kHz 30Hz – 22kHz 20Hz – 2kHz
Impedansi nominal 3 Ohm* 3 Ohm* 2 or 4 Ohms (use switch to select)
Sensitivitas 92dB 92dB 89dB
Diameter eksternal	7-15/32" (189,4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Diameter potongan dudukan	5-23/32" (144,8mm)	Woofer: 7" (177,4mm)Braket tweeter: 4-9/16"(115,9mm)	9-9/16" (235,6mm)
Kedalaman total	3-21/32" (92,5mm)	4-9/32" (108,1mm)	6-13/32"(162,4mm)
kedalaman dudukan	2-9/16" (65mm)	3-3/16" (80,5mm)	4-7/8" (123mm)

Kappa 10

寸法

Kappa 6

Kappa 8

Kappa 10

スピーカーの信号配線

Technical line drawing of a mechanical component with a curved spring attached (no text or symbols)

スピーカーの取り付け

Technical line drawing of a mechanical component with internal structure and projection lines (no text or symbols)

Kappa 10

Technical line drawing of a mechanical component with internal gear and shafts, no text or symbols present

ツイーターの埋込取り付け

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Kappa 10

치수

Kappa 6

Kappa 8

Kappa 10

스피커 신호 배선

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

스피커 장착

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

Technical illustration of a mechanical component with 45° angle and labeled parts (C, D), showing internal structure and assembly (no text or symbols beyond labels)

트워터 수평 장착

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.
