USER MANUAL GTI642BSL Glem Gas

APERÇU DU PRODUIT 13

GUIDE DE DÉMARRAGE RAPIDE 15

INSTALLATION DE VOTRE PRODUIT 17

INSTRUCTIONS DE FONCTIONNEMENT 21

NETTOYAGE ET ENTRETIEN 32

DÉPANNAGE 33

ELIMINATION ET RECYCLAGE 36

INFORMATIONS RELATIVES À LA SÉCURITÉ

USAGE DE L'APPAREIL

L W H DT X B X A X Joint Min.3mm F

L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm
590 520 60	56	560 + 4 +1	480 + 4 +1 min.	50 min. 3

Two views of a metallic electronic component: one showing a circular vent on a base, the other showing a button with a cross symbol (no text or symbols present)

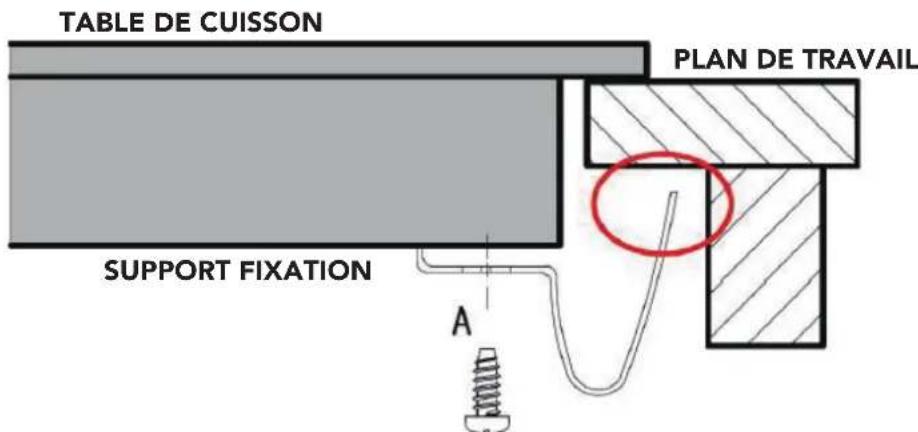

TABLE DE CUISSON PLAN DE TRAVAIL SUPPORT FIXATION A

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

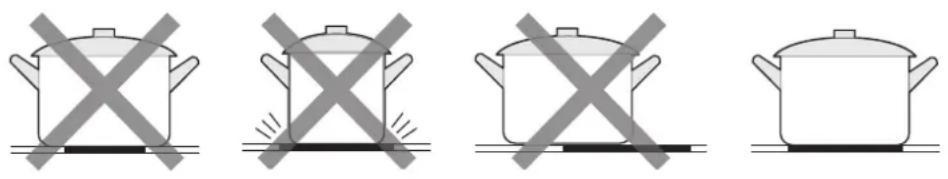

CONSEIL SUR LE CHOIX DE VOS USTENSILES DE CUISINE

Simple line drawing of a cooking pot with a coiled cable (no text or symbols)

Two black cooking pots, one with a handle and the other with a lid (no text or symbols visible)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed arrows indicating pressure or resistance (no text or symbols)

DIMENSIONS DES USTENSILES DE CUISSON

Simple line drawing of a cooking pot on a stand (no text or symbols)

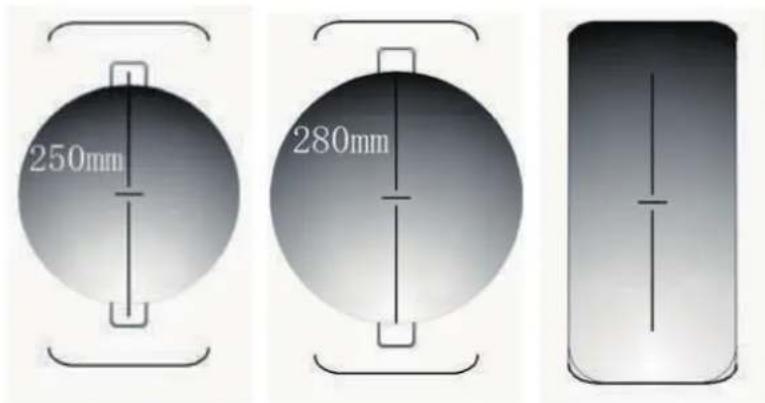

250mm 280mm

Two identical spherical objects with vertical centerlines, each enclosed in a rectangular frame (no text or symbols)

NOTE

15. ○ ● ● ● ● ● ○

Simple line drawing of a hand reaching toward a dotted line with a circle at the top (no text or symbols)

Simple line drawing of a hand reaching toward a dotted line with a circle above (no text or symbols)

活 ✓

Simple line drawing of a hand reaching toward a dot line (no text or symbols)

Simple line drawing of a hand pointing at a dot above a circle (no text or symbols)

CONFORMITÉ AVEC LA NORME ROHS

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

GLEMGAS

INDUCTION HOB USER MANUAL

GTI642BSL

Thank you for choosing Glemgas. Before using your new product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

CONTENTS

SAFETY INSTRUCTIONS 41

SPECIFICATIONS 45

PRODUCT OVERVIEW 46

QUICK START GUIDE 48

PRODUCT INSTALLATION 50

OPERATION INSTRUCTIONS 54

CLEANING AND MAINTENANCE 65

TROUBLESHOOTING 66

DISPOSAL AND RECYCLING 69

SAFETY INSTRUCTIONS

INTENDED USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

DANGER

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

AVERTISSEMENT DE TENSION ÉLECTRIQUE

This symbol indicates that there is a danger to life and health of persons due to voltage.

WARNING

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

CAUTION

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

ATTENTION

The signal word indicates important information (e.g. damage to property), but not danger.

OBSERVE INSTRUCTIONS

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use.

SAFETY WARNINGS

Your safety is important to us. Please read this information before using your cooktop.

INSTALLATION

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important Safety Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

- Failure to install the appliance correctly could invalidate any warranty or liability claims.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

- A steam cleaner is not to be used.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• Do not use a steam cleaner to clean your cooktop.
• After use, switch off the hob element by its control and do not rely on the par detector.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Danger of fire: do not store items on the cooking surfaces. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance anc then cover flame e.g. with a lid or a fire blanket.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously. Danger of fire: do not store items on the cooking surfaces.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan

detection feature to turn off the cooking zones when you remove the pans.

• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the

appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.

Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

SPECIFICATIONS

Cooking Hob GTI642BSL
Cooking Zones 4 Zones
Supply Voltage	220-240V - 50Hz ou 60 Hz380-415V 3N
Installed Electric Power 7200 W
Product Size L×W×H(mm) 590 × 520 × 60
Building-in Dimensions A×B (mm) 560 × 480

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Data determined according to standard EN 60350-2 and Commission Regulations (EU) No 66/2014.

	Symbol Value Unit
Model identification - GTI642BSL
Type of hob - Built-in induction hob
Number of cooking zones and/or areas - 2 areas
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	-	Induction cooking areas
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	∅	-	cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm	L x W	38,6 x 18	cm
		38,6 x 18
Energy consumption per cooking zone or area calculated per kg	ECelectric cooking	Area 1 : 189,6	Wh -kg
		Area 2 : 189,6
Energy consumption for the hob calculated per kg	ECelectric cooking	189,6	Wh -kg

PRODUCT OVERVIEW

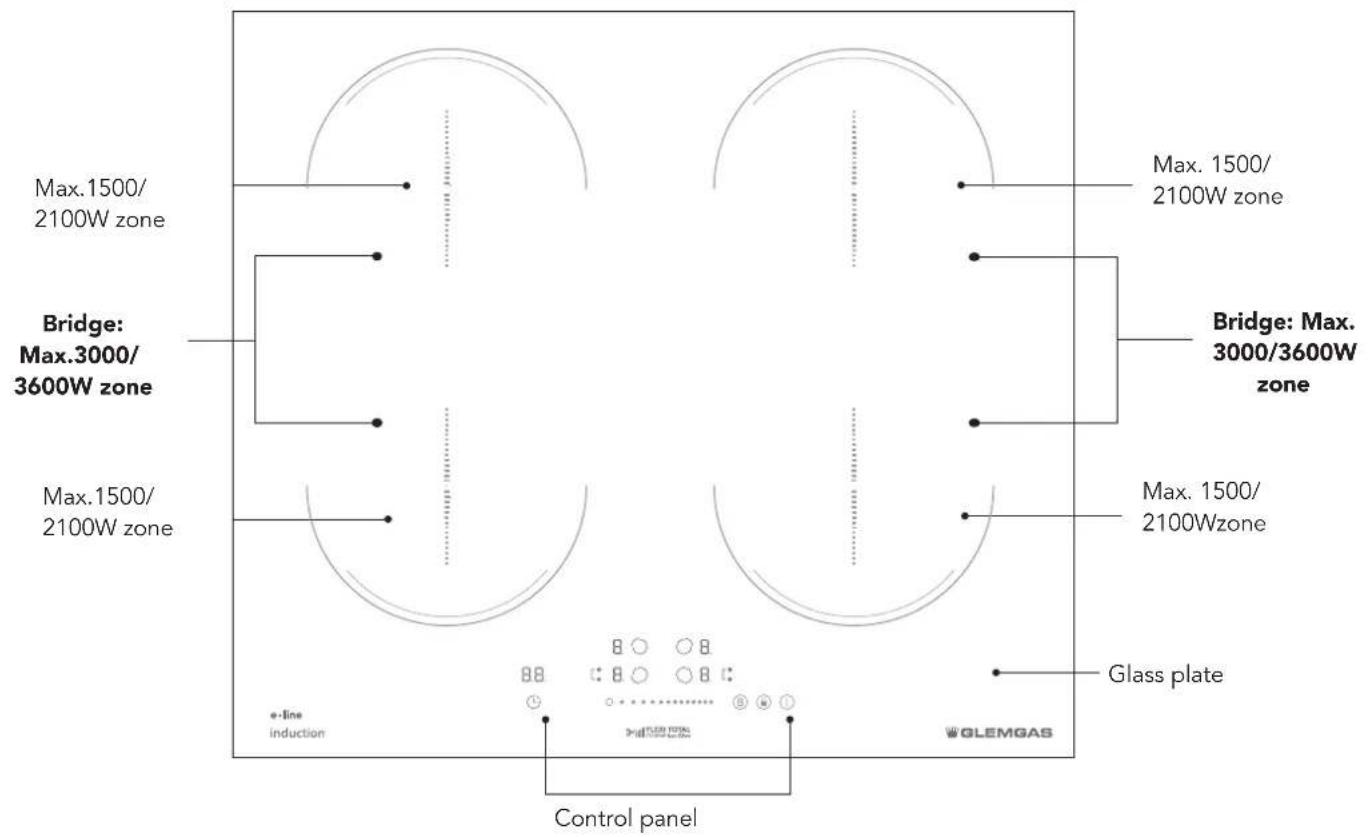

TOP VIEW

Max.1500/ 2100W zone Bridge: Max.3000/ 3600W zone Max.1500/ 2100W zone Max. 1500/ 2100W zone Bridge: Max. 3000/3600W zone Glass plate Control panel e-line induction 88 GLEM GAS W GLEM GAS

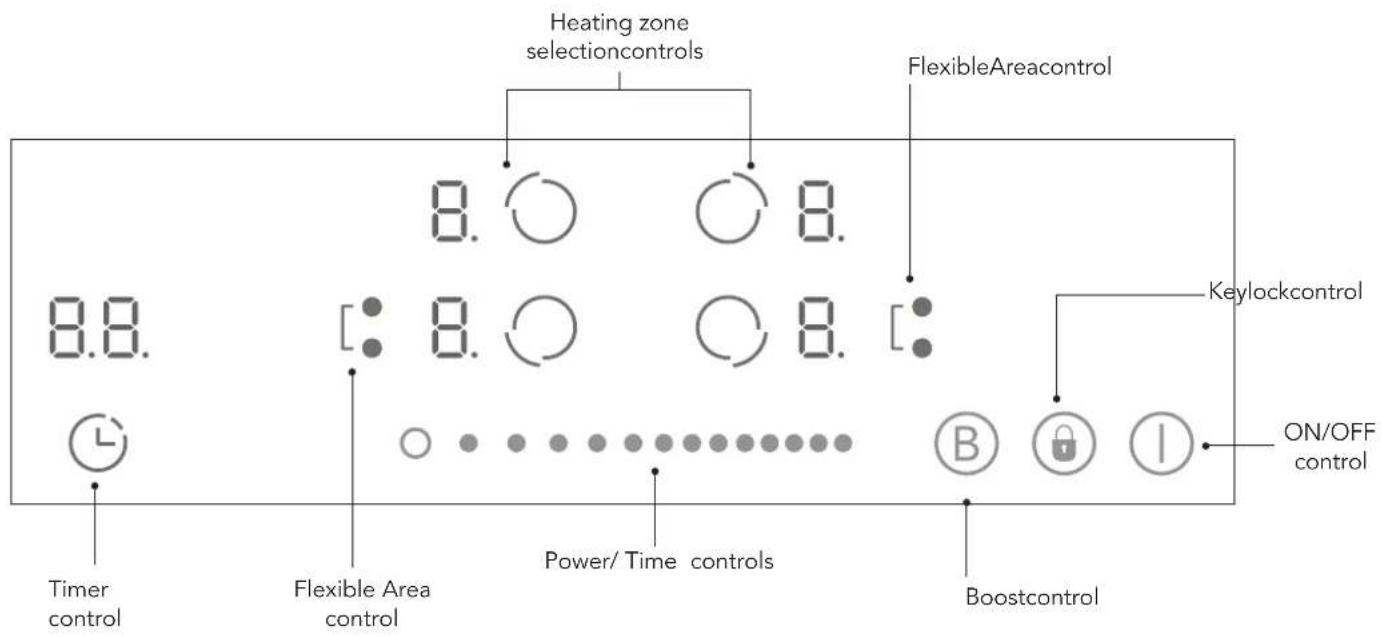

CONTROL PANEL

Heating zone selectioncontrols FlexibleAreacontrol 8.8. 8.0 8.0 8.0 Keylockcontrol ON/OFF control Timer control Flexible Area control Power/ Time controls Boostcontrol

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

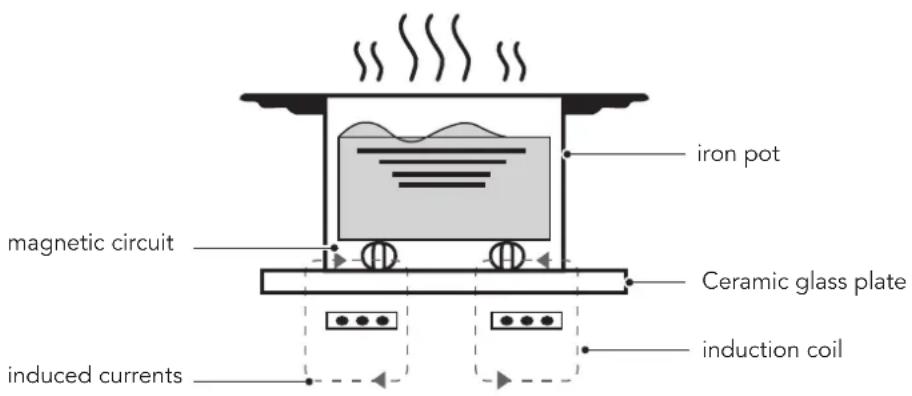

WORKING THEORY

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

iron pot magnetic circuit Ceramic glass plate induced currents induction coil

BEFORE USING YOUR NEW INDUCTION HOB

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

QUICK START GUIDE

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

COOKING TIPS

• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, Cooking rice

• Simmering occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing Steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For Stir-frying

1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

DETECTION OF SMALL ARTICLES

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

HEAT SETTINGS

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you.

Heat setting Suitability
1-2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3-4	·reheating·rapid simmering·cooking rice
5-6 · pancakes
7-8	·sautéing·cooking pasta
9/P	·stir-frying·searing·bringing soup to the boil·boiling water

PRODUCT INSTALLATION

SELECTION OF INSTALLATION EQUIPMENT

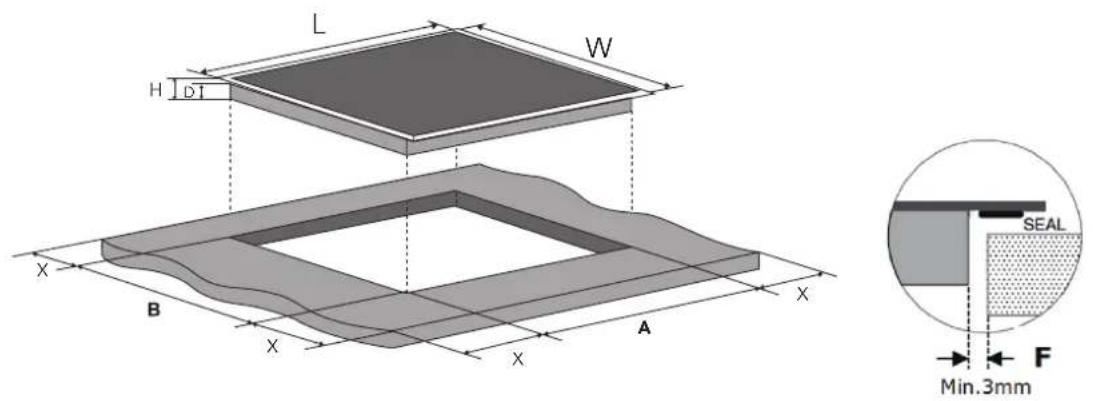

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below:

NOTE : The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.

L W H DT X B X A X X SEAL Min.3mm F

L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm
590 520 60	56 560 + 4 +1	480 + 4 +1 50 min	3 min

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below.

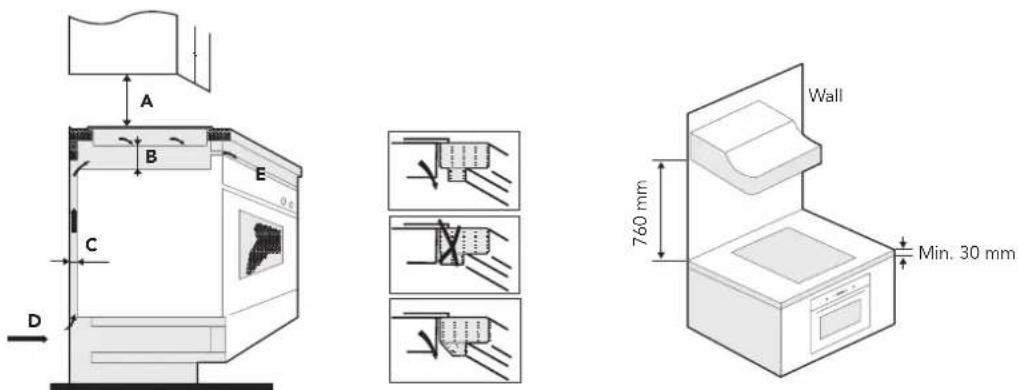

NOTE : The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B C D Wall 760 mm Min. 30 mm

A (mm)	B (mm)	C (mm)	D	E
760	50 min	20 min	Air intake	Air exit 5mm

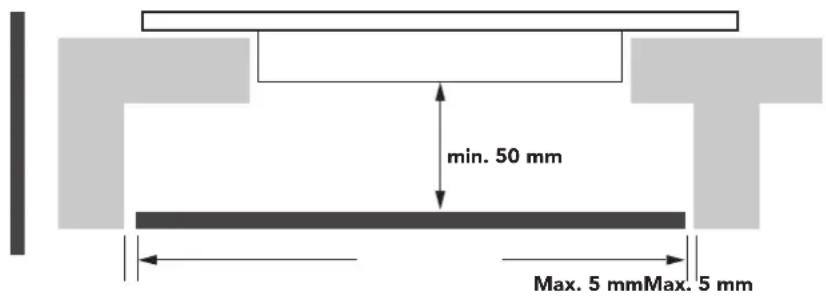

WARNING: Ensuring Adequate Ventilation

Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpected electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob. Follow the requirements below.

min. 50 mm Max. 5 mm Max. 5 mm

There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position.

- Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150°C, to avoid the unstuck of the paneling. - The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90°C.

BEFORE INSTALLING THE HOB, MAKE SURE THAT

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant and insulated material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 3mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

AFTER INSTALLING THE HOB, MAKE SURE THAT

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

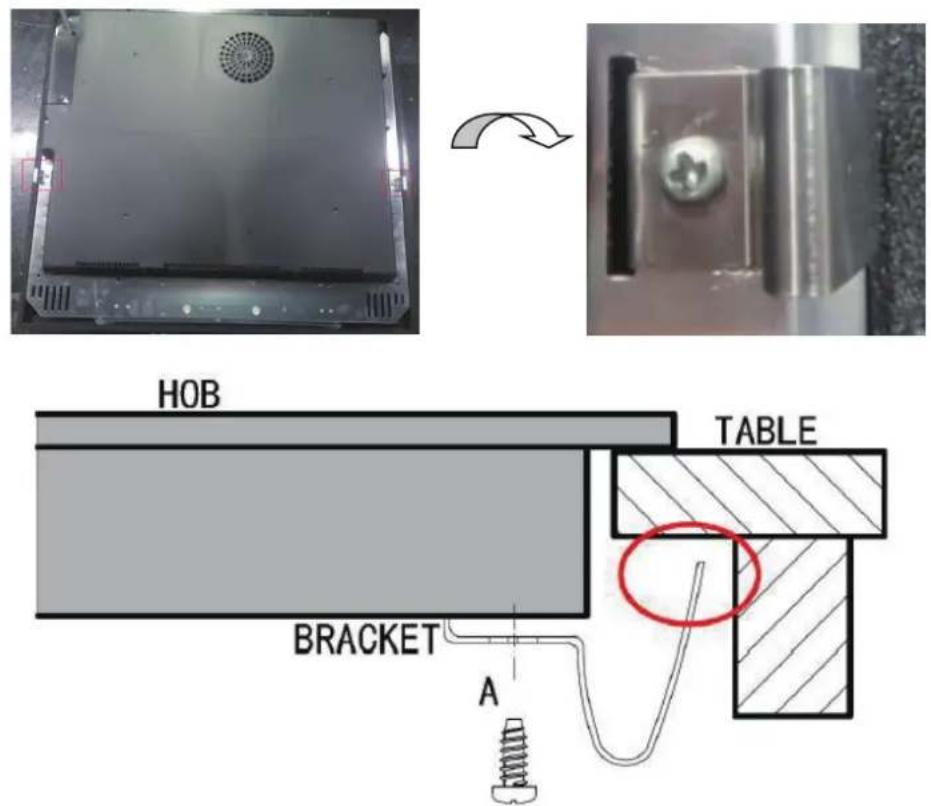

BEFORE LOCATING THE FIXING BRACKETS

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different table top thickness.

HOB TABLE BRACKET A

⚠️ Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture).

CAUTIONS

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.

CONNECTING THE HOB TO THE MAINS POWER SUPPLY

This hob must be connected to the mains power supply only by a suitably qualified persol. Before connecting the hob to the mains power supply, check that:

1. The domestic wiring system is suitable for the power drawn by the hob.
2. The voltage corresponds to the value given in the rating plate.
3. The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

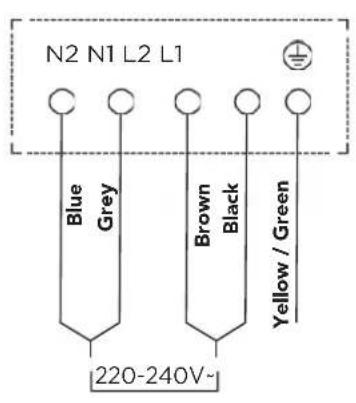

N2 N1 L2 L1 Blue Grey Brown Black Yellow / Green 220-240V~

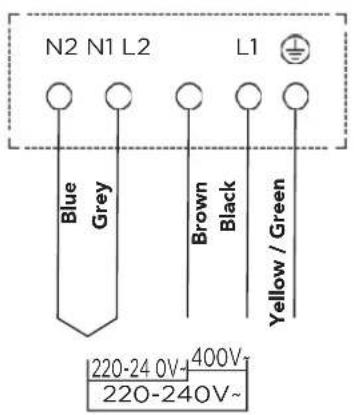

N2 N1 L2 L1 Blue Grey Brown Black Yellow / Green 1220-24 0V~ 400V~ 220-240V~

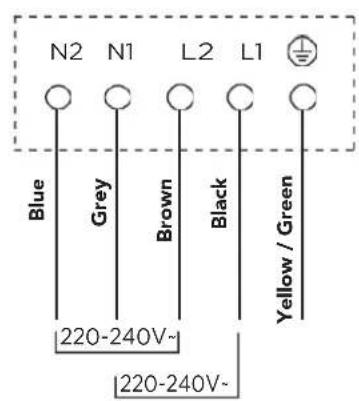

N2 N1 L2 L1 Blue Grey Brown Black Yellow / Green 220-240V~ 220-240V~

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

The bottom surface and the power cord of the hob are not accessible after installation.

OPERATION INSTRUCTIONS

TOUCH CONTROLS

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with check and cross symbols, likely illustrating correct and incorrect hand states.

CHOOSING THE RIGHT COOKWARE

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
• If you do not have a magnet:

Simple line drawing of a cooking pot with a coiled cable (no text or symbols)

1. Put some water in the pan you want to check.

2. If does not flash in the display and the water is heating, the pan is suitable.

3. Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

4. If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.
5. If the ferromagnetic area is not homogeneous, but presents others material such as aluminum th may affect the heating up and the pan detection.

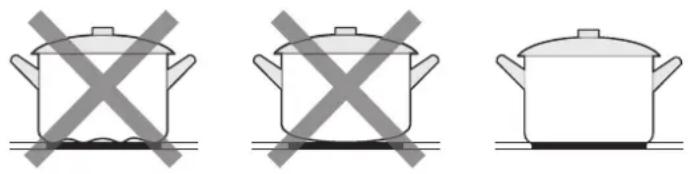

6. If the base of the pan is similar to the pictures below the pan may not detected.

Two kitchen cookware items: a square pan with a handle and a circular pot (no text or symbols visible)

- Do not use cookware with jagged edges or a curved base.

- Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Always centre your pan on the cooking zone.

- Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

PAN DIMENSION

The cooking zones are, up to a limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

The base diameter of induction cookware
Cooking zone	Minimum (mm)	Maximum (mm)
180 mm 140 180
Flexible Area 250 386 * 180

HOW TO USE

1. Start Cooking

1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “-” or “--”, indicating that the induction hob has entered the state of standby mode.

2. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touching the heating zone selection control, and an indicator next to the key will flash.

Simple line drawing of a cooking pot on a stand (no text or symbols)

1. Select a heat setting by touching the slider control.

- If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

5

Power up

Power down

If the display flashes ✉ alternately with the heat setting

This means that:

- you have not placed a pan on the correct cooking zone or,

- the pan you're using is not suitable for induction cooking or,

- the pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display "兴" will automatically disappear after 1 minute if no suitable pan is placed on it.

2. Finish cooking

1. Touching the heating zone selection control that you wish to switch off.

6

1. Turn the cooking zone off by touching the slider. Make sure the display shows "0".

Simple line drawing of a hand pointing upward with dots above it (no text or symbols)

1. Turn the whole cooktop off by touching the ON/OFF control.

1. Beware of hot surfaces:

H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

3. Using the Boost function

Activate the boost function

1. Touching the heating zone selection control.

2. Touching the boost control B, the zone indicator show "P" and the power reach Max.

6

B P O

Cancel the Boost function

1. Touching the heating zone selection control that you wish to cancel the boost function.

2. Touching the "Boost" control to cancel the Boost function, then the cooking zone will revert to its original setting OR select a heat setting by touching the slider control.

5

B or o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NOTE

• The function can work in any cooking zone.
- The cooking zone returns to its original setting after 5 minutes.
- If the original heat setting equals 0, it will return to 9 after 5 minutes.
- As the boost function of 1st cooking zone is activated, the power level of the 2nd cooking zone is limited automatically to avoid overload. Vice versa.

4. Flexible area

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Free area is made of two independent inductors that can be controlled separately.

As big zone

1. To activate the Flex area as a single big zone, Touching the Flexible Area control.

[●] = ○

1. As a big zone, we suggest the used as the follow: Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

250mm 280mm

We don't recommend other operations except for above mentioned three operations because it might affect the heating of appliance

As two independent zones:

To use the flexible area as two different zones, you can have two choices of heating :

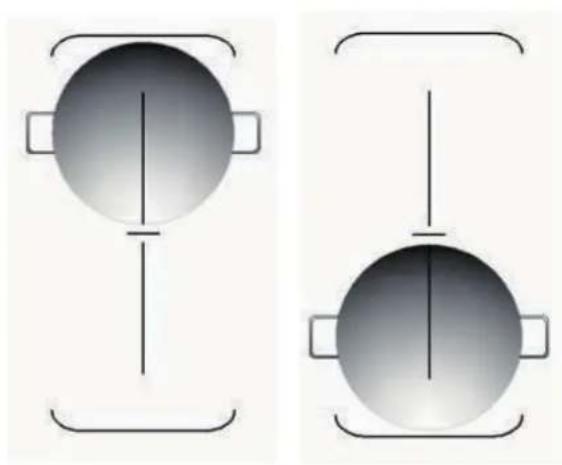

(a) Put a pan on the up side or the down side of the flexible zone.

Two identical diagrams showing a sphere with vertical center and horizontal bars, no text or symbols present.

(b) Put two pans on both sides of the flexible zone.

Two identical oval shapes with horizontal lines inside, each enclosed by a rectangular frame (no text or symbols)

NOTE

• Make sure the pan is bigger than 140mm.

5. Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch and hold the lock control for a while (the timer indicator will show “Lo”

To unlock the controls

Touch and hold the lock control for a while. (

When the hob is in the lock mode, all the controls are disable except the ON/OFF ① , you can always turn the induction hob off with the ON/OFF ① control in an emergency, but you shall unlock the hob first in the next operation.

6. Timer Control

You can use the timer in two different ways:

- You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

- You can set it to turn one or more cooking zones off after the set time is up.

The timer of maximum is 99 min.

a) Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on. Note: you can use the minute minder at least one zone shall be active. Touch timer control, the "10" will show in the timer display and the "0" flashes.

2. Set the time by touching the slider control. (e.g. 5)

15. ✓

1. Touch timer control again, the "1" will flash.

2. Set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes.

活

Simple line drawing of a hand reaching toward a dot on a horizontal line (no text or symbols)

1. When the time is set after flash 3 seconds, it will begin to count down immediately. The display will show the remaining time.

2. Buzzer will beep for 30 seconds and the timer indicator shows "-" when the setting time finished.

NOTE: The red dot next to timer indicator will illuminate.

b) Setting the timer to turn one or more cooking zones off

1. Touching the heating zone selection control that you want to set the timer for.

2. In short time, touch timer control, the "10" will show in the timer display and the "0" flashes.

1. Set the time by touching the slider control. (e.g. 5)

影

1. Touch timer control again, the "1" will flash.

1. Set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes.

将

1. When the time is set after flash 3 seconds, it will begin to count down immediately. The display will show the remaining time.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

95 ○

6.

1. When cooking timer expires, the corresponding cooking zone will be switched off automatically.

Other cooking zone will keep operating if they are turned on previously.

The pictures shown above are for reference only, and the final product shall prevail.

Set more zones

1. The steps for setting more zones are similar to the steps of setting one zone; When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes. The shown as below:

(set to 15 minutes)

(set to 45 minutes)

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

The shown as right:

1. Touching the heating zone selection control that you 2. Touching the timer control, the indicator flash. want to cancel the timer.

6 O

30

1. Touch the slider control to set the timer to "00", the timer is cancelled.

Simple line drawing of a hand reaching toward a dot above a circle (no text or symbols)

7. Power Management Function (on option)

• It is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.
• Induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.
• It is not necessary to put any pots on the heating zones. You need to enter the power setting mode within 60 seconds after connecting the power. You need to finish setting within 60 seconds every step.

To enter Power Management Function

1. Firstly, please turn on the hob. At this stage, press "Boost" and "Lock" at the same time.

The "S" symbol will be displayed on zone #1.

1. Press "Lock" key for a while. The symbol "S" will be displayed on zone #1 and symbol "E" will be displayed on zone #2.

1. Press "Boost" and "Lock" keys at the same time again for a while.

The symbol "S" will be displayed on zone #1, "E" will be displayed on zone #2, and "t" will be displayed on zone #3. At the same time, the current maximum power mode (7.2) will be displayed on the timer indicator.

1. To switch to another level, short press the "Boost" key.

There are 6 power levels, from "7.2" to "1.0". The timer indicator will show one of them. "7.2": the maximum power is 7.2kW.

"5.8": the maximum power is 5.8kW.
"4.5": the maximum power is 4.5kW.
"3.5": the maximum power is 3.5kW.
"2.8": the maximum power is 2.8kW.
"1.0": the maximum power is 1.0kW.

Confirmation and Exit Power Management Function

1. After the setting, press "On/Off" key to turn off the hob. The power mode is set successfully.

8. Default Working Times

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes.

⚠️ People with a heart pace maker should consult with their doctor before using this unit.

CLEANING AND MAINTENANCE

What? How? Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass).	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass.	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.
Spillovers on the touch controls.	1. Switch the power to the cooktop off.2. Soak up the spill.3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry. with a paper towel.5. Switch the power to the cooktop back on.	·Never leave cleaning residue on the cooktop: the glass may become stained.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

Problem Possible causes What to do
The induction hob cannot be turned on.	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls are difficult to operate.	A slight film of water may have formed on the touch controls.Make sure you position your finger correctly when using the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough edges on cookware.Use of inappropriate or abrasive scouring pads, or unsuitable cleaning products.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'CLEANING AND MAINTENANCE'.
Some pans make crackling or clicking noises.	This may be caused by the composition of your cookware (layers of different metals vibrating at different frequencies).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This noise is related to induction cooking technology.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A built-in fan has been activated to prevent the electronic components from overheating. This fan may continue to operate even after the cooktop has been switched off.	This is normal and needs no action. Do not the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

FAILURE DISPLAY AND INSPECTION

The induction hob is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface.

Failure code Problem Solution
E1	Ceramic plate temperature sensor failure - opencircuit	Check the connection or replace the ceramic plate temperature sensor.
E2	Ceramic plate temperature sensor failure opencircuit - shortcircuit.
E7 Ceramic plate temperature sensor failure
C1 Hightemperature of ceramic plate sensor		Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.
E3	Temperature sensor of the IGBT failure - open circuit	Replace the power board.
E4	Temperature sensor of the IGBT failure - short circuit
C2 High temperature of IGBT.		Wait for the temperature of IGBT return to normal.Touch “ON/OFF” button to restart unit.Check whether the fan runs smoothly; if not , replace the fan.
EL Supply voltage is below the rated voltage.		Please inspect whether power supply is normal. Power on after the power supply is normal.
EH Supply voltage is above the rated voltage.
EU Communication error.		Reinsert the connection between the display board and the power board.Replace the power board or the display board.
EF Overflow error.		Please inspect whether water exists on the operation area and if so, then to clean and dry.

1. Specific Failure & Solution

Failure Problem Solution A Solution B
The LED does not come on when unit is plugged in.	No power supplied.	Check to see if plug is secured tightly in outlet and that outlet is working.
	The accessorial power board and the display board connected failure.	Check the connection.
	The accessorial power board is damaged.	Replace the accessorial power board.
	The display board is damaged	Replace the display board.
Some buttons can't work, or the LED display is not normal.	The display board is damaged.	Replace the display board.
The Cooking Mode Indicator comes on, but heating does not start.	High temperature of the hob.	Ambient temperature may be too high. Air Intake or Air Vent may be blocked.
	There is something wrong with the fan.	Check whether the fan runs smoothly if not , replace the fan.
	The power board is damaged.	Replace the power board.
Heating stops suddenly during operation and the display flashes "u".	Pan Type is wrong.	Use the proper pot (refer to the instruction manual.)	Pan detection circuit is damaged, replace the power board.
	Pot diameter is too small.
	Cooker has overheated;	Unit is overheated.Wait for temperature to return to normal.Push "ON/OFF" button to restart unit.
Heating zones of the same side ( Such as the first and the second zone ) would display "u".	The power board and the display board connected failure.	Check the connection.
	The display board of communicate part is damaged.	Replace the display board.
	The Main board is damaged.	Replace the power board.
Fan motor sounds abnormal.	The fan motor is damaged.	Replace the fan.

The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

DISPOSAL AND RECYCLING

IMPORTANT INSTRUCTIONS FOR ENVIRONMENT

Compliance with the WEEE Directive and Disposing of the Waster Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to social collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

COMPLIANCE WITH ROHS DIRECTIVE

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

GLEMGAS

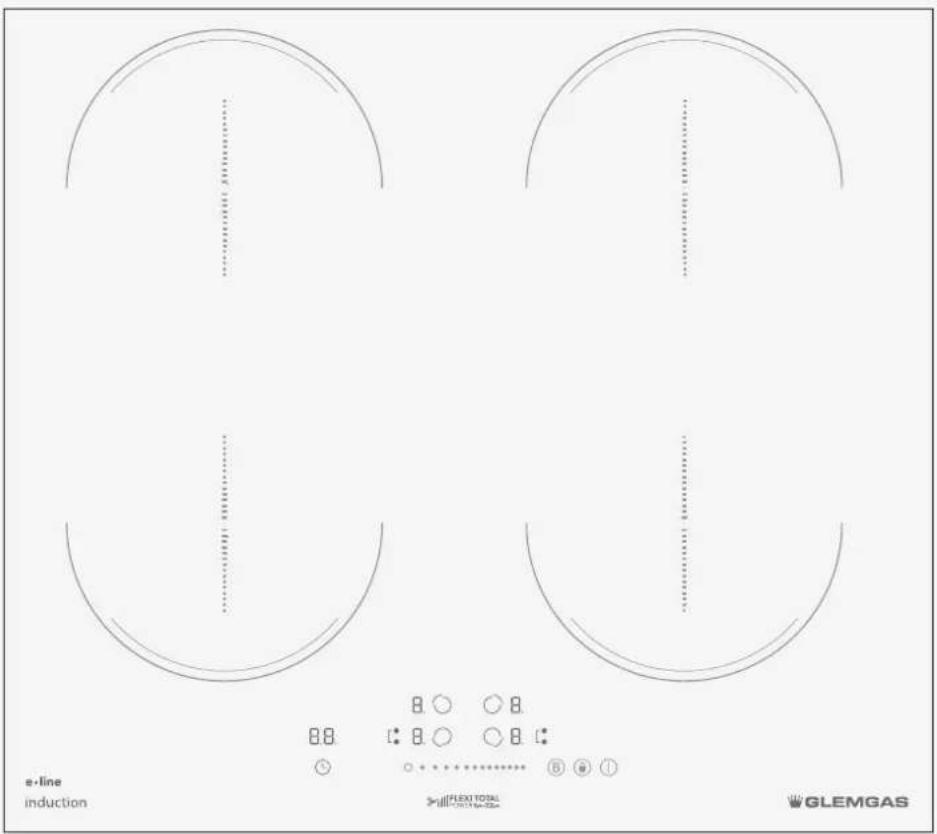

INDUCTION HOB

BEDIENUNGSANLEITUNG

GTI642BSL

e-line induction a+PLENT TOTAL GLEMGAS

L W H DT X B X A X X SEAL Min.3mm F

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)	F (mm)
590	520	60	56	560 + 4 + 1	480 + 4 + 1	50 min	3 min

Diagram showing two hand positions on a line with checkmark and cross symbols indicating correct and incorrect states.

AUSWAHL DES GEEIGNETEN KOCHGESCHIRRS

Simple line drawing of a cooking pot with a coiled cable (no text or symbols)

Two kitchen utensils: a square pan with a lid and a circular pot (no text or symbols visible)

Simple line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand reaching toward a dotted line above it (no text or symbols)

250mm 280mm

Two identical diagrams showing a sphere with vertical center and horizontal bars, no text or symbols present.

Two identical oval shapes with horizontal and vertical lines inside, each enclosed by rectangular brackets (no text or symbols)

HINWEIS:

Simple line drawing of a hand pointing at a dot on a horizontal line, with a circle above (no text or symbols)

Simple line drawing of a hand pointing at a dot above a circle (no text or symbols)

Simple line drawing of a hand reaching toward a dot above a circle (no text or symbols)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

GLEMGAS

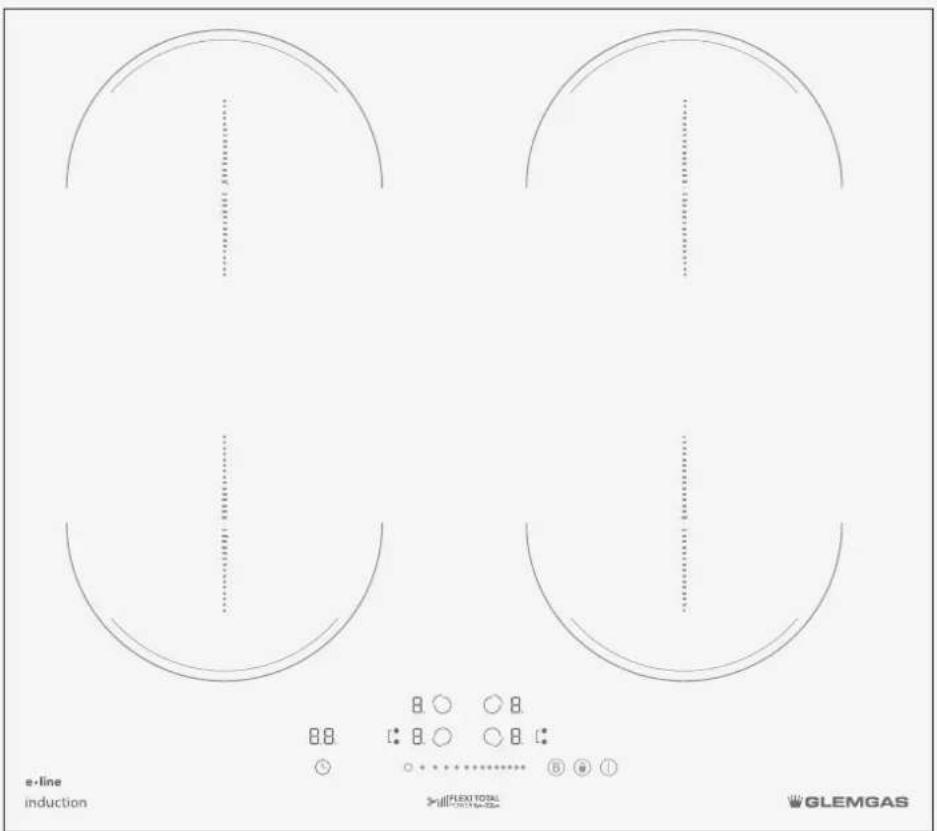

INDUCTION HOB

GEBRUIKSAANWIJZING

GTI642BSL

PROBLEEMOPLOSSING 130

AFVALVERWERKING EN RECYCLING 133

VEILIGHEIDSINSTRUCTIES

BESTEMD GEBRUIK

WAARSCHUWING VOOR ELEKTRISCHE SPANNING

VEILIGHEIDSWAARSCHUWINGEN

INSTALLATIE VAN HET PRODUCT

KEUZE VAN DE INBOUWUITRUSTING

L W H DT X B X A X X SEAL Min.3mm F

L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm

590

520

60

56

560 + 4 +1

480 + 4 +1

50 min

3 min

WAARSCHUWING: ZORG VOOR VOLDOENDE VENTILATIE.

Diagram showing two hand-drawn symbols: a checkmark and an X, likely indicating correct and incorrect states.

KEUZE VAN HET JUISTE KOOKGEREI

Simple line drawing of a cooking pot with a coiled cable (no text or symbols)

Two kitchen cookware items: a square pan with a handle and a circular pot (no text or symbols visible)

Simple line drawing of a cooking pot on a stand (no text or symbols)

Simple line drawing of a hand reaching toward a dotted line above it (no text or symbols)

250mm 280mm

Two identical spherical objects with vertical centerlines, each enclosed in a rectangular frame (no text or symbols)

OPMERKING:

Simple line drawing of a hand pointing at a dot on a line, with no text or symbols present.

Simple line drawing of a hand reaching toward a dot above a circle (no text or symbols)

The induction hob is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

GLEMGAS
