Product type	High-pressure cleaner
Brand	Kärcher
Model	K 4 Power Control Flex Home
Supply voltage	230 V
Frequency	50 Hz
Connected power	1.8 kW
Pressure (service)	11 MPa (110 bar)
Max. admissible pressure	13 MPa (130 bar)
Water flow rate	6.3 l/min
Max flow rate	7.0 l/min
Detergent flow rate	0.3 l/min
Protection type	IPX5
Protection class	I
Typical operating weight	13.5 kg
Dimensions (L × W × H)	405 × 306 × 584 mm
Max. supply temperature	40 °C
Max. suction height	0.5 m
Max. supply pressure	1.2 MPa
Included accessories	Rotabuse Power Control lance, Vario Power Control lance, Power Control high-pressure gun, Plug 'n' Clean detergent bottle, Hose reel
Features	Pressure Control system, Auto-Stop function, Motor thermal protection

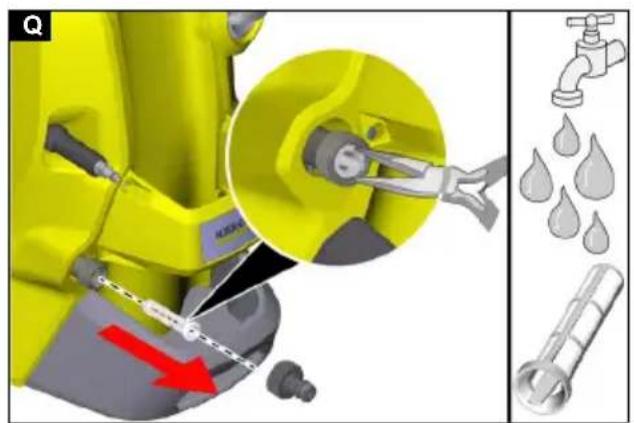

Maintenance	Cleaning the screen in the water supply fitting
Warranty	According to country conditions, contact after-sales service

Frequently Asked Questions - K 4 Power Control Flex Home Kärcher

How to purge the device before first use?

Switch on the device, unlock the gun and press the trigger. Let the water run for about 2 minutes until there are no more air bubbles. Release the trigger and lock the gun.

What type of detergent to use?

Use only Kärcher detergents in Plug 'n' Clean bottles. Never use solvents or flammable products.

How to clean the screen on the water connection?

Unscrew the water supply fitting, remove the screen and clean it under running water against the flow direction. Put it back and screw it on.

What to do if the device does not start?

Check the power supply, that the gun is unlocked and the trigger is pressed. If the motor is overloaded, turn off the device for 1 hour to cool it down.

How to use the different lances?

Insert the lance into the gun and turn it 90° to lock it. For the Vario Power lance, turn it to select the pressure level (HARD, MEDIUM, SOFT, MIX). The Rotabuse is for tough dirt.

How to store the device after use?

Release the pressure by pressing the trigger for 30 seconds after closing the water. Disconnect the device, wind the hose onto the reel and store accessories in the compartments provided.

How to protect the device from frost?

Completely empty the device by disconnecting the hose and running the device for 1 minute without water. Store it in a frost-proof room.

What are the pressure levels available on the Vario Power lance?

The levels are: HARD (terraces, asphalt), MEDIUM (cars, bricks), SOFT (wood, bicycles) and MIX (operation with detergent).

How to connect the device to an external water source like a barrel?

Use the Kärcher suction hose (optional). Unscrew the fitting, fill the hose with water, screw it onto the device and immerse it in the water source. The max. suction height is 0.5 m.

Where to find spare parts?

Original spare parts are available on the website www.kaercher.com or from your authorized dealer.

USER MANUAL K 4 Power Control Flex Home Kärcher

Polish 90

Hungarian 96

Czech 102

Slovak 108

Slovene 113

Romanian 119

Croatian 125

Serbian 130

Greek 136

Russian 142

Ukrainian 148

Kazakh 155

Bulgarian 161

Arabic 174

A K 4 Power Control Flex

B K 4 Premium Power Control Flex

Contents

KÄRCHER Home & Garden app.... 6

Trademarks

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app......

11

General notes......

12

Environmental protection

12

Intended use

12

Accessories and spare parts......

12

Scope of delivery

12

Device description......

12

Safety devices......

13

Symbols on the device

13

Installation

13

Initial startup

13

Operation

14

Transport......

15

Storage

15

Care and service

15

Troubleshooting guide......

15

Warranty

16

Technical data

16

EU Declaration of Conformity

17

KÄRCHER Home & Garden app

The KÄRCHER Home & Garden app contains:

• Installation and initial startup information • Information about the areas of application - Tips & Tricks • FAQ with detailed troubleshooting - Connection to the KÄRCHER Service Centre The app can be downloaded here:

Trademarks

• Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.
• Apple® and App Store® are trademarks or registered trademarks of Apple Inc.

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator. Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil. Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines, etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Device description

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the figures, please refer to the graphics page.

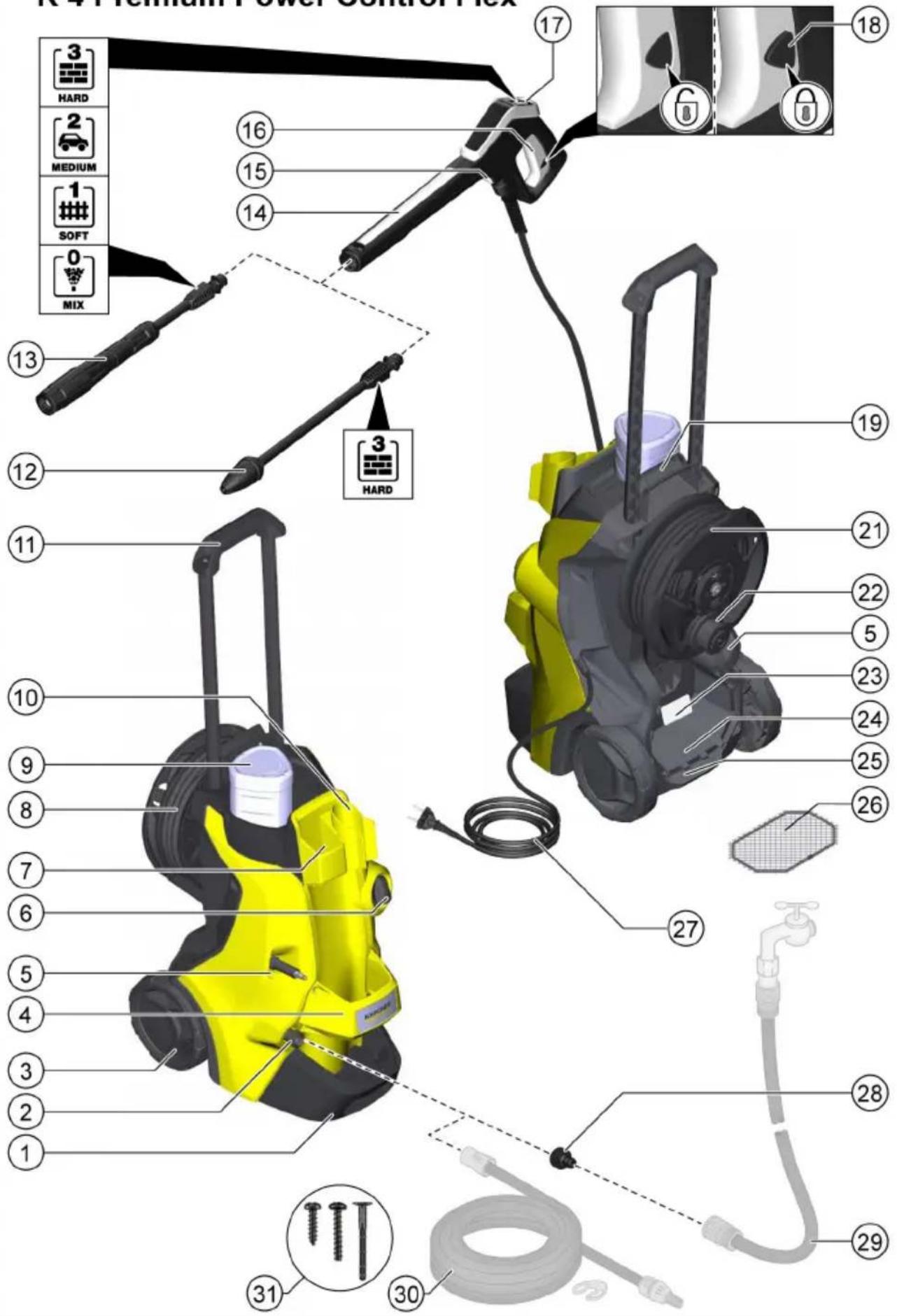

Illustration A

Illustration B

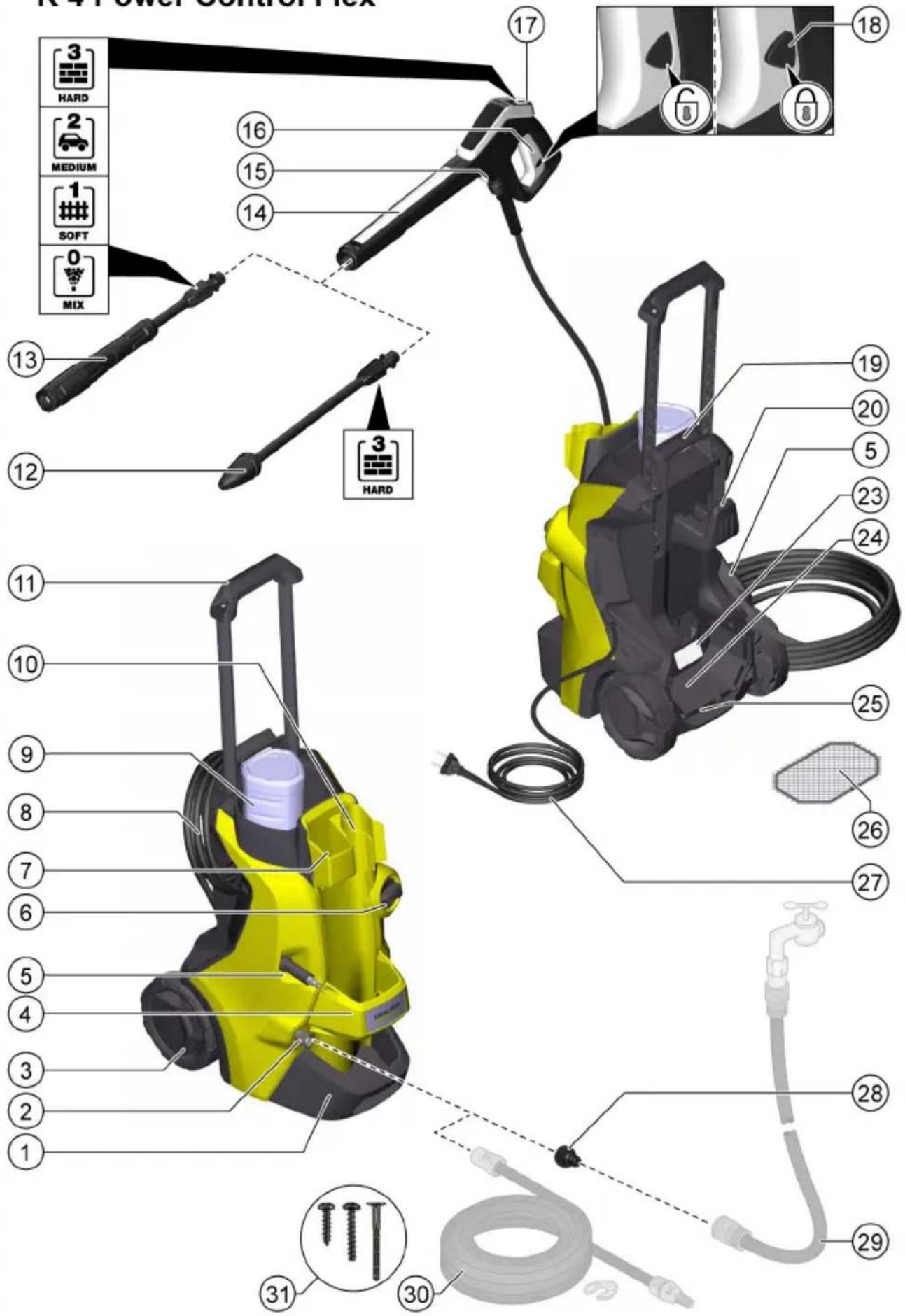

① Stand with carrying handle ② Water connection with built-in strainer ③ Transport wheel ④ Cover ⑤ Hose guide ⑥ Trigger "0/OFF" / "I/ON" ⑦ Storage for spray lances ⑧ High-pressure hose ⑨ Plug 'n' Clean detergent bottle ⑩ Storage / parking position for high-pressure gun ⑪ Transport handle, extendable ⑫ Power Control spray lance Dirt grinder for stubborn contamination, pressure stage: HARD ⑬ Power Control spray lance Vario Power for the most common cleaning tasks, pressure stages: HARD / MEDIUM / SOFT / MIX ⑭ Power Control high-pressure gun ⑮ Button for separating the high-pressure hose from the high-pressure gun ⑯ High-pressure gun lever ⑰ Pressure indicator (0-MIX / 1-SOFT / 2-MEDIUM / 3-HARD) ⑱ High-pressure gun lock ⑲ Carrying handle ⑳ Hose switch ㉑ High pressure hose reel ㉒ Crank handle for hose reel ㉓ Type plate ㉔ Accessory compartment ㉕ Hook for net attachment ㉖ Mesh for accessory compartment ㉗ Mains connection cable with mains plug

㉘ Coupling for the water connection ㉙* Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling) ㉚* KÄRCHER suction hose for water supply from open containers (order no. 2.643-100) ㉛ Included screws and dowels

* additionally required

Supplied screws and dowels

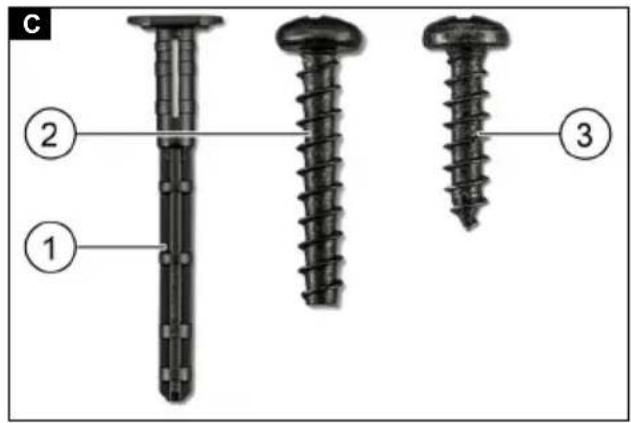

Illustration C

① Stand dowels (2 pieces) ② Screw 4x22 (2 pieces) ③ Screw 4x16 (10 pieces)

Safety devices

⚠ WARNING

Danger of injury!

Serious injuries due to missing, modified or ineffective safety devices.

Do not bypass or remove the safety devices and do not render them ineffective. Safety devices are provided for your own protection.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Symbols on the device

Do not aim the high-pressure jet at persons, animals, live electrical equipment, or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Installation

For the illustrations, refer to the graphics page.

Fit the supplied loose parts onto the device before starting up the device.

Have the included screws and the appropriate screwdriver ready.

Fitting the wheels

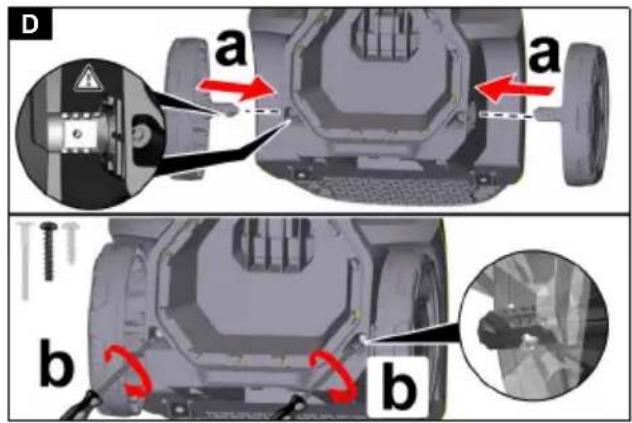

1. Insert the wheels.

Note

Pay attention to the alignment of the hole.

Illustration D

1. Secure the wheels with 1 screw each.

Mounting the stand

1. Insert the stand.

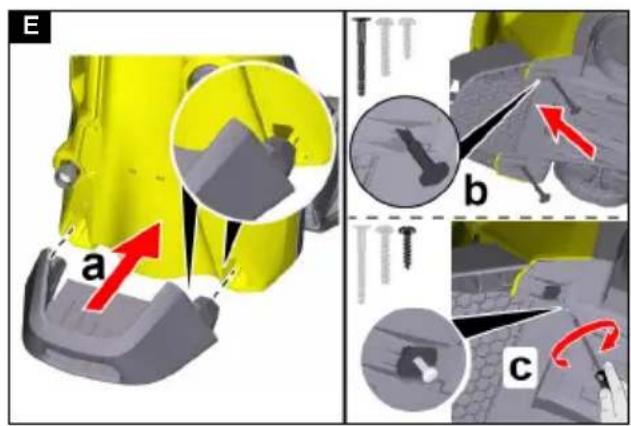

Illustration E

1. Insert the 2 dowels into the holes as far as they will go.
2. Secure the base with 2 screws.

Mounting the storage for spray lances

1. Hook in the storage for the spray lances.
2. Secure the storage with 2 screws.

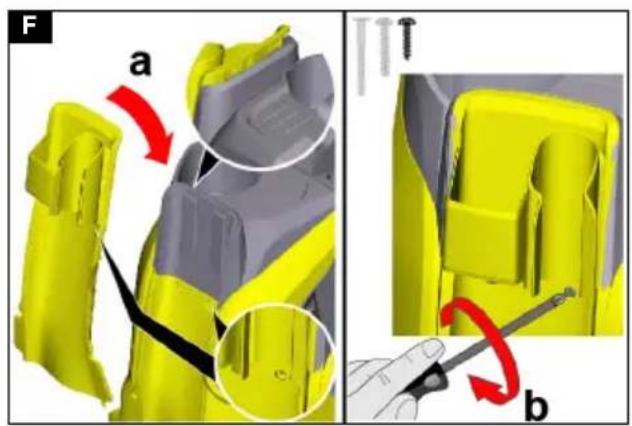

Illustration F

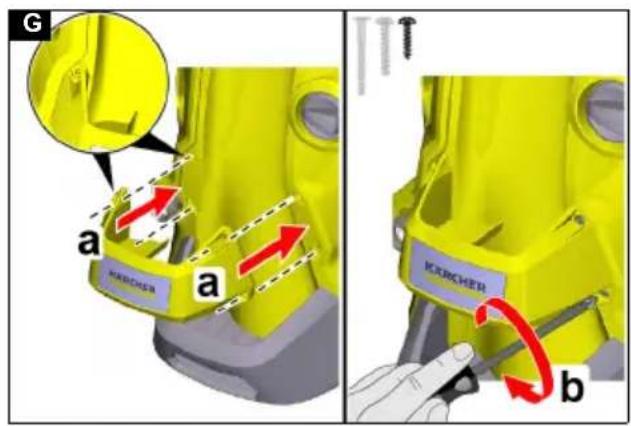

1. Secure the cover with 4 screws. Illustration G

Mounting the transport handle

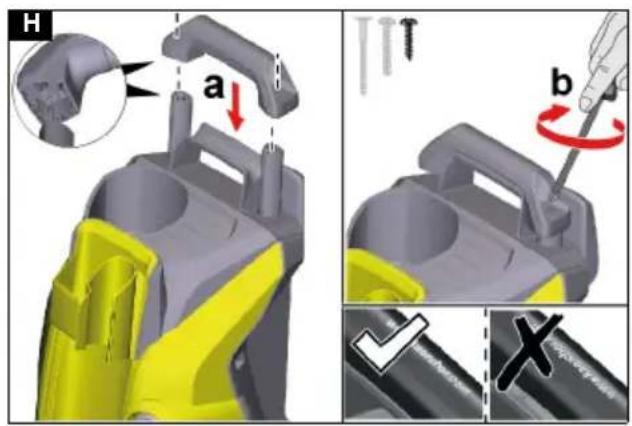

1. Attach the transport handle. Illustration H

Mounting the accessory net

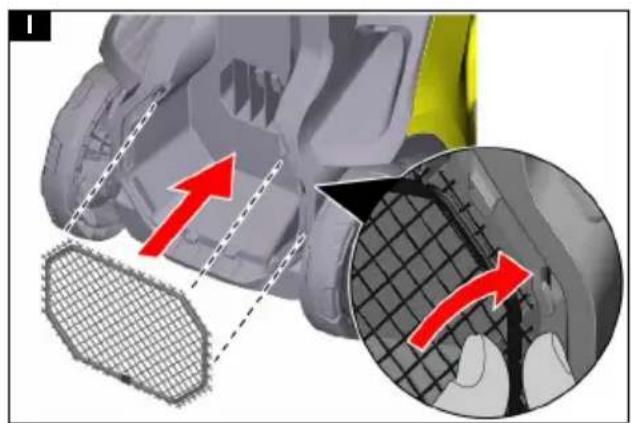

1. Hang the accessory net on the hooks. Illustration I

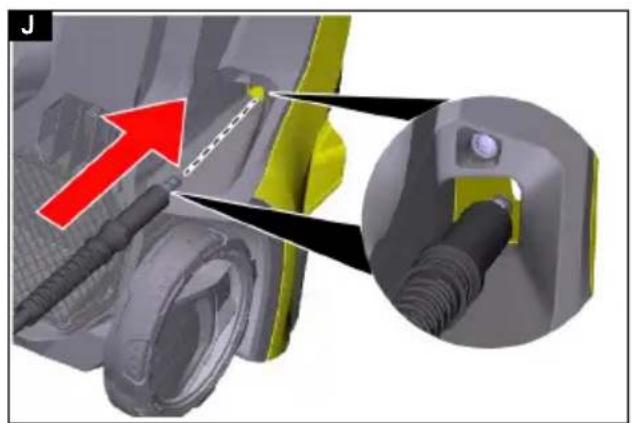

Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose guide from the rear. Illustration J

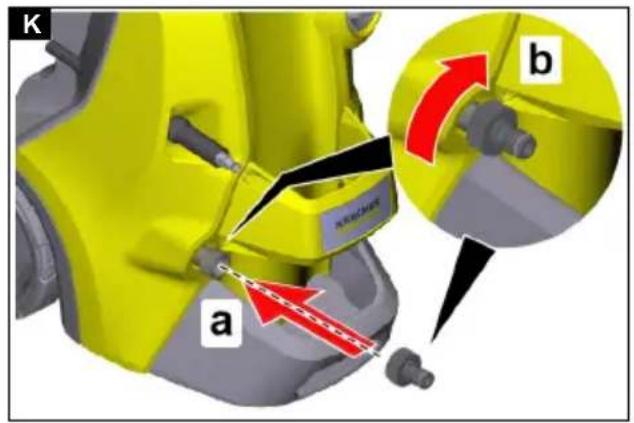

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device. Illustration K

Initial startup

1. Place the device on a level surface.
2. Completely unwind the high-pressure.
3. Pull the high-pressure hose completely forward through the hose guide and eliminate any loops and twists.
4. Insert the high-pressure hose into the high-pressure gun until it audibly clicks into place.

Note

Take care to ensure the correct alignment of the nipple. Illustration L

1. Check the secure connection by pulling on the high-pressure hose.
2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection (special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

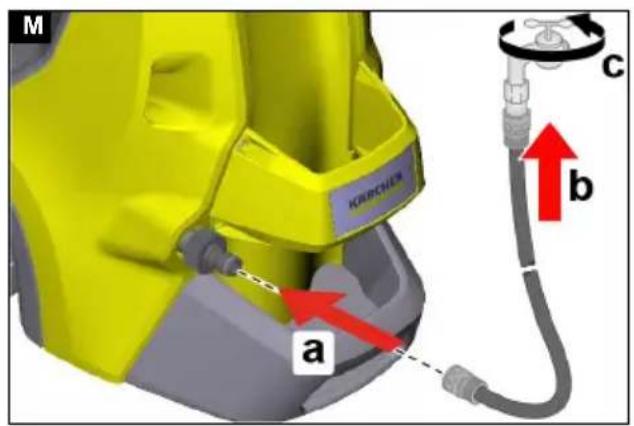

1. Plug the garden hose onto the water connection coupling.
2. Connect the garden hose to the water line.
3. Open the water tap fully.

Illustration M

Suck water from open containers

This high-pressure cleaner with the KÄRCHER suction hose is suitable for sucking in surface water, e.g. from water butts or ponds (for maximum suction height, see chapter Technical data).

1. Unscrew the coupling on the water connection.
2. Fill the suction hose with water.
3. Screw the suction hose onto the water connection of the device and hang it in a water source (e.g. rain barrel).

Vent the device

1. Switch the device on "I/ON".
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.
4. Allow the device to run for a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.
5. Release the lever of the high-pressure gun.
6. Lock the lever of the high-pressure gun.

Operation

ATTENTION

Risk of damage!

Damaging the pump during dry running.

Switch off the device if it does not build up pressure within 2 minutes.

Proceed according to the instructions in chapter Troubleshooting guide.

Power Control System

The pressure indicator on the high-pressure gun shows the currently set pressure level during operation with a Power Control spray lance.

Note

The sensitivity of materials can vary greatly depending on age and condition. The recommendations are therefore not binding.

Note

When operating with surface cleaner and other accessories, the pressure indicator is not accurate.

Display Pressure stage		Recommended fore.g.
	HARD Stone terraces made of paving stones or washed concrete, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
	MEDIUM Car/motorcycle, brick surfaces, plastered walls, plastic furniture
	SOFT Wooden surfaces, bicycle, sandstone surfaces, rattan furniture
	MIX Operation with detergent

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt blaster.

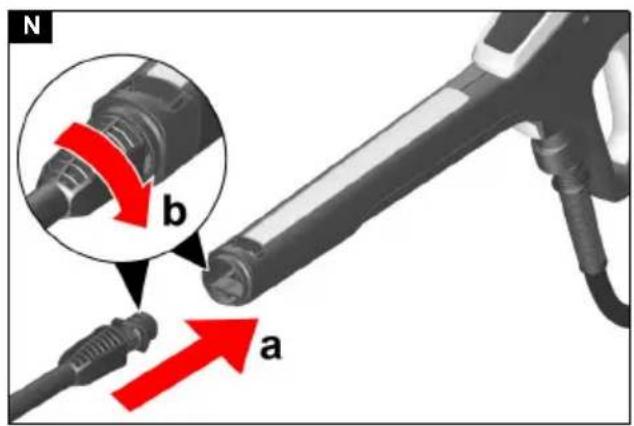

1. Insert a spray lance into the high-pressure gun and lock it into position by turning it 90°.

1. Switch the device on ("I/ON").
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.
4. Turn the Power Control spray lance Vario Power until the required pressure stage is indicated on the pressure indicator.

Operation with detergent

⚠️DANGER

Failure to adhere to the safety data sheet

Incorrect handling of the detergent can seriously damage your health

Observe the safety data sheet of the detergent manufacturer, in particular the instructions on personal protective equipment.

Note

Detergents may only be added at low pressure.

Note

A Plug 'n' Clean detergent bottle is required for operating with detergent. KÄRCHER detergents can be purchased ready for use in a Plug 'n' Clean detergent bottle.

1. Remove the lid from the Plug 'n' Clean detergent bottle.
2. Press the detergent bottle into the Plug 'n' Clean detergent connection with the opening facing downwards.

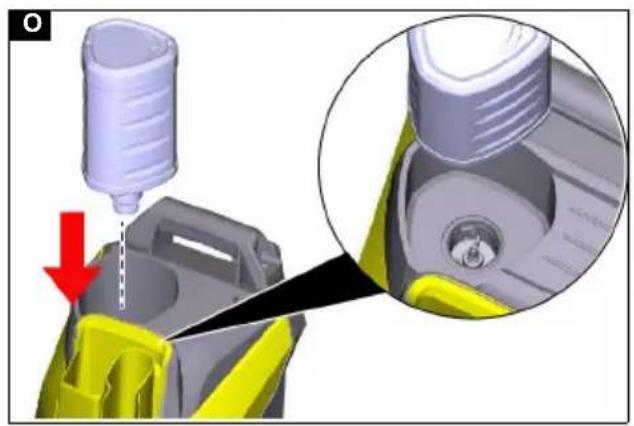

Illustration O

1. Use the Vario Power spray lance.
2. Turn the spray lance in the direction of "MIX" until "MIX" is displayed on the high-pressure gun. During operation, the detergent solution is mixed into the water stream.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Pull the Plug 'n' Clean detergent bottle out of the holder and close it with the lid.
2. For storage, place the detergent bottle in the holder with the lid facing upwards.
3. Rinse the device with clean water for about 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. When the lever is released, the device switches off. The high-pressure in the system is maintained.

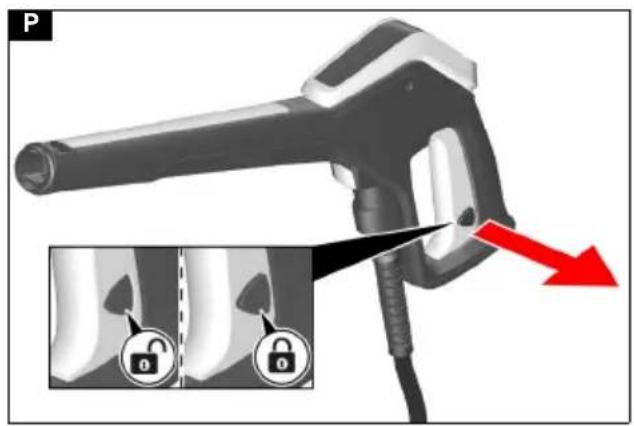

2. Lock the lever of the high-pressure gun. Illustration P
3. Set the high-pressure gun with the spray lance in the parking position.
4. For work breaks longer than 5 minutes, switch off the device "0/OFF".

Ending operation

△CAUTION

Danger of injury!

Injuries due to uncontrolled water escaping under high pressure.

Only disconnect the high-pressure hose from the high-pressure gun or the device if there is no pressure in the system.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds.

The pressure in the system is released.

1. Release the lever of the high-pressure gun.
2. Lock the lever of the high-pressure gun.
3. Switch off the device "0/OFF".
4. Disconnect the device from the water supply.
5. Pull the mains plug out of the outlet.

Transport

△CAUTION

Risk of injury and damage!

Injury or damage due to non-observance of the weight. Be aware of the weight of the device during transport and storage.

Carrying the device

1. Lift up the device by the carrying handle, and carry it.

Pulling device

1. Pull out the transport handle until it audibly engages.
2. Pull the device by the transport handle.

Transporting the device in a vehicle

1. Before horizontal transport, pull the Plug 'n' Clean detergent bottle out of the holder and close it with the lid.
2. Secure the device against shifting and tipping.

Storage

⚠CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.
4. Without a hose reel: Store the high-pressure hose on the device.

ATTENTION

Damage to the high-pressure hose

Damage to the high-pressure hose through incorrect direction of rotation

Observe the correct direction of rotation of the hose reel when winding on the hose.

1. With a hose reel: Use the crank handle to turn the hose reel counterclockwise and wind up the high-pressure hose.
2. Stow the mains connection and accessories on the device.
3. Put both spray lances into the storage for the spray lance: a Spray lance dirt grinder: Nozzle downwards b Spray lance Vario Power: Nozzle upwards Before prolonged storage, observe additional instructions, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following must be met:

• The device is disconnected from the water supply.
• The high-pressure gun is separated from the high-pressure hose.
• Switch on the device "I/ON".
• Wait a maximum of 1 minute until no more water comes out of the high-pressure hose.
• Switch off the device.
• Store the device with all accessories in a frost-proof room.

Care and service

⚠️ DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Risk of damage!

Damage to the sieve due to improper cleaning.

Clean the sieve only under running water against its flow direction.

Do not use sharp or hard objects, e.g. needles or wire brushes.

ATTENTION

Risk of damage!

Damage to the device and accessories when operating without a sieve or with a damaged sieve.

Check the sieve for damage before inserting it into the water connection. Replace a damaged sieve immediately.

Do not operate the device without a sieve.

Clean the sieve in the water connection if necessary.

1. Unscrew the coupling on the water connection.
2. Pull out the sieve.

Illustration Q

1. Clean the sieve under running water.
2. Insert the sieve into the water connection.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorized Customer Service.

⚠️DANGER

Danger of death!

Fatal injuries due to electric shock when touching live parts.

Do not touch any live parts.

Switch off the device.

Pull the mains plug out of the mains socket.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.
4. If the motor is overloaded and the motor circuit breaker has triggered:

a Switch off the device "0/OFF". b Allow the device to cool down for 1 hour. c Switch the device on "I/ON" and resume operation.

Have the device checked by Customer Service if this fault occurs repeatedly.

The device does not start up, the motor buzzes

Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Device does not reach required pressure

The water supply is too low.

1. Open the water tap fully.
2. Check the water inlet for an adequate flow rate.
3. Check the setting at the spray lance.
4. Check that the maximum suction height is not exceeded.

The sieve in the water connection is dirty.

1. Pull the sieve in the water connection out using flat pliers.
2. Clean the sieve under running water.

Illustration Q

Air is in the device.

1. Vent the device:

a. Switch on the device without a connected spray lance for a maximum of 2 minutes. b. Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles. c. Connect the spray lance.

Strong pressure fluctuations

1. Cleaning the high-pressure nozzle:

a. Remove contamination from the nozzle drill with a needle. b. Rinse the high-pressure nozzle with water from the front.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Use the Vario Power spray lance and turn it to "MIX".
2. Check that the Plug 'n' Clean detergent bottle is seated in the connection for the detergent with the opening facing down.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Technical data

	K 4 Flex	Power Control	Premium Power Control
Electrical connection
Voltage	V		230
Phase ~ 1 1
Frequency Hz 50 50
Power rating	kW	1,8 1,8
Degree of protection		IPX5	IPX5
Protection class		I	I
Power protection (slow-blowing)	A	10	10
Water connection
Feed pressure (max.) MPa	1,2	1,2
Input temperature (max.)	°C	40 40
Input amount (min.)	l/min	9 9
Suction height (max.) m	0,5	0,5
Device performance data
Operating pressure	MPa	11	11
Max. permissible pressure	MPa	13 13
Water flow rate	l/min	6,3 6,3
Maximum flow rate	l/min	7,0 7,0
Detergent flow rate	l/min	0,3 0,3
High-pressure gun recoil force	N	13	13
Dimensions and weights
Typical operating weight	kg	13,5	13,8
Length	mm	405 417
Width	mm	306	306
Height	mm	584 584
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value	m/s 2	3,2 3,2
Uncertainty K	m/s 2	0,8 0,8
Sound pressure level L pA	dB(A)	75 75
Uncertainty K pA	dB(A)	3 3
Sound power level L WA + uncertainty K WA	dB(A)	90 90

Exception according to Regulation (EU) 2019/1781 Annex I Section 2 (12): j)

Subject to technical changes without notice.

EU Declaration of Conformity

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: High-pressure cleaner

Type: 1.324-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

Measured: 88

Guaranteed: 90

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of contents

Registered trademark

Main fuse (slow) A 10 10

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

Applied directive(s)

(EU) 2019/1781

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Index

App KÄRCHER Home & Garden 23

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2000/14/CE

2009/125/CE

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Index

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

71364 Winnenden (Germany)

Telephone: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App.... 41

Trademarks

⑥ Appliance switch "0/OFF" / "I/ON"

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App 46

2006/42/AT (+2009/127/AT)

2014/30/AB

2011/65/AB

2000/14/AT

2009/125/EG

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app.... 52

General information....52

Environmental protection.... 52

71364 Winnenden (Germany)

Telephone: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

71364 Winnenden (Germany)

Phone: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app.... 63

General notes.... 63

Environmental protection....63

Intended use 63

1. Insert the stand foot.

Figure E

1. Insert the 2 plugs into the holes of the stop.
2. Attach the stand foot with 2 screws.

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

2000/14/EC: Annex V

Sound power level dB(A)

Measured: 88

Guaranteed: 90

Name and address

71364 Winnenden (Germany)

Phone: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App 68

Trademark

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of Contents

Trademark

Product: High-pressure cleaner

Type: 1.324-xxx

2006/42/EÜ (+2009/127/EÜ)

2014/30/EL

2011/65/EL

2000/14/EÜ

2009/125/EÜ

71364 Winnenden (Germany)

Tel: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app 79

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app ..... 85

Brand

3 Winnenden, 2021/06/01

Table of contents

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

71364 Winnenden (Germany)

Phone: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of Contents

Trademark

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App 102

General instructions 102

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC 230

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App.... 108

General warnings.... 108

Trademark

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

Winnenden, 2021/06/01

S. Reiser

Manager Regulatory Affairs & Certification

Table of Contents

KÄRCHER Home & Garden 113 app

General instructions.... 114

Environmental protection 114

Intended use 114

Accessories and spare parts.... 114

Scope of delivery.... 114

Device description.... 114

Safety devices 115

Symbols on the device.... 115

Assembly 115

Start-up....115

Operation.... 116

Transport 117

Storage 117

Download on the App Store

Trademarks

- Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.

- Apple® and App Store® are trademarks or registered trademarks of Apple Inc.

General instructions

Before first use of the device, read these original instructions and the enclosed safety instructions and follow them.

⑥ Device switch "0/OFF" / "I/ON"

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

Applicable regulation(s)

(EU) 2019/1781

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of contents

KÄRCHER Home & Garden App.... 119

Trademark

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

Regulation(s) used

(EU) 2019/1781

Harmonized standards applied

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden app.... 125

General notes 125

Environmental protection 125

Trademark

2006/42/EEC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

Applied regulations

(EU) 2019/1781

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

71364 Winnenden (Germany)

Tel.: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

KÄRCHER Home & Garden app.... 130

General notes.... 130

Environmental protection 131

Intended use 131

Accessories and spare parts.... 131

Scope of delivery 131

Download on the App Store

Trademark

- Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.

- Apple ^® and App Store ^® are trademarks or registered trademarks of Apple Inc.

General notes

Before first use, read the original operating instructions and the enclosed safety instructions. Follow

them accordingly.

Keep both booklets for future use or for the next owner.

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

2000/14/EZ

2009/125/EZ 230

Applied provision(s)

(EU) 2019/1781

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App.... 136

Trademark

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Table of contents

KÄRCHER Home & Garden App.... 142

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

KÄRCHER Home & Garden App 148

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

Trademark

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contents

Appendix KÄRCHER Home & Garden...... 161

General instructions.... 161

71364 Winnenden (Germany)

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Warranty

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
