USER MANUAL U444-2H-DL Tripp Lite

4K USB-C Universal Dual-Display Adapter with 100W PD 3.0 Passthrough

Model:

U444-2H-DL

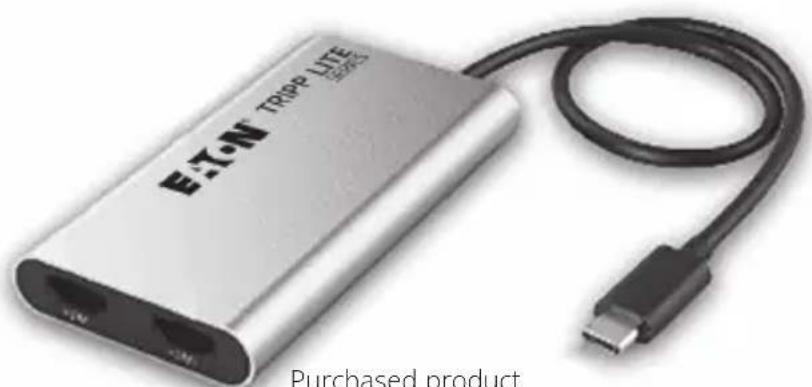

Tripp Lite U444-2H-DL - 4K USB-C Universal Dual-Display Adapter with 100W PD 3.0 Passthrough - 1

text_image ETC-N TROP LTE Purchased product

Purchased product may differ from image.

Español 5

Français 9

Deutsch 13

Italiano 17

DisplayLink®

4K

Plug and Display

EAT•N

Powering Business Worldwide

Product Features

  • Uses DisplayLink ^® DL6950 chipset for universal video transmission from the USB-C port on a notebook or laptop, including MacBook or Windows laptop, to two HDMI displays.
    • Supports full 4K video resolutions (3840 x 2160) with 60 Hz refresh rate when used with video cables, monitors and a host device capable of transmitting 4K video.
  • DisplayLink video driver allows for universal video transmission from Windows, macOS, ChromeOS and Android hosts.
    • USB-C PD pass-through port charges the host device with up to 90W.
  • Bus-powered from the connected host device or powered through the PD pass-through port, so no external power source is required.

Package Contents

• 4K USB-C Universal Dual-Display Adapter
- Quick Start Guide

Installation

Notes:

  • For the DisplayLink DL6950 video driver to install correctly, the host device must have administrator access when rst connecting the adapter. This driver is required for the device to function properly. The most current DisplayLink driver for the host OS can be installed manually by visiting the o cial DisplayLink web site at https://www.synaptics.com/products/displaylink-graphics.
  • The maximum video output resolution is determined by the video specifications of the host device, the video cables and the displays.
  • Connect the USB-C connector of the adapter into an available USB-C port on the host laptop or PC.
  • Connect the HDMI ports of the displays to the adapter with user-supplied HDMI cables.

2

Installation

  1. (Optional) Charge the host device by connecting a user-supplied USB-C charging cable and USB-C power adapter to the PD Charging port of the adapter and plugging the power adapter into a wall outlet.

Warranty

1-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost pro ts or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite U444-2H-DL - FCC Notice, Class B - 1

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2024 Eaton

All Rights Reserved

Publication No. 24-01-203 /

93-49F6_RevA

January 2024

Tripp Lite U444-2H-DL - FCC Notice, Class B - 2

9349F6

Eaton is a registered trademark.

All trademarks are property of their respective owners.
