USER MANUAL HA6IB16B2M6L0 HOTPOINT

THANK YOU FOR BUYING A HOTPOINT ARISTON PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.hotpoint.eu/register

Before using the appliance carefully read Safety and Installation Instructions. After installation, please remember to remove all transport protection parts from the dishwasher.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

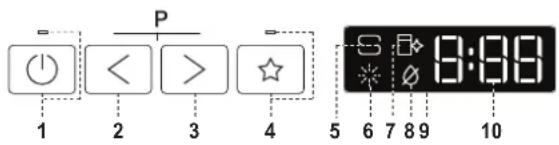

CONTROL PANEL

1. ON-OFF/Reset button with indicator light
2. PREVIOUS program button
3. NEXT program button
4. FAVOURITE program button with indicator light
5. Salt reservoir empty indicator light
6. Rinse Aid reservoir empty indicator light
7. DESCALE indicator light
8. Closed Water Tap indicator light
9. Display
10. Program number and remaining time indicator
11. 3D Zone Wash option button with indicator light

P 1 2 3 4 5 6 7 8 9 10 S 9:89

3D 11 3 sec. 12 13 h↓ 14 15

1. Half Load option button with indicator light/ Settings - 3 sec. press
2. Extra Dry option button with indicator light
3. Delay option button with indicator light
4. START/Pause button with indicator light

FIRST TIME USE

More information in the Daily Reference Guide on website.

SETTING MENU

1. Switch on the appliance by pressing the ON-OFF button.
2. Hold the Settings ⚙ (Half Load Ⓐ ^1 / _2 ) button for 3 seconds, until you hear a beep and the display shows „SEt“.
3. After one second the first available setting (letter „ ^1 ) will be displayed.
4. Press PREVIOUS to scroll through the list of available settings (see table below), then press START/Pause ▷ to view and change the value of the currently selected setting.
5. Press PREVIOUS to change the value, then press START/Pause ▷to save the new value or return to the main menu.
6. To change another setting, repeat points 4 and 5.
7. Press ON-OFF (or wait 30 seconds to exit the menu.

LETTER	SETTING	VALUES(Default - in bold)*
	Cycle Counter - number of washing cycles carried out by the dishwasher.	Eg. 25 cycles: 25; Eg. 13.947 cycles: 13_947 (scrolling for 3 times)
	Water Hardness Level (see “SETTING THE WATER HARDNESS” and “WATER HARDNESS TABLE”)	1 | 2 | 3 | 4 | 5
	Rinse Aid Level(see “ADJUSTING THE DOSAGE OF RINSE AID”)	0 | 1 | 2 | 3 | 4 | 5
	ActiveDry (see “OPTIONS AND FUNCTIONS”)“1” = On, “0” = Off	1 | 0
	Light on the floor (see “OPTIONS AND FUNCTIONS”)“1” = On, “0” = Off	1 | 0
	Sound“1” = On, “0” = Off	1 | 0
	Factory Settings - press START/Pause to re-store to the factory default all the values of the settings included in the settings menu.	-

*) The default value does not apply to the Cycle Counter.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components. The salt reservoir is located in the lower part of the dishwasher (under the lower rack on the left side).

- It is mandatory that the salt reservoir never be empty. - It is important to set the water hardness.

• Salt must be filled when the SALT REFILL indicator light on the control panel is lit.
• Remove the lower rack and unscrew the reservoir cap (anticlockwise).
• Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 0,5 kg); it is not unusual for a little water to leak out.
• Only the first time you do this: fill the salt reservoir with water.
• Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Run a program every time as soon as you completed refilling the salt reservoir to avoid corrosion.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on the heater, contributing also to better cleaning efficiency. This system regenerates itself with salt, therefore it is required to refill the salt container when empty.

The frequency of regeneration depends on the water hardness level setting - regeneration takes place once per 4-6 Eco cycles with the water hardness level set to 3. The regeneration process occurs at the beginning of the cycle with additional fresh water.

- Single regeneration consumes 3 L of water;

• Takes up to 5 additional minutes for the cycle;
- Consumes below 0.005 kWh of energy.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max. 110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it. NEVER pour the rinse aid directly into the appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D, there are indications to help the detergent dosing.

2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program	Programs description		Drying phase	ActiveDry	Available options*)	Duration of wash program (h:min)†	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
P1 ECO	Eco 50°- Program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.		✓	✓	3D 12 +	4:00 9.9	0.66
P2	Auto Intensive 65° - Automatic program for heavily soiled dishes and pans.	Senses the level of soil-ing on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.	✓	✓	3D 12 +	2:25-3:10	17.0-25.0 1.30-1.70
P3 [X7ST]	Auto Mixed 55° - Automatic program for nor-mally soiled dishes with dried food residues.		✓	✓	3D\( 12 +		1:20-3:20 7.5-20.5 0.75-1	20
P4 [TXBW]	Auto Fast Wash 50° - Automatic program for normally and lightly soiled dishes. The every-day cycle that ensures optimal cleaning and drying performance in a shorter time.		✓	✓	3D\( 12 +
P5 [23XD]	Rapid 45° - Program is recommended for limited amount of lightly-soiled dishes with no dried food residues. Does not include the drying phase.		-	✓	\( 12 + ( 12 + )	0:30-0:40	10.5-15.0 0.55-0.65
P6 [6CAO]	Delicates 45° - Program for delicate items, which are more sensitive to high temperatures, for example, glasses and cups.		✓	✓	\( 12 +		1:40-1:50	12.5-17.0 0.95-1.20
P7	Good Night 55° - Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.		✓	✓	\( 12 +		3:50-4:10	10.5-14.5 0.80-1.15
P8	Sanitizing 65° - Normally or heavily soiled crockery, with additional anti-bacterial wash. Can be used to perform maintenance of the dishwasher.		✓	-	3D\( 12 +		1.55-2:10	12.0-19.0 1.40-1.80
P9 [SZDA]	Soak - Used to refresh crockery planned to be washed later. No deter-gent is to be used with this program.		-	✓	\( 12 h^	0:12 4.5	0.10
P10 [YAWO]	Self Clean 65° - Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.		-	-	^	1:15	12.7	1.10

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories:
For information on comparative EN testing conditions, please send an email to the following address: [e-mail]
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration by up to 20 min.

OPTIONS AND FUNCTIONS

Please scan the QR code on your product in order to have more detailed information.

OPTIONS can be selected/ deselected, after choosing the program, directly by pressing the corresponding button (if available - the indicator lights up) (see CONTROL PANEL). If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled. An option can change time or water or energy consumption for the program.

3D ZONEWASH - Thanks to the additional power jets this option provides up to 80% more water power, a more intensive and powerful wash in the lower rack, in the specific bottom area. This option is recommended for washing pots and casseroles (please refer to the 3D loading section).

^1/2 HALF LOAD - If there are not many dishes to be washed, HALF LOAD is used to save water, electricity or time, depending on the selected program. Remember to halve the amount of detergent.

+ EXTRA DRY - The higher temperature during the final rinse and the extended drying phase allow improved drying. The EXTRA DRY option results in the lengthening of the wash cycle.

DELAY - The start of the program may be delayed for a period of time between 0:30 and 24 hours.

The DELAY function cannot be set once a program has been started.

SENSING - When the sensor is detecting the soil level an animation appears in the display (around 20 min.) and the cycle duration is updated. SENSING is for the level of soiling on the dishes and is present for all cycles (excepting Eco) adjusting the program accordingly.

LIGHT ON THE FLOOR - A LED light projected on the floor indicates that the dishwasher is working. The light goes off at the end of a cycle. This feature is active by default, but it is possible to deactivate it in the "SETTINGS MENU" ..

ActiveDry - It is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture. As additional steam protection, special designed protection foil is added together with the dishwasher.

WATER TAP CLOSED – Alarm - Flashes when there is no inlet water or water tap is closed.

☐ DESCALE – Alarm - Limescale accumulation was detected on the internal components of the appliance. Check if the Water Hardness Setting is at the correct value and salt is present in the salt container (see FIRST TIME USE), then use a descaling product (WPro brand is recommended) with Self-Clean program. After a successful descaling, the icon will stop being displayed.

If the actions above are not performed, product performance will deteriorate. DESCALE warning will start blinking and «dES» alarm will appear on the display. If still no action is taken, the appliance will only allow a certain number of cycles to be started (indicated during «dES» alarm display) and then will be BLOCKED to prevent component damage, with only the Self-Clean program available. Performing a full descaling will unblock the product. In the case of extremely high amounts of limescale, descaling may have to be performed twice to be efficient.

CYCLE COUNTER - This feature shows the number of cycles the dishwasher has performed.

For the number of cycles from 0-999, a fixed number will be displayed.

Example for 25 cycles.

When the cycle number is higher than 1000, the number will scroll in the display. The “_” represents the :”, as for instance: 1.000 = 1_000, 13.947 = 13_947 (the number will scroll for 3 times).

Example for 13.947 cycles:

After the cycle visualization, the display will return to visualize „n ^2 ”. NOTE: The dishwasher may have already performed about 30 cycles. This is due to the extended quality process carried out during production. It guarantees higher product quality.

FAVOURITE PROGRAM - The FAVOURITE program may be saved and will be easily accessible. Find the program using PREVIOUS/NEXT, and then press the FAVOURITE program button for 3 seconds.

LOADING THE RACKS

CAPACITY: 16 standard place-settings

CUTLERY RACK

The third rack was designed to house the cutlery. Arrange the cutlery as shown in the figure.

A separate arrangement of the cutlery makes collection easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

Architectural floor plan showing room layouts and structural elements (no text or labels)

UPPER RACK

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

The upper rack has tip-up supports which can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

(loading example for the upper rack)

Pure architectural floor plan lines without any text, numbers, or symbols

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: a high position to place bulky crockery in the lower basket and a low position to make the most of the tip-up supports by creating more space upwards and avoiding collision with the items loaded into the lower rack.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be folded or unfolded to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

(loading example for the lower rack)

Technical line drawing of a mechanical component with internal components and motion arrows (no text or symbols)

3D ZONE WASH

3D Zone Wash uses additional water jets located both: in the lower and upper part of the dishwasher (marked with orange colour) to wash more intensively heavily soiled items by increasing water coverage on dishes.

Example: Load pots and casseroles facing the lower part of 3D Zone Wash components and activate the 3D Zone Wash option on the panel.

Mechanical assembly diagram showing a linkage mechanism with four wheels and a base plate (no text or symbols)

CARE AND MAINTENANCE

More information in the Daily Reference Guide on website.

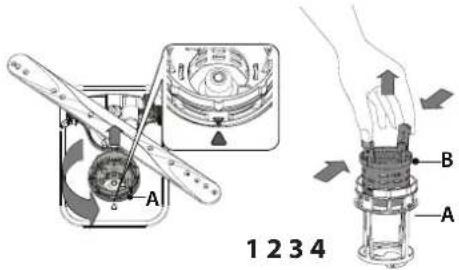

CLEANING THE FILTER ASSEMBLY

A 1 2 3 4 B A

Technical line drawing of mechanical components with no visible text or symbols

The dishwasher must not be used without filters or if the filter is loose.

It is important when reinstalling the filter that the two triangles shown on the zoom meet (Fig 1). In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.

Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (shown by an arrow) (Fig 4).

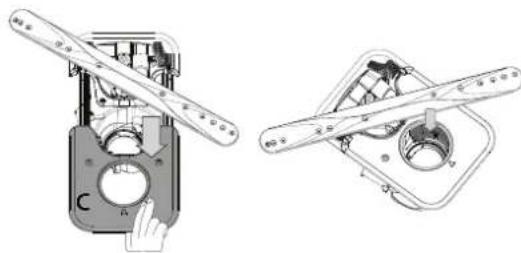

CLEANING THE SPRAY ARMS

Technical line drawing of a mechanical assembly with no visible text or symbols

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

To remove the upper spray you must remove it together with the manifold.

Technical diagram of a mechanical assembly with rotating blades and housing (no text or symbols)

The lower spray arm may be removed by pulling it upwards and rotating it anti-clockwise. Mounting back the spray arm is by pulling it down and rotating it clockwise.

TROUBLESHOOTING

Please scan the QR code on your product in order to have more detailed information.

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service whose contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
☐ Descal indicator is lit or blinking;"dES" alarm is displayed.	Limescale is accumulating on internal components of the appliance.	Descal the appliance immediately using the Self Clean program and a commercially available descaling product (see OPTIONS AND FUNCTIONS). Refill the reservoir with salt. Check the water hardness setting. If the appliance is not descaled, it will stop functioning.
The dishwasher won't drain. Display shows: F7 E3 or F9 E1	The filter is clogged with food residues or limescale	Clean the filter and descale the appliance (see CLEANING THE FILTER ASSEMBLY and DESCALE INSTRUCTION).
	The drain hose is kinked. Check the drain hose	(see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	drain pipe.
The dishwasher does not fill the water. The display shows: H2O and is lit; acoustic alarm sounds.	No water in the water supply or the tap is closed.	Make sure there is water in the water supply and the water tap is open.
	The water inlet hose is kinked.	Check the inlet hose (see INSTALLATION). Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The screen in the water inlet hose is clogged; it is necessary to clean it.	Check and clean the screen in the water inlet hose. Open dishwasher door, press START/Pause button and close the door within 4 seconds.
The dishwasher finishes the cycle prematurely. The display shows: F8 E3	The filter is clogged with food residues or limescale.	Clean the filter and descale the appliance (see CLEANING THE FILTER ASSEMBLY and DESCALE INSTRUCTION).
	Drain hose positioned too low or siphoning into the home sewage system.	Check if the end of the drain hose is placed at the correct height (see INSTALLATION). Check for siphoning into the home sewage system, and install a siphon breaker/air admittance valve if necessary.
	An excessive amount of foam is present.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	Air in the water supply. Check water supply for leaks or other issues letting air inside.
The dishes are not dried well.	Rinse aid is not present or the dosage is too low.	Make sure the rinse aid dispenser is filled (see FILLING THE RINSE AID DISPENSER). Multifunctional tablets only will not provide as good drying effects as the actual use of liquid rinse aid.
	The dishes have been unloaded after the door was opened automatically but before the actual cycle end.	Make sure the cycle has ended before starting to unload the dishes (see DAILY USE). For even better drying results, it is recommended to let the dishes sit inside the dishwasher with the door open for additional 15 minutes after the cycle ends.
	The dishes are sitting too flat.	If you notice puddles of water inside cavities of cups, mugs or bowls, try loading the dishes (especially in the upper rack) providing more inclination to let larger amounts of water drip down before drying starts.
	The selected cycle does not have the drying phase.	Please check in the PROGRAMS TABLE if the selected program is equipped in the drying phase. A cycle without the drying phase may not deliver desired drying efficiency, so it is recommended to change cycle selection for the one that has the drying phase.
	The dishes are made of non-stick or plastic.	Some water drops remaining on this type of material are normal.
Dishes and glasses are covered with limescale or a whitish film.	The salt reservoir is empty.	Refill the reservoir with salt as soon as possible. Using the appliance without salt may cause damage to its internal components.
	The water hardness setting is too low.	Increase the setting (see WATER HARDNESS TABLE).
	The cap of the salt reservoir is not properly closed.	Check and close the salt reservoir cap.
	The rinse aid reservoir is empty or the rinse aid dosage is insufficient.	Refill the dispenser with rinse aid and check the dosage setting (for more information - see FILLING THE RINSE AID DISPENSER).
The dishwasher shows F8 E5	Valve is blocked or faulty. Close the water tap, if possible. Do not switch off the power supply. Call the service.
Detergent leaks.	Depends on the liquid detergent used and can be emphasized in case of delay option is activated.	Small leaks will not cause machine malfunction and can be avoided by changing liquid detergent type or using tablets.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.

• Visiting our website docs.hotpoint.eu and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet).

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

Wegel model 1000mm Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel Control panel

MERCI D'AVOIR CHOISI UN PRODUIT HOTPOINT ARISTON.

3D 11 12 13 14 15 3 sec.

Diagram of a cleaning machine with labeled parts and hand icons for cleaning or inspection

OPTIONS ET FONCTIONS

Architectural floor plan showing room layouts and structural elements (no text or labels)

PANIER SUPÉRIEUR

Top-down schematic diagram of a multi-level industrial or facility layout with circular components and structural elements (no text or labels)

AJUSTER LA HAUTEUR DU PANIER SUPÉRIEUR

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

NETTOYAGE ET ENTRETIEN

Mechanical assembly diagram showing a rotating component with a handle and shaft (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and structural framework (no text or symbols)

Mechanical assembly diagram showing a rotating fan and rotating shaft components (no text or symbols)

3D 11 12 13 14 15 3 sec.

Programma

Descrizione dei programmi

Fase di asciugatura

ActiveDry

Opzioni disponibili *)

Durata pro-gramma di lavaggio (h:min)**

Consumo d'acqua (litri/ciclo)

Consumo energeti-con (kWh/ciclo)

P1

ECO

Eco 50° - Il programma è indicato per le stoviglie mediamente sporche; è il programma più efficiente in termini di consumo combinato di acqua ed energia per questo tipo di stoviglie e viene usato per valutare la conformità dell'apparecchio alla legislazione UE in materia di progettazione ecocompatibile.

√

√

3D 12 +

4:00 9,9

0,66

P2

[X035]

Auto Intensivo 65° - Il programma automatico per piatti e pentole molto sporchi.

Rileva il livello di spor-co delle stoviglie e se-leziona il programma adeguato. Durante il rilevamento del livello di sporco, sul display compare un'animazio-ne e la durata del ciclo viene aggiornata.

√

√

3D\( 12 +

2:25-3:10

17,0-25,0

1,30-1,70

P3

[08A7]

Auto Misti 55° - Il programma automatico per piat-ti normalmente sporchi e con residui secchi di cibo.

√

√

3D\( 12 +

5-20,5

0,75-1,20

P4

[00C4]

Auto Lavaggio Rapido 50° - Il programma auto-matico per piatti normalmente e leggermente spor-chi. Ciclo quotidiano; permette di ottenere risultati di lavaggio e asciugatura ottimali in un tempo in-feriore.

√

√

3D\( 12 + ( |c:c:c:c 1 & 0 & 0 & 1 & 0 \ 0 & 0 & 1 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 \ 0 & 0 & )

P5

Rapido 45° - Il programma è consigliato per una quantità limitata di piatti poco sporchi e senza residui secchi di cibo. Non include la fase di asciugatura.

-

√

\( 12 + , ( |c:c:c:c 1 & 0 & 5 & 1 & 5 & 0 & 0 & 5 \ 0 & 0 & 5 & 1 & 5 & 0 & 0 & 5 \ 0 & 0 & 5 & 1 & 5 & 0 & 0 & 5 \ 0 & 0 & 5 & 1 & 5 & 0 & 0 & 5 \ 0 & 0 & 5 & 1 & 5 & 0 & 0 & 5 \ 0 & 0 \ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \ 0 & 0 & 0 & 0 & 0 & 0 & 0 & )

P6

Delicati 45° - Il programma adatto a oggetti delicati, più sensibili alle tem-perature elevate, ad esempio bicchieri e tazze.

√

√

\( 12 + , (1)

1:40-1:50

12,5-17,0

0,95-1,20

P7

Buona Notte 55° - Adatto al funzionamento nelle ore notturne. Permet-te di ottenere risultati di lavaggio e asciugatura ottimali con una minima emissione sonora.

√

√

\( + - - - - - - - - - - - - - - - - - Circles to the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of that is the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of the number of they are able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be abate to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able for the use of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source and the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of they are able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be abate to because of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the sourceof the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of the source of it is able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to beible to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be ableto be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able tobe able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to beable to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able-to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to been able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be allowed to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able too well as a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good wayfor a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way or a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way of a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way for a good way.

P8

[0660]

Antibatterico 65° - Sporco normale e molto sporco, con azione antibatterica supplementare. Ciclo utilizzabile per la manutenzione della lavastoviglie.

√

-

\( + - - - - - - - - - - - - - - - |

1:55-2:10

12,0-19,0

1,40-1,80

P9

[2A48]

Ammollo - Da utilizzare per sciacquare le stoviglie da lavare successiva-mente. Questo programma non richiede detersivo.

-

√

+ - - - - - - - - - - - - - - |

0:12 4,5

0,10

P10

[CBT3]

Autopulente 65° - Il programma da utilizzare per la manutenzione della lavastoviglie; deve essere eseguito solo con l'apparecchio VUOTO e usando un detersivo specifico per la manutenzione della lavastoviglie.

-

-

- - - - - - - - - - - - - - - - |

1:15

12,7

1,10

Architectural floor plan showing room layouts and structural elements (no text or labels)

CESTELLO SUPERIORE

Cross-sectional diagram of a mechanical or architectural component with layered structures and no visible text or symbols

Technical line drawing of a mechanical assembly or housing with layered components (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

CURA E MANUTENZIONE

Mechanical device diagram showing a hand operating a circular component with a curved blade (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing detail (no text or symbols)

Mechanical assembly diagram showing a rotating tool interacting with a base component (no text or symbols visible)

3D 11 12 13 14 15 3 sec.

Diagram showing labeled components of a refrigerator with parts A and B, likely illustrating a door or appliance assembly.

Architectural or engineering diagram showing grid-like structural elements with no visible text or symbols

ABAS DOBRÁVEIS COM POSIÇÃO AJUSTÁVEL

Diagram of a mechanical or architectural component with layered structures and no visible text or symbols

CESTO INFERIOR

Technical line drawing of a mechanical assembly or housing with no visible text or symbols

AJUSTAR A ALTURA DO CESTO SUPERIOR

Mechanical assembly diagram showing a linkage mechanism with three circular components (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a circular component and a pointer (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset (no text or symbols)

Technical diagram of a mechanical assembly with three blades and a central rotating component (no text or symbols)

Wangfa Model 10000m Control Panel Wangfa 10000m Control Panel Wangfa 5 Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel

400020023432

04/2025 dk - Xerox Fabriano
