USER MANUAL SS-7235 Sogo

Black SOUG waffle grill with open lid and control panel (no visible text or symbols)

GOFRERA WAFFLE MAKER GAUFRIER MÁQUINA DE WAFFLES WAFFELEISEN MACCHINA PER CIALDE

Caution: please read and preserve these important instructions

IMPORTANTE:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.com
- Keep these instructions for future reference.

IMPORTANT SAFEGUARDS

Signal Word Definitions

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. Usage of this signal word is limited to the most extreme situations.

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property damage. It also alerts against unsafe practices.

READ ALL INSTRUCTIONS BEFORE USE.

WARNING: To reduce the risk of fire, electric shock, or serious personal injury:

SAFETY INSTRUCTIONS FOR THE USER

- This product is intended for indoor, non-industrial, non-commercial; household use only household waffle maker. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Do not use or store the appliance outdoors.

- The temperature of the accessible surfaces may be very high when the appliance is in use. Make sure not to touch these hot parts of the appliance.

- Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- Do not place or operate this appliance near water sources.

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g.,

stove plates) or open flames.

- Operate the waffle maker on a heat resistant work surface. Do not position it beneath a curtain or wall

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard

- In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

- In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- Make sure your hands are dry before plug or unplugging.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Never use accessories that are not recommended by the manufacturer.

- Do not touch the top and bottom housing of the device. These can become very hot during operation. Use the handle instead.

- Do not cover the appliance with anything.

- The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

- Do not position the device beneath a curtain, wall cabinets or combustible materials.

- The kitchen surface can get hot while operating the device.

- Place the device on a stable and level surface.

- This device does have a knob which keeping on "0" position works as off mode. The device starts heating as soon as we move the knob to the position min., but still it is suggested take out the plug to switch off the appliance.

- Always preheat the cooking plate before starting to cook. 0.30 sec - 1 minute is sufficient.

- Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the

appliance is covered or incorrectly positioned there is a danger of fire.

- In order to prevent the non-stick cooking plates from being damaged, do not use sharp or pointed objects while removing waffle.

SPECIAL INSTRUCTIONS

- To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

- A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

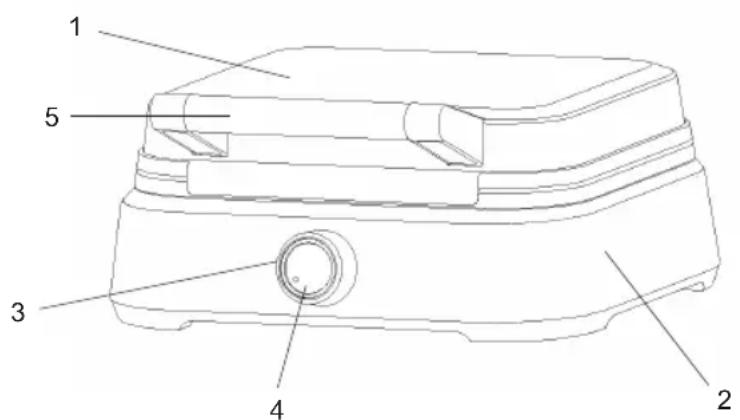

UNIT PARTS

1. Upper Housing
2. Bottom Housing
3. Indicator Light
4. Temperature button
5. Stainless steel Cool touch handle

1 5 3 4 2

1. PRECAUTION BEFORE FIRST USE:

• 1.1 When using for the first time, wipe the non-stick cooking surfaces with a damp cloth and dry. Do not use abrasive cleaners, as this will damage the cooking surfaces. The exterior may be wiped with a clean, damp cloth. Do not immerse the unit, cord or plug-in water or other liquid.
• 1.2 Before heating your Waffle Maker, the cooling surfaces may be sprayed or brushed with a small amount of non-stick spray or cooking oil. To protect the premium quality non-stick surface of your Waffle Maker, be sure to use only plastic, nylon or wooden utensils. The first time you use your Waffle Maker, a small amount of smoking may occur. This is quite normal for new appliances and the smoke will burn off safely within a few seconds.

2. OPERATIONAL PROCESS:

This appliance has led indicator ring with knob as temperature indicator, from “0” position to “min” it always illuminates green but as in off mode, so for switch on we move the knob to “min.” position and light changes in Red and start preheating and in the matter of few seconds turns in Green when the appliance is ready to use.

This Waffle maker is design in such a way to prevent leaks and spills from overflowing batter, that when we close the upper plate to cook the waffle the upper plate cut the waffle in exact size and extra batter remains in narrow canals surrounding the waffle maker plates.

• 2.1 Plug the power cord in the AC outlet and the red lamp is on.
• 2.2 Set the degree to get browning color for the waffle using the temperature control knob.
- 2.3 Before use, please preheat the Waffle Maker until the green lamp is on, it means the temperature has reached the pre-determined temperature (usually it takes 0.30 sec-1 minute)
- 2.4 Once inner plates are preheated open the Waffle Maker; add filling on it; close the Waffle maker slowly, without pressing the handles together.
- 2.5 During the baking process, a thermostat will automatically switch the appliance OFF and ON to regulate the temperature. During this process, the green lamp will alternately turn ON and OFF.
- 2.6 The baking process is about 3-5 minutes; if the waffle is too light, continue baking. Otherwise, open the waffle maker and remove the waffle using a flat wooden or plastic spatula. Never use sharp or metal objects, (e.g., knives, metal spatulas, etc.) this will damage the non-stick surface.
- 2.7 In any case, it is advisable to control the degree of cooking with the thermostat according to your own taste. The quantities and times are given by way of indication only.
• 2.8 To bake more waffles, repeat steps 2.4 to 2.6.
• 2.9 The appliance should remain closed during baking pauses.
- 2.10 After the baking process is completed, let the appliance cool down little bit and then pull out the mains plug.

3. CLEANING INSTRUCTIONS

• 3.1 Disconnect from AC outlet.
• 3.2 Wait until the appliance has cooled down completely before cleaning.
• 3.3 Clean the appliance surface and the baking surfaces of the Waffle Maker with a soft, damp cloth.
• 3.4 Remove baking or food particles by using a soft brush.
- 3.5 If there is any batter stuck on to the plate, we would advise using vegetable oil to soften it and wait for 5 minutes before removing it.
- 3.6 Never use abrasive cleansers or sharp objects (e.g., scrubbing brush, knife, metallic kitchen tools etc.) when cleaning.

CAUTIONS

• DO NOT IMMERSE IN WATER OR ANY LIQUID
- Do not use metal utensils on this product, as they will scratch and damage the non-stick coating plates.

- The Cooking Plates and metal surfaces of the unit will become extremely hot when in use. To avoid a burn hazard, wear heat resistant mitts or gloves and touch only stainless-steel cool touch handle.

TECHNICAL INFORMATION

Voltage / Frequency: 220-240V\~ 50-60 Hz

Power: 1500W

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
