USER MANUAL EMM10 Ecoline

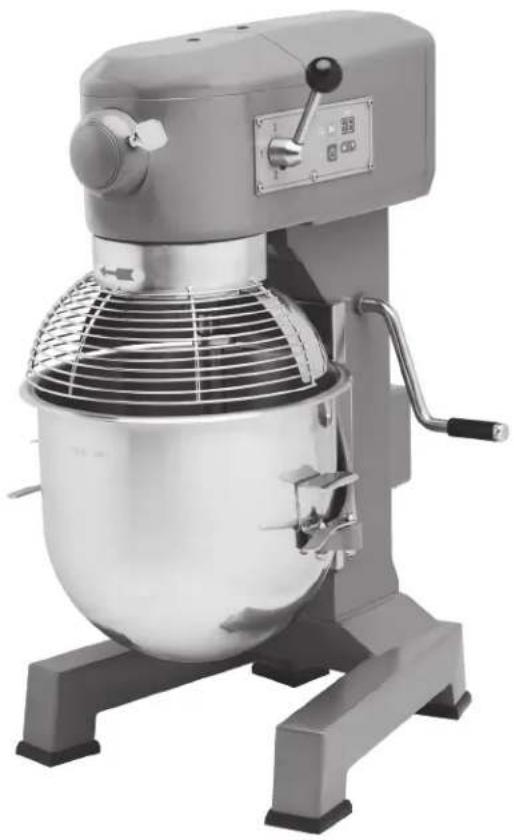

Exterior view of a modern kitchen mixer with control panel and fan (no visible text or symbols)

701 S. RIDGE AVENUE

TROY, OHIO 45373

937-332-3000

www.hobartcorp.com

TABLE OF CONTENTS

GENERAL....3

INSTALLATION 3

Unpacking....3

Location 3

Electrical Connections (Cord Connected Mixers)....4

Check Initial Operation 4

OPERATION 5

STANDARD CONTROLS 6

Model EMM20 (With Three Mix Speeds)....6

Mixer Speeds....6

Button Function Description 6

BOWL PLACEMENT 7

Agitator 7

To Install....7

To Remove....7

Prepare For Mixing 8

Untimed Mixing Mode 8

Timed Mixing Mode 9

Operating Notes 9

Unloading 10

Wire Cage Assembly 10

Agitators and Attachments....11

CLEANING 12

Remove and Clean Bowl 12

MAINTENANCE 13

Lubrication 13

Slideways.... 13

Planetary Seal 13

Adjustments.... 14

Agitator Clearance 14

Measure Clearance 14

Adjust the Bowl/Agitator Clearance 14

TROUBLESHOOTING 15

Service....15

Installation, Operation and Care of Ecoline by Hobart 20-Quart Mixer

SAVE THESE INSTRUCTIONS

GENERAL

The Ecoline by Hobart 20-quart mixer is a bench-type mixer which features three-speeds, a digital timer, a manual bowl lift, and a #12 attachment hub as standard equipment.

A variety of attachments, agitators, and accessories are available. These are described in the Agitators and Attachments section of this manual.

INSTALLATION

UNPACKING

The mixer was inspected before leaving the factory. The carrier assumes full responsibility for safe delivery upon acceptance of the shipment. Check for possible shipping damage immediately after receipt.

If the mixer is found to be damaged, complete the following steps:

1. Carrier must be notified within five business days of receipt.
2. Carrier's local terminal must be notified immediately upon discovery (note the time, date, and who was spoken to), and follow up and confirm with written or electronic communication.
3. All original packing materials must be kept for inspection purposes.
4. The mixer cannot have been moved, installed, or modified.
5. Notify Hobart customer care at [phone].

LOCATION

Prior to installation, test the electrical service to ensure it agrees with the specifications on the mixer data plate.

Place the mixer on a suitable sturdy level surface. There should be adequate space around the mixer for the user to operate the controls and to install and remove bowls.

ELECTRICAL CONNECTIONS (Cord Connected Mixers)

WARNING The electrical cord on this mixer is equipped with a three-pronged grounding plug which must be connected to a properly grounded receptacle. If the receptacle is not the proper grounding type, contact an electrician. DO NOT remove the grounding prong from the plug.
⚠ WARNING Electrical and grounding connections must comply with the applicable portion of the National Electrical Code and/or other local electrical codes.

Check Initial Operation

1. Apply power to the mixer by inserting the cord plug into a properly grounded outlet.
2. Install the bowl on the bowl support and raise into the mix position, with the bowl support up and bowl guard wire cage closed.
3. Turn the speed gear shift lever to 1.
4. Run the mixer by pushing the ON/PAUSE button.

OPERATION

WARNING Moving agitator in bowl. Keep hands, clothing and utensils out of bowl while in operation. Do not use without interlocked guards.

The Ecoline by Hobart mixers are equipped with a timer and controls. Refer to Fig. 1 for operating parts and OPERATION section for their functions.

The bowl guard wire cage must be in closed position or the mixer will not operate.

The bowl must be mounted, and the bowl support must be raised (mix position) or the mixer will not operate.

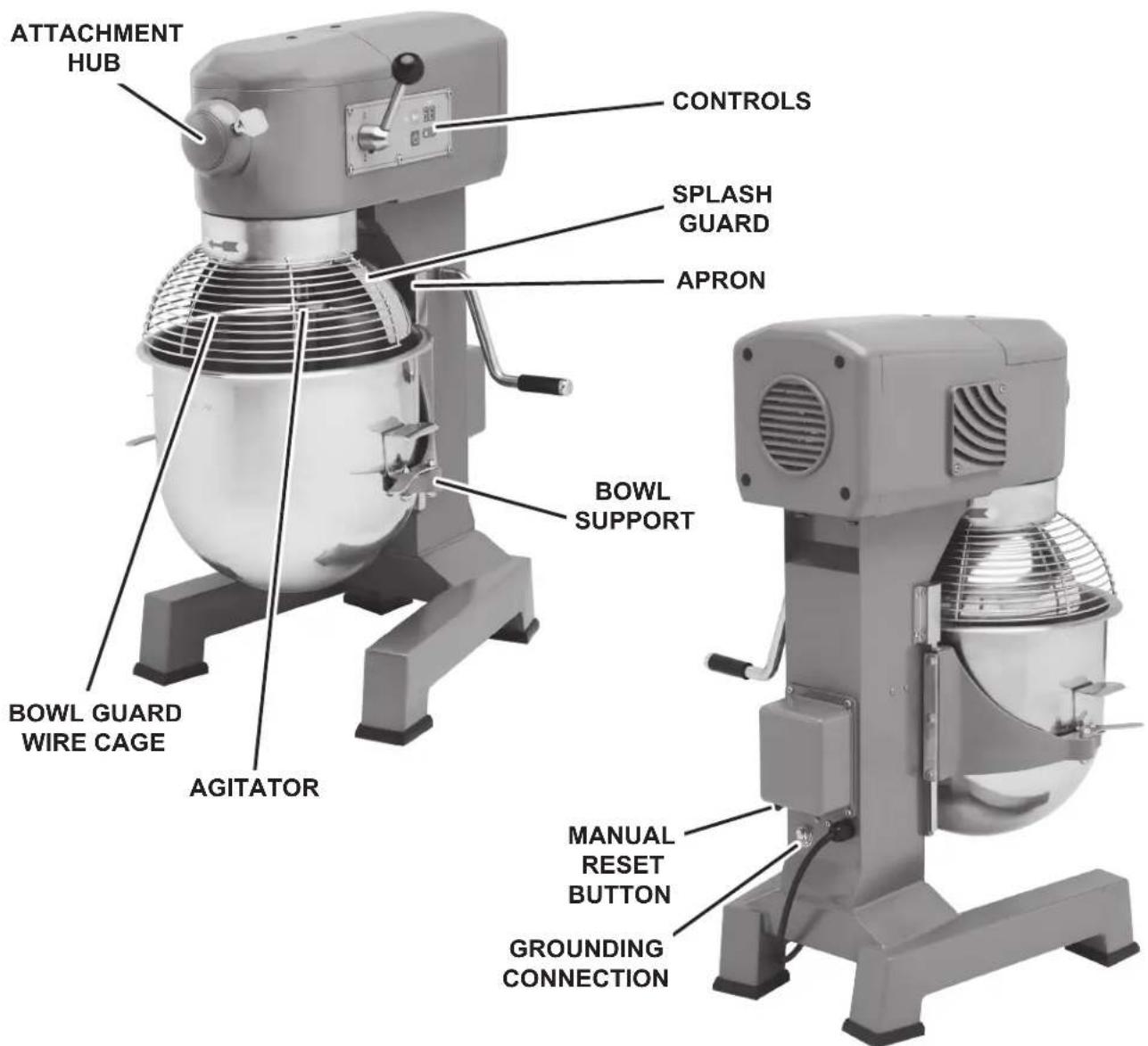

ATTACHMENT HUB CONTROLS SPLASH GUARD APRON BOWL SUPPORT BOWL GUARD WIRE CAGE AGITATOR MANUAL RESET BUTTON GROUNDING CONNECTION

Fig. 1

STANDARD CONTROLS

MODEL EMM20 (WITH THREE MIX SPEEDS)

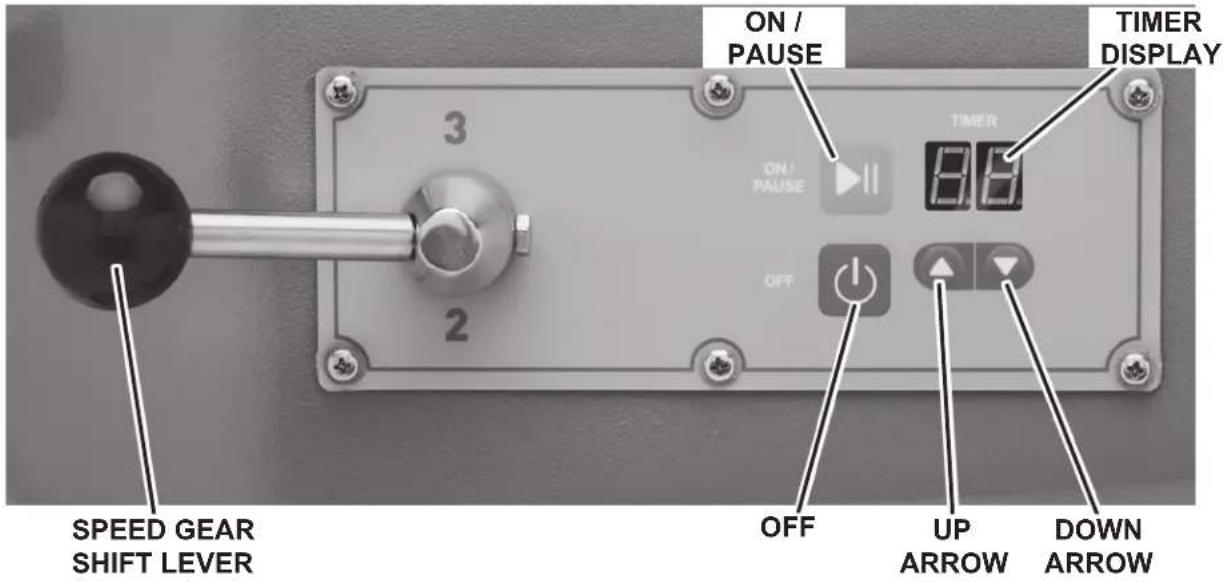

ON / PAUSE TIMER DISPLAY 3 ON / PAUSE 8.8 OFF 2 SPEED GEAR SHIFT LEVER OFF UP ARROW DOWN ARROW

Fig. 2

MIXER SPEEDS

SPEED 1 (Low) This speed is for heavy mixtures such as heavy batters, potatoes, pizza dough, and bread dough.

SPEED 2 (Medium) This speed is for mixing cake batters and mashing potatoes.

SPEED 3 (High) This speed is for incorporating air into light batches, as well as finishing whipped items.

BUTTON FUNCTION DESCRIPTION

NOTE: The mixer will beep once when any button is pressed.

ON/PAUSE

Press the ON/PAUSE button to start the mixer. If the mixer is running, press the ON/PAUSE button to pause the mixer.

OFF Press the OFF button to stop the mixer.

UP ARROW

Press once to increase the time in 1 minute increments. Press and hold to quickly increase time until released. Range is 0-59.

DOWN ARROW

Press once to decrease the time in 1 minute increments. Press and hold to quickly decrease time until released. Range is 0-59.

NOTE: The ON/PAUSE button is used to clear overload error.

BOWL PLACEMENT

The bowl must be installed on the bowl support before the agitator is installed.

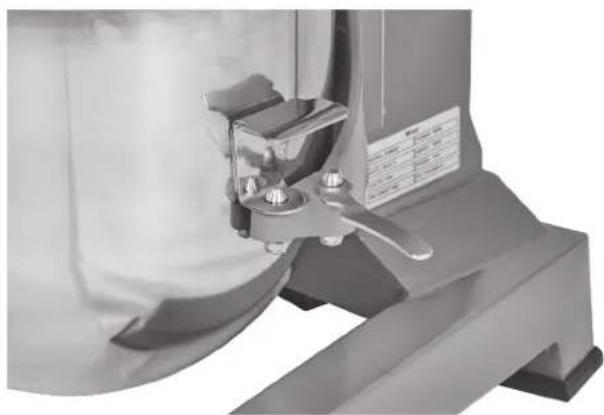

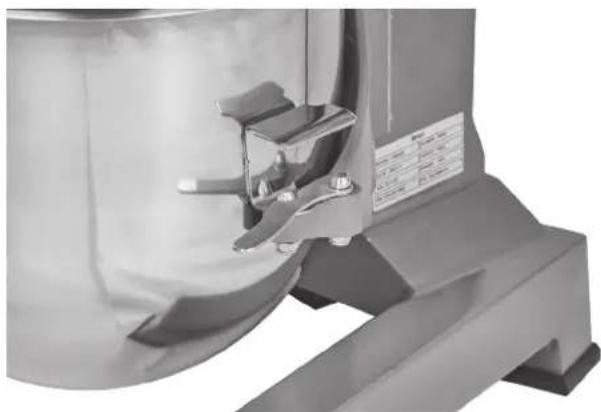

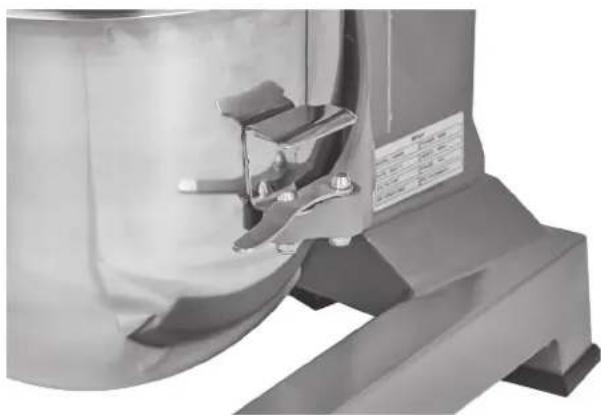

To install the bowl, lower the bowl support and move bowl clamps to the open position (Fig. 3). Position the bowl so the alignment bracket on the back of the bowl is in the bowl retainer and the alignment pins on the front of the bowl support fit in the holes on the sides of the bowl. Lock the bowl in place by rotating the bowl clamps (Fig. 4).

Close-up of a mechanical device with a metallic clamp and label (no readable text or symbols)

Fig. 3 Fig. 4

Close-up of a mechanical device with a metallic component and lever mechanism (no visible text or symbols)

AGITATOR

To install an agitator, the bowl must be on the bowl support.

To Install

1. Lower the bowl.
2. Open the bowl guard wire cage.
3. Place the agitator inside the bowl and align the horizontal slot on the agitator with the agitator shaft pin.
4. Slide the agitator up the agitator shaft and turn it clockwise to seat the shaft pin in the slot of the agitator shank.

To Remove

1. Open the bowl guard wire cage.
2. Lower the bowl.
3. Lift the agitator and turn it counterclockwise. Slide agitator down and off the agitator shaft.

PREPARE FOR MIXING

1. Place the mixing bowl on the bowl support.

2. Pour ingredients into the bowl.

3. Place the agitator inside the bowl, and then attach it to the agitator shaft (Fig. 5).

4. Lift bowl support.

5. Correctly close the bowl guard wire cage.

6. The mixer is now ready for mixing.

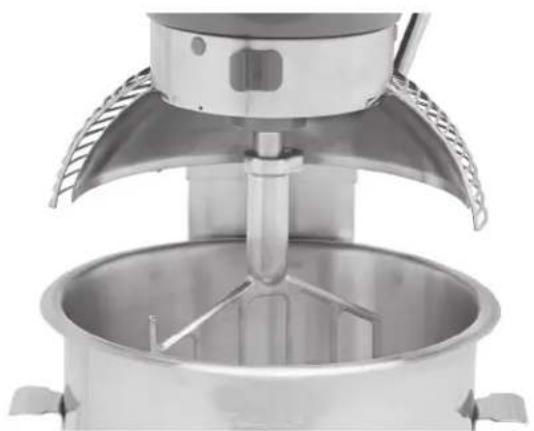

Close-up of a stainless steel kitchen mixer with a central dish and fan (no visible text or symbols)

Fig. 5

UNTIMED MIXING MODE

1. Turn the speed gear shift lever (Fig. 6) to select a mix speed. The timer display reads 00.

2. Press the ON/PAUSE button (Fig. 6) to begin mixing. The timer display reads 00.

NOTE: If the bowl guard wire cage is opened or the bowl is lowered at any time, the mixing operation will stop. To resume the mixing operation, close the wire cage or raise the bowl and press the ON/PAUSE button.

1. Press the ON/PAUSE button to pause the mixer.

2. Press the ON/PAUSE button to resume mixing operation if needed.

3. Press the OFF button (Fig. 6) to stop the mixing operation and the timer will reset, nothing will show on the display.

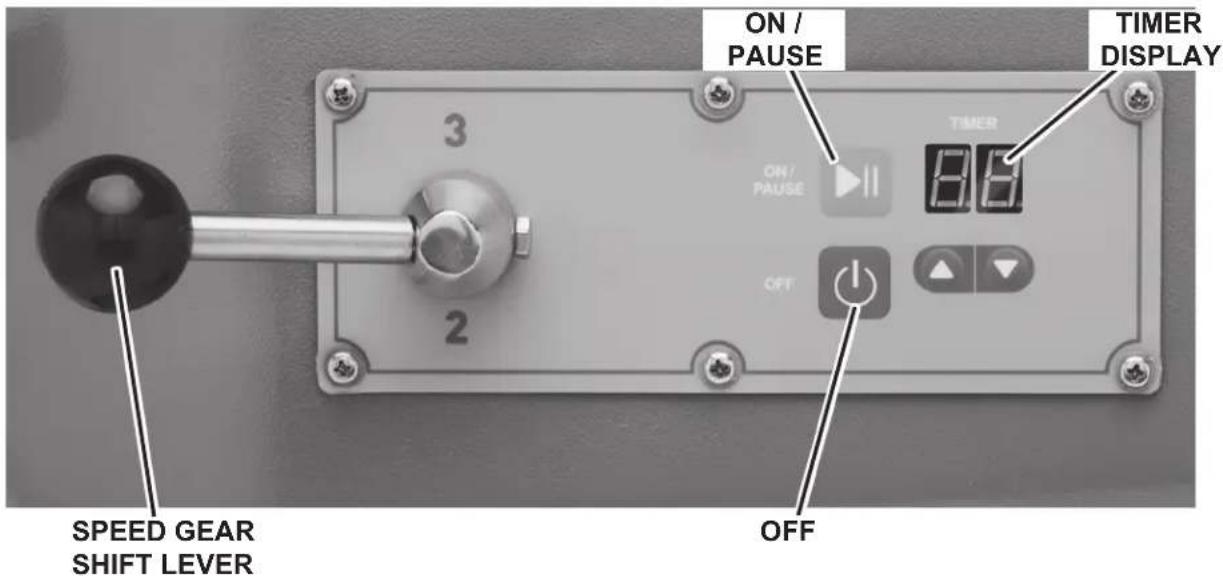

ON / PAUSE TIMER DISPLAY 3 ON / PAUSE 8.8 OFF 2 SPEED GEAR SHIFT LEVER OFF

Fig. 6

TIMED MIXING MODE

1. Turn the speed gear shift lever (Fig. 7) to select a mix speed. The timer display reads 00.
2. Press the UP/DOWN arrows (Fig. 7) until the timer display reads the desired mixing time. This is the set time.
3. Press the ON/PAUSE button (Fig. 7) to begin mixing; the timer starts counting down from the set time.
4. To pause the mixer at any time, press the ON/PAUSE button. To resume mixing, press the ON/PAUSE button. For example: The mixer is started at speed 1 for 3 minutes and is stopped after 10 seconds. Pressing the ON/PAUSE button will resume the mixing operation and the remaining time will count down.

NOTE: If the wire cage is opened or the bowl is lowered at any time, the mixing operation will stop. To resume the mixing operation, close the wire cage or raise the bowl and press the ON/PAUSE button.

1. When the timer reaches 00, the mixer stops and beeps once.

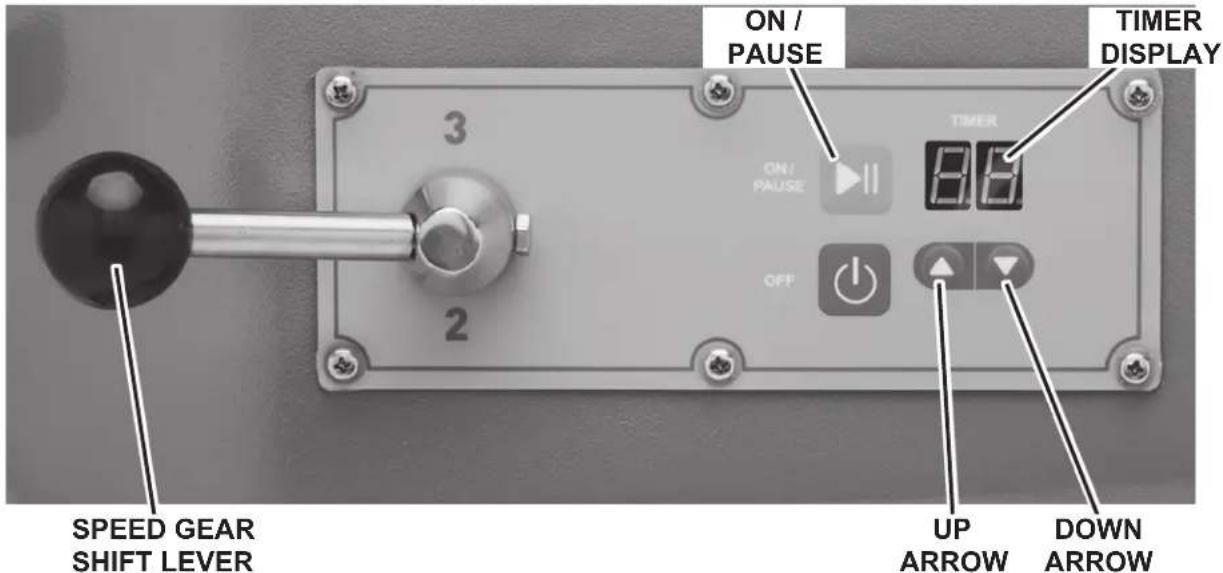

ON / PAUSE TIMER DISPLAY 3 ON / PAUSE 8.8 OFF 2 SPEED GEAR SHIFT LEVER UP ARROW DOWN ARROW

Fig. 7

OPERATING NOTES

- If the mixer is stopped during a mixing operation, the timer also stops. The timer starts again (with the time remaining) when the ON/PAUSE button is pressed.

UNLOADING

1. Open the bowl guard wire cage assembly.
2. Lower bowl support.
3. Remove the agitator from the agitator shaft.
4. Open the bowl clamps.
5. Lift the bowl off the pins and remove from the bowl support.

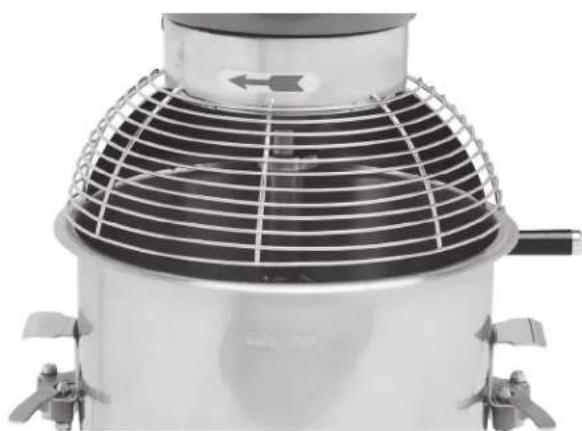

WIRE CAGE ASSEMBLY

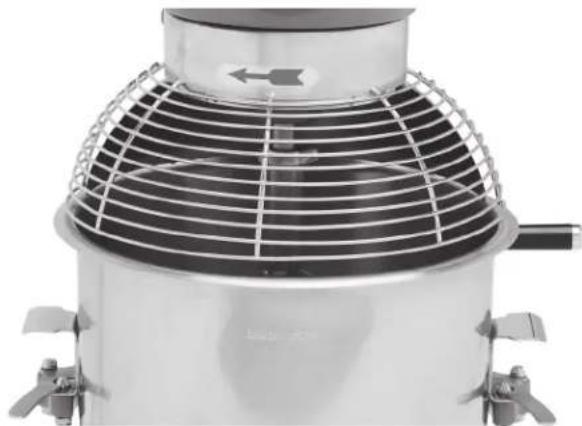

The bowl guard wire cage assembly can be rotated out-of-the-way to the right to add ingredients or to access the bowl and agitator.

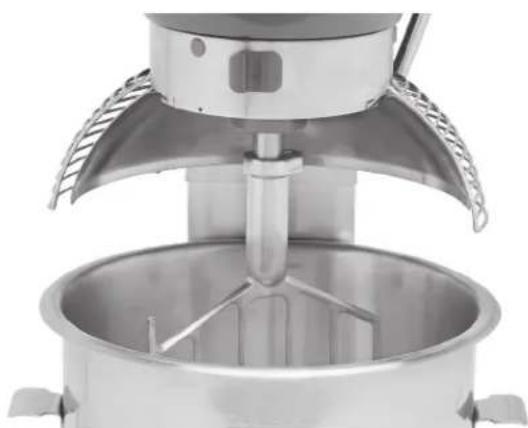

• Open the bowl guard wire cage: rotate it to your right (Fig. 8).
• Close the bowl guard wire cage: rotate it to your left until it stops in the closed position (Fig. 9).

NOTE: The bowl guard wire cage must be returned to the closed position for the mixer to operate.

Close-up of a stainless steel kitchen mixer with a central dish and fan (no visible text or symbols)

Fig. 8

Close-up of a stainless steel industrial fan or boiler with mesh grille and control knobs (no visible text or symbols)

Fig. 9

AGITATORS AND ATTACHMENTS

Metallic kitchen mixer blade with curved blades (no text or symbols visible)

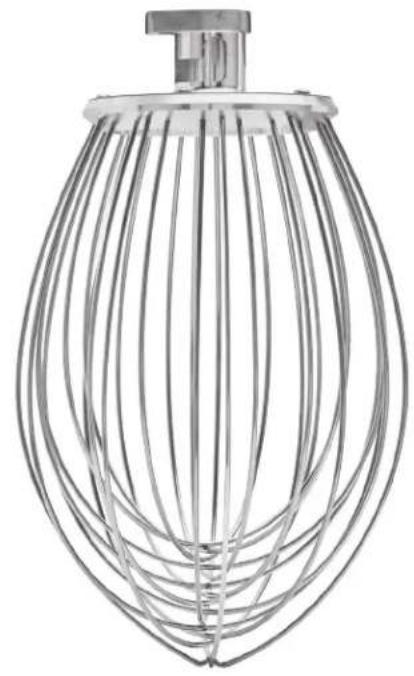

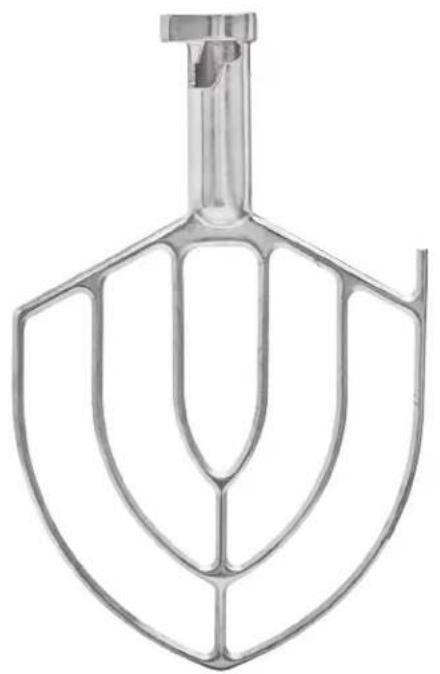

Flat Beater Wire Whip

Metallic wire mesh ball head with no visible text or symbols

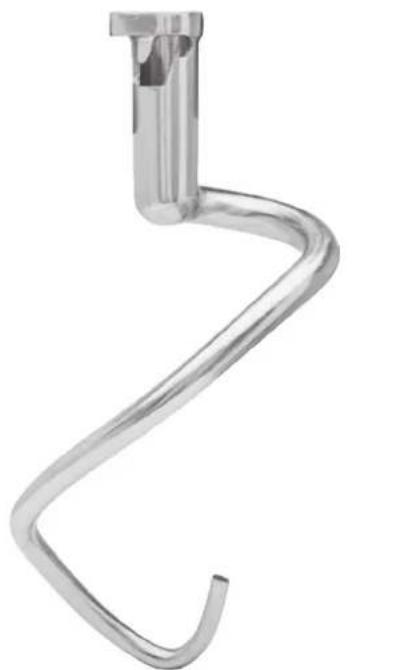

Metal hook-shaped object with a vertical rod inserted into the top (no text or symbols visible)

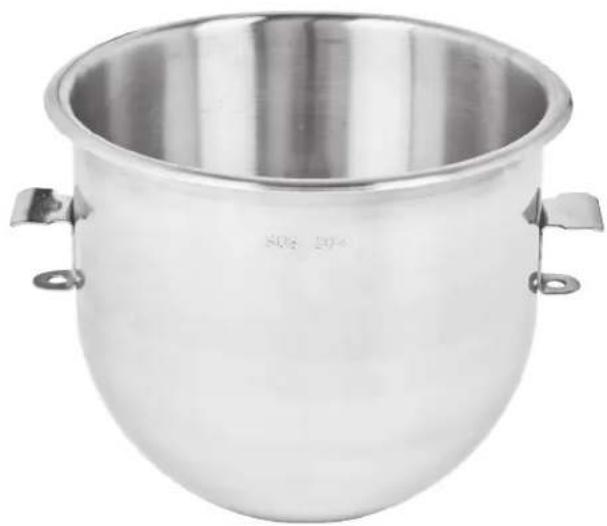

Dough Hook Bowl (SST)

Metallic stainless steel mixing bowl with side handles (no visible text or symbols)

CLEANING

WARNING Unplug mixer power cord before beginning any cleaning procedure.

The mixer should be thoroughly cleaned daily. DO NOT use a hose to clean the mixer; it should be washed with a clean, damp cloth. The base allows ample room for cleaning under the mixer. The apron (Fig. 1) may be removed for cleaning by loosening the screws.

REMOVE AND CLEAN BOWL

Lower the bowl. Rotate the wire cage assembly to the right until it is positioned over the splash guard. Remove the agitator and bowl.

Wash the bowl in a sink, rinse with clear water, and dry with a clean cloth.

The splash guard can be wiped off and/or washed with a cloth or sponge using warm, soapy water. Rinse with clear water and dry with a clean cloth.

The wire cage can be wiped off and/or washed with a cloth or sponge using warm, soapy water. Rinse with clear water and dry with a clean cloth.

MAINTENANCE

WARNING Unplug mixer power cord before beginning any maintenance procedure.

LUBRICATION

APRON SCREWS SLIDEWAYS

Fig. 10

Slideways

The slideways (Fig. 10) should be lubricated approximately twice a year. To reach these areas, fully lower the bowl support and remove the apron (Fig. 10), which is secured by screws. Wipe a thin coat of Lubriplate 630AA on each slideway. Install the apron.

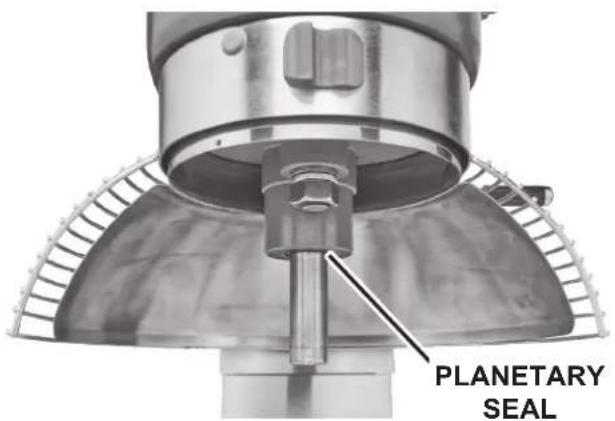

Planetary Seal

Occasionally, the planetary seal (Fig. 11) may become dry and begin to squeak. To correct this, work a little lubrication (mineral oil) under the lip of the seal.

PLANETARY SEAL

Fig. 11

ADJUSTMENTS

Agitator Clearance

The agitator clearance should be checked periodically. The agitator must not touch the bowl. The maximum clearance between the bottom of the bowl and the B flat beater is 1/8" (3mm).

Install a bowl and agitator (e.g., beater). If the bowl and beater come into contact before the bowl support reaches its stop, adjust the stop screw. Refer to Adjust the Bowl/Agitator Clearance.

Measure Clearance

Pour enough flour in the bowl to cover the bottom of the bowl where the beater travels. With the bowl fully raised (beater should not touch the bottom of the bowl), briefly run the mixer at the lowest speed.

Turn off the mixer, disconnect the electrical power supply, and measure the depth of flour where the beater has traced a path. This measurement should be taken at several points around the bowl to assure accuracy.

Adjust the Bowl/Agitator Clearance

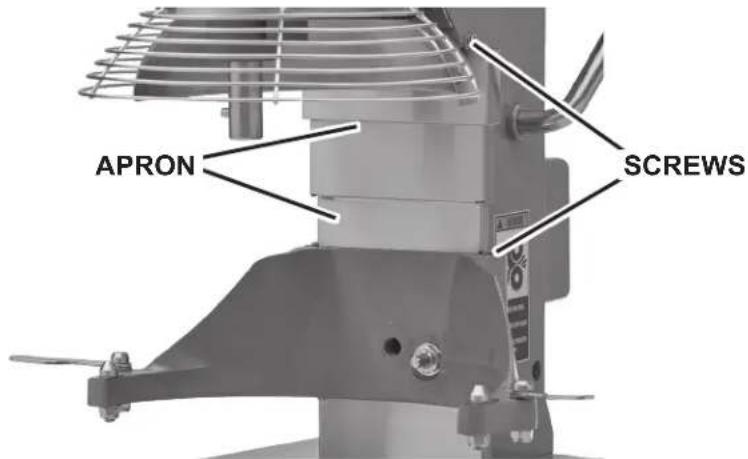

APRON SCREWS

Fig. 12

- Remove the apron (Fig. 12), which is secured by screws.

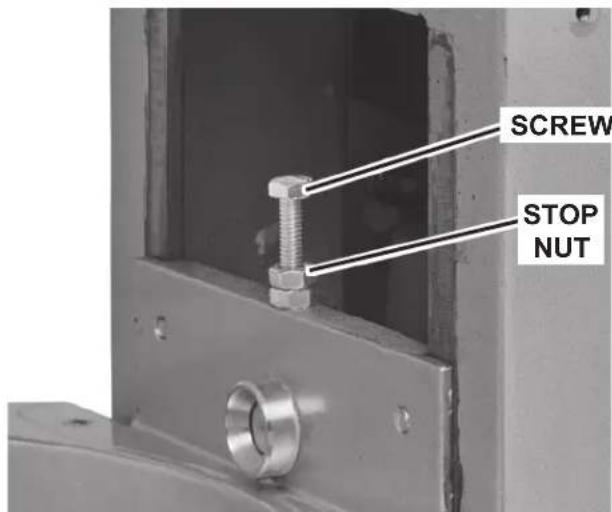

- Adjust the clearance by loosening the stop nut and moving the screw (Fig. 13) clockwise to increase the clearance or counterclockwise to decrease the clearance.

• After the adjustments are made, tighten the stop nut and replace the apron, and secure it with the screws.

- Carefully operate the bowl lift several times to check the adjustment.

SCREW STOP NUT

Fig. 13

TROUBLESHOOTING

Symptoms Possible Causes
Mixer will not start Flashing time display – see below	low.
	Branch circuit protector is in open position - check fuse or disconnect switch.
	Mixer is overloaded.
	Wire cage is not in the closed position.
	Bowl is not in closed (mix) position or bowl is not in up position.
Agitator touches bowl Improper agitator clearance	- see Maintenance for adjustment procedure.
	Agitator is not installed properly.
Planetary seal squeaks Seal requires occasional lu	brication - see Maintenance.
Timer display flashing time and machine is beeping	If the timer display is flashing and machine is beeping, press OFF button to reset. If symptom still exists, contact your local Hobart Service office.

SERVICE

If service is needed on this equipment, contact your local Hobart Service office at (888) 4HOBART.
