USER MANUAL UXD8630SS WHIRLPOOL

30" (76.2 CM) AND 36" (91.4 CM) RETRACTABLE (POP-UP) DOWNDRAFT VENT SYSTEM

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301

or visit our website at www.whirlpool.com

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

SYSTÈME DE VENTILATION RÉTRACTABLE (CLAPET) DE 30" (76,2 CM) ET 36" (91,4 CM)—ASPIRATION PAR LE BAS

Au Canada, pour assistance, installation ou service, composer

Technical line drawing of a mechanical assembly with two components, one rectangular and one rectangular (no text or symbols)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS

VENT SYSTEM SAFETY....2

INSTALLATION REQUIREMENTS......4

Tools and Parts 4

Location Requirements....4

Electrical Requirements 7

Venting Requirements....7

INSTALLATION INSTRUCTIONS......8

Venting Methods....8

Install Vent System....9

Rear Mounting—Blower Motor....11

Complete Installation 12

Make Electrical Connections ....13

Check Operation 14

VENT SYSTEM USE 14

Operating Downdraft Vent 15

VENT SYSTEM CARE....15

Surface of Downdraft Vent....15

Filters 15

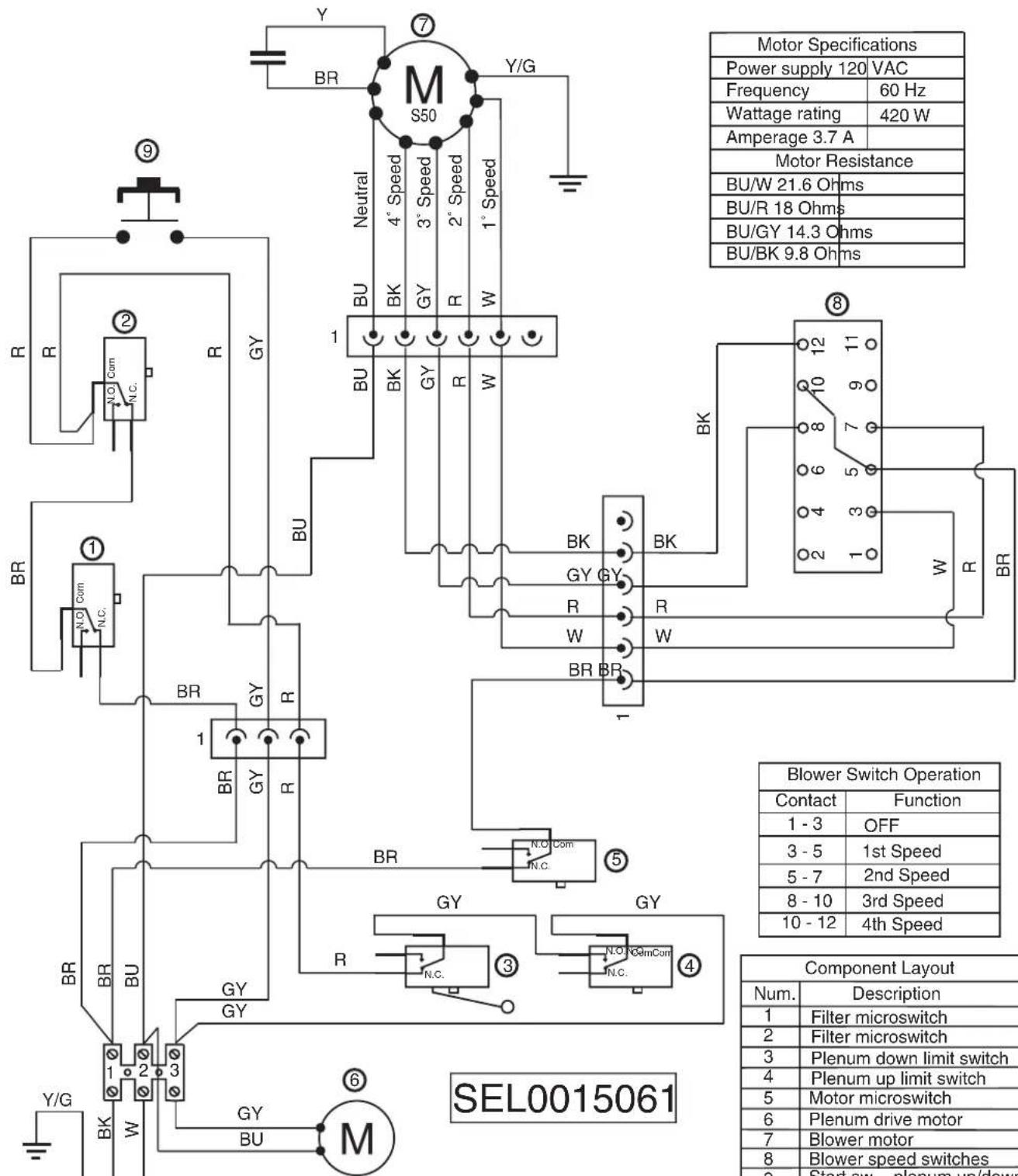

WIRING DIAGRAM 16

ASSISTANCE OR SERVICE....17

In the U.S.A. 17

In Canada 17

Accessories 17

WARRANTY ....18

TABLE DES MATIÈRES

SÉCURITÉ DU SYSTÈME DE VENTILATION....19

EXIGENCES D'INSTALLATION....21

ASSISTANCE OU SERVICE....34

Au Canada....34

Accessoires ....34

GARANTIE....35

VENT SYSTEM SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.
■ Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
  – The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Jigsaw or keyhole saw
Drill
■ 1/8" (3 mm) drill bit for pilot holes
■ Pencil
■ Tape measure or ruler
■ Flat-blade screwdriver
■ Phillips screwdriver
■ 3/8" (9.5 mm) nut driver
Level
■ Pliers
■ Metal snips
■ Wire stripper or utility knife
■ Caulking gun and weatherproof caulking compound

Parts Supplied

■ Top trim—stainless
■ End caps (2)
■ Lower support legs (2)
■ Undercounter mounting brackets (2)
■ 4 x 8 mm screws (16)
■ 3.5 x 9.5 mm screws (3)
■ 3¼" x 10" (8.3 x 25.4 cm) rectangular damper
■ 4 ^3/4 " (12.0 cm) motor box
■ 1/4" (6.4 mm) deep cover
■ Flat vent cover plate

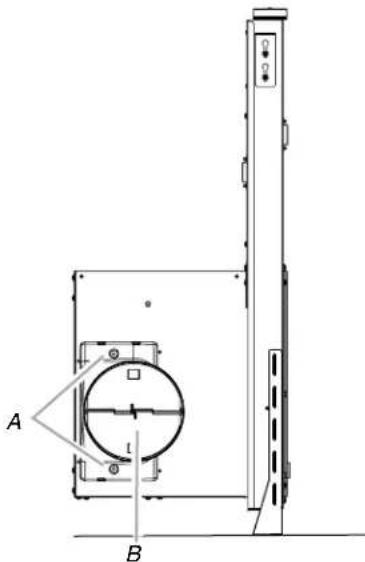

■ 6" (15.2 cm) diameter vent transition with damper

Parts Needed

■ UL listed or CSA approved 1/2" (12.7 mm) conduit connector
■ Wall or roof cap with damper to match vent system
■ Vent system
■ Home power supply cable
■ UL listed wire connectors (3)
■ Vent clamps/duct tape as required

Location Requirements

NOTE: Downdraft vent is installed directly behind the cooktop. Install the downdraft vent first, then install the cooktop.

IMPORTANT: Observe all governing codes and ordinances.

• Have a qualified technician install the downdraft vent. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located on the front of the downdraft vent above the terminal box cover.
  ■ Downdraft vent location should be away from strong draft areas, such as windows, doors, and strong heating vents or fans.
  ■ Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.
  ■ Consult the cooktop manufacturer installation instructions before making any cutouts.

Check that the downdraft vent and cooktop location will clear the cabinet walls, backsplash, and rear wall studs inside the cabinet.

Check for the minimum distance between the front edge of the countertop and the front edge of the cooktop. The minimum horizontal distance between the overhead cabinets is the same as the width of the installed downdraft vent.

■ All openings in ceiling and wall where the downdraft vent will be installed must be sealed.
■ Grounded electrical outlet is required. See “Electrical Requirements” section.
■ When installing the downdraft vent, the cabinet drawer will need to be removed and the drawer front installed permanently to the cabinet.

Cabinet Construction:

Downdraft vent is designed for use in a cabinet with a depth of 24" (61 cm). Some installations require a countertop deeper than 25" (63.5 cm). See the "Countertop Cutout Dimensions Chart."

The maximum depth of the overhead cabinet is 13" (33 cm). Overhead cabinets installed at either side of the downdraft vent must be 18" (45.7 cm) above the cooking surface.

For Mobile Home Installations

The installation of this downdraft vent must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

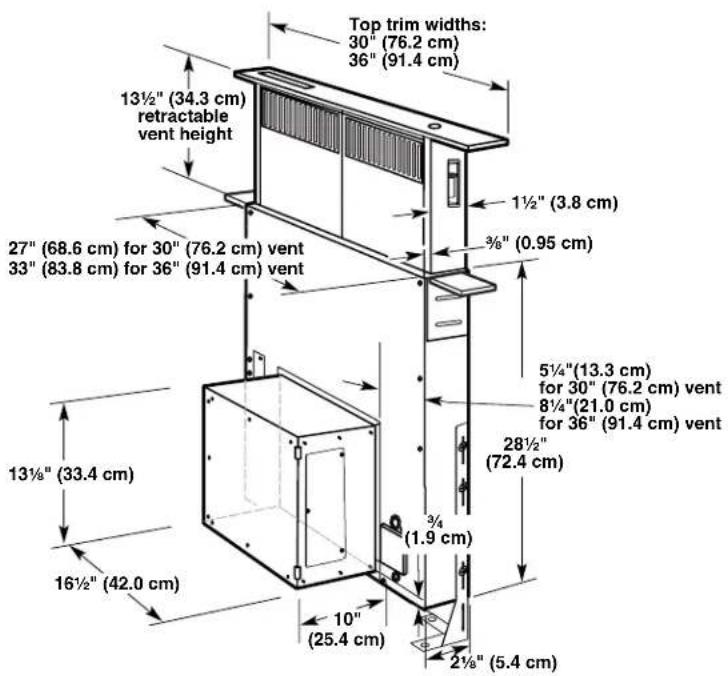

Product Dimensions

Top trim widths: 30" (76.2 cm) 36" (91.4 cm) 13½" (34.3 cm) retractable vent height 27" (68.6 cm) for 30" (76.2 cm) vent 33" (83.8 cm) for 36" (91.4 cm) vent 1½" (3.8 cm) 3½" (0.95 cm) 5¼" (13.3 cm) for 30" (76.2 cm) vent 8¼" (21.0 cm) for 36" (91.4 cm) vent 28½" (72.4 cm) 13½" (33.4 cm) 16½" (42.0 cm) 10" (25.4 cm) 2½" (5.4 cm)

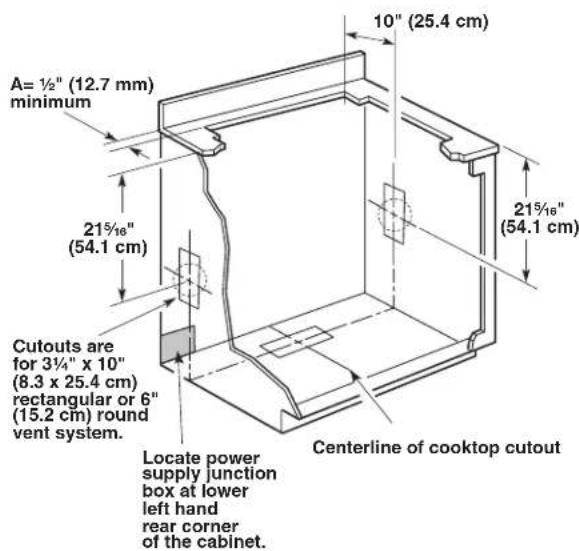

Cabinet Dimensions

A= ½" (12.7 mm) minimum 21½₁₀" (54.1 cm) Cutouts are for 3¼" x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent system. Locate power supply junction box at lower left hand rear corner of the cabinet. 10" (25.4 cm) 21½₁₀" (54.1 cm) Centerline of cooktop cutout

NOTES:

■ See cooktop manufacturer's instructions for cooktop cutout depth and width.
■ Use dimensions for vent system cutout location that applies to your installation.

■ Interior mounted blower systems connect with 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent system. The cutout locations for this vent system will depend on your specific installation.

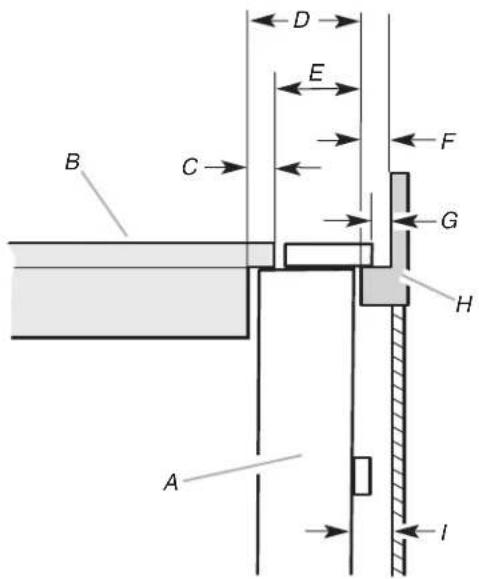

Countertop Cutout Dimensions

IMPORTANT: Countertops with a bull-nosed front edge are not recommended for these installations.

Some models require a countertop deeper than 25" (63.5 cm); see the following "Countertop Cutout Dimensions Chart."

To avoid mistakes, it is recommended that the cooktop and vent cutouts be drawn on the countertop before making any cutouts.

See the Installation Instructions that came with your cooktop for complete cutout dimensions, location dimensions and installation details.

B C D E F G H A I

A. Downdraft vent
B. Cooktop
C. Measurement of cooktop rear overhang
D. D = Measurement of cooktop rear overhang (C) + 1 1316 [46.2 mm] (E)

E. 1 13/16" (46.2 mm)
F. 1/2" (12.7 mm) minimum
G. 1/4" (6.4 mm) minimum
H. Countertop and backsplash
1. 12 " (12.7 mm) minimum

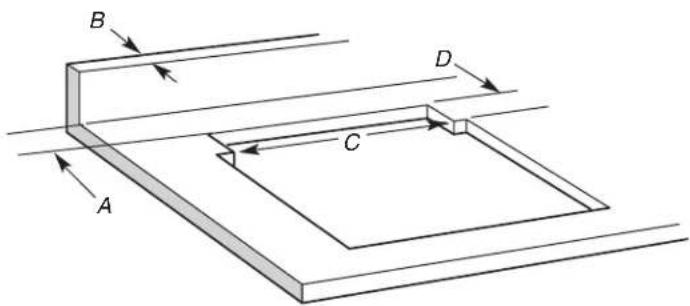

Countertop Cutout Dimensions Chart

B D C A

A. 12 " (12.7 mm) minimum to backsplash or rear wall
B. 34 " (19.1 mm) maximum backsplash depth

C. 27½" (69.9 cm) on 30" (76.2 cm) models 33½" (85.9 cm) on 36" (91.4 cm) models
D. D = Measurement of cooktop rear overhang + 1 1316 " (46.2 mm)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located on the front of the downdraft vent, above the wiring box cover.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

Venting Requirements

IMPORTANT: Make sure there is proper clearance within the wall or floor before making exhaust vent cutouts.

■ Use heavy (rigid) metal vent.
■ Venting system must terminate to the outside.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use 4" (10.2 cm) laundry-type wall caps.
■ Do not install 2 elbows together.
■ Do not use plastic or metal foil vent.
■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.
■ Use no more than three 90° elbows
■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than one elbow is used.
■ Use clamps or duct tape to seal all joints in the vent system.
■ Use caulking tape to seal the exterior wall or floor opening around cap.
■ Do not cut joist or stud. If vent cutout falls over a joist or stud, a supporting frame must be constructed.

Flexible metal vent is not recommended. If it is used, calculate each foot of flexible vent as 2 ft (0.6 m) of rigid metal vent.

Flexible elbows count twice as much as standard elbows.

Recommended vent system length:

For either interior-mounted or exterior-mounted blower installations, the vent system length should not exceed the maximum lengths listed in the Maximum Length of Vent System chart. See “Calculating Vent System Length” in the “Venting Methods” section in the Installation Instructions.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your area.

INSTALLATION INSTRUCTIONS

Verfing Methods

Determine which venting method is best for your application. Vent system can terminate either through the wall or floor.

Island Location

Front (Standard)-Mounted Blower Motor

Technical line drawing of a mechanical assembly with no visible text or symbols

Rear-Mounted Blower Motor

Technical line drawing of a mechanical assembly with no visible text or symbols

A. Down vent

NOTE: For island locations, a front- or rear-mounted blower motor can also be mounted for right or left venting if needed for your application. Most island applications would still require the venting to be directed down through the floor.

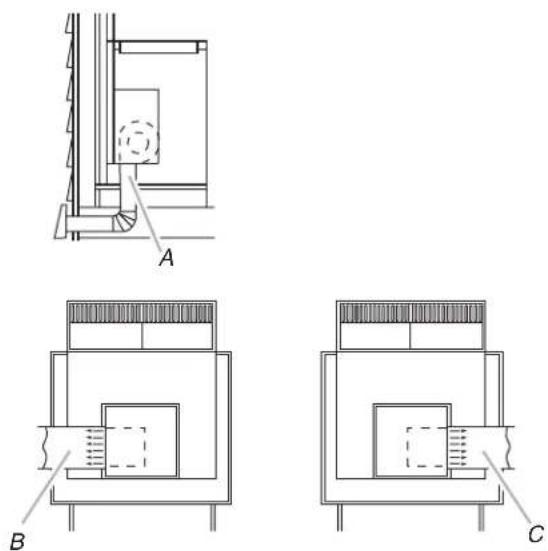

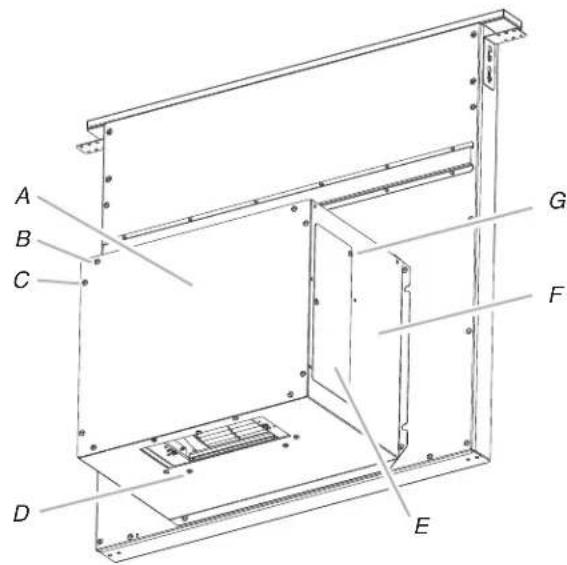

Built-In Cabinet Locations

A. Down vent
B. Left vent
C. Right vent

Island Location—Vent System Installed Under a Concrete Slab Using PVC Sewer Pipe

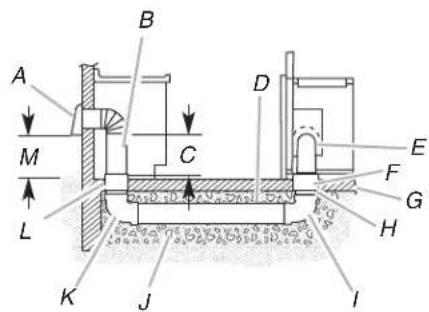

Front (Standard) Mounted Blower Motor

A M L B C D E F G H K J I

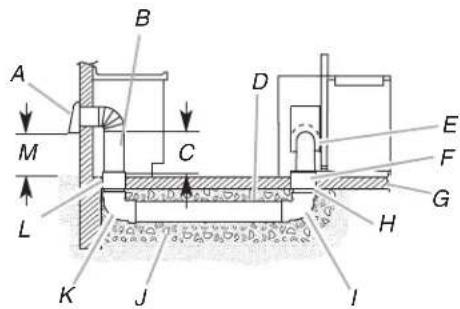

Rear Mounted Blower Motor

A B M C D E F G H L K J I

A. Wall cap
B. 6" (15.2 cm) round metal vent
C. 16" (40.6 cm) maximum
D. 6" (15.2 cm) round PVC sewer pipe
E. 6" (15.2 cm) round metal vent transition with damper (supplied)
F. 6" (15.2 cm) round PVC coupling
G. Concrete slab
H. 6" (15.2 cm) round PVC sewer pipe
I. 6" (15.2 cm) round 90° PVC sewer pipe elbow
J. Tightly pack gravel or sand completely around pipe.
K. 6" (15.2 cm) round 90° PVC sewer pipe elbow
L. 6" (15.2 cm) round PVC coupling
M. 12" (30.5 cm) minimum

Calculating Vent System Length

3¼" x 10" (8.3 x 25.4 cm) rectangular vent is required from the blower motor box. It can be transitioned to 6" (15.2 cm) round vent if needed.

Maximum Length of Vent System

Vent Length

6" (15.2 cm) round 35 ft (8.9 m)

3¼" x 10" (8.3 cm x 25.4 cm) 35 ft (8.9 m)

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece	31⁄4" x 10" (8.3 cm x 25.4 cm) Rectangular
31⁄4" x 10" (8.3 cm x 25.4 cm)90° elbow	5.0 ft(1.5 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)flat elbow	12.0 ft(3.7 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)wall cap	0.0 ft(0.0 m)

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft	(0.8 m)
90° elbow 5.0 ft	(1.5 m)
6" (15.2 cm) wall cap	0.0 ft (0.0 m)
3 14 " x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm) transition	4.5 ft (1.4 m)
6" (15.2 cm) to 3 14 " x 10" (8.3 cm x 25.4 cm) transition	1 ft (0.3 m)
3 14 " x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm) 90° elbow transition	5.0 ft (1.5 m)
6" (15.2 cm) to 3 14 " x 10" (8.3 cm x 25.4 cm) 90° elbow transition	5.0 ft (1.5 m)

Example Vent System

6 ft (1.8 m) 2 ft (0.6 m) A B C D

A. Blower motor
B. Transition
C. 90° elbows
D. Back draft damper

The following example falls within the maximum vent length of 35 ft (8.9 m).

2 - 90° elbow = 10.0 ft (3 m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Transition = 4.5 ft (1.4 cm)

Length of 6" (15.2 cm) or = 22.5 ft (6.8 m)

3 ^1/4 " x 10"

(8.3 cm × 25.4 cm)

system

Install Vent System

WARNING

Excessive Weight Hazard

Use two or more people to move and install downdraft vent.

Failure to do so can result in back or other injury.

1. Place cardboard or similar material on top of a flat surface where you can easily assemble the downdraft vent system.
2. Remove parts packages, downdraft vent and blower box from the carton.

3. Remove all shipping materials, tape and film from the downdraft vent and blower box.

4. Install the right and left undercounter mounting brackets to the vent box. Slide the keyhole slots over the guide tabs and push the brackets up to set them into place.

Technical diagram showing labeled components A, B, C, and D for a mechanical assembly or mounting bracket assembly.

A. Vent box
B. Undercounter mounting bracket
C. Keyhole slots
D. Guide tabs

1. Attach the right and left end caps to the vent box. Place the tab into the mounting slot at each end of the downdraft vent as shown and push down to lock into place.

Technical diagram showing labeled components A and B in a mechanical assembly with mounting bracket and rail connections

A. End cap tab
B. Mounting slot

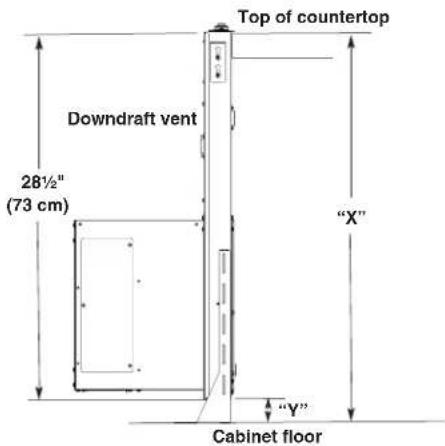

1. Measure distance "X" from the cabinet floor to the top of the countertop. Subtract 28½" from distance "X" to determine dimension "Y" (X - 28½ = Y).

Top of countertop Downdraft vent 28½" (73 cm) "X" "Cabinet floor"

1. Attach the support legs to the side of the vent box with 4 - 4 x 8 mm screws in each support leg. Adjust to dimension "Y" from the bottom of the vent box to the bottom of the support legs. Tighten screws.

A C Dim. "Y" B

A. Motor box
B. Support leg
C. 4 x 8 mm screws (4)

Determine Which Vent Direction Is Best For Your Installation

When installed in a cabinet, vent system can exhaust through the bottom, right or left of the cabinet.

IMPORTANT: When using the 6" (15.2 cm) vent transition (supplied) for 6" round venting, only left or right venting is recommended.

Bottom Venting:

NOTE: If installing the vent damper in the down position, a wall or roof cap with a damper at the exit end of the vent system is required.

■ Downdraft vent is shipped with blower in down venting position so no modification is required.
■ If rear mounting of the blower motor is not required, go to the "Complete Installation" section.
■ To mount the blower motor to the rear side of the vent box, go to the "Rear Mounting - Blower Motor" section.

Left or Right Venting:

1. Using two or more people, place the downdraft vent system on its back.
2. Remove the 4 screws from the cover plate mounted to the face of the motor box and set them aside.

A B C D E F G

A. Cover plate

D. Motor mounting screws (4)

B. Cover plate screws (4)

E. Vent cover plate

C. Cover plate keyhole slot shoulder screws (4)

F. Motor box

G. Vent cover screws (3)

1. Slide the cover plate up and slip it over the keyhole slot shoulder screws. Set the cover aside.
2. Remove 4 screws from the bottom of the motor box that hold the motor assembly to the motor box.

NOTE: Disconnect the electrical wiring connection from motor if needed.

1. Remove 3 screws and the vent cover plate from the left or right side of the motor box for the venting direction to be used.
2. Rotate the blower motor assembly 90 degrees to the left or right side to the chosen venting direction and secure to the blower box with motor mounting screws previously removed. Do not twist or bind the wires.
3. Install the vent cover plate over the rectangular opening in the bottom of the motor box and secure with vent cover screws.

NOTE: Reinstall the electrical wiring connection to motor if removed.

1. Reinstall the cover plate to the face of the motor box and secure with 4 cover plate screws previously removed.
2. For mounting the blower motor to the back of the vent box, go to the "Rear Mounting—Blower Motor" section. Otherwise, go to the "Complete Installation" section.

Rear Mounting—Blower Motor

NOTE: Optional blower motor rear mounting position (opposite side) for island cabinet locations. The blower motor box assembly can be moved to the opposite side (rear) of the vent box.

1. Remove 7 screws from the mounting flanges of the blower motor box.

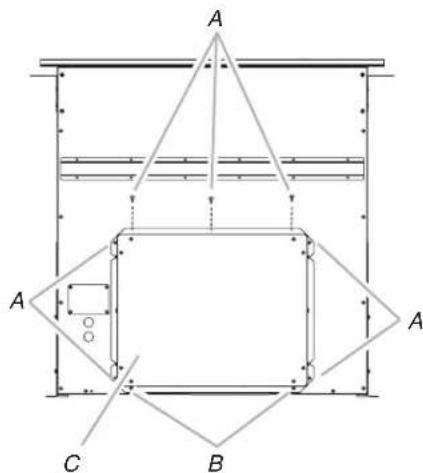

Front View

A A C B A

A. Screws (7)
B. Keyhole slot shoulder screws (2)
C. Blower motor box

1. Lift blower motor box off the shoulder screws in the keyhole slots. Disconnect wire connection from blower motor and set blower motor box aside.
2. Remove 6 screws from the mounting flange of the 14'' (6.4 mm) deep cover.

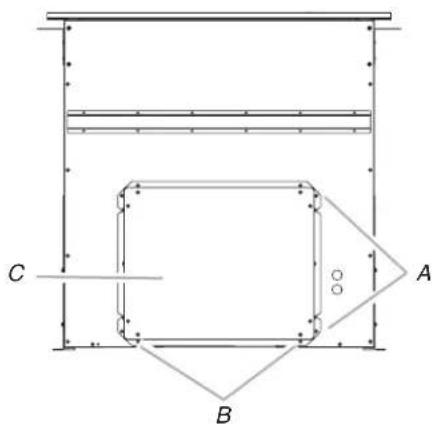

Rear View

Pure technical diagram of a structural frame with labeled points A, B, C and internal components (no text or symbols beyond labels)

A. Screws (6)
B. Keyhole slot shoulder screws (2)
C. 14 " (6.4 mm) deep cover

1. Lift the 14 " (6.4 mm) deep cover off the shoulder screws in the keyhole slots and set the cover aside.

2. Remove the screws from the wire mounting plate.

A B C A

A. Screws

B. Wire mounting plate

C. Blower motor box

1. Hold the wire mounting plate and push the grommet out of the mounting plate.

Pure mechanical diagram showing a rectangular frame with four circular holes and a curved pipe or rod, labeled A and B (no text or symbols beyond labels)

A. Wire mounting plate

B. Grommet

1. Slide the wire assembly through the slot in the wire mounting plate to remove it.

2. Place the wire assembly through the opening to the opposite side of the vent box.

3. Reassemble the wire assembly and grommet to the wire mounting plate.

4. Install the wire mounting plate to the vent box using the 4 screws previously removed.

5. Place the blower motor box assembly with the keyhole slots over the 2 shoulder screws on the rear of the vent box and reconnect the wire connection to the blower motor.

6. Mount the blower motor box to the vent box and secure using the 6 screws previously removed.

7. Mount the 4 ^3/4 " (12.0 cm) cover box (supplied) to the front of the vent box. Place the keyhole slots over the 2 shoulder screws, align the mounting holes, and secure the cover box to vent box using the 6 screws previously removed from the 1/4" (6.4 mm) deep cover.

8. Go to the "Complete Installation" section.

Complete Installation

NOTE: The downdraft vent system is supplied with a 3¼" x 10" (8.3 x 25.4 cm) back draft damper and a 6" (15.2 cm) round vent transition with damper. Refer to "3¼" x 10" (8.3 x 25.4 cm) back draft damper" or "6" (15.2 cm) round vent transition with damper," depending upon the type of venting you are using.

3¼" x 10" (8.3 x 25.4 cm) Back Draft Damper

1. Attach the 3¼" x 10" (8.3 x 25.4 cm) back draft damper to the vent opening in the blower motor box, using three 3.5 x 9.5 mm screws.

B A A

A. 3.5 x 9.5 mm screws

B. 3¼" x 10" (8.3 x 25.4 cm) back draft damper

6" (15.2 cm) Round Vent Transition With Damper

1. Attach the 6" (15.2 cm) round vent transition to vent opening (left or right side venting only is recommended), using two 3.5 x 9.5 mm screws.

A B

A. 3.5 x 9.5 mm screws

B. 6" (15.2 cm) round vent transition with damper

1. Remove 4 screws attaching the terminal box cover.

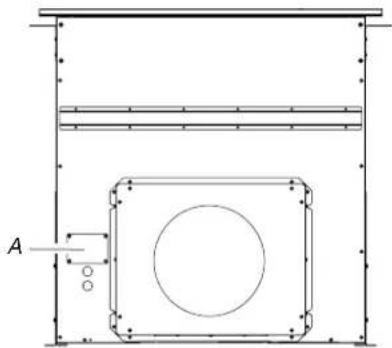

Technical line drawing of a mechanical assembly with a circular component and labeled section A (no text or symbols beyond label)

A. Terminal box cover

1. Determine which direction (front or rear) the home power supply cable will enter the terminal box. Remove the appropriate knockout from the front or rear panel and install a 12 " (12.7 mm) UL listed or CSA approved conduit connector.

2. Using 2 or more people, insert the downdraft vent into the countertop cutout. Position downdraft vent so it is centered in the cutout with the rear flange over the edge of the cutout and the rear of the vent box against the edge of the cutout.

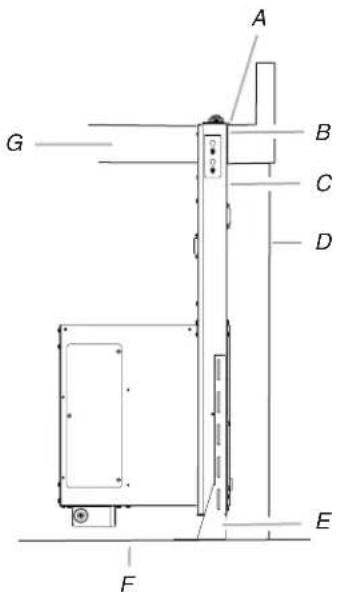

A B C D G E F

A. Rear flange of downdraft vent

B. Edge of cutout in countertop

C. Rear of downdraft vent

D. Cabinet back

E. Lower support leg

F. Cabinet floor

G. Countertop

1. Drill 2 pilot holes through each of the undercounter mounting brackets into the underside of the countertop. Using 2 screws (not provided) of the appropriate length, mount the brackets to the countertop.

IMPORTANT: Select a screw length that will not allow the screws to go through the countertop when tightened.

B C A

A. Screws
B. Backsplash
C. Countertop

1. Check that the downdraft vent is level vertically. Loosen the lower support legs screws and position the legs against the cabinet floor.
2. Fasten the lower support legs to the cabinet floor with screws (not provided).

Simple line drawing of a vertical structure with a labeled point A and a small inset detail (no text or symbols)

A. Screw (not provided)

1. Tighten the lower support legs screws.

Make Electrical Connections

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Feed the power supply cable through the conduit connector and into the terminal box.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect the green (or green/yellow) ground wire to the green or yellow/green ground wire using UL listed wire connectors. Tighten the screw on the conduit connector.
2. Connect the 2 white wires together using UL listed wire connectors.

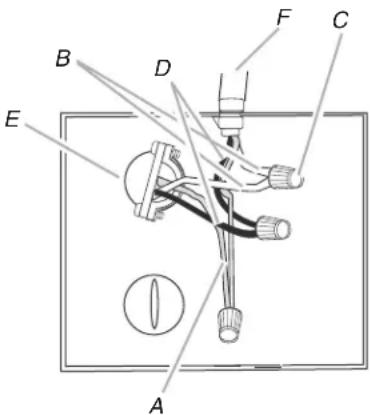

Labeled diagram of a medical or laboratory procedure with components A through F, likely for surgical or clinical examination.

A. Green or green and yellow ground wire
B. White wires
C. UL listed wire connectors

D. Black wires
E. UL listed or CSA approved
conduit connector
F. Downdraft vent wiring

1. Connect the 2 black wires together using UL listed wire connectors.
2. Replace the terminal box cover and secure with screw.
3. Reconnect power.

Check Operation

1. Push and hold the button on the top of the downdraft vent for a few seconds. The retractable section of the downdraft vent will rise, and the blower will start. Position the top trim over the retractable section and snap trim into place.

Trim kits for matching your cooktop color are available from your dealer.

For information on ordering, see the "Assistance or Service" section.

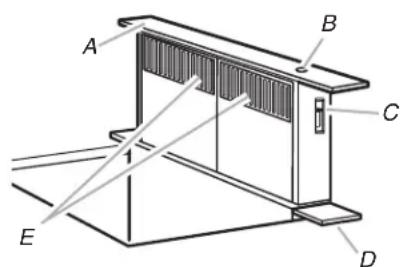

A B C E D

A. Top trim
B. ON/OFF button
C. Blower control slider

D. End cap
E. Filters

1. Slide the control slider on the side of vent to check the operation and speed of the blower.

2. If the blower does not operate:

3. Check that filter or filters are pressed in as far as they will go.
   ■ Check that the circuit breaker has not tripped or a household fuse blown.

4. Connect vent system to blower. Vent system must end with a wall or roof cap. Use clamps or duct tape to seal all joints.

5. Install cooktop according to manufacturer's instructions. Check that rear of cooktop overlaps edge of retractable downdraft vent by 38 (9.5 mm). See "Countertop Cutout Dimensions" in the "Location Requirements" section.

NOTE: To get the most efficient use from your new retractable downdraft vent, read the "Vent System Use" section.

VENT SYSTEM USE

The retractable downdraft vent system is designed to remove smoke, cooking vapors and odors from the cooktop area.

■ For best results, the vent should be operating before cooking is started.
■ If you use large or tall utensils, place them on the large rear element or burner surface.
■ A higher heat setting than normally used may be needed when the downdraft vent is operating.
■ For gas cooktops, the downdraft vent system may affect the flame stability and cooking performance. To improve the burner performance, either decrease the downdraft vent blower speed or increase the cooktop burner flame setting.

■ For gas cooktops with flame sensing ignitions, the downdraft vent system may disperse the flame away from the spark igniter and may cause it to continually spark while trying to reignite a burner that is already lit. To resolve the issue of the cooktop igniter continuously sparking, either decrease the downdraft vent blower speed or increase the cooktop flame setting for that burner.

Operating Downdraft Vent

To Use:

1. Push and hold the button on top of downdraft vent for a few seconds. (This slight delay helps avoid unintentional raising of the vent during cleaning of the cooktop area.) Retractable section of downdraft vent will rise. Blower will begin to vent immediately if blower control knob slider is set to an "On" position.
2. Slide the control slider on the right-hand side of the downdraft vent to adjust the blower motor speed.

When Cooking Is Complete:

1. Push the button on top of the retractable downdraft vent. The blower will turn off, and the retractable section of the vent will return to the closed position.

NOTE: If a spill occurs on the cooktop that allows liquids to seep inside the downdraft vent, you must turn the downdraft vent off immediately. It is possible to cause damage to the downdraft vent if water is allowed inside the downdraft vent while it is operating.

1. Immediately turn off the downdraft vent at the speed control located on the right-hand side of the downdraft vent.
2. Turn off the power supply to the downdraft vent at the circuit breaker box or fuse box.
3. Allow plenty of time for the downdraft vent to dry naturally. Do not open the downdraft vent to remove the water.

VENT SYSTEM CARE

Surface of Downdraft Vent

To avoid damaging the finish, clean downdraft vent with soap and water. Do not use scouring powder or abrasive solutions.

Exterior Surfaces:

■ To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.
■ Always wipe dry to avoid water marks.

Cleaning Method:

■ Liquid detergent soap and water, or all-purpose cleanser
■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

Filters

Frequently remove and clean the filter(s) in the retractable section of the downdraft vent. This will improve the operating efficiency of the downdraft vent system.

To Replace:

1. Remove each filter by pulling the spring release handle and then pulling down the filter.
2. Wash metal filters as needed in dishwasher or hot detergent solution.
3. Reinstall the filter by making sure the spring release handles are toward the front. Insert metal grease filter into upper track.
4. Pull the spring release handle down.
5. Push up on metal filter and release handle to latch into place.
6. Repeat steps 1-5 for the other filter.

To Clean:

1. Remove the filter(s) and clean them in a dishwasher or in a hot detergent solution. The downdraft vent will not operate when the filters are not in place.
2. Dry the clean filter(s) and reinstall, making sure that they lock into place.

If Retractable Downdraft Vent Does Not Operate After Clean Filters Have Been Installed:

Push the filter in as far as it will go. When the filter is removed, the microswitch behind the filter is inactivated. This feature will not allow the vent system to operate until the filter is properly installed.

A B C

A. Spring release handles
B. Left metal filter
C. Right metal filter

WIRING DIAGRAM

Motor Specifications Power supply 120 VAC Frequency 60 Hz Wattage rating 420 W Amperage 3.7 A Motor Resistance BU/W 21.6 Ohms BU/R 18 Ohms BU/GY 14.3 Ohms BU/BK 9.8 Ohms ⑧ ⑦ M S50 Y/G Neutral 4° Speed 3° Speed 2° Speed 1° Speed BU BK GY R W BU BK GY R W BU BK GY R W BK BGY GY R R W W BR BR ① ② ③ ④ ⑤ ⑥ BR BR BU GY GY Y/G BK W SEL0015061 M Blower Switch Operation Contact Function 1 - 3 OFF 3 - 5 1st Speed 5 - 7 2nd Speed 8 - 10 3rd Speed 10 - 12 4th Speed Component Layout Num. Description 1 Filter microswitch 2 Filter microswitch 3 Plenum down limit switch 4 Plenum up limit switch 5 Motor microswitch 6 Plenum drive motor 7 Blower motor 8 Blower speed switches 9 Start sw. plenum up/down

NOTE: Wiring diagram is drawn with plenum in down position.

Motor Specifications
Power supply 120	VAC
Frequency	60 Hz
Wattage rating	420 W
Amperage 3.7 A
Motor Resistance
BU/W 21.6 Ohms
BU/R 18 Ohms
BU/GY 14.3 Ohms
BU/BK 9.8 Ohms

Blower Switch Operation
Contact	Function
1 - 3	OFF
3 - 5	1st Speed
5 - 7	2nd Speed
8 - 10	3rd Speed
10 - 12	4th Speed

Component Layout
Num.	Description
1	Filter microswitch
2	Filter microswitch
3	Plenum down limit switch
4	Plenum up limit switch
5	Motor microswitch
6	Plenum drive motor
7	Blower motor
8	Blower speed switches
9	Start sw. - plenum up/down

ASSISTANCE OR SERVICE

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

For further assistance

If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at:

Customer eXperience Centre Whirlpool Canada LP 200 - 6750 Century Ave. Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

NOTE: Instructions are included with each kit.

For Model Series UXD8630DY

30" (76.2 cm) One-Piece Top Trim

Order Part Number W10387678 (black)

Order Part Number W10388421 (white)

For Model Series UXD8636DY

36" (91.4 cm) One-Piece Top Trim

Order Part Number W10387679 (black)

Order Part Number W10388422 (white)

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance.
    The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

SÉCURITÉ DU SYSTÈME DE VENTILATION

B C D E F G H A I

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a labeled component 'A' (no text or symbols present)

A M L B C D E F G H K J I

A B C D E F G H I J K L M

D. Clapet anti-retour

Technical diagram showing labeled components A, B, C, and D for a mechanical or electrical assembly.

Technical diagram showing labeled components A and B for a mechanical assembly or assembly, with no visible text or symbols beyond labels.

A C Dim. "Y" B

A B C D E F G

Pure technical diagram of a structural frame with labeled points A, B, C and internal components (no text or symbols beyond labels)

Pure mechanical diagram showing a rectangular frame with four circular holes and a curved internal component, labeled A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with a circular component and labeled section A (no text or symbols beyond label)

A B C D G E F

Simple line drawing of a vertical structure with a labeled point A and a small inset detail (no text or symbols)

Labeled diagram of a mechanical or fluid system with components A through F, showing connections and components.

JAMAR S50 JA/VE Neutre 4° Vitesse 3° Vitesse 2° Vitesse 1° Vitesse BU N GRIS R BL BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS R BRIS M MAR ① ② ③ ④ ⑤ ⑥ MAR NOL Com N.F. MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR GRIS R MAR

ASSISTANCE OU SERVICE

GARANTIE DES GROS APPAREILS MÉNAGERS WHIRLPOOL CORPORATION

GARANTIE LIMITÉE
