USER MANUAL WVU37UC0FB WHIRLPOOL

24" (61 CM) RANGE HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301

or visit our website at www.whirlpool.com

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE D'ASPIRATION DE 24" (61 CM)

Au Canada, pour assistance, installation ou service, composer

Isometric line drawing of a rectangular electronic device with a recessed top and internal slot (no text or symbols)

WVU37UC4F

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS TABLE DES MATIÈRES

RANGE HOOD SAFETY 3

INSTALLATION REQUIREMENTS....5

Tools and Parts....5

Location Requirements....5

Venting Requirements....6

Electrical Requirements....7

INSTALLATION INSTRUCTIONS....8

Prepare Location....8

Prepare Range Hood 10

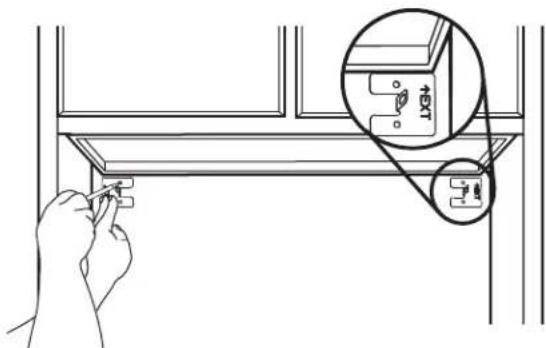

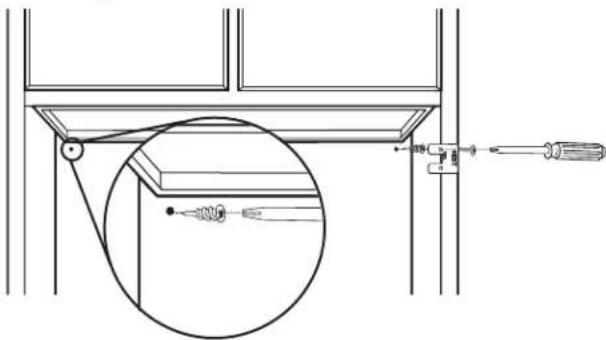

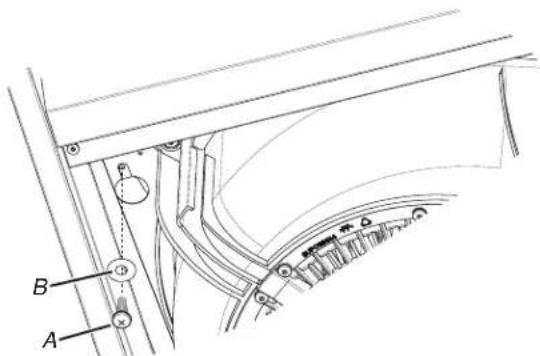

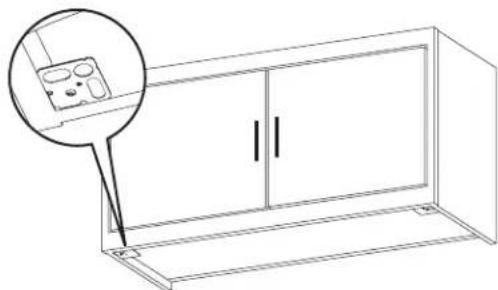

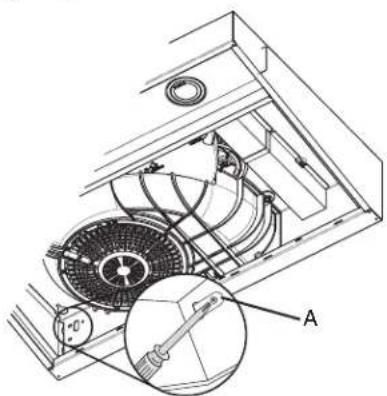

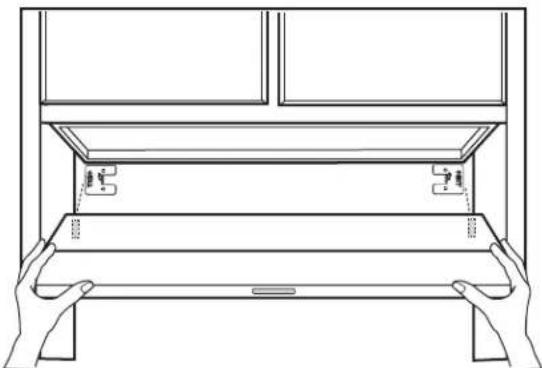

Install Range Hood....12

Make Electrical Connection....13

Complete Installation ....14

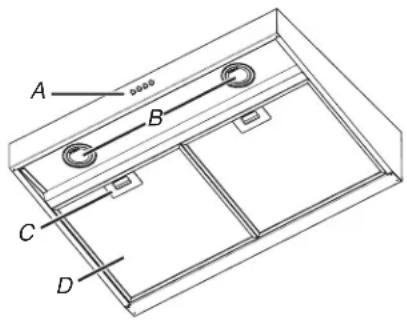

RANGE HOOD USE....14

Range Hood Controls ....14

RANGE HOOD CARE....15

Cleaning 15

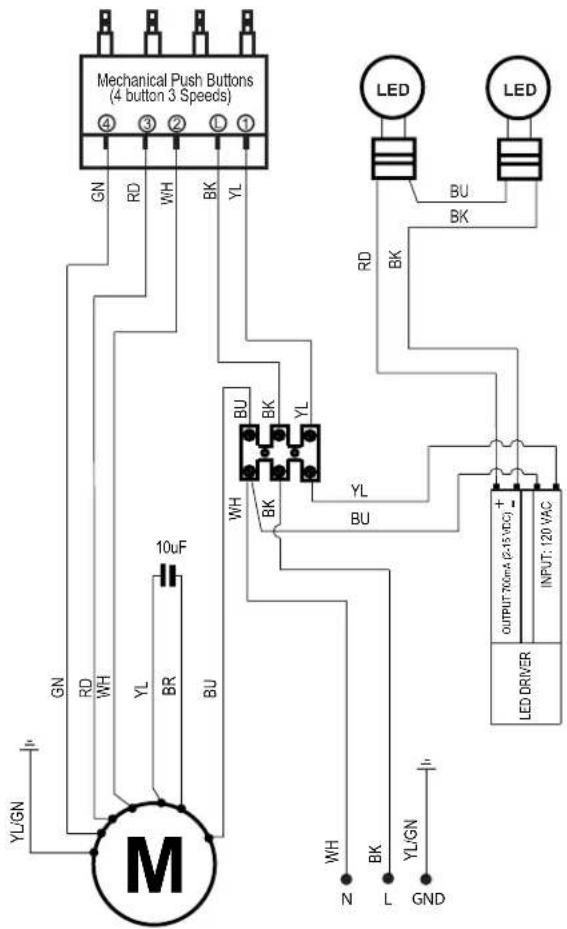

WIRING DIAGRAM....16

ASSISTANCE OR SERVICE....17

In the U.S.A. 17

In Canada....17

Accessories....17

WARRANTY 18

SÉCURITÉ DE LA HOTTE....20

EXIGENCES D'INSTALLATION ....22

INSTRUCTIONS D'INSTALLATION....25

ASSISTANCE OU SERVICE....34

Aux É.-U. 34

Au Canada....34

Accessoires....34

GARANTIE ....35

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
■ NEVER PICK UP A FLAMING PAN - you may be burned.
■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
■ Use an extinguisher ONLY if:

- You know you have a class ABC extinguisher, and you already know how to operate it.

- The fire is small and contained in the area where it started.

– The fire department is being called.

- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Drill
■1½" (3.0 cm) drill bit
■1/8" (3.0 mm) drill bit for pilot holes
■Pencil
■Wire stripper or utility knife
■Tape measure or ruler
■Caulking gun and weatherproof caulking compound
■Flat-blade screwdriver
■Phillips screwdriver
■Saber or keyhole saw
■Metal snips

Parts supplied

Remove parts from package. Check that all parts are included.

■#8-18 x 1" (4.2 x 25 mm) flat-head screws (2)
■(4.5 x 13 mm) truss-head screws (4)
■Drywall anchors (2)
■Mounting brackets (4)
■(4.2 x 8.5 mm) mounting screws (2)
■(4.2 x 8.5 mm) washers (2)
■TORX ^®† T10 adapter (1)
■3 ^1/_4 " x 10" (8.3 cm x 25.4 cm) rectangular air transition (1)
■Rectangular air damper

Parts needed

■Wall or roof cap with damper to match vent system
■3 - UL Listed wire connectors
■Vent clamps/duct tape as required

For 7" (17.8 cm) round vented installations:

■7" (17.8 cm) round metal vent system

For 3 ^1/4 " x 10" (8.3 cm x 25.4 cm) rectangular vented installations:

■3 ^1/4 " x 10" (8.3 cm x 25.4 cm) rectangular metal vent system

For non-vented (recirculation) installations:

■Charcoal Filter Kit. For information on ordering, see the "Accessories" section.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located inside the range hood on the left wall.
■ Range hood location should be away from strong draft areas, such as windows, doors, and strong heating vents.

■Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/range manufacturer installation instructions before making any cutouts.
■This range hood is recommended for use with cooktops with a maximum total rating of 55,000 BTUs or less.
■Grounded electrical outlet is required. See the “Electrical Requirements” section.
■All openings in ceiling and wall where range hood will be installed must be sealed.
■These range hoods are factory set for vented installations. Models that are capable of being installed as non-vented (recirculating) require charcoal filters. See the “Accessories” section to order Charcoal Filter Kit.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A (latest edition) or with local codes.

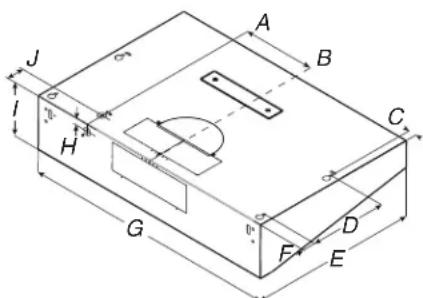

Product Dimensions

J A B H C G F D E

A. 8^25/64 " (21.3 cm)
B. Centerline
C. 1" (2.54 cm)
D. 8^31 / 32'' (22.8 cm)
E. 19 ^11 / 16 " (50 cm)
F. 12 " (3.8 cm)
G. 24" (61 cm)
H. ^55/64 " (2.2 cm)
I. 6^19 / _54 (16 cm)
J. 2" (5 cm)

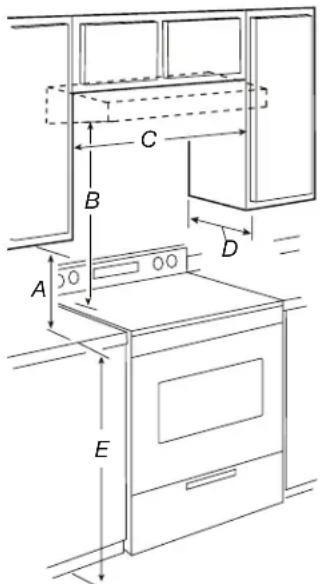

Installation Clearances

A B C D E

A. 18" (45.7 cm) min. clearance - upper cabinet to countertop
B. 24" (61.0 cm) minimum - bottom of range hood to cooking surface
C. 24" (61 cm) min. cabinet opening width
D. 12" (30.5 cm) minimum cabinet depth
E. 36" (91.4 cm) base cabinet height

Venting Requirements

This range hood is factory set to exhaust the air to the outside through the wall or the roof. A non-vented (recirculating) installation will require a Charcoal Filter Kit. See the “Accessories” section for ordering information.
■Vent system must terminate to the outdoors, except for nonvented (recirculating) installations.
■Do not terminate the vent system in an attic or other enclosed area.
■Do not use a 4" (10.2 cm) laundry-type wall cap.
■Use a 7" (17.8 cm) round metal vent or a 3½ 4" x 10" (8.3 cm x 25.4 cm) rectangular metal vent, depending on your installation requirements. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■Use no more than three 90° elbows.
■Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used.

■Do not install 2 elbows together.
■Use clamps or duct tape to seal all joints in the vent system.
■The vent system must have a damper. If roof or wall cap has a damper, do not use damper supplied with the range hood.
■Use caulking to seal exterior wall or roof opening around the cap.

Cold Weather Installations

An additional backdraft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

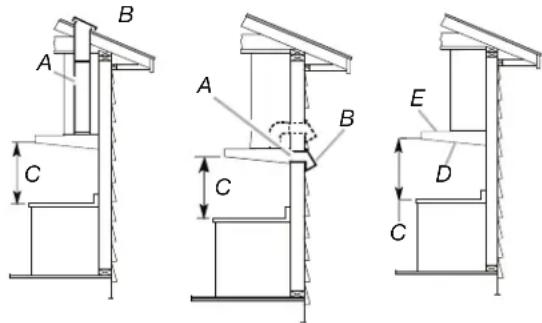

Venting Methods

Vent system can terminate either through the roof or wall. Use 314 " x 10" (8.3 cm x 25.4 cm) rectangular with a maximum vent length of 35 ft (10.7 m) or 7" (17.8 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.

NOTE: Flexible vent is not recommended. Flexible vent creates both back pressure and air turbulence that greatly reduce performance.

Roof Venting Wall Venting Recirculating

A B C A B C E D C

A. 7" (17.8 cm) round vent through roof or 3¼" x 10" (8.3 cm x 25.4 cm) rectangular vent through the roof or wall (purchased separately)
B. Roof/Wall cap with damper (purchased separately)
C. 24" (61.0 cm) min. above the cooking surface
D. Charcoal Filter Kit (purchased separately)
E. Recirculating grid

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

7" (17.8 cm) Round Vent System

Vent Piece Round
45° elbow 2.5 ft	(0.8 m)
90° elbow 5.0 ft	(1.5 m)
7" (17.8 cm) wall cap 0.0 ft	(0.0 m)
31⁄4" x 10" (8.3 cm x 25.4 cm) to 7" (17.8 cm)	4.5 ft (1.4 m)
31⁄4" x 10" (8.3 cm x 25.4 cm) to 7" (17.8 cm) 90° elbow	5.0 ft (1.5 m)

Example vent system

7" (17.8 cm) round 90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

Maximum Recommended Length = 50 ft (15.2 m)

1 - 90° elbow = 5.0 ft (1.5 m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of 7" (17.8 cm) system = 13.0 ft (3.9 m)

3¼" x 10" (8.3 cm x 25.4 cm) Vent System

Vent Piece
31⁄4" x 10" (8.3 cm x 25.4 cm)90° elbow	5.0 ft(1.5 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)flat elbow	12.0 ft(3.7 m)
31⁄4" x 10" (8.3 cm x 25.4 cm)wall cap	0.0 ft(0.0 m)

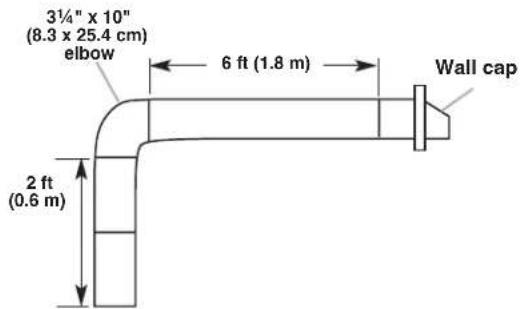

Example vent system

3¼" x 10" (8.3 x 25.4 cm) elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

Maximum Recommended Length = 35 ft (10.7 m)

1 - 90° elbow = 5.0 ft (1.5 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

1 - wall cap = 0.0 ft (0.0 m)

Length of 314 " x 10" (8.3 cm x 25.4 cm) = 13.0 ft (3.9 m) system

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■A 120-volt, 60 Hz., AC-only, 15-amp, fused electrical circuit is required.
■If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL Listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located inside the range hood.
■Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

NOTE: It is recommended that the vent system be installed before hood is installed.

Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.

1. Disconnect power.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Depending on your model, determine which venting method to use: roof, wall, or non-vented (recirculating).
2. Select a flat surface for assembling the range hood. Place covering over that surface.
3. Lift the range hood and set it upside down onto covered surface.

Determine Wiring Hole Location

Cut only one 1¼" (3.2 cm) diameter wiring access hole.

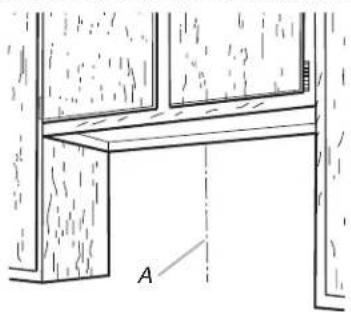

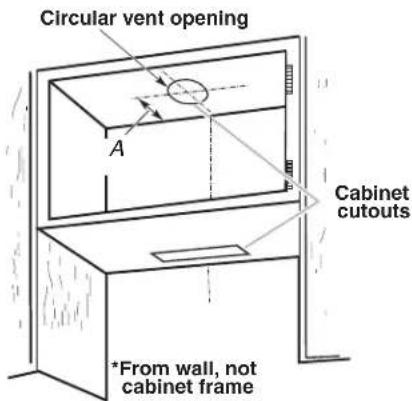

1. Determine and clearly mark a vertical centerline on the wall and cabinet in the area the vent opening will be made.

Architectural cross-section diagram of a window frame with labeled component A (no text or symbols beyond label)

A. Centerline

To wire through top:

1. Mark a line distance "A" from the right of the centerline on the underside of the cabinet. For 12" (30.5 cm) deep cabinets, mark the point on this line that is 2" (5.1 cm) from the back wall. For 15" (38.1 cm) deep cabinets, mark the point on this line that is 5" (12.7 cm) from the back wall. Drill a 1 14 " (3.2 cm) diameter hole through the cabinet at this point.

A B Centerline

A. 8 ^3/8 " (21.3 cm)

B. 2" (5.1 cm) for 12" (30.5 cm) deep cabinets*

5" (12.7 cm) for 15" (38.1 cm) deep cabinets*

*From wall, not cabinet frame

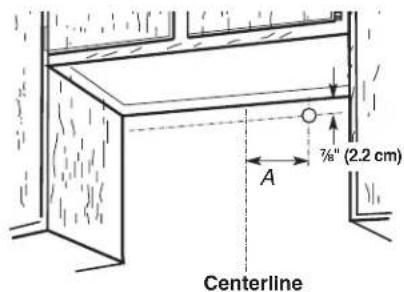

To wire through wall:

1. Mark a line distance "A" from the right of the centerline on the underside of the wall. Mark the point on this line that is 78'' (2.2 cm) from the underside of the cabinet. Drill a 114'' (3.2 cm) diameter hole through the rear wall at this point.

7/8" (2.2 cm) A Centerline

A. 8 ^3/6 " (21.3 cm)

Style 1 - Cut Openings for 3 14 x 10" (8.3 cm x 25.4 cm) Rectangular Vent System

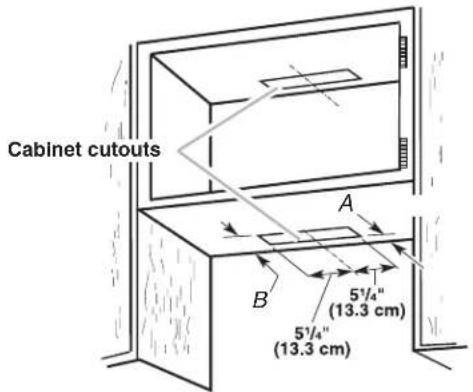

Roof Venting

To make a 414 " x 1012 " (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet top and bottom:

1. Mark lines 12 " (1.3 cm) and 434 " (12.1 cm) from the back wall on the centerline of the underside of cabinet.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the underside of cabinet.
3. Use saber or keyhole saw to cut a rectangular opening for vent.
4. Repeat steps 1 through 3 for the underside of the top of the cabinet.

Cabinet cutouts A B 5½" (13.3 cm) 5½" (13.3 cm)

*From wall, not cabinet frame

A. 12 " (1.3 cm)
B. 4^3/_4 " (12.1 cm)

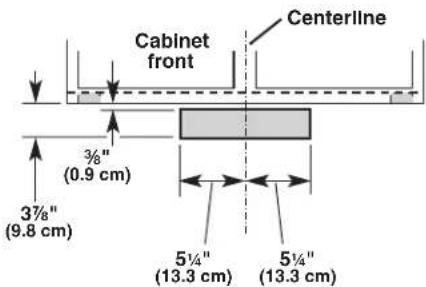

Wall Venting

To make a 312 " x 1012 " (8.9 cm x 26.7 cm) rectangle in the wall:

1. Make 2 lines by measuring 38 " (0.9 cm) and 378 " (9.8 cm) down from underside of cabinet and mark on the centerline on the back wall.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the wall.
3. Use saber or keyhole saw to cut a rectangular opening in the wall for the vent.

Cabinet front Centerline 3½" (0.9 cm) 3½" (9.8 cm) 5½" (13.3 cm) 5½" (13.3 cm)

Style 2 - Cut Openings for 3 14'' × 10'' (8.3 x 25.4 cm) Rectangular Vent to Round Vent Transition

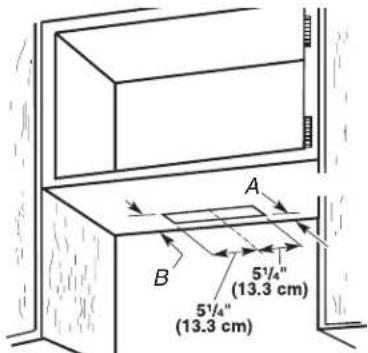

Roof Venting

To make a 414 " x 1012 " (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet bottom:

1. Mark lines 12 " (1.3 cm) and 434 " (12.1 cm) from the back wall on the centerline of the underside of cabinet.
2. Mark lines 5¼" (13.3 cm) to the right and left of the centerline on the underside of cabinet.
3. Use saber or keyhole saw to cut a rectangular opening for vent.

A B 5½" (13.3 cm) 5½" (13.3 cm)

*From wall, not cabinet frame

A. 12 " (1.3 cm)
B. 4^3/h'' (12.1 cm)

To make a circular vent opening on the underside of the cabinet top:

1. Mark a centerline on the underside of the top of cabinet.
2. Mark a line 5" (12.7 cm) from the back wall on the underside of the top of cabinet.
3. Use a compass or a circle template to draw a circle with a diameter that is 14 " (0.64 cm) larger than the vent.
4. Use saber or keyhole saw to cut the circular vent opening.

Circular vent opening A Cabinet cutouts *From wall, not cabinet frame

A. 5" (12.7 cm)
Style 3 - Cut Openings for 7" (17.8 cm) Round Vent

To make a circular vent openings on the underside of the cabinet top and bottom:

1. Mark a centerline on the underside of the top of cabinet.
2. Mark a line 5" (12.7 cm) from the back wall on the underside of the top and bottom of cabinet.
3. Use a compass or a circle template to draw a circle with a diameter that is 14 " (0.64 cm) larger than the vent.
4. Use saber or keyhole saw to cut the circular vent opening.

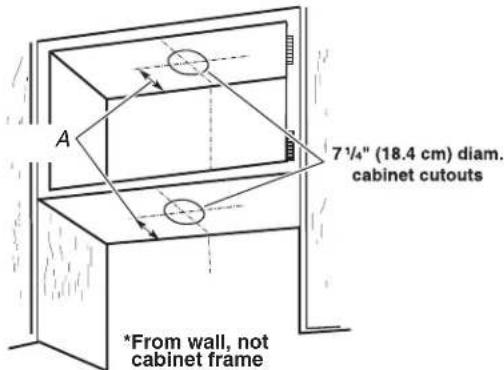

A 7 1/4" (18.4 cm) diam. cabinet cutouts *From wall, not cabinet frame

A. 5" (12.7 cm)

Install Vent System

1. Install vent through the vent opening in upper cabinet or wall. Complete venting system according to the selected venting method. See the "Venting Requirements" section.

2. Use caulking to seal exterior wall or roof opening around the cap.

Prepare Range Hood

Only for venting through the top/wall options:

1. Remove vent knockouts, depending on your installation requirements.

A B

A. Top rectangular vent knockout

B. Rear rectangular vent knockout

Round vent system installations - Remove top rectangular and round vent knockouts.

Rectangular vent system installations - For roof installations, remove the top rectangular vent knockout. For wall installations, remove the rear rectangular vent knockout.

Non-vent (recirculating) installations - Do not remove any knockouts.

1. Install 7" (17.8 cm) round vent mounting plate or 3 14 " x 10" (8.3 cm x 25.4 cm) vent damper, depending on your vent system installation. Attach to range hood with 3.5 x 9.5 mm screws provided and remove the tape from the damper flap.

NOTE: An optional 7" (17.8 cm) round damper is also available as an accessory. For information on ordering, see the "Accessories" section.

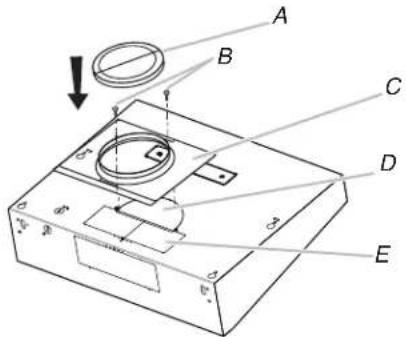

Technical diagram of a device with labeled components A through E, showing internal structure and directional arrows.

A. 7" (17.8 cm) round damper

(See the "Accessories" section)

B. 3.5 x 9.5 mm screws

C. 7" (17.8 cm) round vent mounting plate

D. Round vent knockout

E. Rectangular vent knockout

NOTE: The round vent damper may only be installed on the top of the product.

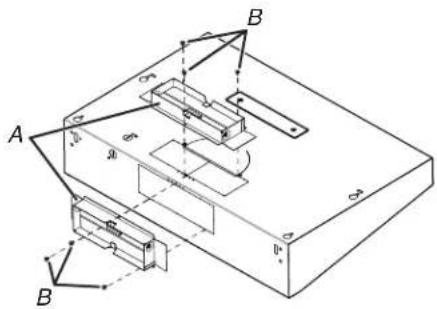

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and angular measurements.

A. 3 ^1/4 " x 10" (8.3 x 25.4 cm) rectangular vent damper

B. 3.5 x 9.5 mm screws

Only for recirculating options :

For this venting method, it is neccessary to purchase a Charcoal Filter Kit. See the "Accessories" section for ordering.

1. Remove each filter by pulling the spring-release handle and then pulling down the filter.

2. Remove the venting method screw from the vented option with a TORX® T10 screwdriver and set aside.

A VENTED NO VENTED

A. Venting method screw

1. Slide the venting lever down as shown in the following image.

A VENTED NOVENTED

A. Lever on No Vented option

1. Replace the venting method screw on the No Vented (recirculating) option.

A NOVENTED VENTED

A. No Vented method screw

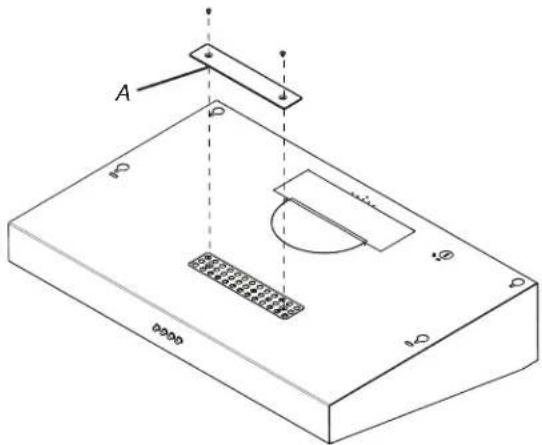

1. Remove the non-vented (recirculating) vent cover.

Isometric technical diagram of a mechanical assembly with labeled components (no text or symbols present)

A. Non-vented (recirculating) vent cover

1. Bend spring clips away from metal grease filter.

2. Place charcoal filter into top side of metal filter.

Pure diagram of a rectangular plate with curved arrows indicating rotation or force direction (no text or symbols)

1. Bend spring clips back into place to secure the charcoal filter to the metal filter.

Pure diagram of a rectangular plate with curved arrows indicating rotation or movement, no text or symbols present.

1. Replace metal grease filter.

Install Range Hood

1. Remove the power supply knockout from the top or rear of the vent hood (depending on the incoming location of your home power supply cable) and install a UL Listed or CSA Approved 12 " strain relief.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A. Power supply knockout

1. Align the exterior edge of the mounting brackets with the exterior edges of the upper cabinet.

IMPORTANT: The brackets should touch the upper cabinet. With a pencil, mark the upper holes on the brackets.

Line drawing of a hand inserting a small component into a wall-mounted device (no text or symbols)

A. Cabinet front face edge
B. Rear installation bracket marks

1. Using a #2 Phillips screwdriver, install the drywall anchors. Using #8-18 x 1" (4.2 x 25 mm) flat-head #2 Phillips screws, install the mounting brackets using the upper holes.

NOTE: For installation to a surface other than drywall, it is recommended that a qualified contractor determine the anchoring method.

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a component (no text or symbols present)

1. With the aid of a 4.5 x 13 mm screw, mount 2 brackets on the inside front or side face of the cabinet, flush with the cabinet bottom.

Line drawing of a cabinet with an open lid and a magnified inset showing a small electronic device (no text or symbols)

1. Lift the range hood into place, positioning the rear slots over the mounting brackets.

Line drawing of a cabinet or rack with hands holding and securing a seat (no text or symbols)

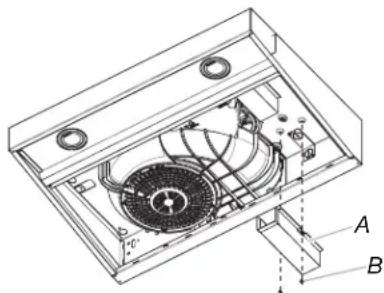

1. Mount a round washer and a 4.5 x 13 mm screw to install the mounting brackets on the front of the cabinet.

Technical diagram of a mechanical assembly with labeled parts A and B, showing structural components and alignment indicators.

A. #8-18 x 5/8" (4.2 x 16 mm) screw
B. Washer

1. (Optional) Insert a #8-18 x 58 " (4.2 x 16 mm) screw into the mounting tab (A) on each side of the range hood shown in the following image.

Technical line drawing of a mechanical device with internal components and a labeled section A (no text or symbols beyond label)

A. #8-18 x 5/8" (4.2 x 16 mm) screw

Connect Vent System

Connect the ventwork to the range hood. Seal joints with vent clamps or duct tape to make secure and airtight. Check that the backdraft dampers work properly.

Power Supply Cable Installation

1. For direct wire installations, run the home power supply cable according to the National Electric Code or CSA standards and local codes and ordinances. There must be enough wiring from the fused disconnect (or circuit breaker) box to make the connection in the hood electrical terminal box.

For optional power supply cord kit (see the “Accessories” section), follow the instructions in the “Make Electrical Connections” section.

NOTES:

■Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

■Do not reconnect power until the installation is complete.

1. Remove the screw from the terminal box cover. Remove terminal box cover and set aside.

Technical line drawing of a mechanical device with labeled components A and B, showing internal components and mounting points (no text or symbols beyond labels)

A. Terminal box cover
B. Screw

Make Electrical Connection

Option 1 - Direct Wire Installations

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

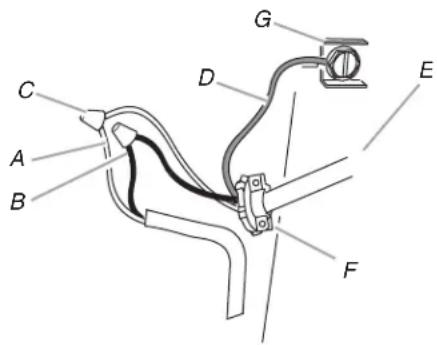

Technical diagram of a mechanical or electrical component with labeled parts A through G

A. White wires
B. Black wires
C. UL Listed wire connector
D. Green (or bare) ground wire

E. Home power supply cable or power cord accessory kit

F. UL Listed or CSA Approved 12 " strain relief

G. Green ground screw

1. Use UL Listed wire connectors and connect white wires (A) together.
2. Use UL Listed wire connectors and connect black wires (B) together.

WARNING

Fire Hazard

Electrically ground the blower.

Use copper wire.

Connect ground wire to green ground screw in terminal box.

Failure to do so can result in death, fire, or electrical shock.

1. Connect green (or bare) ground wire from power supply to green ground screw in terminal box and securely tighten.
2. Install terminal box cover.
3. Reconnect power.

Option 2 - Power Cord Kit Installations

For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the "Accessories" section for information on ordering.

NOTE: Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

Complete Installation

1. Replace grease filter if removed. See the "Range Hood Care" section.
2. Check the operation of the range hood fan and light. See the "Range Hood Use" section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors, and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the front panel of the range hood.

A B C D

A. Blower and light touch control
B. LED lamps
C. Filter retainer
D. Grease filter

Range Hood Controls

ABCD ON/OFF ON/OFF Med High

A. Light On/Off button
B. Blower On/Off and minimum speed button
C. Blower medium speed button
D. Blower maximum speed button

Operating the light

The Light On/Off button controls both lights. Press once for On and again for Off.

Operating the blower

The blower buttons turn the blower on/off and control the blower speed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired blower speed button.

Press the blower On/Off button a second time to turn the blower off.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filter before operating hood.

Exterior Surfaces

IMPORTANT: Do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing creme, steel wool, gritty washcloths, or paper towels.

To avoid damage to the stainless steel, do not use cleaners that contain chlorine.

Cleaning Method:

■Rub in direction of grain to avoid scratching or damaging the surface.
■For stainless steel models, Stainless Steel Cleaner and Polish Part Number 31462A (not included): See the "Assistance or Service" section to order.
■Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.
■Glass cleaner to remove fingerprints.

Metal Grease Filter

For vented installations:

1. Remove each filter by pulling the spring-release handle and then pulling down the filter.

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

A. Spring-release handle

1. Wash metal filter as needed in dishwasher or hot detergent solution.
2. Reinstall the filter by making sure the spring-release handles are toward the front. Insert aluminum filter into upper track.
3. Push in spring-release handle.
4. Push up on metal filter and release handle to latch into place.
5. Repeat steps 1 through 5 for the other filter.

For non-vented (recirculating) installations:

The charcoal filter is not washable. It should last up to 6 months with normal use. Replace with Charcoal Filter Kit. See the "Assistance or Service" section for information on ordering.

Replacing an LED Lamp

The LED lights are replaceable by a service technician only. See the "Warranty" section for service contact information.

WIRING DIAGRAM

Mechanical Push Buttons (4 button 3 Speeds) GN RD WH BK YL RD WH 10uF LN BR BU MN YL/GN GN RD WH YL BR BU M LED LED BU BK YL BK WH BU YL BR RD BK RD BK OUTPUT:700mA (2-15 VDC) + INPUT: 120 VAC LED DRIVER N L GND

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll-free:

1-800-253-1301 or visit our website at www.whirlpool.com.

Our consultants provide assistance with:

■Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to Whirlpool

Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll-free: 1-800-807-6777 or visit our webpage www.whirlpool.ca.

Our consultants provide assistance with:

■Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local Whirlpool dealers.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Stainless Steel Cleaner and Polish

Order Part Number 31462A

Charcoal Filter Kit

Order Part Number W10905733

Power Cord Kit

Order Part Number W10613691

7" (17.8 cm) Round Damper

Order Part Number W10355451

7" Round Damper Vent Mounting Plate

Order Part Number W10388168

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

www.whirlpool.com/product_help

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SÉCURITÉ DE LA HOTTE

J A B C H G F D E

A. 8^25/64 " (21,3 cm)
B. Ligne centrale
C. 1" (2,54 cm)
D. 8^31/32 " (22,8 cm)
E. 19^17/16 " (50 cm)
F. 12 " (3,8 cm)
G. 24" (61 cm)
H. ^55/64 " (2,2 cm)
I. 6^19/_54 " (16 cm)
J. 2" (5 cm)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Architectural line drawing of a window frame with labeled corner A (no text or symbols beyond label)

A. Axe central

7/8" (2,2 cm) A Axe central

A. 8 ^3/8 " (21,3 cm)

Technical diagram of a mechanical device with labeled components A through E, showing internal components and directional arrows.

A. Clapet anti-reflux circulaire de 7" (17,8 cm) (Voir la section "Accessoires")

Pure diagram of a rectangular plate with curved arrows indicating rotation or force direction (no text or symbols)

Pure diagram of a rectangular plate with curved arrows indicating rotation or force direction (no text or symbols)

A D D D D

Line drawing of a hand inserting a small component into a wall, with an inset showing a close-up of a device (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a component (no text or symbols present)

Line drawing of a cabinet with doors and a side panel, no text or symbols present

Line drawing of a cabinet or rack with handle and frame, no text or symbols present

Technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)

A. Vis no 8-18 x ^5 / _8 " (4,2 mm x 16 mm)

Technical line drawing of a mechanical device with labeled components A and B, showing internal components and alignment indicators (no text or symbols beyond labels)

Technical diagram of a mechanical or electrical component with labeled parts A through G

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

ASSISTANCE OU SERVICE
