Montage / Instalación / Instalação / Installation / Installation / Kurulum / Montaz / Instalace / Inštalácia / Instalare / Installazione / Installatie

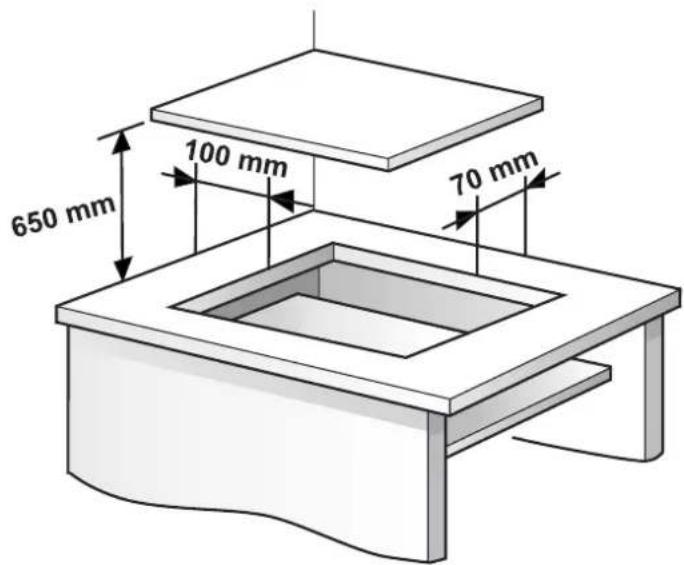

Mindestabstände / Distancias mínimas / Distâncias mínimas / Minimum distances / Distances minimales / Minimum mesafeler / Minimalne odległości / Minimální vzdálenosti / Minimálne vzdialenosti / Distanje minime/ Distanze minime / Minimumafstanden /

650 mm 100 mm 70 mm

SILICON

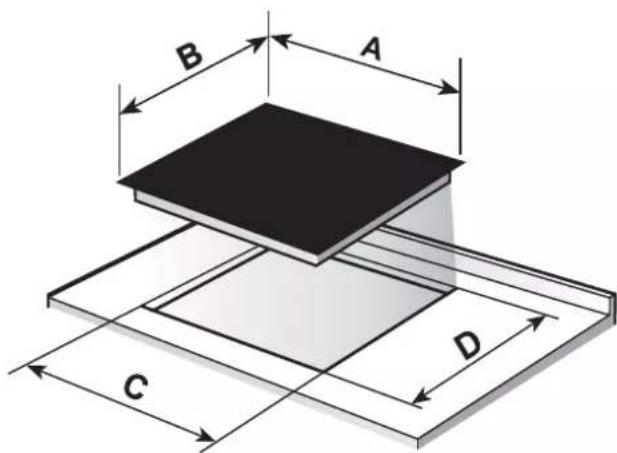

B A C D

Illustration showing three cooking pots with checkmark and cross symbols below each, indicating a cooking process.

Two kitchen cookware items: a double boiler with a circular vent and a coiled pan (no text or symbols visible)

Two black plastic kitchen utensils: a rectangular bowl and a rectangular tray (no text or symbols visible)

Two black frying panes with metallic surfaces, one showing a mesh grille and the other a perforated lid (no text or symbols visible)

Illustration of a stainless steel cooking pan with a handle and arrow indicators (no text or symbols)

Two black plastic kitchen utensils: a rectangular bowl and a rectangular tray with ribbed contents (no text or symbols visible)

Two black frying panes with visible contents, one showing a circular grille and the other a perforated lid (no text or symbols)

Illustration of three cooking pots with checkmark and cross symbols below each, likely indicating cooking status or inspection.

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

Two black plastic kitchen utensils: a rectangular tray and a rectangular tray with side handles (no text or symbols visible)

Two black frying panes with visible heat sinks and side handles, one showing a circular lid (no text or symbols)

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

⚠ Warning. If the ceramic glass breaks or cracks, immediately unplu the stovetop to avoid electr shocks.

⚠ This appliance is not designed to work with an external timer (not built into the appliance) or a separate remote control system.

⚠️Do not steam clean this device.

⚠ Warning. T e device and its accessible parts may heat up during operation. Avoid touching the heating elements. Children younger than 8 years old must stay away from the hob unless they are permanently supervised.

⚠ This device may solely be used by children 8 years old or older, people with impaired physical, sensory or mental abilities, or those who lack experience and knowledge, ONLY

when supervised or if they have been given adequate instruction on the use of the device and understand the dangers its use involves. User cleaning and maintenance may not be done by unsupervised children.

e! Children must not play with the device.

⚠ Warning. It is dangerous to cook with fat or oil without being present, as these may catch fire. NEVER try to extinguish a fire with water! In this event disconnect the device and cover the flames with a lid, a plate or a blanket.

⚠ Do not store any object on the cooking areas of the induction hob. Prevent possible fire hazards.

⚠ The induction generator complies with current EU legislation We however recommend that anyone fitted with

a device such as a pacemaker should refer to their physician, or if in doubt abstain from using the induction areas.

⚠ Metal object such as knives, forks, spoons and lids may not be placed on the surface of the hob as they may overheat.

⚠️ After use always disconnect the hot plate, do not simply remove the pot or pan. Otherwise a malfunction may occur if inadvertently another pot or pan is placed on it within the detection period. Prevent possible accidents!

⚠️ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

WARNING: Use only stovetop protectors designed by appliance manufacturer or indicated by the

EN

manufacturer in the instructions for use as adequate or stovetop protectors incorporated into the device. The use of inadequate protectors can cause accidents.

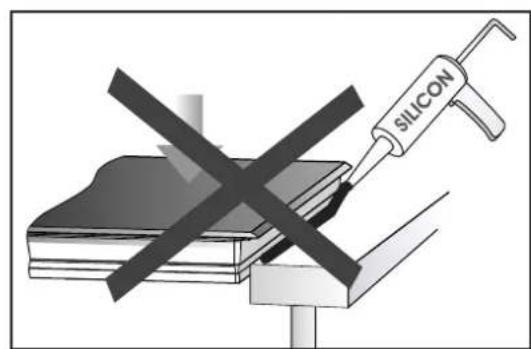

If you wish to install furniture or a cutlery drawer under the hob, a separation board must be fitted between the two. Accidental contact with the hot surface of the device's housing is thus prevented.

The board must be fitted 18 mm beneath the under part of the stovetop.

Electrical connection

⚠️ Unusually high power surges can damage the control system (like with any electrical appliance).

It is advised to refrain from using the induction hob during the pyrolytic cleaning function in the case of pyrolytic ovens, due to the high temperature that this type of device attains.

⚠ It is necessary to allow the appliance disconnection after installation. Disconnection devices must be incorporated to the fixed electrical installation, according to the installation regulations.

Installation

Installation with cutlery drawer

Before you connect the stovetop to the mains, check that the voltage and frequency match those specified on the stovetop nameplate, which is underneath it, and on the Guarantee Sheet, or if applicable on the technical data sheet, which you must keep together with this manual throughout the product's service life.

Ensure that the inlet cable does not come into contact with the induction top housing or the oven housing, if it is installed in the same unit.

Warning:

The electrical connection must be properly grounded, following current legislation, otherwise the induction hob may malfunction.

e! Only the Küppersbusch official technical service can handle or repair the appliance, including replacement of the power cable.

Before disconnecting the hob form the mains, we recommend switching off the cutoff switch and waiting for approximately 23 seconds before disconnecting from the mains. This time is required to allow for the complete discharge of the electronic circuitry and thus preclude the possibility of electric shock from the cable terminals.

Keep the Guarantee

Certificate or the technical data sheet together with the instructions manual throughout the product's service life. These contain important technical information.

About induction

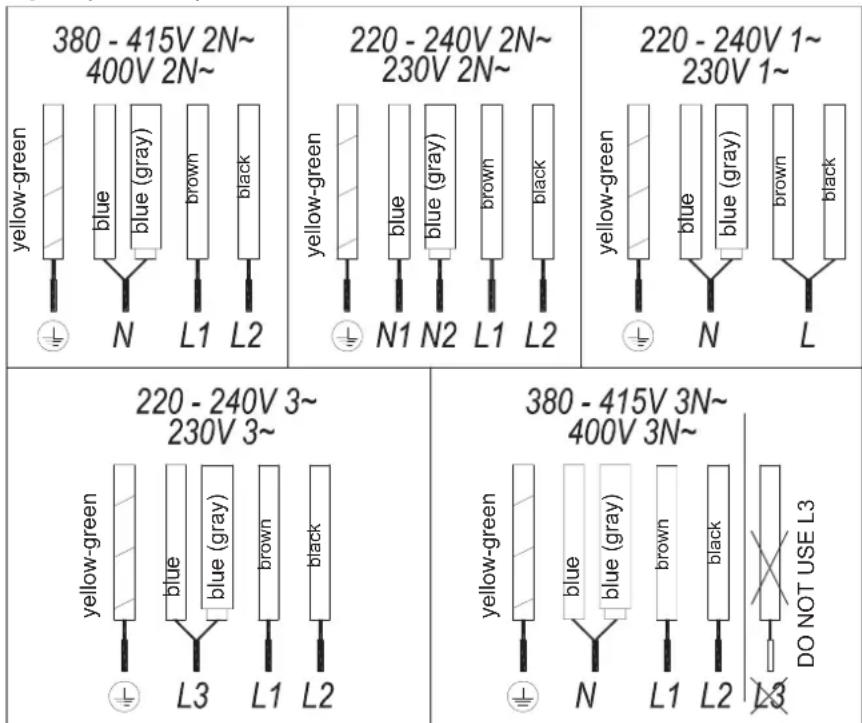

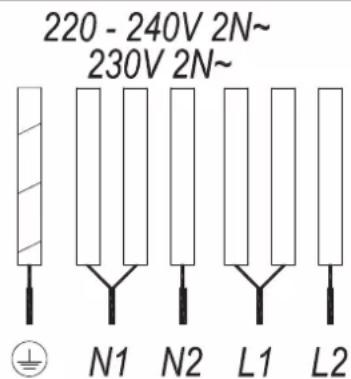

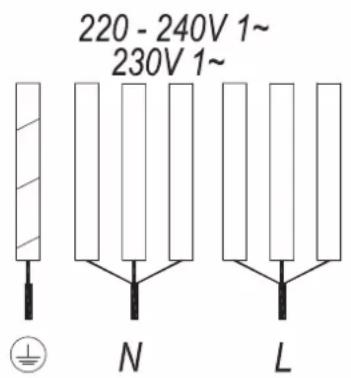

Fig.2a (5 WIRES)

Advantages

With an induction hob, the heat is transmitted directly to the pan.

This has a number of advantages:

-Saves time.

-Saves energy.

-Easy to clean as if the food comes into contact with the glass plate, it does not burn easily.

-Improved energy control. The energy is transferred to the pan as soon as the power controls are pressed. In addition, as soon as the pan is removed from the cooking zone, the power supply stops. It is not

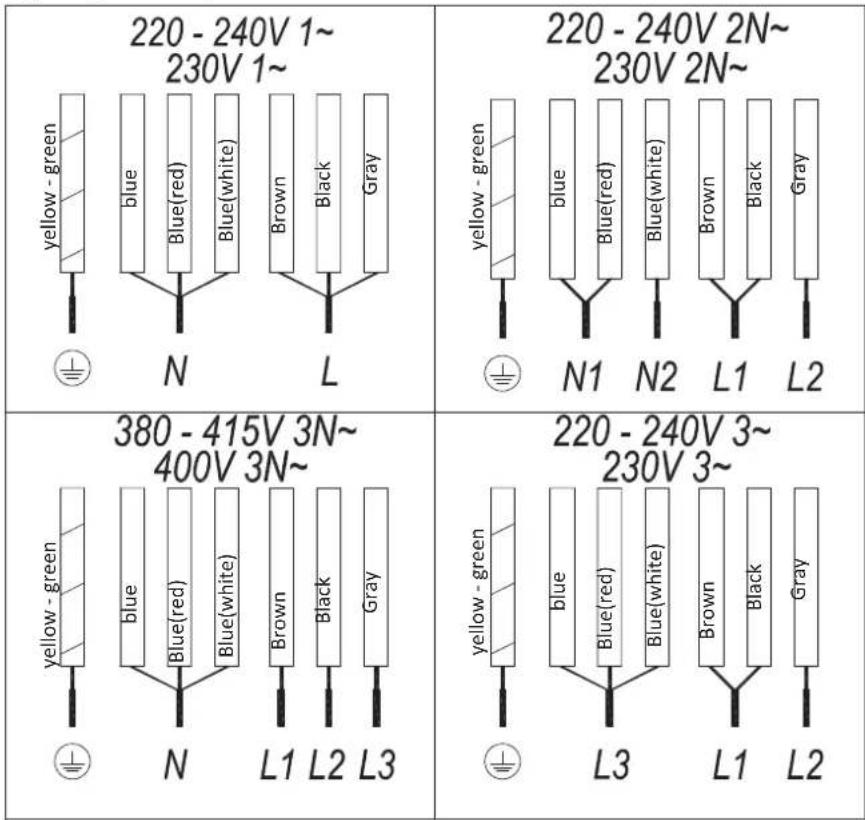

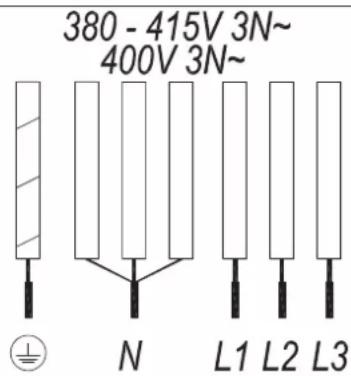

Fig. 2b (7 WIRES)

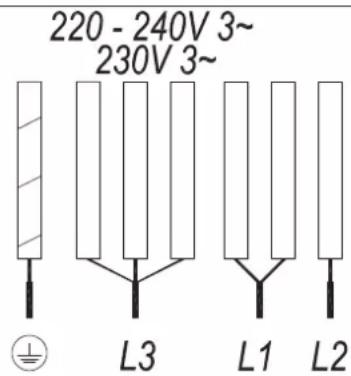

220 - 240V 1~ 230V 1~ yellow - green blue Blue(red) Blue(white) Brown Black Gray N L 220 - 240V 2N~ 230V 2N~ yellow - green blue Blue(red) Blue(white) Brown Black Gray N1 N2 L1 L2 380 - 415V 3N~ 400V 3N~ yellow - green blue Blue(red) Blue(white) Brown Black Gray N L1 L2 L3 220 - 240V 3~ 230V 3~ yellow - green blue Blue(red) Blue(white) Brown Black Gray L3 L1 L2

not heat up correctly.

Fig. 5

Two black frying panes with metallic surfaces, one showing a circular lid and the other a perforated lid (no text or symbols visible)

Influence of the base of the pans

The type of base used on the pan may affect the uniformity and results of the cooking. Pans with a stainless steel "sandwich" base use materials that assist the uniform distribution and diffusion of the heat, resulting in savings in time and energy

The base of the pan must be completely flat, thus ensuring a uniform power supply (see fig.6).

Fig. 6

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

necessary to switch the power off first. Fig. 3

Pans

Only ferromagnetic pans are suitable for use with an induction hob.

There are several types:

-cast iron, enameled steel, and stainless steel pans specifically for use with induction hobs.

We do not recommend the use of diffuser plates or materials such as fine steel, aluminum, glass, copper, or clay.

Each cooking zone has a minimum pan detection time. This depends on the material and the ferromagnetic diameter of the base of the pan. Therefore it is essential to use the cooking zone that best matches the diameter of the base of the pan to be used.

If the pan is not detected on the selected cooking zone, try using the next smallest zone.

When the Flex Zone is used as a single cooking zone, larger pans suitable for this type of zone can be used (see fig. 3).

Two black plastic kitchen utensils: a rectangular bowl and a rectangular tray with ribbed handle (no text or symbols visible)

Some pans without a complete ferromagnetic base are sold as suitable for induction (see fig.4). In these pans, only the ferromagne base is heated. Consequently the heat is not evenly distributed across the base of the pan. This may mean that the non-ferromagnetic part of the base of the pan does not reach the right cooking temperature.

Fig. 4

Two kitchen utensils: a black rectangular pot with a circular vent and a black frying pan with concentric rings (no text or symbols visible)

⚠️ Never heat empty pans, or use pans with a thin base, as these may heat up quickly without allowing time for the automatic disconnection function of the cooker to come into operation.

IMPORTANT RECOMMENDATIONS:

Use vessels with the same base diameter as that of the cooking zone. In the cooking zones closest to the control panel, always keep the vessels within the cooking marks indicated on the glass surface and use vessels of the same or smaller diameter to these. This will help to prevent overheating in the control zone.

Use the rear cooking zones for intensive use of the appliance. This will help to prevent overheating of the control panel.

Other pans, with aluminum insert in the base have a smaller area of ferromagnetic material (see fig.5). In this case, it may be difficult even impossible to detect the pan. In addition, the power supplied may be lower and, consequently, the pan will

Do not allow the vessels to invade the control panel zone, especially during cooking.

EN

Use and Maintenance

User instructions of the Touch Control

HANDLING ELEMENTS (fig. 1)

① General on/off sensor.
② Cursor slider for controlling power.
③ Power and/or residual heat indicator*.
④ Decimal dot of power and/of residual heat indicator.
⑤ Direct access to "Power" function.
⑥ Activation sensor for "Block" function.
⑦ Pilot indicator light “Block” function activated*.
⑧ Activation sensor for "Stop&Go" function.
⑨ Pilot indicator light “Stop&Go” function activated*.
⑩ "Minus" sensor for timer.
⑪ "Plus" sensor for timer.
⑫ Timer indicator.
⑬ Decimal dot of the timer.*
14 Activation sensor for "Flex Zone" function ;(depending on model).
⑮ Activation sensor for “Chef” functions; (depending on model).
⑯ Pilot indicator light “Keep Warm” function activated*; (depending on model).
⑰ Pilot indicator light" Melting" function activated*, (depending on model).
⑱ Pilot indicator light “Simmering” function activated*; (depending on model).
⑲ Pilot indicator light "Quick Boiling" function activated*; (depending on model).
20 Pilot indicator light "Slide Cooking" function activated*; (depending on model).
②1 Pilot indicator light "Grilling" function activated* (depending on model).
22 Pilot indicator light "Pan Frying" function activated* (depending on model).

23 Pilot indicator light "Deep Frying" function activated* (depending on model).
24 Pilot indicator light "Confit" function activated*; (depending on model).
25 Pilot indicator light "Poaching" function activated*; (depending on model).

* Only visible while running.

The manoeuvres are done by means of the touch keys. You do not need to exert force on the desired touch key, you only need to touch it with your fingertip to activate the required function

Each action is verified by a beep. Use the cursor slider (2) to adjust power levels (0 - 9) by sliding your finger over it. Sliding towards the right increases the value, whereas sliding towards the left decreases it.

It's also possible to directly select a power level by placing your finger directly on a desired point of the cursor slider (2)

In order to select a plate on these models, directly touch the cursor slider (2).

SWITCHING ON THE DEVICE

1 Touch the On touch key (1) for at least one second. The touch control will become active, a beep will be heard and the indicators (3) will light up displaying a “-”. If any cooking area is hot, the related indicator will flash an H.

If you do not take any action in the next 10 seconds the touch control will switch off automatically.

When the touch control is activated, you can disconnect it at any time by touching the touch button① (1), even if it has been locked (lock function activated). The touch button① (1) always has priority to disconnect the touch control.

ACTIVATING PLATES

Once the Touch Control is activated with sensor ①(1), any plate can be turned on by following these steps:

1 Slide the finger or touch in any position of one of the cursors "slider" (2). The zone has been selected and simultaneously the power level will be set between 0 and 9. That power value will be shown on the corresponding power indicator and its decimal dot (4) will keep light up during 10 seconds.

2 Use the cursor slider (2) to choose a new cooking level between 0 and 9.

As long as the plate is selected, in other words, with the decimal (4) dot light up, its power level can be modified.

TURNING OFF A PLATE

Using the touch slider key (2) lower the power to level 0. The hotplate will switch off.

When a hot plate is switched off an pH will appear in its power indicator (3), if the glass surface of the related cooking area is hot and there is a risk of burns. When the temperature drops, the indicator (3) switches off (if the hob is disconnected), or otherwise a “-” will light up if the hob is still connected.

TURNING ALL PLATES OFF

All plates can be simultaneously disconnected by using the general on/off sensor①(1). All plate indicators (3) will turn off. If the heating zone turned off is hot, its indicator shows an H..

Pan detector

Induction cooking zones have a built-in pan detector. This way, the plate will stop working if there is no pan present or if the pan is not suitable.

The power indicator (3) will show a symbol to designate “there is no pan U” if, while the zone is on, no pan is detected or the pan is not suitable

If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed

on the cooking zone, energy supply will resume at the same power level previously selected.

If a pan is taken off the zone while it is running, the plate will automatically stop supplying energy and it will show the symbol for "there is no pan". When a pan is once again placed on the cooking zone, energy supply will resume at the same power level previously selected.

To once again activate all the beeps that accompany each action, again simultaneously press the touch key (11) and the locking touch key (6) for three seconds. The time indicator (12) will display "On"

Stop&Go Function

performance of some of the others may be affected, reducing its power to a lower level, in which case this will be displayed on its indicator (3).

Deactivation of Power Function, before its working time passes, can be done either by means of touching cursor "slider" modifying its power level or repeating step 3.

When finished, turn off the cooking zone by using the touch controls. Otherwise an undesired operation could occur if a pan is accidentally placed on the cooking zone during the three minutes. Avoid possible accidents!

Block Function

With the Block Function, you can block the other sensors, except for the on/off sensor①(1), in order to avoid undesired operations. This function is useful as a childproof safety.

To activate this function, touch sensor 🔒 (6) for at least one second. Once you have done so, the pilot (7) turns on indicating that the control panel is blocked. To deactivate the function, simply touch sensor 🔒 (6) again.

If the on/off sensor ① (1) is used to turn off the appliance while the block function is activated, it won't be possible to turn the cooktop on again until it unblocks.

Silencer of the beep

When the hob is on, if one presses the touch key + (11) and the locking touch key 🔒 (6) simultaneously for three seconds, the beep that accompanies each action will be deactivated. The time indicator (12) will display "OF".

This deactivation will not be applied to all the functions, as for example the beep for on/off, the ending of the timer or the locking/unlocking of the touch keys always remain activated.

This function puts the cooking process on pause. The timer will also be paused if it is activated.

Activating the Stop function.

Touch the Stop sensor ||(8) for one second. The pilot (9) lights up and the power indicators will show the symbol || to indicate cooking has been paused.

Deactivating the Stop function

Touch Stop&Go sensor || (8) again. The pilot (9) turns off and cooking resumes under the same power and timer settings that were established before the pause.

Power Function

This function supplies “extra” power to the plate, above the nominal value. Said power depends on the size of the plate, with the possibility of reaching the maximum value permitted by the generator.

1 Slide the finger above the corresponding cursor slider (2) until the power indicator (3) shows "9" and keep the finger pressed for one second, or touch directly on "P" and keep pressed the finger for one second.

2 The power level indicator (3) will show the symbol P, and the plate will start to supply extra power. The Power function has a maximum duration specified in Table 1. After this time, the power level will automatically adjust to 9. A beep sounds.

On activating the Power function in one hotplate, it is possible that the

Timer Function (countdown clock)

This function facilitates cooking given that you don't have to be present: You can set a timer for a plate, and it will turn off once the desired time is up.

For these e mod els, you can simultaneously program each plate for durations ranging from 1 to 99 minutes.

Setting a timer on a plate.

Once the power level is set on the desired zone, and while the decimal dot of the zone keeps on, the zone will be able to be timed.

To that end:

1 Touch sensor —(10) or (1). Timer Indicator (12) will show "00" and corresponding zone indicator (3) will show the symbol blinking alternately with its current power level.

2 Immediately afterwards set a cooking time between 1 and 99 minutes, using the sensors—(10) ó + (11). With the first one the value will start at 60, whereas with the second it will start at 01. By keeping sensors — (10) ó + (11) pressed, the value will be restored to 00. When there is less than one minute left, the clock will begin to count down in seconds.

1. When the timer indicator (12) stops flashing, it will start to count down the time automatically. The indicator (3) relating to the timed hotplate will alternately display the selected power level and the symbol L.

EN

Once the selected cooking time has elapsed, the heating zone being timed is turned off and the clock emits series of beeps for several seconds. To turn off the audible signal, touch any sensor. The timer indicator (12) will display a flashing 00 beside the decimal dot (4) of the selected S zone. If the heating zone turned off is a hot, its power indicator (3) will display M alternately the H symbol and a “-”.

If you wish to time another hotplate at the same time, repeat steps 1 to 3.

If one or more zones are already the timed, the timer indicator (12) will show by default the shortest remaining time to finish, showing a "t" on the related zone. Rest of timed zones will show on their corresponding indicator zones the decimal dot blinking. When 2 cursor "slider" of another timed zone is pressed, the timer will show the remaining time of that zone for a few seconds and its indicator will show its power level and the "t" alternately.

Changing the programmed time.

For modifying programmed time, cursor "slider" (2) of timed zone has to be pressed. Then it will be possible to read and modify the time.

Through sensors — (10) and + (11), you can modify the programmed time.

Disconnecting the clock

If you wish to stop the clock before the programmed time is up, this can be done at any time by simply adjusting its value to ‘--’.

1 Select the desired plate.

2 Adjust the value of the clock to "00" by using the sensor —(10). The clock is cancelled. This can also be done more quickly by pushing the "sensors —(10) and + (11) at the

Fig. 7

same time.

Power Management function (depending on model)

of Some models are equipped with a power limiting function (Power Management). This function allows the total power generated by the hob to be set to different values selected by the user. To do this, for the first minute after having connected the hob to the power supply, it is possible to access the power limiting menu.

Press the + (11) touch key for three seconds. The letter PL will appear on the timer indicator (12)

2 Press the locking touch key (6). The different power values to which the hob can be limited will appear and these can be changed using the + (11) and - (10) sensors.

3 Once the value has been selected, once again press the locking touch key 🔒(6). The hob will be limited to the chosen power value.

If you want to change the value again, you must unplug the hob and plug it in again after a few seconds. Thus you will again be able to enter the power limiting menu.

Every time the power level of a hotplate is changed, the power limiter will calculate the total power the hob is generating. If you have reached the total power limit, the touch control will not allow you to increase the power level of that hotplate. The hob will beep and the power indicator (3) will blink at the level that cannot be exceeded. If you wish to exceed that value, you must lower the power of the other hotplates. Sometimes it will not be enough to lower another by a single level as this depends on the power of

each hotplate and the level it is set at. It is possible that to raise the level of a large hotplate that of several smaller ones must be turned down.

If you use the quick switch-on at maximum power function and the said value is above the value set by the limit, the hotplate will be set to the maximum possible level. The hob will beep and the said power value will blink twice on the indicator (3).

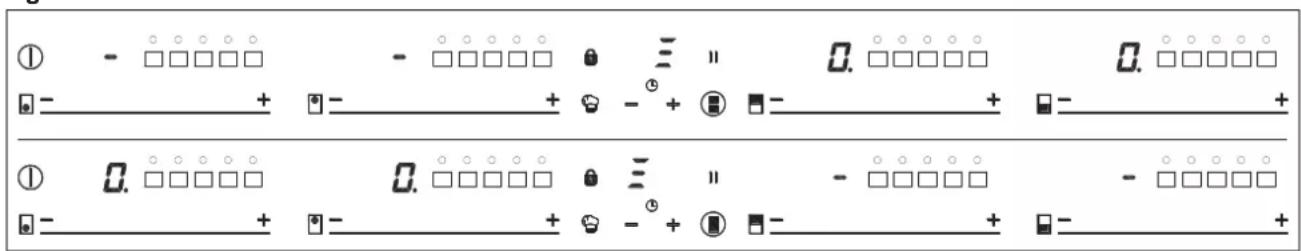

Special functions: CHEF (depending on the model)

These functions have pre-allocated power levels to make cooking easier, obtaining excellent results as the temperature of the pan is controlled continuously by sensors. When the target temperature for the function has been reached, it is automatically maintained without needing to change the power level.

The Chef functions operate correctly with pans with the same ferromagnetic area on the base of the pan as the area of the cooking zone. In addition, for high temperature functions (above 100^ C), pans must have a flat, even base (preferably "sandwich" type) as shown in figure 3.

Fig. 3

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

To ensure the correct operation of these functions, it is important that the pan and the cooking zone are not hot at the start of the process.

Further information about suitable pans (saucepans, frying pans, grills, etc.) is given on the Küppersbusch web page.

The Touch Control has special feature on the power indicator (3). that help the user to cook through the

choosing a different special function.

CHEF sensor (15). These functions You can override the function at are available depending on the model. any time by turning off the plate by changing the power level or by To activate a special feature on a zone choosing a different special function.

QUICK BOILING FUNCTION (depending on the model)

1 First it should be selected; and the decimal point (4) will be active on the power indicator (3).

MELTING FUNCTION (depending on the model)

This function enables the automatic boiling control, which is a great help for cooking pasta, rice, eggs, boil some food, etc. It is available only in zones where the 📂 symbol appears.

2 Now click on the CHEF sensor 📋 (15). The sequentially successive presses will go over all the CHEF functions available in each zone one by one. These functions will show the activation with the corresponding leds (16), (17), (18), (19), (20), (21), (22), (23), (24) and (25).

This function maintains a low temperature in the cooking zone. Ideal for defrosting food or for slowly melting other food types as chocolate, butter, etc.

Conditions of the container

For a proper operation of the Quick Boiling function, you need to use a container that meets the following preconditions:

If you want to cancel a special active function at any time, you should touch the "slider" cursor sensor (2) of the related zone to select it. The decimal point (4) of the power indicator (3) will light up. Then, touch again "slider" (2) cursor to set a new power level or to power off the zone, or you can choose a different special function touching again on the CHEF sensor 🏠 (15).

To activate it, select the plate, press on the CHEF sensor (15) until the led (17) located on the icon lights up. Once the function activated, the symbol R will appear on the power indicator (3).

- Bottom size as close as possible to the diameter of the plate.

-WITHOUT CAP.

e. Filled to over half its capacity at room temperature water (never use warmed or hot water).

KEEP WARM FUNCTION (depending on the model)

You can override the function at any time by turning off the plate, the changing the power level or by choosing a different special function.

Failure to comply with these conditions will distort the proper control of boiling.

This function automatically sets an appropriate power level to keep the cooked food hot.

^1 SIMMERING FUNCTION (depending on the model)

WARNING: do not use this feature for a different cooking purpose other than boiling water. Never use oil, it may lead to overheat and generate a flame.

To activate it, select the plate, press on the CHEF sensor (15) until the led (16) located on the icon lights up. Once the function is activated, the symbol will appear

This feature allows you to keep simmered.

After the food is boiled, enable the plate by selecting it, and press CHEF sensor (15) until the led (18) located on the icon lights up. Once the function is activated, the symbol and will appear on the power indicator (3).

You can override the function at any time by turning off the plate by changing the power level or by

Activation of the function

To activate the function, select the plate, and press the CHEF sensor 📋 (15) until the led (19) located on the icon 🌐 lights up.

EN

segments (see fig. 5) indicating that or sautéing.

Once the feature is activated, the you can now place the vessel.

sign R will appear on both the power indicator (3) and the timer indicator (12); a moving segment will appear, indicating that the cooking is under system's control.

Once the vessel is placed, the power level will appear automatically in the power indicators (3): for zone #1, the power level is 3, for zone #2 the power level is 5 and for zone #3 the power level is 9 (see fig.4 and 6).

To deactivate this function, you must touch the "slider" cursor (2) in the position "0".

To activate it, select the plate, and press on the CHEF sensor (15), until the led (22) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign R will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

When the system detects that it is about to start boiling, a first beep will be heard. Take this opportunity to prepare your food for boiling or baking as desired.

Fig.4

After 30 seconds, a second beep will be heard; if you have not already done so, it's time to pour the food in the pan.

After the second beep, the system will activate the timer and stopwatch for you so that you can control how long the food is to be boiled.

30 seconds after activating the stopwatch, a third beep will sound to warn that from that moment on, the system will decrease the power supplied in order to maintain a gentle and continuous boil. The timer will remain active until the end of cooking.

If desired, you can disable the timer and set a time for the countdown and automatic shutdown of the plate (see section Timer Function).

GRILLING FUNCTION (depending on the model)

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

FUNCTION DEEP FRYING (depending on the model)

This function sets an automatic power control suitable for frying with plenty of oil.

To activate it, select the plate, and press on the CHEF sensor 📁(15), until the led (23) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign R will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

Deactivation of the function

This function sets an automatic power control suitable for cooking on the grill

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

To activate it, select the plate, a press on the CHEF sensor 📋(15),

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

SLIDE COOKING FUNCTION (depending on the model)

until the led (21) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign R will appear on the power indicator (3) and a beep will be heard, indicating to the user that he must add the food.

CONFIT FUNCTION (depending on the model)

This function sets an automatic power control suitable for confit.

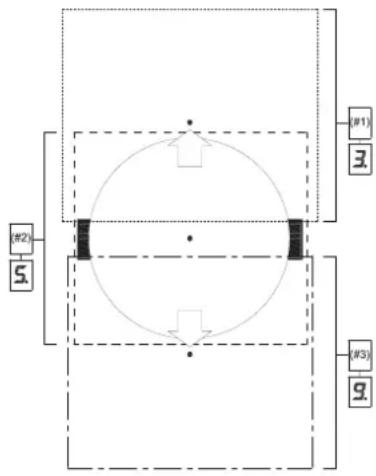

This function allows to divide the flexible zone into three areas (see fig.4) and activates a predefined power configuration. It will allow slide the vessel from one area to another, to cook with the power assigned to each zone.

To activate it, you must first activate the "Flex Zone" function (see section "Flex Zone function").

You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

To activate it, select the plate, and press on the CHEF sensor (15), until the led (24) located on the icon lights up. Once the function is activated, on the power indicator (3) a moving segment will appear indicating that the cooking is in the preheating phase of the vessel. Once this phase is finished, the sign

After, press on the CHEF sensor (15), until the leds (20) located on the

PAN FRYING FUNCTION (depending on the model)

will appear on the power indicator (3) and a beep will be heard, indicating to

icon lights up. When doing so, the power indicators (3) will show three

This function sets an automatic power control suitable for frying with little oil

the user that he must be add the food. After the "Flex Zone" is selected, you can assign the power by touching any of the "sliders" cursors (2) of one of the You can override the function at any time by turning off the plate by changing the power level or by choosing a different special function.

dinked zone. The power level and its variations are displayed simultaneously on the power indicators (3) of both zones.

POACHING FUNCTION (depending on the model)

To disable this feature, you should touch the sensor(14) again. Also, when the function is disabled, the levels of powers and functions assigned to the related zones are cleared.

Suggestions and recommendations

Use pots or pans with thick, completely flat bottoms.

* Do not slide pots and pans over the glass because they could scratch it. Although the glass can take knocks from large pots and pans without sharp edges, try not to knock it.

* To avoid damaging the ceramic glass surface, do not drag pots and pans over the glass and keep the undersides of them clean and in good condition.
* Recommended diameters of the pot bottom (see "Technical Data Sheet" supplied with the product).

Try not to spill sugar or products containing sugar on the glass as while the surface is hot these could damage it.

Safety switch off function

This function sets an automatic power control suitable for frying food at medium temperature. Ideal for frying potatoes, in the preparation of the Spanish omelette.

To activate it, select the hob, and successively press the CHEF sensor

(15), until the led (25) above the

icon lights up. Once the function is activated, a moving segment will appear on the power indicator (3), indicating that the system is in the preheating phase of the container. Once this phase is finished, a will appear on the power indicator (3) and an acoustic signal will sound indicating that the user must add food.

You can override the function at any time by turning off the hob, modifying the power level, or choosing a different special function.

If due to an error one or several heating zones do not switch off, the appliance will be automatically disconnected after a set amount of time (see table 1).

Table 1

Selected power level	MAXIMUN OPERATING TIME (in hours)
0	0
1	8
2	8
3	5
4	4
5	4
6	3
7	2
8	2
9	1
P	10 or 5 minutes, readjusts to level 9 (depending on model)

Flex Zone function (depending on the model)

Through this function, it is possible to enable two cooking zones work together, and to select a power level and to activate the timer function for both zones.

To activate this function, press the sensor (14). By doing so, the decimal points (4) of the linked plates will light and the value "0" will be shown on the power indicators (3). The clock timer indicator (12) will show three segments indicating the activated zones. In case your model has several zones with “Flex Zone”, you can select the desired option by pressing the sensor (14) before assigning the power to the chosen zone. You will have a few seconds to perform the next operation otherwise, the function will be disabled automatically.(see fig 7).

When the "safety switch off" function has been triggered, a 0 is displayed if the glass surface temperature is not dangerous for the user or an H if there is a burn risk.

Keep the control panel of the heating areas clean and dry at all times.

In the event of operating problems or incidents not mentioned in this manual, disconnect the appliance and contact the Küppersbusch technical service.

Cleaning and maintenance

To keep the appliance in good condition, clean it using suitable products and implements once it has cooled down. This will make the job easier and avoid the build-up of dirt. Never use harsh cleaning products or tools that could scratch the surface, or steam-operated equipment.

Light dirt not stuck to the surface can be cleaned using a damp cloth and a gentle detergent or warm soapy water. However, for deeper stains or grease use a special cleaner for ceramic hot plates and follow the instructions on the bottle. Dirt that is firmly stuck due to being burned repeatedly can be removed using a scraper with a blade.

Slight tinges of colour are caused by pots and pans with dry grease residue underneath or due to grease between the glass and the pot during cooking. These can be removed using a nickel scourer with water or a special cleaner for ceramic hot plates. Plastic objects, sugar or food containing a lot of sugar that have melted onto the surface must be removed immediately using a scraper.

Metallic sheens are caused by dragging metal pots and pans over

EN

the glass. These can be removed by cleaning thoroughly using a special cleaner for ceramic glass hot plates, although you may need to repeat the cleaning process several times.

Warning:

A pot or pan may become stuck to the glass due to a product having melted between them. Do not try to lift the pot while the heating zone is cold! This could break the glass.

Do not step on the glass or lean on it as it could break and cause injury. Do not use the glass as a surface for placing objects.

Küppersbusch reserves the right to make changes to its manuals that it deems necessary or useful, without affecting the product's essen-tial features.

Environmental considerations

The symbol ■ the product or its packaging means that this product cannot be treated like ordinary household waste. This product must be taken to a recyclin collection point for electrical and electronic appliances. By ensuring that this product is disposed of correctly, you will avoid harming the environment and public health, which could happen if this product is not handled properly. For more detailed information about recycling this product, please contact your local authority, household waste service or the store where you purchased the product.

The packaging materials used are environmentally friendly and can be recycled completely. Plastic components are marked >PE<, >LD<, EPS<, etc. Dispose of packaging materials, like household waste, in your local container.

Fulfillment with Energ Efficiency of the appliance: -Appliance has been tested

according to standard EN 60350-2 and the obtained value, in Wh/Kg, is available in the appliance's rating plate.

Following advices will help you to save energy anytime you cook:

* Use the correct lid for each pot whenever is possible. Cooking without lid uses more energy.
* Use pans with flat bases and appropriate base diameters in order to match size of the cooking zone. Pan manufacturers usually provide top diameter of the pot that is always larger than base diameter. * When water is used for cooking, use little quantities in order to preserve vitamins and minerals of vegetables and set the minimum power level that allows maintaining the cooking. High power level is unnecessary and a waste of energy.
* Use small pots with small quantities of food.

If something does not work

Before calling the technical service, perform the verifications described below.

The appliance does not work:

Ensure that the power cable is plugged in.

The induction zones do not produce heat:

The container is not appropriate (it does not have a ferromagnetic bottom or is too small). Check that the bottom of the container attracts a magnet, or use a larger container.

A humming is heard when starting to cook in the induction zones:

With containers which are not very thick or not of one piece, the humming results from the transmission of energy

directly to the bottom of the container. The humming is not a defect, but if you wish to avoid it anyway, reduce the power level slightly or use a container with a thicker bottom, and/or of one piece.

yThe touch control does not light up despite lighting, does not respond: No heating zone has been selected.

Be sure to select a heating zone before operating it. There is humidity on the sensors, and/or your fingers are wet. Keep the touch control surface and/or your fingers clean and dry. The locking function is activated. Unlock the controls.

The sound of a fan is heard while cooking, which continues even after cooking has ended: The induction zones have a fan to keep the electronics cool. This only operates when the electronic circuits get hot. It stops again when the circuits cool whether the hob is turned on or not.

U

The symbol will appear - on the power indicator of a hotplate:

The induction system does not find a pot or pan on a hotplate or it is of an unsuited type.

The hotplate will switch off and the message C81 or C82 will appear on the indicators:

Excessive temperature in the electronics or on the glass. Wait for a while for the electronics to cool down or remove the pot or pan so that the glass can cool.

C85 appears on the indicator of one of the hotplates:

The pot or pan used is of an unsuited type. Switch off the hob, switch it on again and try with another pot or pan.

The appliance switches off and the message C90 appears on the power indicators (3):

The touch control detects on/off (1) sensor is covered and doesn't allow switching on the cooktop. Remove the possible objects or liquids keeping the touch control surface, clean and dry until the message disappears.

The appliance switches off and the message C91 appears on the power indicators (3):

The touch control detects Stop&Go sensor (6) is covered and doesn't allow to handle the cooktop. Remove the possible objects or liquids keeping the touch control surface, clean and dry, then press twice Stop&Go (6)

sensor for removing the message and return to normal operation.

Top-down view of a black rectangular appliance with a circular vent and side handles (no visible text or symbols)

Fig.2b (7 FILS)

220 - 240V 1~ 230V 1~ N L

220 - 240V 2N~ 230V 2N~ N1 N2 L1 L2

380 - 415V 3N~ 400V 3N~ N L1 L2 L3

220 - 240V 3~ 230V 3~ L3 L1 L2

FR

Two black frying panes with metallic surfaces and handles, one showing a perforated lid (no text or symbols visible)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

Illustration of a stainless steel cooking pan with directional arrows indicating motion (no text or symbols)

Two views of a cooking pan showing top and side views (no text or symbols)

Illustration of three cooking pots with checkmark and cross symbols below each, likely indicating cooking status or inspection.

Two black cooking pots with metallic surfaces, one open and one closed, shown against a white background (no text or symbols visible)

Two black plastic kitchen utensils: a rectangular bowl and a rectangular tray with ribbed handles (no text or symbols visible)

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Two black plastic kitchen utensils: a rectangular tray and a perforated tray (no text or symbols visible)

Top-down view of a black cooking pot with a circular lid and side panel, showing interior and exterior views (no text or symbols)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

Two black frying panes with metallic surfaces, one open and one closed, shown against white background (no text or symbols)

DŮLEŽITÁ DOPORUČENÍ:

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Two black plastic kitchen utensils: a rectangular bowl and a rectangular tray with ribbed contents (no text or symbols visible)

Two views of a cooking pot with a lid and side pan, showing interior and exterior views (no text or symbols)

Obr. 6

Illustration showing three cooking pots with checkmark and cross symbols below each, likely indicating cooking status or inspection.

Two black frying panes with visible side handles and metal surfaces, placed side by side (no text or symbols)

DÔLEŽITÉ ODPORÚČANIA:

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Two kitchen utensils: a square pot with a perforated lid and a black pan with concentric rings (no text or symbols visible)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

Two black frying panes with metallic surfaces, one closed and one with a perforated lid (no text or symbols visible)

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)

Top-down view of a black rectangular appliance with a circular vent and side handles (no text or symbols visible)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

ACCENSIONE DEL DISPOSITIVO

Illustration of a stainless steel cooking pan with a handle and arrow indicators (no text or symbols)

Two black plastic trays: one rectangular and one rectangular, both with handles (no text or symbols visible)

Two views of a cooking pot with a lid and a side view showing concentric rings (no text or symbols)

Two black frying panes with metallic surfaces and handles, one showing a mesh pattern on the lid (no text or symbols visible)

Three identical cooking pots with checkmark and cross symbols below (no text or labels)

HET APPARAAT INSCHAKELEN

1 Raak de On touch toets ① (1)

Illustration of a stainless steel cooking pan with a handle and two arrows pointing to it (no text or symbols)
