USER MANUAL CKV6800.0KSM Küppersbusch

BUILT-IN COFFEE MACHINE

Simple geometric diagram with a black rectangle inside a white rectangle (no text or symbols)

CKV6800.0

Küppersbusch

A A16 A21 A15 A17 A23 A7 A22 A11 A20 A3 A2 A5 A6 A8 A19 I O A9 A1 A13 A18 A10 A12 A4 A14

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

1 0 2

Diagram showing a water dispenser pouring liquid into a refrigerator with an arrow indicating direction of flow or movement.

Diagram of a device with an upward arrow indicating process, showing internal components (no text or symbols)

Line drawing of a portable refrigerator with an inset showing a bucket (no text or symbols)

Diagram of a refrigerator interior showing door, vent, and side panel with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with an arrow pointing to a component, labeled '7' at the bottom (no text or symbols on the device itself)

Simple line drawing of a container being poured into a tank, no text or symbols present

Diagram showing a hand pressing a button on a mechanical component with a power symbol and number 9 labeled

Line drawing of a device casing with a magnified inset showing a prohibition symbol (no text or labels present)

Technical diagram showing a car interior with a dial indicator and numbered component, likely for vehicle or industrial control.

Diagram of a device interior with a highlighted component and two circular features, labeled '12' (no text or symbols on the diagram itself)

Simple line drawing of a coffee maker with a downward arrow indicating compression or lifting process (no text or symbols)

Diagram of a vehicle interior showing intake manifold, exhaust pipe, and gear shift (no text or labels)

Diagram of a mechanical device with an upward arrow indicating direction (no text or symbols present)

Illustration of a hand holding a cloth next to a mechanical component (no text or symbols)

Diagram of a mechanical device inside a cabinet or enclosure, showing internal components and an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a piston mechanism with an arrow indicating direction (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating movement (no text or symbols)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

36

Illustration of a hand holding a tool next to a mechanical component (no text or symbols)

Line drawing of a hand holding a water tap with a faucet, no text or symbols present

Diagram of a device with a cylindrical component inserted into a housing, showing an upward arrow (no text or symbols present)

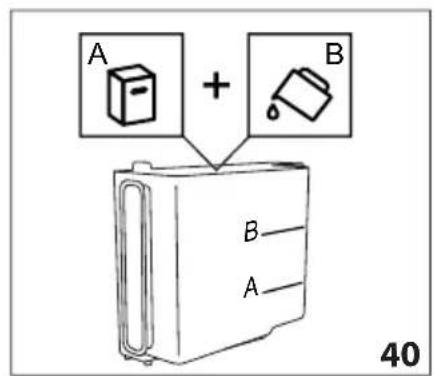

A + B B A 40

MAX 41

Diagram showing a mechanical component with a downward arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical component with a circular dial and handle, showing internal structure and part number 43 (no text or symbols)

Line drawing of a faucet pouring liquid into a stopper (no text or symbols)

Diagram of a container with a labeled component inside, showing liquid level and an arrow indicating direction (no text or symbols beyond 'MAX' and page number 45)

INHALTSVERZEICHNIS

EINFÜHRUNG......8

ADJAMETER 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

Symbols used in these instructions ....32

Letters in brackets....32

Troubleshooting and repairs 32

Instructions for use 32

DESCRIPTION OF THE APPLIANCE 32

Description of the appliance ....32

Description of homepage....32

Description of the accessories 32

Description of milk container 32

PRELIMINARY OPERATIONS ....33

Checking the appliance....33

SETTING UP THE APPLIANCE....33

TURNING THE APPLIANCE ON....33

TURNING THE APPLIANCE OFF 33

MENU SETTINGS....34

Rinsing....34

De-scaling....34

Water filter....34

Beverage settings 34

Set time 34

Auto -start 34

Auto-off (standby) 35

Cup warmer 35

Energy saving....35

Coffee temperature 35

Water hardness 35

Selecting the language 35

Sound notification 35

Light 35

Background....36

Demo mode 36

Default values....36

Statistics 36

MAKING COFFEE 36

Selecting the coffee aroma 36

Selecting the coffee quantity 36

Making coffee using coffee beans 37

Making coffee using pre-ground coffee ....37

Adjusting the coffee mill 37

Tips for a hotter coffee 38

MAKING MILK-BASED HOT DRINKS....38

Filling and attaching the milk container ....38

Adjusting the amount of froth 38

Making milk based hot drinks automatically 38

Cleaning the milk container after use 39

DELIVERING HOT WATER 39

STEAM DELIVERY....39

Tips for using steam to froth the milk....40

Cleaning the hot water/steam spout after use 40

CUSTOMISING BEVERAGES....40

MEMORISING YOUR PERSONAL PROFILE 40

CLEANING....40

Cleaning the machine 40

Cleaning the appliance internal circuit....41

Cleaning the coffee grounds container 41

Cleaning the drip tray 41

Cleaning the inside of the coffee machine ....41

Cleaning the water tank....41

Cleaning the coffee spouts....41

Cleaning the pre-ground coffee funnel .....41

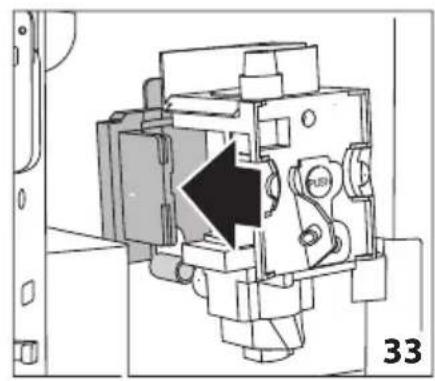

Cleaning the infuser....42

Cleaning the milk container 42

Cleaning the hot water/steam connection nozzle ...... 42

DESCALING 42

PROGRAMMING WATER HARDNESS....43

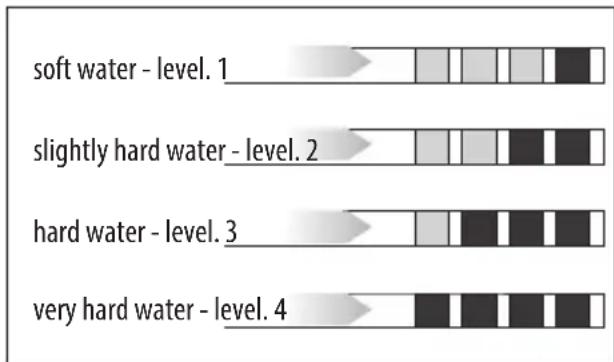

Measuring water hardness....43

Setting water hardness 43

WATER SOFTENER FILTER 44

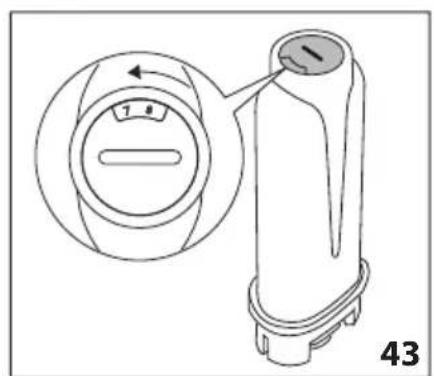

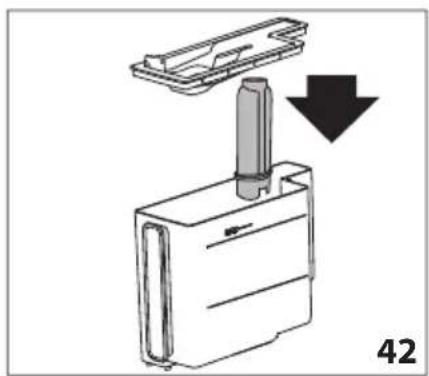

Installing the filter 44

Replacing the filter 44

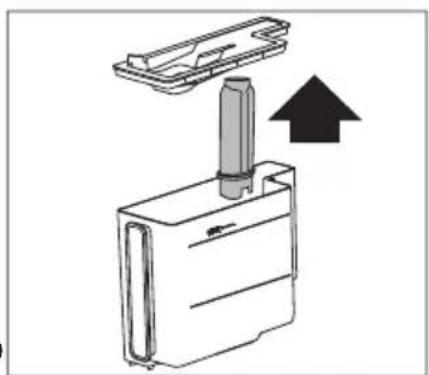

Removing the filter 44

TECHNICAL DATA 45

DISPLAYED MESSAGES 46

TROUBLESHOOTING 51

INTRODUCTION

Symbol used in these Instructions

Important warnings are identified by these symbols. Failure to observe the Instructions for Use could result in electric shock, serious injury, burns, fire or damage to the appliance

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

Please note:

This symbol identifies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the key in the Description of the appliance.

Troubleshooting and repairs

In the event of problems, follow the information given in the sections "Displayed messages" and "Troubleshooting". If this does not resolve the problem, you should consult customer services. For repairs, contact customer services only.

Instructions for use

Read these Instructions for Use carefully before using the appliance.

• Keep these Instructions for Use carefully.
• Failure to follow these Instructions for Use may result in injury or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these Instructions for Use.

Please note: The appliance is equipped with a fan. It activates when necessary.

DESCRIPTION OF THE APPLIANCE

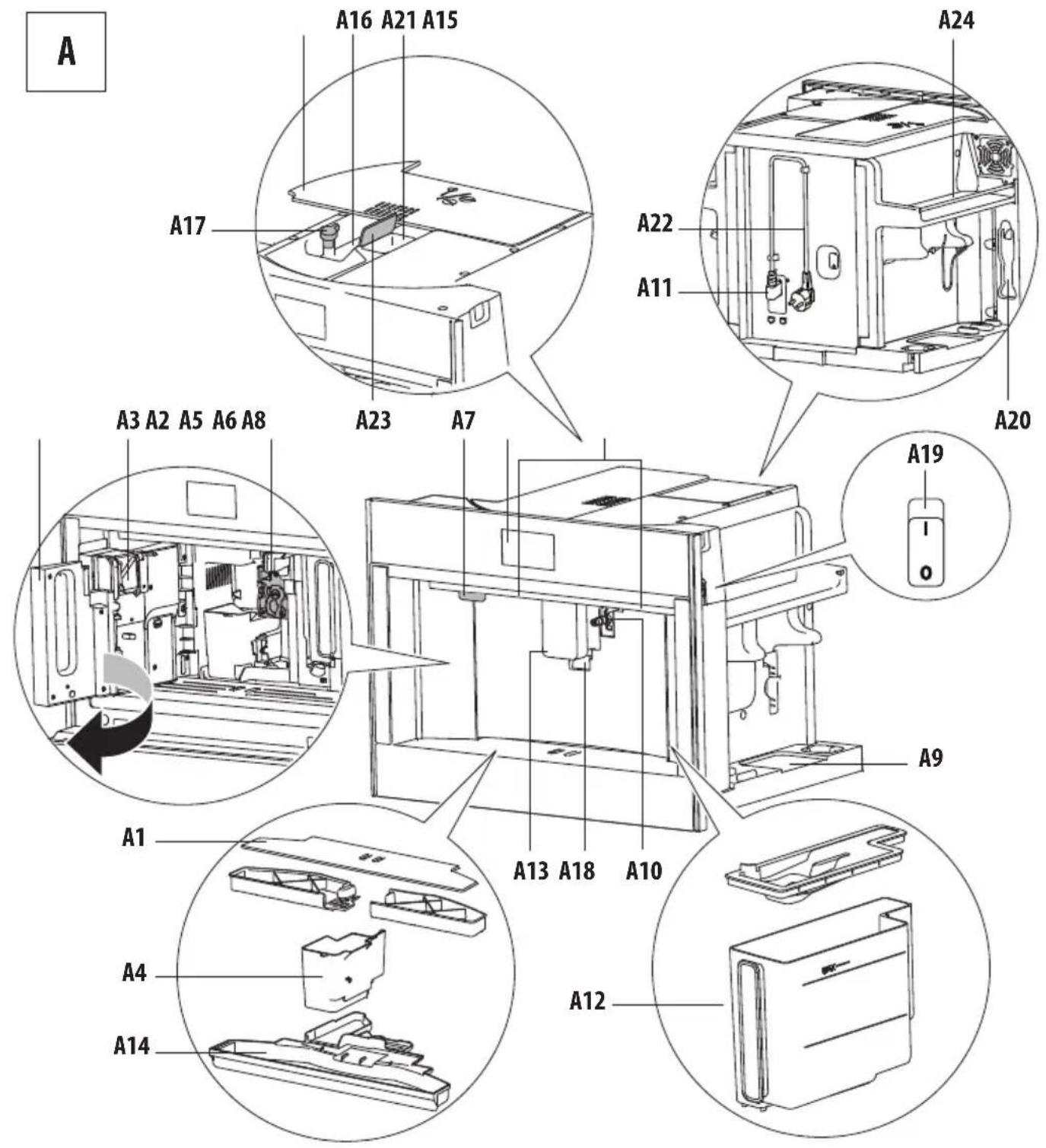

Description of the appliance

(page 3 - A)

A1. Cup holder tray
A2. Service door
A3. Coffee guide
A4. Coffee grounds container

A5. Infuser
A6. Lighting to illuminate interior compartment
A7. On/stand-by button
A8. Control panel
A9. Tray for objects
A10. Hot water/steam connection nozzle
A11. IEC connector
A12. Water tank
A13. Coffee spouts (adjustable height)
A14. Drip tray
A15. Beans container lid
A16. Beans container
A17. Grinding adjustment dial
A18. Lights to illuminate cup
A19. Main ON/OFF switch
A20. Measure holder
A21. Ground coffee funnel
A22. Power cord
A23. Pre-ground door
A24. Cup warming ledge

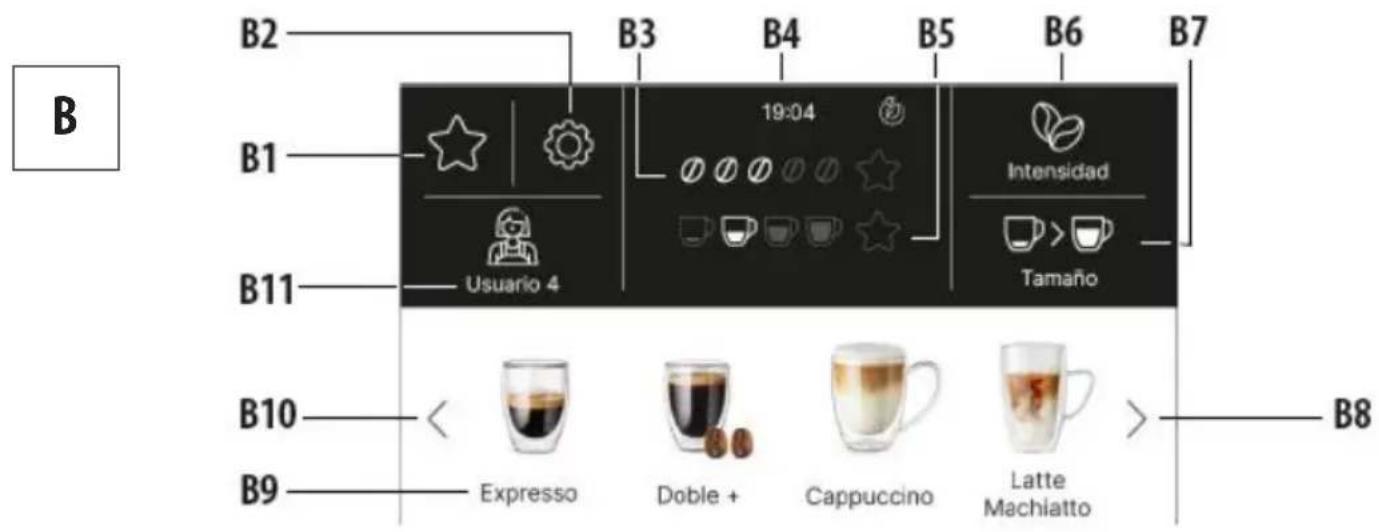

Description of homepage (page 3 - B)

B1. : nu to customise beverages settings
B2. : : ambiance settings menu
B3. Selected aroma
B4. Clock
B5. Selected quantity
B6. : a selection
B7. 100% entry selection
B8. : scroll arrow
B9. Selectable drinks (press on the scrolling arrow to see all the drinks
B10.: scroll arrow
B11. Customisable profiles (see "Memorising your personal profile")

Description of the accessories

(page 3 - C)

C1. "Total Hardness Test" indicator paper
C2. Ground coffee measure
C3. De-scaler
C4. Water softener filter (certain models only)
C5. Cleaning brush
C6. Hot water/steam spout
C7. Connection nozzle cover

Description of the milk container

(page 3 - D)

D1. Froth adjustment and CLEAN function dial

D2 Lid with milk frother
D3. Milk container
D4. Milk intake tube
D5. Adjustable frothed milk spout
D6. Thermal casing
D7. Lid release buttons

PRELIMINARY OPERATIONS

Checking the appliance

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact customer services Technical Assistance.

SETTING UP THE APPLIANCE

Please note:

• Coffee has been used to factory test the appliance and it is therefore completely normal to find traces of coffee in the mill. The machine is, however, guaranteed to be new.

• You should customise water hardness as soon as possible following the instructions in section "Setting water hardness".

• Connect the appliance to the mains electricity supply (fig. 1) and make sure the main switch (A19) on the side of the appliance is pressed down (fig. 2);

• SELECT LANGUAGE (setting language): press (B10) or (B8) until the flag corresponding to the required language appears on the display (B), then press the flag;

To proceed follow the instructions indicated on the appliance display:

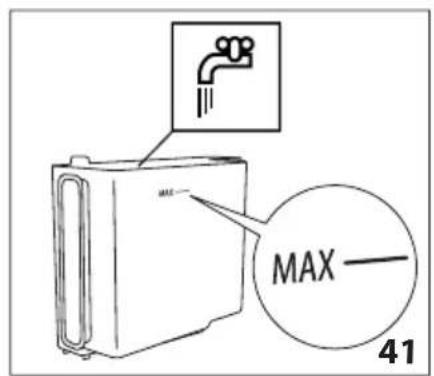

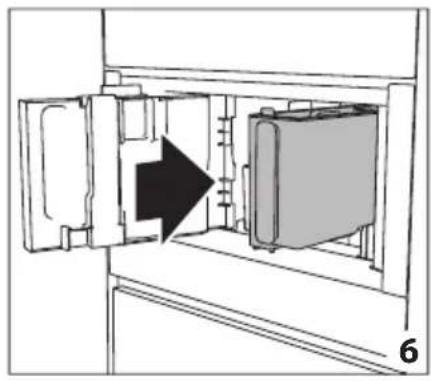

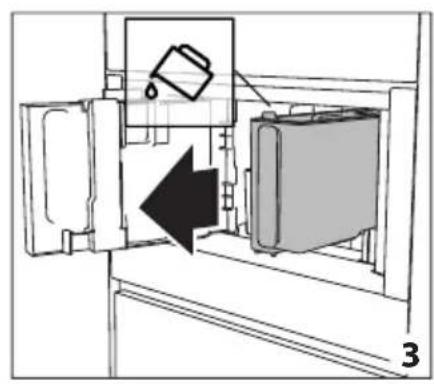

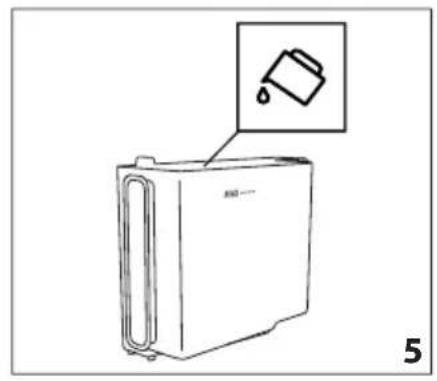

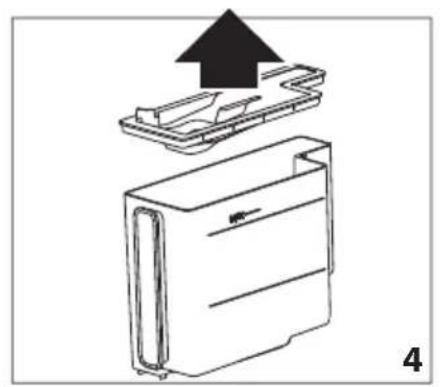

1. FILL WATER TANK WITH FRESH WATER: remove the water tank (A12) (fig. 3), open the lid (fig. 4), fill to the MAX line (marked on the inside of the tank) with fresh water (fig. 5); close the lid and put the tank back into the appliance (fig. 6);

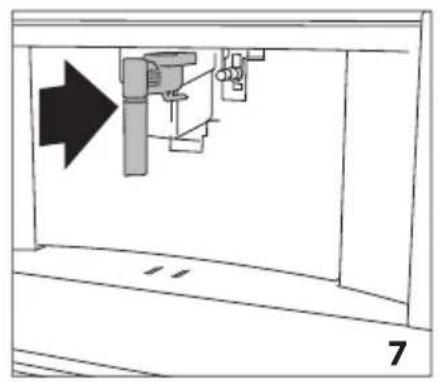

2. INSERT WATER OUTLET: Check that the hot water/steam spout (C6) is inserted on the connection nozzle (A10) (fig. 7) and place a container with a minimum capacity of 100 ml underneath (fig. 8);

3. WATER CIRCUIT EMPTY PRESS OK TO START FILLING PROCESS is shown on the display;

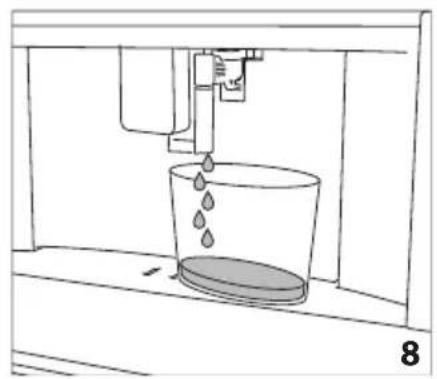

4. Press to confirm: the appliance delivers water from the spout (fig. 8) then goes off automatically.

The coffee machine is now ready for normal use.

Please note:

- The first time the appliance is used, it needs to make 4-5

cappuccinos before it starts to give satisfactory results.

• On first use the water circuit is empty, the machine could therefore be very noisy: the noise will lessen as the circuit fills up.
• When making the first 5-6 cappuccinos, it is normal to hear the noise of boiling water: after this the noise will lessen.
• To improve the performance of the appliance, we recommend installing a water softener filter (C4) as described in section "Water softener filter". If your model is not equipped with a filter, it is possible to request one from Authorised Customer Service Centres.

TURNING THE APPLIANCE ON

Please note:

Before turning the appliance on, make sure the main switch (A23) is pressed (fig. 2). Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted. The appliance is ready for use only after completion of this cycle.

Danger of burns!

During rinsing, a little hot water comes out of the coffee spouts (A13) and is collected in the drip tray (A14) underneath. Avoid contact with splashes of water.

• To switch the appliance on, press the button (A7–not 9): message HEATING UP PLEASE WAIT, is shown on the display.
• When heating is complete, the message changes to: RINSING HOT WATER RUNNING; As well as heating the boiler, the appliance also continues to allow hot water to run in the internal pipework as they also heat up.

The appliance is at the desired temperature when the main screen, homepage, appears.

TURNING THE APPLIANCE OFF

Every time the appliance is turned off, it automatically carries out a rinse if it has made a coffee.

Danger of burns!

During rinsing, a little hot water flows from the coffee spouts (A13). Avoid contact with splashes of water.

• To turn the appliance off, press the button (A7-fig 9).
• The message TURNING OFF PLEASE WAIT is shown on the display: if needed the appliance performs a rinse cycle and then goes off (standby).

Please note:

If the appliance is not used for long periods, disconnect from the electricity supply as follows:

• first turn the appliance off by pressing the button (fig. 9);

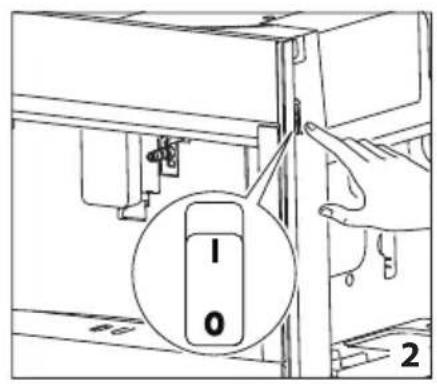

• release the main switch (A23) situated on the side of the appliance (fig. 2).

Important!

Never press the main switch while the appliance is on.

MENU SETTINGS

Rinsing

Use this function to supply hot water from the coffee spouts (A13) to clean and heat the appliance's internal circuit. Place a container with a minimum capacity of 100ml under the coffee and hot water spouts (fig. 8).

To enable the function, proceed as follows:

1. Press (B2) to enter the menu;
2. Press < (B10) or > (B8) until the display shows (B) RINSING;
3. Press ▶ to start rinsing.

Danger of burns!

Do not leave the appliance unattended while hot water is being delivered.

1. After a few seconds, hot water comes out of the coffee spout which cleans and heats the internal circuit of the appliance: the following message is shown on the display RINSING HOT WATER RUNNING as well as a progress bar which fills up as the preparation progresses;

2. To stop the rinsing cycle, press or wait for rinsing to stop automatically.

Please note:

• If the appliance is not used for more than 3-4 days, when switched on again, we strongly recommend doing 2/3 rinses before use;
  • After rinsing, it is normal that there is some water in the grounds container (A10).

De-scaling

For instructions on de-scaling, see section "De-scaling".

Water filter

For instructions on how to install the filter (C4), see section "Water softener filter".

Beverages settings

In this section, you can consult your customised settings and, if you wish, reset the default values for each beverage.

1. Press 📄2) to enter the menu;
2. Press □(B10) or (B8) until DRINKS SETTINGS appears on the display (B);
3. Press ☐: The values for the first beverage appear on the display;
4. The reference user profile is highlighted on the display. The values are shown on the vertical bars: the manufacturer default value is indicated by the symbol ☐ while the current set value is highlighted by the filled part of the vertical bar;
5. To go back to the settings menu, press BACK. To scroll and display the beverages, press → NEXT ;
6. To return to the default manufacturer values for the beverage shown on the display, press RESET
7. CONFIRM RESET?: to confirm, pr essOK to cancel, press BACK
8. RETURN TO FACTORY: press

The beverage has been reset to the default values. Continue with the other beverages, or go back to the settings menu.

Please note:

• To change the beverages for another profile, go back to the homepage, select the required profile (B11) and repeat the procedure.
- To reset all the beverages in the profile to the default values, see paragraph "Manufacturer Default values".

Set time

To adjust the time on the display (B), proceed as follows:

1. Press (B2) to enter the menu;
2. Press ☑ (B10) or ☒(B8) until the display (B) shows ⏻ SET TIME;
3. Press →: The time setting panel appears on the screen;
4. Press ☑ or ▷ corresponding to the hours and minutes until the current time is displayed;
5. To confirm, press √OK(to cancel, press ➕BACK), then press ➕BACK to go back to the homepage.
   The time is now set.

Auto-start

The auto-start time can be set in order to have the appliance ready at a certain time (for example in the morning) so that it can immediately make coffee.

Please note:

To enable this function, the time must already be set correctly, see paragraph "Set time".

To enable auto-start, proceed as follows:

1. Press ☐2) to enter the menu;
2. Press ☑(B10) or (B8) until the display (B) shows AUTO-START;
3. Select the function by pressing : The time setting panel appears on the screen;
4. Press ☑ or ☒ corresponding to the hours and minutes until the required auto-start time is displayed;
5. Press CORF to enable or disable auto-start.
6. To confirm, press (to cancel) and go back to the settings menu press, then press to go BACK back to the homepage.

The auto-start time is now set and the corresponding symbol is displayed next to the time to indicate that the function has been enabled.

Please note:

When the appliance is turned off using the main switch (A21), the auto-start setting if enabled, is lost.

Auto-off (standby) ⏻

Auto-off can be set so that the appliance goes off after 15 or 30 minutes, or 1, 2 or 3 hours of no use.

To programme Auto-off, proceed as follows:

1. Press (B2) to enter the menu;
2. Press ☑ (B10) or ☑(B8) until the display (B) shows AUTO-OFF, together with the current selection (15 or 30 minutes, or 1, 2 or 3 hours);
3. Press (1) on the display to select the required value;
4. Press BACK to go back to the homepage.
   Auto-off is now programmed.

Cup warmer

To warm the cups before making coffee, it is possible to activate the cup warmer (A24) and put it above the cups.

1. Press " B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows "
   CUP WARMER";
3. Press to activate- OFF the cup warmer.
4. Press " " to go back to the homepage.

Energy saving

Use this function to enable or disable energy saving mode. When enabled, the function guarantees reduced energy consumption in compliance with European regulations. When it is disabled, warming time is reduced.

To disable or enable "Energy Saving", proceed as follows:

1. Press 📄2) to enter the menu;
2. Press ☑ (B10) or ☐ (B8) until ⚙ ENERGY SAVING appears on the display (B);
3. Press ☑ to enable-ON or disable-OFF) energy saving.
4. Press BACK to go back to the homepage.

Coffee temperature

To modify the temperature of the water supplied to make the coffee, proceed as follows:

1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows COFFEE TEMPERATURE together with the current selection (LOW, MEDIUM, HIGH, OR MAX);
3. Press ⬤ to select the required temperature;
4. Press BACK to go back to the homepage.

Water hardness

For instructions related to setting water hardness, see section "Setting water hardness".

Selecting the language

To modify the language of the display (B), proceed as follows:

1. Press (B2) to enter the menu;
2. Press ☑ (B10) or ☒(B8) until the display shows SET LANGUAGE;
3. Press ☐: press or until the flag corresponding to the required language is shown and then select it;
4. Press BACK 2 times to go back to the homepage.

Sound notification

This enables or disables the beep emitted by the machine each time an icon is pressed or an accessory is inserted/removed. To disable or enable the beep, proceed as follows:

1. Press (B2) to enter the menu;
2. Press □ (B10) or □(B8) until the display (B) shows BEEP;
3. Press 🔵 to enable-ON or disable-OFF the sound notification;
4. Press BACK to go back to the homepage.

Lights

This function enables or disables the lights (A6). The cup lights (A18) come on each time coffee beverages are produced, hot milk is made and during each rinse cycle and turn off after a few seconds.

To disable or enable this function, proceed as follows:

1. Press 📄2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows LIGHTS;
3. Press 🙏 to enable or disable- the lights;
4. Press → to go back to the homepage.

Background

The display background for your appliance can be chosen from the following 4 alternatives. Proceed as follows:

1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows BACKGROUND;
3. Press →: the available backgrounds appear on the display;
4. Select the desired background by pressing on the square chosen: the appliance returns to the settings menu with the new background selected;
5. Press → to go back to the homepage.

Demo mode

By enabling this mode, the main functions of the machine are shown on the display:

1. Press ☐2) to enter the menu;
2. Press < (B10) or (B8) until the display shows DEMO MODE;
3. Press "" to start the demo;
4. To exit from the DEMO MODE, first turn the appliance off by pressing the button ⏻ (A7). Press again the button ⏻ to go back to the homepage.

Default values

This resets all menu settings and programmed quantities back to the default values (with the exception of the language which remains as set).

To reset the default values, proceed as follows:

1. Press (B2) to enter the menu;
2. Press □ (B10) or ▶(B8) until the display (B) shows

DEFAULT VALUES. Press

1. Press RESET ALL to reset all the profiles to the original parameters, otherwise select the required profile (e.g. USER 1);
2. RETURN TO FACTORY SETTINGS? RESET ALL: press √OK to confirm (or ➕ BACK to leave parameters unaltered);
3. FACTORY SETTINGS SET : press √ok to confirm.

Statistics

This function displays statistical data relating to the machine. To

display the statistics, proceed as follows:

1. Press (B2) to enter the menu;
2. Press □ (B10) or □(B8) until the display (B) shows

STATISTICS ;

1. Press →: it is possible to check all the available statistics by pressing or
2. Press ▶ to go back to the homepage.

MAKING COFFEE

(see recipes on page 29)

Selecting the coffee aroma

Select the required aroma from the homepage by pressing AROMA (B6):

	(see “Making coffee using pre-ground coffee”)
	AROMA EXTRA LIGHT
	LIGHT AROMA
	MEDIUM AROMA
	STRONG AROMA
	X-STRONG AROMA
	Custom (if programmed) / Standard

	(see “Making coffee using pre-ground coffee”)
	AROMA EXTRA LIGHT
	LIGHT AROMA
	MEDIUM AROMA
	STRONG AROMA
	X-STRONG AROMA
	Custom (if programmed) / Standard

After delivering the beverage, the aroma setting is reset to the value.

Selecting the coffee quantity

From the homepage select the required quantity of coffee in the cup by pressing QUANTITY (B7):

	SMALL SIZE (SMALL)
	MEDIUM SIZE (MEDIUM)
	LARGE SIZE (LARGE)
	X-LARGE SIZE(EXTRA LARGE)
	Custom quantity (if programmed) / Standard quantity

	SMALL SIZE (SMALL)
	MEDIUM SIZE (MEDIUM)
	LARGE SIZE (LARGE)
	X-LARGE SIZE(EXTRA LARGE)
	Custom quantity (if programmed) / Standard quantity

After delivering the beverage, the quantity setting is reset to the value.

Making coffee using coffee beans

Important!

Do not use green, caramelised or candied coffee beans as they could stick to the coffee mill and make it unusable.

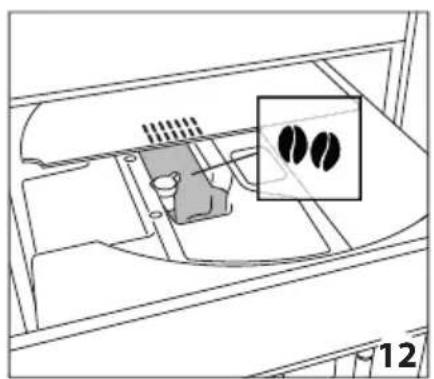

1. Fill the beans container (A16) (fig. 12) with coffee beans;
2. Place a cup under the coffee spout (A13);
3. Lower the spout so that it is as near as possible to the cup (fig. 13): this helps achieve a better cream;
4. Press B10 or B8 until the required coffee is displayed;
5. Then select your required coffee from the homepage:
6. ESPRESSO
   • DOPPIO+
   • COFFEE
7. LONG
   • 2 X ESPRESSO
   • AMERICANO
8. Preparation begins and the display (B) shows the image of the selected beverage together with a progress bar which gradually fills as preparation proceeds.

Please note:

• It is possible to prepare 2 cups of ESPRESSO coffee at the same time by also pressing 2X during preparation of 1 ESPRESSO (the image remains shown on the display for a few seconds at the start of preparation).
• While the machine is making coffee, delivery can be interrupted at any time by pressing ✗ STOP
• As soon as delivery has ended, to increase the quantity of coffee in the cup, just press : once the desired quantity is reached, press ✗ STOP

Once the coffee has been made, the appliance is ready to make the next beverage.

Please note:

Various alarm messages may be displayed while using the appliance (FILL TANK, EMPTY GROUNDS CONTAINER, etc.).

Their meaning is explained in section "Displayed messages".

• For hotter coffee, see paragraph "Tips for a hotter coffee".
• If the coffee comes out in drops, too weak and not creamy enough or too cold, read the tips in section “Adjusting the coffee mill” and the “Troubleshooting” chapter.
• Preparation of each coffee can be customised (see sections "Customising beverages" and "Memorising your personal profile").
• If "Energy Saving" mode is active, the first coffee may take a few seconds before it is delivered.

Making coffee using pre-ground coffee

Important!

• Never add pre-ground coffee when the machine is off in order to avoid it spreading through the inside of the machine and making it dirty. This could damage the appliance.
• Never use more than 1 level measure (C2) or it could dirty the inside of the coffee machine or block the funnel (A4).

Please note:

If you use pre-ground coffee, you can only make one cup of coffee at a time.

1. Repeat Press A (B6) until the display (B) shows (pre-ground).
2. Open the cover (A15) and the pre-ground door (A23).

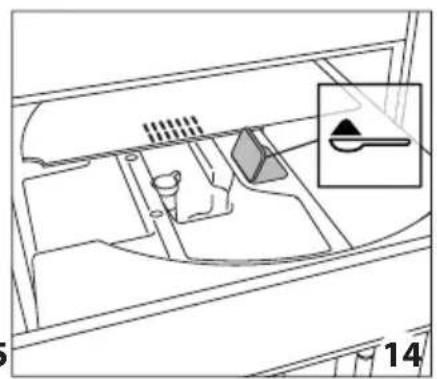

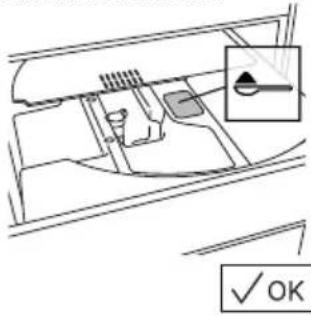

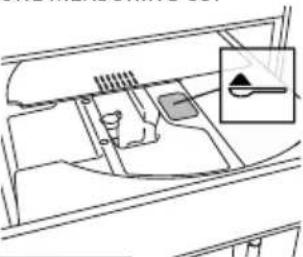

3. Make sure the funnel (A21) is not blocked, then add one level measure of pre-ground coffee (fig. 14).

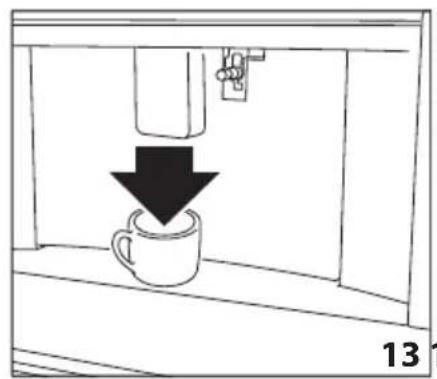

4. Place a cup under the coffee spouts (A13) (fig. 13).
5. Then select your required coffee (ESPRESSO, COFFEE, LONG etc.) from the homepage;
6. Preparation begins and the image of the selected beverage appears on the display, together with a progress bar which gradually fills as preparation progresses.

Please note:

• While the machine is making coffee, delivery can be interrupted at any time by pressing × STOP
• As soon as delivery has ended, to increase the quantity of coffee in the cup, just press: once the desired quantity is reached, press × STOP

Once the coffee has been made, the appliance is ready to make the next beverage.

Important! Making LONG coffee

Halfway through preparation, the display will show message ADD PRE-GROUND COFFEE, MAXIMUM ONE MEASURING CUP. Add one level measure of pre-ground coffee and press √OK.

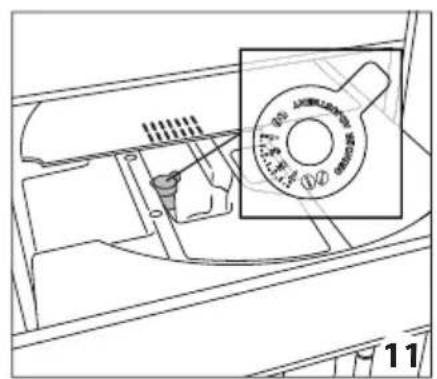

Adjusting the coffee mill

The coffee mill should not require adjusting, at least initially, because it has already been set by default in order to prepare coffee correctly.

However, if after making the first few coffees you find that the coffee is either too weak and not creamy enough or delivery is too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment dial (fig. 11).

Please note:

The grinding adjustment dial must only be turned when the coffee mill is in operation during the initial phase of coffee

preparation.

ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

If the coffee comes out too slowly or does not come out at all, a message will be shown GROUND TOO FINE. ADJUST GRIND LEVEL, turn the coffee mill dial one or two clicks clockwise.

00 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200 6300 6400 6500 6600 6700 6800 6900 7000 7100 7200 7300 7400 7500 7600 7700 7800 7900 8000 8100 8200 8300 8400 8500 8600 8700 8800 8900 9000 9100 9200 9300 9400 9500 9600 9700 9800 9900 1000

For fuller bodied creamier coffee, turn one click anticlockwise towards 1 (do not turn more than one click at a time otherwise the coffee could come out one drop a drop at a time).

The effect of these adjustments will only be evident after at least 2 cups of coffee have been delivered. If this adjustment does not obtain the desired result, repeat the correction by turning the dial another click.

Tips for a hotter coffee

For hotter coffee, it is recommended to:

• carry out a rinse cycle by selecting the "Rinsing" function in the settings menu (paragraph "Rinsing")
• warm the cups with hot water (using the hot water function, see section "hot water supply");
• increase the coffee temperature in the settings menu (see section "Coffee temperature").

MAKING MILK-BASED HOT DRINKS

(see recipes on page 30)

Please note:

To avoid milk with little froth or large bubbles, always clean the milk container lid (D2) and hot water connection nozzle (A9) as described in sections "Cleaning the milk container after use", "Cleaning the milk container" and "Cleaning the hot water/steam connection nozzle".

Filling and attaching the milk container

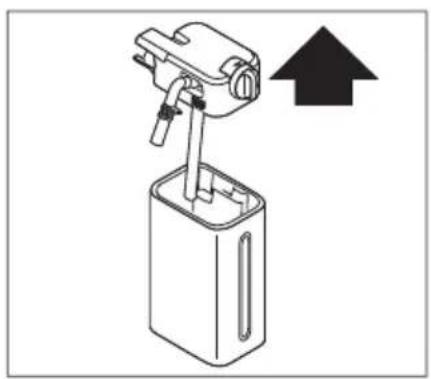

1. Remove the lid (D2) (fig. 15);

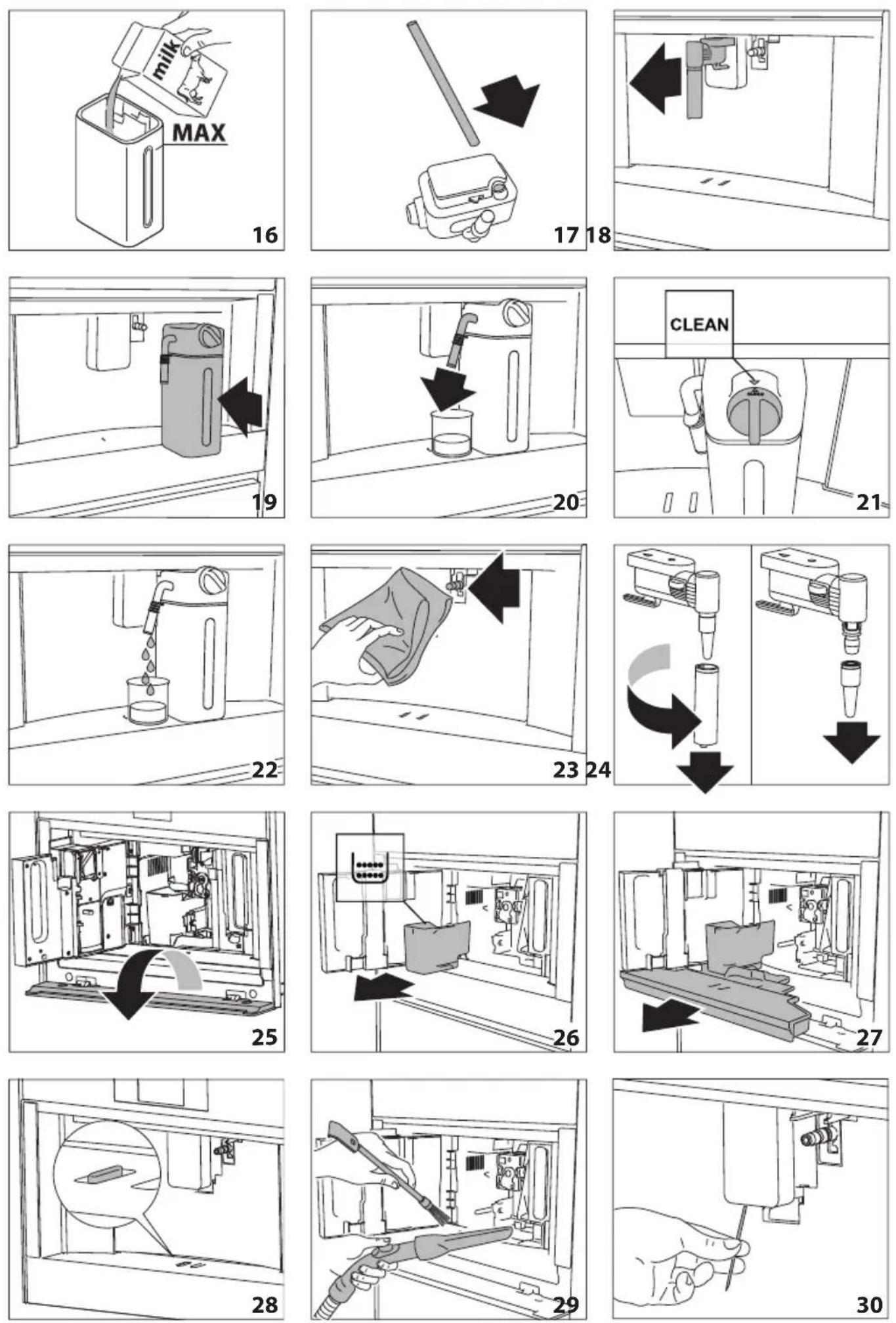

2. Fill the milk container (D3) with a sufficient quantity of milk, not exceeding the MAX level marked on the container (fig. 16). Each mark on the side of the container corresponds to about 100 ml of milk;

Please note:

• For a denser and more even froth, you must use skimmed or partially skimmed milk at refrigerator temperature (about 5^ ).
• If "Energy Saving" mode is enabled, there may be a few

seconds delay before the beverage is delivered.

1. Make sure the milk intake tube (D4) is correctly inserted in the bottom of the milk container lid (fig. 17);
2. Place the lid back on the milk container;
3. Remove the hot water/steam spout (C6) (fig. 18);
4. By pushing the bottom attach the milk container (D) to the nozzle (A10) (fig.19): the machine will let out a noise signal (if the sound notification function is enabled);
5. Place a sufficiently large cup under the coffee spouts (A13) and frothed milk spout (D5); adjust the length of the milk spout, to move it nearer to the cup, simply pulling it downwards (fig. 20).
6. Follow the instructions below for each function.

Adjusting the amount of froth

Turn the froth adjustment dial (D1) on the milk container lid, to adjust the amount of froth on the milk delivered while making the drinks. Follow the tips in the table below:

Dial position	Description Recommended for...
	No froth CAFFE	LATTE /MILK (hot milk)
	Min. froth	LATTE MACCHIATO
	Max. froth CAP	PUCCINO /MILK (frothed milk)

Making milk-based drinks automatically

1. Fill the milk container (D) and attach it as described above.
2. Select the required beverage from the homepage:

- CAPPUCCINO

• LATTE MACCHIATO

- CAFFE LATTE

• HOT MILK

- CAPPUCCINO+

• ESPRESSO MACCHIATO

- FLAT WHITE

- CAPPUCCINO MIX

1. On the display (B) the machine recommends turning the foam adjustment dial (D1) based on the foam requirements for the original recipe: therefore turn the dial on top of the milk container lid (D") and confirm the selection by pressing √OK

2. After a few seconds, preparation begins automatically and an image of the selected beverage appears on the display, together with a progress bar which gradually fills as preparation progresses.

Please note: general indications when preparing all milk based drinks

• : press to interrupt preparation completely and go back to the homepage.
• : press to interrupt milk or coffee delivery and move on to the next delivery (if applicable) to complete the beverage.
• At the end of delivery, to increase the quantity of coffee in the cup, press +MORE
• Preparation of each milk based drink can be customised (see sections "Customising beverages" and "Memorising your personal profile").
• Do not leave the milk container out of the fridge for a long time: as the temperature increases (5°C ideal), the quality of the foam decreases.

Once the coffee has been made, the appliance is ready to make the next beverage.

Cleaning the milk container after use

Danger of burns!

When cleaning the internal tubes of the milk container, a little hot water and steam leak out of the frothed milk spout (D5). Avoid contact with splashes of water. Each time a milk function is used, TURN MILK FROTH ADJUSTMENT KNOB TO CLEAN TO START CLEANING appears on the display and the milk frother lid must be cleaned:

1. Leave the milk container (D) in the machine (you do not need to empty it);
2. Place a cup or other recipient under the frothed milk spout (fig. 20);
3. Turn the foam adjustment dial (D1) to CLEAN (fig.21): CLEANING MILK CONTAINER PLACE A CUP UNDER THE MILK OUTLET (FIG.22) appears on the display (B) together with a bar which gradually fills as cleaning proceeds. Cleaning stops itself automatically;
4. Turn the dial back to one of the froth selections;
5. Remove the milk container and always clean the steam connection nozzle (A10) with a sponge (fig. 23).

Please note:

• If a number of milk based drinks need to be made, only clean the milk container after preparing the last beverage. To proceed with making the next beverages, when the CLEAN message is displayed, press BACK
• If the milk container does not get cleaned, the symbol appears on the display as a reminder that the milk container needs cleaning.
  • The milk container can be kept in the refrigerator.

- In some cases, to carry out the cleaning the appliance requires a short time to heat up.

DELIVERING HOT WATER

Danger of burns!

Do not leave the appliance unattended while hot water is being delivered.

1. Make sure the hot water/steam spout (C6) is attached correctly to the hot water/steam connection nozzle (A10);
2. Place a container under the spout (as close as possible to avoid splashes);
3. Select 🔒 HOT WATER from the homepage. The corresponding image appears on the display (B), together with a progress bar which fills gradually as preparation proceeds;
4. The machine delivers hot water, then delivery stops automatically. To interrupt hot water delivery manually, press ☒ STOP .

Please note:

• If "Energy Saving" mode is active, there may be a few seconds delay before hot water is delivered.
• Preparation of hot water can be customised (see sections "Customising beverages" and "Memorising your personal profile").

STEAM DELIVERY

Danger of burns!

Do not leave the appliance unattended while steam is being delivered.

1. Make sure the hot water/steam spout (C6) is attached correctly to the hot water/steam connection nozzle (A10);

2. Fill a container with the liquid to be heated or frothed and immerse the hot water/steam spout in the liquid;

3. Select "STEAM" from the homepage. The corresponding image appears on the display (B), together with a progress bar which fills gradually as preparation proceeds and after a few seconds, steam to heat the liquid is delivered from the hot water/steam spout;

4. When the required temperature or level of froth is reached, interrupt steam delivery by pressing ☒ STOP ;

Important!

Always stop steam delivery before extracting the container containing the liquid to avoid burns from splashes.

Please note:

If "Energy saving" mode is active, there may be a few seconds delay before steam is delivered.

Tips for using steam to froth milk

• When choosing the size of the container, bear in mind that the liquid doubles or triples in volume.
• For a richer denser froth, use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).
• For a creamier froth, rotate the container with slow movements in an upward motion.
• To avoid milk with poor froth or large bubbles, always clean the spout (C6) as described in the following paragraph.

Cleaning the hot water/steam spout after use

Always clean the hot water/steam spout (C6) after use to avoid the build-up of milk residues and prevent it from clogging.

1. Place a container under the hot water/steam spout and let a little water out (see section "Delivering hot water"). Then stop the delivery of hot water by pressing .× STOP
2. Wait a few minutes for the hot water/steam spout to cool down; then extract it (fig. 18). Hold the spout steady with one hand and with the other, turn and detach the cappuccino maker pulling it downwards (fig. 24).
3. Also remove the steam connection nozzle by pulling it downwards (fig. 24).
4. Check the hole in the connection nozzle is not blocked. If necessary, clean using a toothpick.
5. Wash all parts of the spout thoroughly with a sponge and warm water.
6. Attach the connection nozzle and the cappuccino maker onto the spout by pushing it upwards and turning it clockwise until it is secure.

CUSTOMISING BEVERAGES

The aroma (for drinks where required) and length of the drinks can be customised.

1. Make sure that the profile for which customising the drink is required is active: it is actually impossible to select the drinks MY for all 6 profiles;
2. From the homepage, press (B
3. Choose the beverage you wish to customise in order to access the customising screens: the relative accessories must be inserted;
4. (Beverages with coffee only) CHOOSE COFFEE AROMA LEVEL: Select the required aroma by pressing ☐ and press √ OK
5. CUSTOMISING COFFEE (OR WATER) QUANTITY, PRESS STOP

TO SAVE: Preparation begins and the appliance displays the quantity customising screen in the form of a vertical bar. The star alongside the bar represents the current quantity set.

1. When the amount reaches the minimum quantity you can set, the display shows ☒ STOP

2. Press ✗ when the required quantity in the cup is reached.

3. SAVE NEW SETTINGS? : Press YES or NO.

The appliance confirms if the values have been saved or not (depending on the previous selection): press √OK The appliance goes back to the homepage.

Please note:

• Milk based drinks: the coffee aroma is saved first, followed by the quantity of first milk, then coffee;
• Hot water: the appliance supplies hot water: press × STOP to save the desired quantity.
• It is possible to come out of programming by pressing BACK: the values will not be saved.

MEMORISING YOUR PERSONAL PROFILE

The appliance allows you to memorise 6 different profiles, each associated with a different icon.

In every profile the customised MY beverages AROMA and QUANTITY values are saved (see section "Customising beverages

") and the order in which all the beverages are displayed is based on the frequency of selection.

To select or enter a profile, press on the profile currently in use (B11), press ☑ (B10) or ▶ (B8) until the required profile is displayed, then press on the profile.

Please note:

• Profile GU: select this profile to deliver beverages
  with the default settings. The function is not active.

CLEANING

Cleaning the machine

The following parts of the machine must be cleaned regularly:

• appliance internal circuit;
  • coffee grounds container (A4);
• drip tray (A14);
• water tank (A12);
• coffee spouts (A13);
  • pre-ground coffee funnel (A21);
• infuser (A5), accessible after opening the service door (A2);
• milk container (D);
• hot water/steam connection nozzle (A10);
• control panel (B).

Important!

• Do not use solvents, abrasive detergents or alcohol to clean the coffee machine. It is not necessary to use chemical products to clean the machine.
• None of the components of the appliance can be washed in a dishwasher with the exception of the milk container (D).
• Do not use metal objects to remove encrustations or coffee deposits as they could scratch metal or plastic surfaces.

Cleaning the appliance internal circuit

If the appliance is not used for more than 3/4 days, before using it again, we strongly recommend switching it on and:

1. performing 2/3 rinse cycles by selecting the "Rinse" function (paragraph "Rinsing
2. delivering hot water for a few seconds (section "Delivering hot water").

Please note:

After cleaning, it is normal for the grounds container (A4) to contain water.

Cleaning the coffee grounds container

When the display (B) shows the message EMPTY GROUND CONTAINER (fig. 26) the grounds container must be emptied and cleaned. The appliance cannot be used to make coffee until the grounds container (A4) has been cleaned. Even if not full, the empty grounds container message is displayed 72 hours after the first coffee has been prepared (for the 72 hours to be calculated correctly, the machine must never be turned off with the main switch).

To clean (with the machine on):

1. Open the bottom door by rotating it downwards (fig. 25).
2. Open the door.
3. Remove the drip tray (A14) (fig. 27), empty and clean it.
4. Carefully empty and clean the coffee grounds container (A4) taking care to remove all the residue that can be deposited on the bottom: the brush provided (C5) features a spatula especially for this job.

Important!

When removing the drip tray it is obligatory to always empty the grounds container even if it contains few grounds. If this is not done, when you make the next coffees, the grounds container may fill up more than expected and clog the machine.

Cleaning the drip tray

Important!

The drip tray (A14) is fitted with a level indicator (red) showing the level of water it contains (fig. 28). Before the indicator protrudes from the cup tray (A1), the drip tray must be emptied and cleaned, otherwise the water may flow over the edge and damage the appliance, the surface it rests on or the surrounding area. To remove the drip tray, proceed as follows:

1. Open the door (fig. 25). Remove the drip tray and coffee grounds container (A4) (fig. 27);
2. Empty the drip tray and grounds container and wash them;
3. Replace the drip tray complete with grounds container.

Cleaning the inside of the coffee machine

Danger!

Before cleaning internal parts, the machine must be turned off (see section "Turning the appliance off") and unplugged from the mains power supply. Never immerse the coffee machine in water.

1. Check regularly (about once a month) that the inside of the appliance (accessible after removing the drip tray - A14) is not dirty.
2. If necessary, remove coffee deposits with the brush (C5) supplied and a sponge. Remove all the residues with a vacuum cleaner (fig. 29).

Cleaning the water tank

1. Clean the water tank (A12) regularly (about once a month) and whenever you replace the water softener filter (C4) (if provided) with a damp cloth and a small amount of mild washing up liquid.: rinse carefully before filling and replacing the tank;
2. Remove the filter (if present) and rinse with running water;
3. Replace the filter (if provided), fill the tank with fresh water and replace the tank;
4. (Models with water softener filter only) Deliver about 100ml of hot water to reactivate the filter.

Cleaning the coffee spouts

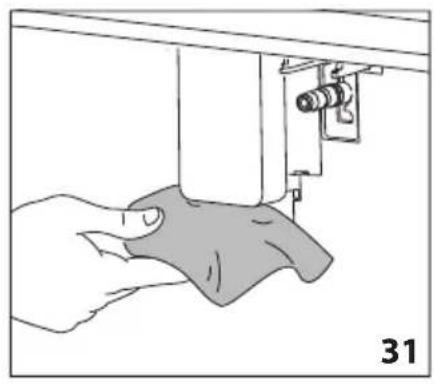

1. Clean the coffee spouts (A13) regularly with a sponge or cloth (fig. 31);
2. Check that the holes in the coffee spouts are not blocked. If necessary, remove coffee deposits with a toothpick (fig. 30).

Cleaning the pre-ground coffee funnel

Check regularly (about once a month) that the pre-ground coffee funnel (A21) is not blocked. If necessary, remove coffee deposits with the brush (C5) supplied.

Cleaning the infuser

The infuser must be cleaned at least once a month.

Important! The infuser (A5) must not be removed

when the appliance is on. Do not use force to remove the infuser.

1. Make sure the machine is correctly turned off (see "Turning off").
2. Open the service door.
3. Remove the drip tray and waste coffee container (fig. 27).

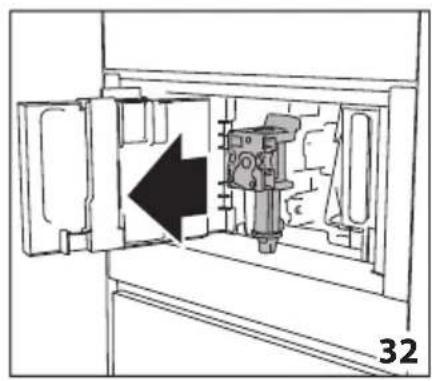

4. Press the two coloured release buttons inwards and at the same time pull the infuser outwards (fig. 32).

Important! Do not use washing up liquid to clean the infuser to avoid removing the lubricant applied to the inside of the piston.

1. Soak the infuser in water for about 5 minutes, then rinse.

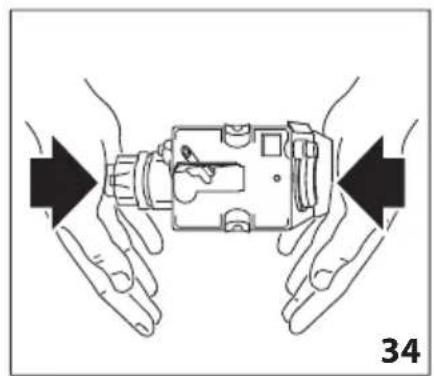

2. After cleaning, replace the infuser (A5) by sliding it onto the internal support and pin at the bottom, then push the PUSH symbol fully in until it clicks into place (fig. 33).

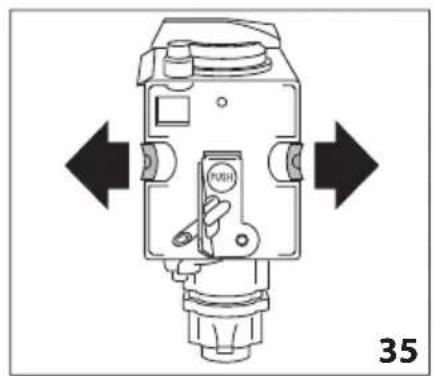

Please note carefully: If you encounter difficulty inserting the infuser, (before inserting it) you must adapt it to the right dimension by pressing it forcefully from the bottom and top as shown in the figure 34.

1. Once inserted, make sure the two coloured release buttons have snapped out (fig. 35).
2. Replace the drip tray and waste coffee container.
3. Close the service door.

Cleaning the milk container (D)

Clean the milk container after each time you prepare milk, as described below:

1. Lift and remove the lid (D2);

2. Extract the milk container (D3) from the thermal casing (D6), holding it by the two side grips.

Important!

The thermal casing must not be filled or immersed in water: to clean it wipe with a damp cloth.

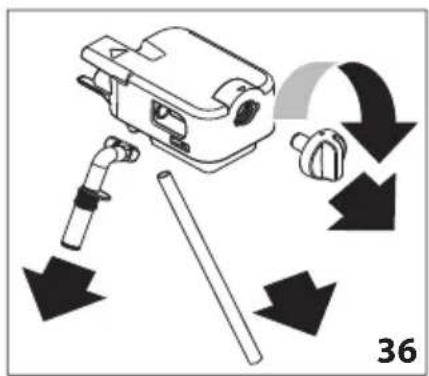

1. Remove the milk spout (D5) and intake tube (D4).
2. Turn the froth adjustment dial clockwise to the "INSERT" position (fig. 36) and pull off.
3. Wash all the components of the frother thoroughly with hot water and mild washing-up liquid. All components and the container are dishwasher safe, placing them in the top basket of the dishwasher.

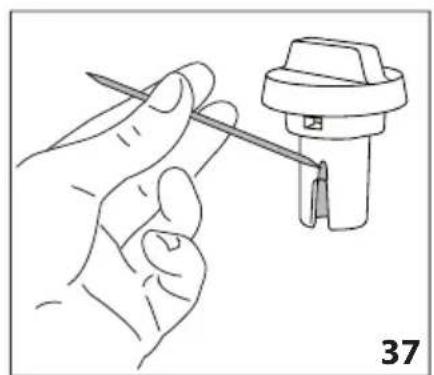

Pay particular attention to check in the hollow and groove

under the dial (fig. 37) that no milk residues remain: scrape any residue from the groove with a toothpick.

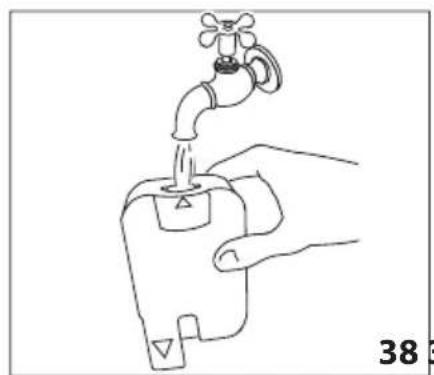

1. Rinse inside the froth adjustment dial seat (fig. 38) and the milk frother connector hole using running water.
2. Check as well that the intake tube and spout are not clogged with milk residues.
3. Replace the dial, lining up the arrow with the word INSERT, the spout and milk intake tube.
4. Place the milk container in the thermal casing.
5. Place the lid back on the milk container.

Cleaning the hot water/steam connection nozzle

Each time you prepare milk, clean the connection nozzle (A13) with a sponge to remove milk residues deposited on the seals (fig. 23).

DESCALING

Important!

• Before use, read the instructions and the labelling on the de-scaler packaging.
• You should use de-scaler authorised by the manufacturer only. Using unsuitable de-scaler and/or performing de-scaling incorrectly may result in faults not covered by the manufacturer's guarantee.

De-scale the appliance when the display (B) shows message DESCALING NEEDED PRESS OK TO START (\~45min) ⚠️: to de-scale immediately, press √OK and follow the instructions from point 4.

To postpone de-scaling to another time, press on the

display the symbol is a reminder that the appliance needs to be de-scaled (the message will be re-proposed every time the machine is switched on).

To access the de-scaling menu:

1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display shows DESCALE;
3. Press ▶ to start the de-scaling cycle then follow the instructions on the display;
4. REMOVE WATER FILTER (fig. 39):extract the water tank (A12), remove the water softener filter (C4) (if present) and empty the water tank. Press NEXT;
5. ADD DESCALER (UP TO LEVEL A) AND WATER (UP TO LEVEL B) (fig. 40); Pour the de-scaler into the tank up to the level A marked inside the tank (equal to one 100 ml pack); then add water (one litre) up to level B; and put the water tank back in. Press → NEXT ;
6. EMPTY GROUND CONTAINER AND DRIP TRAY (fig. 27): remove, empty and replace the drip tray (A14) and the

ground container (A4). Press → NEXT

1. PLACE 2.5I CONTAINER UNDER OUTLET PRESS OK TO START DESCALING :

Place an empty container with a minimum capacity of 2.5 litres under the hot water/steam spout (C6) and coffee spouts (A13) (fig. 8);

Danger of burns!

Hot water flows out of the hot water/steam spout which contains acid. Take care to avoid contact with splashes of this solution.

1. Press √o to confirm that you have added the de-scaling solution. The display shows DESCALING PLEASE WAIT: the de-scale programme starts and the de-scaler liquid comes out of the hot water/steam and coffee spouts. A series of rinses and pauses is automatically carried out to remove all the scale residues from the inside of the coffee machine;

After about 25 minutes, de-scaling stops:

1. RINSE AND FILL WATER TANK UP TO MAX LEVEL (fig. 41): the appliance is now ready for a fresh water rinsing cycle. Empty the container used to collect the de-scaler solution and extract the water tank, empty, rinse under running water, fill with fresh water up to the MAX level and put back in the appliance;

2. PLACE 2.5I CONTAINER UNDER OUTLET PRESS OK TO START RINSING: Place the container used to collect the de-scaler solution empty under the coffee spouts and hot water/steam spout (fig. 8) again and press √OK

3. Hot water is delivered first from the coffee spouts and the display shows RINSING PLEASE WAIT;

4. When the water in the tank has run out, empty the container used to collect the rinsing water;

5. (If the filter is installed) INSERT FILTER INTO ITS HOUSING (fig. 42). Press and extract the water tank, reinsert the water softener filter if removed previously;

6. RINSE AND FILL WATER TANK UP TO MAX LEVEL (fig. 41): Fill the tank up to the MAX level with fresh water;

7. INSERT WATER TANK (fig. 6): Put the water tank back in the appliance;

8. PLACE 2.5I CONTAINER UNDER OUTLET PRESS OK TO START RINSING :

Place the empty container used to collect the de-scaler solution under the hot water/steam spout (fig. 8) and press √OK ;

1. Hot water is delivered from the hot water/steam spout and RINSING PLEASE WAIT is displayed.

2. EMPTY DRIP TRAY (fig. 27): At the end of rinsing, remove, empty and replace the drip tray (A14) and grounds container (A4): press → NEXT;

3. For a few seconds DESCALE COMPLETE PRESS OK will be

shown on the display; the appliance turn off.

De-scaling is complete.

Please note:

• If the de-scaling cycle is not completed correctly (e.g. no electricity) we recommend repeating the cycle;
• After de-scaling, it is normal for the grounds container (A4) to contain water.
• If the water tank has not been filled to the max level, at the end of de-scaling, the appliance requests a third rinse to guarantee that the de-scaler solution has been completely eliminated from the machine's internal circuits. Before starting rinsing, remember to empty the drip tray;
• The appliance may request de-scaling cycles at very short intervals. This is normal and due to the appliance's advanced control system

PROGRAMMING WATER HARDNESS

The DESCALING NEEDED - PRESS OK TO START (\~45min) message is displayed after a period of time established according to water hardness.

The appliance default is pre-set in manufacturing at "level 4" hardness. The machine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be de-scaled less often.

Measuring water hardness

1. Remove the "Total hardness test" indicator paper (C1) provided from its packaging, attached to the instructions.
2. Immerse the paper completely in a glass of water for about one second.
3. Remove the paper from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares form, depending on the hardness of the water. Each square corresponds to one level.

Setting water hardness

1. Press (B2) to enter the menu;
2. Press < (B10) or >(B8) until the display (B) displays

WATER HARDNESS;

1. To change the level selected, press the symbol itself until the required level is displayed (Level 1 = soft water; Level 4 = very hard water);

Press BACK to go back to the homepage.

The machine is now reprogrammed with the new water hardness setting.

WATER SOFTENER FILTER

Some models are fitted with a water softener filter (C4): if your model is not equipped with one, we recommend buying one through an authorised customer service centre.

To use the filter correctly, follow the instructions below.

Installing the filter

1. Remove the filter (C4) from the packaging;
2. Press 2) to enter the menu;
3. Press 10 or 8 until the display shows WATER FILTER;
4. Press
5. TURN THE DATE INDICATOR UNTIL THE NEXT 2 MONTHS ARE DISPLAYED (fig. 43):
   turn the date indicator disk until the next two months of use are displayed. Press → NEXT

Please note:

the filter lasts about two months if the appliance is used normally, if the coffee machine is left unused with the filter installed, it will last a maximum of 3 weeks.

1. FILL FILTER WITH WATER UNTIL IT'S COMPLETELY FILLED (fig. 44): To activate the filter, run tap water through the hole in the filter as shown in the figure until water comes out of the openings at the side for more than a minute. Press → NEXT ;
2. Extract the tank (A12) from the appliance and fill with water.
3. IMMERSE FILTER IN THE WATER TANK LETTING AIR BUBBLES ESCAPE (fig. 45): Insert the filter in the water tank and immerse it completely for about ten seconds, sloping it and pressing it lightly to enable the air bubbles to escape. Press → NEXT ;
4. INSERT FILTER INTO ITS HOUSING AND PUSH IT DOWN TO BOTTOM: Insert the filter in the filter housing (fig. 42) and press as far as it will go. Press → NEXT ;
5. INSERT WATER TANK: Close the tank with the lid (A15), then replace the tank in the machine.
6. PLACE 0.5L CONTAINER UNDER OUTLET, PRESS OK TO FILL FILTER (fig. 8): place the container under the hot water/steam spout (C6) and press delivery starts and

stops itself automatically.

The symbol appears on the display alongside the time to indicate that the filter has been enabled. The coffee machine can now be used.

Replacing the filter

Replace the filter (C4) when the display (B) shows the message REPLACE WATER FILTER, PRESS OK TO START! : to replace immediately, press √OK and follow the instructions from point 4.

To postpone replacing the filter to another time, press BACK : on the display the symbol is a reminder that the filter needs to be replaced.

To replace, proceed as follows:

1. Extract the water tank (A12) and exhausted filter;

2. Remove the new filter from the packaging;

3. Press ☐B2) to enter the menu;

4. Press 10 or 8 until the display shows WATER FILTER;

5. Press ▶;

6. The display shows REPLACE FILTER;

7. Press ;

8. Follow the operations described in the previous paragraph from point 5.

The filter is now active and the coffee machine can be used.

Please note:

After two months (see date indicator) or when the appliance has not been used for 3 weeks, you should replace the filter even if the message has not yet been displayed.

Removing the filter

If you want to use the appliance without the filter (C4), you must remove it and notify the appliance of its removal. Proceed as follows:

1. Extract the water tank (A12) and exhausted filter;

2. Press (B) enter the menu;

3. Press <B10 or 8 until the display shows WATER FILTER;

4. Press

5. On the display REMOVE FILTER appears;

6. Press

7. ⚠️ REMOVE FILTER?: press √ OK (or to go back to the settings menu, press BACK);

8. FILTER REMOVED: the appliance has recognised the change. Press √OK to go back to the homepage.

Please note:

After two months (see date indicator) or when the appliance has not been used for 3 weeks, you should remove/replace the filter even if the message has not yet been displayed.

TECHNICAL DATA

Voltage: 220-240 V\~ 50/60 Hz max. 10A

Absorbed power: 1350W

Pressure: 15 bar

Water tank capacity: 2.5 litres

Size:LxHxD: 597x450x470 mm

Net weight: 20 kg

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
FILL WATER TANK WITH FRESH WATER	Water in the tank (A12) is not sufficient. Fill	the tank with water and/or insert it correctly, pushing it as far as it will go until it clicks into place.
EMPTY GROUND CONTAINER	The grounds container (A4) is full.	Empty the grounds container and drip tray (A14), clean and then replace them. Important: when removing the drip tray, the grounds container must always be emptied, even if it contains few grounds. If this is not done, when you make the next coffees, the grounds container may fill up more than expected and clog the machine.
INSERT GROUND CONTAINER AND DRIP TRAY	After cleaning, the grounds container (A4), has not been replaced.	Remove the drip tray (A14) and insert the grounds container.
ADD PRE-GROUND COFFEE PRE-GROUND MAXIMUM ONE MEASURING CUP	The "pre-ground coffee" function has been selected, but without placing any pre-ground coffee in the funnel (A21).	Place pre-ground coffee in the funnel (fig. 14) and repeat delivery
	The funnel (A21) for pre-ground coffee, is clogged.	Empty the funnel with the help of the brush (C5) as described in par. "Cleaning the pre-ground coffee funnel".
ADD PRE-GROUND COFFEEPRE-GROUND MAXIMUMONE MEASURING CUP	A LONG coffee with pre-ground coffeehas been requested	Place pre-ground coffee in the funnel (A21) (fig.14) and presscontinue and completedelivery.
FILL BEAN CONTAINERBACK	The coffee beans have run out. Fill the beans container (A16 - fig.12).
GROUND TOO FINE. ADJUSTGRIND LEVEL 1 CLICK WHILEIN OPERATIONBACK	The grinding is too fine and the coffee is delivered too slowly or not at all.	Repeat coffee delivery and turn the grinding adjustment dial (fig. 11) one click clockwise towards number 7 while the coffee mill is in operation. If after making at least 2 coffees delivery is still too slow, repeat the correction procedure, turning the grinding adjustment dial another click (par. "Adjusting the coffee mill"). If the problem persists, make sure the water tank (A12) is fully inserted.
	If the water softener filter (C4) is present, an air bubble may have been released inside the circuit, obstructing delivery.	Insert the hot water/steam spout (C6) in the appliance and deliver a little water until the flow becomes regular.
SELECT A MILER TASTEOR REDUCE PRE-GROUNDCOFFEE QUANTITYBACK	Too much coffee has been used.	Select a milder taste by pressingDMA (B6)or reduce the quantity of pre-ground coffee (maximum 1 measure).
INSERT WATER OUTLET	The hot water spout (C6) is not inserted or is inserted incorrectly	Insert the water spout as far as it will go.
INSERT MILK CONTAINER	The milk container (D) is not inserted correctly.	Insert the milk container as far as it will go (fig. 19).
INSERT BREWING UNIT	After cleaning the infuser (A19) has not been replaced.	Insert the infuser as described in par. "Cleaning the infuser".
WATER CIRCUIT EMPTY PRESS OK TO START FILLING PROCESS	The water circuit is empty	Press √OK and allow water to drain out of the spout (C6): the flow will stop itself automatically. If the problem persists, make sure the water tank (A12) is fully inserted.
PRESS OK TO START CLEANING PROCESS OR TURN MILK FROTH ADJUSTMENT KNOB	The milk container has been inserted with the froth adjustment dial (D1) in the CLEAN position.	To proceed with the CLEAN function, press √OK or turn the froth adjustment dial to one of the milk positions.
TURN THE MILK FROTH ADJUST-MENT KNOB TO START CLEANING	Milk has been delivered recently and the tubes inside the milk container must be cleaned (D).	Turn the froth adjustment dial (D1) to CLEAN (fig. 21).
TURN THE MILK FROTH ADJUSTMENT KNOB TO MILK POSITION	The milk container has been inserted with the froth adjustment dial (D1) in the CLEAN position.	Turn the dial to the required froth position.
DESCALING NEEDED PRESS OK TO START (~45MIN)BACK √OK	Indicates that the machine must be de-scaled.	Press √OK to start de-scaling or press ➔ BACK to de-scale later. The de-scaling procedure described in section “De-scale” needs to be performed.
REPLACE WATER FILTER PRESS OK TO START[w8w6]BACK √OK	The water softener filter (C4) is exhausted.	Press √OK to replace or remove the filter, or ➔ BACK to carry out the procedure later. Follow the instructions in section “Water softener filter”.
GENERAL ALARM: REFER TO USER MANUAL	The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly, as described in section “Cleaning”. If the message is still displayed after cleaning, contact an authorised Customer Service centre.
	Reminder that appliance needs de-scaling and/or the filter (C4) must be replaced.	The de-scaling procedure described in section “De-scale” needs to be performed as soon as possible and/or the filter needs replacing or removing as described in section “Water softener filter”.
	Reminder that tubes inside the milk container (D) must be cleaned.	Turn the froth adjustment dial (D1) to CLEAN (fig. 21).
	Reminder that filter (C4) must be replaced.	Replace the filter or remove it as described in section “Water softener filter”.
	Reminder that machine must be de-scaled.	The de-scaling procedure described in section “De-scale” needs to be carried out as soon as possible.
	Indicates that the auto-start function is enabled.	To disable the function, proceed as described in par."Auto-start".
	Energy saving is enabled. To disable energy saving, proceed as described in par."Energy saving".
	Indicates that the filter (C4) has been enabled	To remove the filter, proceed as described in section "Water softener filter".

Below is a list of some of the possible malfunctions.

If the problem cannot be resolved as described, contact Customer Services Technical Assistance.

PROBLEM POSSIBLE CAUSE REMEDY
The coffee is not hot.	The cups were not preheated.	Warm the cups by rinsing them with hot water (Please note! the hot water function can be used).
	The infuser has cooled down because 2/3 minutes have elapsed since the last coffee was made.	Before making the coffee, heat the infuser by rinsing using the rinse function (see par. "Rins-ing")
	A low coffee temperature is set.	Set a hotter coffee temperature in the menu (see par. "Coffee temperature").
The coffee is weak or not creamy enough.	The coffee is ground too coarsely.	Turn the grinding adjustment dial one click anticlockwise towards number 1 while the coffee mill is in operation (fig. 11). Continue one click at a time until coffee delivery is satisfactory. The effect can only be noticed after delivering 2 coffees (see par. "Adjusting the coffee mill").
	The coffee is unsuitable. Use coffee for espresso machines.
The coffee is delivered too slowly or a drop at a time.	The coffee is ground too finely. Turn the	grinding adjustment dial one click clockwise towards number 7 while the coffee mill is in operation (fig. 11). Continue one click at a time until coffee delivery is satisfactory. The effect can only be noticed after delivering 2 coffees (see par. "Adjusting the coffee mill").
Coffee does not come out of one or both of the spouts.	The coffee spouts (A13) are blocked. Clean the spouts with a toothpick (fig. 30).
The appliance is not producing coffee The appliance detects impurities in its system: the display shows "CLEANING IN PROGRESS".		Wait for the appliance to be ready for use again and reselect the required beverage. Contact an Authorised Customer Service Centre if the problem persists.
The appliance does not come on It is not plugged into the socket. Plug into the mains socket (fig. 1).
The main switch (A21) is not turned on. Press the main switch (fig. 2).
The infuser cannot be extracted	The appliance has not been turned off correctly	Turn the appliance off by pressing the ⏻ button (A19) (see section "Turning the appliance off").
At the end of de-scaling, the appli-ance requests a third rinse	During the two rinse cycles, the water tank (A12) was not filled to the MAX level	Follow the instructions displayed by the appli-ance, first emptying the drip tray (A14) to avoid the water overflowing.
PROBLEM POSSIBLE CAUSE REMEDY
The milk does not come out of the milk spout (D5)	The lid (D2) of the milk container (D) is dirty	Clean the milk container lid as described in par. "Cleaning the milk container".
The milk contains large bubbles and squirts out of the milk spout (D5) or there is little froth	The milk is not cold enough or is not semi-skimmed or skimmed.	Use fully skimmed or semi-skimmed milk at refrigerator temperature (about 5°C). If the result is not as you wished, try changing brand of milk.
	The froth adjustment dial (D1) is incorrectly adjusted.	Adjust following the instructions in section "Adjusting the amount of froth".
	The milk container lid (D2) or froth adjustment dial (D1) is dirty	Clean the milk container lid and froth adjustment dial as described in par. "Cleaning the milk container".
	The hot water/steam connection nozzle (A13) is dirty	Clean the connection nozzle as described in par. "Cleaning the hot water/steam connection nozzle".
The machine emits noises or small puffs of steam while not in use	The machine is ready for use, or has recently been turned off, and condensate is dripping into the vaporiser which is still hot	This is part of normal operation.To limit this, empty the drip tray.

ESPRESSO

Origin	Italy
PROCESS	Grinding	Coffee powder	6-11gr (according to aroma)
		Brewing	Pre-infusion
			Infusion high pressure (9-12 bar)
RESULT IN CUP	Default Quantity	~ 40ml
		Cream compact and nut-coloured
		Taste intense
OCCASION OF USE	short-term pleasure, every moment of the day

COFFEE

Origin Germany & Central Europe

PROCESS Grinding Coffee powder 8-14gr (according to aroma)Brewing Pre-infusion no pre infusionInfusion high pressure (9-12 bar)

RESULT IN CUP Default Quantity ~ 180mlCream thinner than espressoTaste balanced and delicate

OCCASION OF USE long-lasting pleasure, every moment of the day

LONG

Origin USA, Australia

PROCESS Grinding Coffee powder 2 grindings of 5-9gr (according to aroma)Brewing Pre-infusion no pre infusionInfusion impulse mode lower pressure than espresso

RESULT IN CUP Default Quantity ~ 160mlCream thinner and lighter than espressoTaste perfect for drip coffee lovers

OCCASION OF USE long-lasting pleasure, every moment of the day

DOPPIO+

Origin	Italy
PROCESS	Grinding	Coffee powder 15grBrewing Pre-infusion reduced pre infusionInfusion higher pressure than espresso
RESULT IN CUP	Default Quantity ~ 120mlCream thicker and darker than espressoTaste stronger than espresso
OCCASION OF USE	need for energy

AMERICANO

Origin USA, UK
PROCESS Grinding Coffee powder 6-11gr (according to aroma)
	Brewing	Pre-infusion•Infusion high pressure (9-12 bar)
RESULT IN CUP Default Quantity ~ 150ml
	Cream thinner and lighter than espressoTaste Light and delicate

ESPRESSO MACCHIATO

Origin	Italy
PROCESS Coffee	6-11gr (according to aroma) (~ 30ml)
	Milk	few drops (~ 20ml)
	Milk foam	maximum level
	Delivery order coffee first, milk afterwards
RESULT IN CUP	Visual	black with one thin layer or milk foam
	Milk foam
OCCASION OF USE	every moment of the day, people who want to taste a slightly sweet espresso

CAPPUCCINO

Origin	Italy
PROCESS	Coffee balanced (~ 80ml)Milk balanced (~ 70ml)Milk foam maximum levelDelivery order milk first, coffee afterwards
RESULT IN CUP	Visual separate layers of foam, coffee and milkMilk foam white with milky taste
OCCASION OF USE	every moment of the day, people who want to taste coffee and milk separately

CAPPUCCINO+

Origin	Italy
PROCESS	Coffee Doppio+ (~ 120ml)Milk ~ 70mlMilk foam maximum levelDelivery order milk first, coffee afterwards
RESULT IN CUP	Visual darker than cappuccinoMilk foam separate layers of foam, coffee and milk, with milky taste
OCCASION OF USE	need for energy, people who want a cappuccino with a strong coffee taste

CAPPUCCINOMIX

Origin	Italy
PROCESS Coffee balanced (~ 80ml)
	Milk balanced (~ 70ml)
	Milk foam maximum level
	Delivery order coffee first, milk afterwards
RESULT IN CUP Visual uniformly brown milk drink
	Milk foam light brown with coffee taste
OCCASION OF USE every moment of the day, people who loves melted milk and coffee tastes

LATTE MACCHIATO

Origin	Italy
PROCESS Coffee ~ 60ml	Milk ~ 90mlMilk foam medium levelDelivery order milk first, coffee afterwards
RESULT IN CUP Visual separate layers of foam, coffee and milkMilk foam white with milky taste
OCCASION OF USE every moment of the day, people who want to taste coffee and milk separately

FLAT WHITE

Origin USA, Australia

PROCESS Coffee ~ 60ml

Milk ~ 200ml

Milk foam medium level

Delivery order milk first, coffee afterwards

RESULT IN CUP Visual separate layers of foam, coffee and milk

Milk foam served in a ceramic cup white with milky taste

OCCASION OF USE every moment of the day, people who want to taste coffee and milk separately

CAFFELATTE

Origin	Italy
PROCESS Coffee ~ 60ml
	Milk ~240mlMilk foam medium levelDelivery order milk first, coffee afterwards
RESULT IN CUP Visual separate layers coffee and milkMilk foam little layer of white foam with milky taste
OCCASION OF USE every moment of the day, people who want to taste coffee and milk separately

TABLA DE CONTENIDOS

INTRODUCCIÓN....56

00 1/2 1/3 1/4 1/5 1/6 1/7 1/8 1/9 1/10 1/11 1/12 1/13 1/14 1/15 1/16 1/17 1/18 1/19 1/20 ①② A#B#C#D#E#F# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G#H#J#K# G# H##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K##K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## K## L## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G#H#J#K## G# H## G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H#J# G#H###

BESCHRIJVING VAN HET APPARAAT 80

INSTALLATIE VAN HET APPARAAT ....81

HET APPARAAT INSCHAKELEN 81

HET APPARAAT UITSCHAKELEN....81

MENU-INSTELLINGEN 82

Spoelen....82

Ontkalken 82

Wateronthardingsfilter 82

Drankinstellingen 82

Tijd instellen 82

Auto-start 82

Auto-off (standby) 83

AFGIFTE VAN WARM WATER....87

AFGIFTE VAN STOOM 87

BESCHRIJVING VAN HET APPARAAT

INSTALLATIE VAN HET APPARAAT

Let op:

HET APPARAAT INSCHAKELEN

Let op:

The display background for your appliance can be chosen from the following 4 alternatives. Proceed as follows:

1. Press (B2) to enter the menu;
2. Press (B10) or ▷ (B8) until the display (B) shows BACKGROUND;
3. Press →: the available backgrounds appear on the display;
4. Select the desired background by pressing on the square chosen: the appliance returns to the settings menu with the new background selected;
5. Press BACK to go back to the homepage.

Demostand

AFGIFTE VAN WARM WATER

Gevaar brandwonden!

DONNÉES TECHNIQUES....117

MESSAGES AFFICHÉS À L'ÉCRAN 118

RÉSOLUTION DES PROBLÈMES 123

INTRODUCTION

0° 100 200 300 400 500 600 700 800 900 1000 AUX: 1/2 BUX: 1/2 CUX: 1/2 DUX: 1/2 EUX: 1/2 FUX: 1/2 GUX: 1/2 HUX: 1/2 IUX: 1/2 JUX: 1/2 KUX: 1/2 LUX: 1/2 MUX: 1/2 NUX: 1/2 OUX: 1/2 PUX: 1/2 QUX: 1/2 RUX: 1/2 SUX: 1/2 TUX: 1/2 UUX: 1/2 VUX: 1/2 WUX: 1/2 XUX: 1/2 YUX: 1/2 ZUX: 1/2

The filter is now active and the coffee machine can be used.

Nota bene:
