USER MANUAL RCFW-110D-PRO Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

DE	Produktname:	FLEISCHSCHNEIDER
EN	Product name:	MEAT SLICER
PL	Nazwa produktu:	KRAJALNICA DO MIESA
CZ	Název výrobku	NÁŘEZOYŠ STROJ
FR	Nom du produit:	TRANCHEUSE À JAMBON
IT	Nome del prodotto:	AFFETTATRICE
ES	Nombre del producto:	CORTAFIAMBRES
HU	Termék neve	HÚSSZELETELŐ
DA	Produktnavn	SKÆREMASKINE TIL K∅D
DE	Modell:	RCFW-110D-PRO
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

Mechanical gear assembly with two blue meshed gears inside a metal frame (no text or symbols visible)

Parameter description	Parameter value
Name of the product	MEAT SLICER
Model	RCFW-110D-PRO
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	550
IP Code	IPX1
Dimensions (Width / Depth / Height) [mm]	320x500x480
Weight [kg]	38.7
Operational speed [rpm]	96
Capacity [kg]/h	250

1. General description

These instructions are intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

READ THE INSTRUCTIONS CAREFULLY AND UNDERSTAND THEM BEFORE USE.

To ensure long and reliable operation of the device, care should be taken to operate and maintain the device correctly in accordance with the instructions. The technical data and specifications contained in these instructions are up-to-date. The manufacturer reserves the right to make changes for the purpose of quality improvement. Taking technological progress and the possibility to reduce noise into account, the device is designed and built so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE

The product meets the requirements of relevant safety standards.

	Read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	CAUTION! Risk of electric shock!
	CAUTION! Rotating parts!
	Emergency Stop!
	For indoor use only.
	A protection class I device.

The original version of the instructions is the German version. Other language versions are translations from German.

2. Safe use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and instructions refers to the MEAT SLICER.

2.1. Electrical safety

a) The device plug must fit into the socket. Do not modify the plug in any way. Original plugs and matching sockets reduce the risk of electric shock.

b) Avoid touching earthed items such as tubes, radiators, heaters and refrigerators. There is an increased risk of electric shock if your body is earthed and touches the device exposed to direct rain, wet floor and humid environment. If water penetrates into the device, there is an increased risk of damage to the device and electric shock.

c) Do not touch the device with wet or damp hands.

d) Do not use the cable in a wrong way. Never use it to carry the device or to pull the plug out of the socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

e) If you cannot avoid using the device in a wet environment, use a residual current device (RCD). Using an RCD reduces the risk of electric shock.

f) Do not use the device if the power cable is damaged or shows clear signs of wear. A damaged power cable should be replaced by a qualified electrician or the manufacturer's service.

g) To avoid electric shock, do not immerse the cable, plug or device itself in water or other liquid. Do not use the device on wet surfaces.

2.2. Safety in the work area

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the device.

b) Do not use the device in an area with a risk of explosion, for example in the presence of flammable liquids, gases or dust. The device produces sparks which can ignite dust or vapours.

c) In the event of damage or malfunction of the device, it must be switched off immediately and the incident must be reported to an authorised person.

d) If in doubt as to whether the product is working properly or if you detect damage, contact the manufacturer's service.

e) Repairs of the product may only be carried out by the manufacturer's service. Do not carry out repairs yourself!

f) If in doubt as to whether the device is working properly, contact the manufacturer's service.

g) Repairs to the device may only be carried out by the manufacturer's service. Do not carry out repairs yourself!

h) In the event of fire or fire, use only powder or snow (CO2) extinguishers to extinguish fire in the device where there is voltage.

i) No children or unauthorised persons are allowed in the work area. (Lack of attention may result in loss of control over the device).
j) Check the condition of the safety stickers regularly. Replace them if they are illegible.
k) Keep these instructions for future reference. If the device is to be passed on to third parties, the instructions for use must be handed over together with the device.
I) Keep packaging parts and small assembly parts out of the reach of children.
m) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the device.

2.3. Personal safety

a) Do not operate the device if you are tired, ill or under the influence of alcohol, drugs or medication which might impair your ability to operate the device.
b) The device may only be operated by persons who are physically fit, capable of handling the device and who have been adequately trained, who have read these instructions and have received training in health and safety.
c) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have been given instructions by them on how to operate the device.
d) A short moment of distraction during operation may lead to serious personal injury.
e) To prevent accidental start-up, make sure the switch is in the OFF position before connecting the device to the power source.
f) Do not overestimate your capabilities. Maintain body balance at all times during operation. This allows for better control of the device in unexpected situations.
g) Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothing, jewellery or long hair can be caught by moving parts.
h) Remove all adjusting tools or keys before turning the device on. A tool or key left in the rotating part of the device may cause injury.
i) The device is not a toy. Children should be supervised to ensure that they do not play with the device.

2.4. Safe use of the device

a) Do not use the device if the ON/OFF switch does not function properly (does not switch on and off). Devices that cannot be controlled by the switch are dangerous, must not be operated and must be repaired.

b) Pull the plug out of the socket before making adjustments, changing accessories or storing the device. This preventive measure reduces the risk of accidental activation.
c) The device must be disconnected from the power supply before adjustment, cleaning and maintenance. This preventive measure reduces the risk of accidental activation.
d) Keep unused devices out of the reach of children and anyone not familiar with the device or these instructions. Devices are dangerous in the hands of inexperienced users.
e) Keep the device in good working order. Before each use, check for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.
f) Keep the device out of the reach of children.
g) Repair and maintenance of the device should be carried out by qualified persons using only original spare parts. This will ensure a safe use of the device.
h) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen any screws.
i) When transporting and moving the device from the place of storage to the place of use, follow the health and safety regulations for manual transport that apply in the country in which the device is used.
j) Avoid situations where the device stops under heavy load during operation. This can cause overheating of the drive elements and subsequent damage to the device.
k) Do not touch moving parts or accessories unless the device has been disconnected from the power supply.
I) Do not move, shift or rotate the device during operation.
m) Clean the device regularly to prevent the permanent accumulation of dirt.
n) The device is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
o) It is forbidden to tamper with the device in order to change its parameters or construction.
p) Keep the device away from sources of fire and heat.
q) In order to prevent injuries, care should always be taken when carrying out maintenance work, especially on the cutting discs.

CAUTION! Although the device has been designed to be safe and has been equipped with adequate safeguards, and despite the use of additional safety measures, there is still a small risk of accident or injury when operating the device. Caution and common sense are advised when using the device.

3. Rules of use

The product is intended for even cutting of food products.

The user is responsible for any damage caused by improper use.

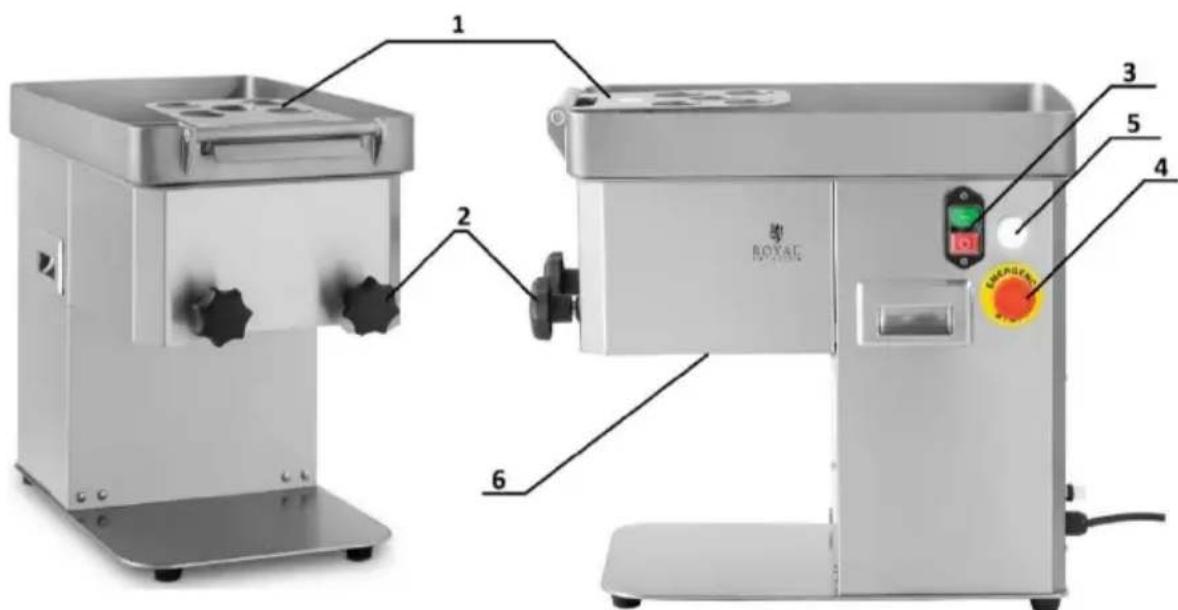

3.1. Description of the device

1 2 3 4 5 6 BOXE

1 – Openings with protection shield for meat feeding

2 - Knobs for the assembly of the cutting mechanism

3 - Switch on "I"/off "O" button

4 – Safety switch

5 – Power indicator light

6 – Outlet for the processed food product

3.2. Preparation for work

LOCATION OF THE DEVICE

The ambient temperature should not exceed 40^ C and the relative humidity should not exceed 85%. Position the device in a way that allows for good air circulation. Maintain a minimum distance of 10 cm from any wall. Keep the device away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual abilities. Position the device in such a way that the power supply plug can be reached at any time. Make sure that the device's power supply corresponds to the data on the rating plate!

Prior to first use disassemble all elements and wash them.

DEVICE ASSEMBLY AND DISASSEMBLY

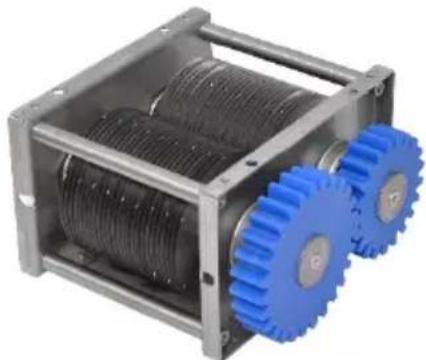

Assembly of the cutting mechanism:

Mechanical gear assembly with two blue meshed gears inside a metal frame (no text or symbols visible)

a) Lift the protection shield with openings for meat feeding.

b) Loosen the blade assembly knobs.

c) Insert the cutting mechanism inside the chamber. Push the blades to the rear wall of the chamber.

d) Tighten on the blade assembly knobs.

e) Drop the protection cover.

f) The disassembly is done in reverse order to its assembly.

3.3. Working with the device

a) Connect the power supply cable to the power socket.
b) Prepare the container and place it under the outlet of the device.
c) Switch the machine on by pressing the "I" (on) button. The indicator light will turn on.
d) After the operation of the device is completed, switch the device off by pressing the "0" switch. The indicator light will turn on.
e) Disconnect the power supply cable and clean the machine.

NOTE! Lifting the protective cover with openings during operation of the ice will result in the automatic stop of the mechanism.

NOTE! The machine features an emergency switch. Pressing it results in ping of the operation of the entire device. To restart the device, turn the urgency button clockwise.

CAUTION! In order not to disturb operation of the device, the conditioned food products intended for cutting should not include bones.

3.4. Cleaning and maintenance

a) Before cleaning, adjustment or replacement of accessories, and when the device is not in use, pull the power supply plug and let the device cool down completely.
- Wait until the spinning elements stop.
b) Before cleaning and when the device is not in use, pull the power supply plug.
c) Use only non-corrosive agents for cleaning the surface.
d) Only mild cleaning agents designed for cleaning surfaces which come into contact with food may be used to clean the device.
e) After each cleaning, all components should be well dried before the device is used again.
f) Store the device in a dry and cool place protected from moisture and direct sunlight.
g) Do not spray the device with a stream of water and do not immerse it in water.
h) Ensure that no water enters through the ventilation openings in the housing.
i) Clean the ventilation openings with a brush and compressed air.
j) Regularly inspect the device for technical failure and damage.
k) Use a soft cloth for cleaning.
I) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or metal scraper) as these may damage the surface of the device.
m) Do not clean the unit with acidic substances, medical products, thinners, fuel, oil or other chemicals as they may damage it.
n) Clean the cutting mechanism of the device every day.

DISPOSAL OF USED DEVICES

At the end of its service life, this product must not be disposed of with normal household waste, but should be taken to a collection point for the recycling of electrical and electronic devices. This is shown by the symbol placed on the product, operating manual or the packaging. The materials used in the device can be reused according to their intended use. By reusing materials or conducting other forms of using used devices, you make a significant contribution to the protection of our environment.

Local administration will provide you with information about the appropriate point for disposal of used devices.

TROUBLESHOOTING

Problem	Possible cause	Action
The machine does not switch on afterthe “I” (on) button is pressed	1. No power supply2. Power outage.	1. Connect the power supply cable to the power socket2. Check fuses
The motor is working incorrectly or is overheating	1. Voltage in the power supply sockets too low	1. Check the power supply in the sockets
The device outlet is overheating or the processed quantity of product is lower	1. The cutting mechanism has become blunt	1. Sharpen the cutting blades

Dane techniczne

Mechanical assembly with two blue gear wheels and coiled black components inside a metal frame (no text or symbols visible)

Mechanical assembly with two blue gear wheels and a coiled black cylindrical component inside a metallic frame (no text or symbols visible)

Mechanical gear assembly with two blue and black gears inside a metal frame (no text or symbols visible)

Mechanical assembly with two blue and black gears inside a metal frame (no text or symbols visible)

3D rendering of a mechanical assembly with two blue gear wheels and coiled black components inside a metal frame (no text or symbols visible)

Mechanical gear assembly with two blue meshed gears inside a metal frame (no text or symbols visible)

Mechanical gear assembly with two blue meshed gears inside a metal frame (no text or symbols visible)

• MD 2006/42/EC,
- EMC 2014/30/UE,
• RoHS 2011/65/UE,

außerdem erfüllt dieses Produkt die Anforderungen der folgenden harmonisierten Normen | complies with the requirements of the following harmonized standards | spełnia wymagania następujących norm zharmonizowanych | ce produit est conforme aux normes harmonisées suivantes | inoltre il prodotto soddisfa i requisiti previsti dalle seguenti norme armonizzate | además, este producto cumple con los requisitos de las siguientes normas armonizadas | kromě toho splňuje tento produkt požadavky následujících harmonizovaných norem:

• EN 60335-1:2012+A11:2014.
EN 60335-2-64:2000+A1:2002.
• EN 62233:2008.
• EN 550144-1:2006+A1:2009+A2:2011,
• EN 61000-3-2:2014.
EN 61000-3-3:2013.
• EN 55014-2:2015.

For the disposal of the device please consider and act according to the national and local rules and regulations.
