USER MANUAL SBS-RT-1000N1 STEINBERG

CARRELLO PORTAPARANCO

Technical diagram of a mechanical clamp or lifting device with numbered components labeled 1 through 7.

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

	The product complies with applicable safety standards.
	Please read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMINDER! describing a situation.(general warning sign).
	Wear protective goggles.
	Wear protective gloves.
	Wear protective head gear.
	Wear protective footwear.
	CAUTION! Danger of crushing your hand!!

CAUTION!

The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the PLAIN TROLLEY.

2.1. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

b) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.

c) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.

d) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!

e) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)

f) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

g) Keep the packaging and small assembly parts out of the reach of children.

h) Keep the unit away from children and animals.

i) When using this machine together with other machines, also follow the other instructions for use.

Please note! Keep children and other bystanders safe while operating the unit.

2.2. Personal safety

a) Do not operate this product if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the product.
b) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) The machine is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.
d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols.
The use of appropriate, approved personal protective equipment reduces the risk of injury.
f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
g) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
h) Before switching the unit on, remove any regulating tools or keys. Any tools or keys left in the rotating part of the unit may cause injury.
i) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.3. Safe use of the unit

a) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.

b) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any

other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.
c) Keep the unit out of the reach of children.
d) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
e) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.
f) Clean the unit regularly to prevent permanent dirt build-up.
g) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
h) Do not tamper with the unit to alter its performance or design.
i) Keep the unit away from sources of fire and heat.
j) Do not overload the unit.
k) Using the unit to carry weights exceeding its maximum load is forbidden.
I) Do not allow people or animals to stand under suspended loads.
m) Transporting the load by means of the unit over people or animals is prohibited.
n) Transporting people or animals by means of this unit is prohibited.
o) Do not use excessive force or jerk the chain if resistance is encountered (regards model SBS-RT-1000N1).
p) Pulling the chain in any direction other than along the travel path when using this unit is prohibited. Pulling sideways may cause damage to the unit (applies to model SBS-RT-1000N1).
q) When transporting with the unit, avoid shocks, impacts and sudden changes in speed.
This will reduce the risk of the load falling from a height.
r) Before suspending the load, always ensure that the space in which it will be transported is clear of obstructions.
s) Bystanders should be warned of the operation of the equipment and should stay at a safe distance from the load.

t) Always pay close attention to the load.
u) Do not leave suspended loads unattended.
v) Avoid rocking the load.
w) Do not perform mechanical or similar work (welding, cutting, etc.) on suspended loads.
x) Make sure that the load is stable and properly secured on the load ring.
y) If the load falls, there is a risk of injury or death.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The unit is designed to move horizontally suspended loads along a track in a straight line.

The user is responsible for any damage resulting from misuse.

3.1. Description

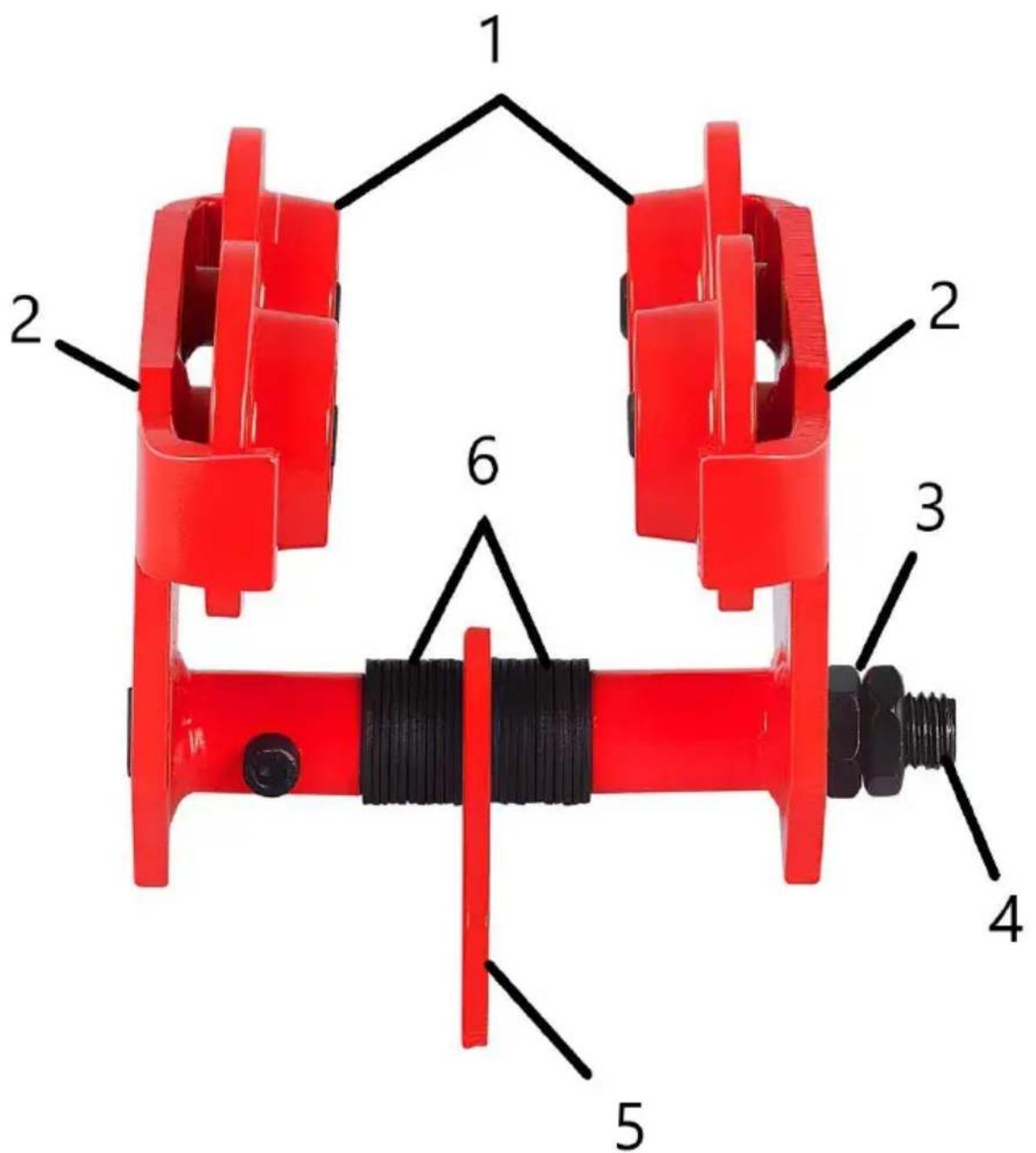

SBS-RT-500NN, SBS-RT-2000N2, SBS-RT-1000N2

1 2 2 3 4 5 6

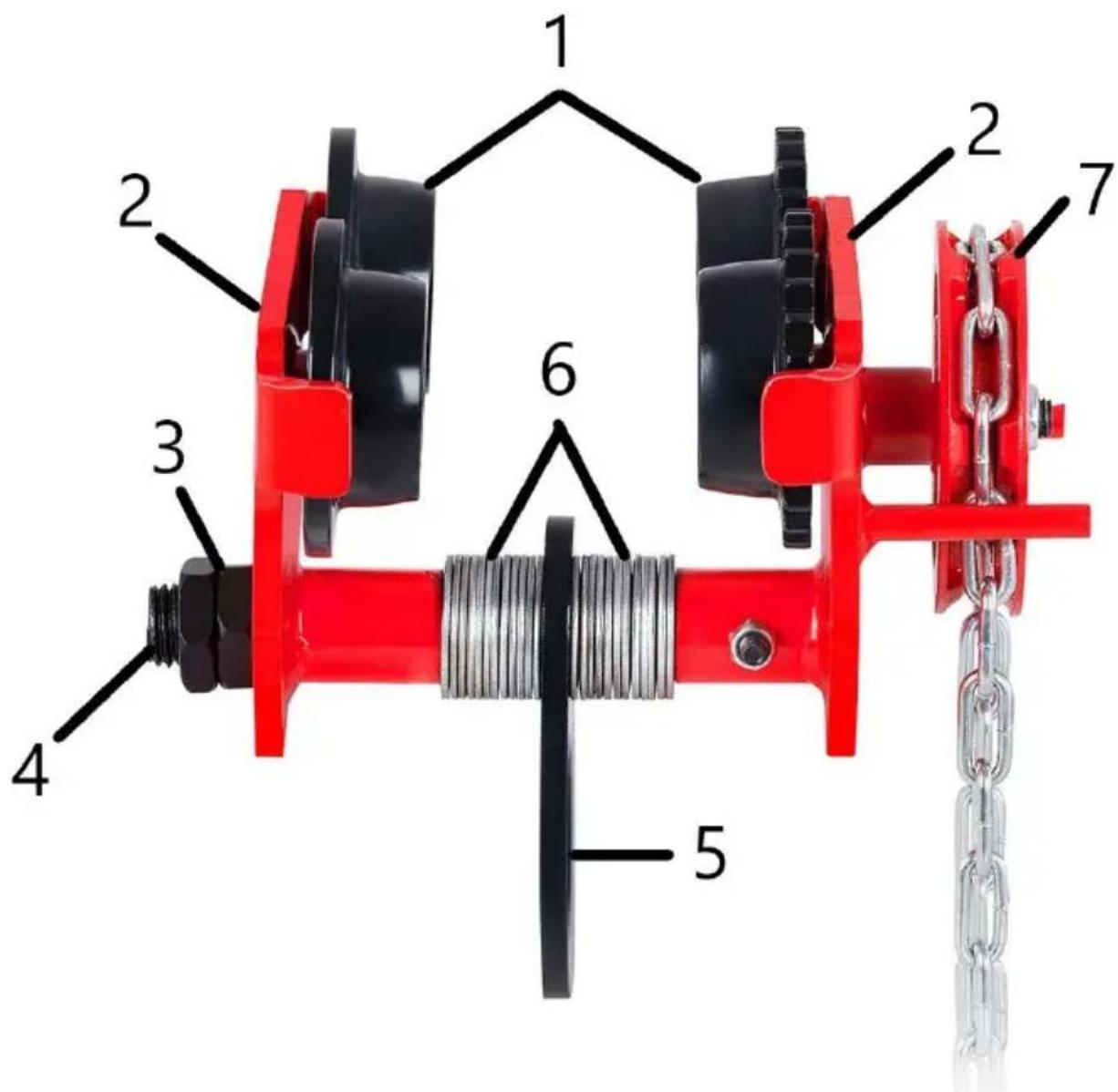

SBS-RT-1000N1, SBS-RT-500, SBS-RT-3000, SBS-RT-2000B

1 2 2 3 4 5 6 7

1. Wheels
2. Side plate
3. Hexagon nuts
4. Shaft
5. Load retainer
6. Spacers
7. Drive chain

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature should be between -10 and 50 °C.

CAUTION!: Make sure that the support structure on which the unit will move is strong enough to withstand the weight of the load

and the unit. Do not mount the unit on a support structure that cannot be verified as to its load-bearing capacity and strength.

The responsibility for mounting on a support structure and for the support structure itself rests with the user.

Special care must be taken when attaching the unit to the supporting structure, and all conditions for safe operation must be ensured in order to avoid hazards resulting in possible personal injury.

The maximum deviation from the horizontal of the cart track should not exceed 0.3%.

ASSEMBLY OF THE UNIT

Assembly and operation of the machine should be performed by a qualified person.

• Measure the preferred track width of the machine, making sure to maintain a gap of approximately 2mm between the flange of the machine wheel and the rail on which it will run.
• Adjust the track width:

- Loosen the hex nuts, spacing the side plates to the preferred width (keeping them parallel).

• Fill in the gaps on both sides of the side plates with washers, making sure that the load carrier is centered.
• Screw on the previously removed hexagon nuts. Make sure they are tightened securely.

3.3. Working with the unit

1. Check the condition of the unit before each use.
2. Before using the unit for the first time, test its correct installation and operation by suspending a light load and slowly rolling it along its travel path.

Each wheel should be flush and moving freely on the rail with the side plates parallel to each other.

1. The load should be carefully secured against falling and suspended from the handle.

2. For models without a chain, the unit must be pushed to move.

In contrast, the SBS-RT-1000N1 model is equipped with a gear that moves the cart when the chain is pulled. The unit must be moved in a steady motion, no sudden movements or jerks are allowed.

3.4. Cleaning and maintenance

a) Use only non-corrosive cleaning agents for cleaning the surfaces.
b) After each cleaning, all the parts should be dried well before the unit is used again.
c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Perform regular inspections of the unit checking technical fitness and any damages.
f) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
g) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.
h) Regularly maintain all moving parts of the unit and the travel path with grease.
