USER MANUAL SJÖSS IKEA
Design and Quality IKEA of Sweden


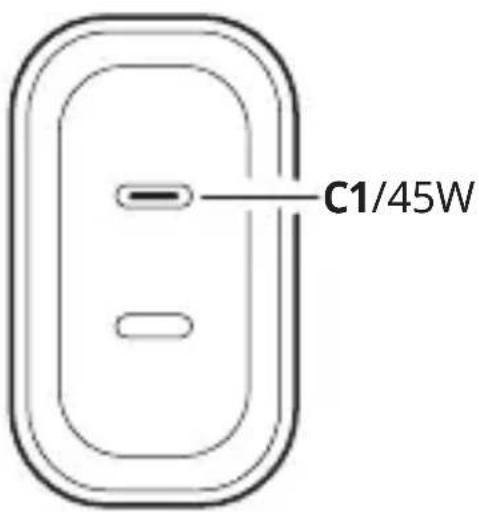

C1/45W


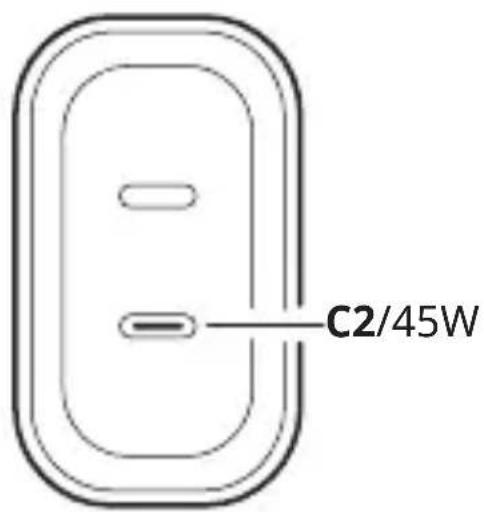

C2/45W


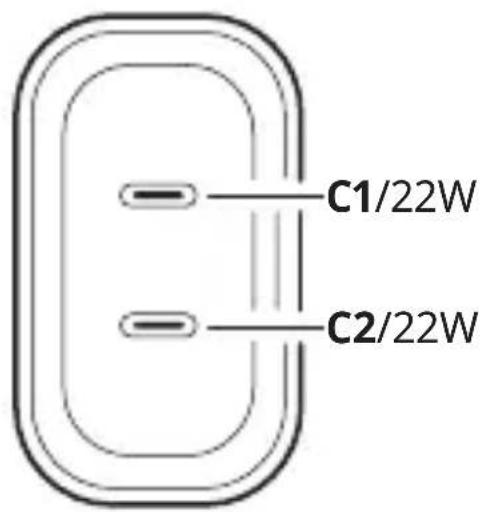

C1/22W C2/22WC1/C2:
5.0V 3.0A 15.0W
9.0V = 3.0A 27.0W
12.0V 3.0A 36.0W
15.0V = 3.0A 45.0W
20.0V 2.25A 45.0W
PPS: 5.0-16.0V = 3.0A 45.0W
C1:
5.0V = 3.0A 15.0W
9.0V = 2.44A 22.0W
12.0V = 1.83A 22.0W
15.0V 1.46A 22.0W
20.0V = 1.10A 22.0W
PPS: 5.0-11.0V ≈ 2.4A 22.0W
C2:
5.0V = 3.0A 15.0W
9.0V 2.44A 22.0W
12.0V = 1.83A 22.0W
15.0V 1.46A 22.0W
20.0V = 1.10A 22.0W
PPS: 5.0-11.0V = 2.4A 22.0W
PD
3.0
QC
4+
PPS
English 6
Français 9
Español 12
English
Product features
- Charges up to 2 devices simultaneously.
- Output power per USB-C outlet:
• one USB-C outlet in use: 45.0W
- two USB-C outlets in use: 22.0W
- The USB-C charger is compatible with Power Delivery (PD 3.0), Quick Charge (QC4+) and Programmable Power Supply (PPS).
- The USB-C charger supports quick charging of phones and tablets. The charger can also support charging of most laptops. The charging speed is determined by the connected device.
- Built-in safety features protect the USB-C charger from short-circuiting, overheating and overloading.
- The USB-C charger can be personalised with colourful stickers included in the package.
Instructions for use
Connect the USB-C charger to the wall socket. Insert the USB-C cable end into the USB-C port and the other end to the device you want to charge or power.
NOTE! USB-C cable is not included.
WARNING
- Discard the product if damaged.
- Never use a damaged or faulty USB cable, since this can damage or harm the charger or your device.
- Use only indoors.
- Never submerge the charger in water or other liquids.
- Children should be supervised to ensure they do not play with the product.
• Always connect the product to an easy accessible socket.
Cleaning instructions
To clean the charger, unplug from power source and wipe with a dry cloth.
Good to know
- USB cable length and quality influences charging speed and performance.
• Devices may get warm during charging. This is completely normal, and they will gradually cool down again after they are fully charged. - Charger operating temperature: 5^ to 35^ (41°F - 95°F).
- Unplug the charger from the power source when not in use.
Manufacturer: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
Technical data
Model: SJÖSS
Type: E2307-EU
Input: 100-240 Vac, 50/60 Hz, Max 1.0 A
Output:
| One USB-C outlet in use:Max 45.0WC1 or C2 | Two USB-C outlets in use:Max 22.0W per portC1 and C2 |
| 5.0V 3.0A 15.0W,9.0V 3.0A 27.0W,12.0V 3.0A 36.0W,15.0V 3.0A 45.0W,20.0V 2.25A 45.0W,PPS: 5.0-16.0V 3.0A 45.0W | 5.0V 3.0A 15.0W,9.0V 2.44A 22.0W,12.0V 1.83A 22.0W,15.0V 1.46A 22.0W,20.0V 1.10A 22.0W,PPS: 5.0-11.0V 2.4A 22.0W |
Average active efficiency: 88.1%
No load power consumption: < 0.075W
Indoor use only.
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.
The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will
help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
