LÖRBY 805.291.44 - Power strip IKEA - Free user manual and instructions

Product type	Electric power strip with USB charger
Model	LÖRBY 805.291.44
Brand	IKEA
Number of USB ports	3 USB ports
Max output current per USB port	2400 mA (2.4 A)
Max total charging current	3400 mA (3.4 A)
Input voltage	24 V DC
Output voltage	5 V DC
Max USB cable length	1.5 m (4' 11")
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 25°C
Use	Indoor only, dry locations
Attachment	Clamp, magnet, double-sided adhesive or screws
Cleaning	Wipe with a damp cloth, do not immerse
Safety	Unplug before cleaning; do not repair yourself; destroy if cable damaged
Recycling	Device to be recycled according to local regulations (crossed-out wheelie bin symbol)
Repairability	Do not attempt to repair yourself; contact IKEA
Type	E1605 LÖRBY

Frequently Asked Questions - LÖRBY 805.291.44 IKEA

How many devices can I charge simultaneously?

You can charge 3 devices simultaneously thanks to the three USB ports.

What is the maximum output current per USB port?

The maximum output current per USB port is 2400 mA (2.4 A). When multiple ports are used, the total current must not exceed 3400 mA.

Does the charger get hot normally?

Yes, it is normal for devices and the charger to heat up during charging. They will cool down gradually once fully charged.

Can I use a USB cable longer than 1.5 m?

It is recommended not to exceed 1.5 meters of USB cable to ensure optimal charging performance.

How to attach the charger?

The charger can be attached using the provided clamp, the built-in magnet, double-sided adhesive, or screws.

What to do if the USB cable is damaged?

Never use a damaged cable. The equipment must be destroyed if the cable is damaged.

Can I repair the charger myself?

No, do not attempt to repair the product yourself. Removing the cover may cause electric shocks. Contact IKEA.

How to clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never immerse in water.

What are the operating and storage temperatures?

Operating temperature: 0°C to 40°C. Storage temperature: -20°C to 25°C.

How to recycle this product?

The crossed-out wheelie bin symbol indicates that it must be recycled according to local environmental regulations. Contact your local IKEA store for more information.

USER MANUAL LÖRBY 805.291.44 IKEA

Design and Quality IKEA of Sweden

Technical line drawings of electrical components including a U-shaped magnet, cable, and terminal block (no text or symbols)

ENGLISH	6	SVENSKA	38
DEUTSCH	10	ČESKY	42
FRANÇAIS	14	ESPAÑOL	46
NEDERLANDS	18	ITALIANO	50
DANSK	22	MAGYAR	54
ÍSLENSKA	26	POLSKI	58
NORSK	30	EESTI	62
SUOMI	34	LATVIEŠU	66

LIETUVIŲ 70 ŮKPAЇНСЬКА 102
PORTUGUÊS 74 SRPSKI 106
ROMÂNA 78 SLOVENŠČINA 110
SLOVENSKY 82 TÜRKÇE 114
БЪЛГАРСКИ 86 عربی 118
HRVATSKI 90
ΕΛΛΗΝΙΚΑ 94
РУССКИЙ 98

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

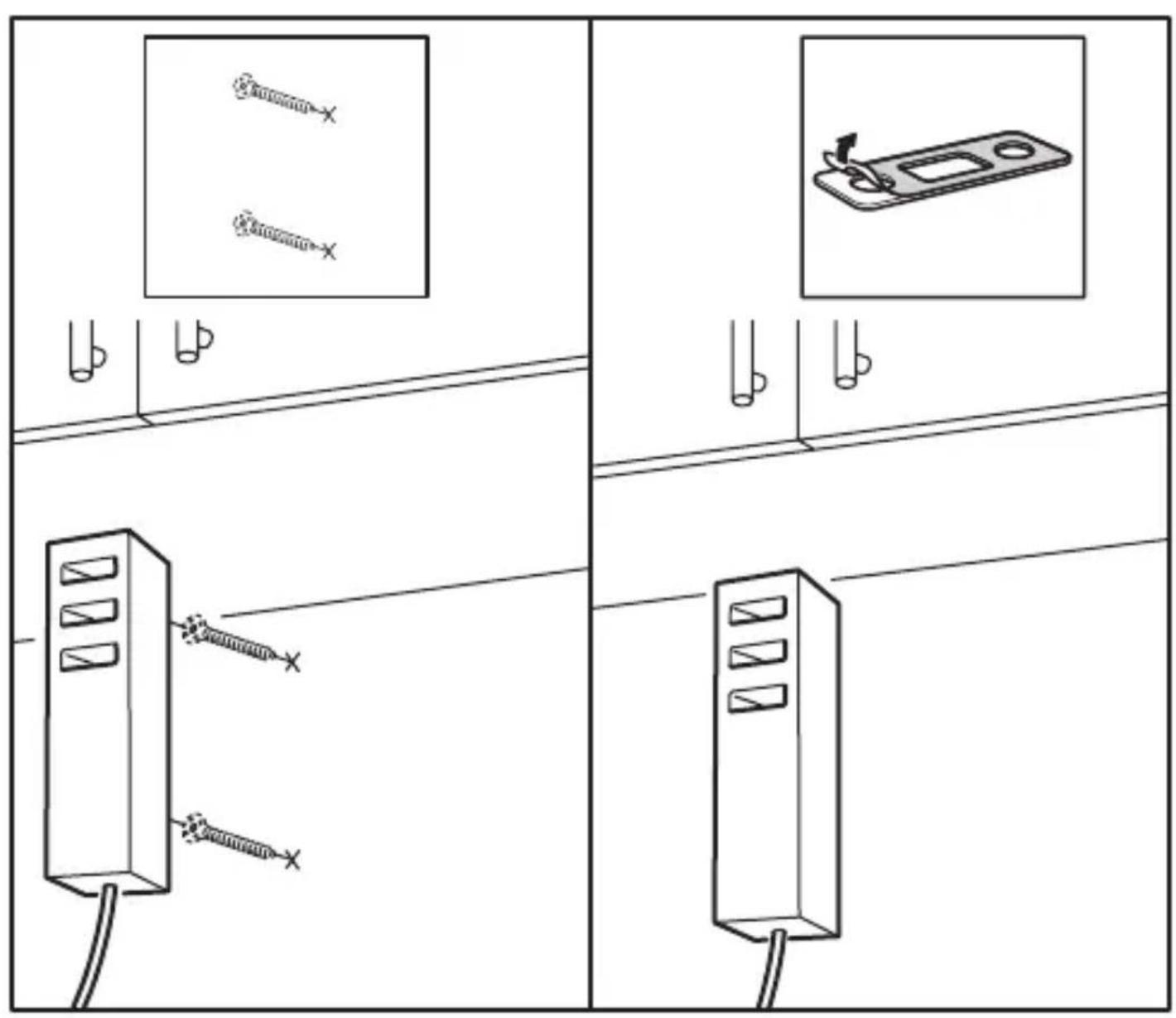

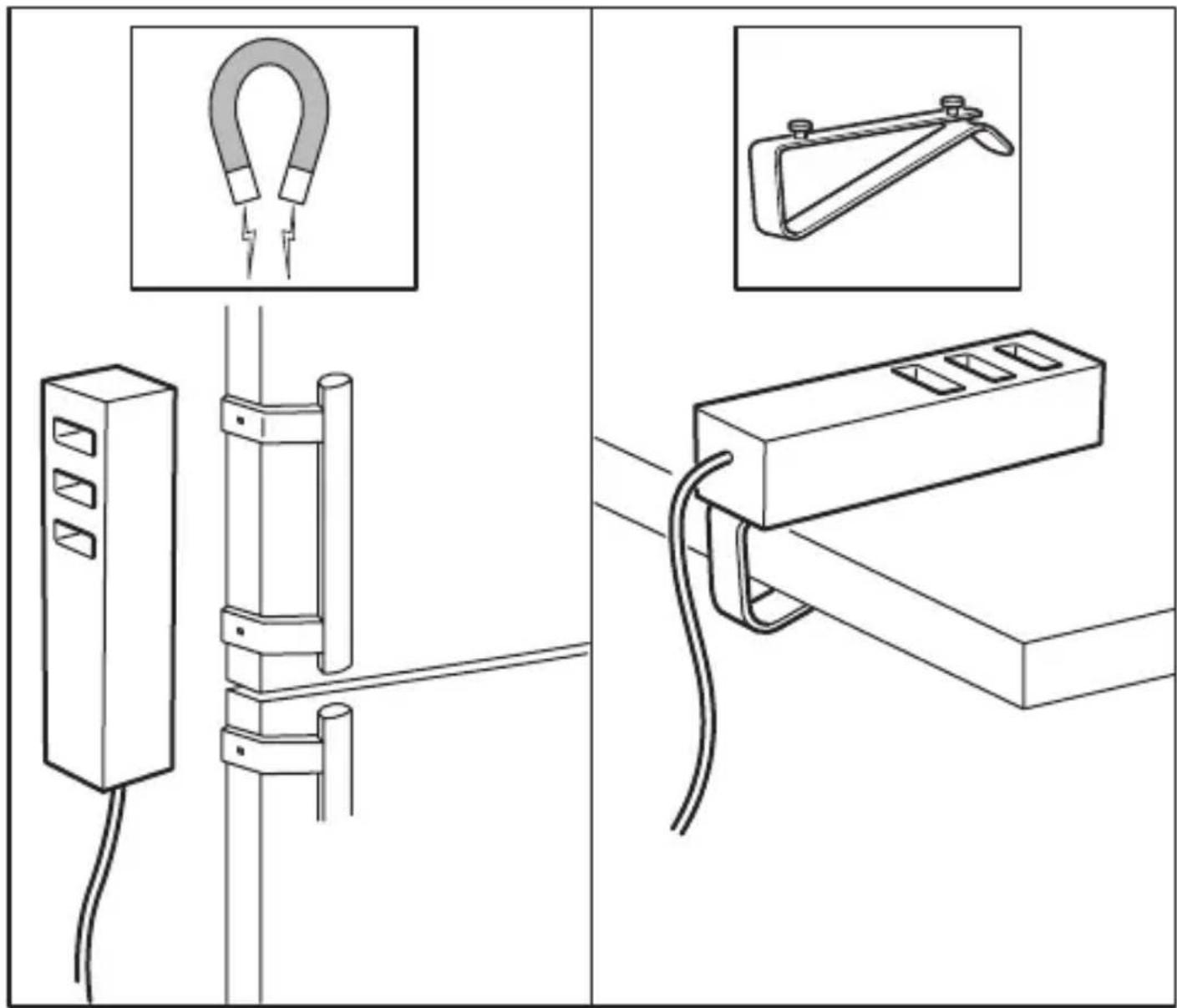

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400 mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

DEUTSCH 10

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, 343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SZWECJA

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, SWEDEN

© Inter IKEA Systems B.V. 2017

AA-2041619-3
