Product type	USB multi-outlet charger
Brand	IKEA
Model	LÖRBY 303.602.70
Number of USB ports	3
Input voltage	24 V DC
Output voltage	5 V DC
Maximum charging current	3400 mA
Maximum output current per port	2400 mA
Maximum USB cable length	1.5 m
Mounting	Clamp, magnet, double-sided adhesive, screws
Usage	Indoor only
Storage temperature	-20 °C to 25 °C
Operating temperature	0 °C to 40 °C
Cleaning	Damp cloth, do not immerse
Safety	Do not repair yourself, unplug before cleaning
Recycling	Sort according to local regulations

Frequently Asked Questions - LÖRBY 303.602.70 IKEA

How many devices can I charge simultaneously?

You can charge up to 3 devices at the same time thanks to the three USB ports.

What is the output current per USB port?

The maximum output current per USB port is 2400 mA, allowing fast charging.

How to mount the LÖRBY charger?

The charger can be mounted using the supplied clamp, the built-in magnet, double-sided adhesive or screws.

What to do if my battery is completely discharged?

If the battery is completely discharged, charging may take a few minutes to start. This is normal. The battery icon will appear once charging begins.

What usage precautions should I follow?

Use the charger in a dry place, indoors. Do not let children play with it. If the cable is damaged, destroy the device. Do not use a damaged USB cable.

How to clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never immerse the charger in water.

Can I repair the charger myself?

No, do not attempt to repair the charger yourself. Opening the housing may cause electric shocks. Contact a professional.

What are the operating and storage temperatures?

Operating temperature: 0 °C to 40 °C. Storage temperature: -20 °C to 25 °C.

Why does my device heat up while charging?

It is normal for devices to heat up during charging. They will cool down once fully charged.

How to recycle the LÖRBY charger?

The crossed-out wheeled bin symbol indicates that the product must be sorted. Recycle it according to local regulations. Contact your local IKEA store for more information.

USER MANUAL LÖRBY 303.602.70 IKEA

Design and Quality IKEA of Sweden

ENGLISH	6	SVENSKA	38
DEUTSCH	10	ČESKY	42
FRANÇAIS	14	ESPAÑOL	46
NEDERLANDS	18	ITALIANO	50
DANSK	22	MAGYAR	54
ÍSLENSKA	26	POLSKI	58
NORSK	30	EESTI	62
SUOMI	34	LATVIEŠU	66

LIETUVIŲ 70 ŮKPAЇНСЬКА 102
PORTUGUÊS 74 SRPSKI 106
ROMÂNA 78 SLOVENŠČINA 110
SLOVENSKY 82 TÜRKÇE 114
БЪЛГАРСКИ 86 عربی 118
HRVATSKI 90
ΕΛΛΗΝΙΚΑ 94
РУССКИЙ 98
118 عربي

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

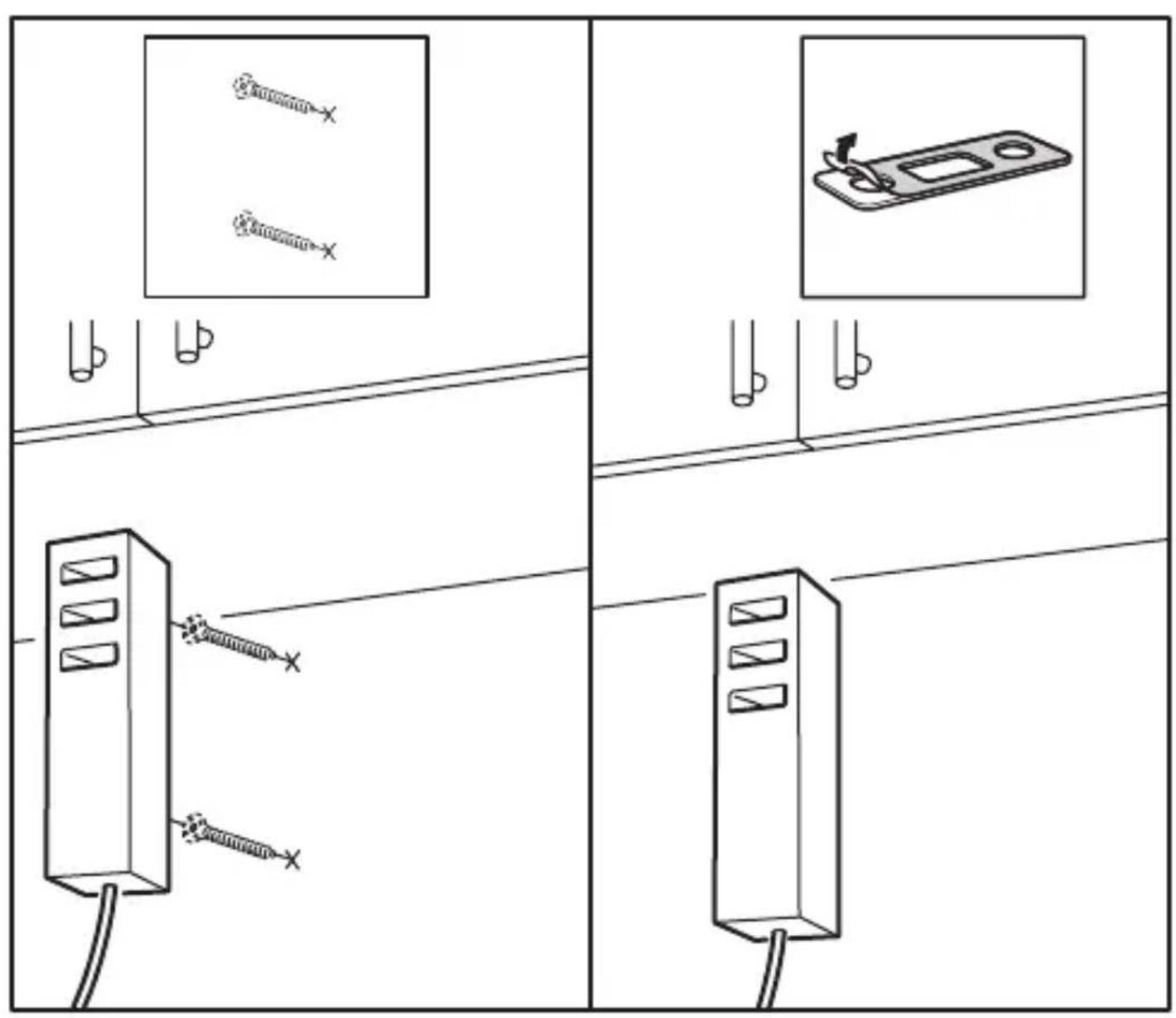

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20°C to 25°C .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400 mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

DEUTSCH 10

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, 343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SZWECJA

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, SWEDEN
